OBDSTAR | SKU: M088

OBDSTAR (M088) | Tohatsu 6-pins OBD – 16-pins OBD2 Adapter Cable | Motorboat

Name: OBDSTAR (M088) | Tohatsu 6-pins OBD – 16-pins OBD2 Adapter Cable | Motorboat
Brand: OBDSTAR
SKU: M088
Price: 27.95 EUR
Availability: InStock

€27,95 incl.

€23,10 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

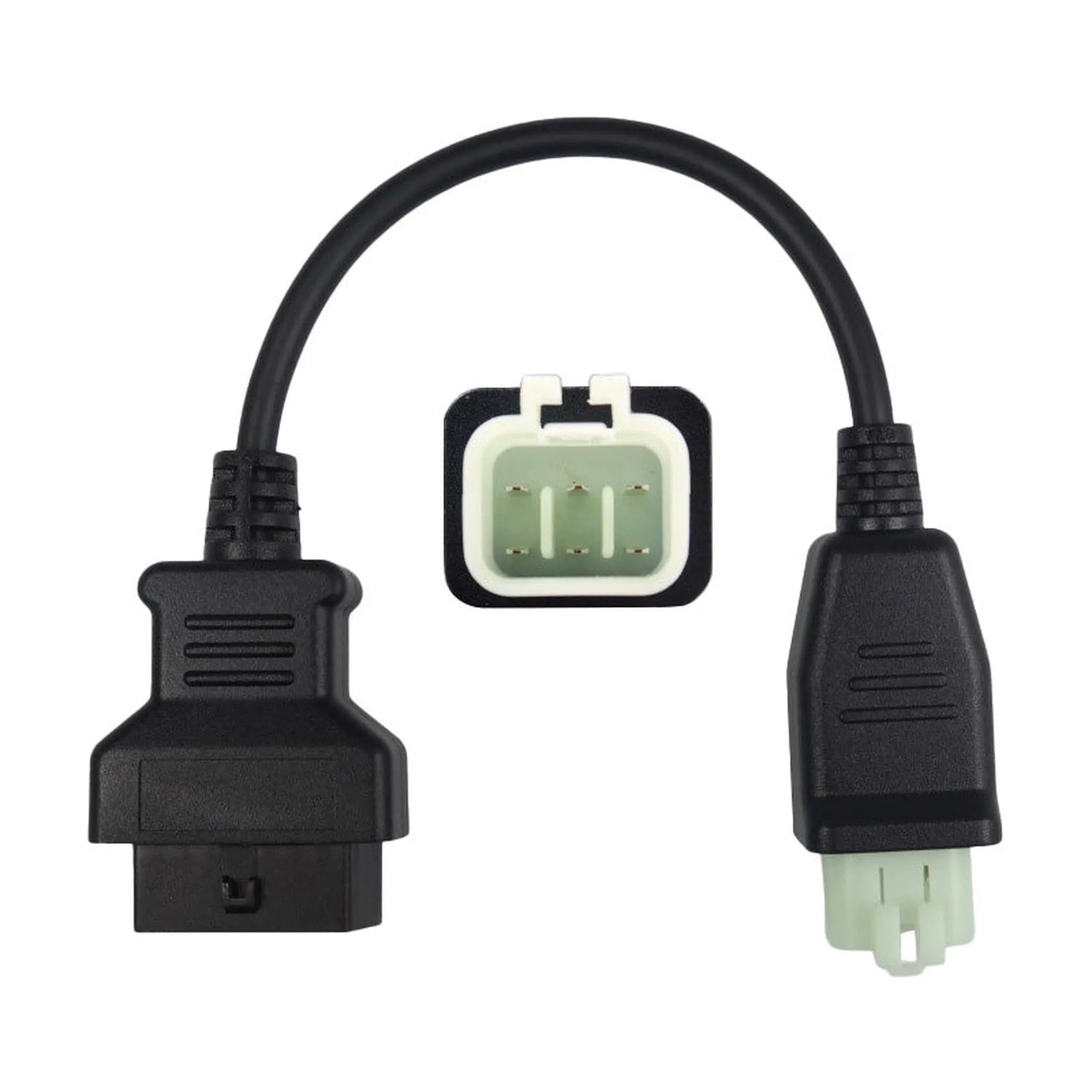

The OBDSTAR M088 connects the 6-pin diagnostic connector of Tohatsu outboard motors to the 16-pin OBD2 side of an OBDSTAR marine tool. The connector is located on the motor itself, under the engine cowling.

An outboard motor does not have an OBD2 port like a car. With this cable you can access the engine control and read fault codes and live data. The tool itself must provide the Tohatsu diagnostics.

PLUS POINTS

✔Provides access to the 6-pin Tohatsu connector for an OBDSTAR tool with a 16-pin input.

✔Genuine OBDSTAR adapter for marine diagnostics.

✔You read the motor with your own tool, without a separate Tohatsu tester.

✔Useful as a replacement for a lost or damaged M088.

POINTS TO NOTE

✕Your diagnostic tool must support the Tohatsu diagnostics of this motor; the cable does not convert protocols.

✕A simple EOBD code reader does not work with this cable; it only reads emissions data from cars.

✕OBDSTAR does not provide a list of engine types and build years; the connection to the motor is decisive.

✕Tohatsu has two different 6-pin plugs; for the other shape the M071 is required and for the 18-pin connector the M070.

Applications and functionality

The cable is intended for boat mechanics and workshops that read Tohatsu outboard motors with the 6-pin connector.

Control units you can access

Engine control: ECU of the outboard motor.
Other systems: Varies per motor and tool.

What you can do

Fault codes: Read and clear.
Live data: Engine speed, temperatures and sensors.
Fault finding: Where the diagnostic tool offers it.

How to use it

Engine off: Switch off the engine and open the engine cowling.
Locate connector: Find the 6-pin diagnostic connector.
Connect: Insert the plug straight and fully.
Connect the diagnostic tool: Connect the 16-pin side and switch the ignition on.
Reading: Select the brand, the motor and the function.

Compatible vehicles and applications

The shape of the 6-pin Tohatsu plug is decisive. The M071 and the M088 each have a different 6-pin plug; compare the plug with the photo.

Tohatsu:

Outboard motors: With the 6-pin diagnostic connector.

💡

Good to know: The M088 and the M071 each have a different 6-pin plug. Compare the plug under the engine cowling with the photo; for eighteen contacts you need the M070.

Package contents

1x OBDSTAR (M088) | Tohatsu 6-pin OBD – 16-pin OBD2 adapter cable | Motor boat

Technical specifications

General

The brand of the cable or adapter. It often has to match the brand of your diagnostic tool.Brand: OBDSTAR
The type of product: a separate adapter cable, an adapter without a cable or a complete set.Product type: Adapter cable

Suitable for

The brand of diagnostic tool the cable works with. A cable for one brand usually does not fit a tester of another brand.Compatible diagnostic tool: OBDSTAR
Whether the cable needs a separate power connection, for example via battery clamps. A passive cable works without one.Separate power supply required: No

Connections

The connector that plugs into the diagnostic port of the vehicle or machine. It must fit exactly.Vehicle-side connector: 6-pin OBD
The connector on the side of your diagnostic tool or interface. Usually a 16-pin OBD2 connector.Tool-side connector: 16-pin OBD2 (J1962)
