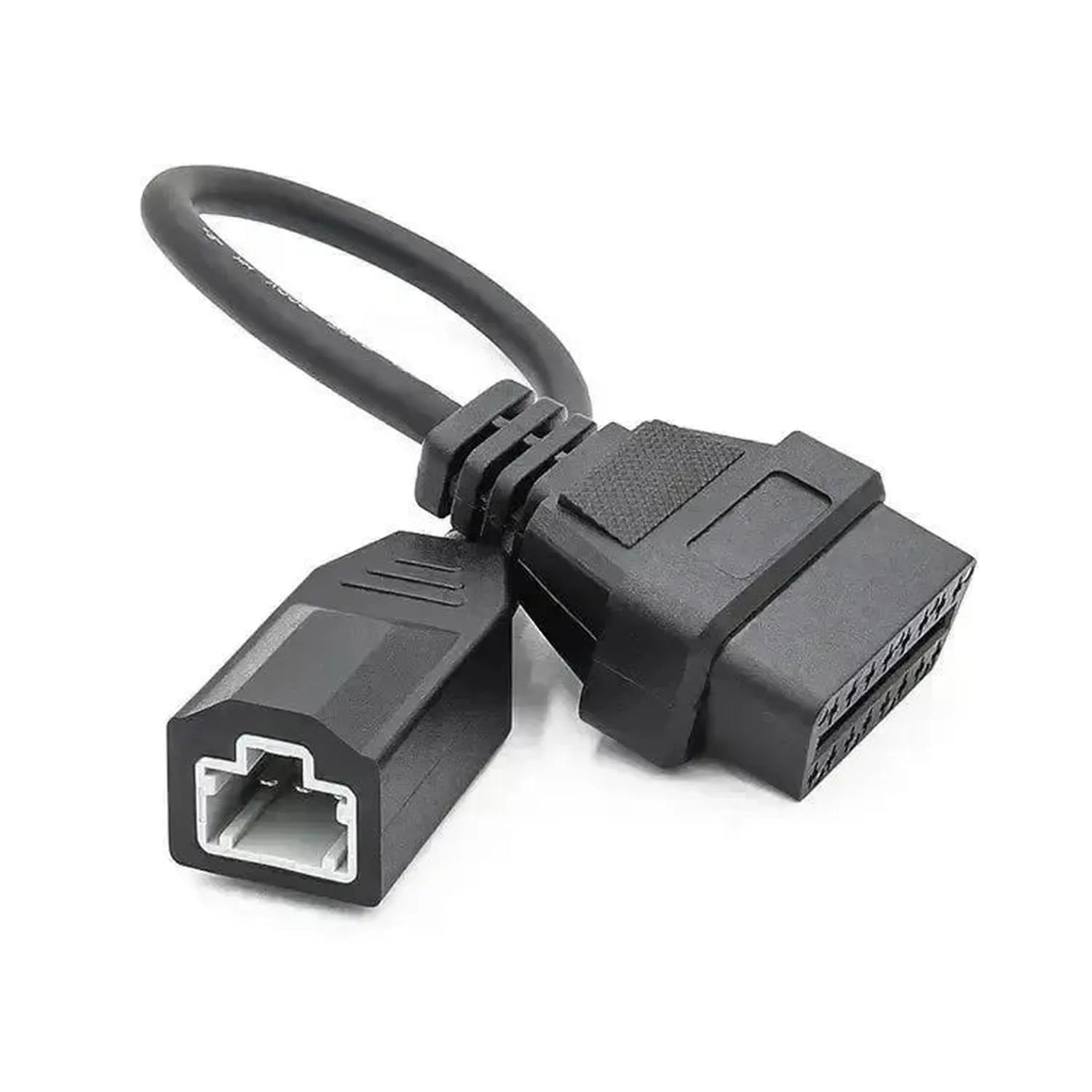

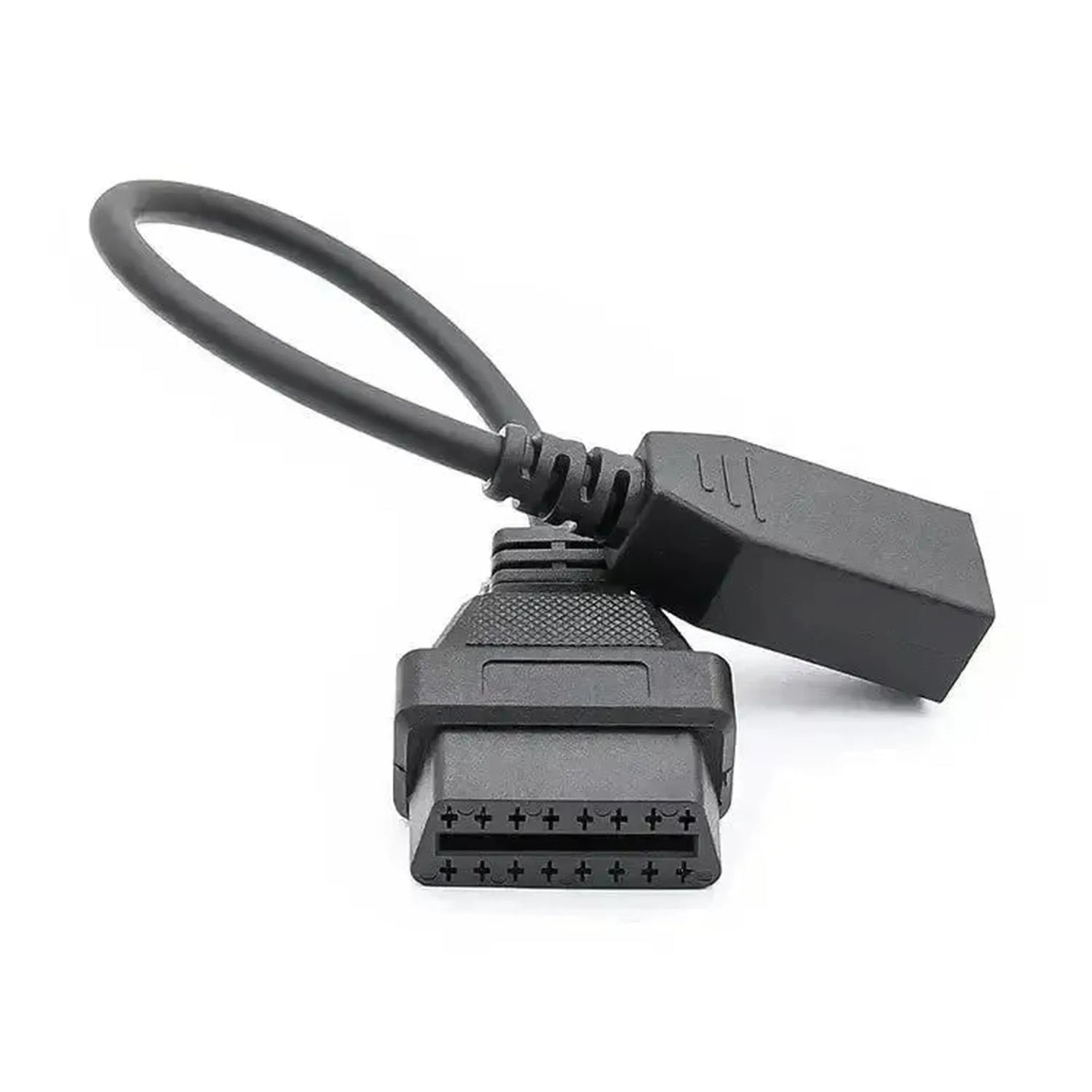

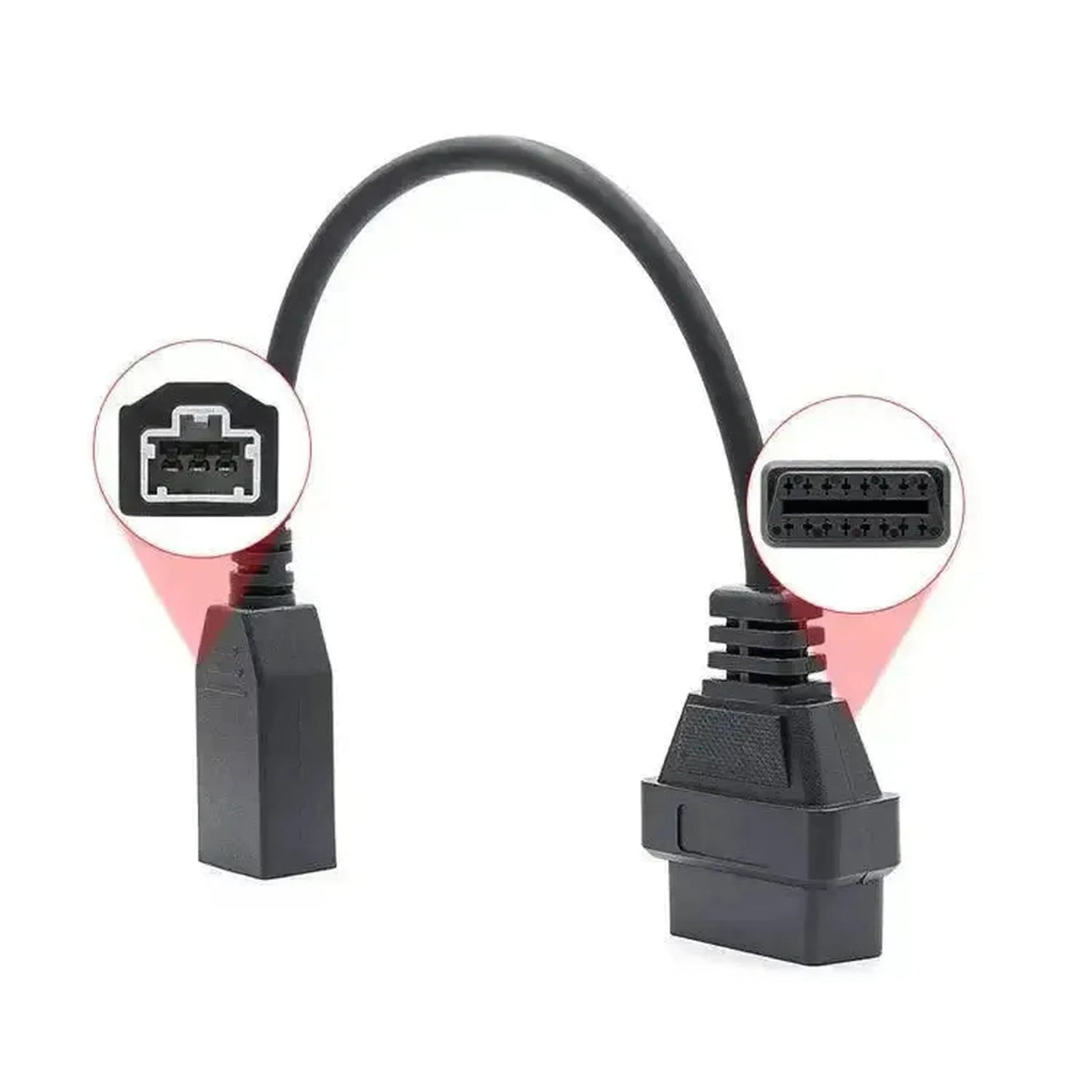

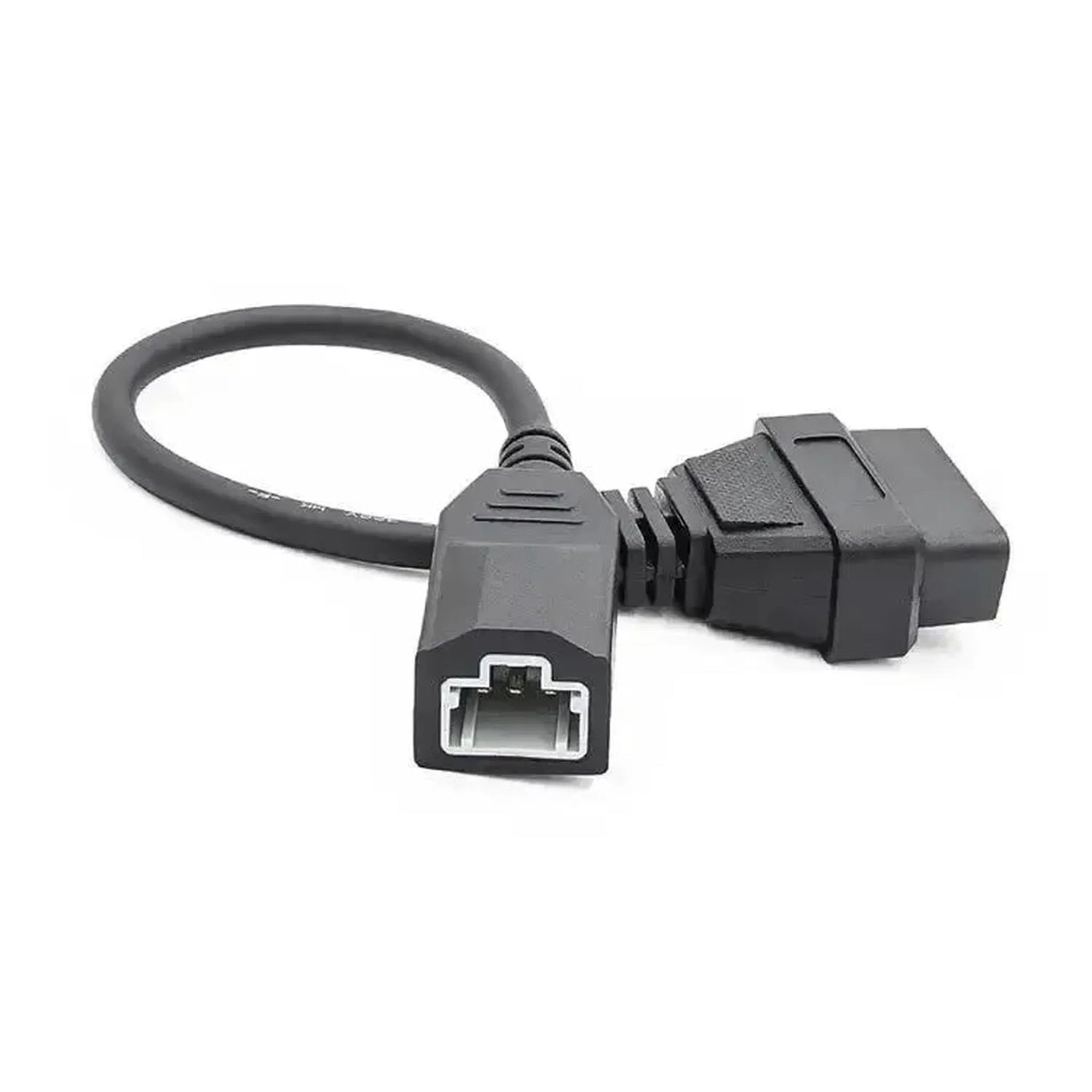

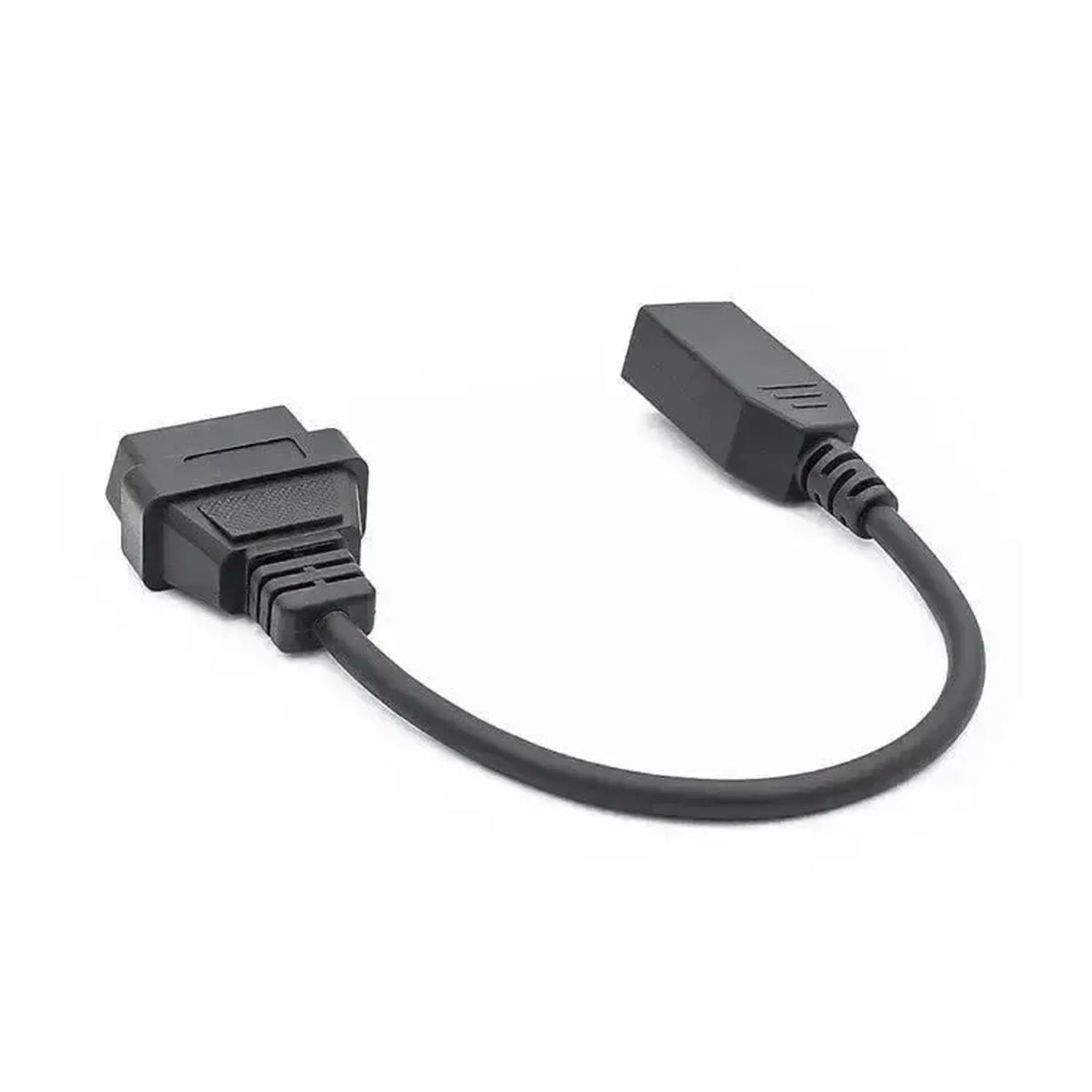

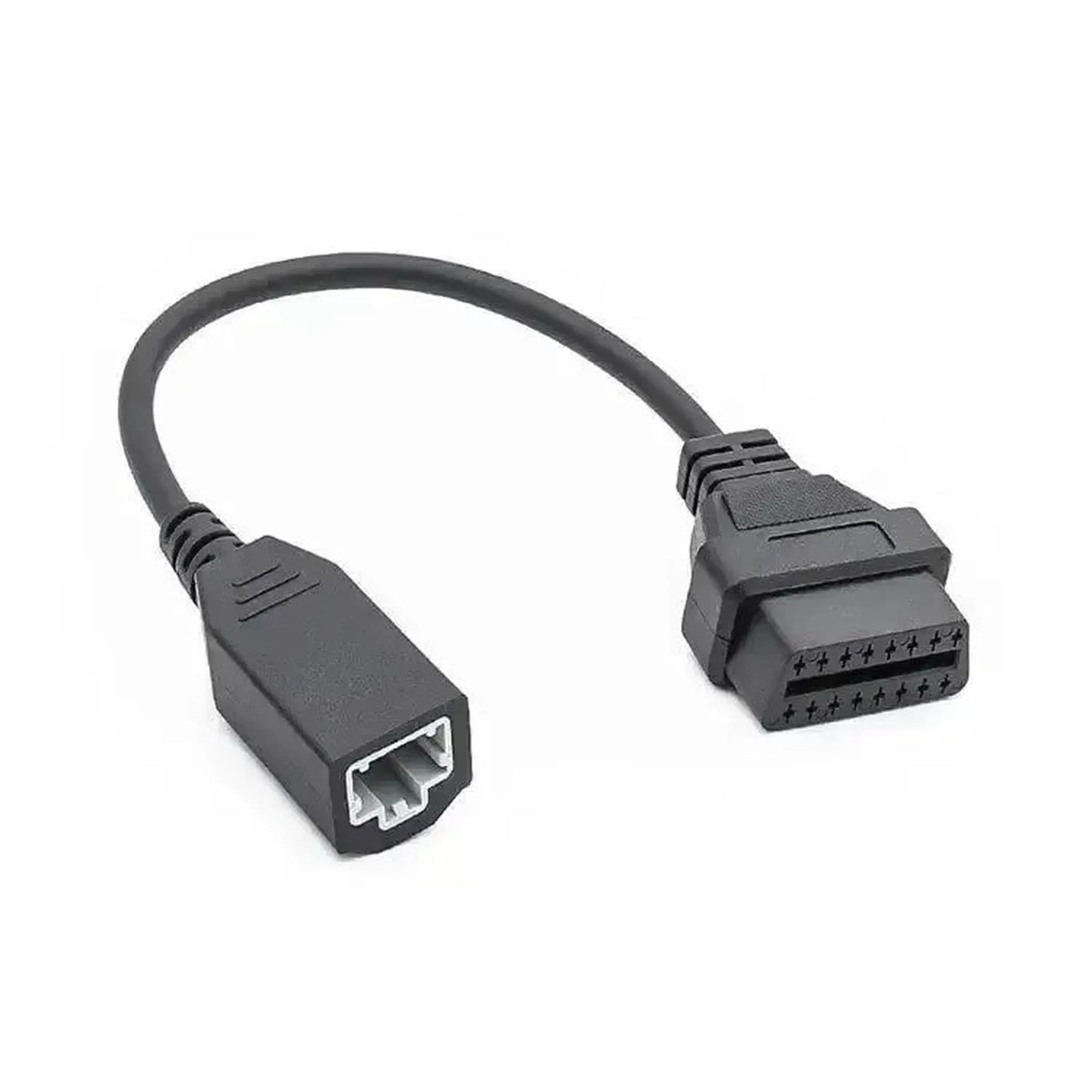

This adapter cable connects the 3-pin diagnostic connector of older Honda passenger cars to a diagnostic tool with a 16-pin OBD2 plug. The connector is usually located on the passenger side, under the dashboard compartment or near the centre console.
The 3-pin connector supplies power and earth and carries the K-line for diagnostics. This allows you to read, among other things, the engine management. Next to the 3-pin connector there is often a separate 2-pin plug. That is for flash codes and is not part of this cable. The cable physically converts the connector; the diagnostic tool itself must support the Honda protocol of this generation.
PROS
POINTS TO NOTE
Applications and functions
This cable is intended for garages and mechanics who read out older Honda models with the 3-pin connector.
Control units you can access
- Engine management: PGM-FI engine management.
- Other systems: Varies by model and equipment.
What you can do
- Fault codes: Read and clear.
- Live data: Where the diagnostic tool provides it.
- Fault finding: Check sensors and signals.
How to use it
- Finding the connector: Look on the passenger side under the dashboard.
- Connecting: Insert the 3-pin plug into the blue connector.
- Connecting the scan tool: Connect the 16-pin plug to the cable.
- Ignition on: Switch the ignition on without starting the engine.
- Reading out: Select Honda, the model and the control unit.
Compatible vehicles and applications
The deciding factor is the 3-pin diagnostic connector, often with a separate 2-pin plug beside it. The cable is suitable for, among others, the following Honda models with that connector:
Honda:
- Civic (EJ/EK/MA/MB): 1996 to 2000.
- CR-V (RD1): 1996 to 2001.
Package contents
- 1x Honda 3-pin OBD1 – 16-pin OBD2 Adapter Cable | Passenger car
Technical specifications
General
- The brand of the cable or adapter. It often has to match the brand of your diagnostic tool.Brand
- AsTools
- The type of product: a separate adapter cable, an adapter without a cable or a complete set.Product type
- Adapter cable
- The types of vehicles or machinery on which the cable can be used. This shows quickly whether it suits the vehicles entering your workshop.Vehicle types
- Passenger car
Connections
- The connector on the side of your diagnostic tool or interface. Usually a 16-pin OBD2 connector.Tool-side connector
- 16-pin OBD2 (J1962)
- The data lines through which the cable passes signals. The vehicle and the tester must use the same communication method.Communication
- K-line
Other specifications
- Application
- Honda passenger cars with the 3-pin diagnostic connector
- Vehicle-side connection
- 3-pin (Honda)
- Device-side connection
- 16-pin OBD2 (J1962)
- Operation
- Passive, no protocol conversion
- Power supply
- Via the diagnostic connector
