Jaltest LCV (Light Commercial Vehicle) Diagnostic Tool

The Jaltest LCV (Light Commercial Vehicle) is a professional multi-brand diagnostic platform, specifically designed for the electronics in modern vans. The system combines a robust wireless Jaltest Link VCI (Vehicle Communication Interface) with the powerful Jaltest SOFT LCV diagnostic software. Together they form an efficient solution for diagnostics, maintenance, and repair.

The Jaltest approach is unique because diagnostics, technical information, and repair guidance are integrated into one environment. The technician is supported from complaint to solution, with contextual data, interactive diagrams, and user-friendly control, resulting in high workshop efficiency.

---

Diagnostic functions:

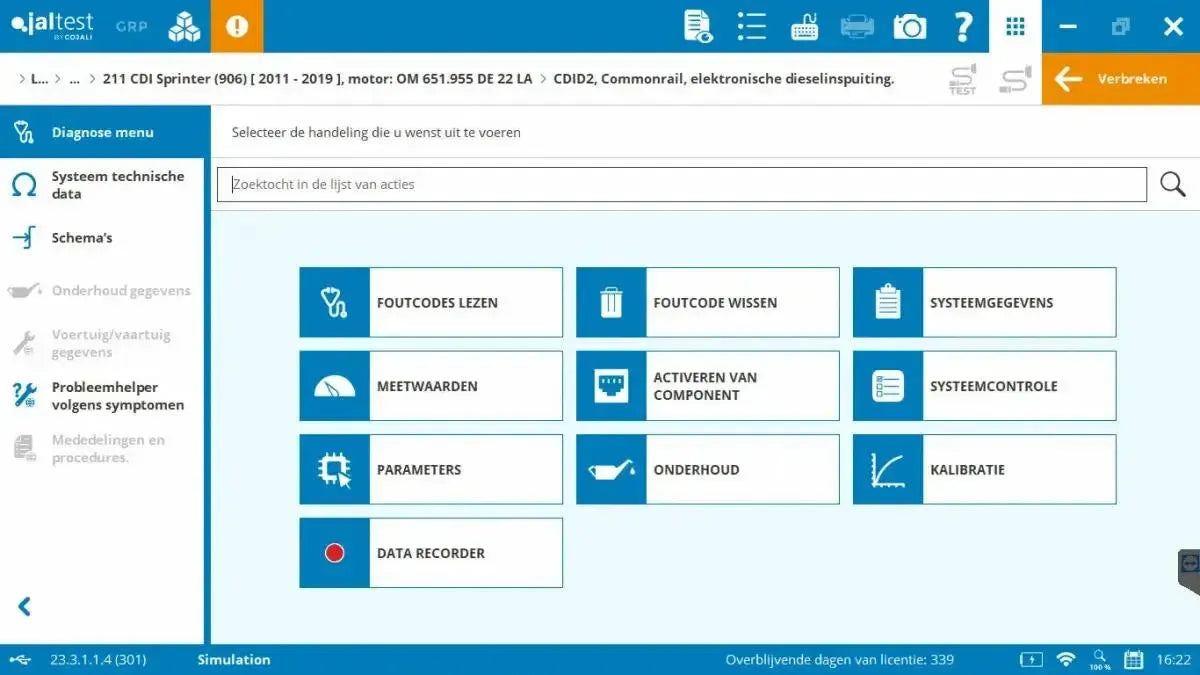

The Jaltest LCV offers extensive brand-independent diagnostic capabilities at OE level for all electronic systems within light commercial vehicles:

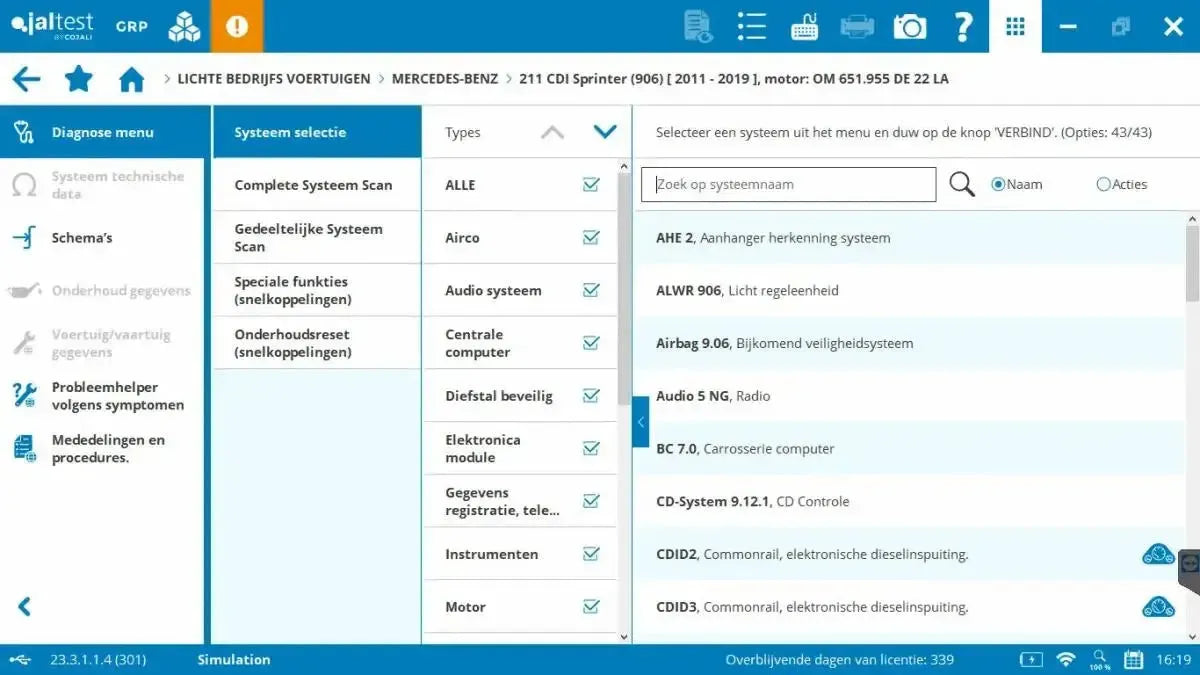

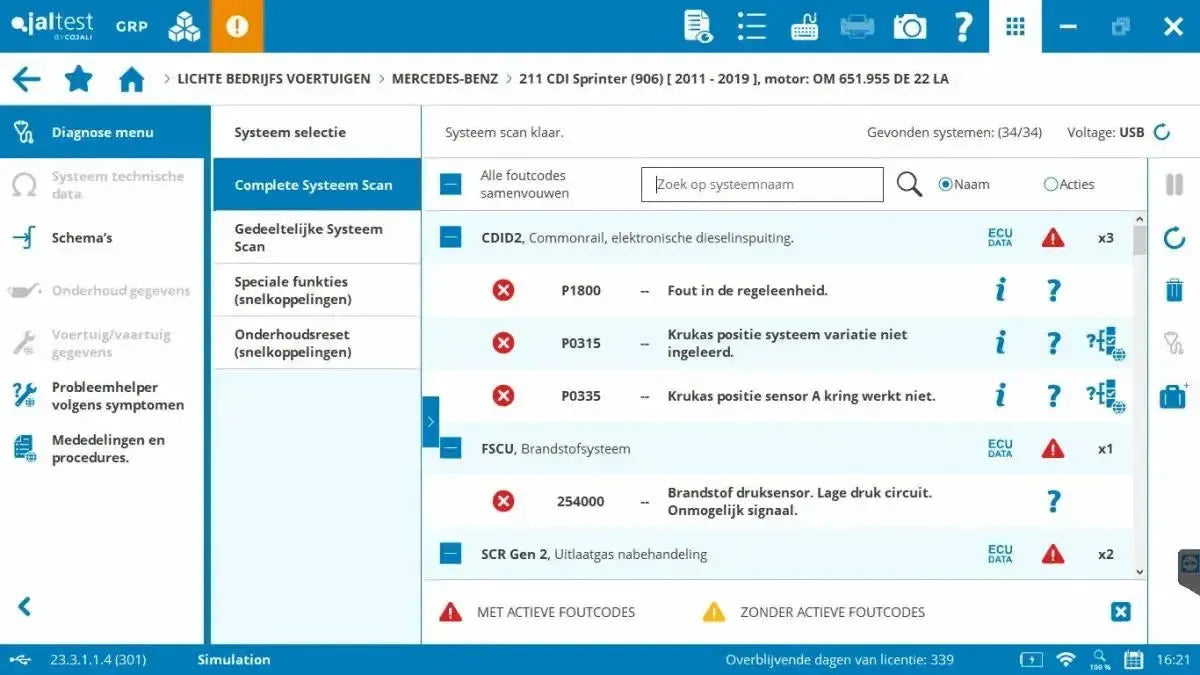

• Complete system diagnosis: Automatically performs a scan of all present control units (ECUs). The results are presented clearly in list form or as graphical topology, including communication status.

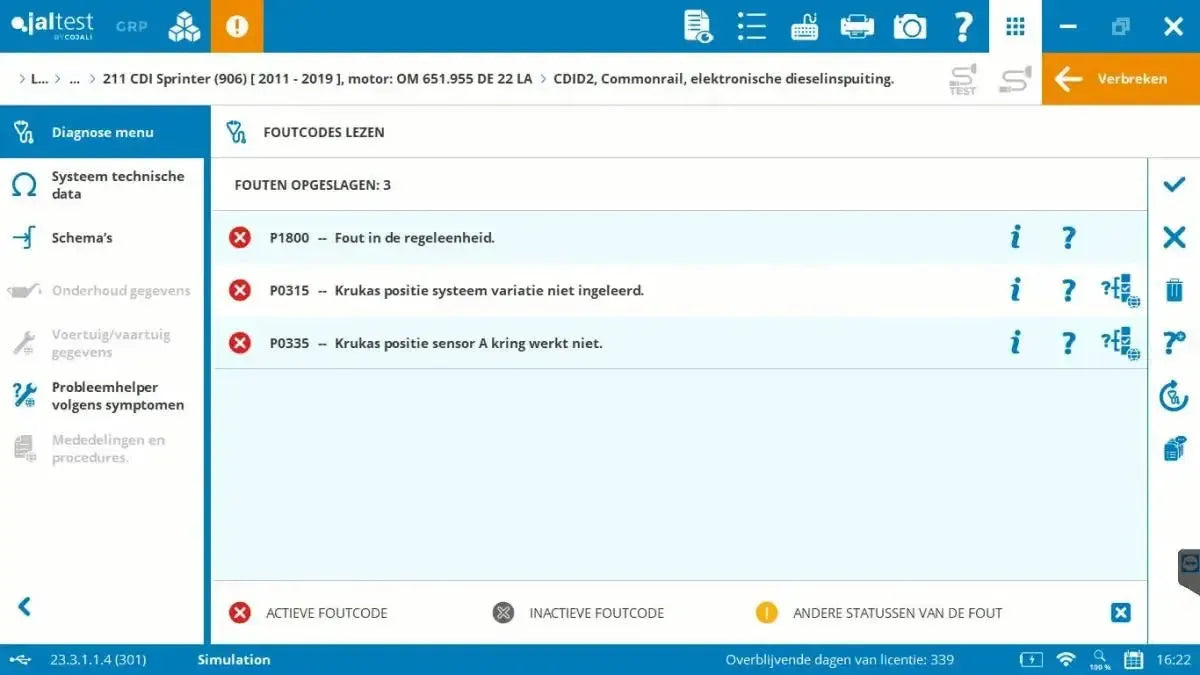

• Reading and clearing fault codes: Displays active, inactive, and permanent fault codes including OEM numbers and clear descriptions. Fault codes can be cleared after repair.
• Live data monitoring: Records real-time sensor values and parameters. Data is displayed numerically and graphically, with the ability to visualize and store up to 8 measurements simultaneously.
• Testing actuators: Directly controls components such as injectors, EGR valves, and relays to check their operation in real time.
• ECU and system information: Provides access to important data from the control modules, such as part number, software version, and initial installation data.

---

Maintenance, service, and calibration functions:

The Jaltest LCV offers a very comprehensive range of service, maintenance, and calibration procedures for light commercial vehicles. These functions are designed to solve complex faults, perform maintenance correctly, and reinitialize or relearn components after replacement. They are often equal to or more extensive than the capabilities of brand dealers.

Engine and exhaust gas aftertreatment:

• Oil and service interval reset: resets the maintenance indicator in the onboard computer after oil or filter replacement.
• DPF service: supports forced, dynamic, and static regeneration and resets soot and ash values after cleaning or replacement.
• SCR/AdBlue system service: resets the system and performs leak tests, pressure measurements, and component tests on pump, heating, and injector.
• Injector coding: writes unique IMA-/C2i-/C3i codes into the ECU for optimal fuel injection.
• Throttle body learning (ETC): relearns the base calibration for correct throttle response after cleaning or replacement.
• EGR valve learning: recalibration of the exhaust gas recirculation valve for proper operation.
• Crankshaft sensor learning: relearns the position of the crankshaft after sensor or ECU replacement.

Transmission and driveline:

• Transmission adaptation: resets adaptive learning values of automatic or robotic transmissions after maintenance.
• Clutch learning: learns the engagement point of the coupling and checks wear values.

Brake and safety systems:

• EPB service: safely opens/closes brake calipers for maintenance and calibrates the system after installation.
• ABS bleeding: activates ABS pump to remove air bubbles after replacement of brake components.
• TPMS reset: re-learns sensor IDs and resets warning lights during tire change or sensor replacement.

Chassis, suspension, and steering:

• SAS calibration: calibration of the steering angle sensor after alignment or replacement of steering components.
• Air suspension calibration: re-calibrates ride height and height sensors for correct suspension operation.

General system functions and resets:

• Battery registration (BMS): registers a new battery with correct specifications in the vehicle management system.
• AFS reset: re-calibrates adaptive or automatic headlights after replacement or adjustment.
• Sunroof initialization: executes basic settings of the sunroof after interruption or replacement.
• Air conditioning service: output of tests and resets within the HVAC system.
• Deactivate transport mode: deactivates the transport mode upon delivery of new vehicles.

---

Advanced diagnosis & technical information:

One of the biggest advantages of Jaltest LCV is the direct integration of extensive technical information into the diagnostic software. This allows the technician to seamlessly switch between fault analysis, system knowledge, and repair instructions within one work environment.

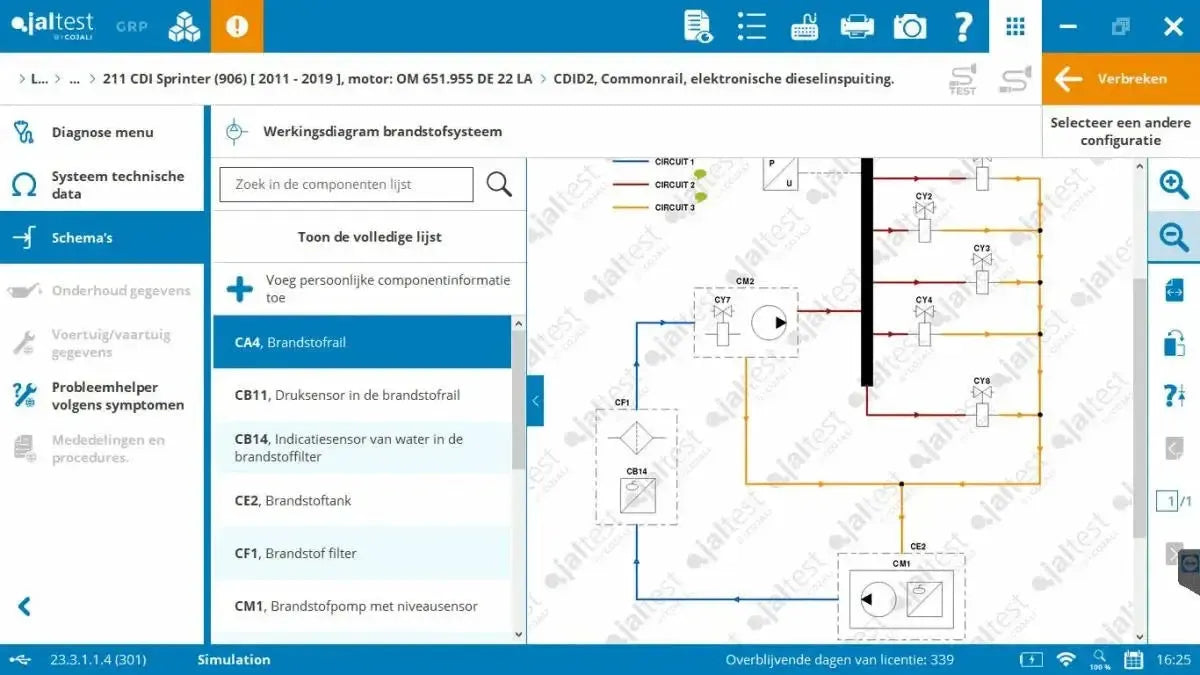

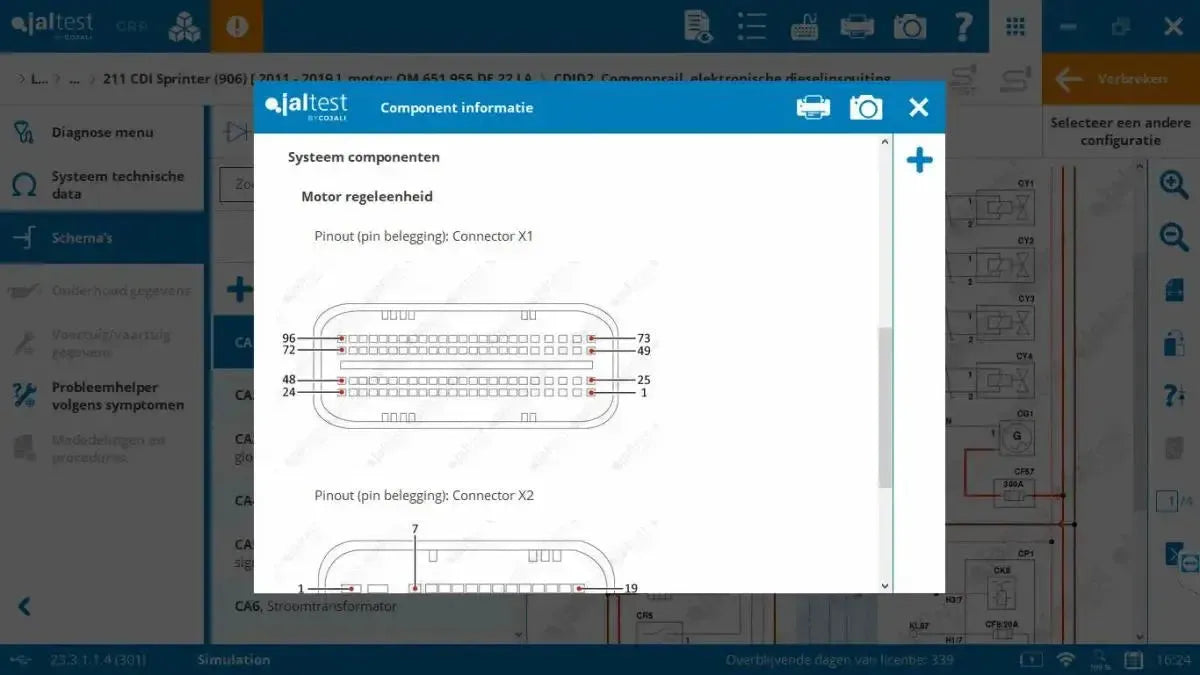

• Interactive wiring diagrams: Fully clickable electrical diagrams with components, fuses, ground connections, and wiring. Includes information on pin-outs, test procedures, measurements, and location descriptions.
• Vehicle technical data: Access to extensive vehicle data such as torque specifications, fluid capacities, adjustment values, and component characteristics.

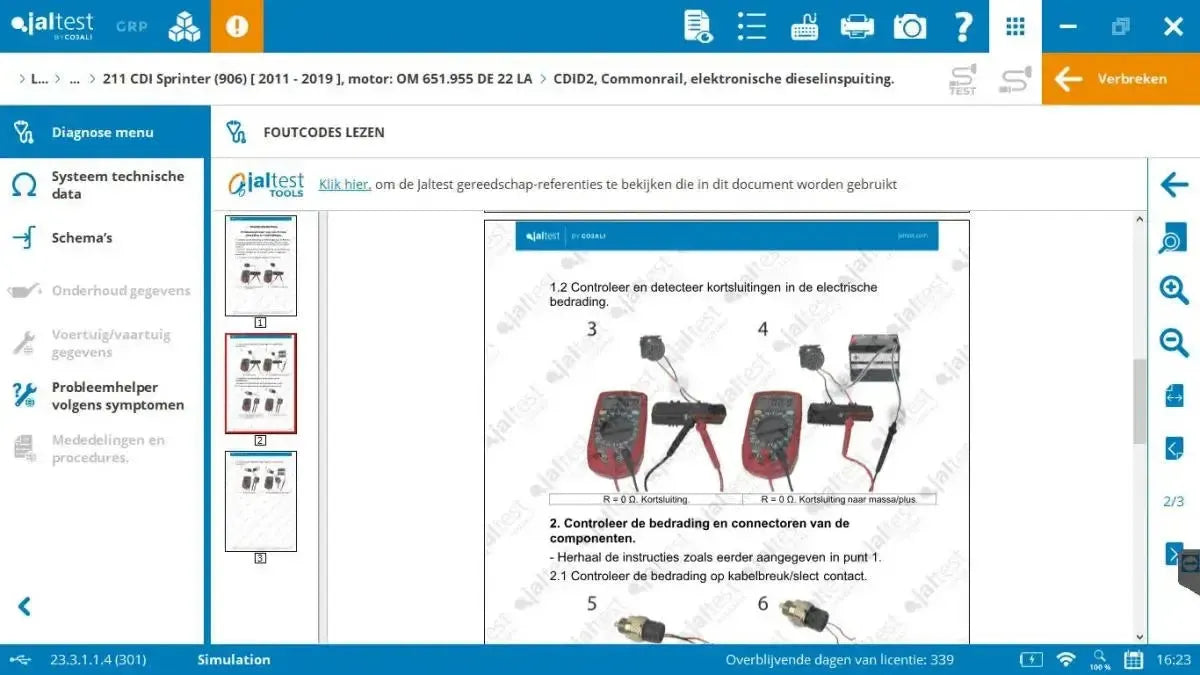

• Repair guides per fault code: For each fault code, a step-by-step guide is provided, including wiring checks, component tests, and targeted solutions.
• Symptom-based diagnosis: Diagnosis can also be initiated without fault codes based on a customer complaint (e.g., “does not start”, “stalls when accelerating”), using guided test logic.
• Technical bulletins: Direct access to factory bulletins, recall information, and brand-specific recommendations.
• Maintenance data: Provides insight into the maintenance schedule per vehicle model, including tasks, intervals, and required parts.

---

Specialized software modules:

The Jaltest platform is modular and can be expanded with powerful, specialized software and hardware modules. These extensions significantly increase the efficiency and functionality of the diagnostic platform.

• Jaltest GRP (Garage Resource Planning): A fully integrated workshop management and CRM system with features for customer management, vehicle management, work order scheduling, quotations, invoicing and automatic linking of diagnostic reports to work orders.
• Jaltest Info Online: A digital technical knowledge base with access to repair manuals, wiring diagrams, fault code explanations, technical bulletins and vehicle-specific data. Everything is directly integrated into the diagnostic environment.
• ADAS calibration system: Jaltest offers an optional ADAS system with physical calibration panels, designed for the precise adjustment of cameras, radars, and sensors on modern vans.

---

Supported vehicle brands:

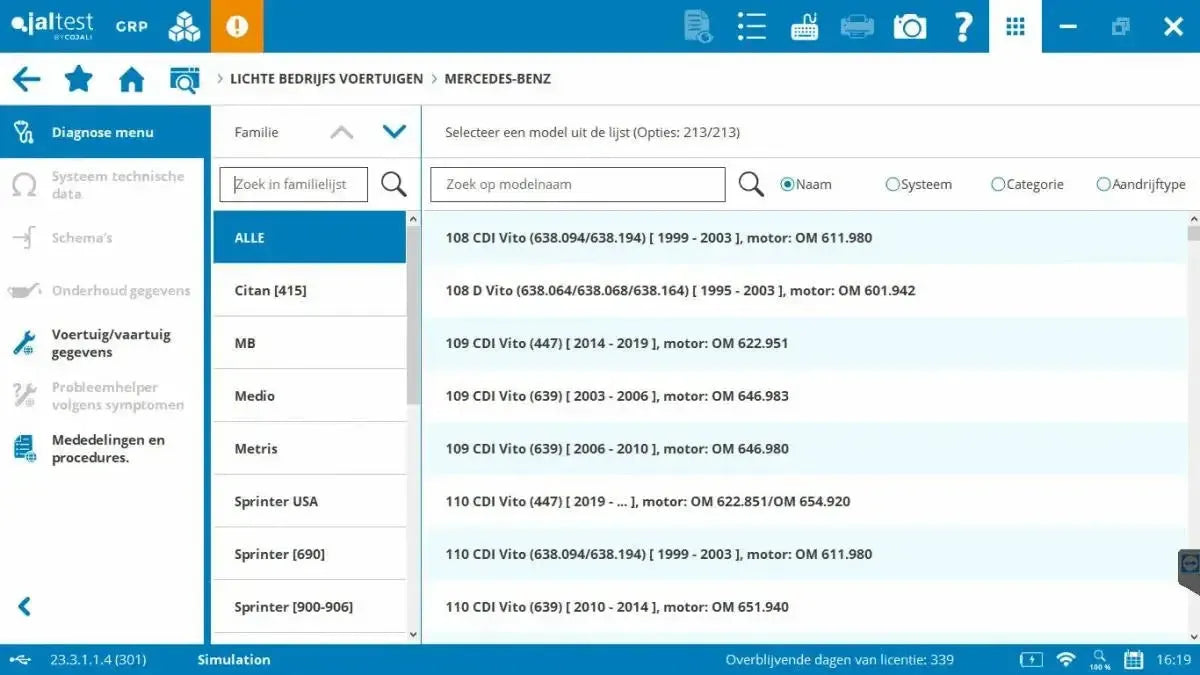

• Best vans: Agrale, Ashok Leyland, Citroën, Dacia, DFSK, Dodge, Fiat, Force Motors, Ford, Foton, Freightliner, GAZ, GMC/Chevrolet, Great Wall, Hino USA, Holden, Hyundai, International, Isuzu, Isuzu USA, Iveco, Kia, LDV/Maxus, Mahindra, MAN, Mazda, Mercedes-Benz, Mitsubishi, Mitsubishi Fuso USA, Multicar, Nissan, Opel, Peugeot, Piaggio, Renault, Santana, Tata, Toyota, UD Trucks, Vauxhall, Volkswagen

---

Package Contents:

• Jaltest Link V9 Interface
• Jaltest 15 Pins DB15 - 16 Pins OBD2 Adapter Plug
• Jaltest 26 Pins DB26 Extension Cable
• Jaltest USB-A - USB-B
• Jaltest Multi-pin Kit
• Jaltest Storage Case (Compact)
• Jaltest Cigarette Lighter Adapter Cable

---

License information:

Jaltest LCV operates based on a annual software license. This license is required for the use of the diagnostic software and provides full access to all functionalities of the platform.

• Three major software updates per year: Each update includes improved vehicle coverage, new features, and current technical data.
• Access to technical support: Including assistance with activations, software issues, error analysis, and usage questions.

Modular structure:

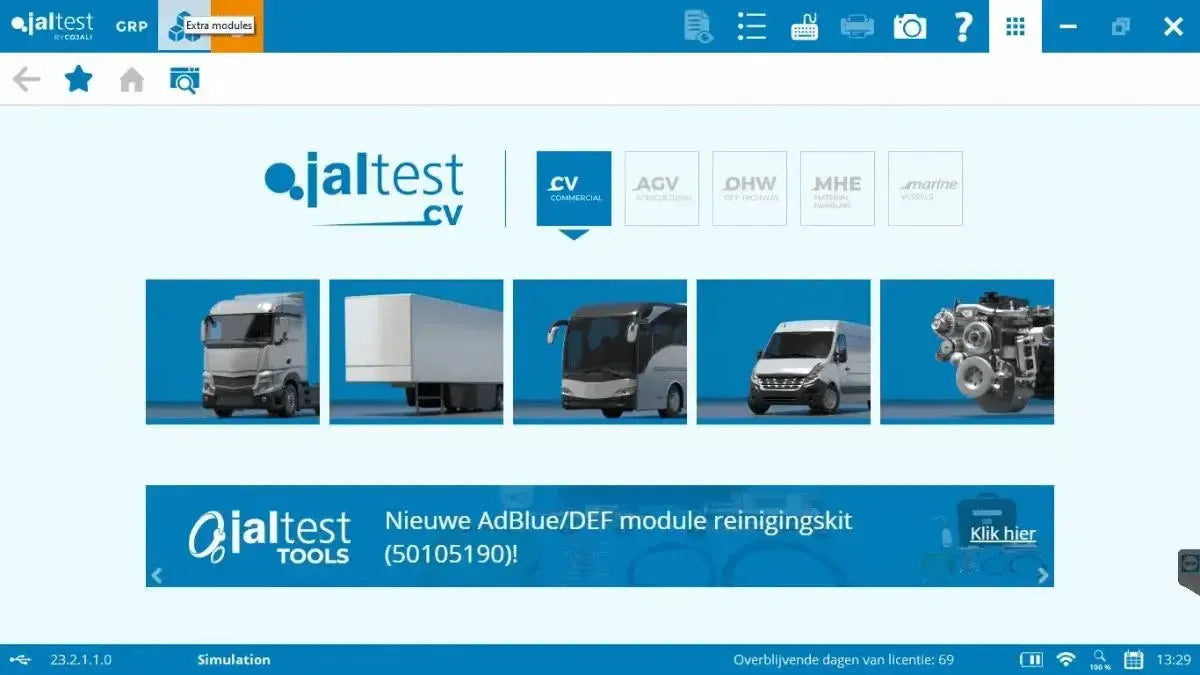

The Jaltest diagnostic software is designed for flexible deployment. In addition to coverage for light commercial vehicles (LCV), additional licenses can be activated for:

• Commercial vehicles (CV)
• Agricultural vehicles (AGV)
• Off-Highway machines (OHW)
• Maritime applications (Marine)
• Material Handling Equipment (MHE)

---
