Topdon  |  SKU: TS004

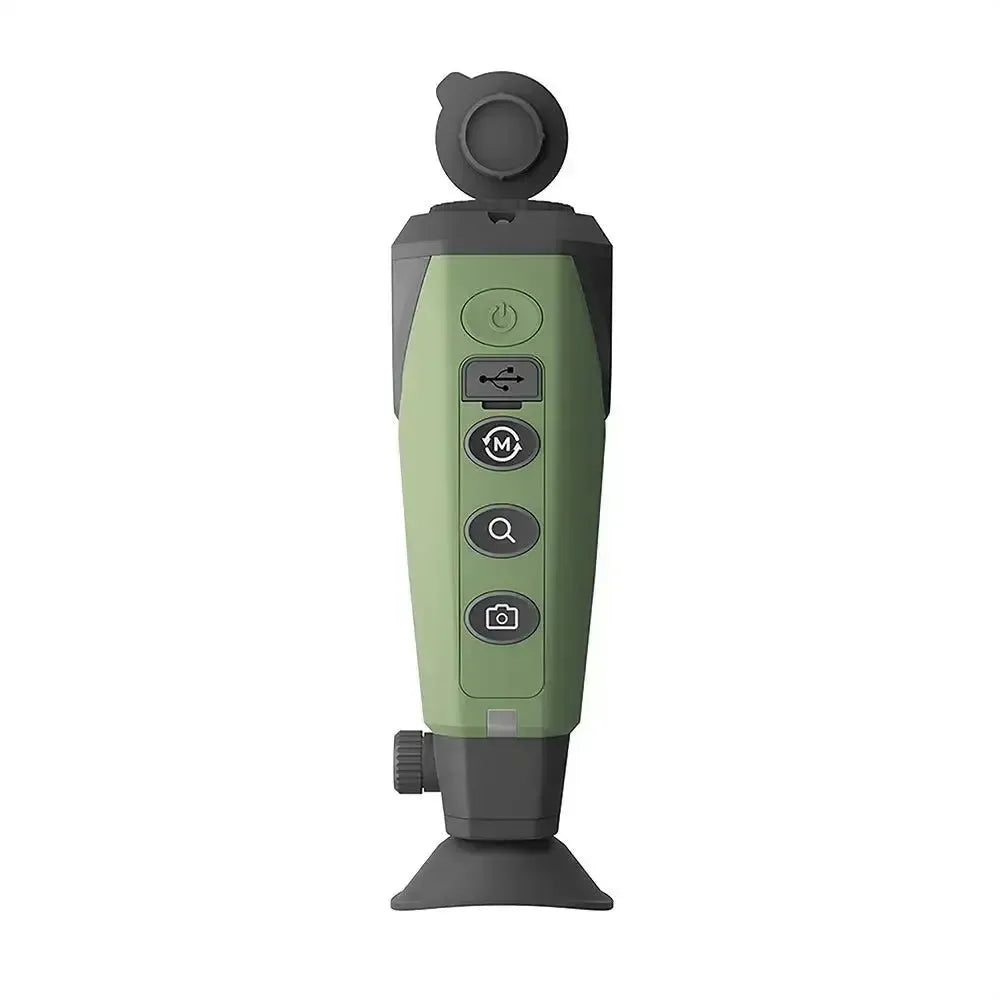

Topdon TS004 | Thermal Imaging Camera

1 review
€424,95 incl.
€351,20 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

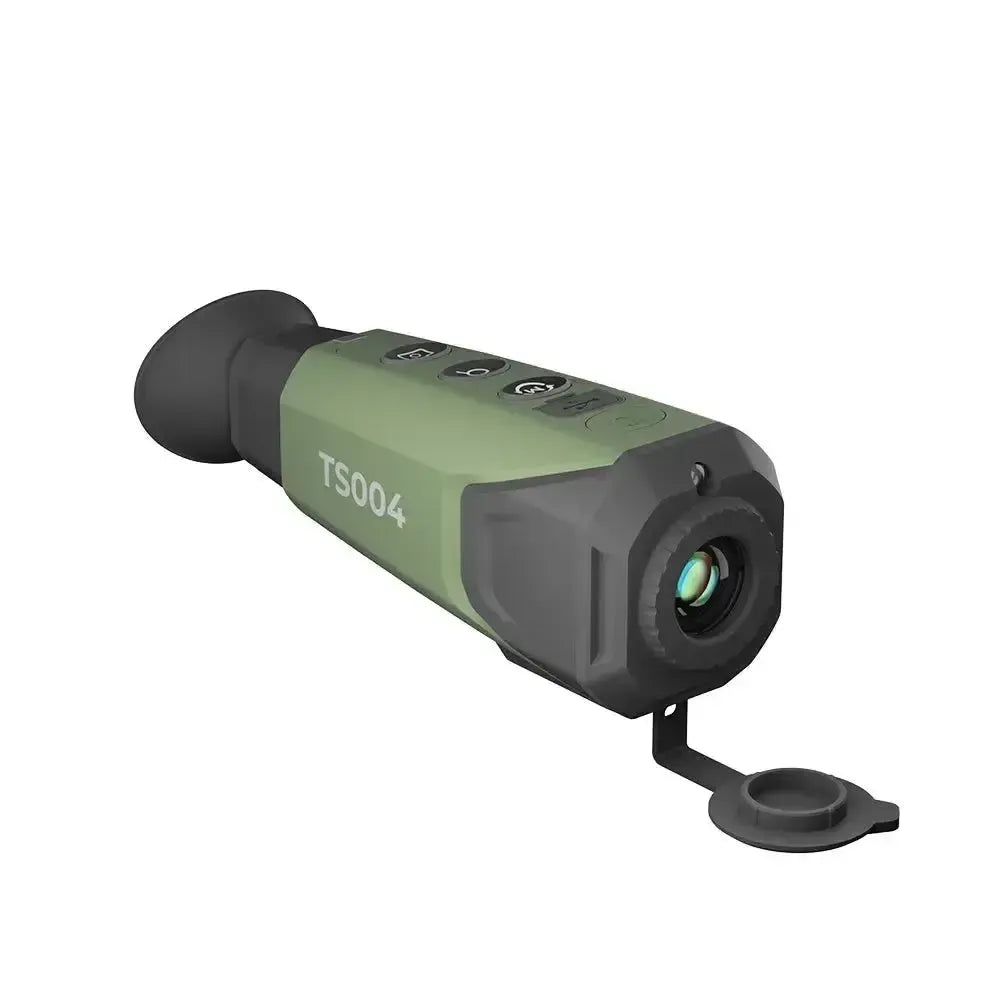

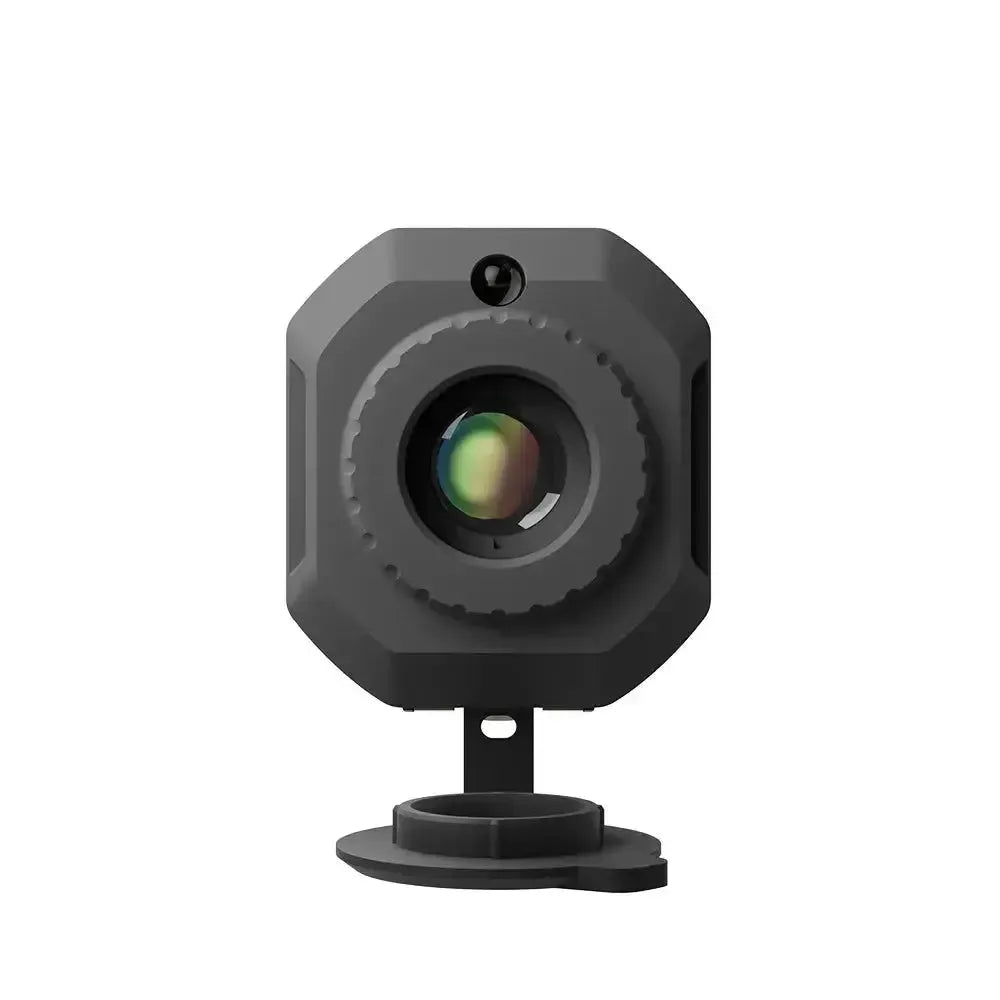

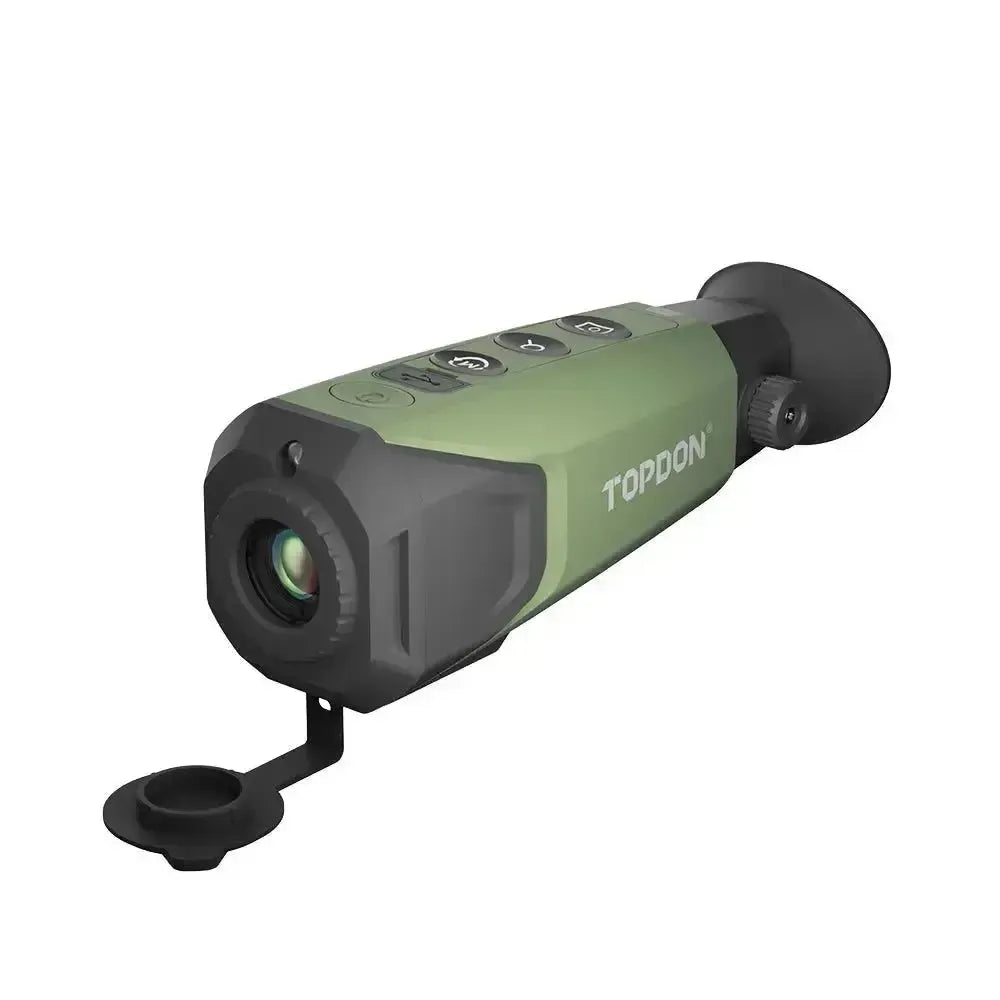

The Topdon TS004 is a compact, handy thermal imaging camera designed as a monocular, intended for long-distance detection and inspection in low-visibility conditions. The device is equipped with a thermal sensor resolution of 256x192 pixels and features a frame rate of 50Hz, ensuring extremely smooth display of moving objects. The optical configuration includes a 13mm lens, allowing heat sources to be detected up to a distance of 410 meters and recognition of specific objects up to 91 meters.

This thermal camera offers extensive analysis capabilities thanks to an 8x digital zoom and the choice of five different color palettes for optimal thermal contrasts. For documentation and analysis, the TS004 has an internal memory of 32GB for photo and video storage, as well as Wi-Fi connectivity for live streaming via the accompanying app. Power is supplied by a powerful 5000mAh battery that guarantees up to 11 hours of continuous use, while the housing with an IP67 rating is completely water- and dustproof.

ADVANTAGES

✔ Smooth image display due to the high 50Hz frame rate.
✔ Large detection range up to 410 meters for remote observation.
✔ Long usage time of 11 hours thanks to the 5000mAh battery.
✔ Fully waterproof design with IP67 rating.

KEY POINTS

✕ Monocular design is less suitable for close-up circuit measurements than a pistol grip camera.
✕ Primarily focused on detection and observation, no specific temperature measurement functions for exact values.

Applications and functionalities

The Topdon TS004 is designed to map invisible heat differences over long distances, supported by modern connectivity options for reporting and analysis.

  • Thermal sensor: Uncooled focal plane array with a resolution of 256x192 pixels for sharp images.
  • Digital Zoom: Adjustable magnification from 1x, 2x, 4x up to 8x for closer viewing of distant objects.
  • Storage Capacity: Internal 32GB memory provides space for hours of video footage and thousands of photos.
  • Wireless Connection: Wi-Fi hotspot functionality for pairing with smartphones or tablets.

Special Features and Capabilities

In addition to standard imaging, this model has specific features that enhance usability in the field and workshop.

  • TopInfrared App: Capability for live monitoring and file transfer to mobile devices.
  • LED Flashlight: Integrated lighting for navigation and inspection in dark environments.
  • Multicolor Display: 5 selectable color palettes (including White Hot, Black Hot, Red Hot) for situation-dependent analysis.
  • Robust Construction: Drop-resistant and waterproof according to IP67 standard.

Application Areas and Inspection Uses

This instrument is suitable for various technical and observational tasks where heat signatures are crucial for detection or diagnosis.

  • Inspection Application: Detection of heat sources in industrial sites or large storage areas.
  • Technical Analysis: Observing heat generation in heavy machinery or vehicles from a safe distance.
  • Diagnostic Application: Identification of leaks, overheating, or insulation issues in hard-to-reach structures.
💡

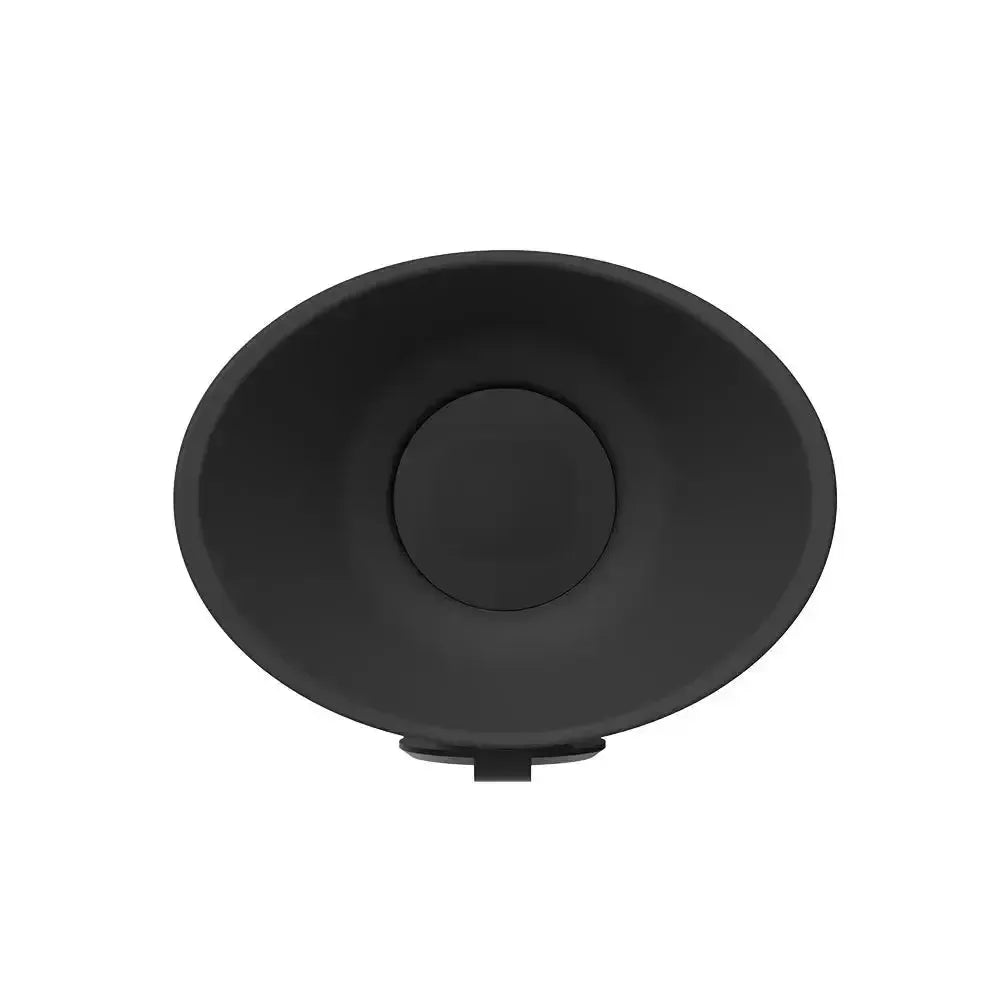

Good to know: Adjust the diopter setting on the eyepiece to focus the on-screen information according to your specific eyesight.

Package Contents

  • 1x Topdon TS004 Thermal Imaging Camera

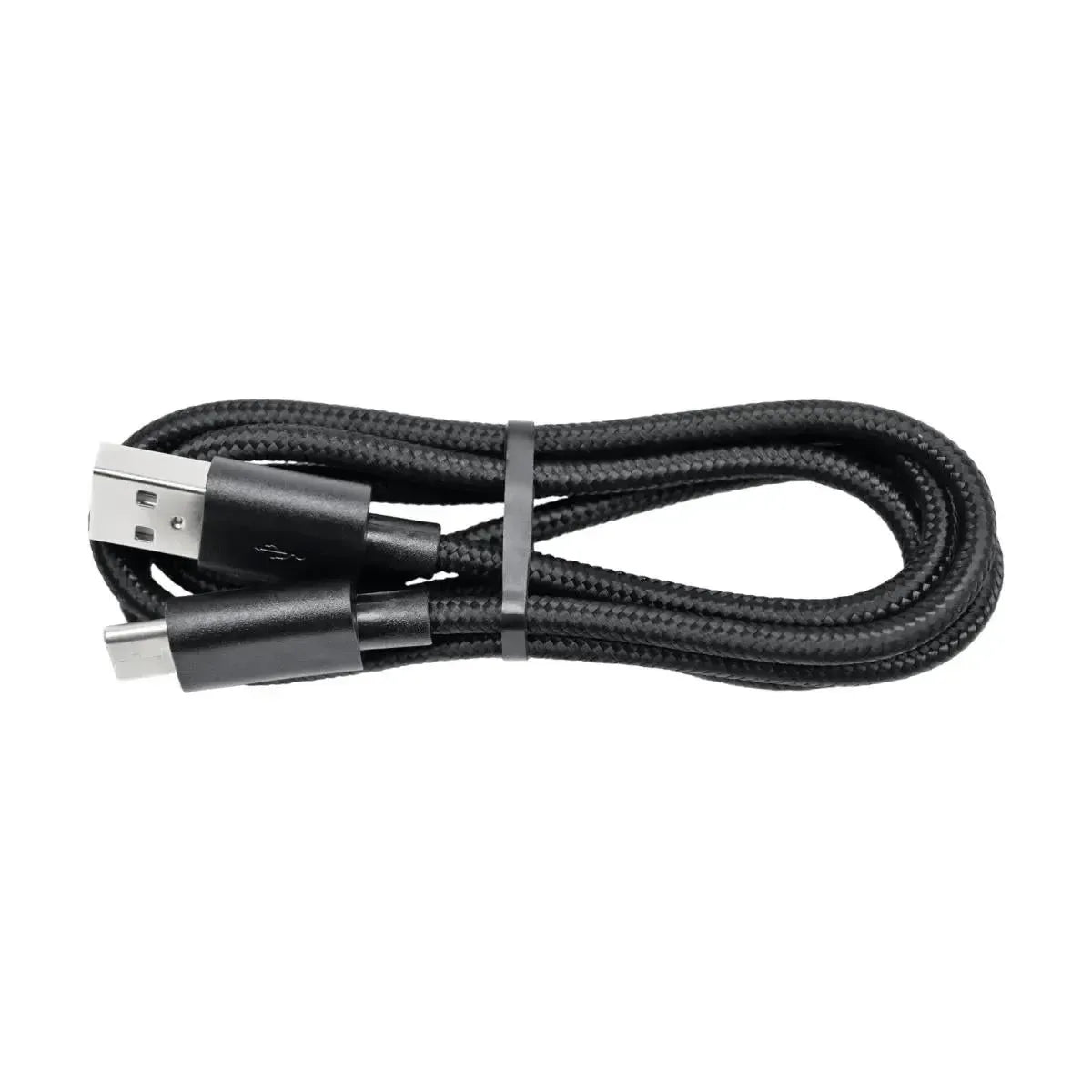

  • 1x USB-A to USB-C Cable

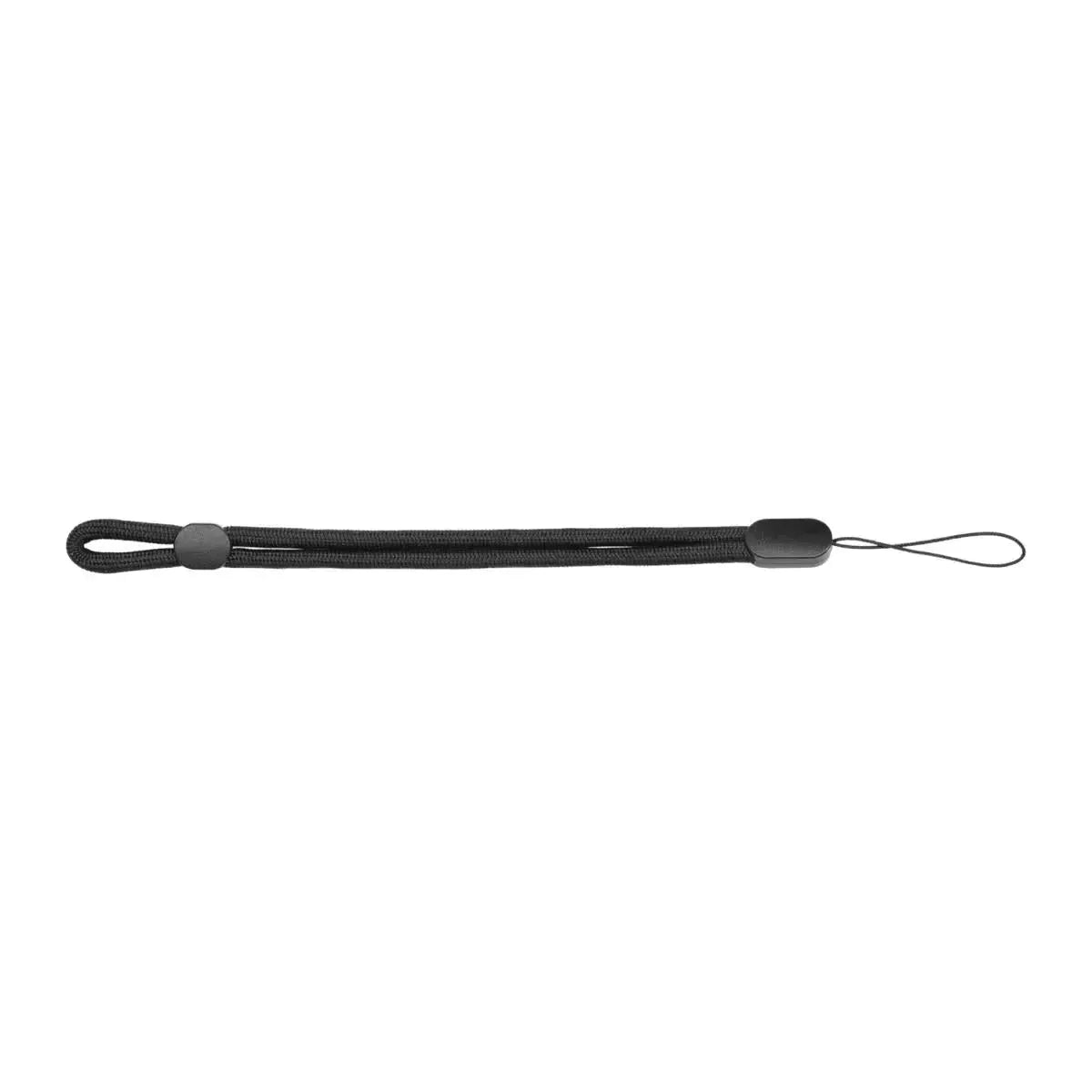

  • 1x Lanyard
  • 1x Protective Carrying Case
  • 1x Quick Start Guide

Technical specifications

General

The manufacturer of the thermal imaging camera.Brand
Topdon
A standalone handheld camera, a camera that connects to your phone, or a monocular for viewing at distance. This determines how and where you use it.Type of camera
Monocular


The number of pixels in the thermal sensor. More pixels mean sharper detail of small hot spots.Thermal image resolution
256 x 192 pixels
The number of images the camera produces per second. A higher rate gives smoother images when moving.Frame rate
50 Hz
The focal length of the lens. A longer focal length lets you view further away, but with a narrower image.Focal length
13 mm
Whether the lens has a fixed focus or can be adjusted manually.Focusing
Fixed focus
How far you can digitally zoom into the image.Maximum digital zoom
8 x
How many colour displays you can choose, such as iron red or white hot. This lets you pick what works best.Number of colour palettes
5 palettes
The maximum distance at which you can detect a warm object such as a person or animal.Detection range
410 m

Measurement and functions

A built in light for viewing in dark areas.LED light
Software on your computer lets you review images later and analyse temperatures.PC analysis software

Connectivity

The devices the camera can connect to or be used with via the app.Compatible with
  • iOS
  • Android
How much space is available for storing photos and videos.Storage
32 GB

Battery

How long you can use the camera on a full battery.Operating time
11 hours
How much energy the battery can store. A higher mAh figure usually means longer operation.Battery capacity
5,000 mAh

Dimensions and weight

The length, width and height of the camera.Dimensions
180 x 64 x 54 mm
How heavy the camera is. A lighter camera remains comfortable to hold over time.Weight
310 g
How well the camera is protected against dust and water. A higher IP rating withstands heavier use.Protection rating
IP67
The ambient temperature range in which the camera operates properly, for example outdoors in winter.Operating temperature
-20 to 45 °C

Other specifications

Detection Range
Up to 410 meters (450 yards)
Zoom
1x, 2x, 4x, 8x digital
