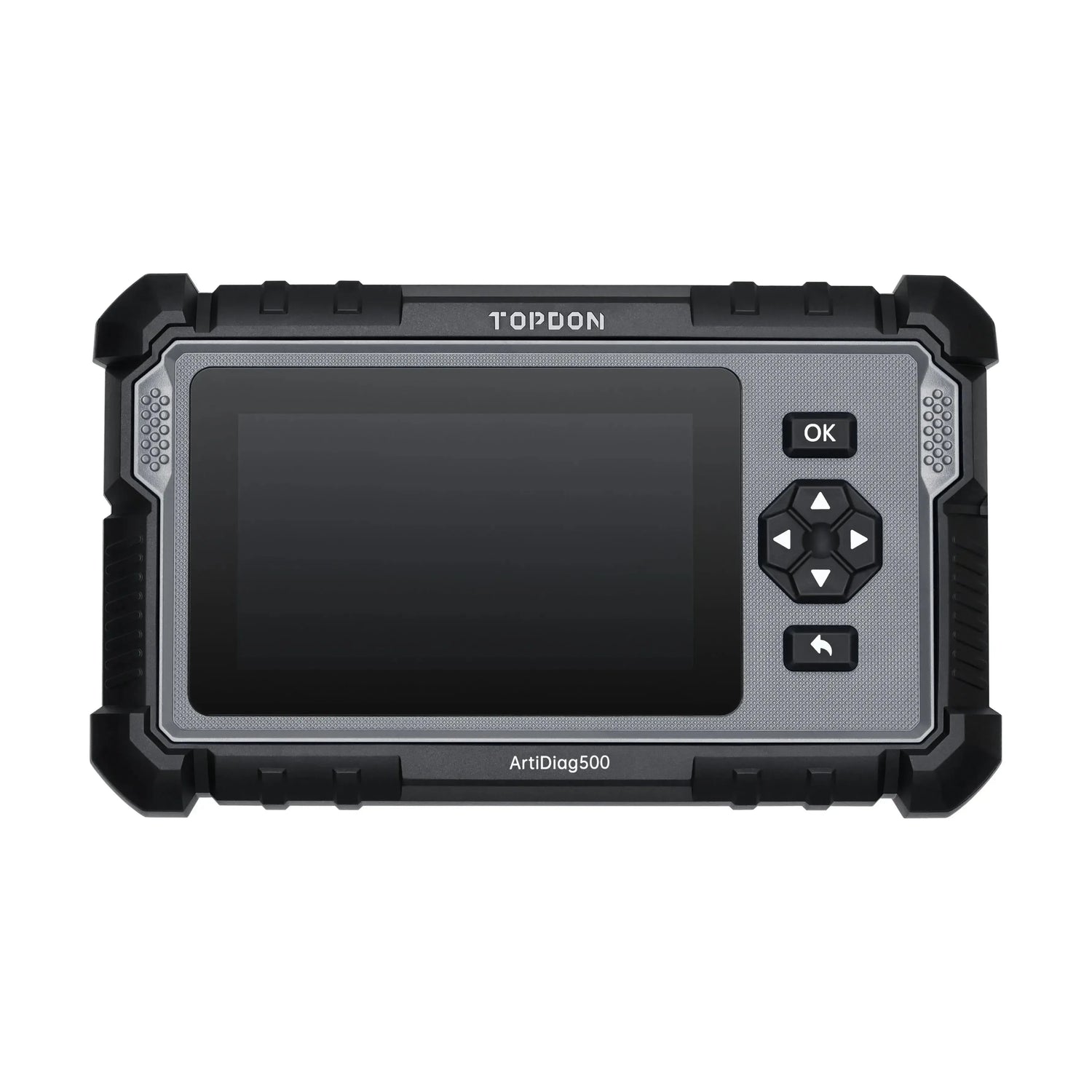

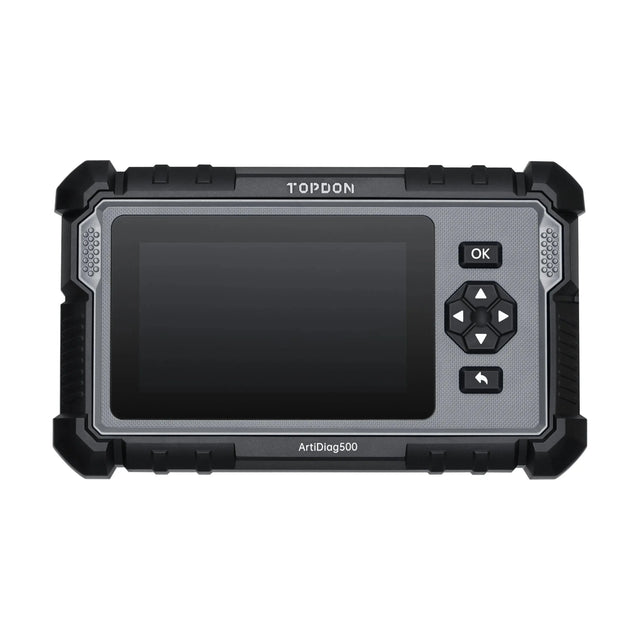

The Topdon ArtiDiag500 is a vehicle diagnostic scanner designed for analyzing 4 essential systems: engine (PCM), transmission (TCM), anti-lock braking system (ABS), and airbag (SRS). The device supports more than 67 vehicle brands and is equipped with a 5-inch touchscreen, 2 GB RAM, 32 GB storage, and runs on Android 7.0. The license includes lifetime software updates at no extra cost.
This model features 6 service and maintenance functions, including oil service reset and steering angle sensor calibration. The AutoVIN technology provides automatic vehicle identification and the device supports the CAN-FD protocol. Diagnostic reports can be generated and shared directly on the device. Functionality can optionally be expanded with licenses for Secure Gateway (SGW) access.
Diagnostic functions:
The ArtiDiag500 performs diagnostics on the four main electronic systems of a vehicle: engine, transmission, ABS, and SRS. The functions include reading fault codes, viewing live data, and identifying the vehicle.
- Read and clear fault codes: Reads and clears fault codes (DTC's) from the engine, transmission, ABS, and SRS modules.
- Live data functions: Displays real-time data from vehicle sensors in graphical form, allowing parameters such as engine speed, coolant temperature, and sensor voltages to be analyzed directly.
- Automatic vehicle identification (AutoVIN): Automatically identifies the brand, model, and year of the vehicle by reading the chassis number (VIN).
Service and maintenance functions:
This device supports 6 service and maintenance functions. The availability of functions may vary by vehicle brand, model, and year.
Engine and drivetrain:
- Oil service reset: Resets the oil change interval and the associated service message on the dashboard after maintenance.
- Throttle body learning: Initializes the throttle actuators to standard values, necessary after replacement or cleaning of the throttle body.
Brakes:
- Electronic parking brake reset (EPB): Supports maintenance of electronic brake systems, including opening and closing calipers for replacing brake pads or discs.
Steering and Safety Systems:
- Steering angle sensor calibration (SAS): Calibrates the steering angle sensor after replacement or alignment to ensure correct operation of systems such as ESP.
- Tire pressure monitoring system reset (TPMS): Resets the warning light of the tire pressure monitoring system after replacing a tire or sensor.
Bodywork and electronics:
- Battery management system reset (BMS): Registers a new Battery in the vehicle system after replacement, so the charging strategy is correctly adjusted.
Special functions and capabilities:
The ArtiDiag500 offers various special functions that increase diagnostic efficiency, such as protocol support and reporting.
- CAN-FD protocol support: Compatible with the CAN-FD protocol, enabling communication with more modern vehicles.
- Generate diagnostic report: Creates a complete diagnostic report of the scanned systems. This report can be saved and shared.
Optional expansion modules:
The functionality of the Topdon ArtiDiag500 can be expanded with the following brand-specific licenses. These expansions are optional and depend on the specific vehicles being worked on.
Software modules and licenses:
- FCA Secure Gateway (SGW) license: Grants authorized access to the secure diagnostic systems of vehicles within the Fiat Chrysler Automobiles group, including brands such as Fiat, Chrysler, Jeep, Dodge, and Alfa Romeo.
- Renault Secure Gateway (SGW) license: Provides authorized access for performing diagnostics and special functions on recent Renault and Dacia vehicles equipped with a Secure Gateway.
Supported vehicle brands:
This reader device supports a wide range of vehicle brands from different continents. Compatibility includes brands from Europe, Asia, America, and China.
- European: Abarth, Alfa Romeo, Audi, Bentley, BMW, Bugatti, Citroen, Dacia, DS, Fiat, Ford, Jaguar, Lamborghini, Lancia, Land Rover, MAN, Maybach, Mercedes-Benz, Mini, Opel, Peugeot, Porsche, Renault, Rolls-Royce, Saab, Seat, Skoda, Smart, Sprinter, Vauxhall, Volvo, Volkswagen, Volkswagen CV.
- Asian: Acura, Daewoo, Daihatsu, Genesis, Honda, Hyundai, Infiniti, Isuzu, Kia, Lexus, Mazda, Mitsubishi, Nissan, Nissan GTR, Proton, RSM, Scion, SsangYong, Subaru, Suzuki, Tata, Toyota.
- American: Buick, Cadillac, Chevrolet, Chrysler, Dodge, Ford, GM, GMC, Holden, Jeep, Lincoln.
- Chinese: BYD, Denza, MG.
Package Contents:
- 1x Topdon ArtiDiag500

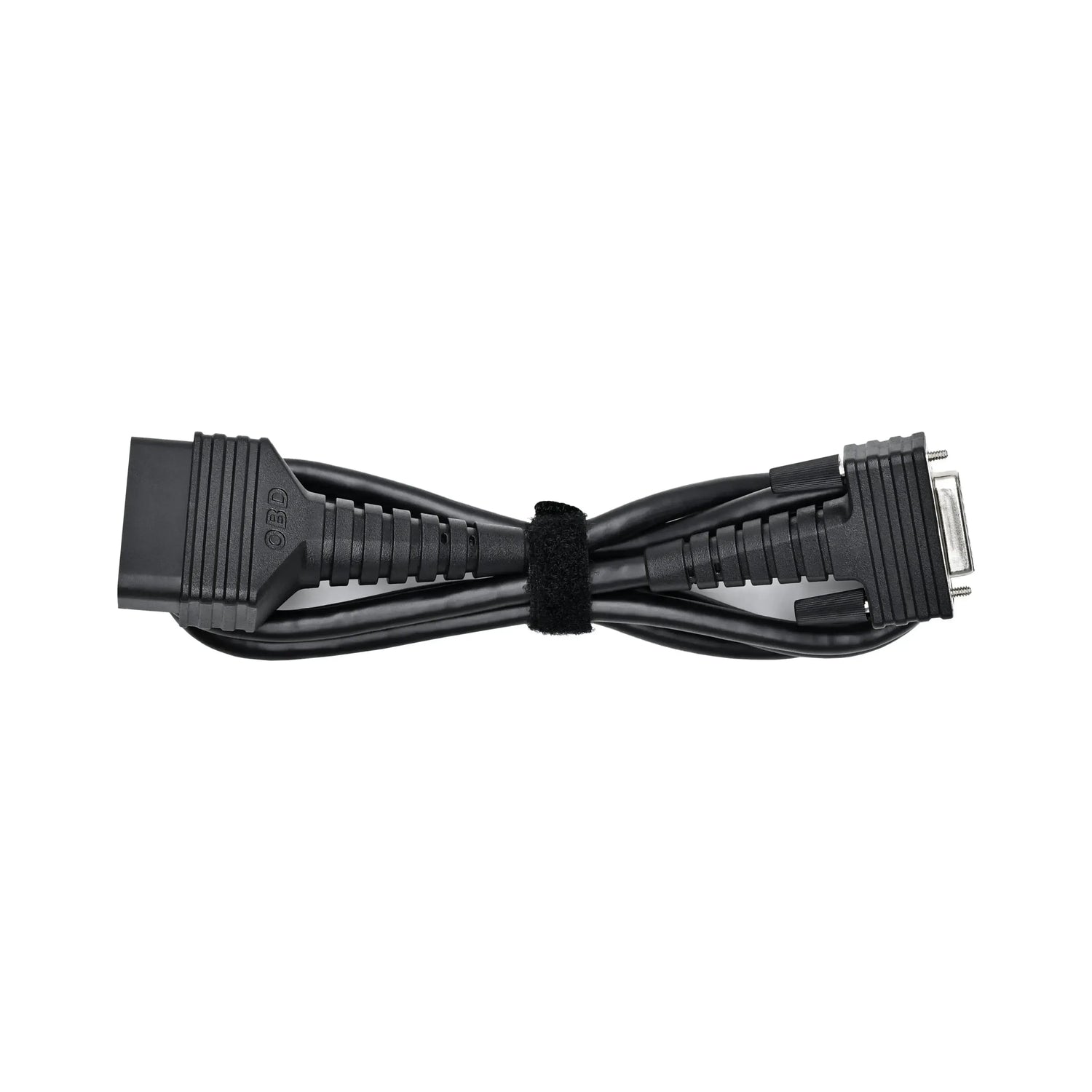

- 1x OBD2 cable

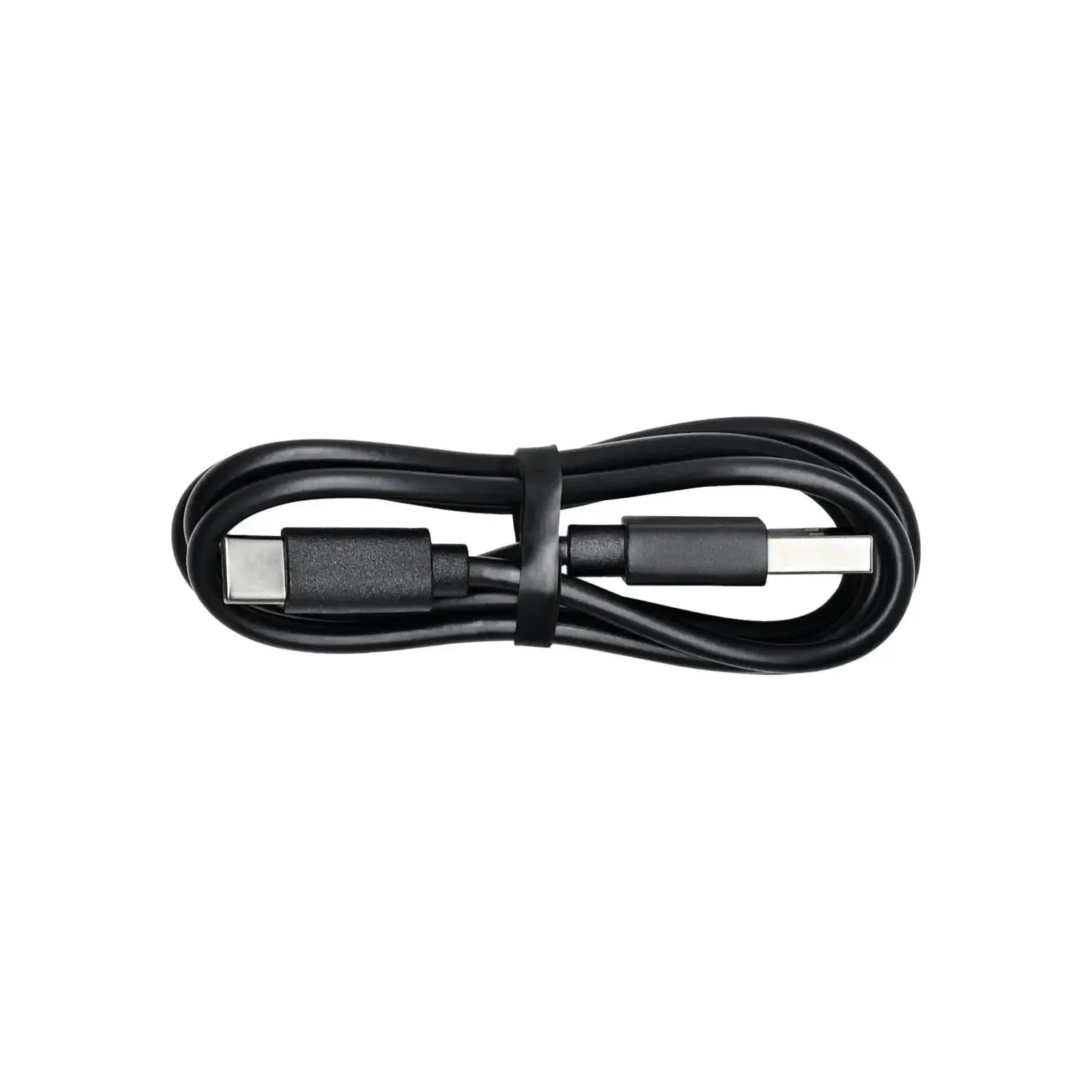

- 1x USB cable
- 1x Manual

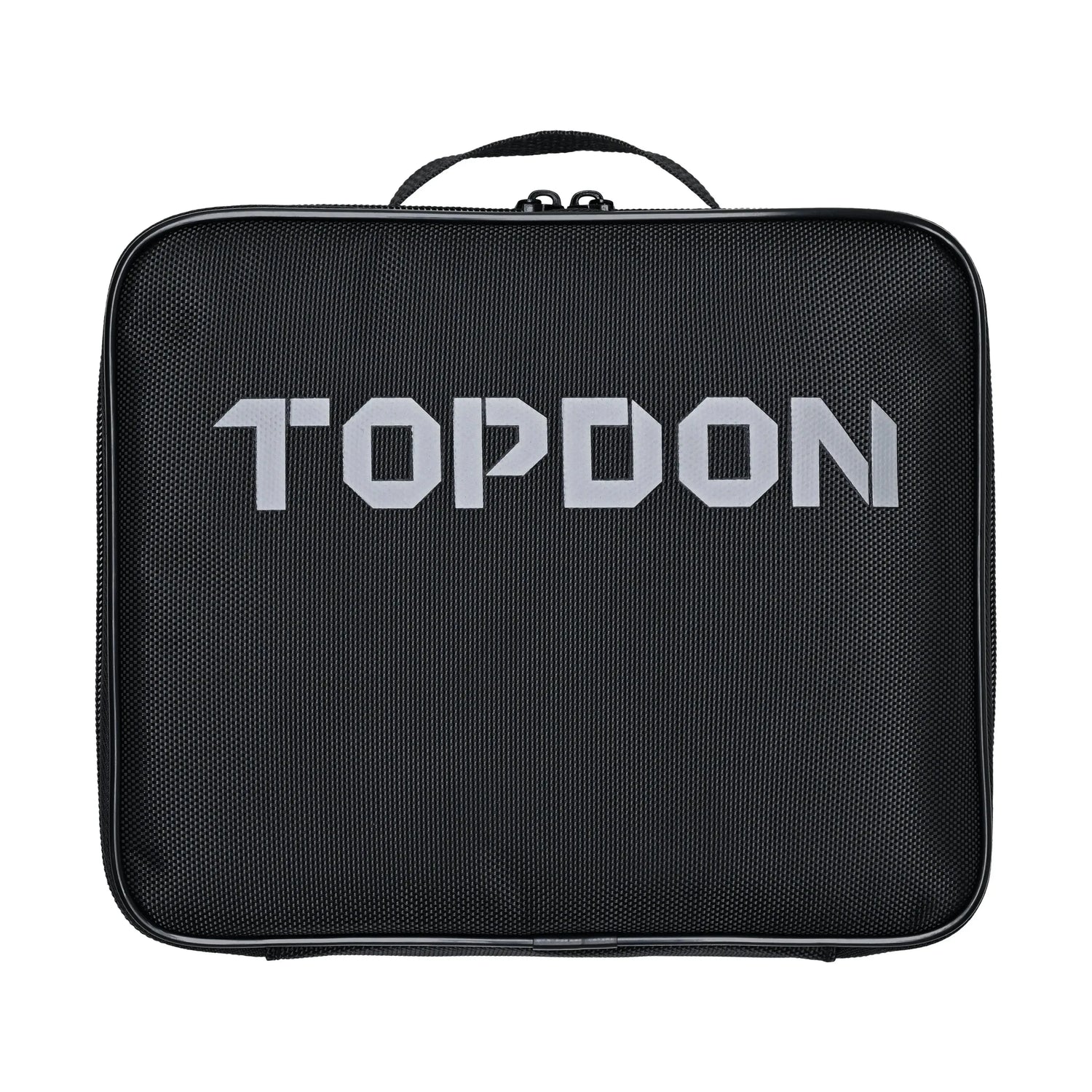

- 1x Storage case
- 1x Packaging box
License information:
- Including lifetime updates: Software updates are included for life upon purchase.
After the initial purchase, there are no additional costs for receiving new software versions and vehicle updates. All functions remain fully available without the need for an annual license renewal.
Technical specifications:
| Specification | Description |
|---|---|
| Product Brand | Topdon |
| Product Model | ArtiDiag500 |
| Operating System | Android 7.0 |
| Screen Size | 5 inch |
| Screen Resolution | 1280x720 |
| Processor | 4-Core 1.5GHz |
| RAM Memory | 2 GB |
| Storage Memory | 32 GB |
| Connectivity | USB |
| Battery | 3350 mAh |
