OBDSTAR  |  SKU: M047

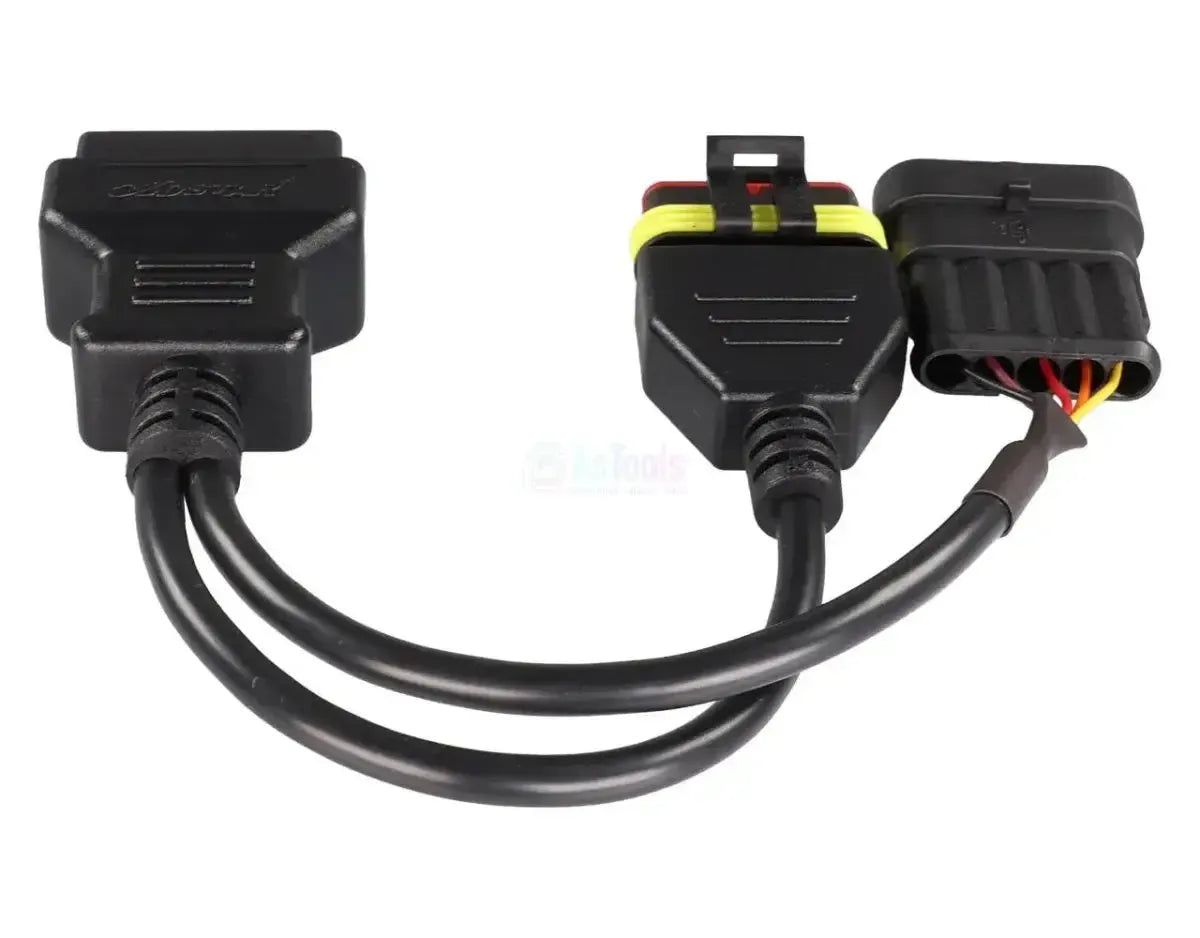

OBDSTAR (M047) | Vespa/Moto Guzzi 5+5-pin OBD – 16-pin OBD2 Adapter Cable | Motorcycle

€34,95 incl.
€28,88 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

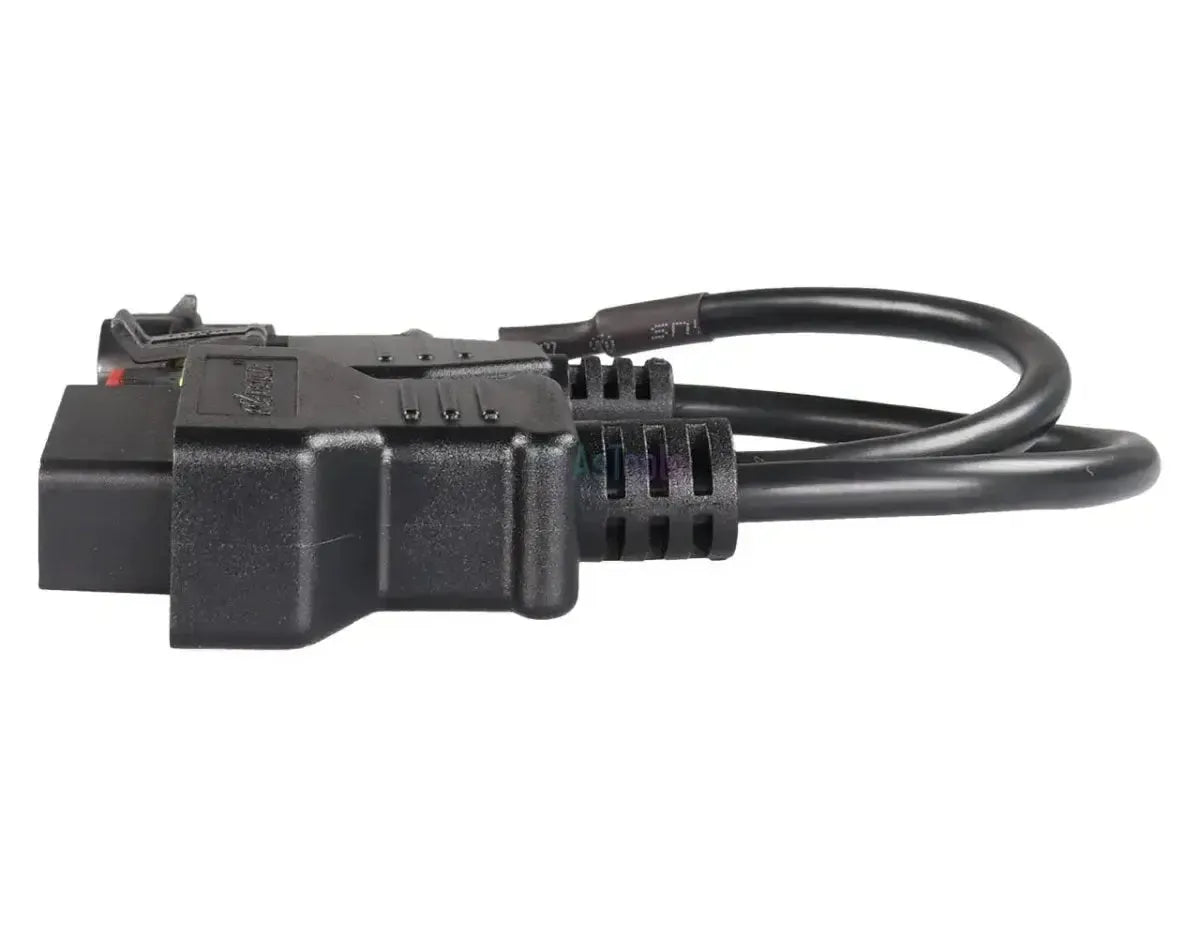

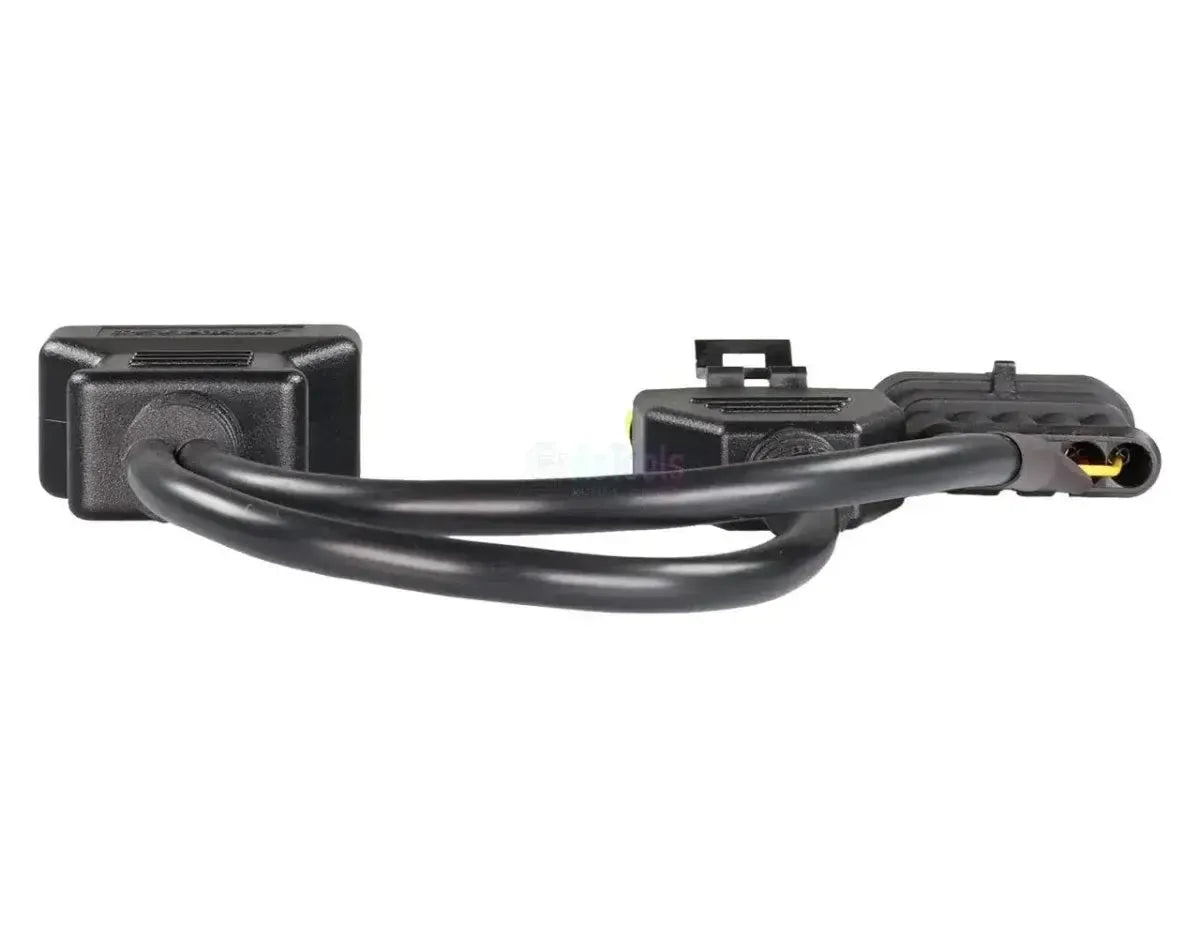

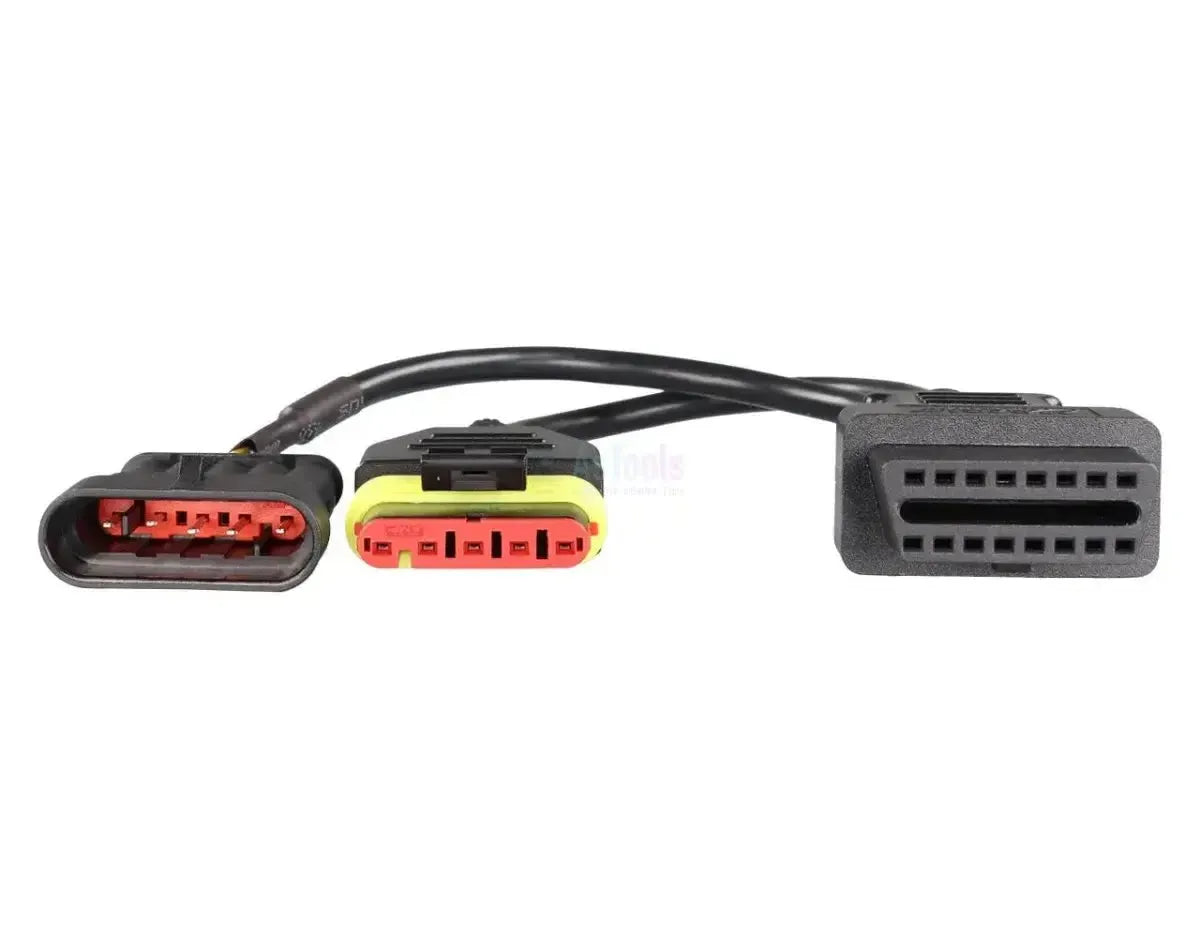

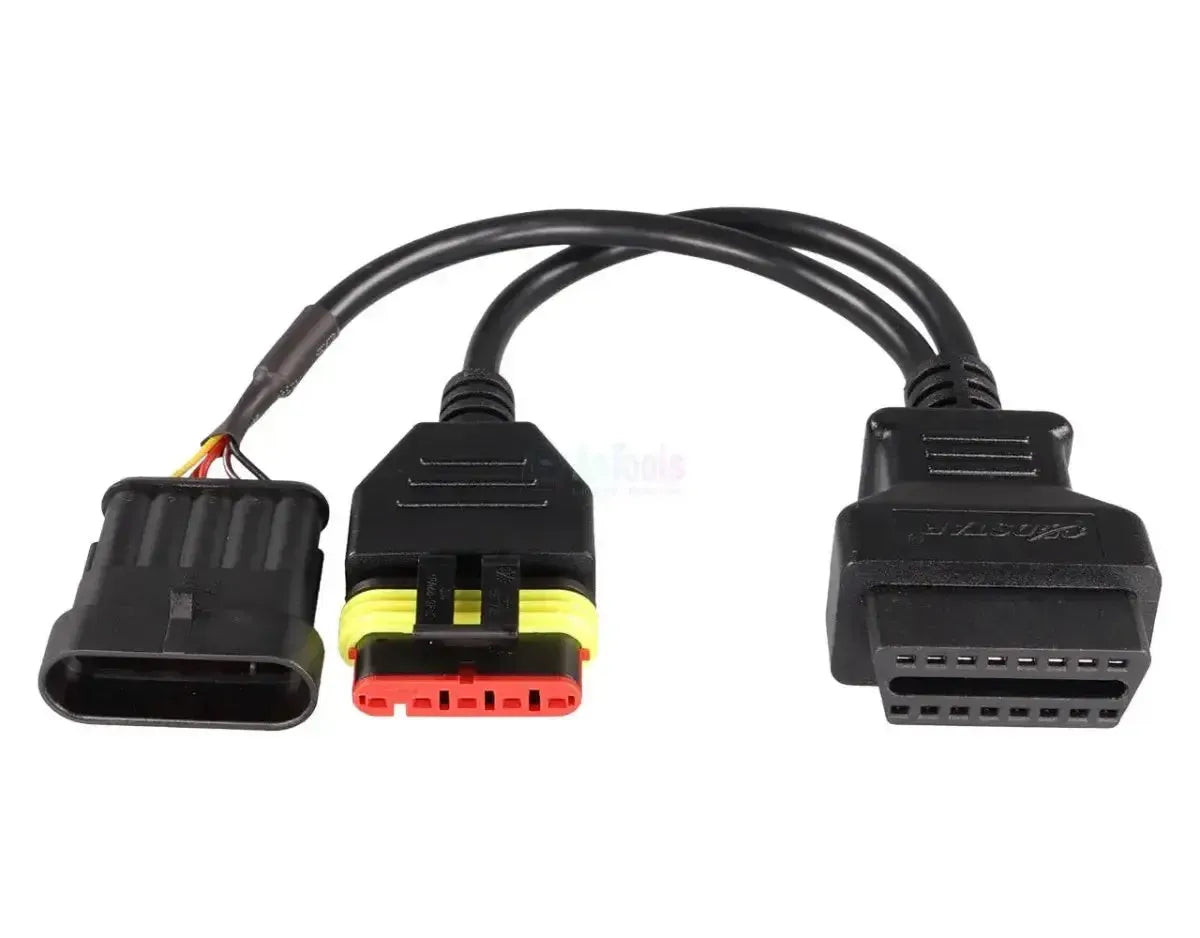

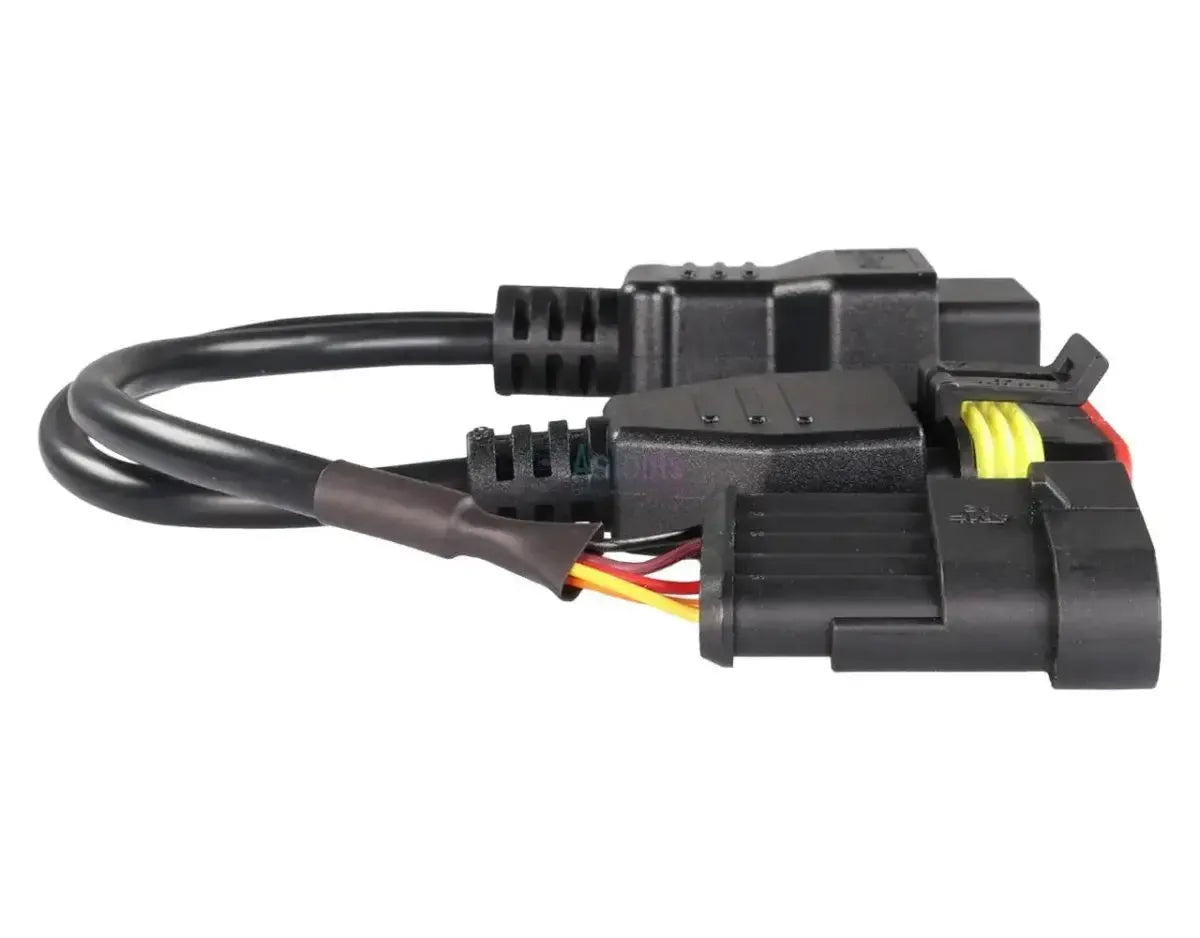

The OBDSTAR M047is the adapter cable for the5+5-pin diagnostic connectors for Vespa and Moto Guzzi. On the vehicle side there are two separate connectors, one 5-pin Vespa connector and a 5-pin Moto Guzzi connector, which converge via a junction onto a single16-pin OBD2 (J1962)-connector.

Both manufacturers use their own pinout configuration that differs from the J1962-layout that OBDSTAR equipment expected. The cable bridges that pin mapping passive in the wiring and provides, among other things, the K-line for serial communication. Thanks to the split design, you select the correct connector for the vehicle in front of you without needing to swap cables. The cable establishes the connection with the engine control unitsbehind that gateway, including the immobiliser system when your device supports it. The cable does not add anycoverage connector; your own device determines what is possible.

KEY FEATURES

✔Two brands on one cable— Both the Vespa and Moto Guzzi connectors are fitted to the cable, so a second cable is not required.
✔Passive pin mapping— No additional electronics are introduced into the signal path, preserving signal integrity.
✔Direct connection to the OBD2 port— Connect directly to OBDSTAR equipment without requiring an intermediate adapter or additional wiring.
✔Wide model range— From Vespa LX and GTS scooters to the larger Moto Guzzi models listed below.

IMPORTANT NOTES

✕Only the 5+5-pin connector type — Vehicles with a non-standard connector type fall outside the scope of this cable.
✕Moto Guzzi has more than one configuration — Some Moto Guzzi models are equipped with an 8+8-pin diagnostic connector; a different cable is required for those.
✕OBDSTAR equipment only — The cable is not compatible with diagnostic systems from other manufacturers.
✕Does not add vehicle coverage — Which functions, including immobiliser features, are available depends on your own device.

Applications and functionality

Via this connection you can access the control units behind the 5-pin diagnostic connector of the scooter or motorcycle.

Control units you can reach

  • Engine control unit (ECU): The unit communicated with via the K-line connection.
  • Immobiliser system: With compatible OBDSTAR programmers, the immobiliser system is accessible via this connector.

What you can do

  • Read and clear fault codes: Retrieve stored diagnostic trouble codes via the K-line and remove them after diagnosis.
  • Read live data: View sensor values and operating parameters in real time to analyse system status and riding behaviour.
  • Code keys: With compatible OBDSTAR programmers, pair keys and transponders with the immobiliser system.
  • Retrieve system information: Read vehicle and system data, such as ECU version and vehicle identification details.
  • Note: Which of these functions you can use depends on the model and the coverage of your device.

Compatible vehicles and applications

The 5-pin diagnostic connector is what matters, not the model. The vehicles listed below are equipped with that connector type. Only vehicles with this connector are supported.

Moto Guzzi:

  • Breva 750: (2003–2009)
  • Breva 850: (2006–2012)
  • Breva 1100: (2005–2012)
  • Griso 850: (2006–2012)
  • Griso 1100: (2005–2008)
  • Norge 1200: (2006–2010)
  • Stelvio 1200: (2008–2015)

Vespa:

  • GTS 125: (2006–present)
  • GTS 250: (2005–2012)
  • GTS 300: (2008–present)
  • GTV 250: (2006–2012)
  • GTV 300: (2010–present)
  • LX 125: (2005–present)
  • LX 150: (2005–present)
  • S 125: (2007–present)
  • S 150: (2007–present)
💡
Useful to know: On Vespa scooters, the 5-pin diagnostic port is typically located beneath the seat or within the front panel; on Moto Guzzi motorcycles, the port is generally found near the frame or under the fairing. Before ordering, verify which connector type your vehicle has, as Moto Guzzi models feature multiple connector variants.

Package contents

  • 1x OBDSTAR (M047) | Vespa/Moto Guzzi 5+5-pin OBD – 16-pin OBD2 Adapter Cable | Motorcycle

Technical specifications

General

The brand of the cable or adapter. It often has to match the brand of your diagnostic tool.Brand
OBDSTAR
The type of product: a separate adapter cable, an adapter without a cable or a complete set.Product type
Adapter cable
The types of vehicles or machinery on which the cable can be used. This shows quickly whether it suits the vehicles entering your workshop.Vehicle types
  • Motorcycle and scooter

Suitable for

The brand of diagnostic tool the cable works with. A cable for one brand usually does not fit a tester of another brand.Compatible diagnostic tool
  • OBDSTAR
Whether the cable needs a separate power connection, for example via battery clamps. A passive cable works without one.Separate power supply required

Connections

The connector that plugs into the diagnostic port of the vehicle or machine. It must fit exactly.Vehicle-side connector
Vespa/Moto Guzzi 5+5-pin OBD
The connector on the side of your diagnostic tool or interface. Usually a 16-pin OBD2 connector.Tool-side connector
16-pin OBD2 (J1962)
The data lines through which the cable passes signals. The vehicle and the tester must use the same communication method.Communication
  • K-line

Size and weight

The weight of the cable or adapter.Weight
0.1 kg

Other specifications

Application
Vespa and Moto Guzzi 5-pin diagnostic connectors
Device-side connection
16-pin OBD2 (J1962)
Control units
Engine control unit (ECU) and immobiliser system
Supported brands
Moto Guzzi and Vespa
Model range
2003–present, provided equipped with 5-pin diagnostic connector
Required to use
OBDSTAR diagnostic device with motorcycle coverage, such as the MS50, MS70 or MotoMaster
Additional requirements
None; the cable operates without adapter or power supply
