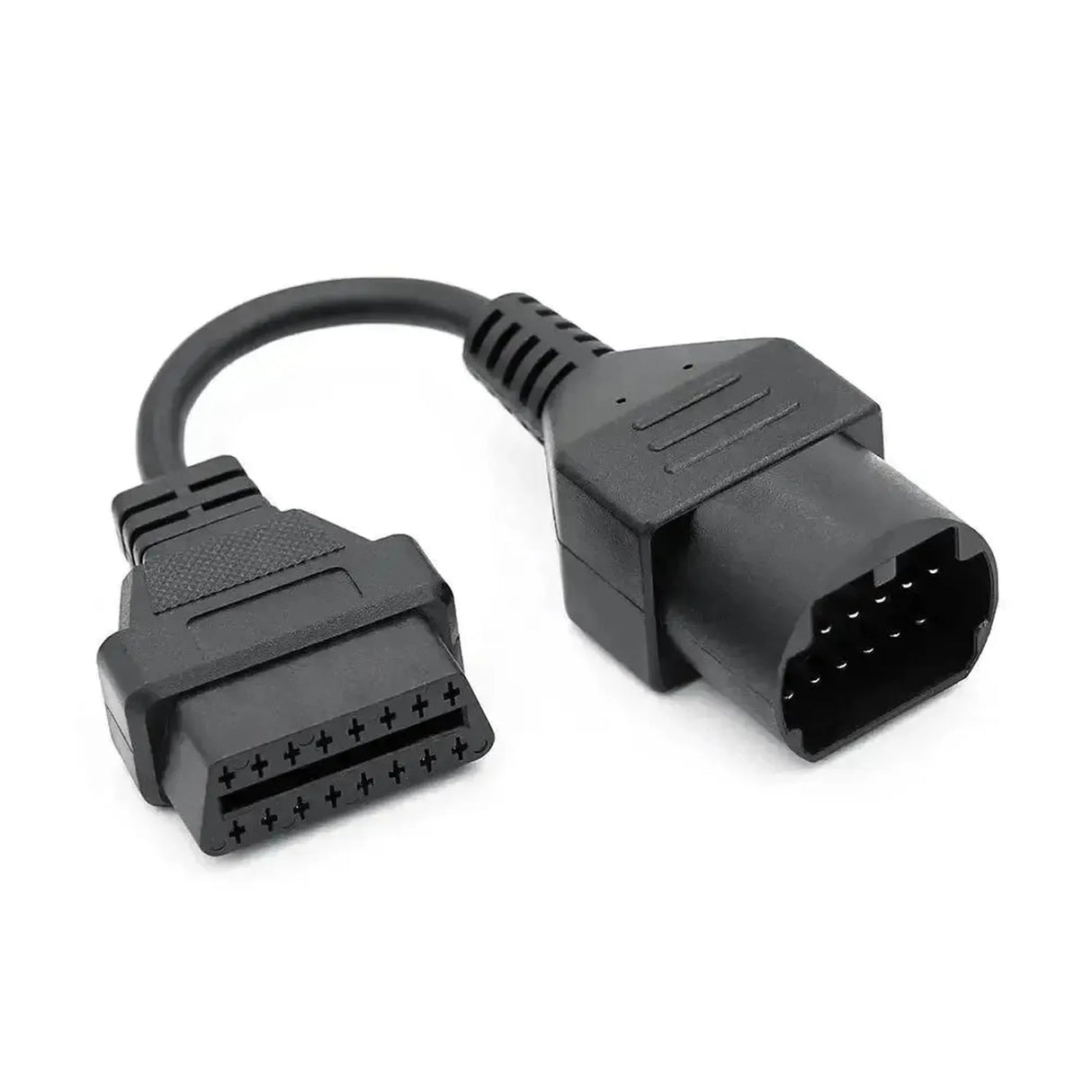

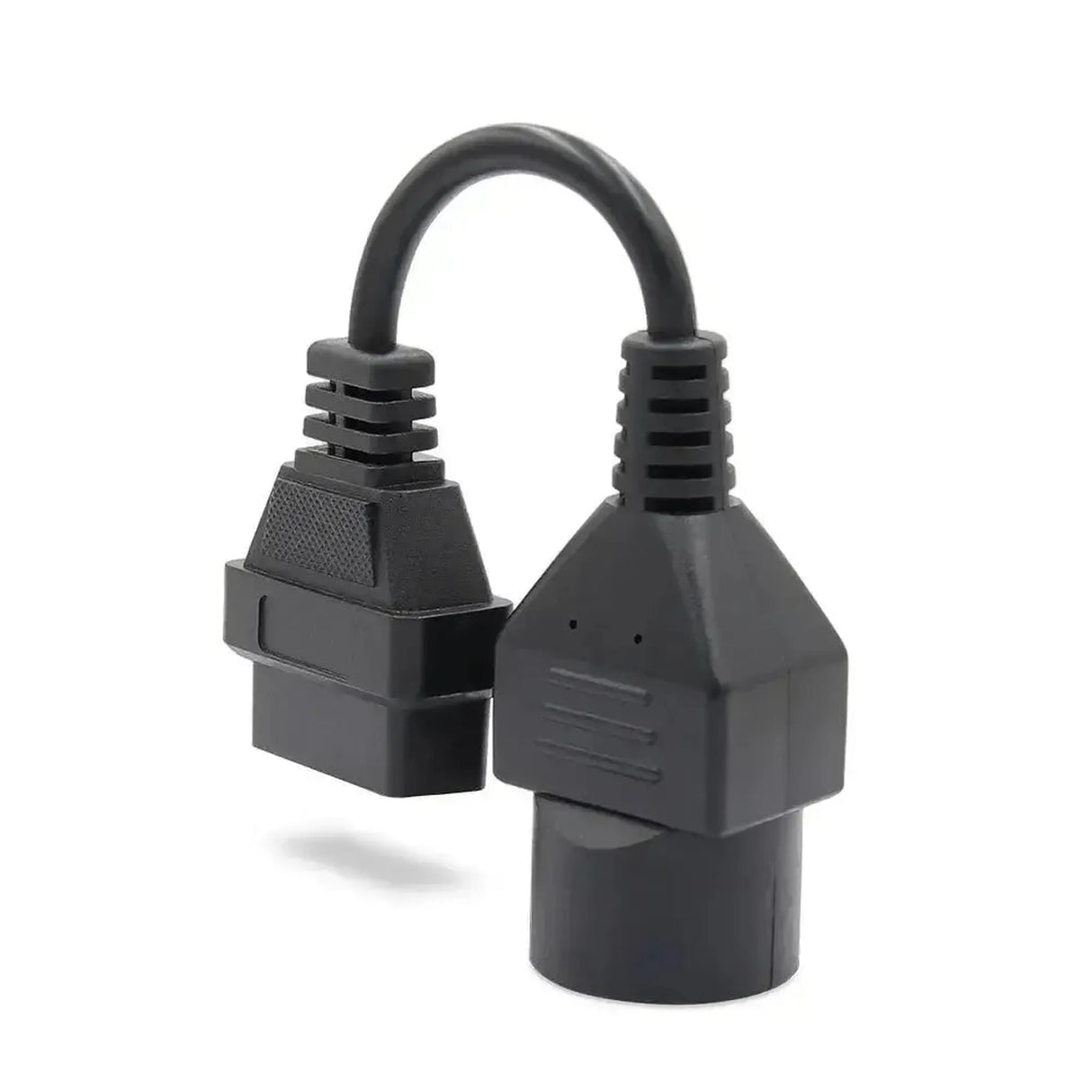

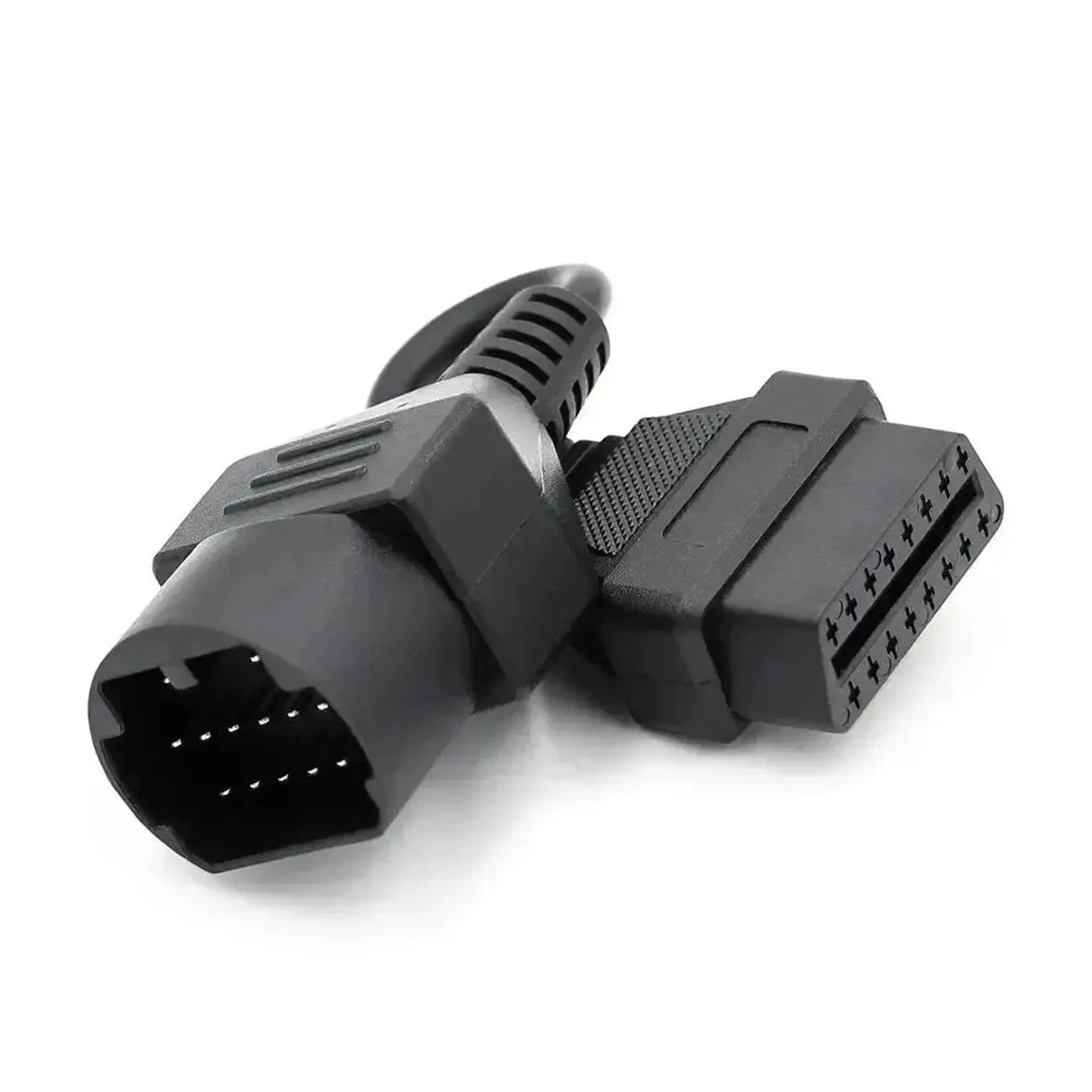

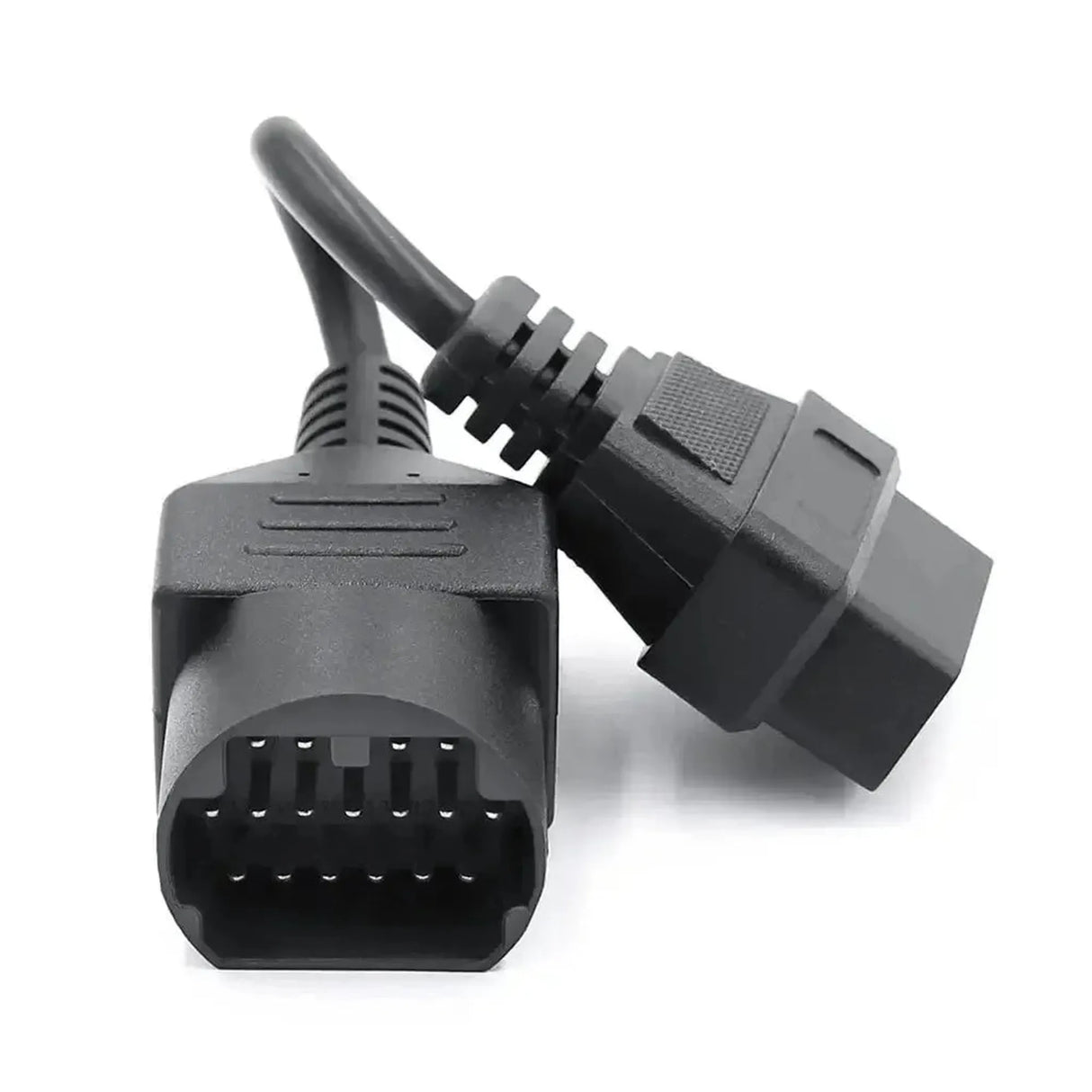

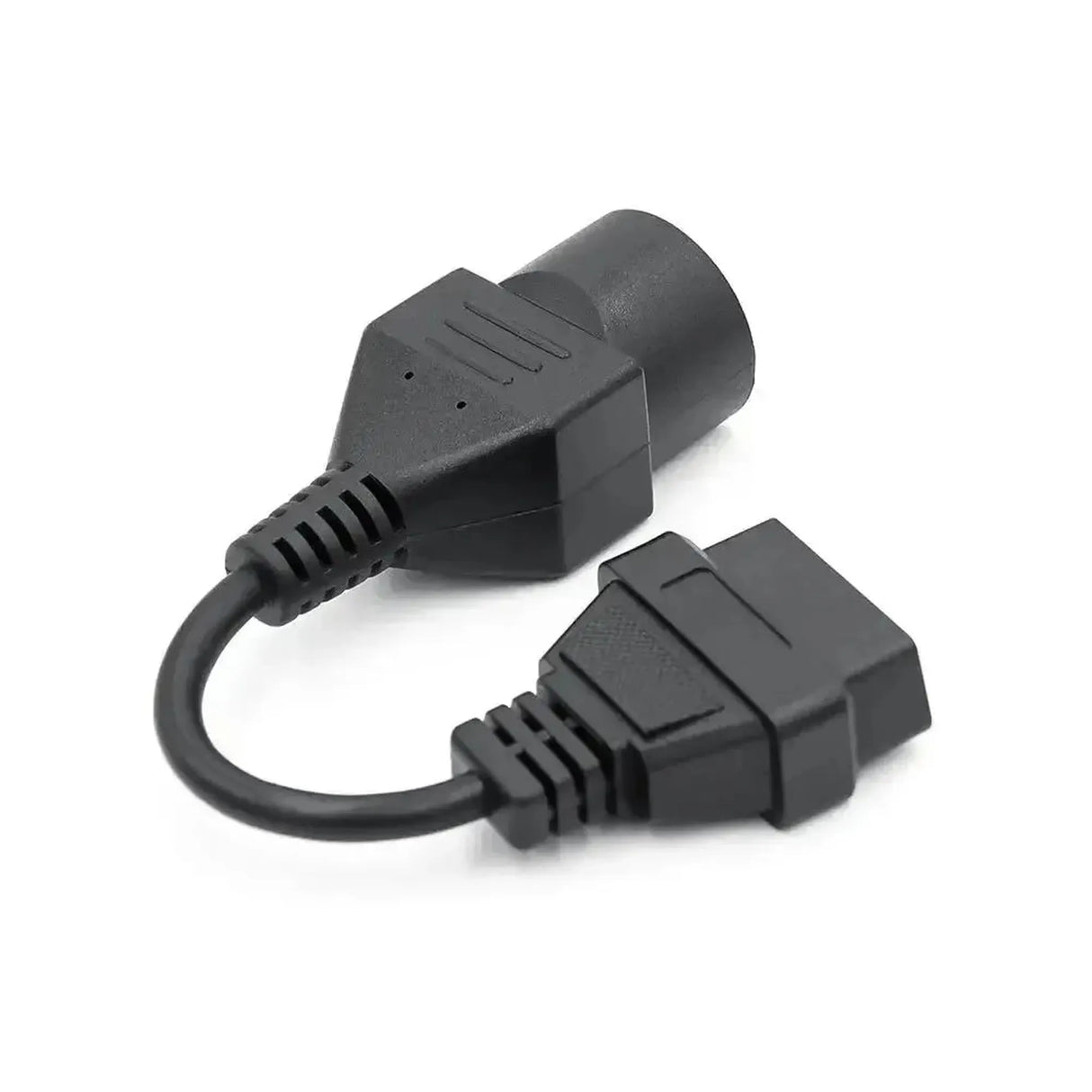

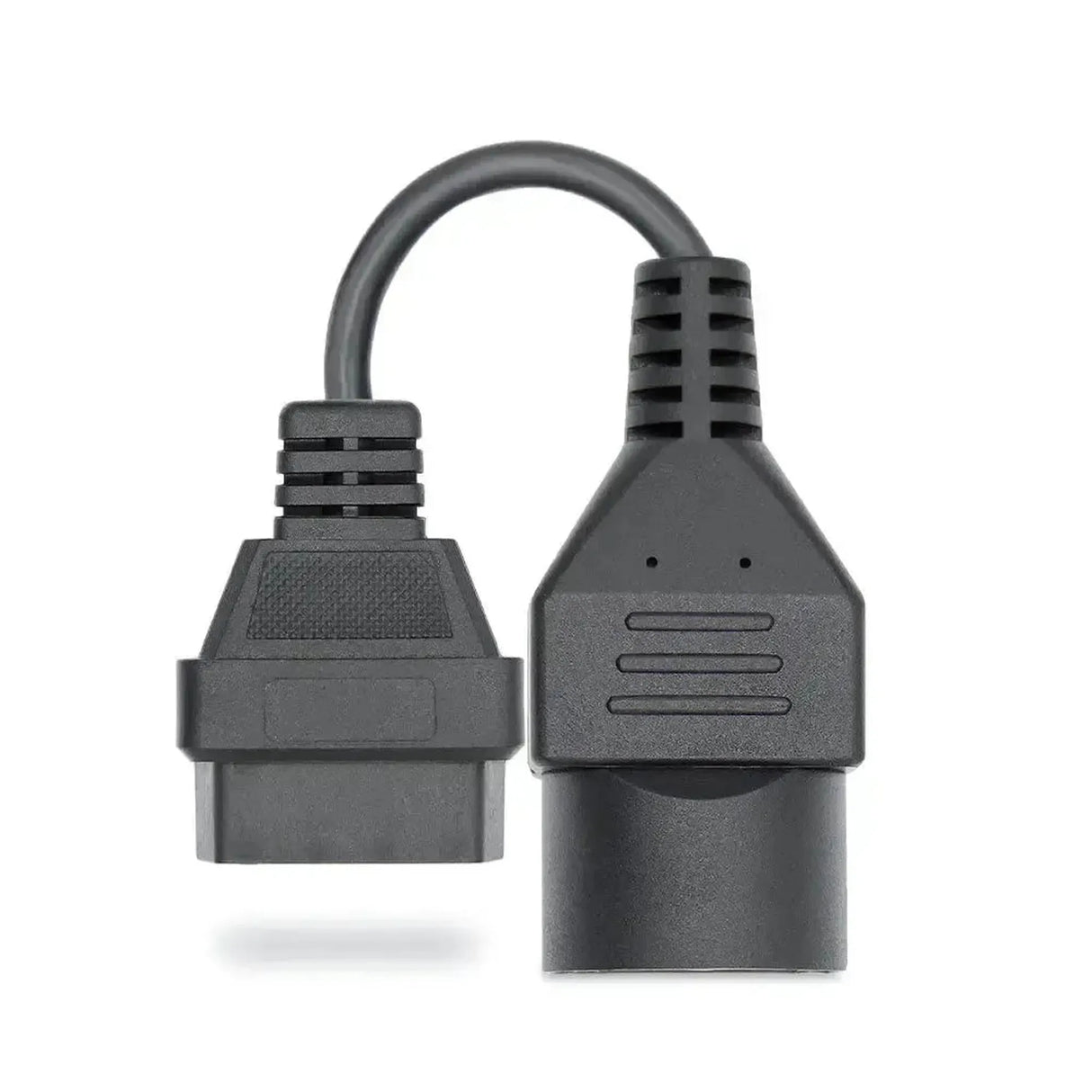

This adapter cable connects the 17-pin diagnostic connector of older Mazda passenger cars to a scan tool with a 16-pin OBD2 plug. The connector is located under the bonnet, usually near the left wheel arch or strut tower, in a box marked DIAGNOSIS.
Via this connector you read out the engine management system. Depending on the model, the vehicle communicates via the K-line or via J1850 PWM. The cable physically converts the connector; the scan tool itself must support the Mazda protocols of this generation.
BENEFITS
POINTS TO NOTE
Applications and functions
This cable is intended for garages and mechanics who read out older Mazda models with the 17-pin connector.
Control units you can access
- Engine control: Injection and engine management.
- Communication: K-line or J1850 PWM.
- Other systems: Varies by model and specification.
What you can do
- Fault codes: Read and clear.
- Live data: Where the scan tool offers it.
- Fault finding: Check sensors and signals.
How to use it
- Locating the connector: Open the bonnet and find the DIAGNOSIS box.
- Connecting: Insert the 17-pin plug straight into the connector.
- Connect the diagnostic tool: Connect the 16-pin plug to the cable.
- Ignition on: Switch the ignition on without starting the engine.
- Reading out: Select Mazda, the model and the control unit.
Compatible vehicles and applications
What matters is the 17-pin DIAGNOSIS connector under the bonnet. The cable is suitable for the following Mazda models that have that connector:
Mazda:
- 323 (BA): 1994 to 1998.
- 323 (BJ): 1998 to 2000.
- 626 (GE): 1991 to 1997.
- 626 (GF): 1997 to 2000.
- MX-5 (NA): 1989 to 1998.
- MX-5 (NB): 1998 to 2000.
Package contents
- 1x Mazda 17-pin OBD1 – 16-pin OBD2 Adapter Cable | Passenger car
Technical specifications
General
- The brand of the cable or adapter. It often has to match the brand of your diagnostic tool.Brand
- AsTools
- The type of product: a separate adapter cable, an adapter without a cable or a complete set.Product type
- Adapter cable
- The types of vehicles or machinery on which the cable can be used. This shows quickly whether it suits the vehicles entering your workshop.Vehicle types
- Passenger car
Connections
- The connector that plugs into the diagnostic port of the vehicle or machine. It must fit exactly.Vehicle-side connector
- 17-pin (Mazda)
- The connector on the side of your diagnostic tool or interface. Usually a 16-pin OBD2 connector.Tool-side connector
- 16-pin OBD2 (J1962)
- The data lines through which the cable passes signals. The vehicle and the tester must use the same communication method.Communication
- K-line
- L-line
Other specifications
- Application
- Mazda passenger cars with the 17-pin diagnostic connector
- Device-side connector
- 16-pin OBD2 (J1962)
- Operation
- Passive, no protocol conversion
