OBDSTAR MS70 Diagnostic Tool

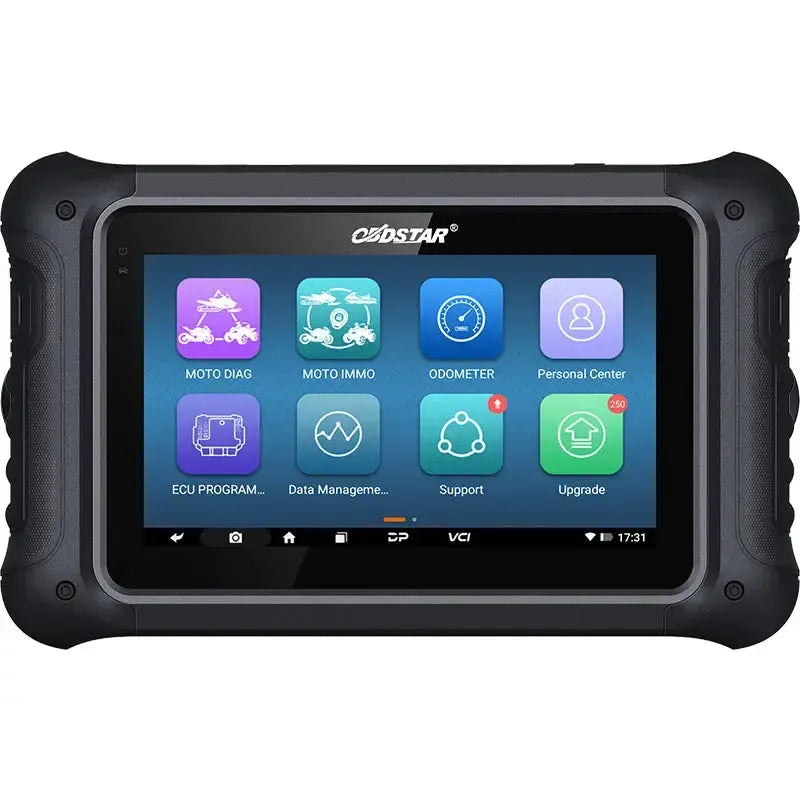

The OBDSTAR MS70 is a professional and multifunctional Diagnostic Tool, specially developed for the complex electronic systems in motorcycles, personal watercraft (PWC), ATVs, UTVs and snowmobiles. The system is built around a robust 7-inch tablet with an Android operating system, providing a fast and user-friendly operation. The wired OBD connection guarantees stable communication with the vehicle during diagnostic and service tasks, even in demanding work environments.

The power of the MS70 lies in its OE-level diagnostic functionality and extensive vehicle coverage. The device performs a complete system diagnosis on various models and also offers a rich package of maintenance and service functions. This makes the MS70 highly suitable for specialized workshops and technicians working on powersport vehicles.

Diagnostic functions:

The MS70 offers in-depth OE-level diagnosis for a wide range of motorcycles, ATVs, UTVs, personal watercraft, and snowmobiles.

• Full system diagnosis: Reads and clears fault codes (DTCs) from all electronic systems, including EFI (engine management), ABS, dashboard, ECUs and more.
• Live data stream: Displays real-time data from all supported systems. The data can be recorded, replayed, and is shown in both numeric and waveform visualization.
• AutoVIN & AutoScan: Automatically recognizes the vehicle via the VIN number and performs a full system scan for a quick overview of the vehicle status.
• Interactive wiring diagrams: Displays dynamic electrical diagrams that are interactive, allowing faults to be detected faster and visually supported.

Maintenance and service functions:

• Configure ABS settings: Adjust and set the ABS system for optimal braking performance.
• CO adjustment for optimal emissions: Set carbon monoxide levels to minimize emissions.
• Reset maintenance indicator: Reset service indicators after completed maintenance.
• Adjust idle speed: Optimize the idle speed for improved engine performance.
• Reset transmission memory: Erase transmission settings to resolve shifting issues.

Programming and coding functions:

• A/F value reset: Reset of the air-fuel ratio to factory settings.
• First fault guidance: Step-by-step guidance for diagnosing faults.
• EOL mode (end-of-line procedures): Perform calibrations and configurations at the end of the production line.
• Interactive wiring diagrams: User-friendly wiring diagrams for simple and quick fault diagnosis.

Additional features:

• Integrated help data: Provides direct access to an extensive technical library, including bulletins on known faults, DTC explanations, and step-by-step repair instructions for specific vehicle systems.
• Remote support: Through the built-in feature, an OBDSTAR expert can remotely view the tablet screen to assist with complex diagnostics or software issues.
• One-click update via Wi-Fi: Software and firmware can be updated with one click once the tablet is connected to Wi-Fi – no pc or cable needed.
• Reporting and data management: Diagnostic results and Battery tests are saved as professional reports, which can be managed or printed via a pc or directly from the tablet.

Supported vehicle brands:

• European: Aprilia, Benelli, BMW, Derbi, Ducati, Gilera, HM, Husqvarna, KTM, Moto Guzzi, Peugeot, Piaggio, RBS, Rieju, Royal Alloy, Triumph, Vespa
• Asian: Aeon, Bajaj, Hartford, Hero, Honda, Hyosung, Kawasaki, Kymco, PGO, Royal Enfield, Suzuki, SYM, TVS, Yamaha

• American: Acellera, BRP, Harley-Davidson, Indian, Polaris, Victory

• Chinese: CFMoto, China ABS, China Engine, Haojue, Linhai, QJBenelli, Shineray, Zontes

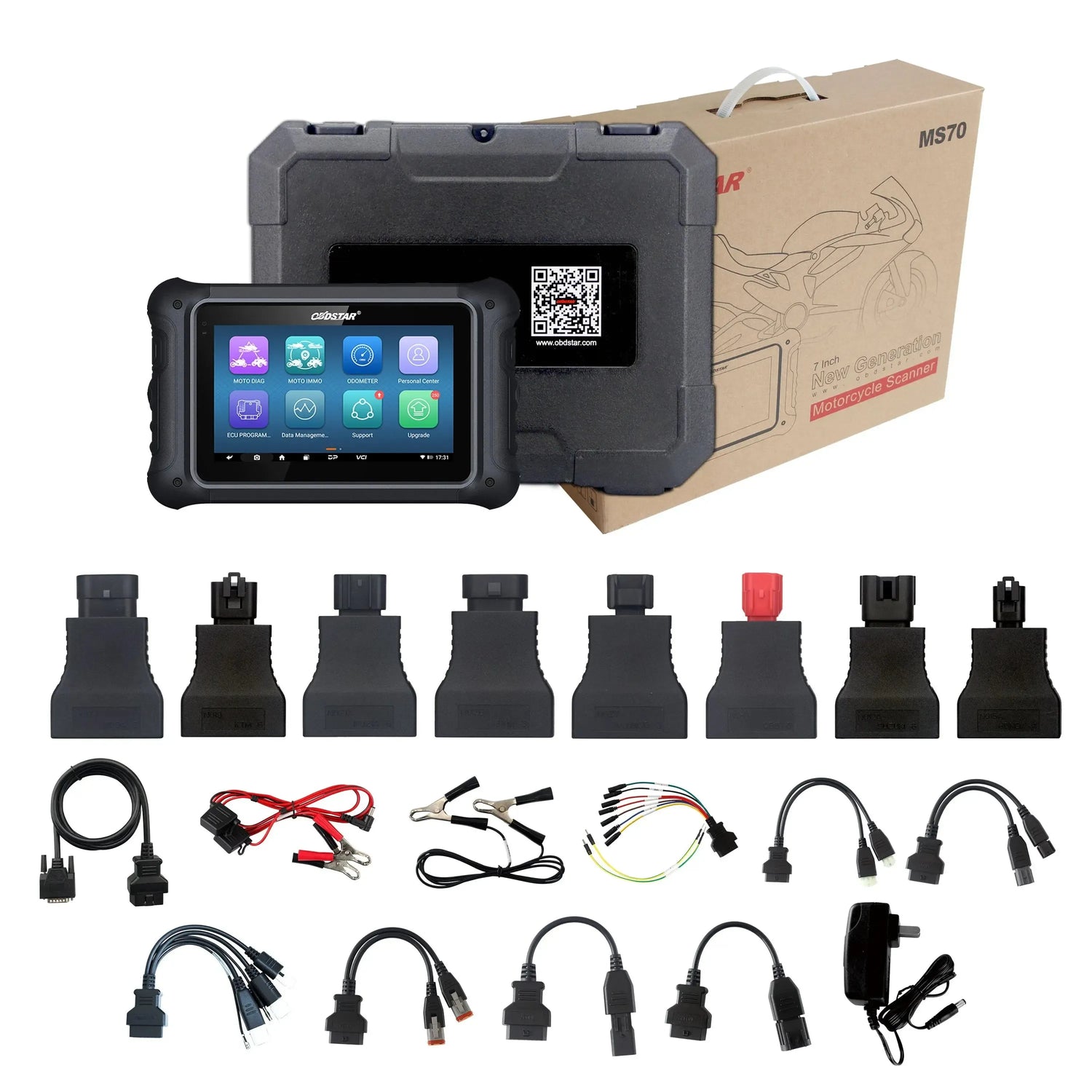

Package contents:

• OBDSTAR MS70 Diagnostic Tool

• OBDSTAR 15 Pins DB15 - 16 Pins OBD2 Adapter Cable

• OBDSTAR Power Cable

• OBDSTAR Ground Cable

• OBDSTAR Multifunctional Jumper Adapter Cable

• OBDSTAR Universal 3 Pins OBD - 16 Pins OBD2 Adapter Cable

• OBDSTAR AEON/Benelli/Benelli DSK/QJ Benelli 6 Pins OBD - 16 Pins OBD2 Adapter Cable

• OBDSTAR BRP 6 Pins OBD - 16 Pins OBD2 Adapter Cable

• OBDSTAR Ducati 4 Pins OBD - 16 Pins OBD2 Adapter Cable

• OBDSTAR Euro-V 6 Pins OBD - 16 Pins OBD2 Adapter Cable

• OBDSTAR Harley-Davidson 4+6 Pins OBD - 16 Pins OBD2 Adapter Cable

• OBDSTAR Honda 4 Pins OBD - 16 Pins OBD2 Adapter Cable

• OBDSTAR Indian/Victory 8 Pins OBD - 16 Pins OBD2 Adapter Cable

• OBDSTAR Kawasaki 4+4 Pins OBD - 16 Pins OBD2 Adapter Cable

• OBDSTAR Kawasaki 4+6 Pins OBD - 16 Pins OBD2 Adapter Cable

• OBDSTAR KTM 6 Pins OBD - 16 Pins OBD2 Adapter Cable

• OBDSTAR Kymco/Kawasaki 3 Pins OBD - 16 Pins OBD2 Adapter Cable

• OBDSTAR Suzuki 6 Pins OBD - 16 Pins OBD2 Adapter Cable

• OBDSTAR SYM 3 Pins OBD - 16 Pins OBD2 Adapter Cable

• OBDSTAR Yamaha 3+4+3 Pins OBD - 16 Pins OBD2 Adapter Cable

• OBDSTAR Power Adapter

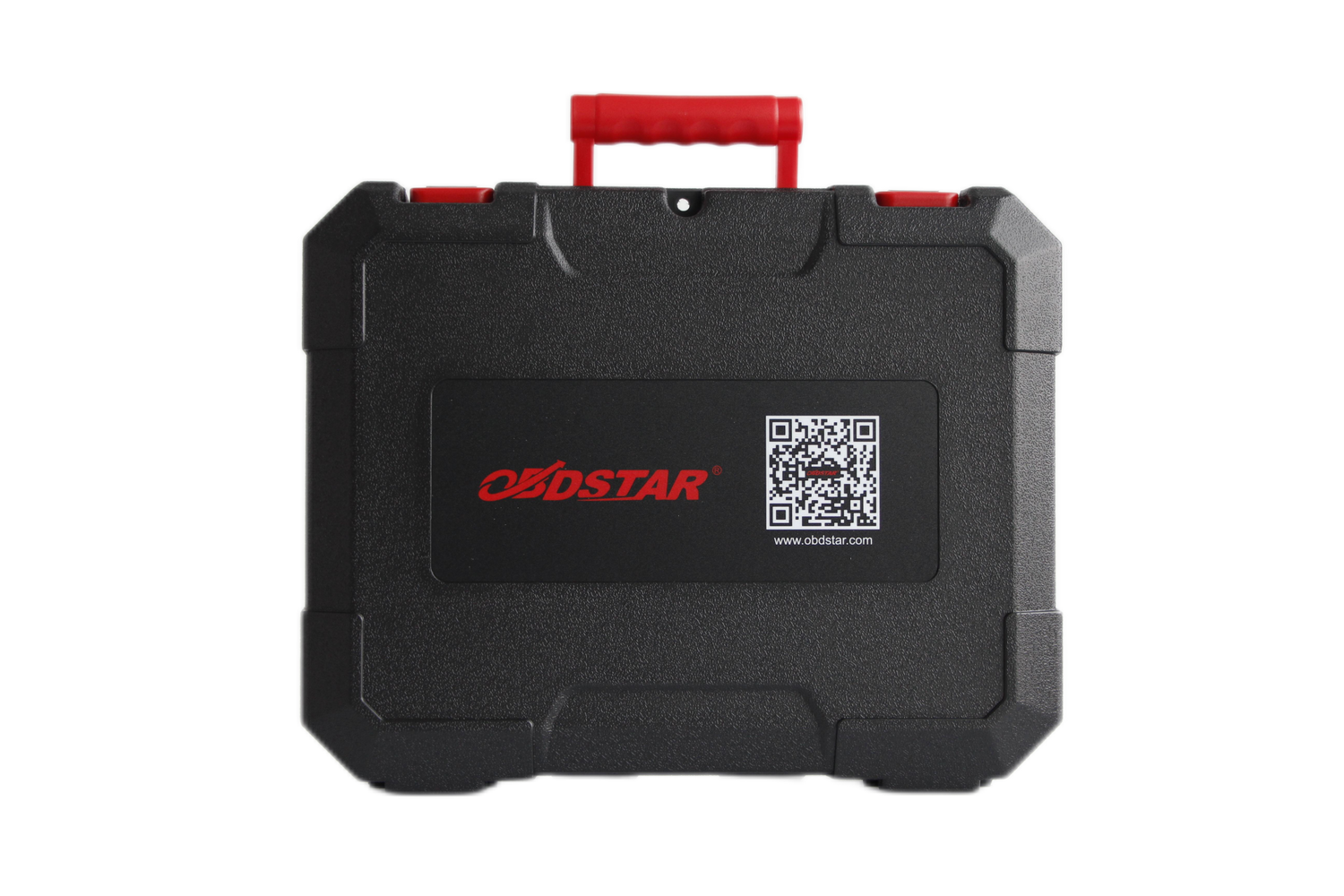

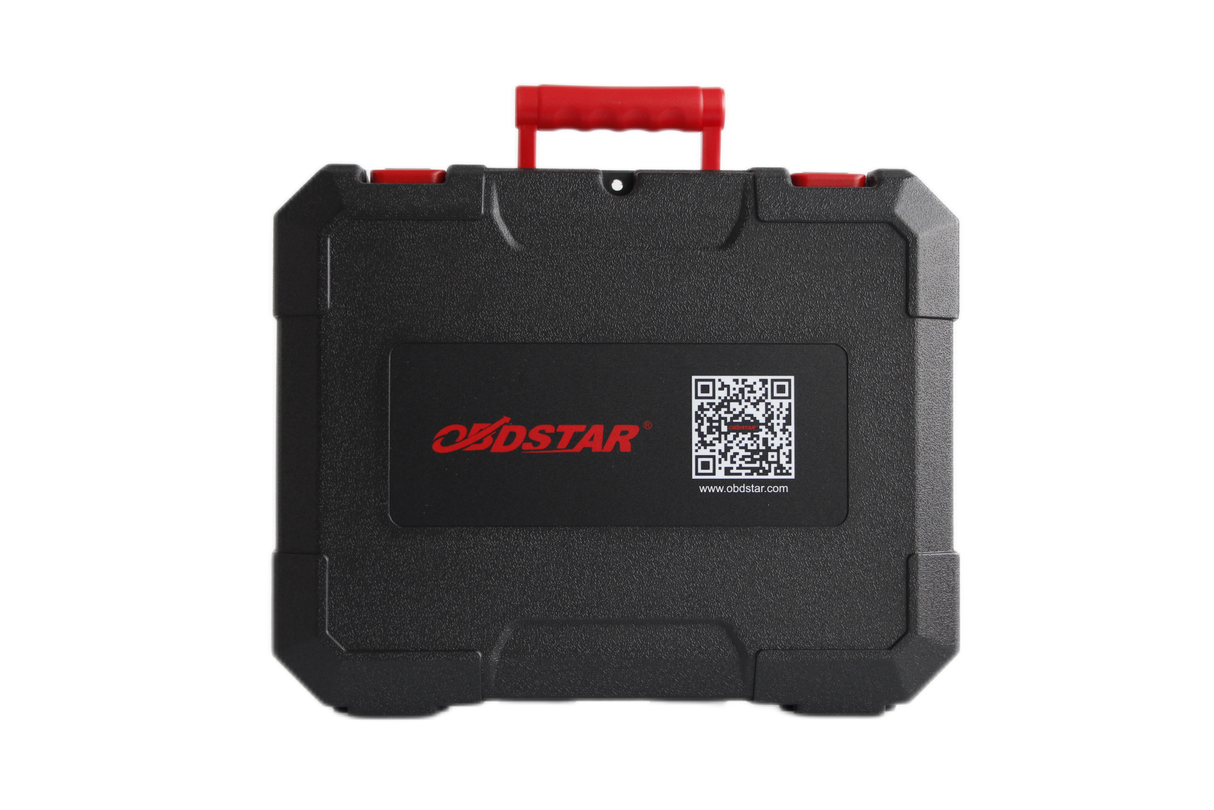

• OBDSTAR Storage Case

License information

• Includes 1 year of updates: A software license for 12 months of updates is included with purchase.

After the first year, the update license can optionally be extended for an annual fee. The device remains fully functional for all existing features and already supported vehicle models, even without extension. However, please note that new software updates will no longer be available, and certain online features (such as cloud services or remote support) may be limited or no longer accessible without an active license.

Technical specifications
