The OBDSTAR IScan Japan is a diagnostic reader for Japanese motorcycles and scooters from Honda, Kawasaki, Suzuki and Yamaha, including ATVs, UTVs and snowmobiles of these brands. You can read and clear fault codes, view live data, perform actuator tests and adjust settings and coding. The unit also performs key programming for all four brands.

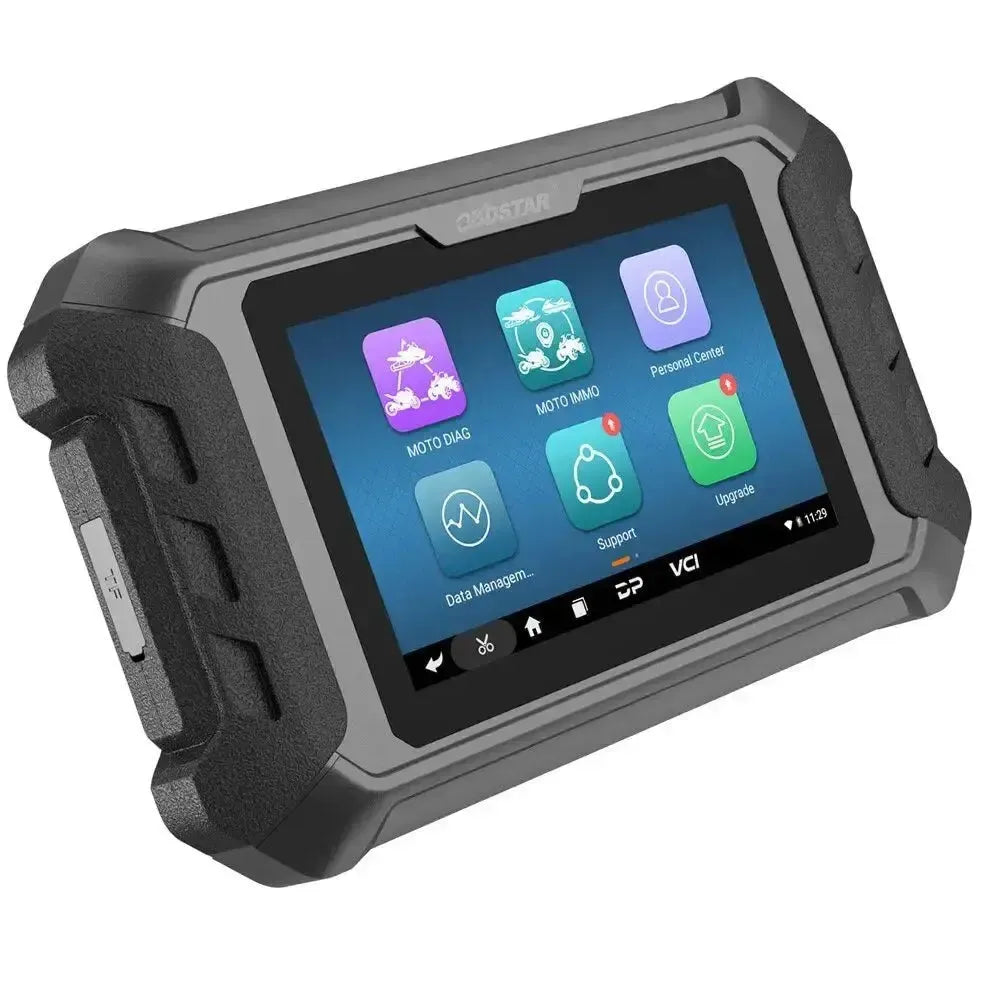

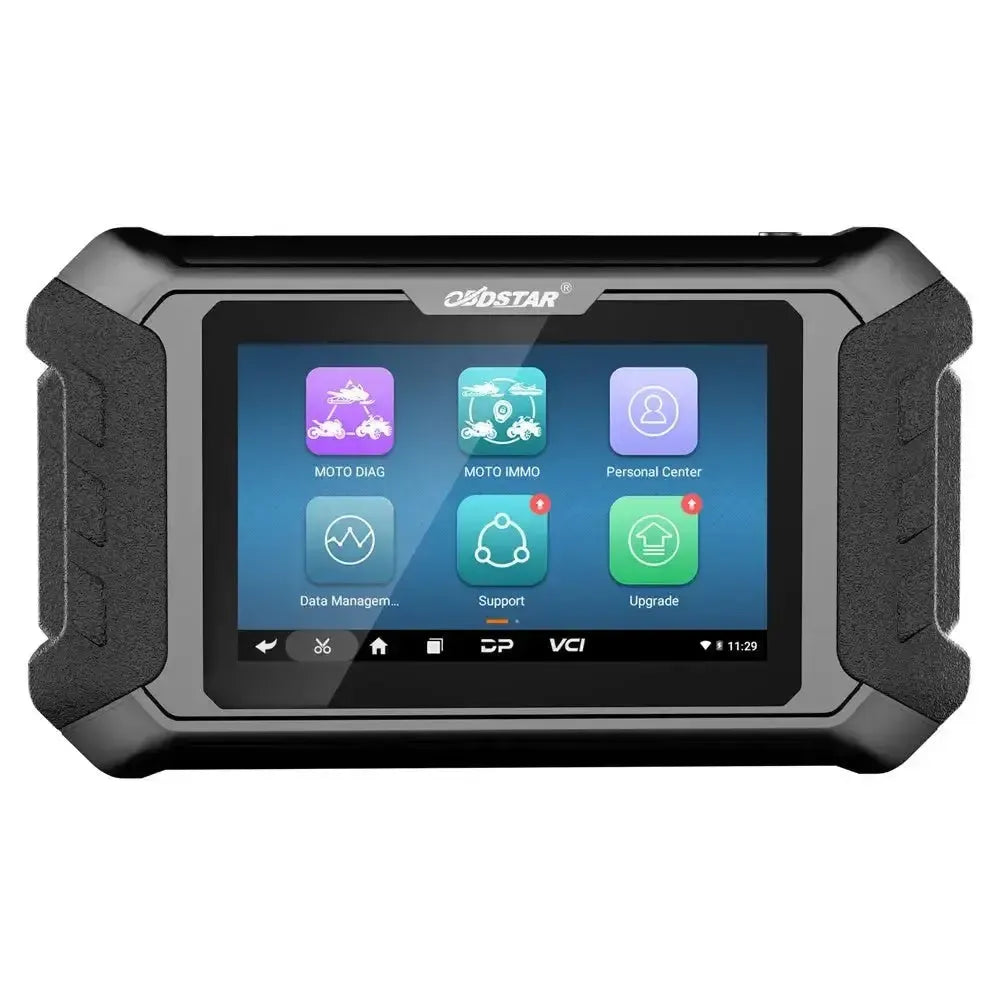

It is a 5-inch tablet (800 x 480, capacitive touchscreen) with Android 5.1.1, a RK3128 quad-core processor, a 2600 mAh battery and a micro-SD slot of up to 32 GB. Via Wi-Fi you can update the device with one click and request remote assistance from OBDSTAR. When purchased through AsTools, you receive 1 year of software updates and assistance via TeamViewer.
PROS
POINTS TO NOTE
Applications and functionality
The IScan Japan is intended for motorcycle and scooter workshops that service Japanese brands. Below is an overview of what the unit can do.
Diagnostic functions
- Fault codes: Read and clear in the control modules.
- Live data: As text, waveform or gauge.
- Recording and playback: Record live data and review it later.
- Actuator tests: Activate components to test them.
- Settings and coding: Adjust and code control modules.

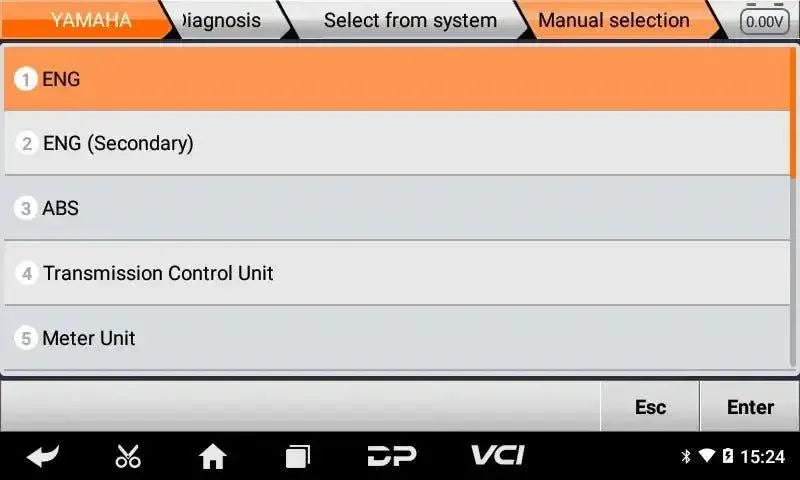

- Automatic scan: Read all modules in one go.
- VIN recognition: Automatically identify the vehicle.
Key programming
- Key learning: For Honda, Kawasaki, Suzuki and Yamaha.
Diagnostic assistance
- Fault guidance: Help in locating the cause.
- Help data and bulletins: Technical information during diagnosis.

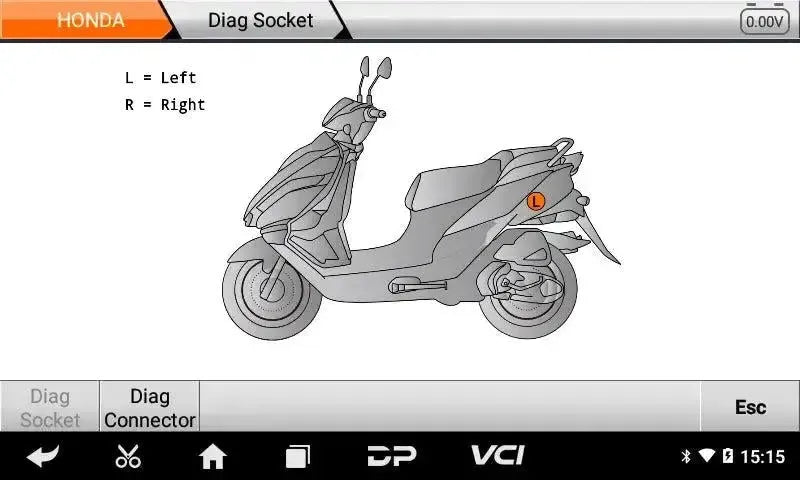

- Diagnostic connector: Where the connector is located on the vehicle.
- Remote assistance: One-click help from OBDSTAR via Wi-Fi.
- Software update: Update with one click via Wi-Fi.
How to use it
- Registration: Register the device with OBDSTAR and update it via Wi-Fi.
- Connecting: Connect the main cable with the correct adapter to the diagnostic connector.
- Selecting the vehicle: Choose the model or let the VIN be recognised automatically.
- Scanning: Start the automatic scan and read the fault codes.
- Repairing: Use live data, tests and service functions and clear the codes.
Service and maintenance functions
The IScan Japan includes the following service functions, among others. Which function works on which model varies by brand, model and year of manufacture.
Engine
- Idle speed: Adjust the idle speed.
- Idle learning: Relearn the idle values.
- Throttle body: Reset the learned values after cleaning or replacement.
- Throttle zero point: Reset the zero position of the throttle valve.
- Throttle grip sensor: Reset the learned values of the throttle grip.
- CO adjustment: Adjust the CO value.
- A/F value: Reset the air-fuel ratio.
- Lambda sensor: Reset the learned values of the lambda sensor.
- Ethanol index: Reset the learned values for ethanol.
- Ethanol correction: Set the correction for ethanol fuel.
- Fuel correction: Reset the long-term correction.
- Running hours: Reset the engine running hours counter.
- Limit: Remove the default limit.
- Rotor angle sensor: Learn the sensor after replacement.
Transmission and clutch
- Clutch learning: Learn the clutch after service.
- Clutch actuator: Reset after replacing the actuator.
- Actuator reinstallation: Reset after reinstalling the actuator.
- Clutch plates: Reset after replacing the pack.
- Shift drum sensor: Learn the angle sensor of the shift drum.
- Gear position: Reset the gear learned values.
- Transmission memory: Clear the learned values of the gearbox.
Brakes and chassis
- ABS bleeding: Guided bleeding of the ABS brake system.
- ABS control unit: Set up the ABS module.
- Steering angle sensor: Calibrate the sensor after replacement.
- IMU: Reset the learned values of the IMU.
- TPMS: Set up the tyre pressure system.
Electrical system
- EOL mode: End-of-line mode for modules.
- Computer memory: Erase module memory.
- Clock: Set the clock in the instrument panel.
- Transport mode: Enable or disable transport mode.
General and modules

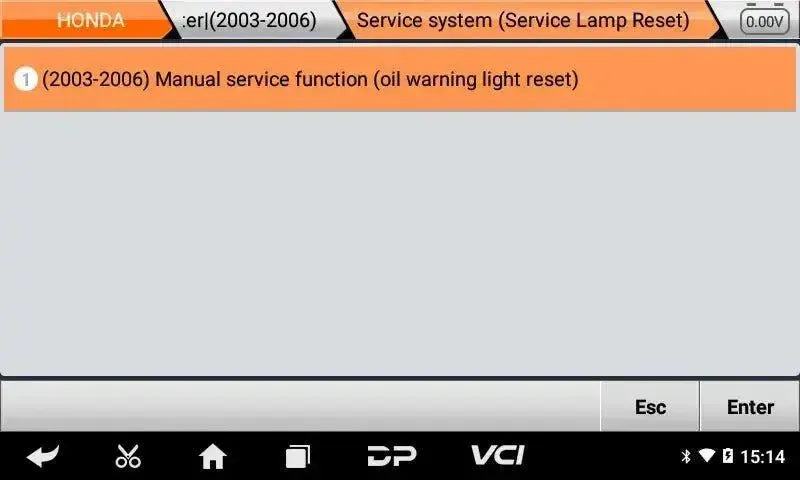

- Service light: Reset the service light.
- Range: Reset the range.

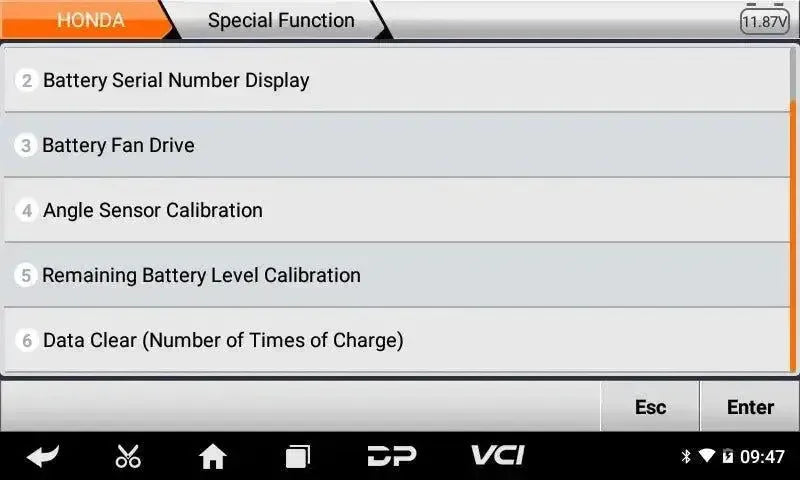

Special functions and capabilities
In addition to diagnostics and service:
- Module programming: Programme and code control modules.
- ECU settings: Adjust parameters in the engine control unit.
- Instrument coding: Code the instrument panel.
- TPMS: Functions for tyre pressure monitoring.

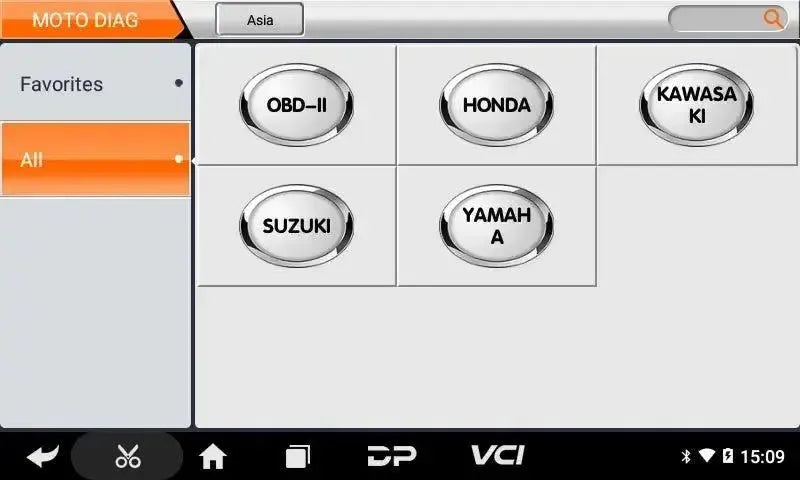

Supported vehicle brands
The combination of brand, model and year of manufacture is decisive, not the brand alone. Coverage differs by function; check the OBDSTAR coverage list in advance to confirm that your model and the desired function are included.
Brands for diagnostics
OBDSTAR covers motorcycles, ATVs, UTVs and snowmobiles from these brands.
- Asian: Honda, Kawasaki, Suzuki, Yamaha
OBDSTAR keeps coverage up to date. The list of supported models is usually updated at the end of each month.
Licence information
When purchased via AsTools, you receive 1 year of software updates.
- On purchase: Register the device with OBDSTAR and update it via Wi-Fi.
- The first year: Updates are free for 1 year from registration.
- Purchase support: We help you get started remotely via TeamViewer.
- Extension: From the second year with an annual subscription: the OBDSTAR IScan Japan update licence, sold separately in our webshop.

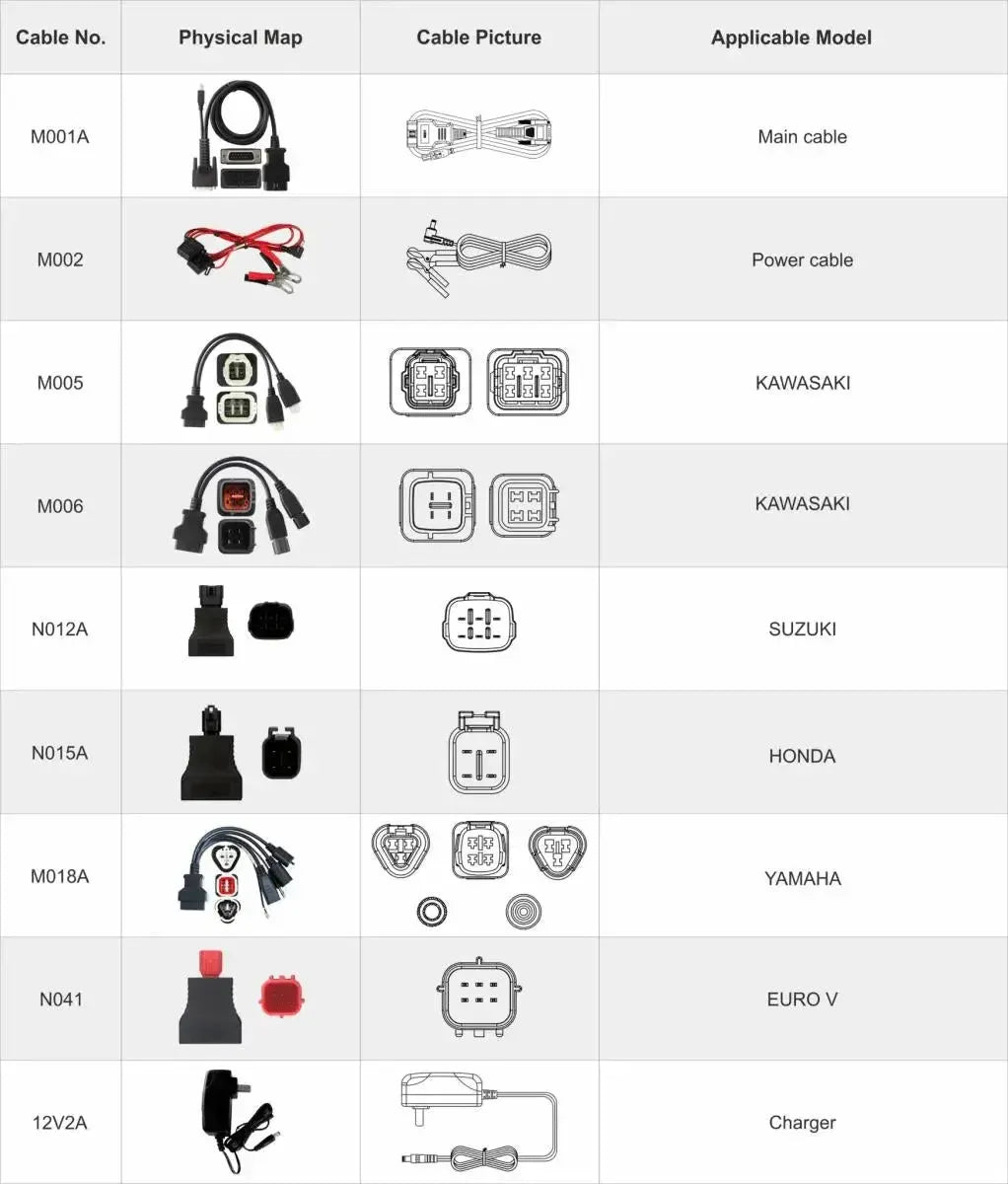

Package contents
- 1x OBDSTAR IScan Japan
- 1x M001A main cable
- 1x M002 power cable
- 1x M005 Kawasaki adapter
- 1x M006 Kawasaki adapter
- 1x N012A Suzuki adapter
- 1x N015A Honda adapter
- 1x M018A Yamaha adapter
- 1x N041 Euro V adapter
- 1x 12 V / 2 A charger
| Reference | Connection |
|---|---|
| M001A main cable | Device to adapter |
| M002 power cable | Power supply from the battery |
| M005 and M006 | Diagnostic connector for Kawasaki |
| N012A | Diagnostic connector for Suzuki |
| N015A | Diagnostic connector for Honda |
| M018A | Diagnostic connector for Yamaha |
| N041 Euro V adapter | Euro V diagnostic connector |
Update licence (renewal after the free period)
Renewal after the free period: Renewal price on request (contact us)
Technical specifications
General
- The manufacturer of the diagnostic device. Useful if you already know which brand works well in your workshop.Brand
- OBDSTAR
- Whether it is a tablet, a standalone handheld unit, a dongle with an app, or an interface for a PC.Type of device
- Diagnostic tablet
- Which types of vehicles or machines the device supports. An engine tester, for example, will not work on a truck.Vehicle types
- Motorcycles
- Mopeds
- ATVs and UTVs
- Snowmobiles
- How many vehicle brands the device can read. The more brands, the more often it can be used in a workshop with a wide range of vehicles.Number of brands
- 4 brands
- Which parts of the world the supported brands come from. This shows whether American or Chinese vehicles are also covered.Brand origin
- Asian brands
Diagnostics
- The device shows sensor readings while the engine is running. This lets you check whether a component is working correctly.Live data
- Yes
- The device can operate components directly, such as a fan or valve. This allows you to test them without removal.Active tests
- Yes
- The device recognises the vehicle automatically by its chassis number, saving time searching through menus.Automatic vehicle recognition
- Yes
Special functions
- Adjusting control unit settings, for example after replacing a component. Required for more than just reading data.ECU coding
- Yes
- Linking new or additional keys to the vehicle. Useful when a customer has lost a key.Key programming (IMMO)
- Yes
- A technician from the manufacturer can view and assist remotely via the internet. Useful for difficult faults.Remote assistance
- Yes
Service and maintenance
- Resetting the service light and maintenance interval after an oil change. One of the most commonly used functions in a workshop.Oil reset
- Yes
- Recalibrating the steering angle sensor after wheel alignment or steering work. Important for ESP and driver assistance systems.Steering angle sensor (SAS)
- Yes
- Removing air from the ABS braking system after brake work, so the brake feels correct again.ABS bleeding
- Yes
Hardware
- The system the device or app runs on. For a dongle, this determines compatibility with your phone.Operating system
- Android 5.1.1
- The screen size. A larger screen is easier to read, while a smaller device is more convenient in the vehicle.Screen size
- 5.0 inch
- The number of pixels on the screen. The higher this is, the sharper graphs and text appear.Screen resolution
- 800 x 480 pixels
- The number of cores and the speed of the processor. A faster processor loads menus and scans more quickly.Processor
- 4-core
- The maximum size of a memory card you can add. Useful if you want to store many reports or large amounts of data.Memory expansion
- Micro-SD (TF) up to 32 GB
- How much energy the built-in battery holds. A larger battery lasts longer between charges.Battery capacity
- 2.600 mAh
- Whether the device has Wi-Fi. This allows you to install updates and share reports without a cable.Wi-Fi
- Yes
Licence
- How long you receive free new software and vehicle coverage. After this, updates often require payment.Free updates
- 1 year
Dimensions and weight
- The length, width and height of the device, showing how well it fits in your hand or toolbox.Dimensions
- 198 x 115 x 31 mm
Other specifications
- Vehicle type
- Motorcycle, scooter, ATV, UTV and snowmobile
- Processor
- RK3128 quad-core ARM Cortex-A7
- Operating temperature
- -10 °C to 55 °C
- Storage temperature
- -20 °C to 70 °C
- Device weight
- Approx. 700 g
- Shipping weight
- 1.915 kg
