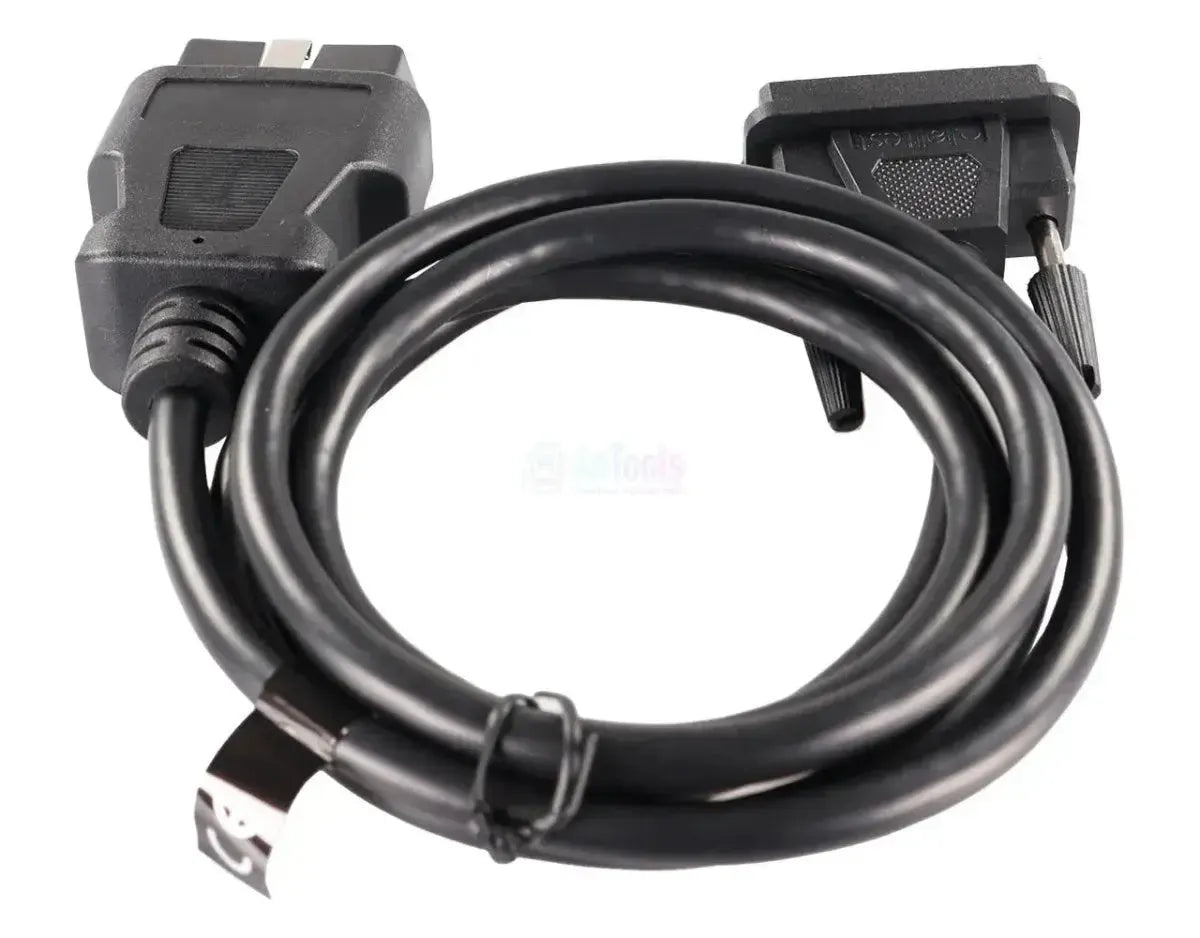

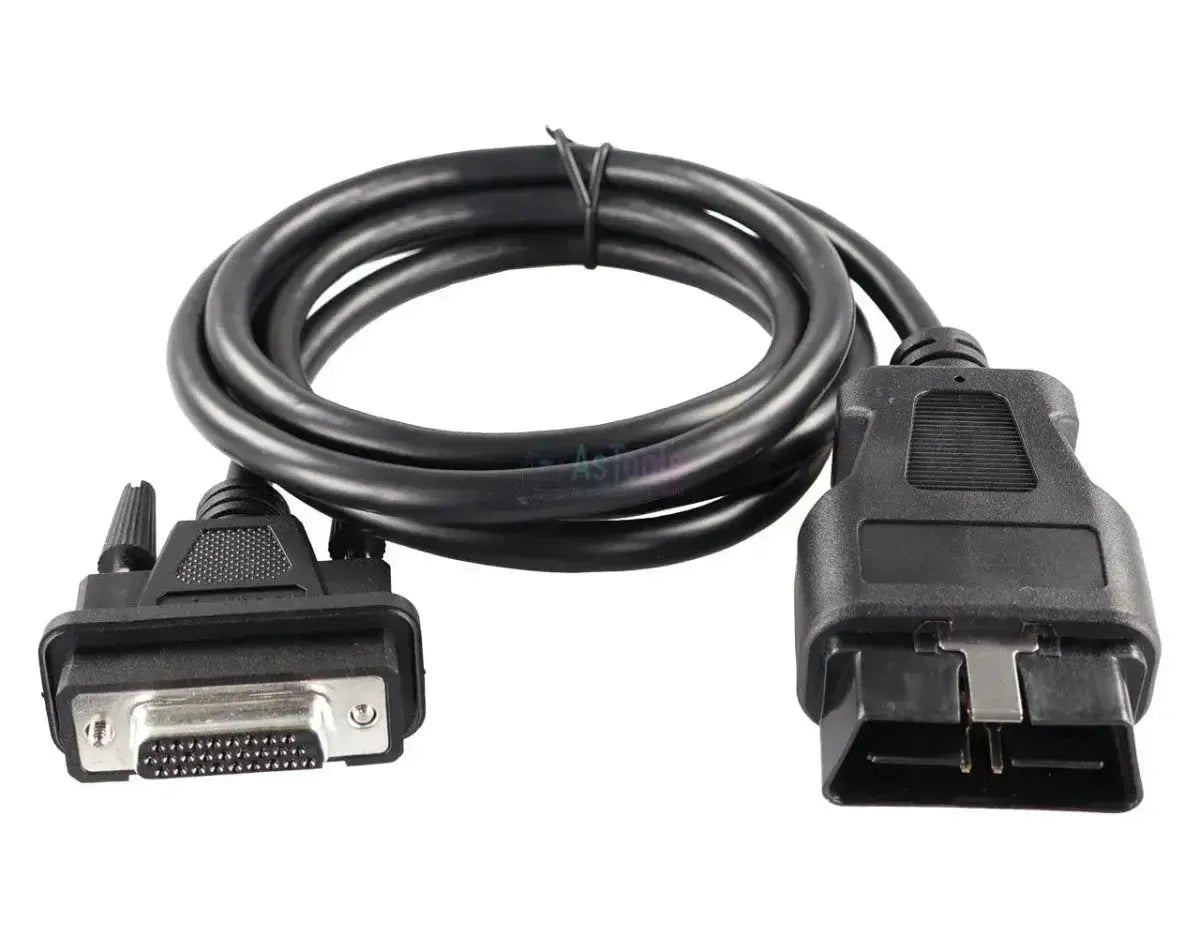

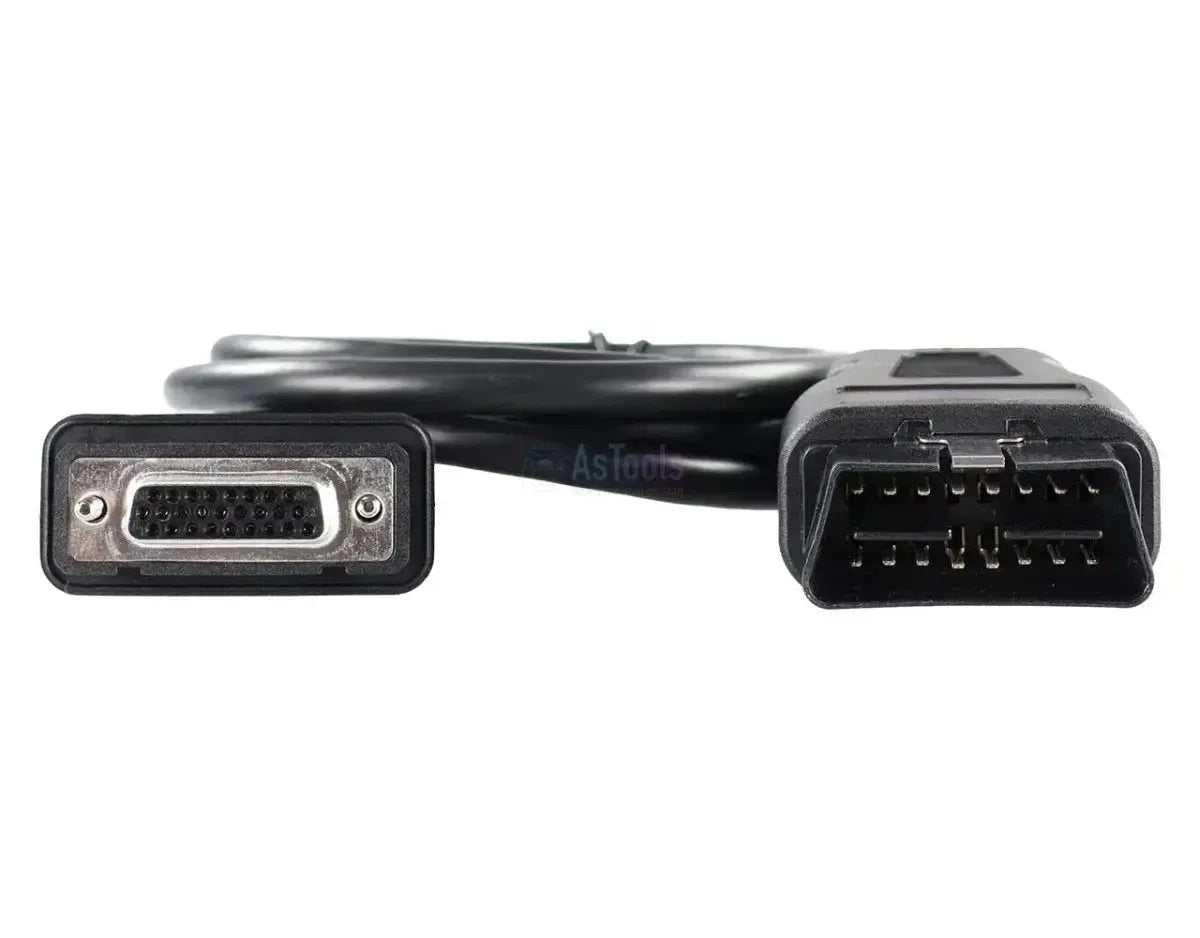

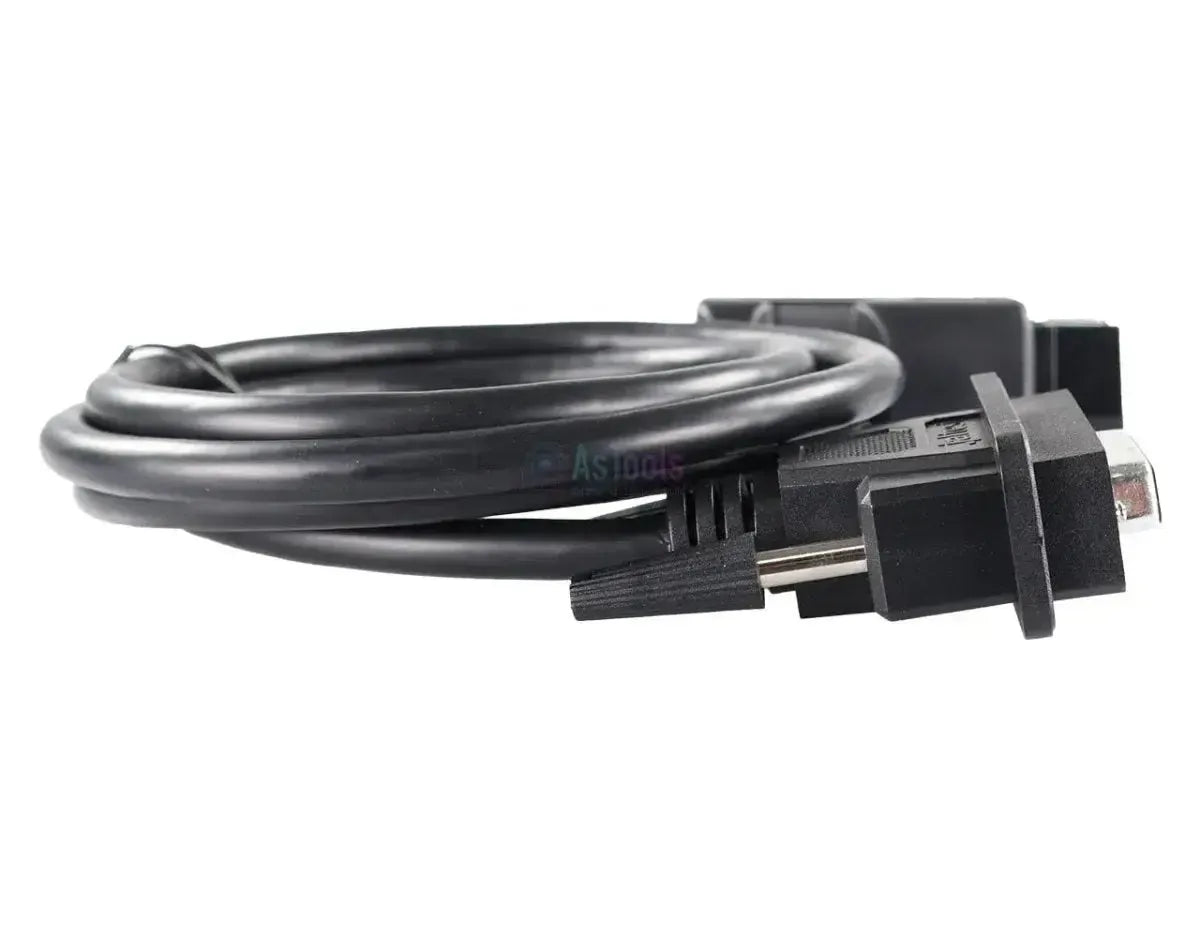

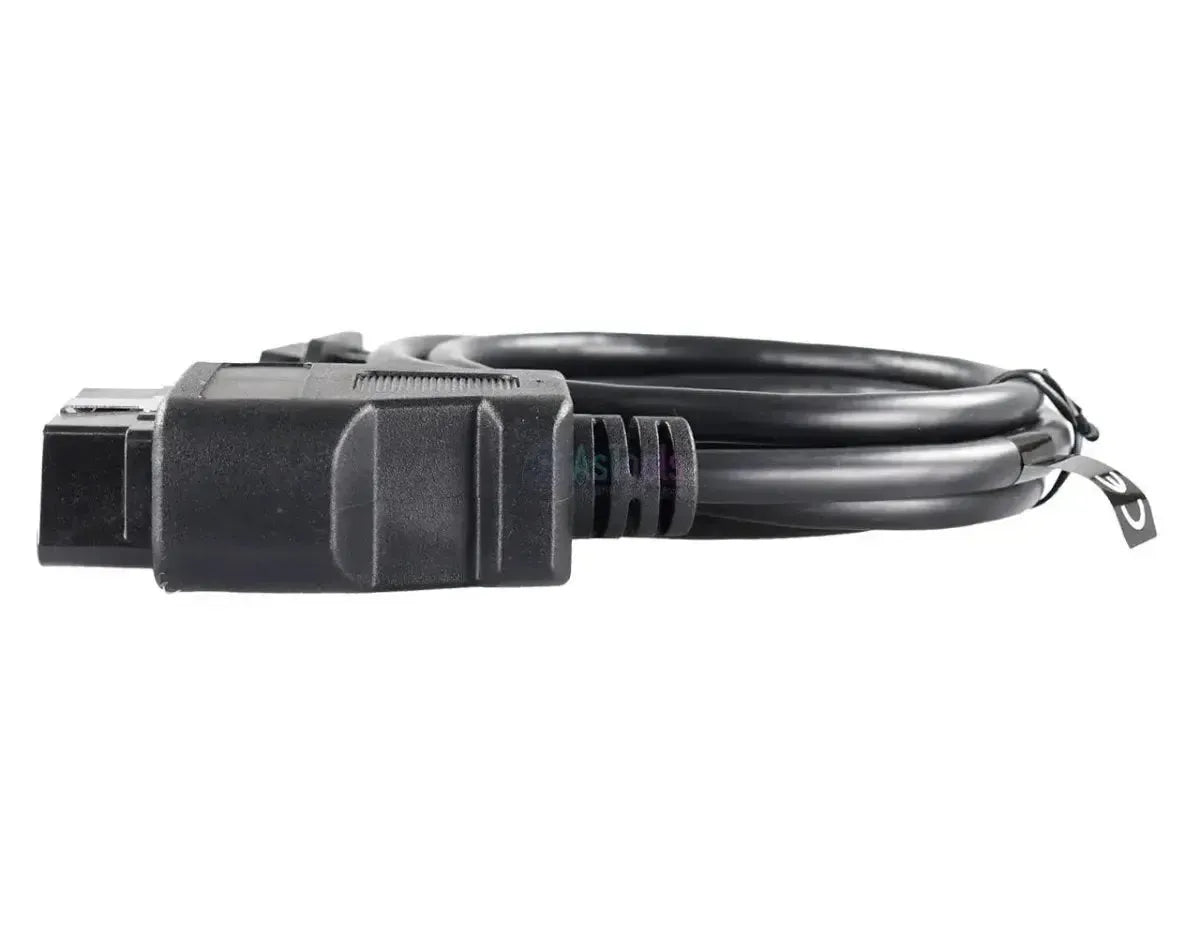

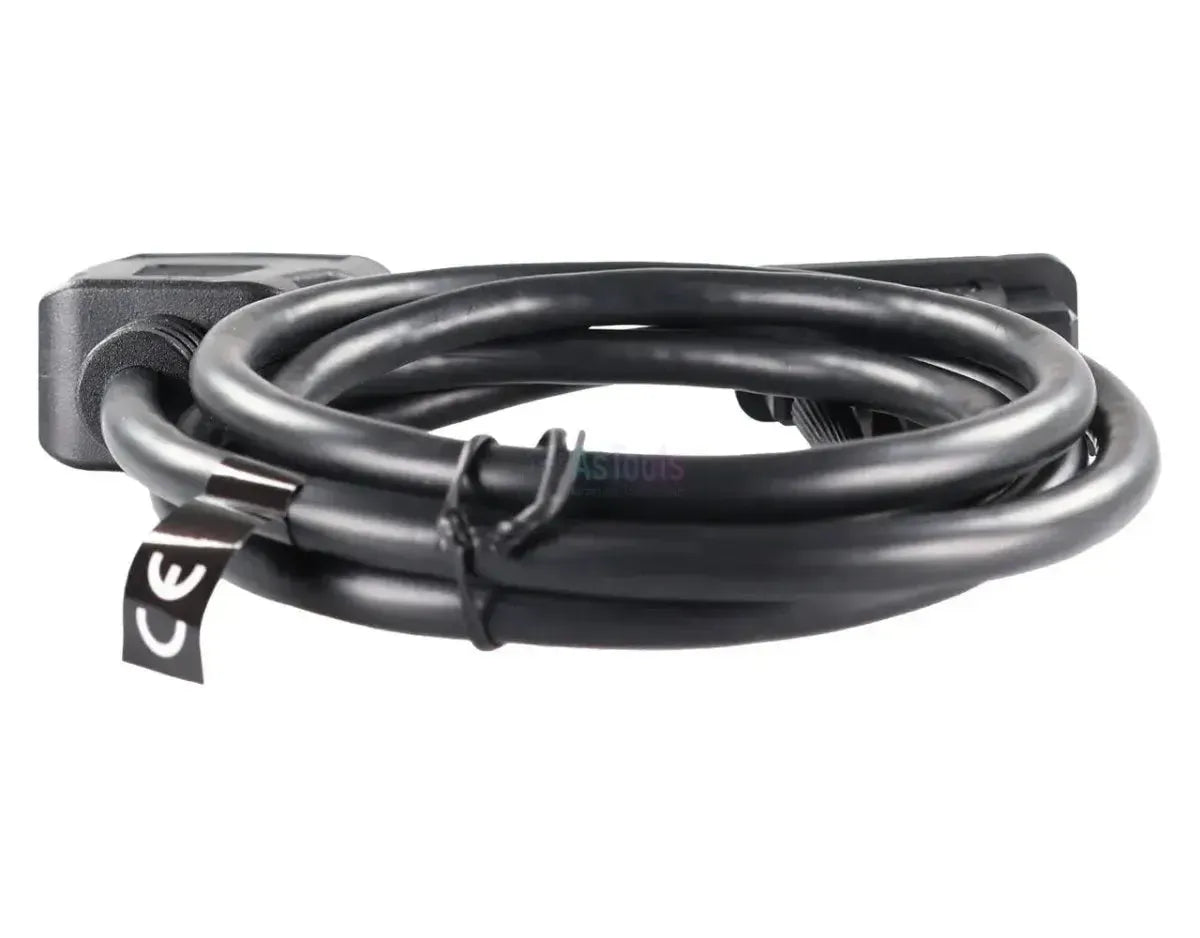

The Jaltest JDC213.9 is the main cable for the Jaltest Link V9; it connects the 26-pin DB26 (SubD-26) port of the interface to a 16-pin OBD2 connector. With a length of 147.5–152.5 cm (58–60 inches), the connector stays in the vehicle while you can set the Link aside during diagnostics.
With this connection, Jaltest diagnostic equipment reads vehicles equipped with a standard 16-pin OBD2 diagnostic connector directly. Additionally, the cable serves as the link between the Link and all Jaltest adapter cables that terminate in 16-pin OBD2 on the interface side: they connect to the Link via the DB26 port. Which control units you can access depends on your vehicle and your license. Since the cable is part of the interface itself, it's compatible with every active Jaltest module (CV, AGV, OHW, MHE, Marine, and GSE).
KEY FEATURES
IMPORTANT NOTES
Applications and capabilities
This cable connects the OBD2 side to the DB26 port on your Link V9. Which systems you can reach depends on your vehicle and your license.
Control units you can access
- Control units behind a 16-pin OBD2 connector: Which ones depends on your vehicle and your license.
- Systems behind a Jaltest adapter cable: Any adapter cable that terminates in 16-pin OBD2 connects to the Link through this main cable.
What you can do
- Read and clear fault codes: Access the fault memory of connected control units and clear it after repairs.
- View live data: Monitor current sensor and system values in real time.
- Activate components: Trigger actuators to verify their operation.
- Parameters, calibrations, and service resets: Where Jaltest offers them for the relevant system.
- Important: Which of these functions you can use depends on your vehicle and the modules in your license — not this cable.
Compatible vehicles and applications
The connector type is what matters, not the vehicle brand. This main cable is part of the interface: it connects the 26-pin DB26 port of the Jaltest Link V9 to the 16-pin OBD2 side.
- Jaltest Link V9 — via the 26-pin DB26 port
- Vehicles with a 16-pin OBD2 connector in every segment
- All Jaltest adapter cables that terminate in 16-pin OBD2 on the interface side
Package contents
- 1x Jaltest (JDC213.9) | Link V9 26-pin DB26 – 16-pin OBD2 Adapter Cable | Interface
Technical specifications
General
- The brand that manufactures the cable. Jaltest cables work with Jaltest diagnostic equipment.Brand
- Jaltest (Cojali)
- The type of cable. This shows whether you are buying a vehicle cable, an extension cable or a cable to the PC.Cable type
- Adapter cable
Connections
- The connector that plugs into the Jaltest device. It must match the port on your device.Interface connector
- 26-pin DB26 (SubD-26)
- The connector at the other end: to the vehicle, the PC or a further cable. This shows what you connect the cable to.Connector at the other end
- OBD2 16-pin
Other specifications
- Type
- Adapter Cable (Main Cable)
- Application
- Connection between Jaltest Link V9 and the 16-pin OBD2 port
- Control Units
- The control units behind the 16-pin OBD2 connector; which ones are available depends on your vehicle and license
- Cable Length
- 147.5–152.5 cm (per Jaltest catalog specifications)
- Link Version
- V9
- Jaltest Module
- Not module-specific — compatible with any active Jaltest module
- Required to Use
- Jaltest Link with valid software license
