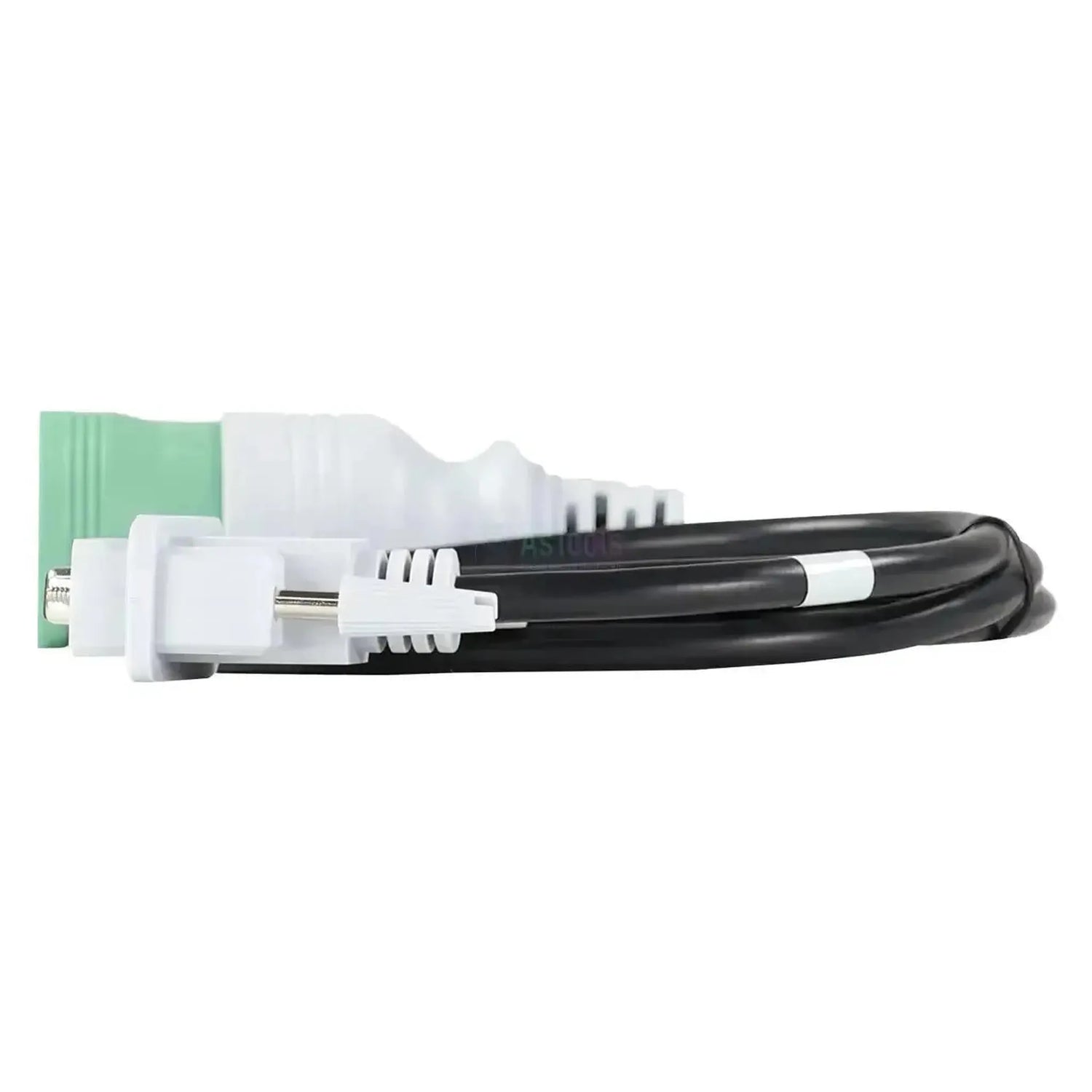

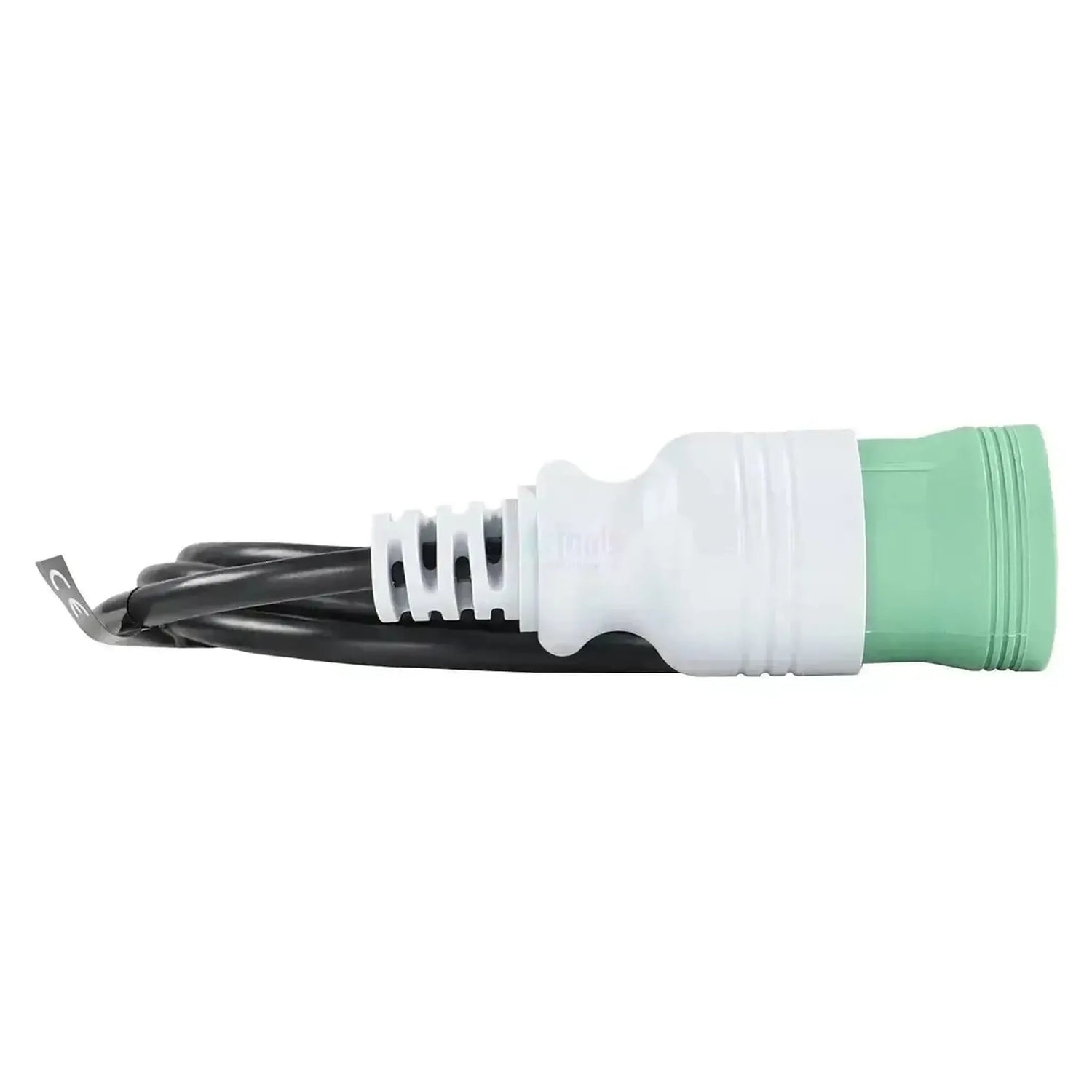

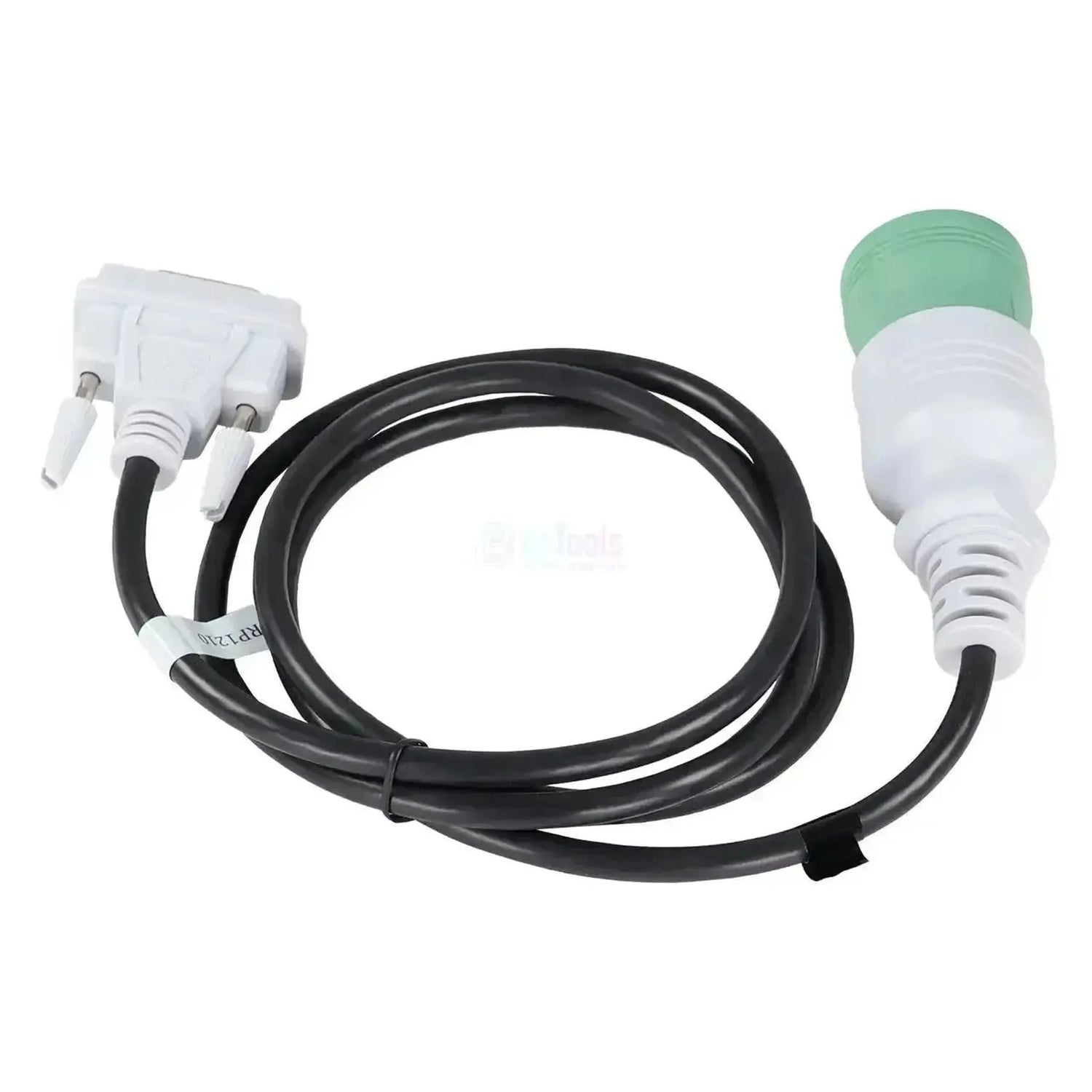

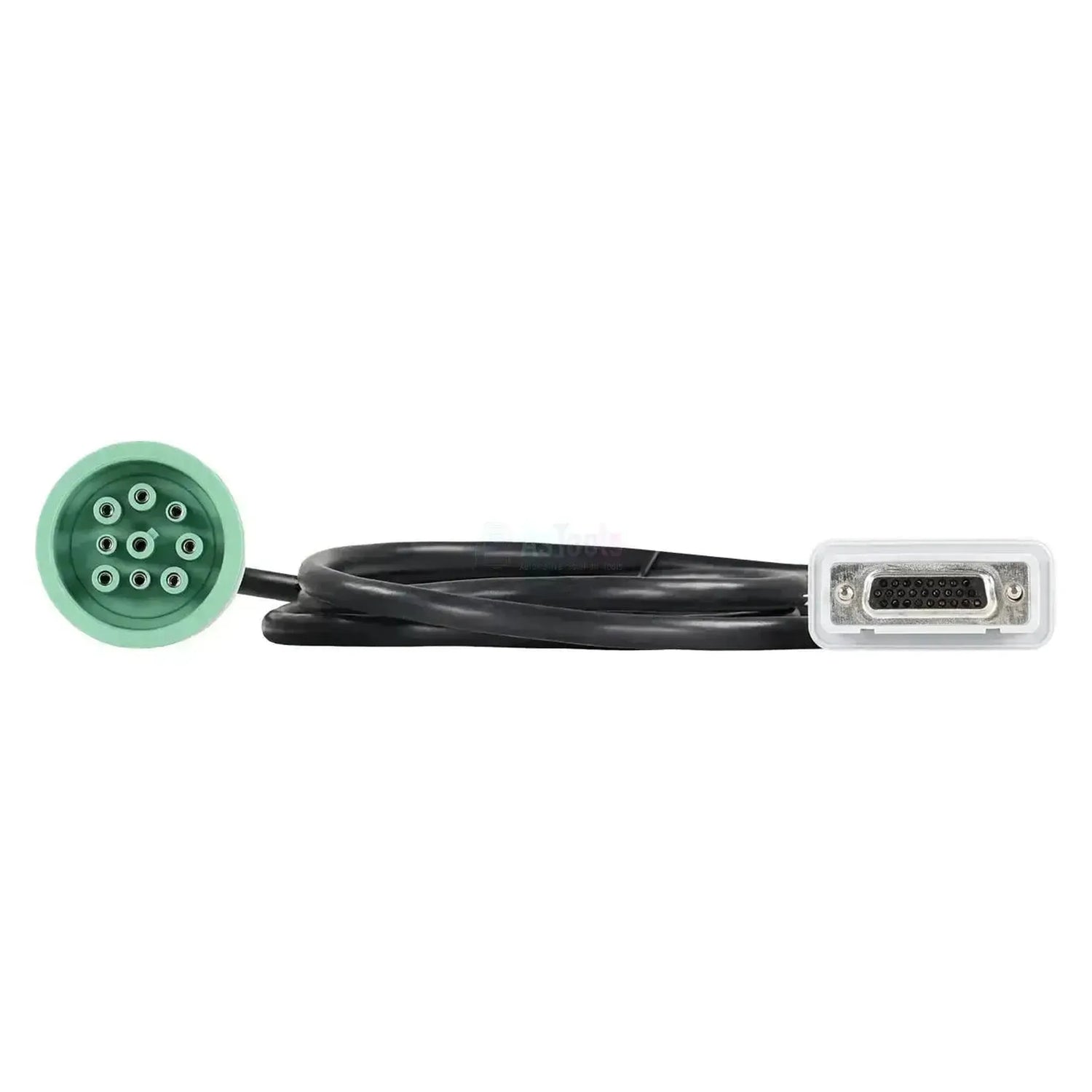

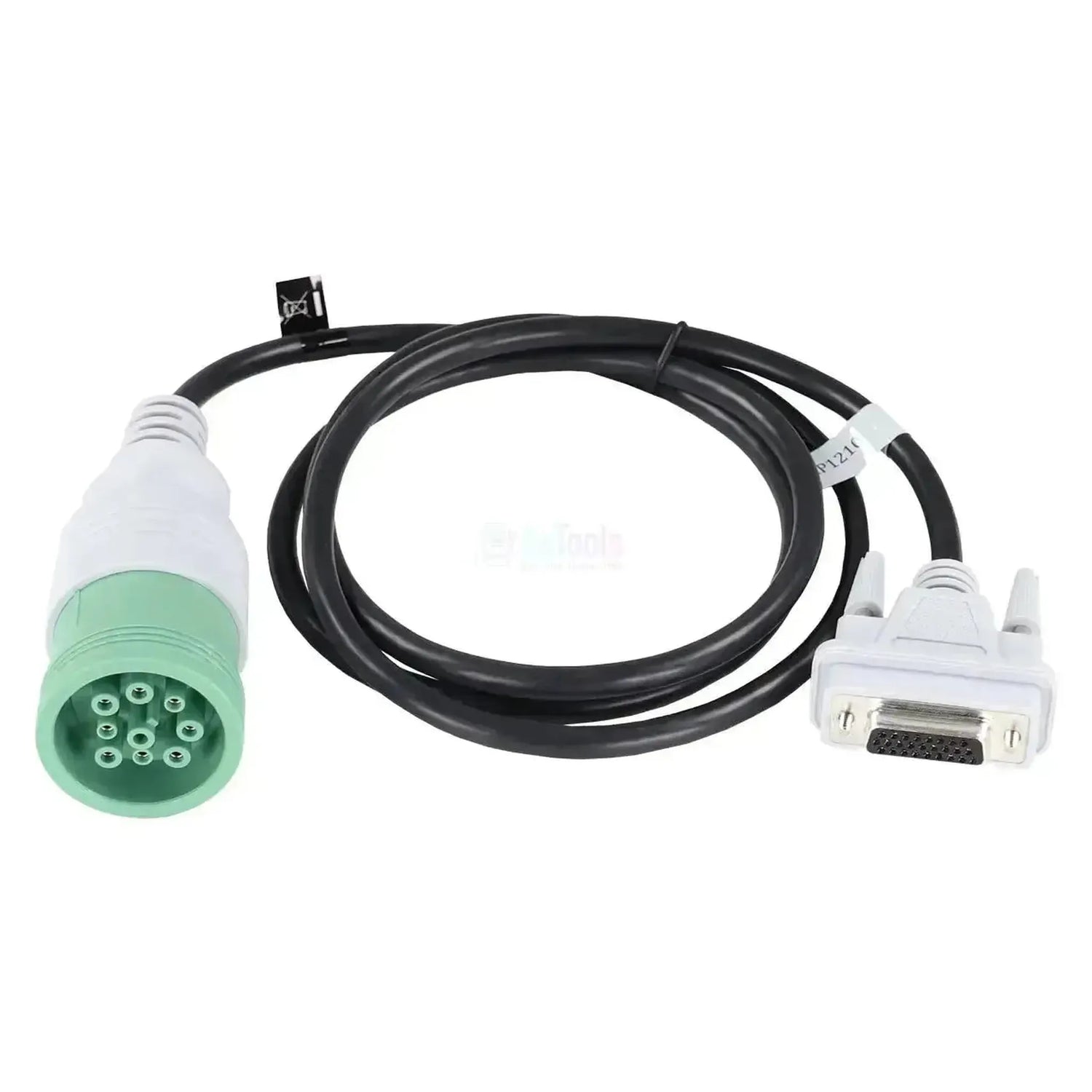

The Jaltest JDC227.9 connects a vehicle with a green 9-pin Deutsch diagnostic connector (type 2) to a Jaltest interface of the V9 generation in the RP1210 version. On the vehicle side is a round connector with a green contact insert holding nine female contacts, fitted in a light grey threaded coupling sleeve. On the interface side is a light grey 26-pin DB26 connector with female contacts in three rows and a knurled thumbscrew on each side.

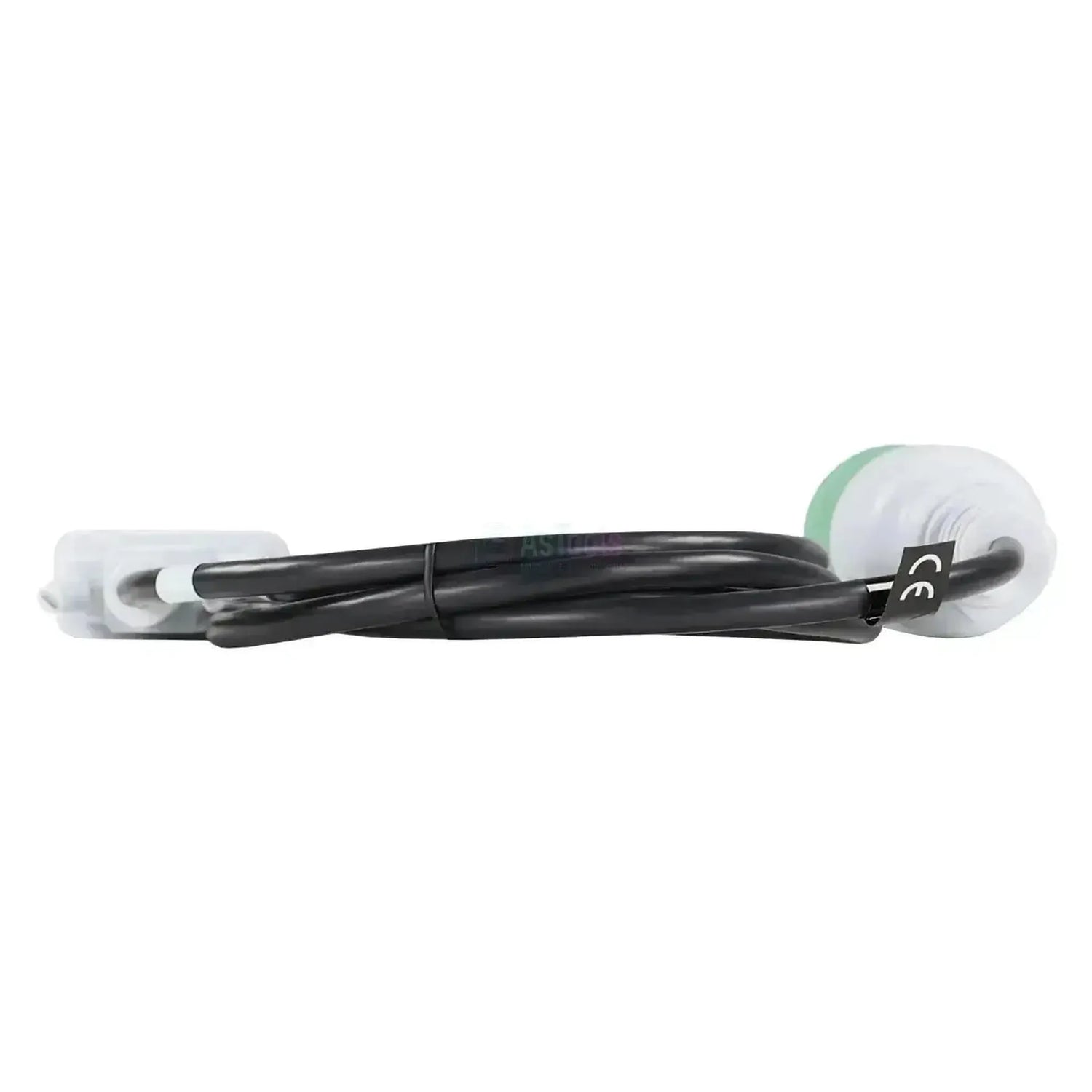

In between runs 152 cm of black round cable with two white cable labels. The official description is Deutsch 9-pin diagnostic cable type 2 green, RP1210. Green denotes type 2; a black 9-pin Deutsch is type 1, which is a different connector. For the rectangular 16-pin OBD2 connector there is the JDC223.9, with the same interface side.
ADVANTAGES
POINTS TO NOTE
Applications and functions
The cable forms the link between the diagnostic connector in the vehicle and the interface. What you read out afterwards is determined by the software behind the interface.
Control units you can access
- Control units: According to the interface software.
- Vehicle side: Green Deutsch 9-pin, type 2.
- Interface side: 26-pin DB26, RP1210, V9.
What you can do
- Connect: Couple the Deutsch 9-pin to the DB26.
- Secure: Threaded sleeve and knurled thumbscrews.
- Bridge: 152 cm to a convenient workstation.
How to use it
- Check connection: Check whether the connector is round and green.
- Couple interface: Insert the DB26 plug into the interface.
- Tighten: Tighten both knurled thumbscrews.
- Couple vehicle: Tighten the threaded sleeve onto the Deutsch connector.
- Read out: Start the software and select the vehicle.
Compatible devices and applications
The vehicle connector is decisive, not the brand. Wherever a green 9-pin Deutsch diagnostic connector of type 2 is fitted and you work with a Jaltest interface of the V9 generation in the RP1210 version, this cable makes the connection.
Choosing between the two RP1210 cables:
- Round green 9-pin Deutsch: The JDC227.9, this cable.
- Rectangular 16-pin OBD2: The JDC223.9.
- Interface side: Both have the same 26-pin DB26, RP1210, V9.
Package contents
- 1x Jaltest (JDC227.9) | (RP1210) Data-Link Deutsch 9-pin – 16-pin OBD2 Adapter Cable | Interface
Technical specifications
General
- The brand that manufactures the cable. Jaltest cables work with Jaltest diagnostic equipment.Brand
- Jaltest (Cojali)
- The type of cable. This shows whether you are buying a vehicle cable, an extension cable or a cable to the PC.Cable type
- Diagnostic cable
- The Jaltest device the cable works with. A cable only fits properly on the correct generation.Compatible interface
- Jaltest V9
Connections
- The connector that plugs into the Jaltest device. It must match the port on your device.Interface connector
- 26-pin DB26, female, three rows of contacts; light grey housing with two knurled thumbscrews
- The connector at the other end: to the vehicle, the PC or a further cable. This shows what you connect the cable to.Connector at the other end
- Deutsch 9-pin
- Whether the connector is secured with screws. It then cannot easily come loose during diagnostics.Screw-fixable
- Yes
- Whether the cable works according to the RP1210 standard. This standard is widely used for trucks and heavy machinery.RP1210 version
- Yes
Dimensions
- The length of the cable. A longer cable allows more freedom of movement around the vehicle.Cable length
- 152 cm
- Reference number
- JDC227.9
Other specifications
- Official description
- Deutsch 9-pin diagnostic cable type 2 green, RP1210
- Type
- Diagnostic cable, RP1210 version
- Vehicle side connection
- Deutsch 9-pin type 2, green contact insert, female; round connector with light grey threaded sleeve
- Other version
- JDC223.9, with a 16-pin OBD2 connector on the vehicle side
- Required for use
- Jaltest V9 interface in the RP1210 version
