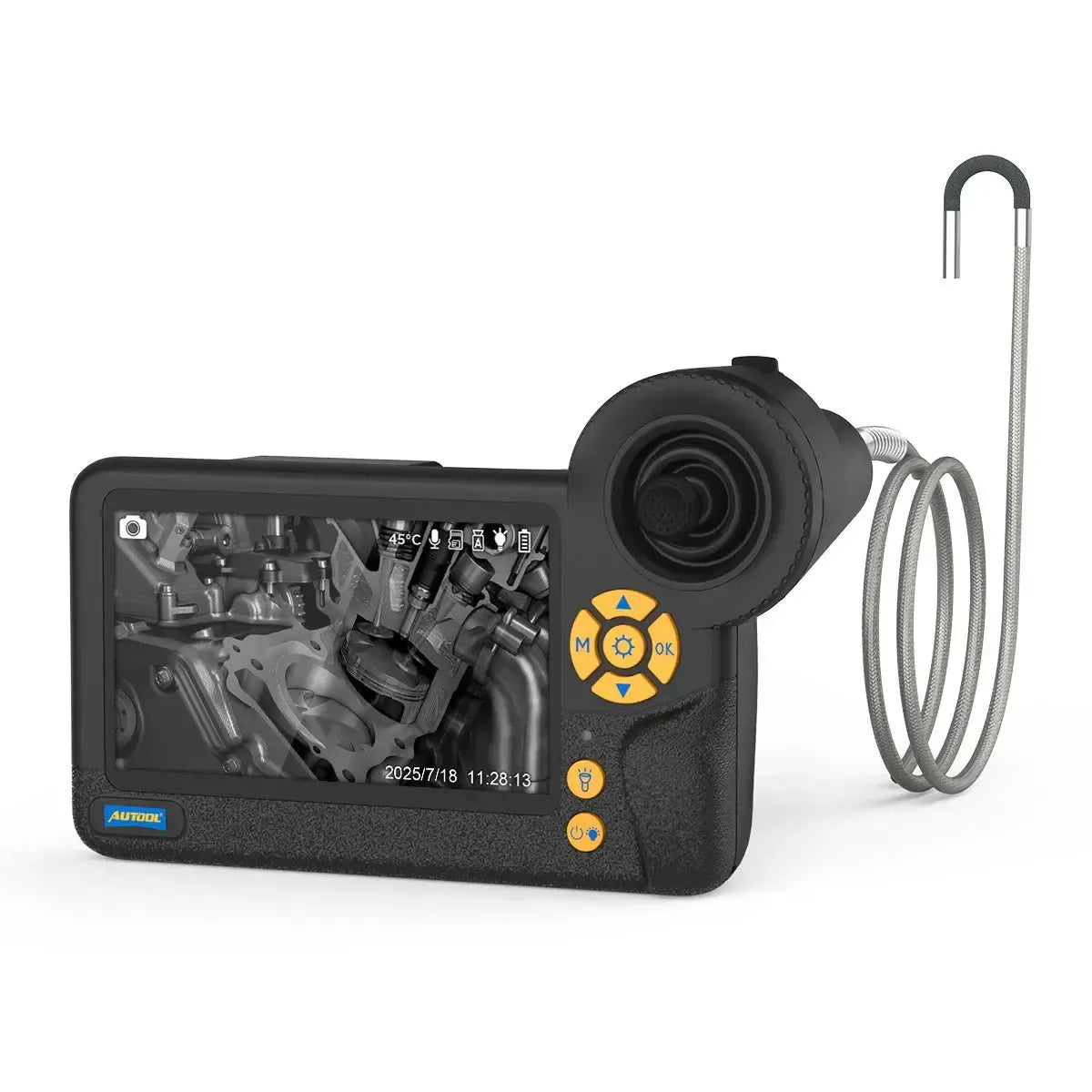

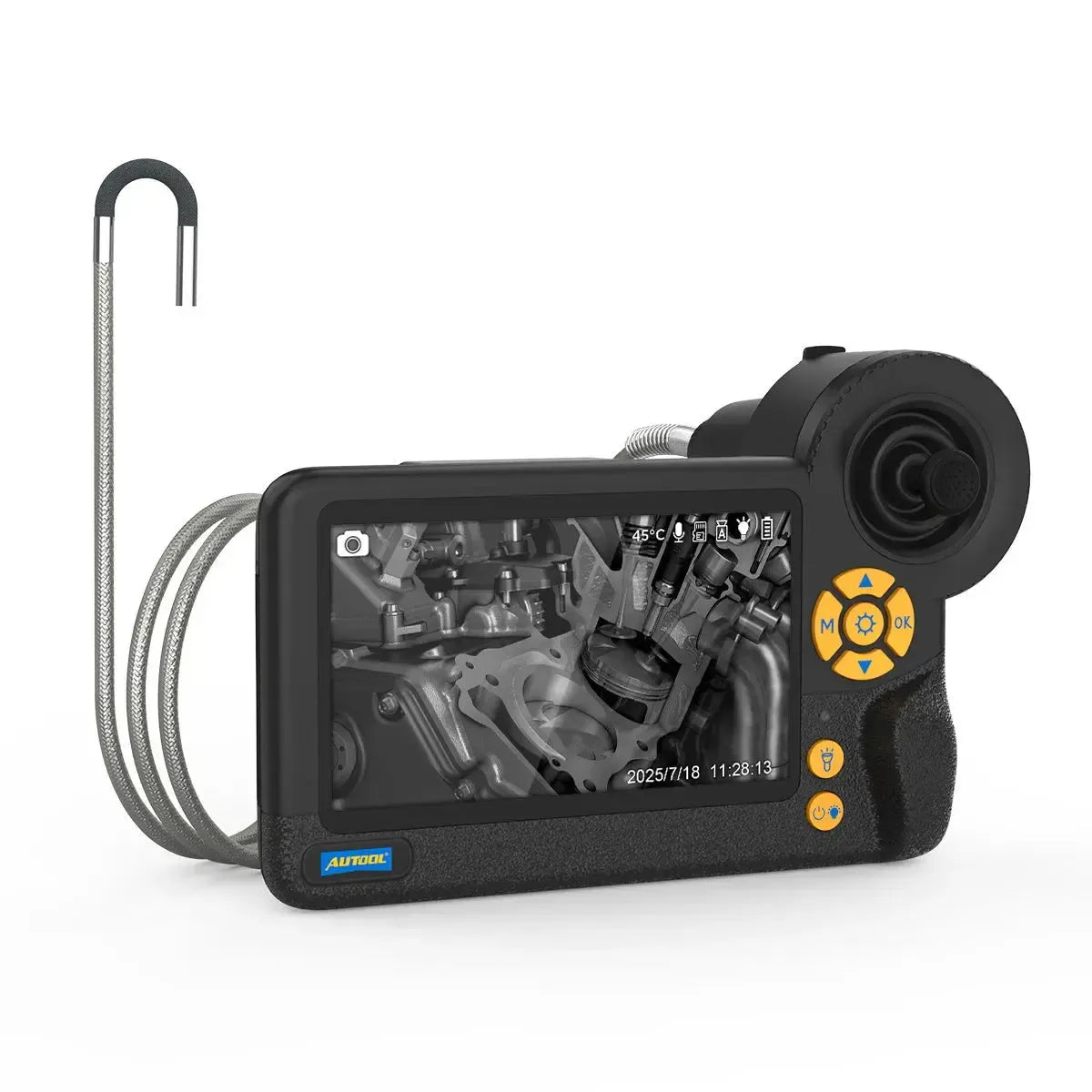

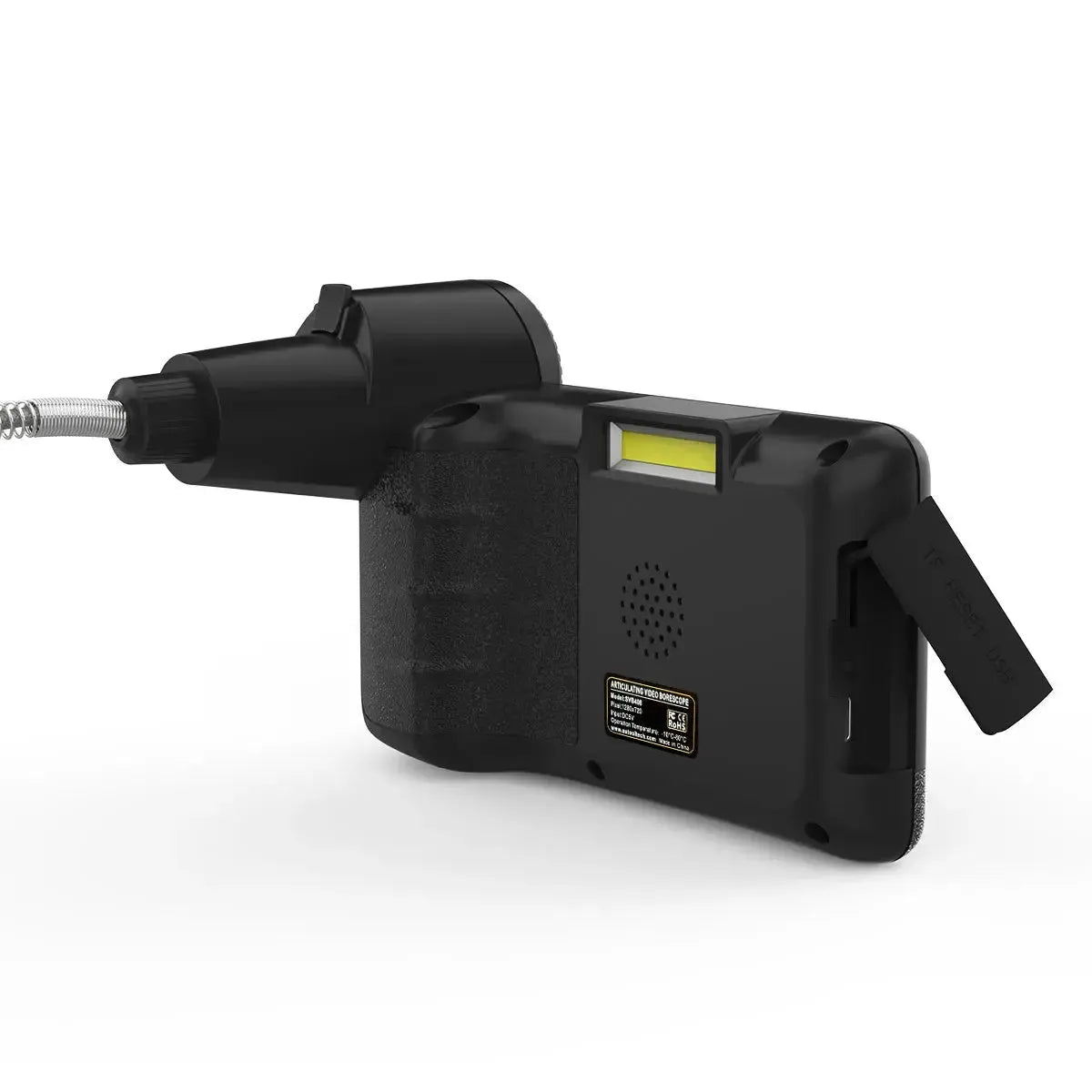

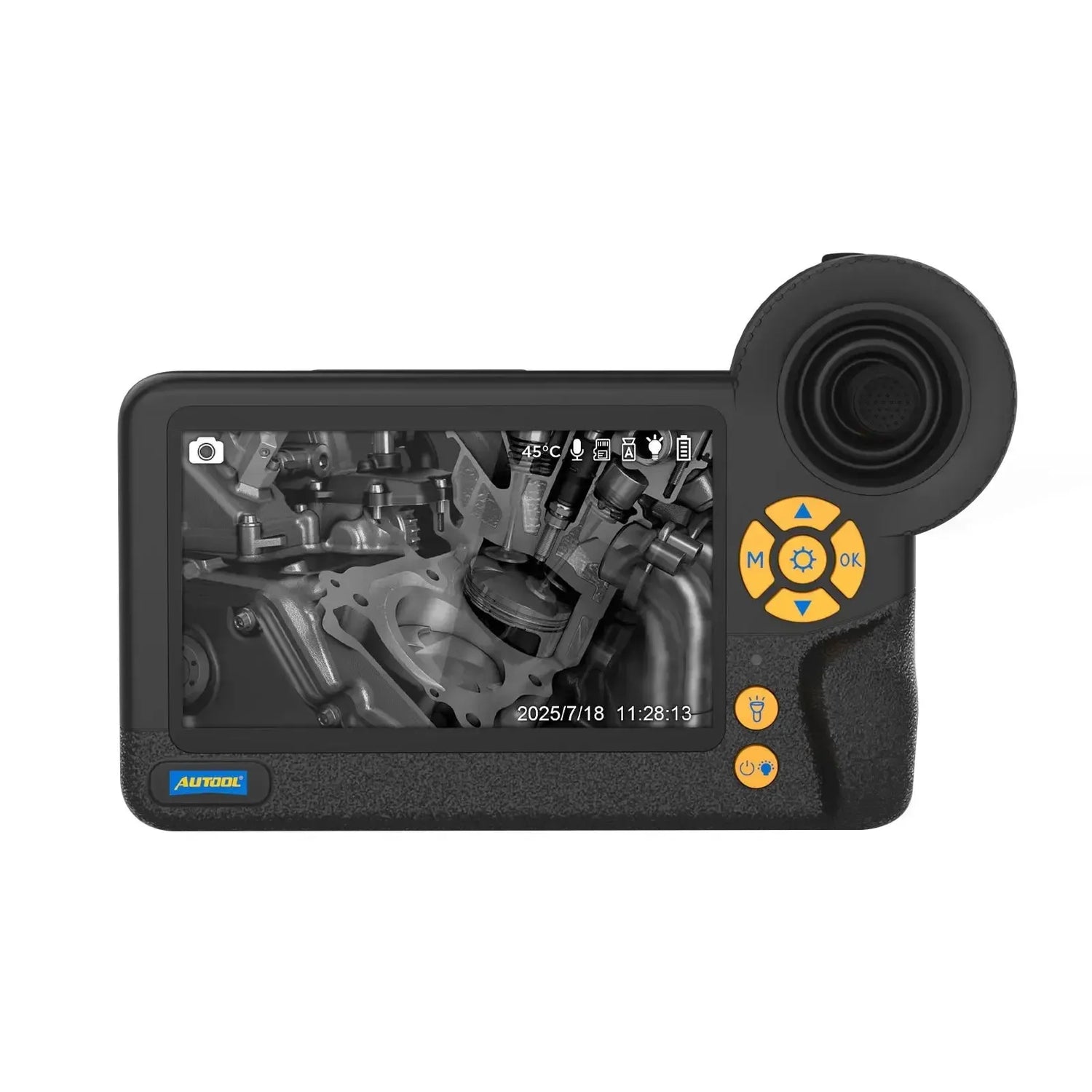

The Autool SVB408 is an inspection camera equipped with a 3.9 mm camera probe and a 4.5-inch IPS screen. The system features four-way articulation, allowing the camera head to be controlled 360° with a bending angle of 210°. The flexible, wear-resistant metal hose is 1 meter long, providing access to hard-to-reach spaces. The camera has a resolution of 1 megapixel and a depth of field from 25 to 100 mm.
This videoscope features six adjustable LED lamps with three brightness levels for inspections in dark environments. The camera probe has an IP67 rating, meaning it is dust- and waterproof. A built-in temperature sensor issues a warning when the probe temperature reaches 80°C to prevent damage. Images and videos can be saved on the included 32GB memory card in JPG and AVI format. The internal 2000 mAh battery provides a usage time of up to 180 minutes.
Application and functionality:
The SVB408 is designed for visual inspections of enclosed and narrow spaces in, for example, vehicles or machines.

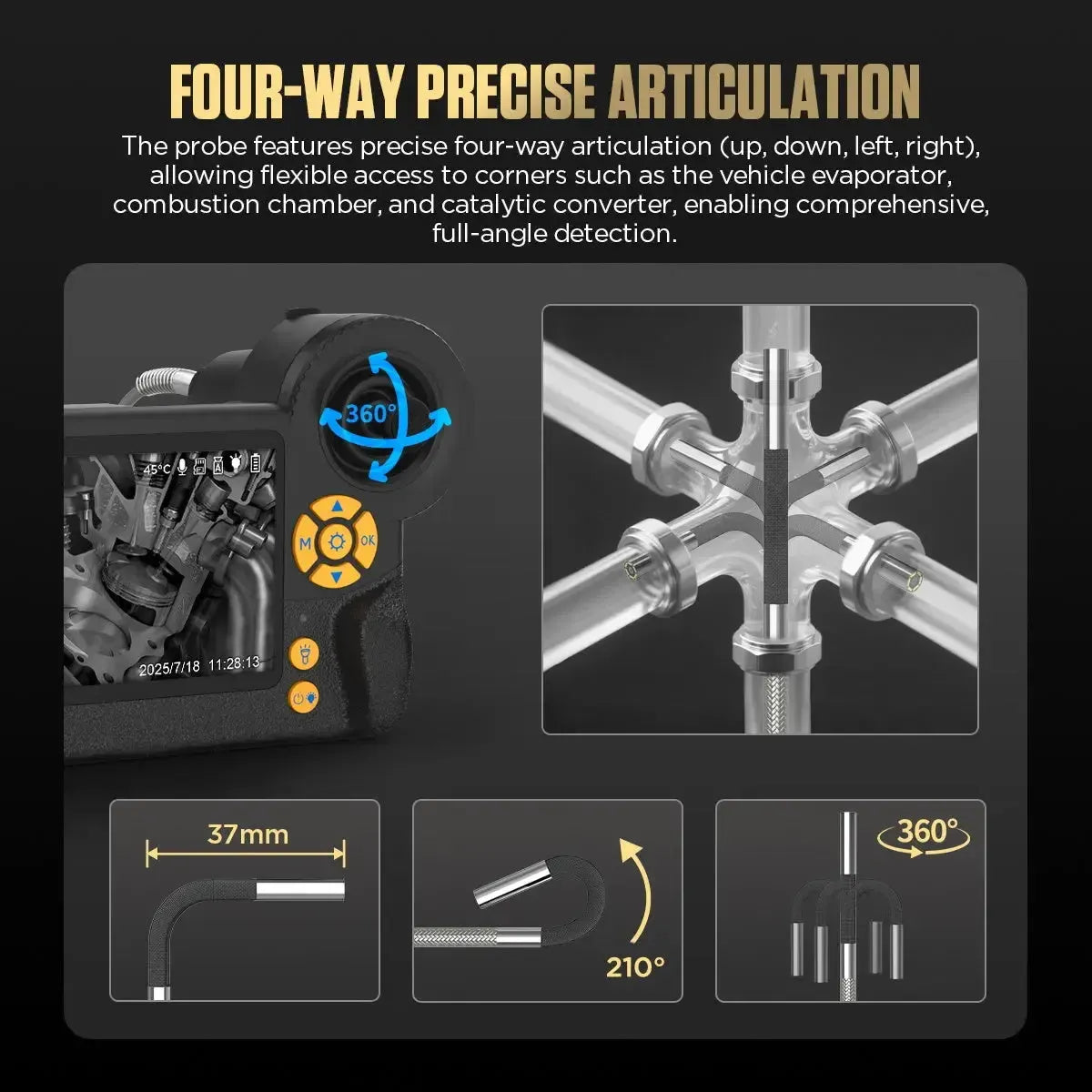

- Four-way articulation: The camera head can be controlled 360° with a rotary knob (up, down, left, and right) with a bending angle of 210° for a complete inspection of complex components such as combustion chambers, catalysts, and evaporators.
- 3.9 mm camera probe: The thin diameter enables inspections in very narrow openings, such as fuel injectors or valves.
- Image and video recording: The inspection camera can capture photos (JPG) and videos (AVI) and save them on the included 32GB memory card for later analysis or reporting.
- Adjustable LED lighting: Six ceramic LED lamps with three adjustable brightness levels provide clear illumination of the inspection area.
- 8x digital zoom: The zoom function allows close-up viewing of details such as threads or cracks.
- Overheat protection: A built-in sensor triggers an alarm on the screen when the camera head temperature reaches 80°C, protecting the components.
- IP67 rating: The probe is water- and dustproof, allowing inspections in wet or dirty environments.

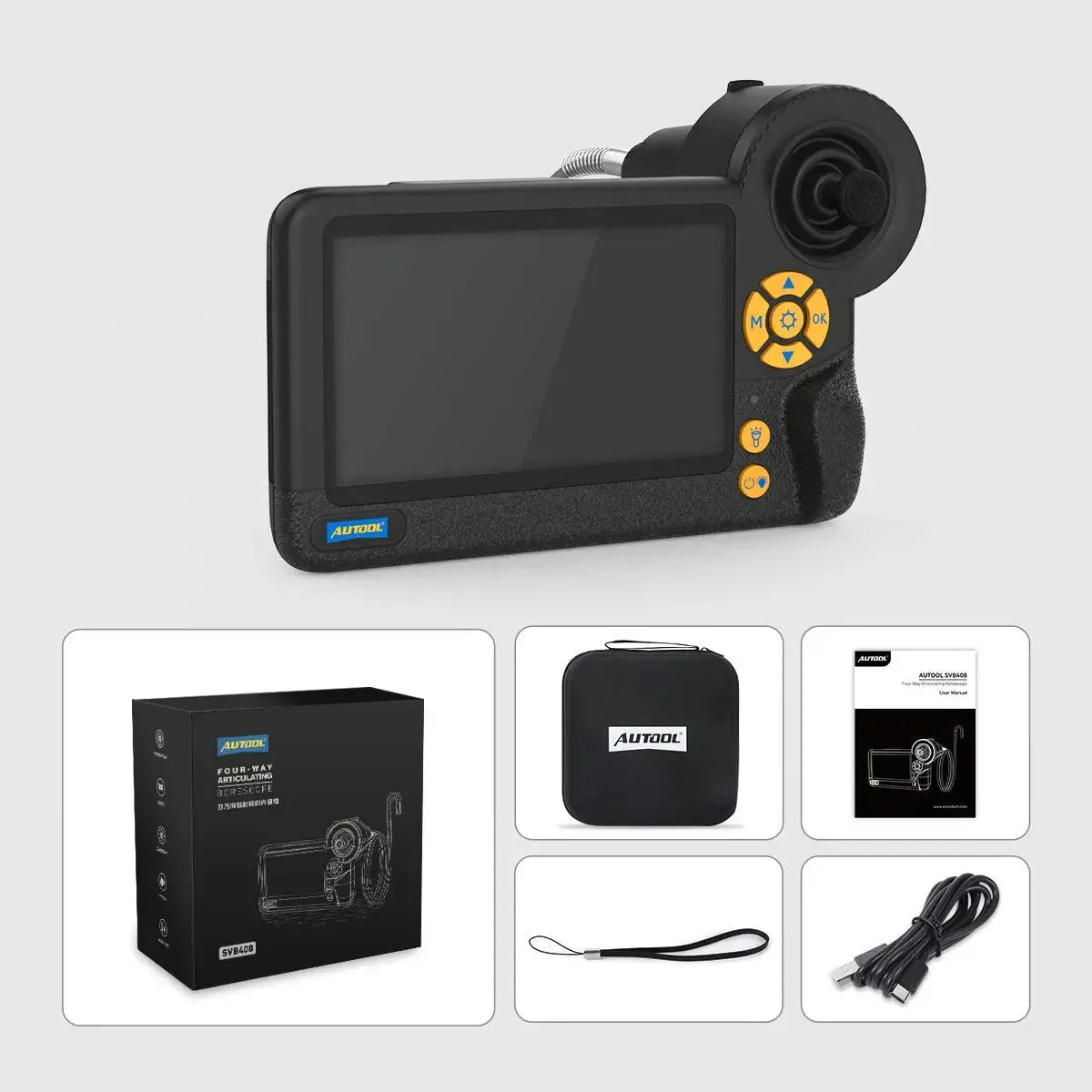

Package Contents:
- 1x Autool SVB408 inspection camera
- 1x 32GB memory card
- 1x Storage case
- 1x USB-C cable
- 1x Wristband
- 1x Manual
Technical specifications:
| Specification | Description |
|---|---|
| Brand | Autool |
| Model | SVB408 |
| Screen size | 4.5 inch IPS |
| Diameter camera probe | 3.9 mm |
| Hose length | 1 m |
| Resolution | 1 megapixel |
| Viewing angle | 70° |
| Depth of field | 25-100 mm |
| Articulation | Four-way, 360° |
| Articulation Angle | 210° |
| Bending Radius | 37 mm |
| Light Source | 6 adjustable LED lamps |
| Zoom | 8x digital |
| Storage | 32GB memory card (included) |
| File Formats | JPG (photo), AVI (video) |
| Battery Capacity | 2000 mAh |
| Usage Duration | Up to 180 minutes |
| IP Classification (probe) | IP67 |
| Temperature Warning | 80°C |
