Topdon  |  SKU: VIS002UV

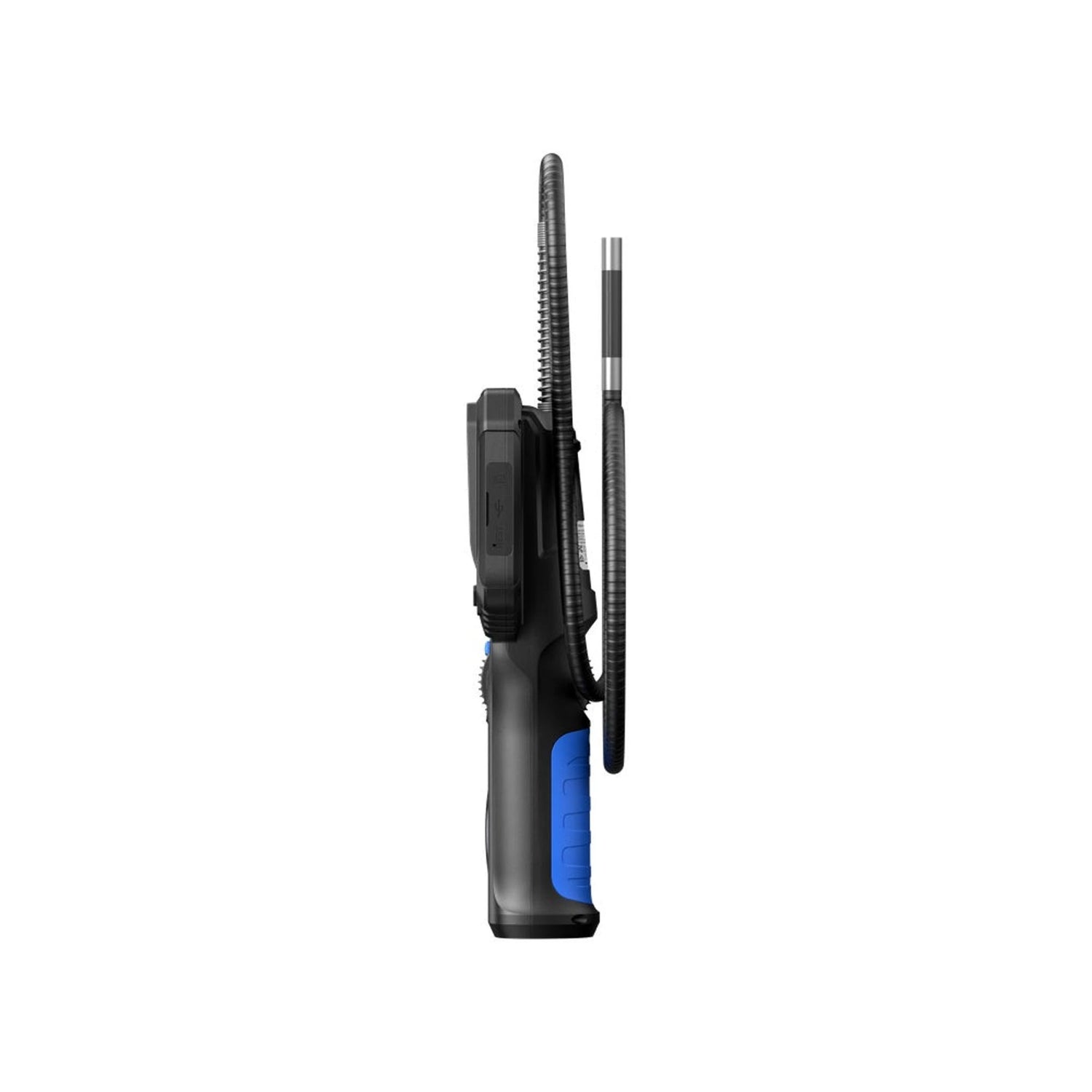

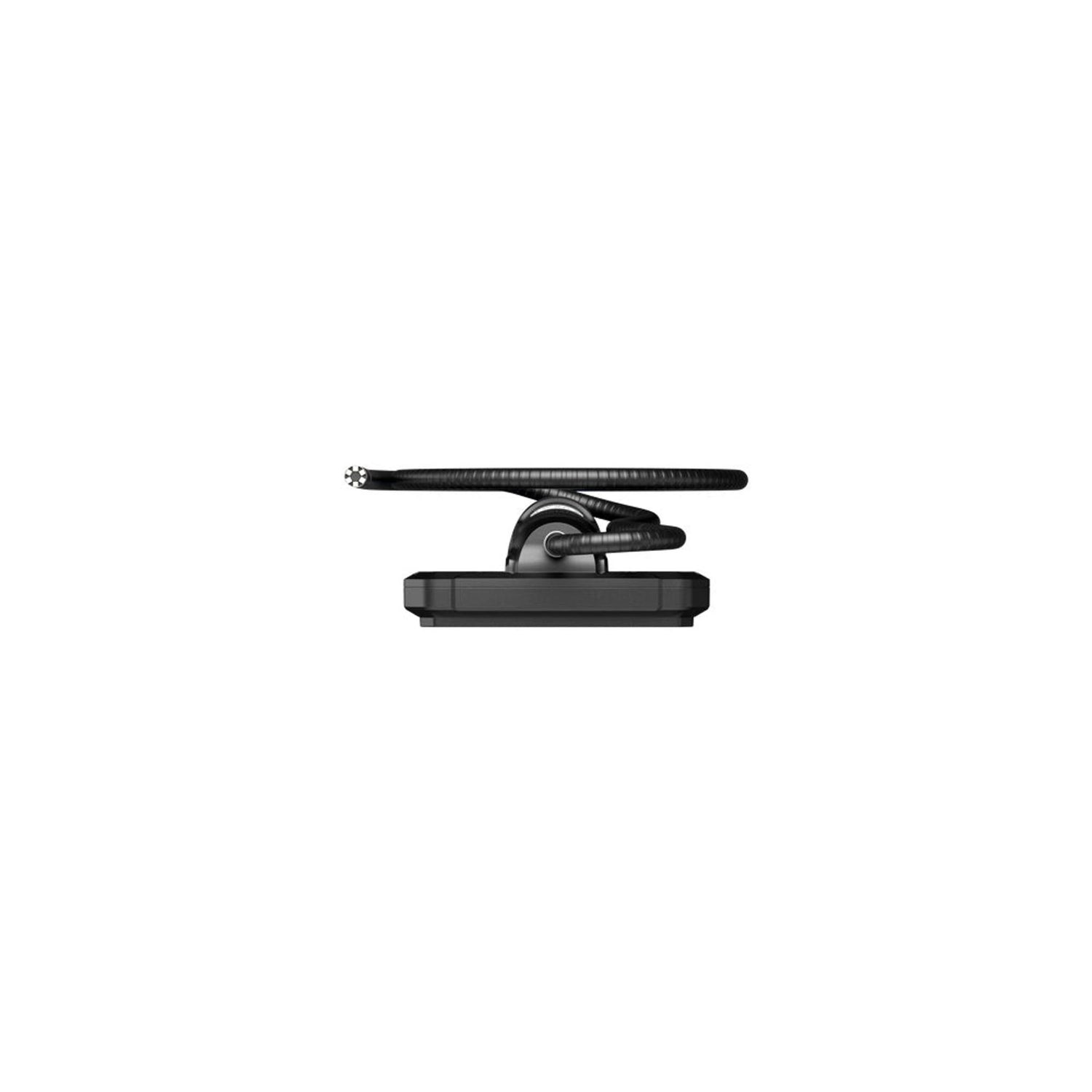

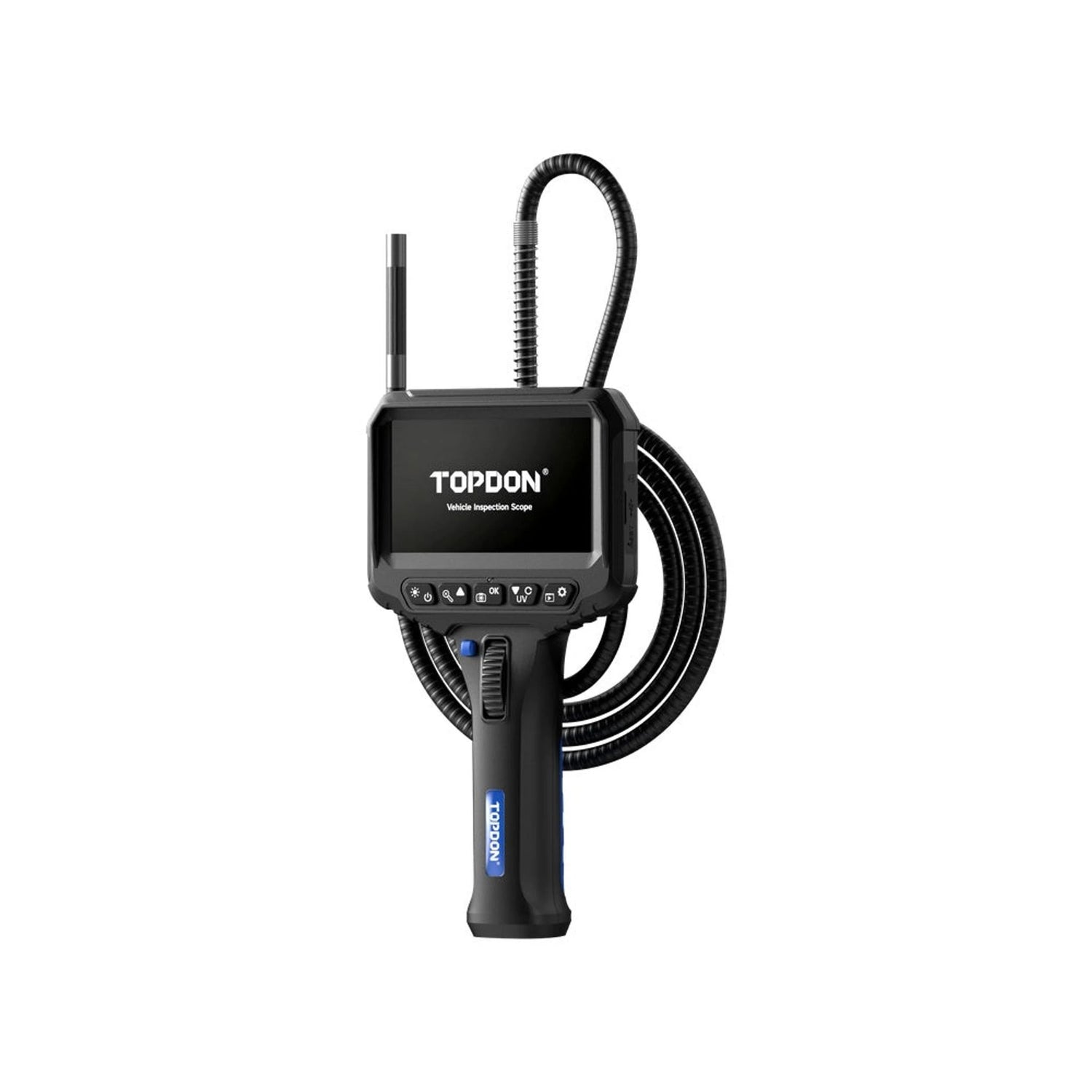

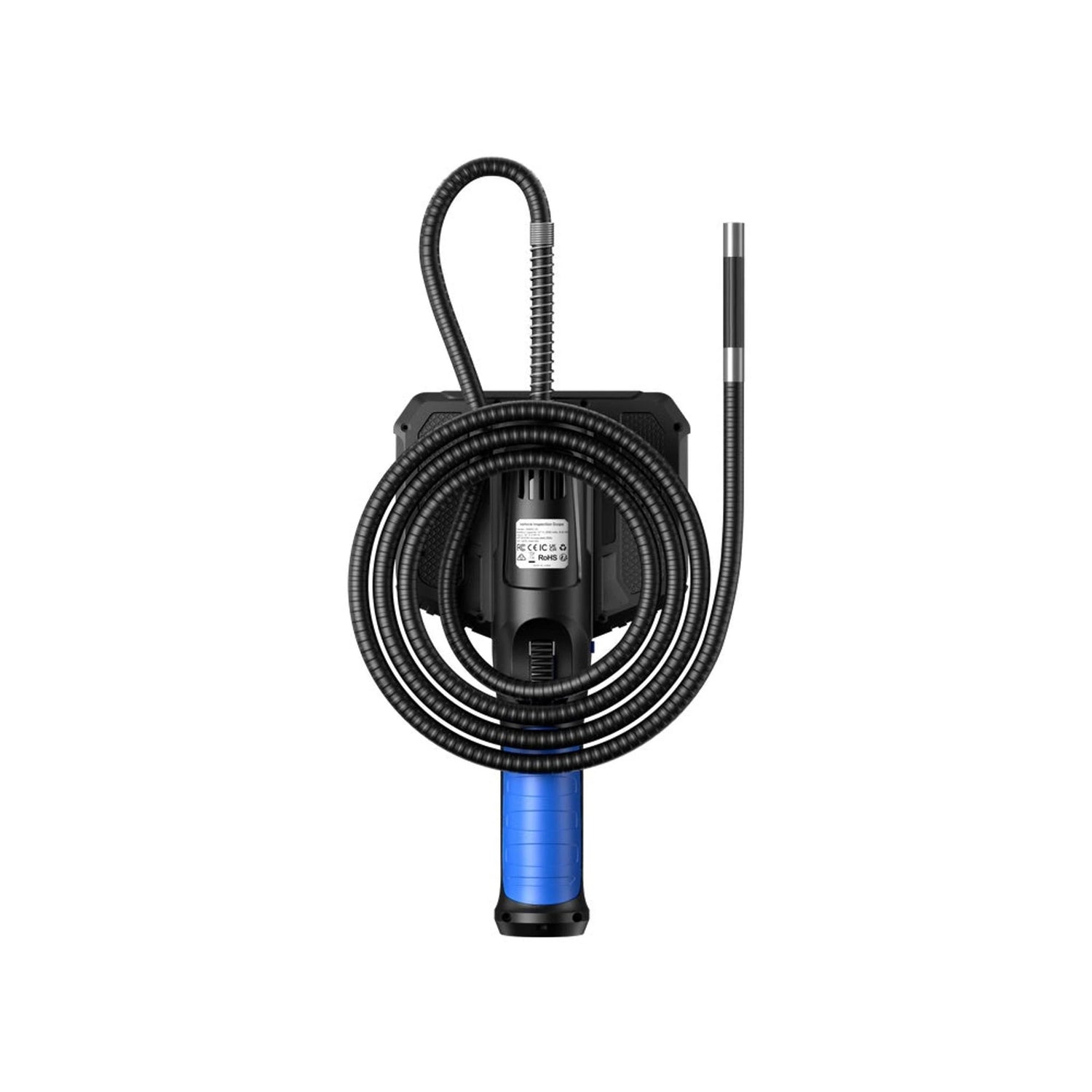

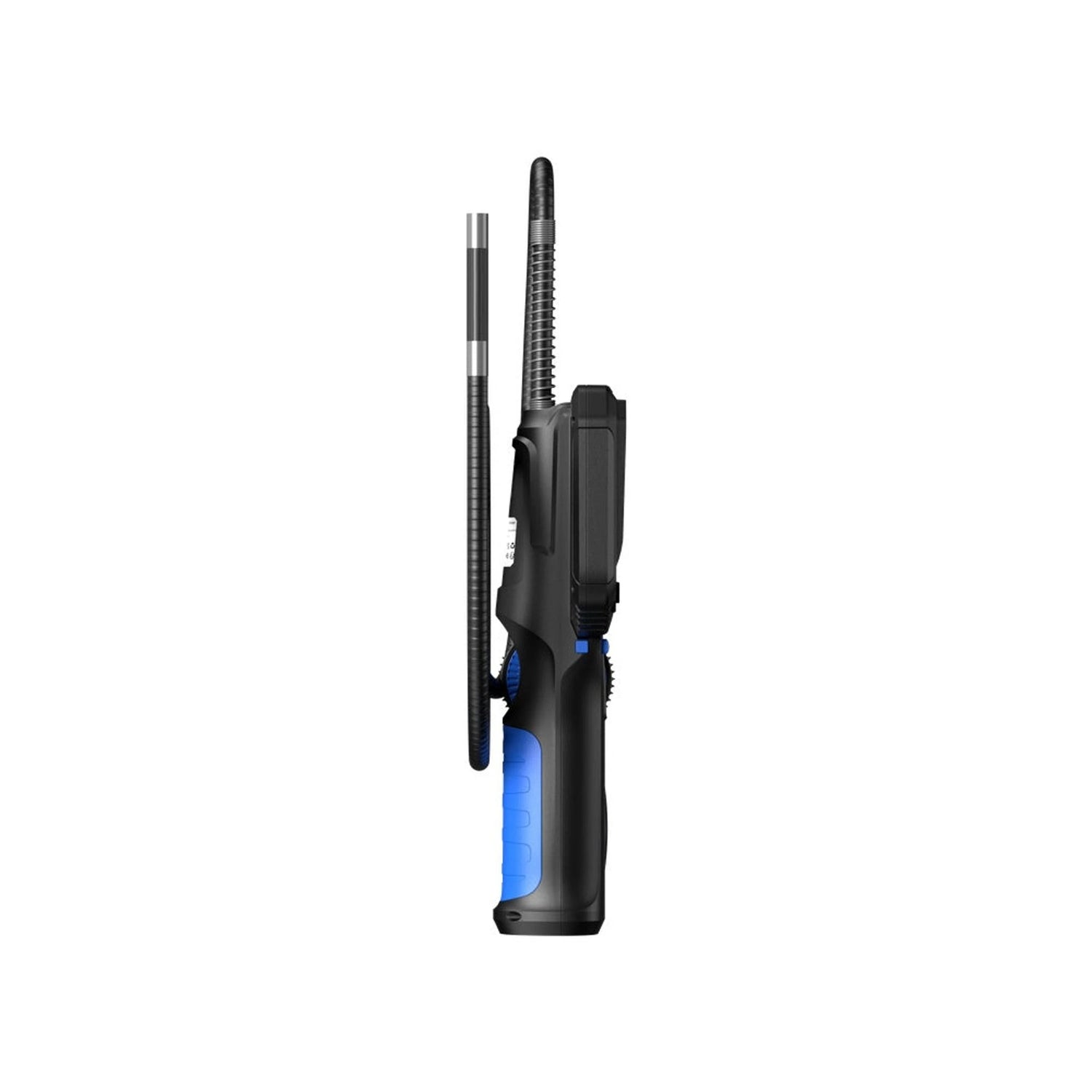

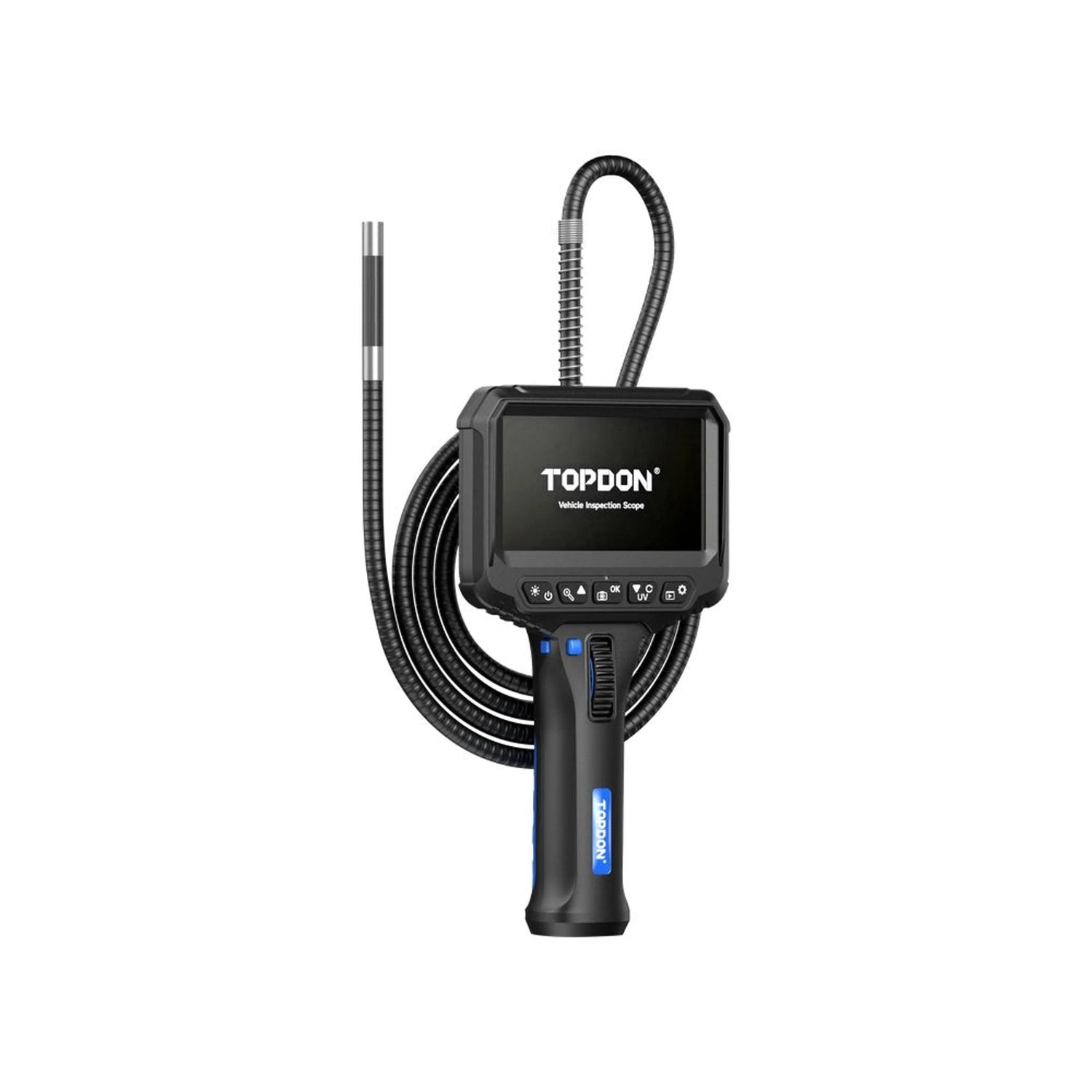

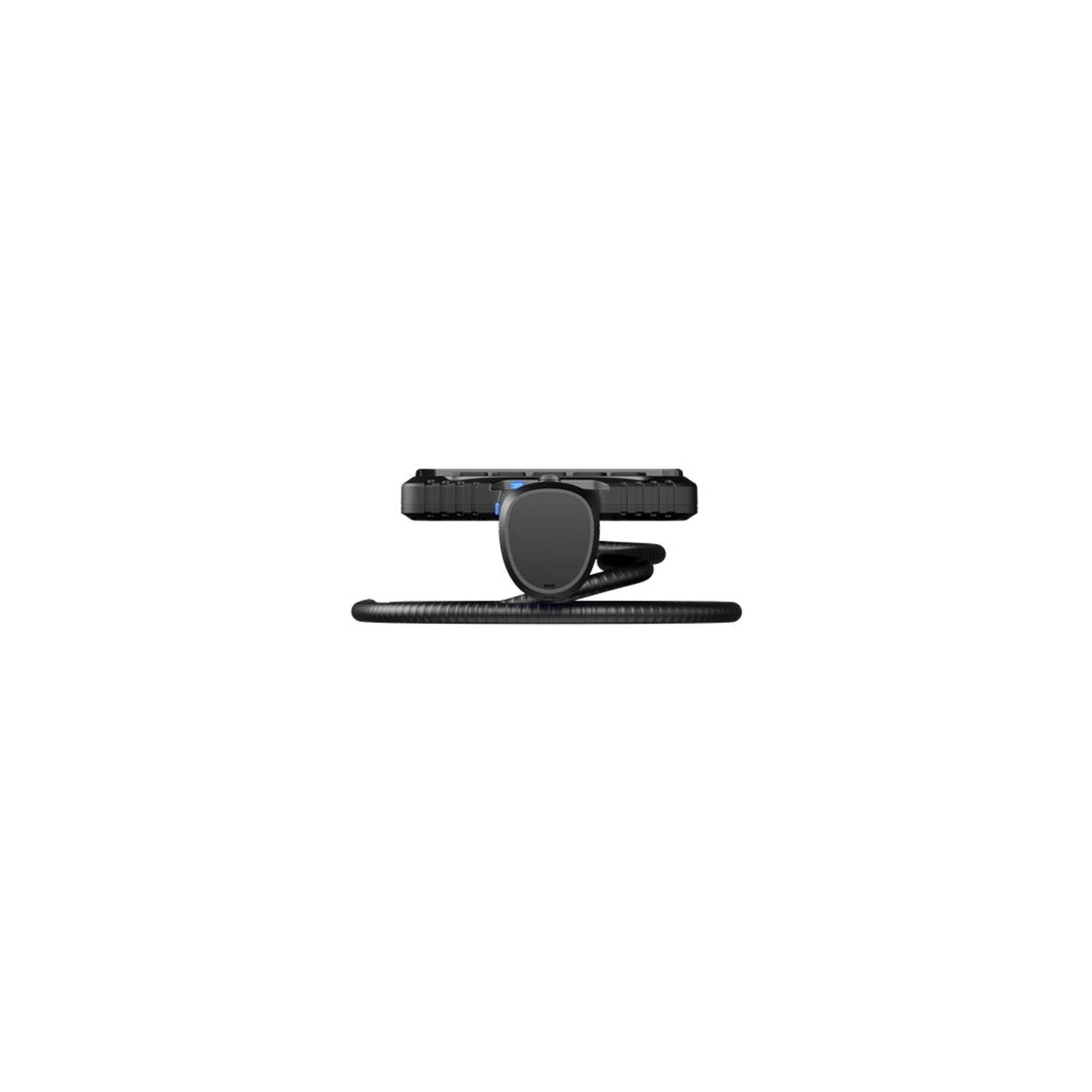

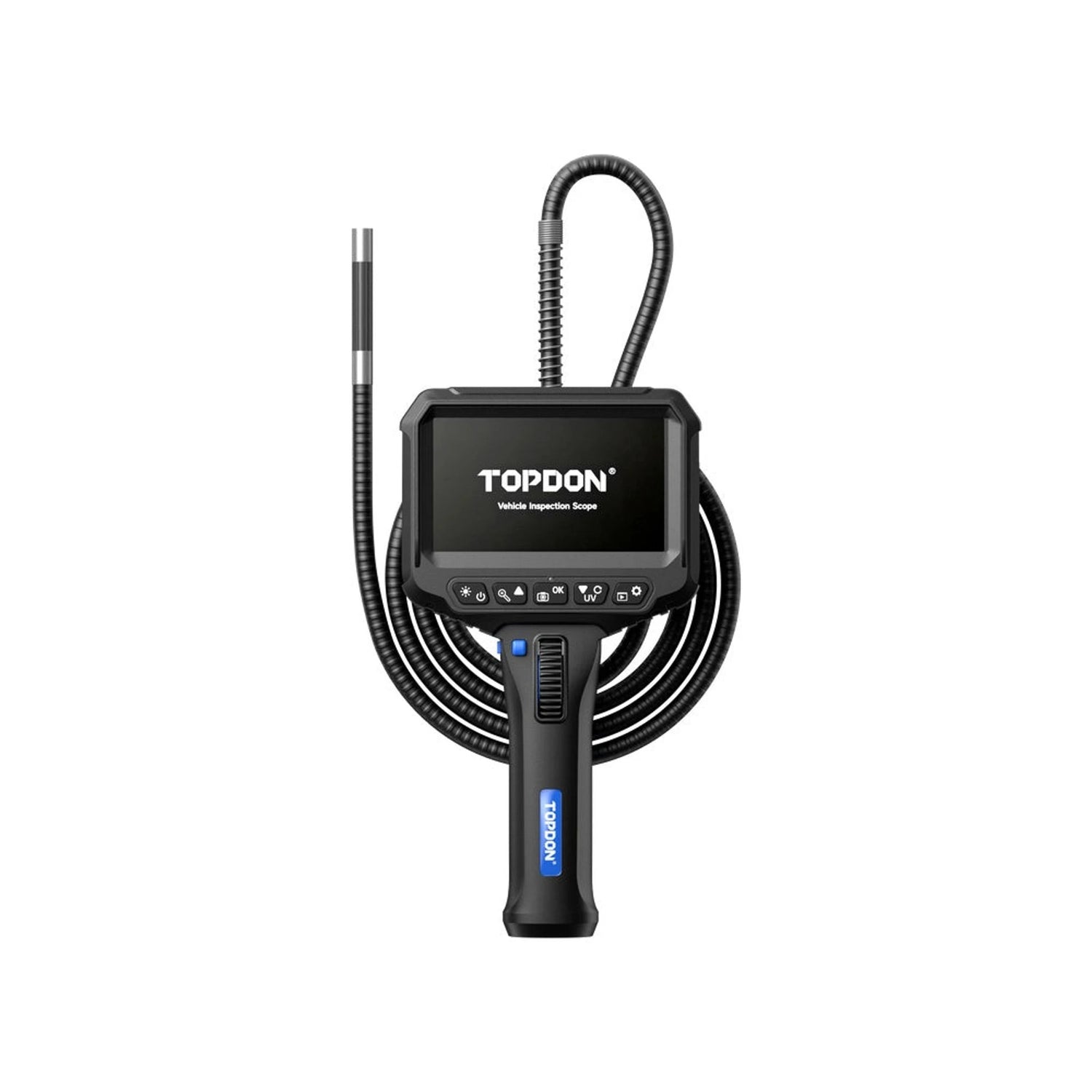

Topdon VIS002 UV | Inspection Camera

€184,95 incl.
€152,85 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

The Topdon VIS002 UV is an inspection camera with its own screen and an 8.5 mm camera head. The head contains three white LEDs and three 365 nm UV LEDs. With white light you look into dark spaces; with UV light you see leak detection fluid glow, for example in the case of an air conditioning or oil leak.

You steer the head with a thumb wheel through 210 degrees to the left and right. The semi-rigid 1 metre probe holds the shape you give it. The image appears on a 4.3-inch IPS screen, without an app or phone. You save photos and videos with sound to a microSD card of 32 GB, which is included.

PROS

✔White and UV light — Three white and three 365 nm UV LEDs in the same head.
✔Steerable head — 210 degrees in two directions, with a thumb wheel.
✔No app — Own 4.3-inch screen; no phone or pairing required.
✔IP67 probe — Head and cable are resistant to dust and water.

POINTS TO NOTE

✕Low resolution — The camera has 0.3 megapixels; this is limited for fine details.
✕1 metre probe — For long pipes or deep hollow beams this may be too short.
✕Only the probe is waterproof — The handle with the screen is not IP67.
✕UV fluid sold separately — Leak detection requires UV contrast fluid, which is not included.

Applications and functions

The VIS002 UV is intended for inspections in places you cannot see directly, and for detecting leaks with UV contrast fluid in the workshop, in installation technology and in maintenance.

Workshop applications

  • Air conditioning leaks: Make leak detection fluid glow under UV light.
  • Oil and coolant: Locate leak points where UV fluid has been added.
  • Combustion chamber: Inspect the piston crown and valves through the spark plug hole.
  • Hollow beams: Check for rust and dirt in sills and beams.

Light and image

  • White LEDs: Three LEDs at three brightness levels.
  • UV LEDs: Three 365 nm LEDs, which can be switched on separately.
  • Viewing angle: 62 degrees.
  • Depth of field: 40 to 60 mm from the head.

Storage and operation

  • Photo and video: JPG for photos, AVI for video.
  • Sound: Built-in microphone for video with sound.
  • MicroSD card: 32 GB included, up to 128 GB.
  • Charging: Via USB-C at 5 V, 1 A.

How to use it

  1. Charging: Charge the device via the USB-C cable.
  2. Check the card: Make sure the microSD card is in the slot.
  3. Choose light: Choose white light to inspect, or UV light for leak detection.
  4. Insert and steer: Insert the probe and steer the head with the thumb wheel.
  5. Record: Take a photo or video with sound and save it to the card.

Special features and capabilities

What sets this model apart is the combination of normal light and UV light in a single camera head.

  • UV leak detection: Contrast fluid glows under the 365 nm UV light.
  • UV markings: Invisible UV markings become visible.
  • Semi-rigid probe: The probe keeps the shape you give it.
  • No pairing required: The screen is in the handle; you view directly.

Package contents

  • 1x Topdon VIS002 UV inspection camera
  • 1x 32 GB MicroSD card
  • 1x USB-C to USB-A cable
  • 1x Cleaning cloth
  • 1x Storage case
  • 1x User manual
💡
Good to know: When searching for leaks, first add UV contrast fluid to the system and let the engine or air conditioning run for a moment. Then inspect in as dark an environment as possible: the glow is then easiest to see.

Technical specifications

General

The manufacturer of the inspection camera.Brand
Topdon
Whether the camera has its own screen or displays the image on your phone, tablet, diagnostic tester or PC. This determines what else you will need.Type of camera
With own screen

Camera

At what distance from the camera head the image is in focus.Depth of field
40 to 60 mm

Screen

The size of the camera's own screen. A larger screen makes details easier to see.Screen diagonal
4.3 inch IPS

Storage and connectivity

The maximum size of memory card supported. More storage lets you save more videos.Maximum memory card
128 GB
The ports on the camera, for charging, transferring data to a PC or displaying on an external screen.Connections
  • USB-C
The file types in which photos and videos are saved.File formats
  • JPG
  • AVI
The camera records audio with a microphone during video, so you can add spoken explanations.Audio recording

Battery

How much energy the battery stores. A larger battery usually lasts longer.Battery capacity
3.7 V, 2,200 mAh
The ambient temperature range in which the device operates properly, for example in a cold workshop.Operating temperature
-10 to 50 °C

Other specifications

Type
Inspection camera with its own screen
Camera head
8.5 mm
Camera resolution
0.3 megapixel
Articulation
210°, two directions
Viewing angle
62°
Lighting
3 white LEDs and 3 UV LEDs
UV wavelength
365 nm
Probe length
1 m
Water resistance
IP67 (camera head and probe)
Storage
MicroSD, 32 GB included, up to 128 GB
Input
5 V, 1 A (USB-C)
Storage temperature
-20 to 70 °C
Dimensions
225 x 123 x 53 mm
Weight
522 g
