Autool  |  SKU: PT620

Autool PT620 | Oil Pressure Tester

€122,95 incl.
€101,61 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

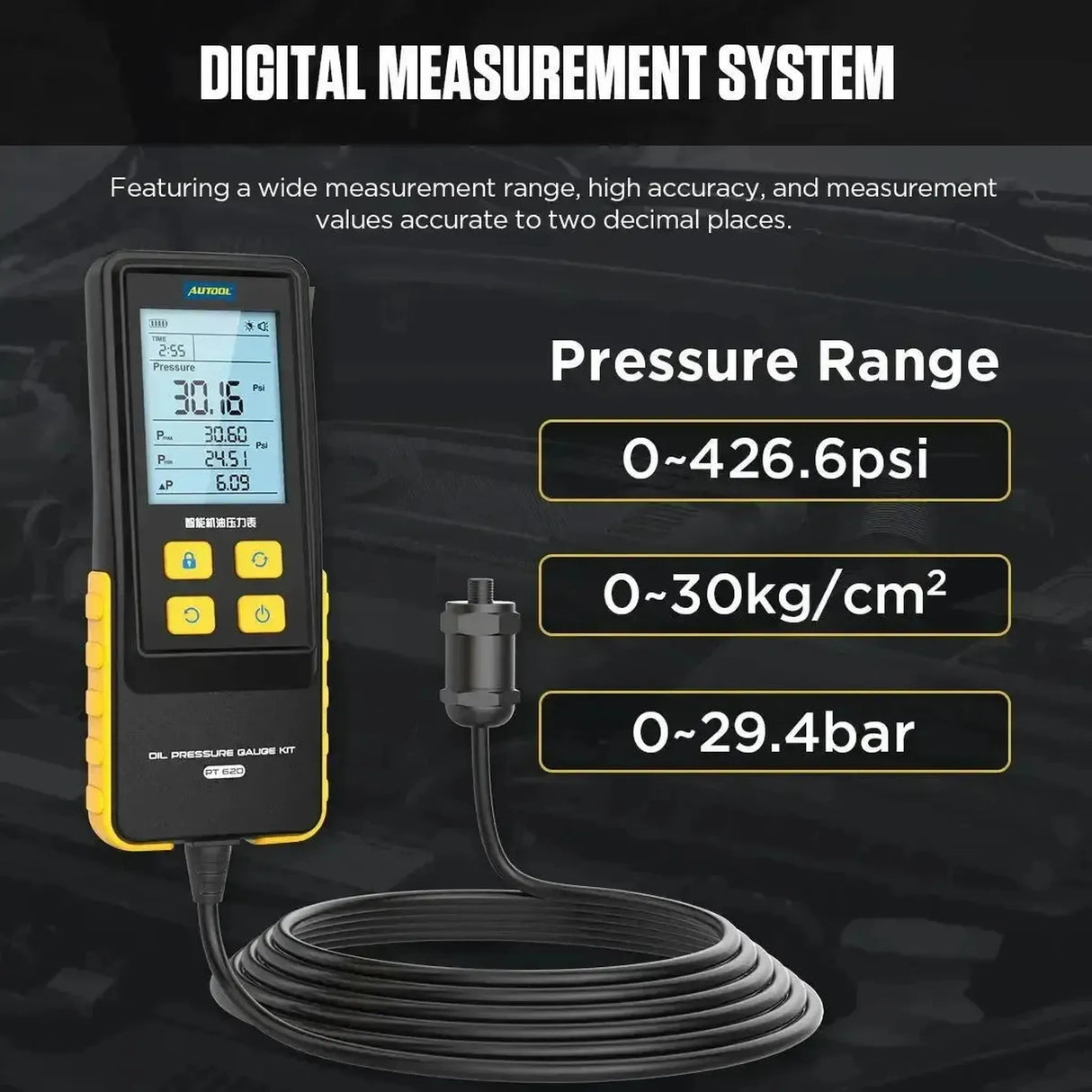

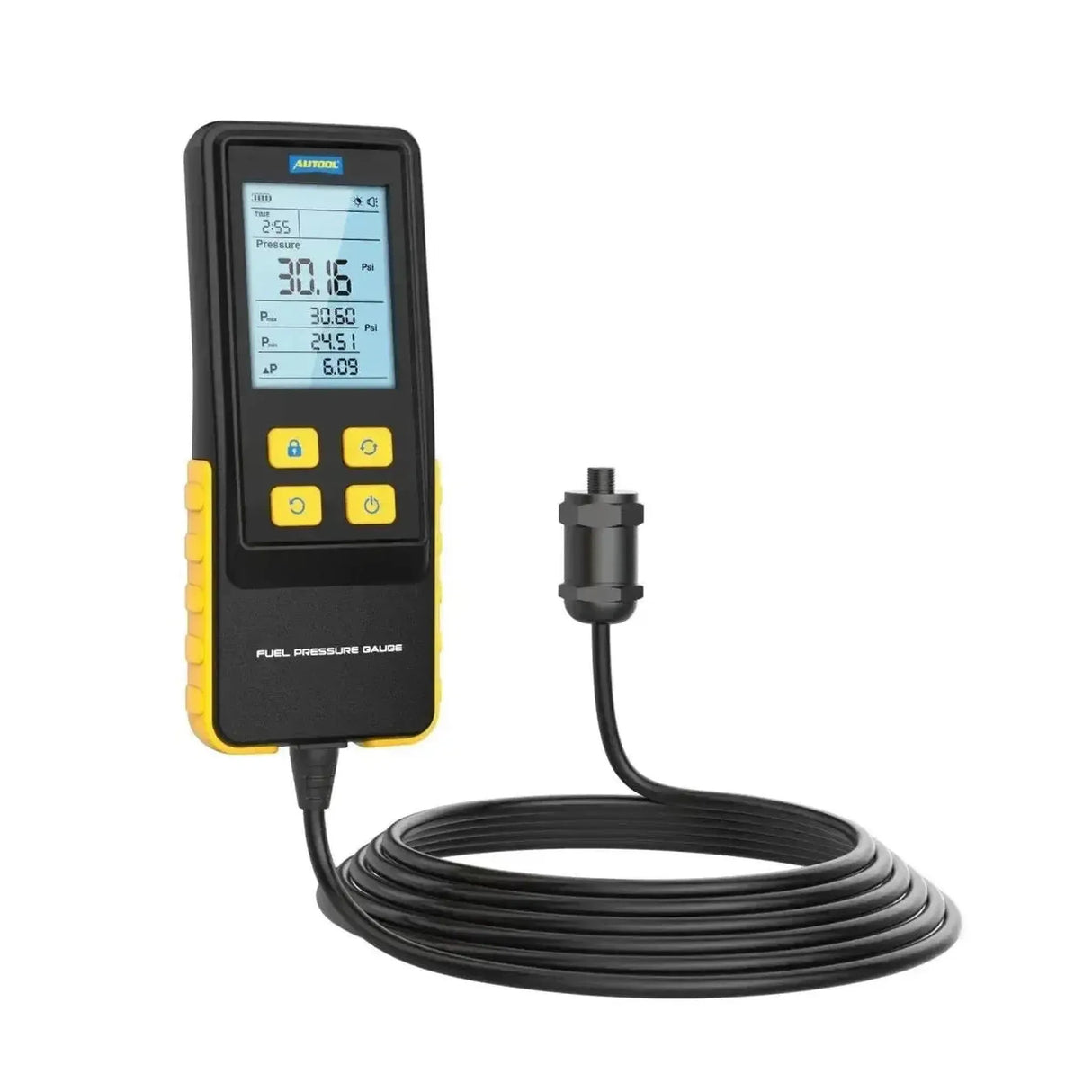

The Autool PT620 is a digital oil pressure gauge with a measurement range of 0 to 29.4 bar. The PT620 measures engine oil pressure at the oil pressure sensor location. This resolves the question left open by the oil pressure warning light: is the pressure genuinely too low, or is it a faulty sensor or wiring? With eighteen adapter types, the adapter set is the largest in the range, because each manufacturer uses its own thread.

The device reads digitally and holds the highest and lowest values during measurement, along with the difference between them and the elapsed measurement time. Connection is made using the supplied adapters: eighteen adapter types. The largest set in the range, made of riveted copper; the dimensions are not listed in the manual. It runs on four AAA batteries and is usable from −10 to +60 °C.

KEY BENEFITS

✔The eighteen adapters make the difference: they allow it to fit the oil pressure sensor of most engines.
✔Measures from 0 to 29.4 bar, with an accuracy of 0.5% of full scale.
✔Eighteen adapter types supplied, so you don't need to purchase anything separately per vehicle.
✔Digital display on a digital screen, stored in a carry case.

POINTS TO NOTE

✕Overload up to 40 bar. Beyond this, the sensor will be damaged.
✕Adapter dimensions are not listed in the manual. If you are unsure whether your thread is included, please ask us before ordering.
✕The adapters are generic, not brand-specific. Which ones you need depends on the vehicle; if unsure, please provide the make, model and year of manufacture.
✕Runs on four AAA batteries. These can be replaced separately, but bear in mind that the gauge will automatically switch off after five minutes.

Application and functionality

A pressure gauge tells you whether a system achieves the pressure it should. That is the difference between suspicion and measurement – and it saves replacing components that are working perfectly.

Where to connect it

  • At the oil pressure sensor location: You unscrew the sensor and screw the matching adapter in its place.

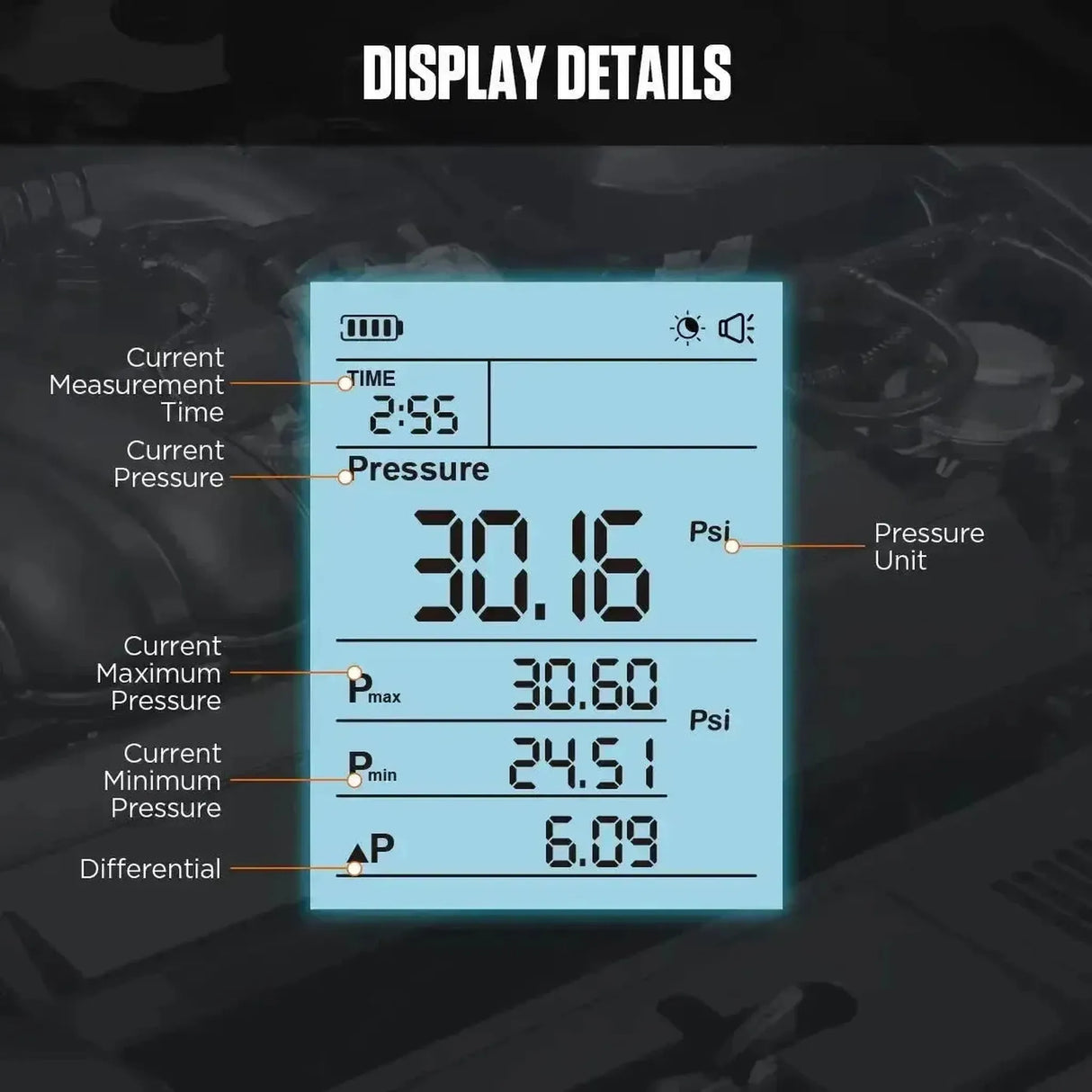

What you see on the display

  • Live reading: The pressure at that moment.

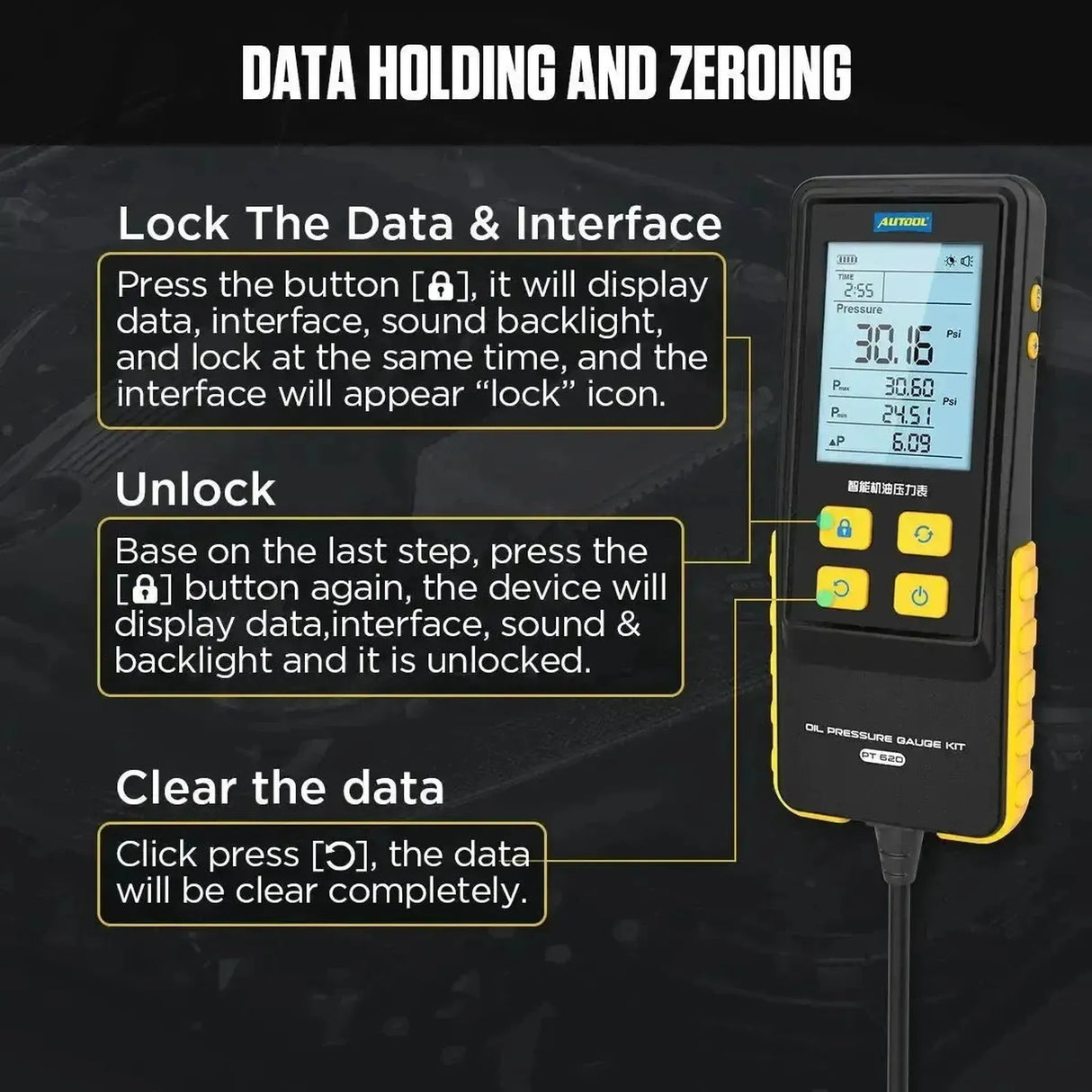

  • Highest and lowest values: Pmax and Pmin are held throughout the measurement.
  • Difference between them: ΔP, the difference between the highest and lowest value.
  • Measurement time: How long the measurement has been running.

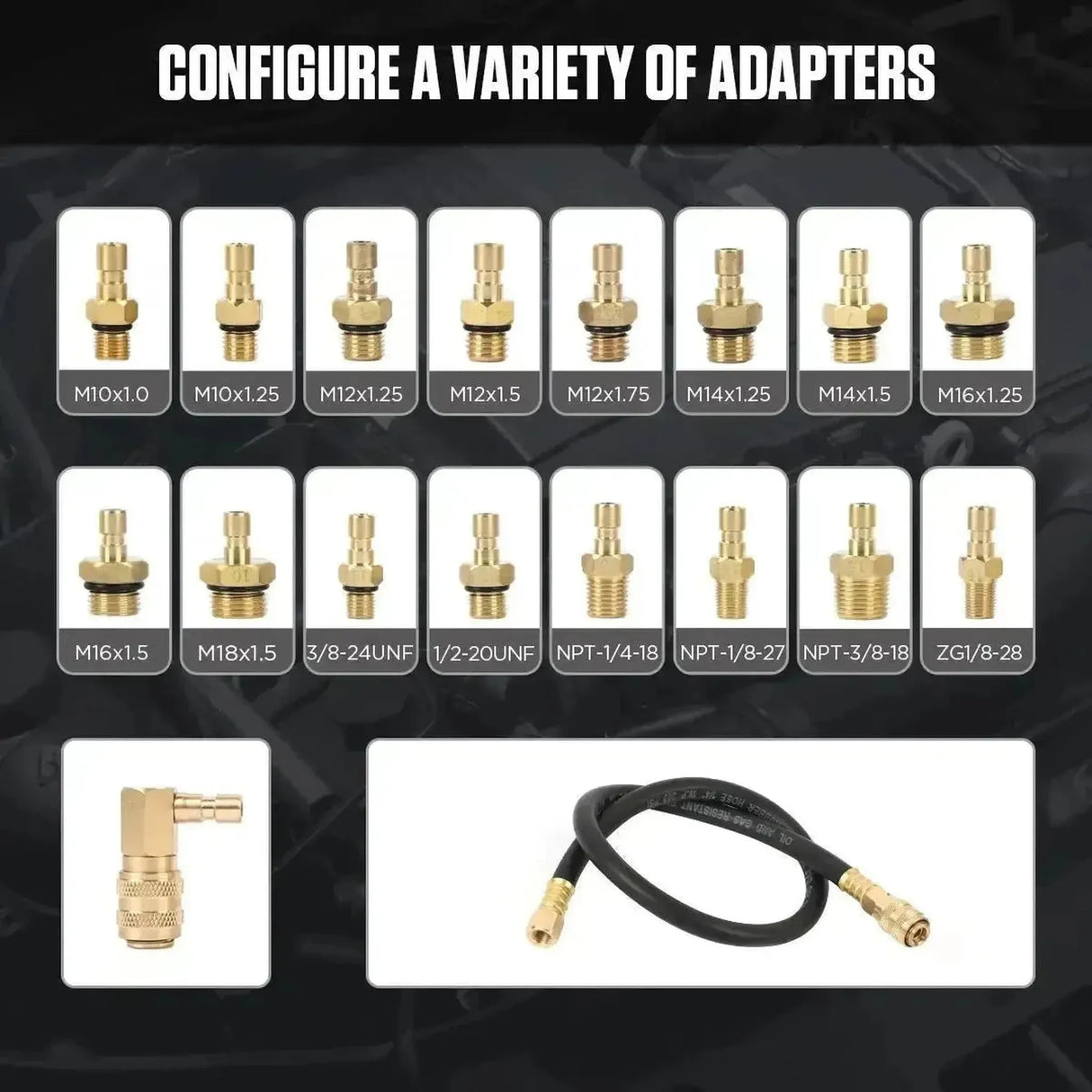

  • Eighteen adapters: The largest set in the range, for the various threads on oil pressure sensors.

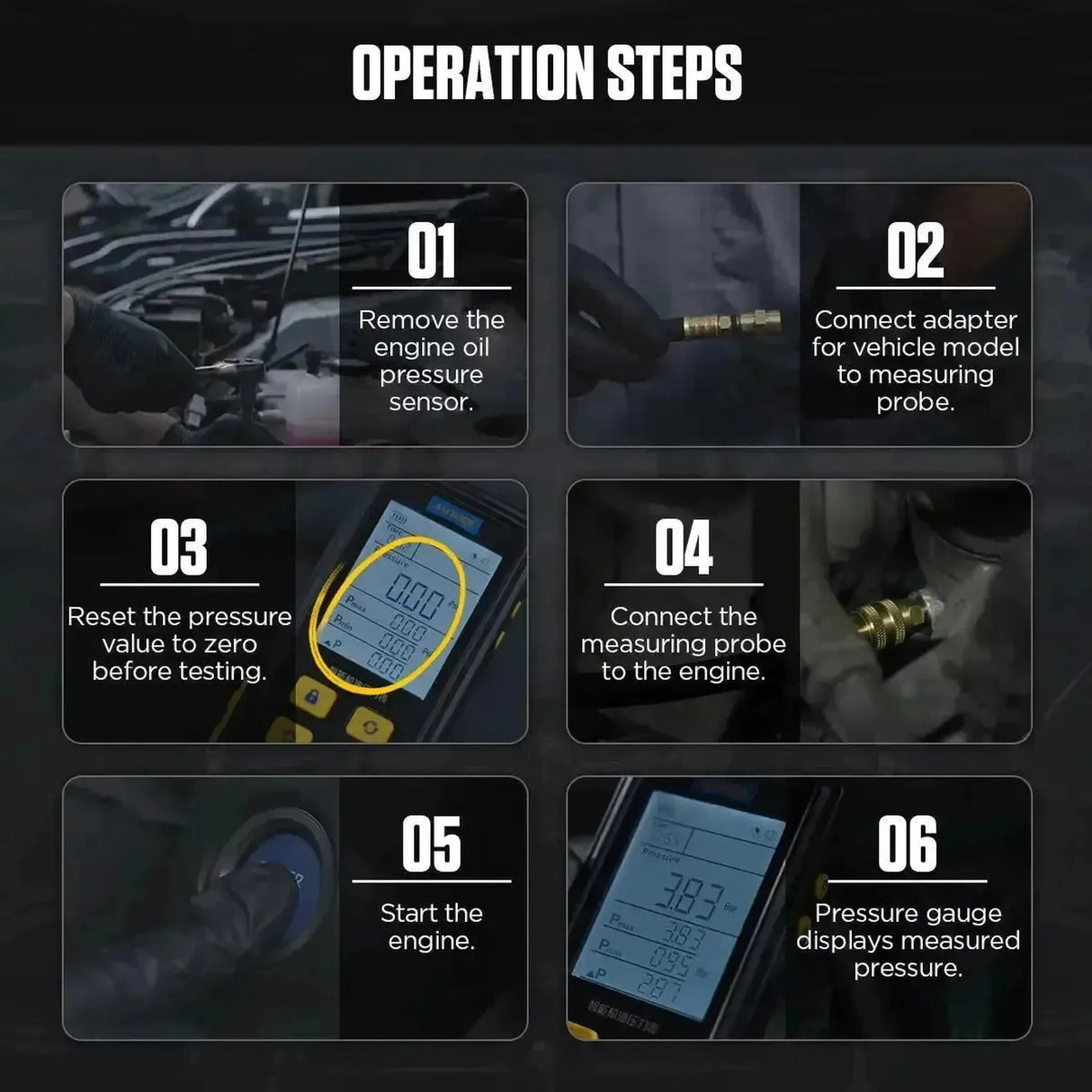

How to perform the measurement

The sequence determines whether the measurement is worthwhile. This is the procedure Autool prescribes in the manual.

  1. Bring the engine to operating temperature: Cold oil is thicker and produces a higher pressure reading than the engine actually has.
  2. Remove the oil pressure sensor: Catch the oil that drains out and screw the matching adapter into place.
  3. Connect the gauge and set the zero point: Attach the hose before starting.
  4. Run the engine at idle and take the reading: Check the pressure and compare it with the manufacturer's specification; Pmax and Pmin will be recorded.

Which pressure gauge you need

Autool offers seven pressure gauges that look similar from the outside but have a different sensor and different adapter set. The difference lies in which system you measure and how high the pressure reaches there. You are currently viewing the PT620.

Model What it measures Range Adapters
PT520 Air pressure and vacuum −100 to +200 kPa Seven adapter types
PT530 Air pressure and vacuum −100 to +300 kPa Seven adapter types, with sizes from 4 to 20 mm
PT610 Compression pressure of a petrol engine 0 to 29.4 bar Ten adapter types
PT620 (this product) Engine oil pressure 0 to 29.4 bar Eighteen adapter types
PT630 Fuel pressure in the low-pressure line 0 to 29.4 bar Comprehensive set with tapered nipples and hose couplings
PT640 GDI Fuel pressure in a direct injection system 0 to 360 bar Three adapter types
PT650 Oil pressure in an automatic transmission 0 to 29.4 bar Twelve adapter types

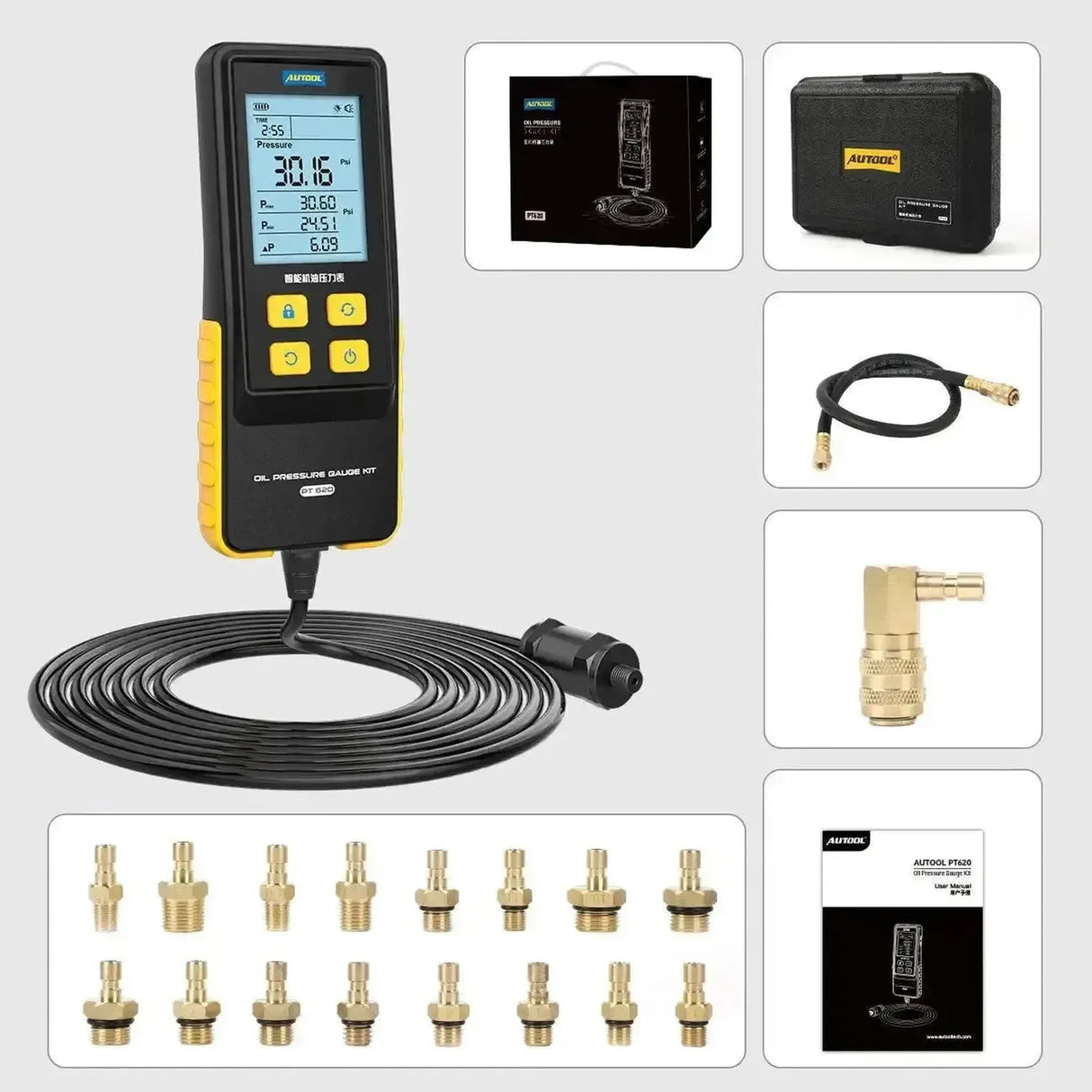

Package contents

  • 1x Autool PT620 oil pressure tester
  • 1x Adapter set: Eighteen adapter types

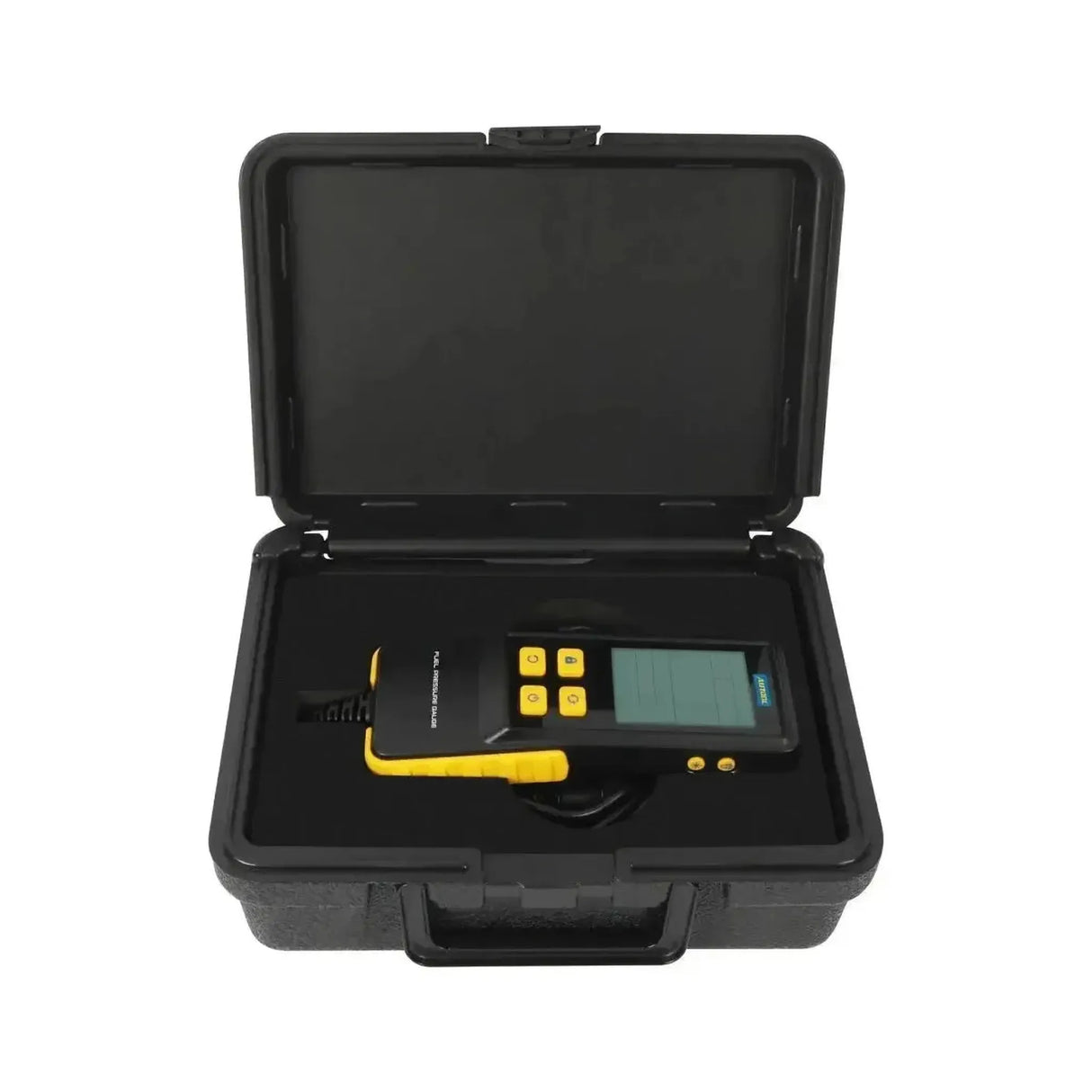

  • 1x Carry case
  • 1x User manual
💡
Good to know: Record the measured value together with the conditions: Engine temperature, engine speed and which adapter you used. A pressure reading without that context cannot be compared in a follow-up measurement three months later, and it is often the trend that reveals more than a single reading.

Technical specifications

Specification Description
Brand Autool
Model PT620
Type Oil pressure tester

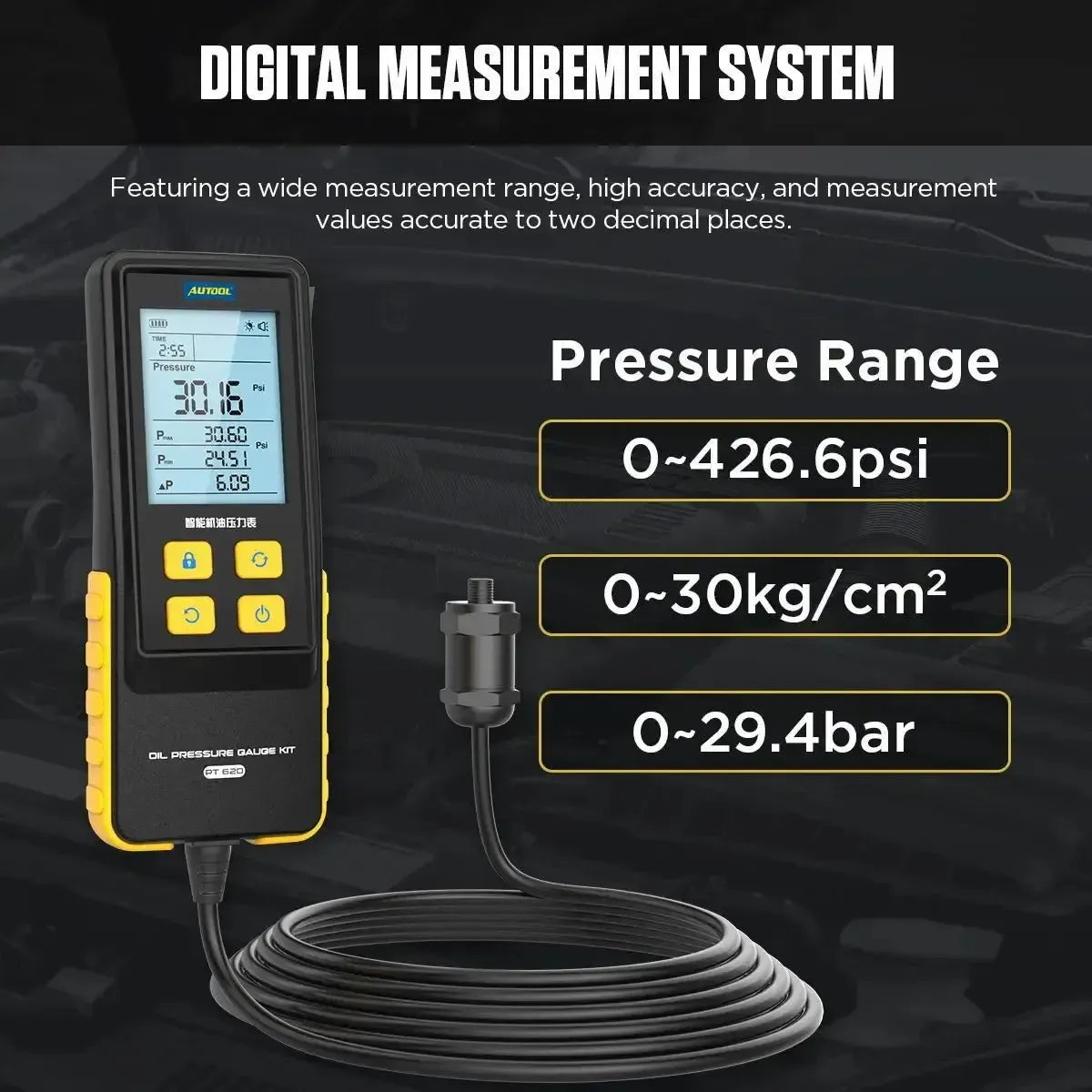

Measurement range 0 to 29.4 bar (426.6 psi / 30 kg/cm²)
Accuracy 0.5% of full scale
Resolution 0.01 bar
Overload limit 40 bar
Display Digital display
Adapters Eighteen adapter types
Case Included
Power supply Four AAA batteries of 1.5 V
Operating temperature −10 °C to +60 °C
Dimensions 175 × 72 × 29 mm
Auto shut-off After five minutes
Article number PT620
