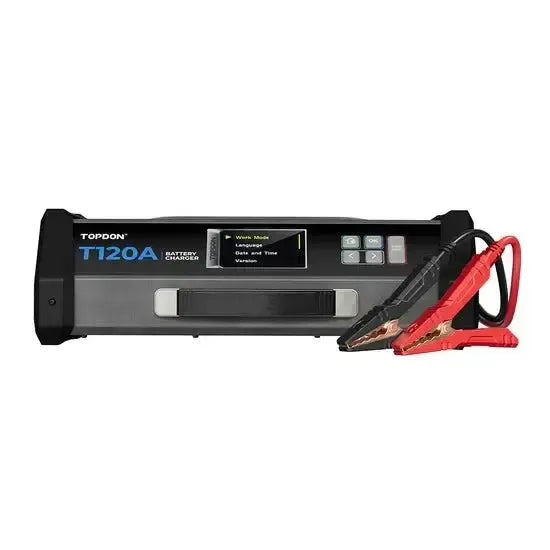

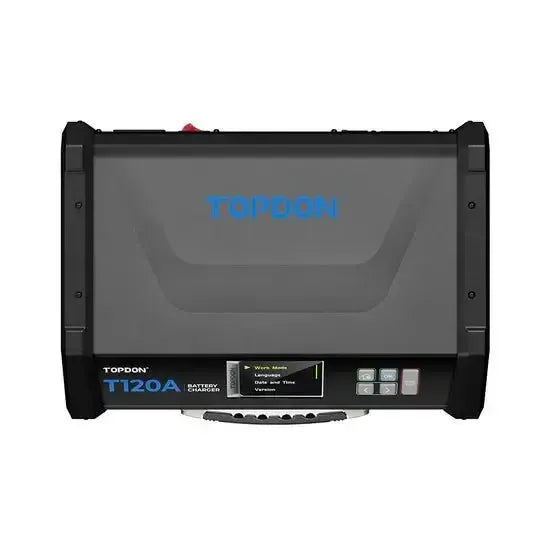

Topdon Tornado T120000 | Trickle Charger

The Topdon Tornado T120000 is an intelligent battery charger and trickle charger developed for professional applications. The device is suitable for charging 6V, 12V, and 24V batteries, including various lead-acid and lithium-ion types. The charging current is adjustable in several steps up to a maximum of 120A, making it compatible with battery capacities ranging from 50Ah to 4000Ah. The charger uses an advanced 9-step charging process to optimize the charging cycle and extend battery life.

In addition to the standard charging functions, the Tornado T120000 features a special 'Supply' mode. This function provides a stable, adjustable voltage to the vehicle, making it a suitable power station for tasks such as ECU programming, flashing, and diagnostics. The charger is equipped with an external temperature sensor that automatically adjusts the charging voltage according to the ambient temperature. Multiple built-in safety mechanisms protect against reverse polarity, short circuit, overheating, and overvoltage.

Application and functionality:

The Tornado T120000 is designed for professional use in workshops and offers various functions for battery charging, maintenance, and support of the vehicle's electrical system.

• 9-Step intelligent charging: A fully automatic charging process that analyzes, charges, maintains, and restores the battery. The steps include desulfation, soft start, bulk, absorption, analysis, reconditioning, float, and pulse mode.
• Adjustable charging current: The user can manually set the charging current to 5A, 15A, 30A, 60A, 90A, or 120A to match the battery specifications.
• Supply Mode: Provides a constant and adjustable voltage from 12V to 24V. This mode is intended to power vehicle electronics during diagnostic procedures or ECU programming.
• Temperature compensation: An external sensor measures the ambient temperature and automatically adjusts the charging voltage to prevent overcharging or undercharging, improving charging efficiency and battery life.
• Multiple protection: The system includes protection against reverse polarity, short circuit, overvoltage, overheating, and is spark-free, ensuring safety for both the user and the vehicle.
• Battery recovery: The charger can detect deeply discharged or sulfated batteries and attempt to restore them using a special pulse charging technique.

Supported battery standards:

This device is compatible with a wide range of 6V, 12V, and 24V batteries.

• Lead-acid: Suitable for most types of lead-acid batteries, including STD (standard), AGM (Absorbent Glass Mat), GEL, EFB (Enhanced Flooded Battery), WET (wet), and CAL (Calcium).
• Lithium-ion: Specifically supports LFP (Lithium Ferro Phosphate / LiFePO4) batteries.

Package Contents:

• 1x Topdon Tornado T120000 battery charger
• 1x Battery clamp set
• 1x External temperature sensor
• 1x Manual

Technical specifications:
