Topdon  |  SKU: V4500PLUS

Topdon V4500 Plus | Jump Starter

2 reviews
€247,95 incl.
€204,92 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

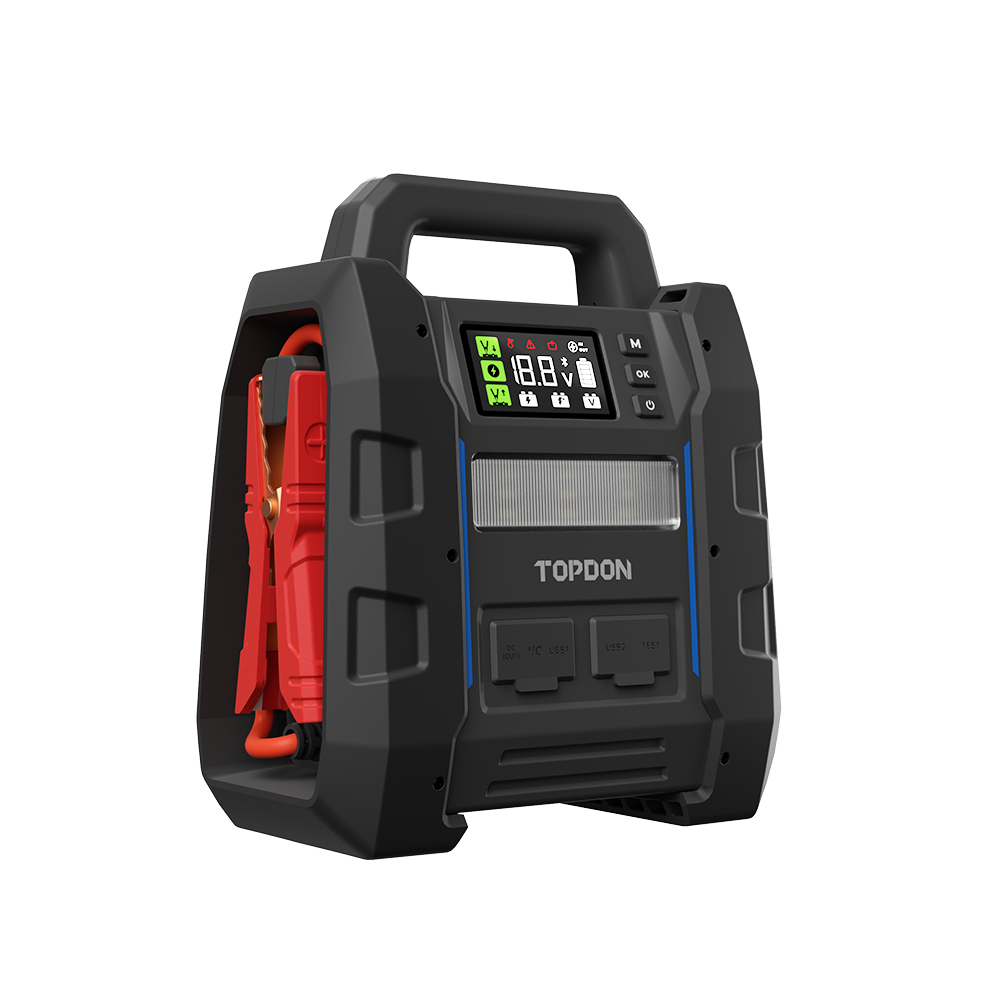

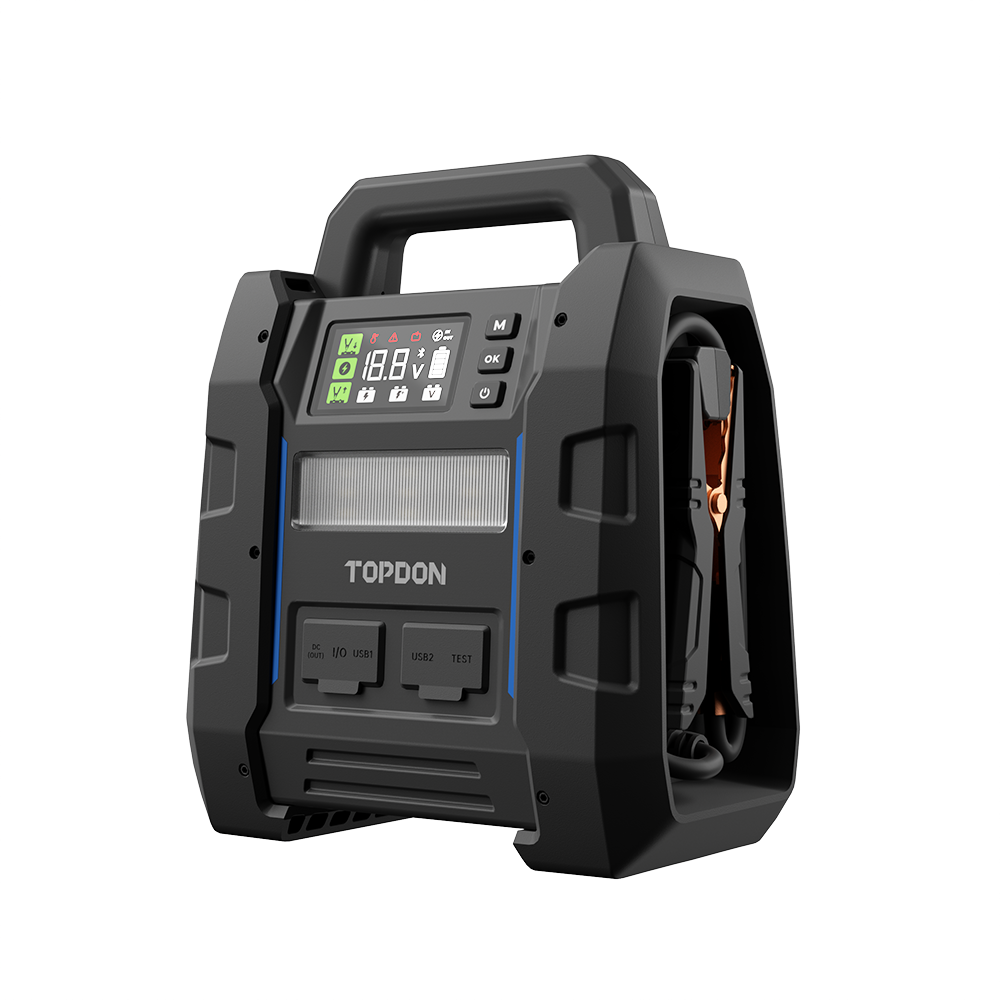

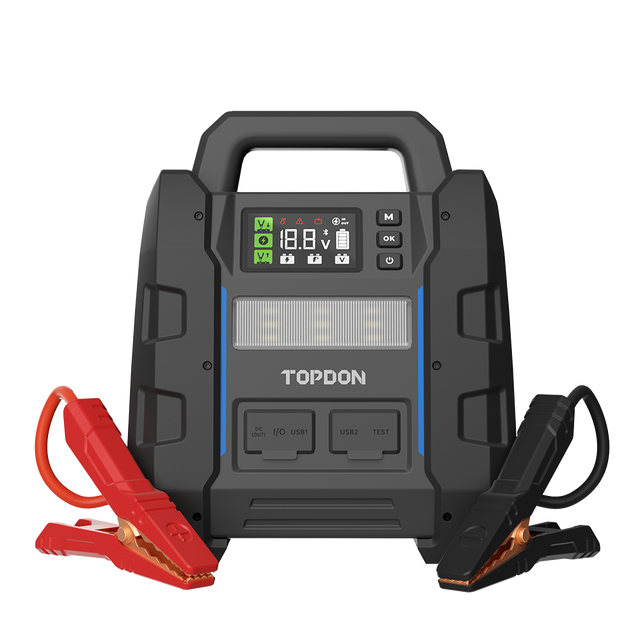

The Topdon V4500 Plus is a professional jumpstarter designed for mechanics and diagnostic technicians working with heavy and large-volume vehicles. With a high peak current of 4500A, this unit is specially built for 12V systems, including heavy commercial vehicles, agricultural vehicles, boats, and off-road vehicles. The device uses an internal lithium battery with a capacity of 32000mAh (120Wh) and provides enough power to start up to 45 times on a single battery charge. In addition to providing start support, the unit is capable of diagnosing standard vehicle batteries through the built-in test functionality.

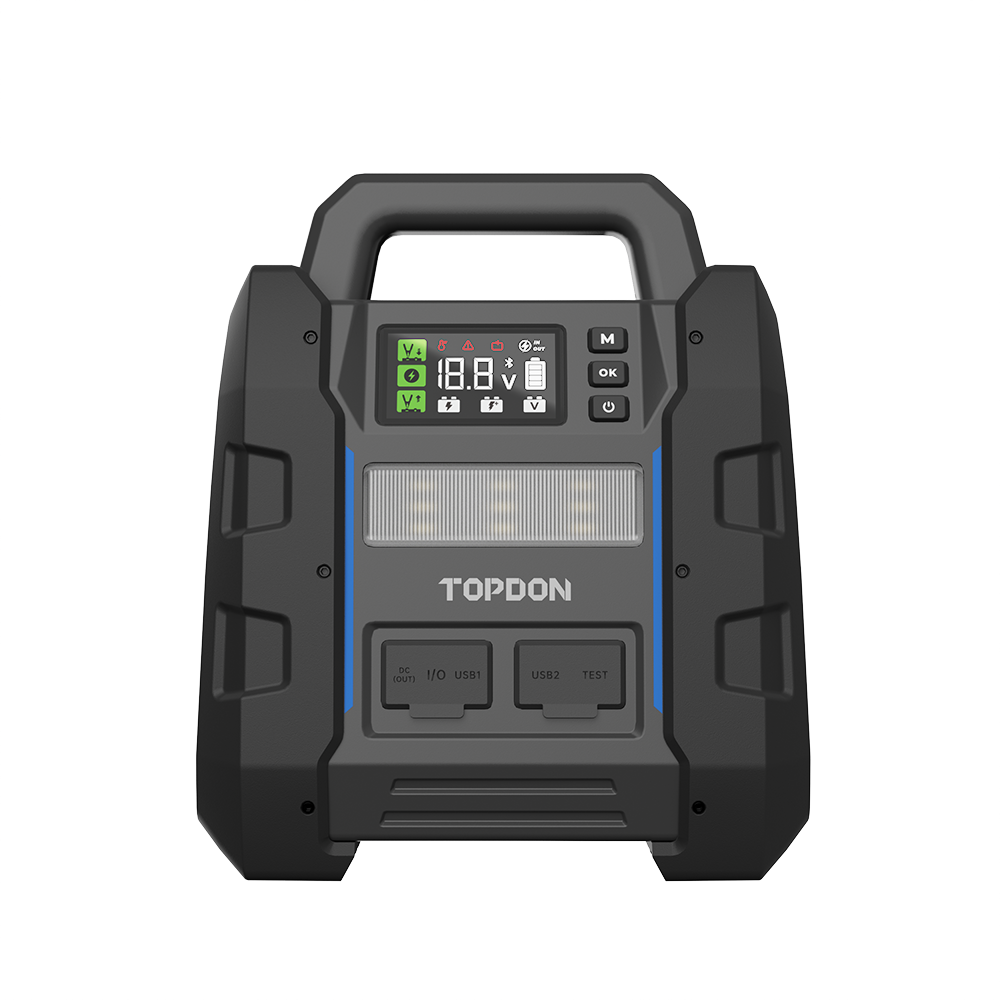

Technically, the system is monitored by ten integrated protection systems, including reverse polarity protection, short circuit protection, overcurrent protection, and temperature control. The current status of the battery and the starting process is directly readable via the illuminated LCD display on the front panel. The power supply is very flexible; the unit is equipped with a bidirectional PD100W USB-C port that can fully charge the internal battery in just 90 minutes. Furthermore, the jumpstarter features external connections such as two QC18W USB-A ports, a 16.8V DC output for workshop equipment, and a built-in LED work light of 500 lumens with multiple lighting modes for work in low-light environments.

ADVANTAGES

✔ Very high peak current of 4500A, suitable for starting heavy 12V engines.
✔ Bidirectional PD100W USB-C fast charging port fully charges the device in 90 minutes.
✔ Integrated battery test function communicates CCA and SoH data to a mobile application.
✔ Construction with IP65 rating provides reliable protection against dust and water jets.

IMPORTANT NOTES

✕ Only compatible with 12V Vehicle electrical systems, not suitable for 24V trucks.
✕ With a weight of 4.4 kg, significantly heavier than standard portable lithium boosters.

Applications and functionalities

This jumpstarter is designed not only to start engines but also to facilitate diagnostics and supply power to external test equipment.

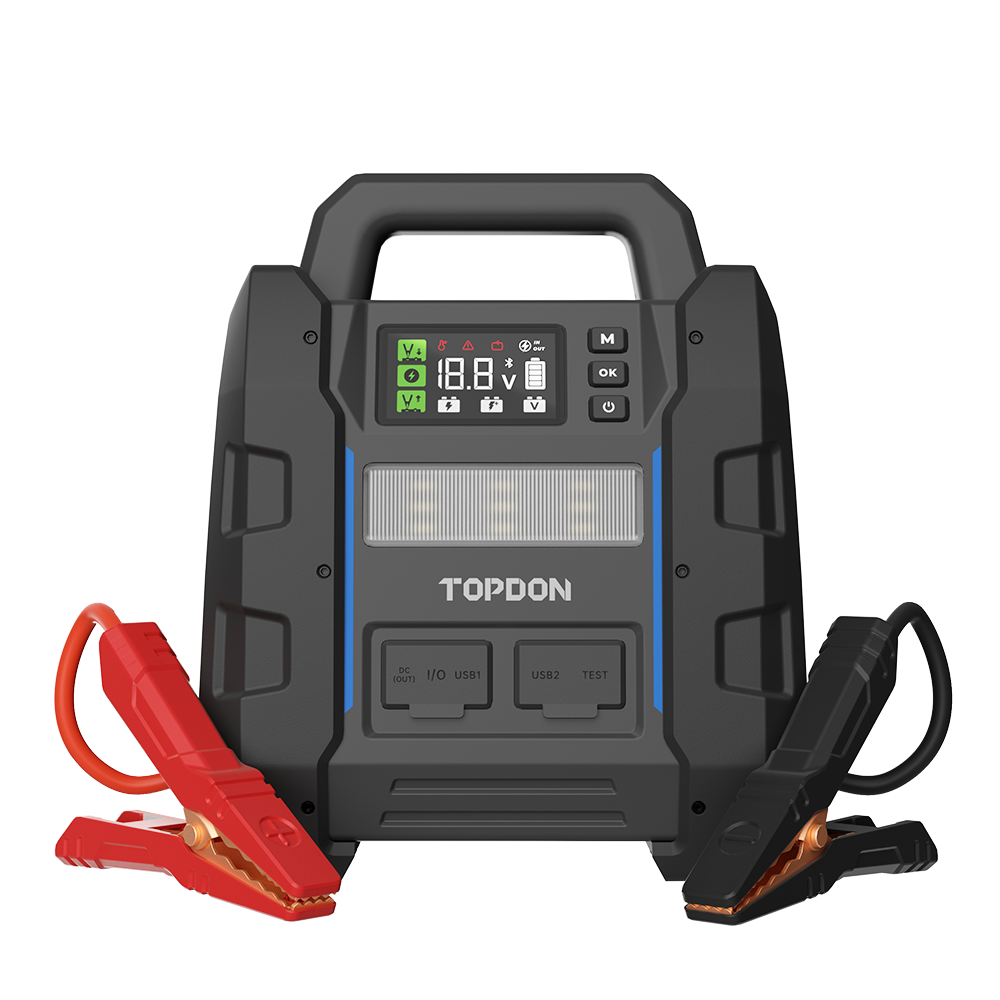

  • Vehicle diagnosis and start support: Delivers a peak current of 4500A via the smart starting clamps to immediately start heavy combustion engines with a deeply discharged vehicle battery.
  • Battery diagnosis and testing: With the specific test port and the accompanying app, the unit analyzes the starting capacity (CCA), internal resistance, charge status (SoC), and health status (SoH) of the connected battery.
  • Power supply via DC and USB: Powers diagnostic devices, work lights, or smartphones on site via the robust 16.8V/10A DC port, the PD100W USB-C port, or the dual QC18W USB-A outputs.

Special features and capabilities

To maximize safety and operational readiness, the device is equipped with high-quality components and intelligent charging protocols.

  • Bidirectional Fast Charging (PD100W): The internal lithium cell is charged via the USB-C connection with a charging power of 100 watts. This allows the battery booster to be charged from 0 to 100% in just 90 minutes.
  • 10-fold intelligent battery protection: An integrated safety module continuously monitors the starting process and automatically interrupts the circuit upon detection of reverse polarity, short circuit, overcurrent, undervoltage, and extreme temperature fluctuations.
  • Integrated LED work light: The front panel contains 15 ultra-bright white LEDs and 6 red warning LEDs with an output of 500 lumens. Supports modes for constant light, strobe, SOS, and a specific red warning signal for emergencies.

Compatible vehicles and applications

The booster delivers high power output for heavy and commercial equipment running on a standard 12-volt electrical system.

  • Vehicle category: Light and heavy commercial vehicles, trucks (12V), agricultural vehicles, heavy off-road equipment, and boats.
  • Battery voltage: Designed for 12V electrical systems.
  • Battery type: Compatible with standard vehicle batteries, including Lead Acid, AGM, and Gel.
💡
Good to know: Always test the battery via the integrated app function before performing a jumpstart directly. This way you identify whether the vehicle battery is defective or just discharged, preventing unnecessary malfunctions in the vehicle electronics.

Package Contents

  • 1x Topdon V4500 Plus
  • 1x Battery Test Clamps (Smart jumper cables)
  • 1x PD100W USB-C cable
  • 1x PD45W charger
  • 1x DC Adapter
  • 1x User manual

Technical specifications

General

The manufacturer of the battery booster.Brand
Topdon
The on-board voltage the booster works with. Cars have 12 volts, many lorries 24 volts.Suitable battery voltage
  • 12 volts
Which types of vehicles you can start with the booster.Vehicle types
  • Van
  • Lorry
  • Boat
Which types of vehicle batteries you can start with the booster.Suitable battery types
  • Lead acid
  • AGM
  • Gel

Starting power

The highest current the booster can briefly deliver. The higher, the larger the engines you can start.Peak current
4,500 A

Battery and charging

How much energy the internal battery stores. More capacity allows more starts or device charges.Battery capacity
32000mAh / 120Wh (3.7V)
How quickly the USB-C port charges the booster and charges devices such as a laptop or phone.USB-C power output
100 W
How quickly the USB-A output charges a phone or other device.USB-A power output
18 W
A connection for supplying power to 12 volt devices, such as a compressor.12V DC output

Additional features

A built in LED light, useful when working on the battery in the dark.Work light
How bright the work light shines, in lumens. More lumens give more light.Work light output
500 lm
The booster can test the car's battery and display the result via Bluetooth in an app.Battery test via app
How well the booster is protected against dust and water. A higher IP rating withstands weather and dirt better.Protection rating
IP65

Dimensions and weight

Length, width and height of the booster. Important if it needs to fit in the car or toolbox.Dimensions
320 x 310 x 175 mm
How heavy the booster is. A light booster is easier to carry.Weight
4.4 kg
The temperatures at which you can use the booster. Important in frost or extreme heat.Operating temperature
-10 to 55 °C

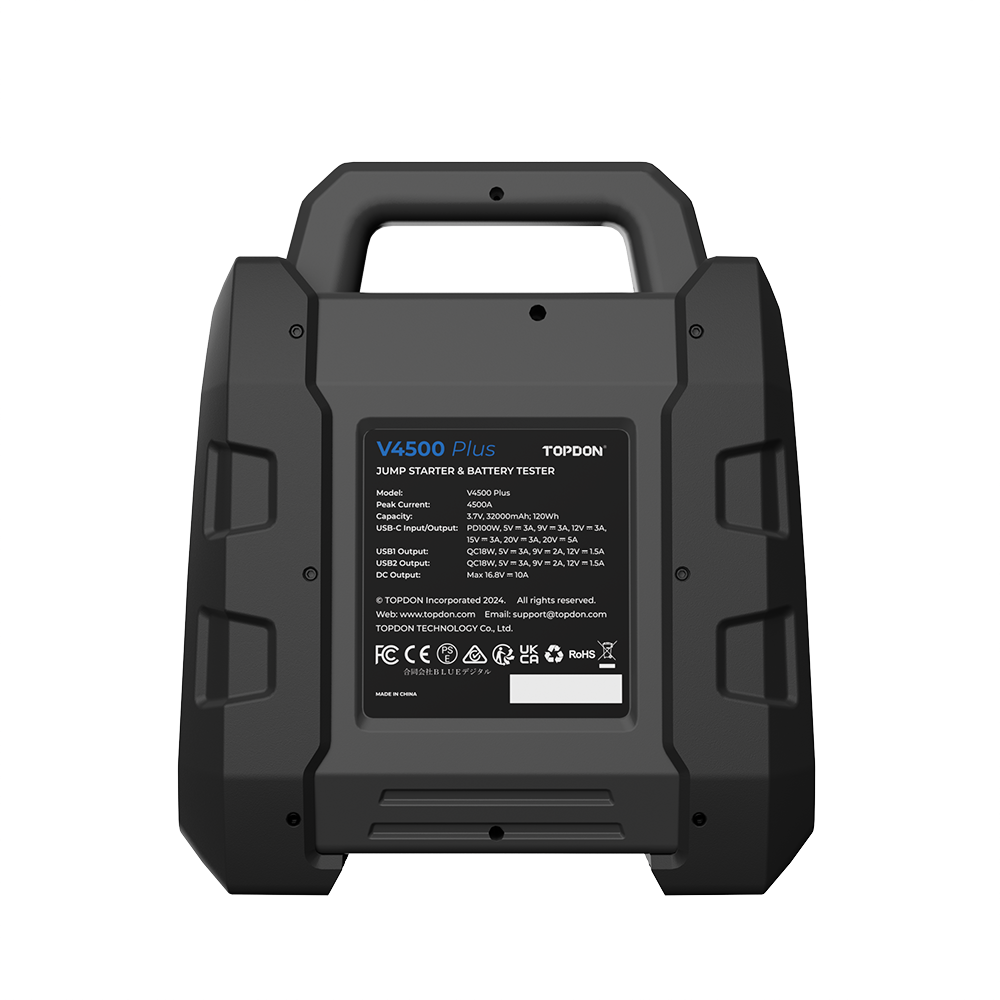

Other specifications

USB-C Input / Output
Bidirectional, PD100W (5V=3A, 9V=3A, 12V=3A, 15V=3A, 20V=5A)
USB-A Output 1 & 2
QC18W (12V=1.5A, 9V=2A, 5V=3A)
DC Output
Max 16.8V = 10A

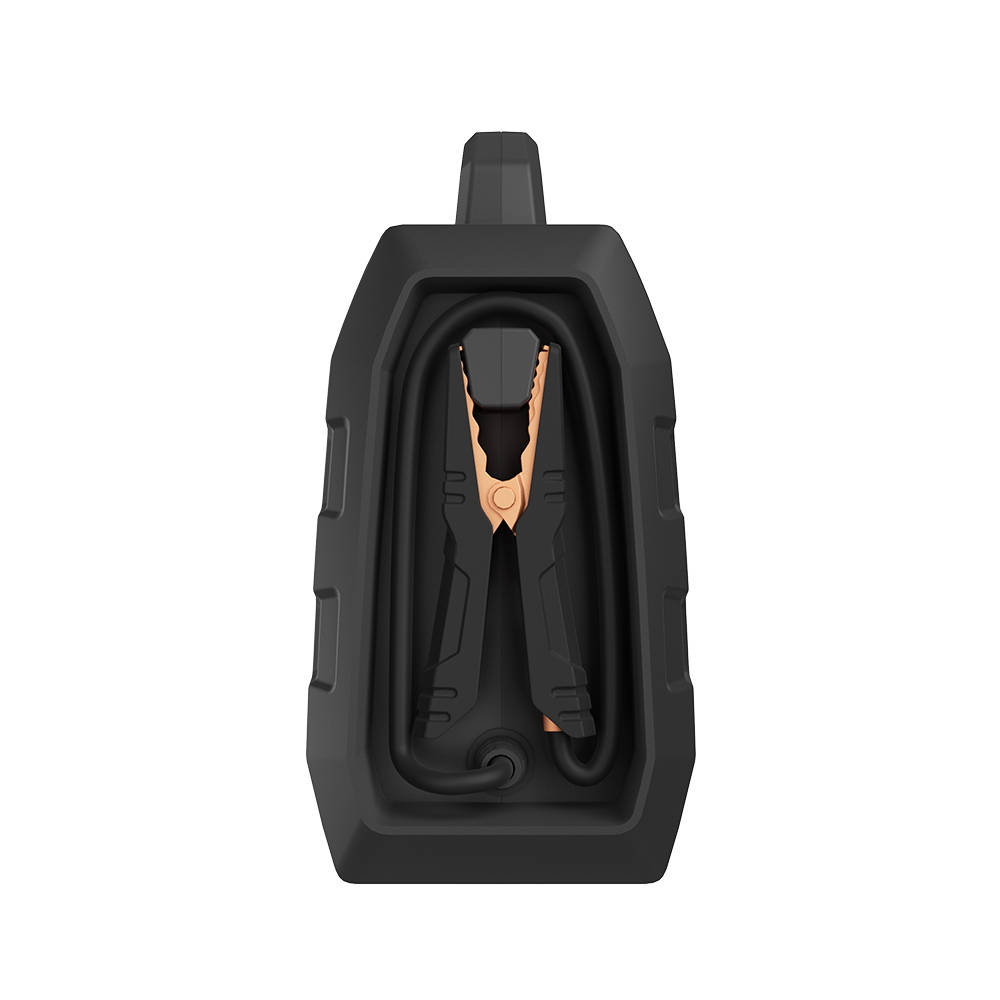

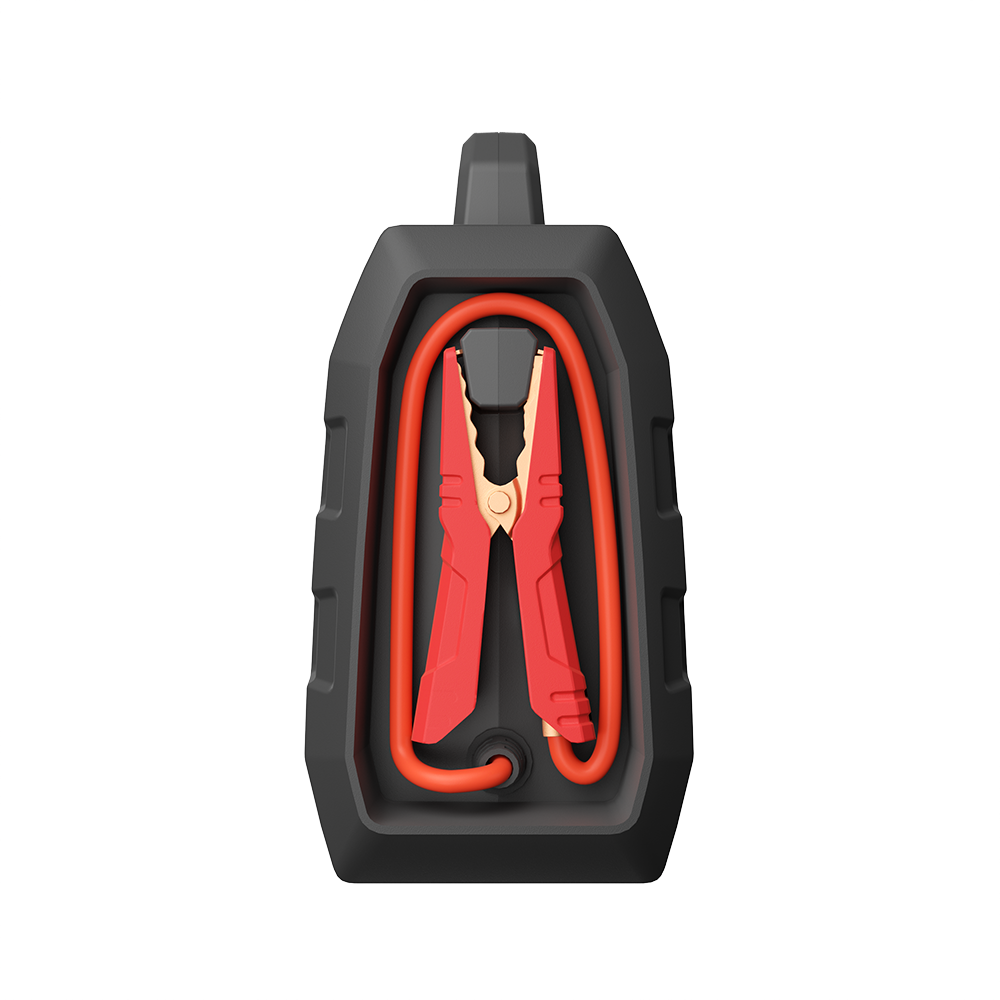

Cable length clamps
Positive: 380 mm / Negative: 380 mm
Storage temperature
-20°C to 55°C
