OBDSTAR  |  SKU: M030

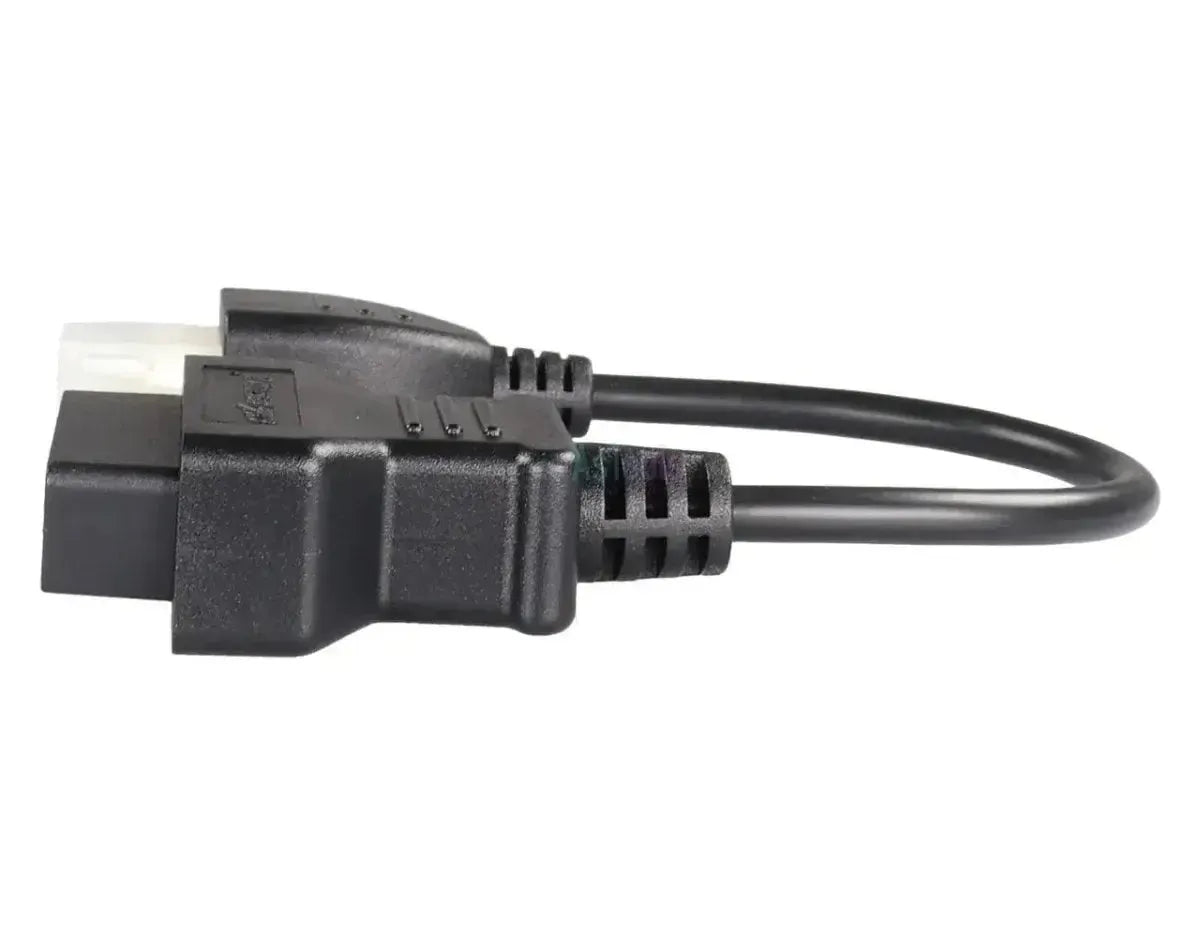

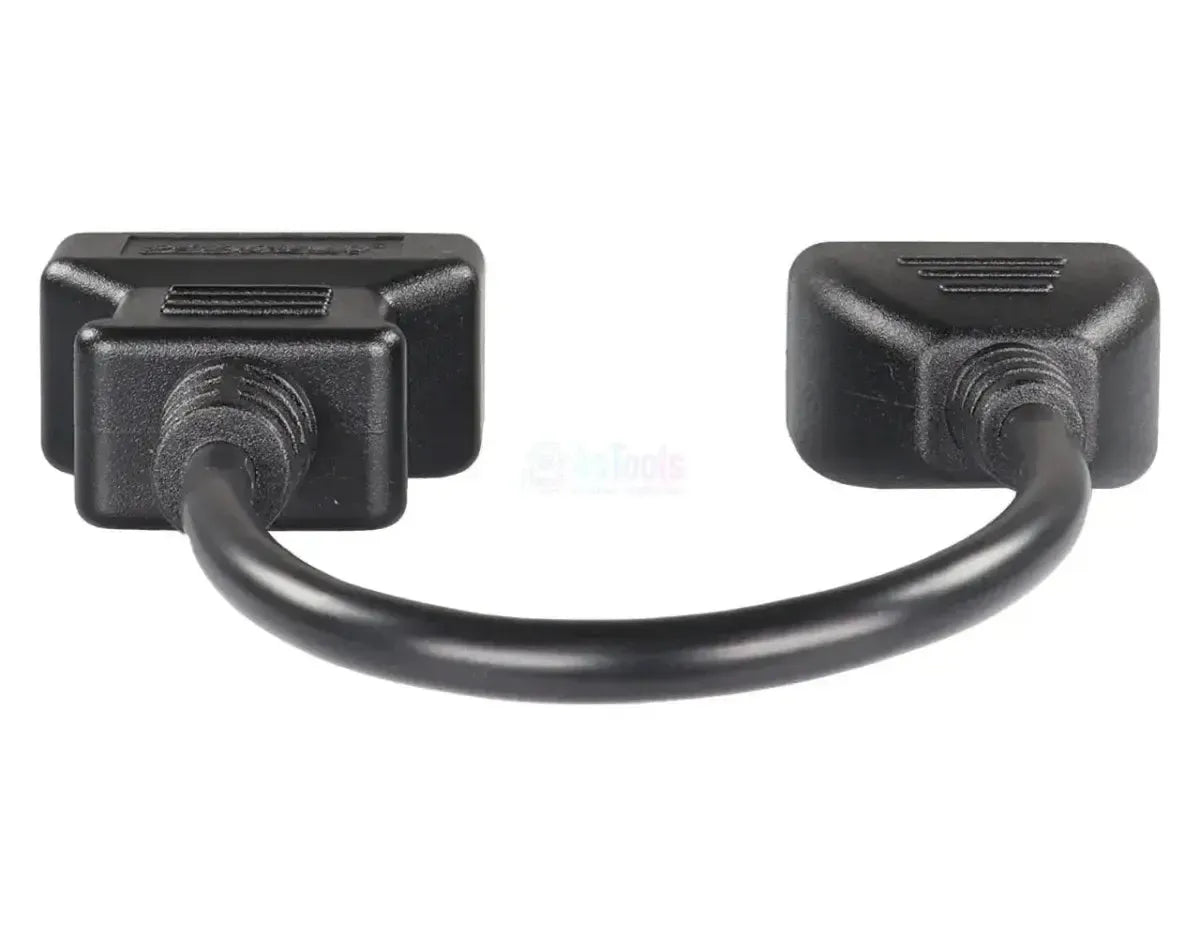

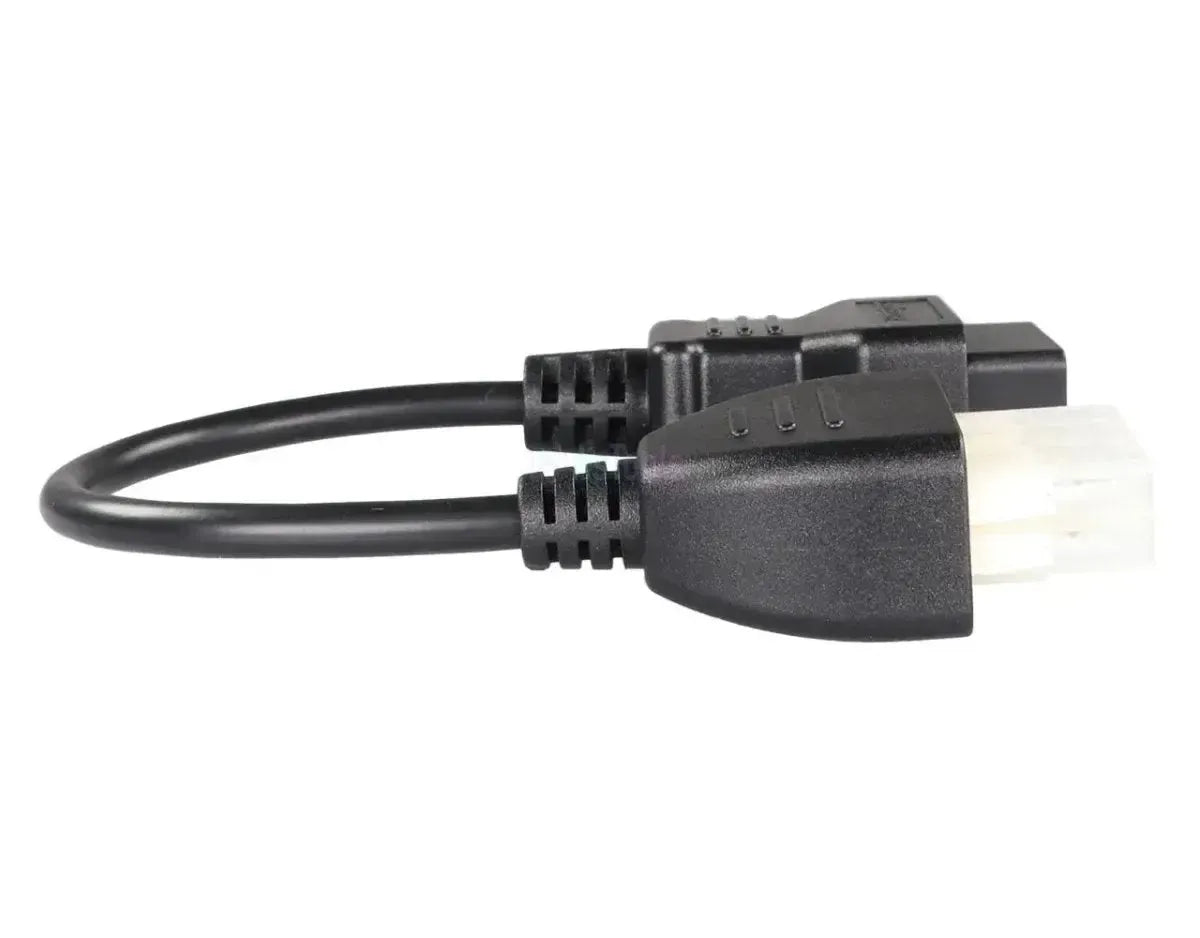

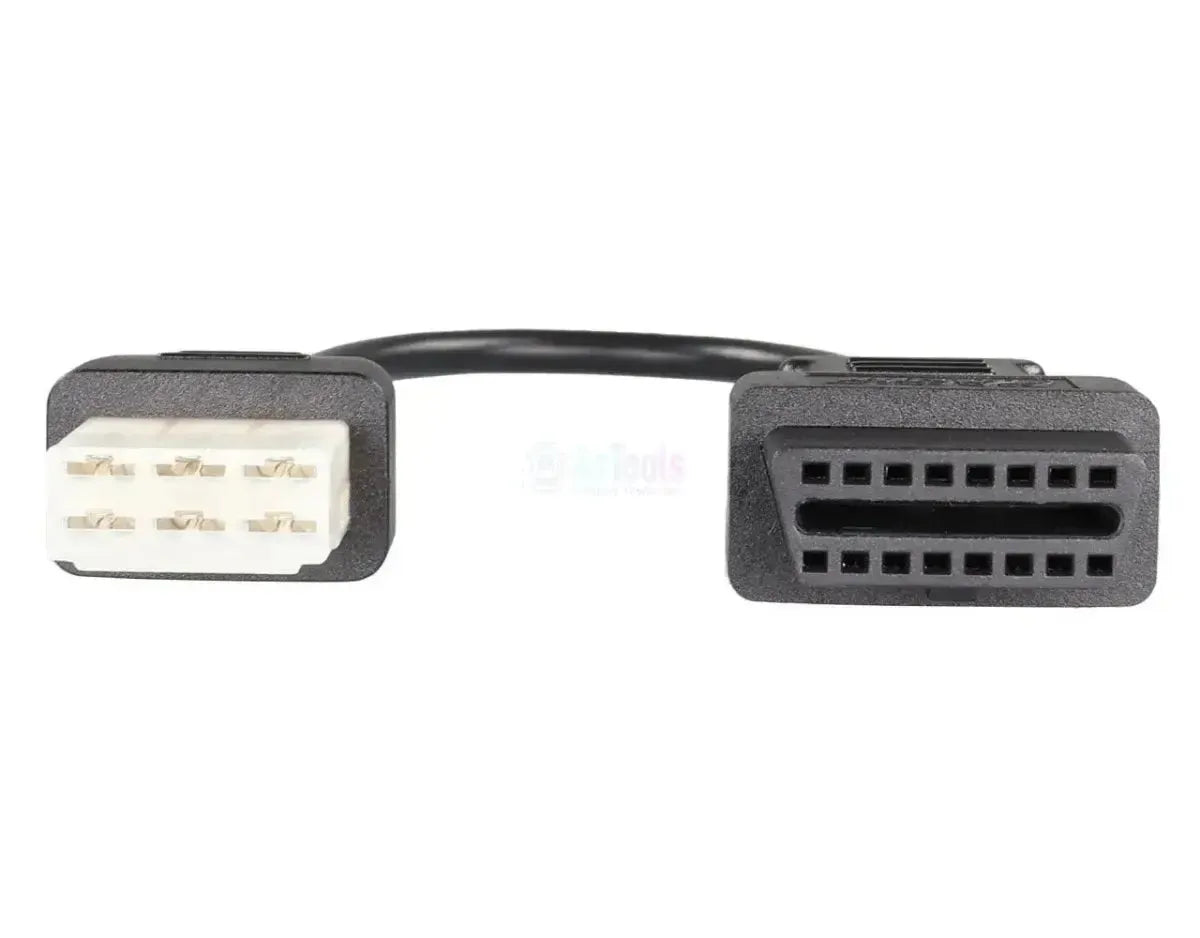

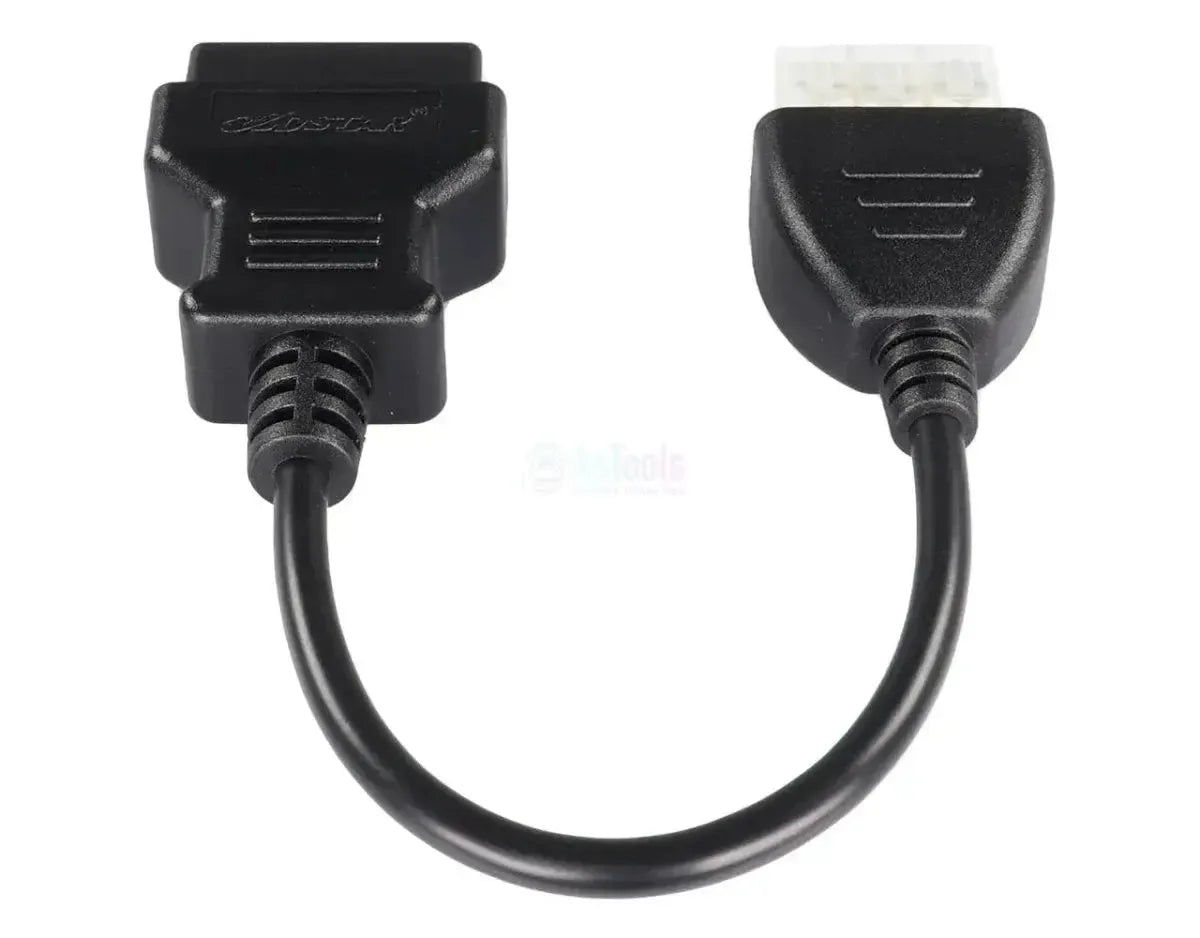

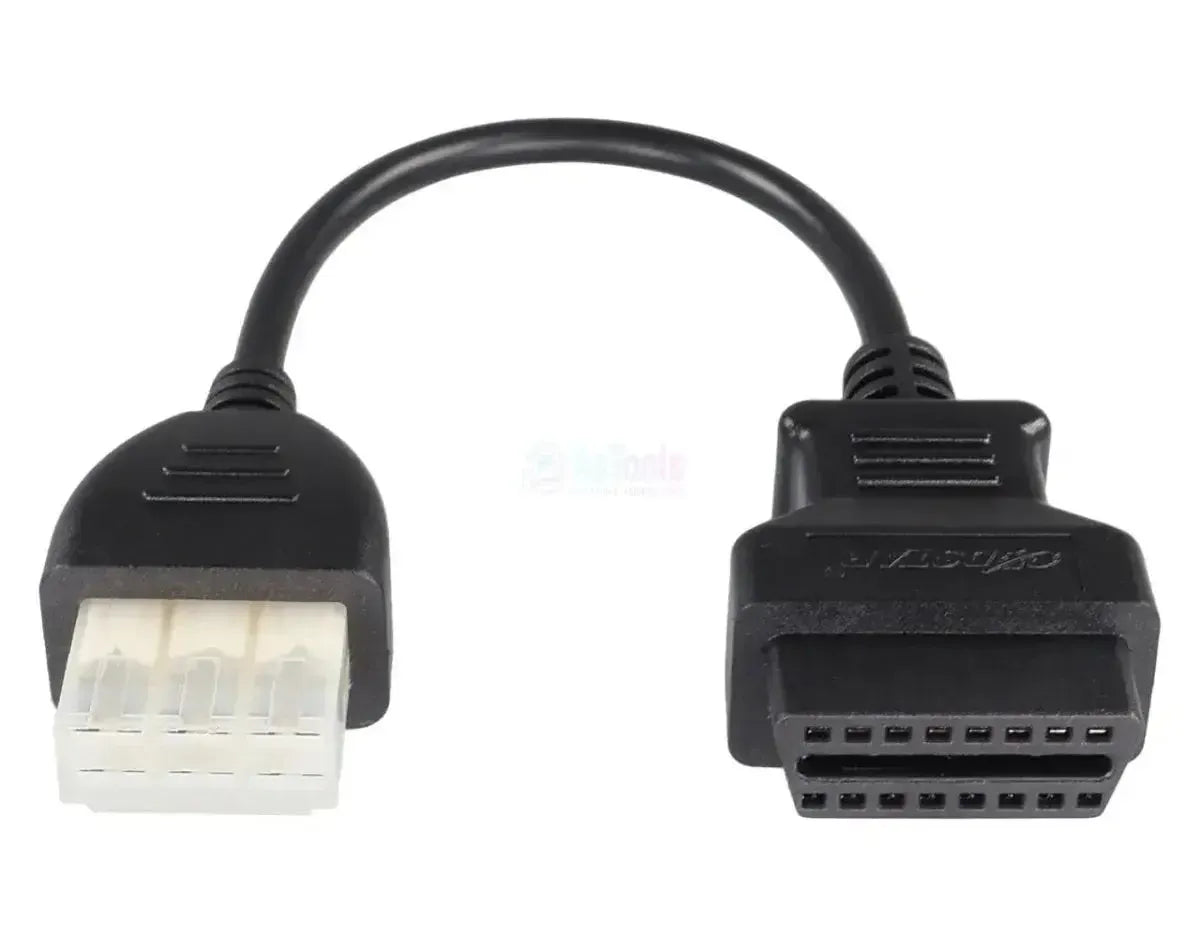

OBDSTAR (M030) | Hartford 6-pins OBD – 16-pins OBD2 Adapter Cable | Motorcycle

€26,95 incl.
€22,27 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

The OBDSTAR M030 connects the 6-pin diagnostic connector of Hartford motorcycles to the 16-pin OBD2 port of your OBDSTAR device. The connector is located on the motorcycle itself. Its position varies by model.

Hartford does not use a standard OBD2 connector. With this cable, your device accesses the engine control unit behind the 6-pin plug. You can read and clear fault codes and view live data. The cable only converts the connector physically. The device itself must support Hartford diagnostics, such as the MS50 and the MOTOMASTER.

HIGHLIGHTS

✔Makes the 6-pin Hartford connector accessible to your OBDSTAR device.
✔You do not need a separate brand-specific testing device to read the motorcycle.
✔Intended for OBDSTAR motorcycle devices with Hartford software, such as the MS50 and the MOTOMASTER.
✔The cable works passively: No separate software or settings are required.

POINTS TO NOTE

✕Your reader must support the brand-specific Hartford diagnostics via the 6-pin connector; the cable does not convert protocols.
✕A simple EOBD code reader does not work via this cable; it only reads the standard OBD2 data of cars.
✕Other brands with a 6-pin plug often use a different pin assignment; this cable is for Hartford only.
✕Which models and functions you can reach is determined by the software of your device; check the coverage list in advance.

Applications and functions

The cable is intended for workshops that read Hartford motorcycles with the 6-pin connector.

Control units you can access

  • Engine management: Injection and ignition.
  • Other systems: Depending on model and equipment.

What you can do

  • Fault codes: Read and erase.
  • Live data: View current measured values.
  • Identification: Control unit data.
  • Other functions: Where the device offers them.

How to use it

  1. Locating the connector: Find the 6-pin plug on the motorcycle.
  2. Connecting: Insert the 6-pin connector into the port.
  3. Connecting the device: Connect the 16-pin connector to the device.
  4. Ignition on: Switch the ignition on without starting the engine.
  5. Reading: Select Hartford, the model and the system.

Compatible vehicles and applications

The 6-pin Hartford diagnostic connector is decisive. The model itself is not decisive; the plug on the motorcycle is.

Hartford:

  • Motorcycles and scooters: Versions with the 6-pin connector.
💡
Good to know: Count the pins of the diagnostic plug on the motorcycle. With 6 pins on a Hartford, this cable fits. Then check the coverage list of your device to see whether the model is supported.

Package contents

  • 1x OBDSTAR (M030) | Hartford 6-pin OBD – 16-pin OBD2 Adapter Cable | Motorcycle

Technical specifications

General

The brand of the cable or adapter. It often has to match the brand of your diagnostic tool.Brand
OBDSTAR
The type of product: a separate adapter cable, an adapter without a cable or a complete set.Product type
Adapter cable
The types of vehicles or machinery on which the cable can be used. This shows quickly whether it suits the vehicles entering your workshop.Vehicle types
  • Motorcycle and scooter

Suitable for

The brand of diagnostic tool the cable works with. A cable for one brand usually does not fit a tester of another brand.Compatible diagnostic tool
  • OBDSTAR
Whether the cable needs a separate power connection, for example via battery clamps. A passive cable works without one.Separate power supply required

Connections

The connector that plugs into the diagnostic port of the vehicle or machine. It must fit exactly.Vehicle-side connector
6-pin OBD
The connector on the side of your diagnostic tool or interface. Usually a 16-pin OBD2 connector.Tool-side connector
16-pin OBD2 (J1962)
The data lines through which the cable passes signals. The vehicle and the tester must use the same communication method.Communication
  • K-line

Diagnostic functions

Shows the current sensor readings while the vehicle is running. Useful for tracing faults.View live data

Size and weight

The weight of the cable or adapter.Weight
0.1 kg
Control units
Motorcycle control unit

Other specifications

Application
Hartford motorcycles with the 6-pin diagnostic connector
Device-side connection
16-pin OBD2 (J1962)
Operation
Passive, no protocol conversion
Compatible with
OBDSTAR devices with Hartford diagnostics, such as MS50 and MOTOMASTER
