Jaltest | SKU: JDC560A9

Jaltest (JDC560A9) | Hitachi 6-pin OBD – 16-pin OBD2 Adapter Cable | Internal combustion engine

Name: Jaltest (JDC560A9) | Hitachi 6-pin OBD – 16-pin OBD2 Adapter Cable | Internal combustion engine
Brand: Jaltest
SKU: JDC560A9
Price: 138.95 EUR
Availability: InStock

€138,95 incl.

€114,83 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

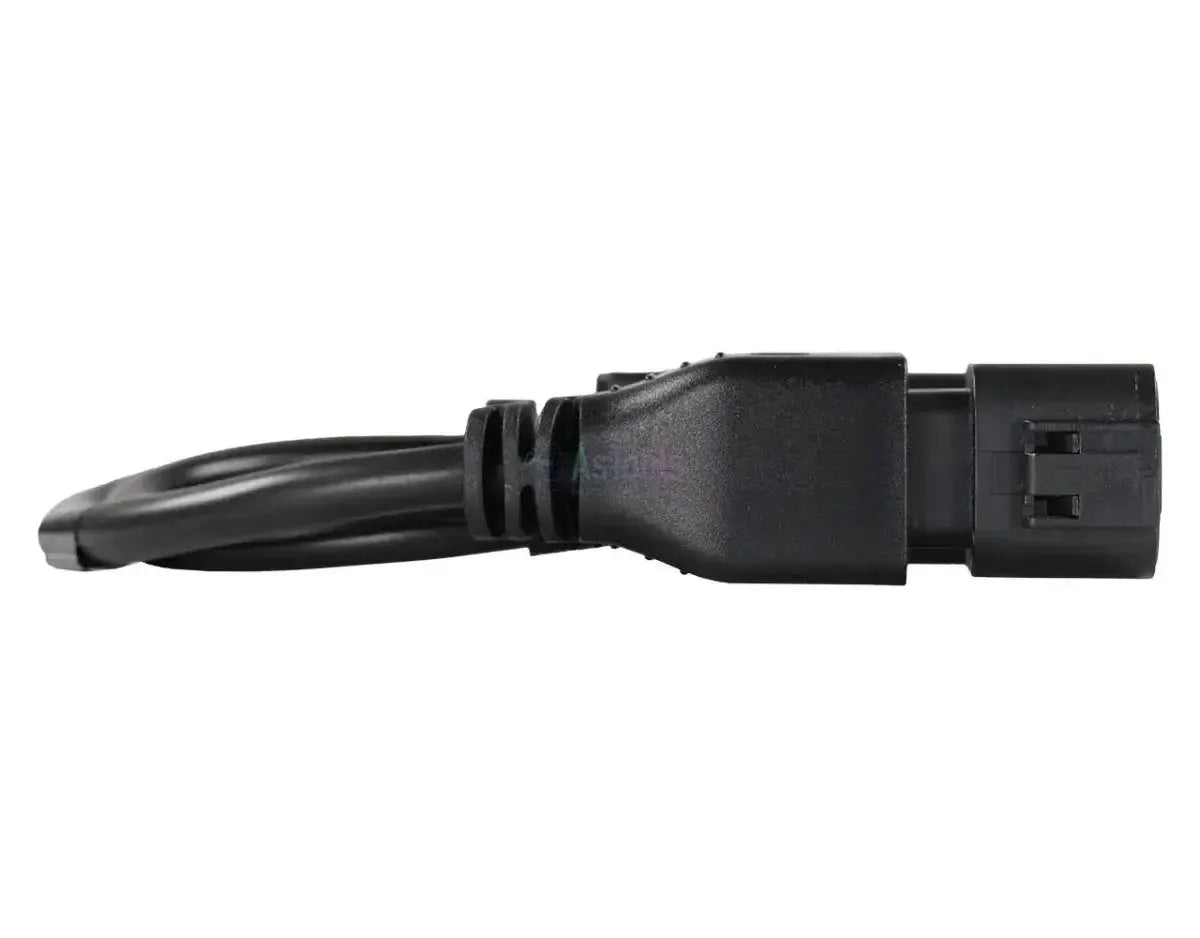

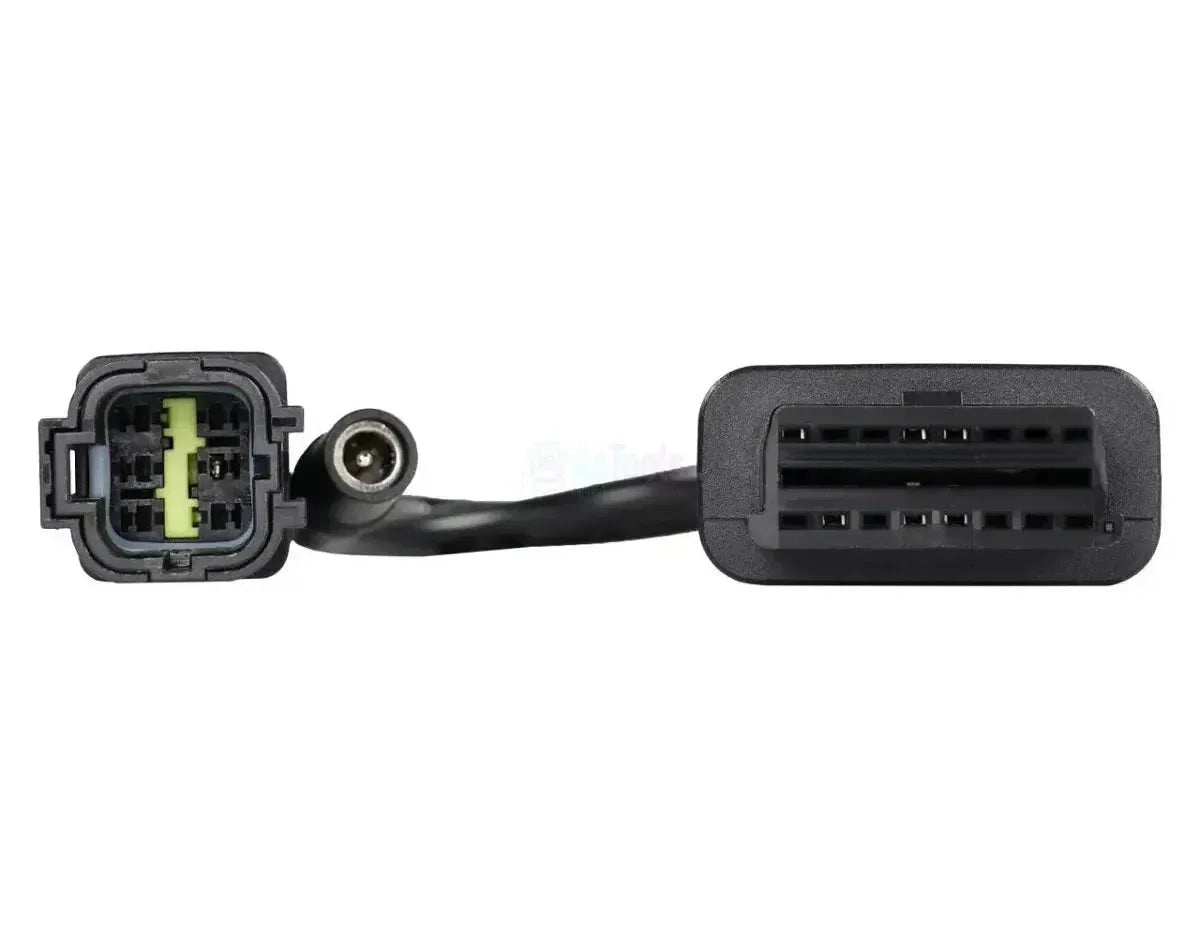

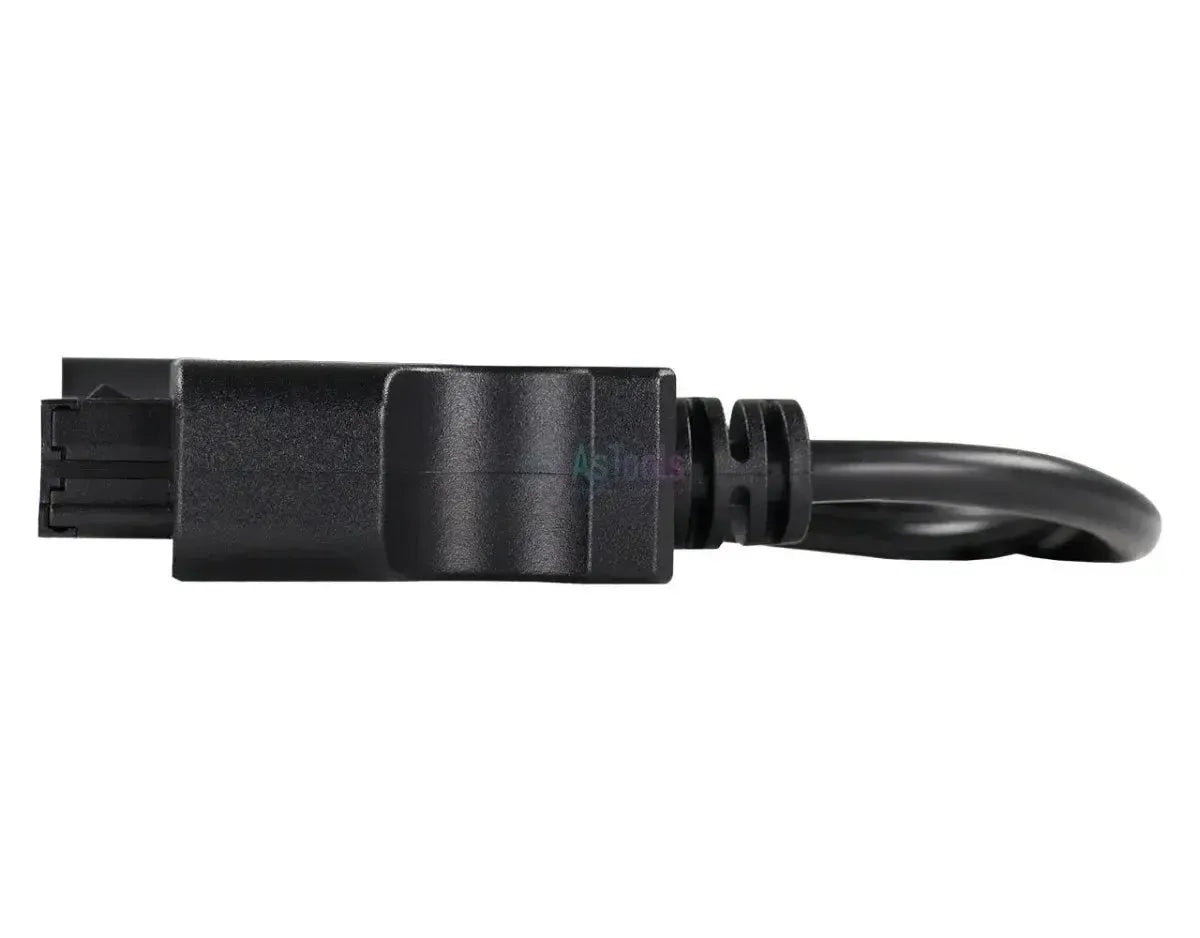

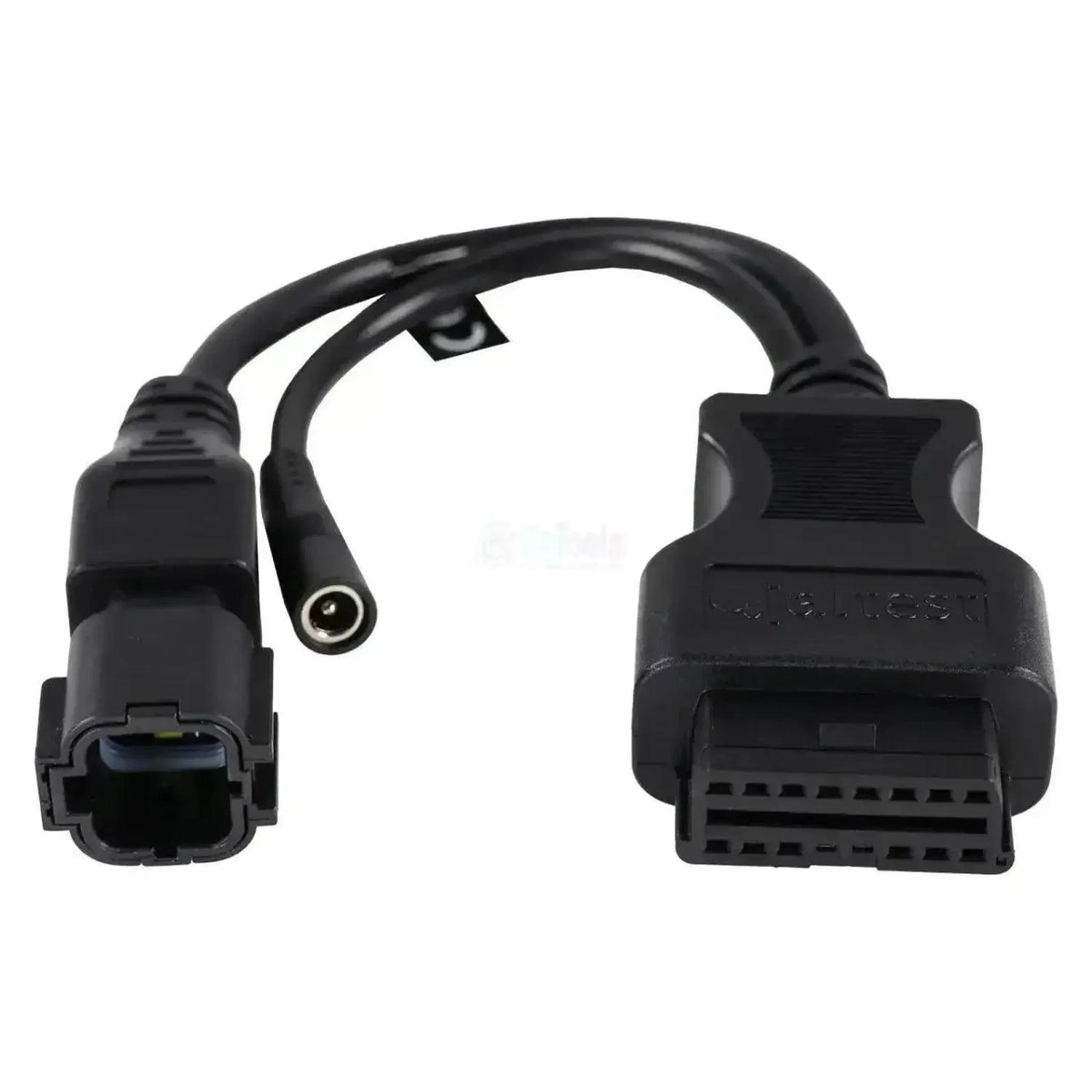

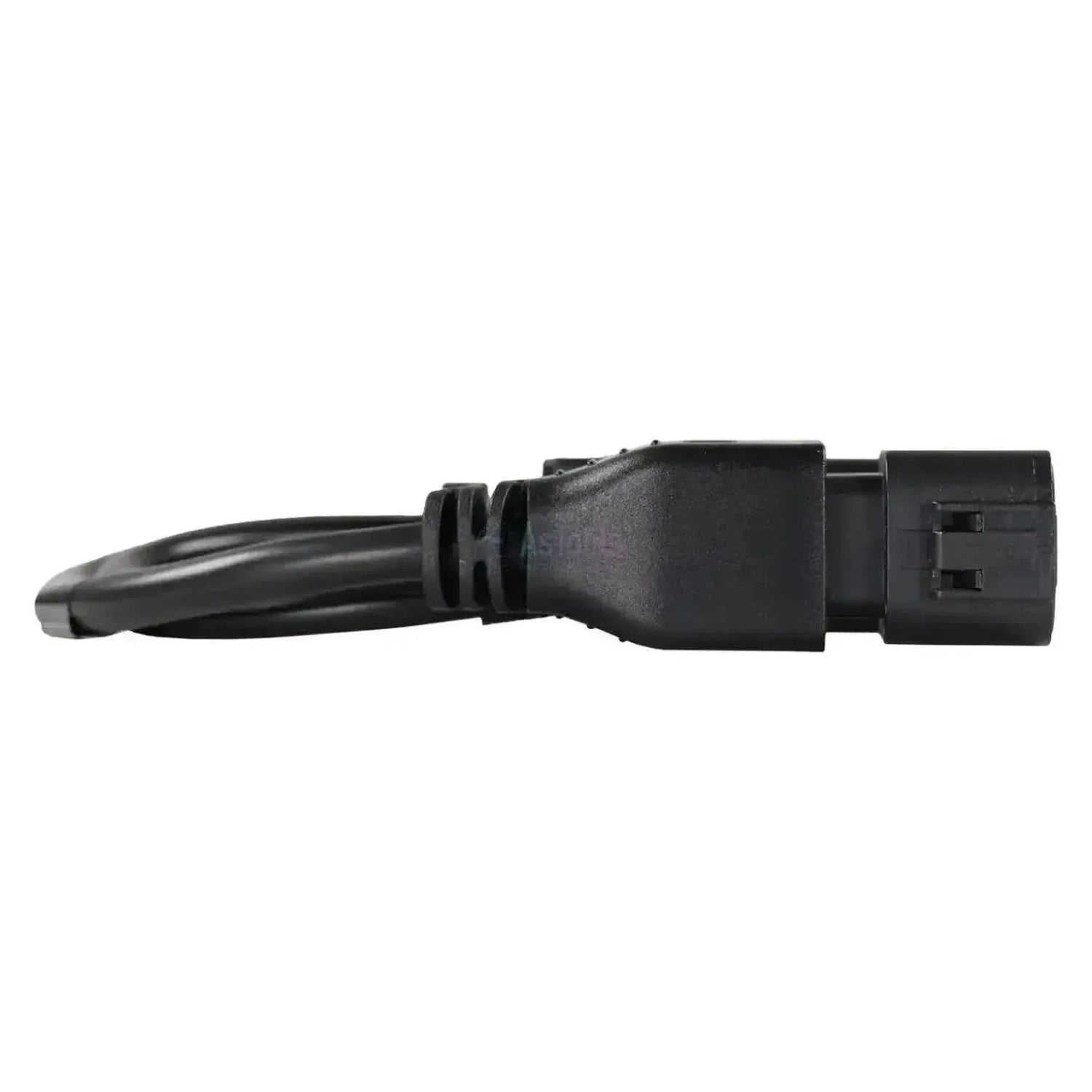

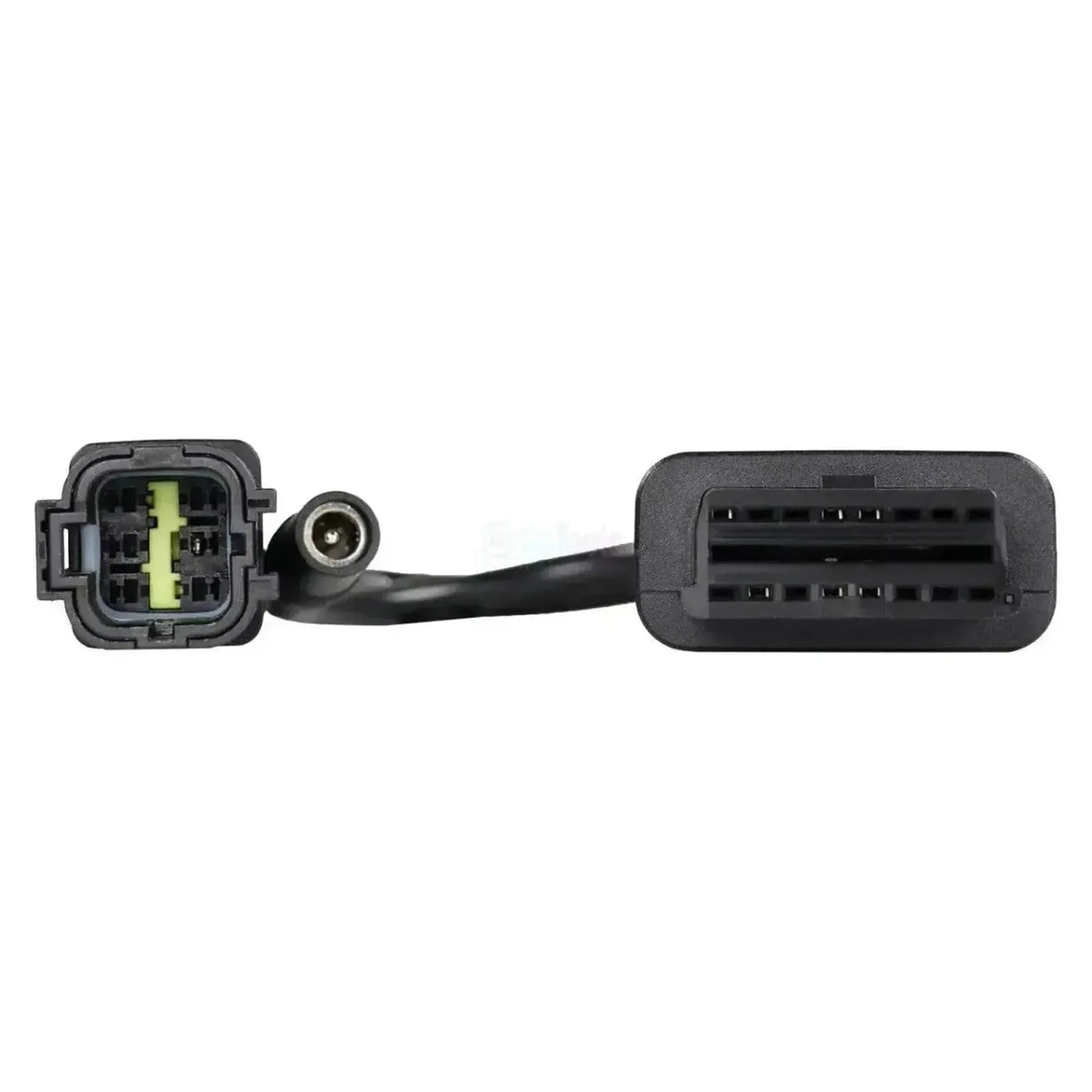

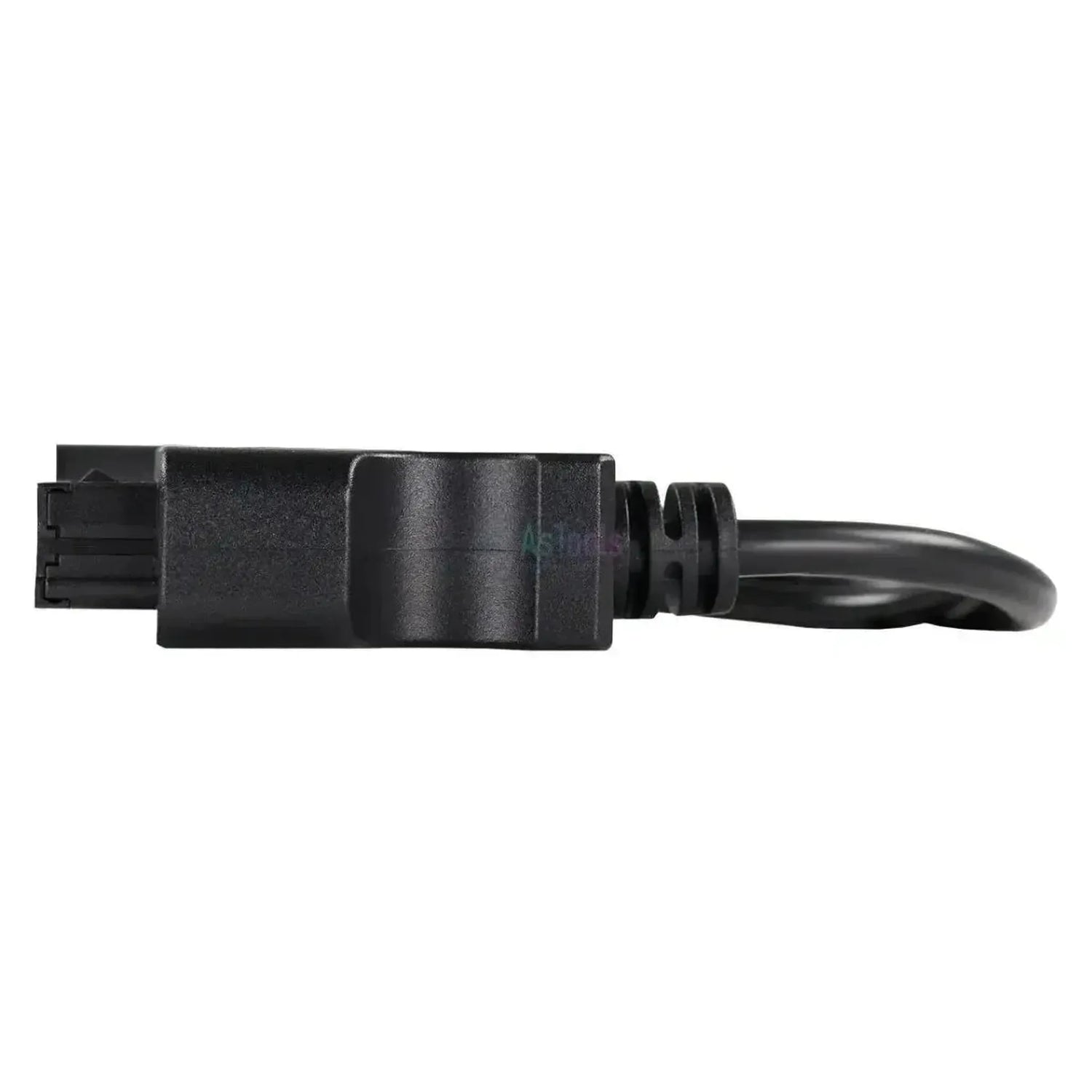

The Jaltest JDC560A9 is the diagnostic cable for Hitachi with Isuzu engines, 6-pin. It connects the 6-pin engine plug in the engine wiring harness to a standard 16-pin OBD2 connector. On the machine side it has a fully black, rectangular connector housing with locking lugs and a deep sealing edge; on the interface side it has a black OBD2 connector with the OBD symbol.

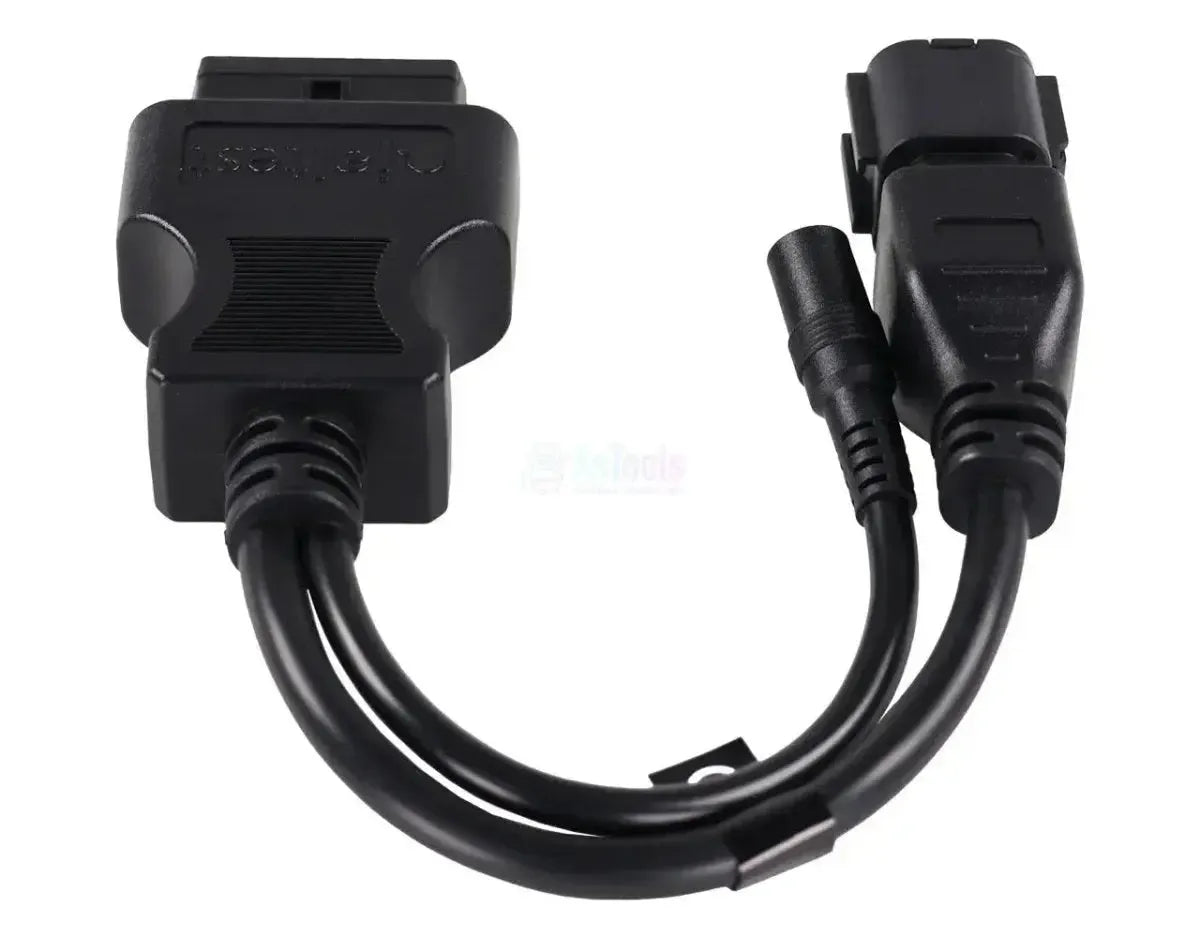

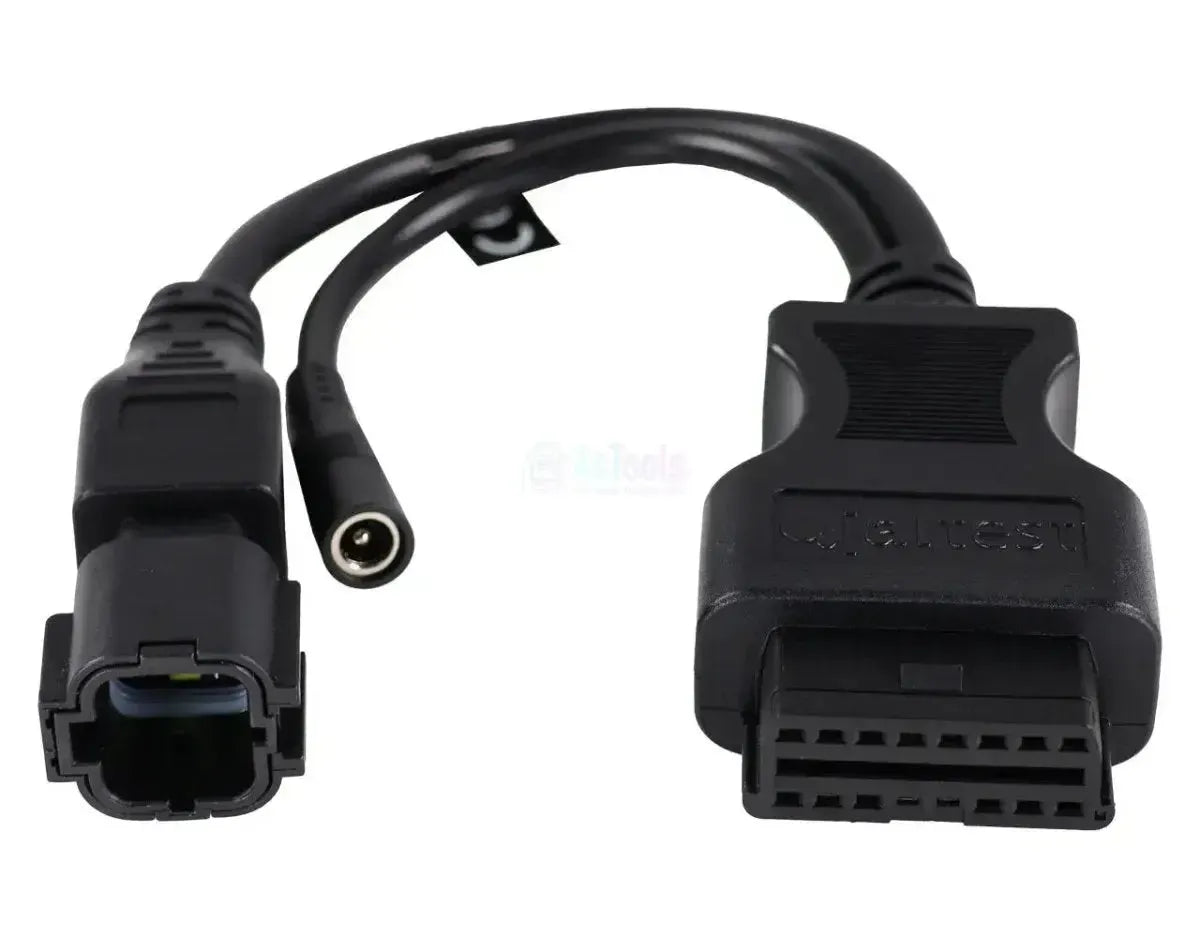

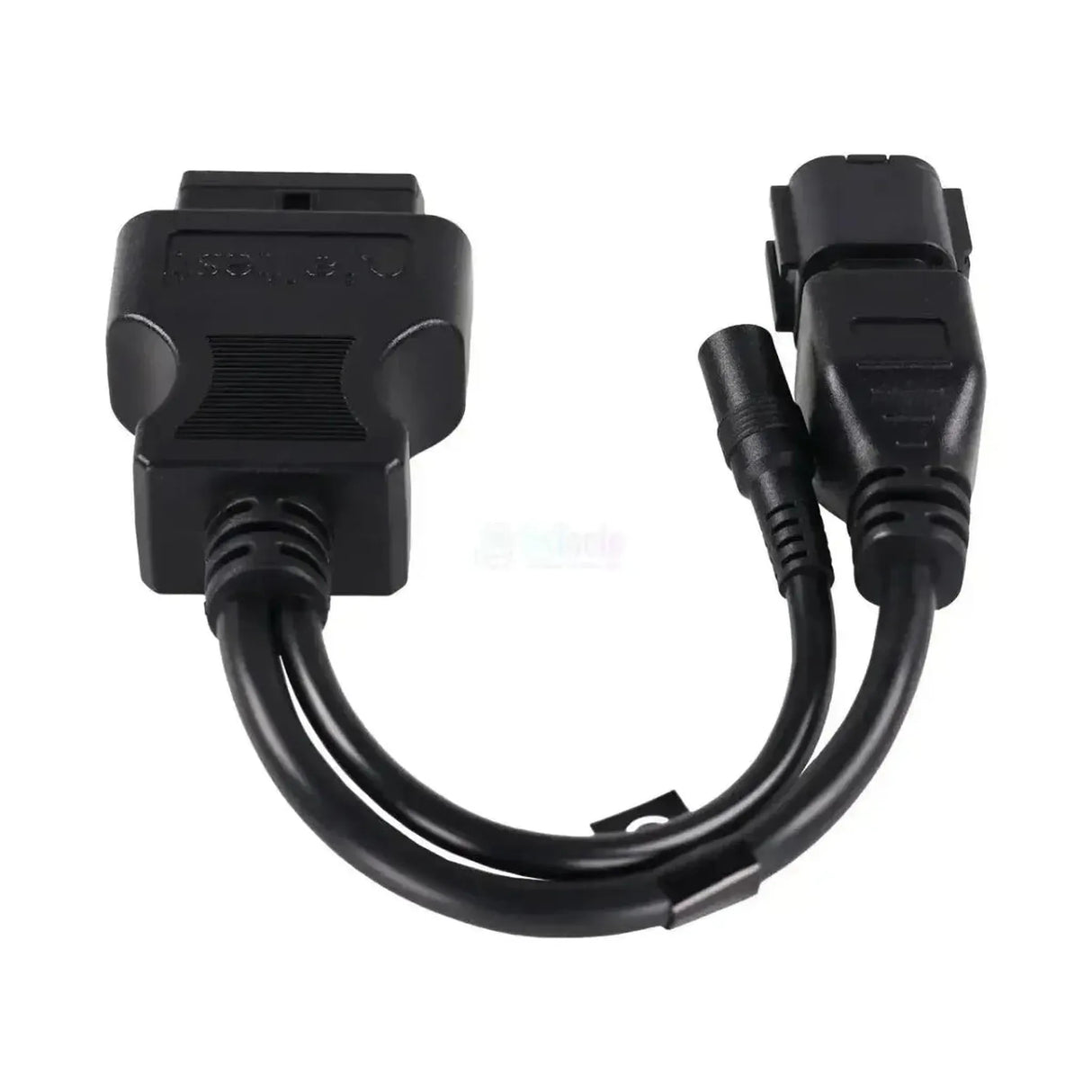

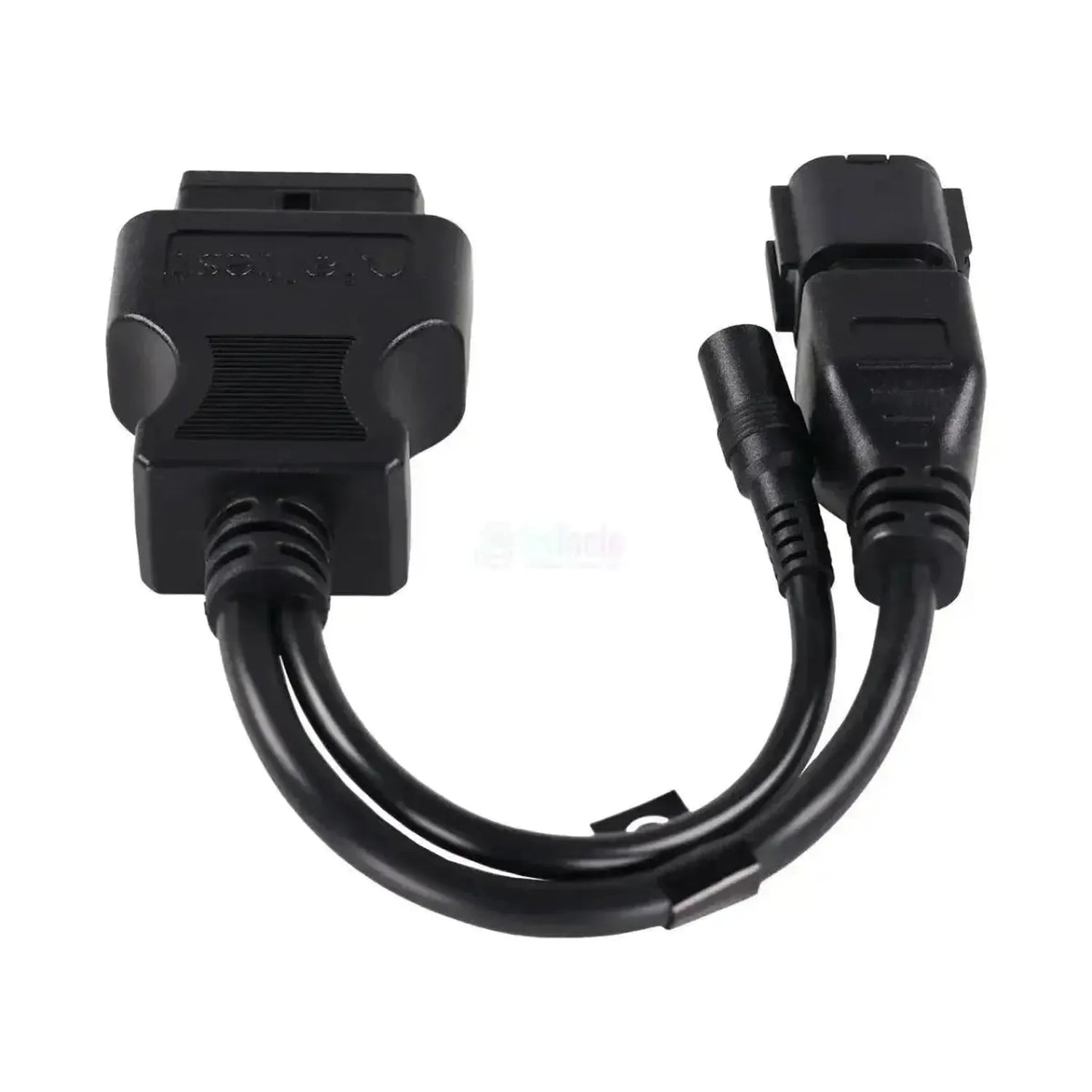

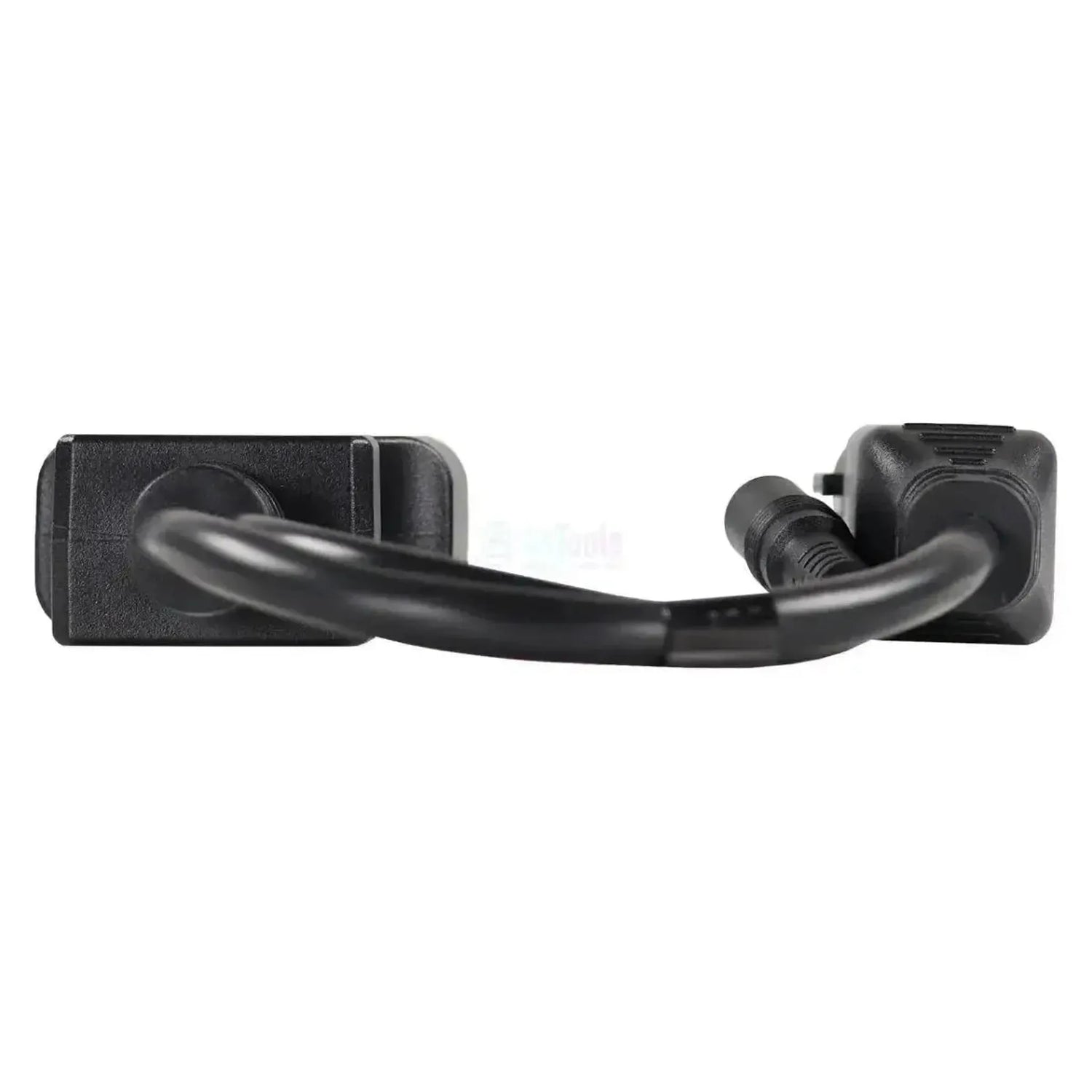

The cable measures 30 cm and is designed for the Jaltest Link V9. Halfway along, a thinner lead branches off to a DC power connector. Once connected, the Jaltest software accesses the 4HK1 and 4JJ1 engine control in K-Line and CAN versions, the ECM of the heavier engines, and the AdBlue/DEF control. The cable is covered by Jaltest OHW.

HIGHLIGHTS

✔Connects directly to the Isuzu engine control of Zaxis machines, even when the machine diagnostics in the cab return nothing.

✔Supports the K-Line version of the 4HK1/4JJ1 engine control, as fitted to the -3 generation.

✔In addition to fault codes, also measured values and ECU data from the engine control.

✔At 30 cm, short enough to hang from the engine plug.

POINTS TO NOTE

✕Only for the fully black 6-pin housing; a grey housing with green seal requires the 8-pin JDC561A9.

✕On newer Zaxis generations, engine diagnostics run via CAN instead of K-Line, and the AdBlue/DEF control is added.

✕The machine computer MC, the gateway ICF and the display MON cannot be reached via this plug; the JDC535A is intended for that, at the diagnostic connection in the cab.

✕The separate power cable with right-angled plug shown next to the DC tap in the product photo does not belong to this item.

Applications and functionality

The cable is intended for workshops that read the Isuzu engine control of Hitachi machines directly at the engine. Which version is present depends on the engine and the Zaxis generation.

Control units you can access

4HK1 and 4JJ1 (K-Line): Isuzu common-rail engine control.
4HK1 and 4JJ1 (CAN): The same control, CAN version.
ECM: Engine control of heavier Isuzu engines.
AdBlue/DEF Isuzu: Exhaust gas aftertreatment.

What you can do

Fault codes: Read and clear per control unit.
Measured values: View in figures and graph.
Maintenance: Keep track of service intervals, with service report.
Additional actions: Where Jaltest offers them per system.

How to use it

Find the plug: Locate the black 6-pin housing in the engine wiring harness.
Connect: Insert the JDC560A9 into the engine plug.
Link pairing: Connect the OBD2 side to the Jaltest Link V9.
Ignition on: Switch the ignition on.
Reading out: Select Hitachi and the Isuzu engine in Jaltest OHW.

Compatible machines and engines

The plug determines compatibility, not the model. This cable is for the 6-pin engine plug of the Isuzu diesel engines that Hitachi fits in its excavators and wheel loaders. Which of the two versions is in the engine wiring harness can be seen from the colour of the housing: black is for this cable, grey with green seal for the JDC561A9.

Hitachi, Isuzu engine series:

Isuzu 4HK1 (in Zaxis ZX200-3 to ZX200-6): 2007 - 2021
Isuzu 4JJ1 (in Zaxis ZX100/ZX200 series): 2007 - 2021
Isuzu 6WG1 (in Zaxis ZX500/ZX800 series): 2007 - present
Isuzu 6HK1 (in Zaxis ZX330-3, ZX350-3, ZX400-3): Year of manufacture not a deciding factor
Isuzu 6UZ1 (in Zaxis ZX450/ZX470 series): Year of manufacture not a deciding factor

💡

Good to know: The engine plug is located at the engine, in the engine wiring harness, not at the diagnostic connection in the cab. A black housing indicates the 6-pin version, a grey housing with green seal the 8-pin version, and a cream-coloured contact holder in a black cover the machine diagnostics in the cab (the JDC535A). Check which connection is on your machine before ordering.

Package contents

1x Jaltest (JDC560A9) | Hitachi 6-pin OBD - 16-pin OBD2 Adapter Cable | Internal combustion engine

Technical specifications

General

The manufacturer of the cable. Jaltest cables work with Jaltest diagnostic equipment.Brand: Jaltest (Cojali)
The type of cable. A diagnostic cable connects to the diagnostic socket, a measuring cable tests an individual component.Cable type: Adapter cable
The Jaltest software package the cable belongs to. A licence for that module is required to use the cable.Jaltest software module: OHW construction and off-road

Connections

The version of the Jaltest Link diagnostic interface the cable fits. Not every cable works with every version.Compatible Jaltest Link: Jaltest Link V9
The connector on the diagnostic device side. It must fit your interface or diagnostic cable.Interface-side connector: 16-pin OBD2
The connector on the vehicle, engine or machine side. It must fit the diagnostic socket or the component.Vehicle-side connector: 6-pin OBD
The length of the cable. A longer cable allows more room to work.Cable length: 30 to 30 cm

Diagnostics

Whether fault codes can be cleared as well as read. Some systems only allow reading.Clear fault codes: Yes
Whether the current sensor values can be viewed while the vehicle is running. Useful for tracing a fault.View live data: Yes
Whether you can see when the next service is due. Useful for planning a service appointment properly.View service data: Yes
