Jaltest (JDC507A) | New Holland/Case IH 13-pins OBD - Switch Adapte...

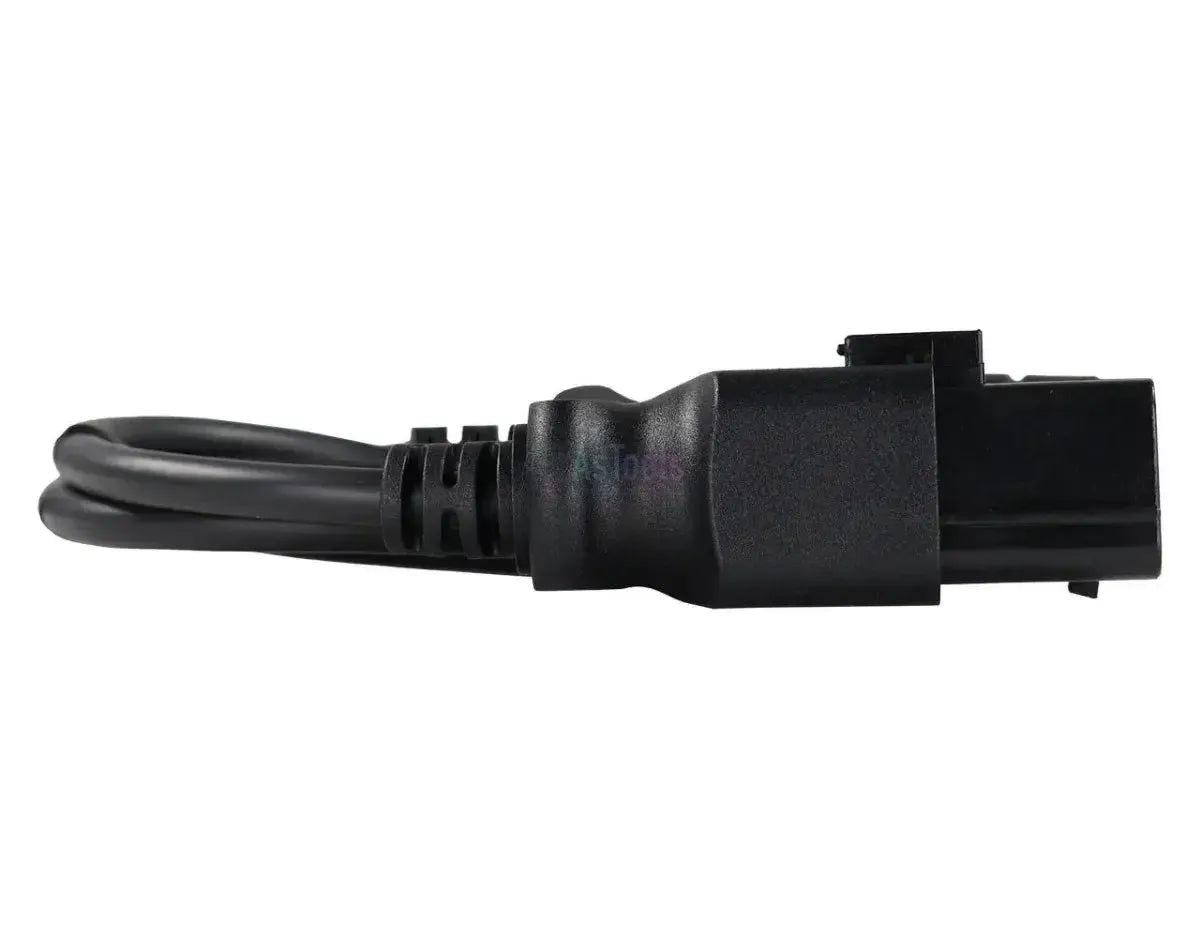

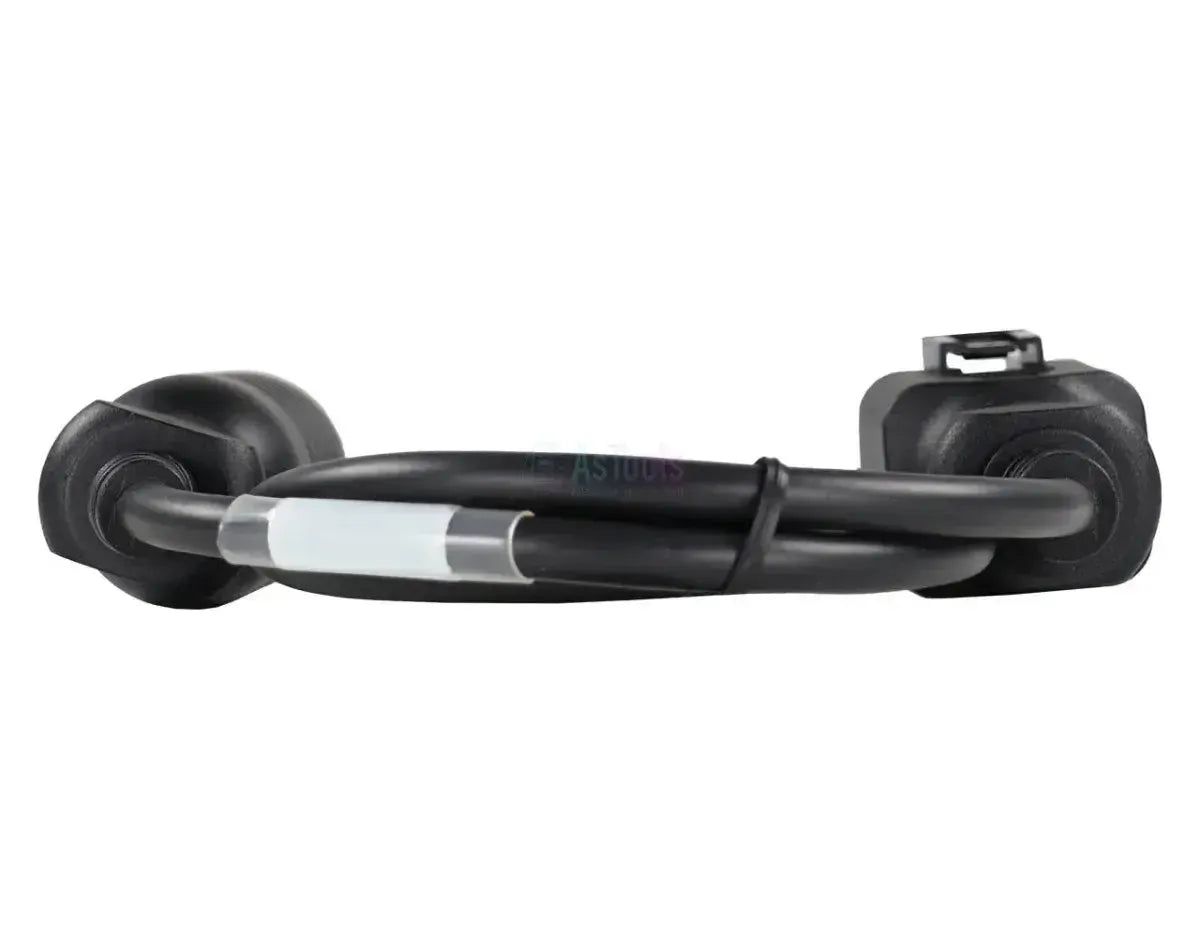

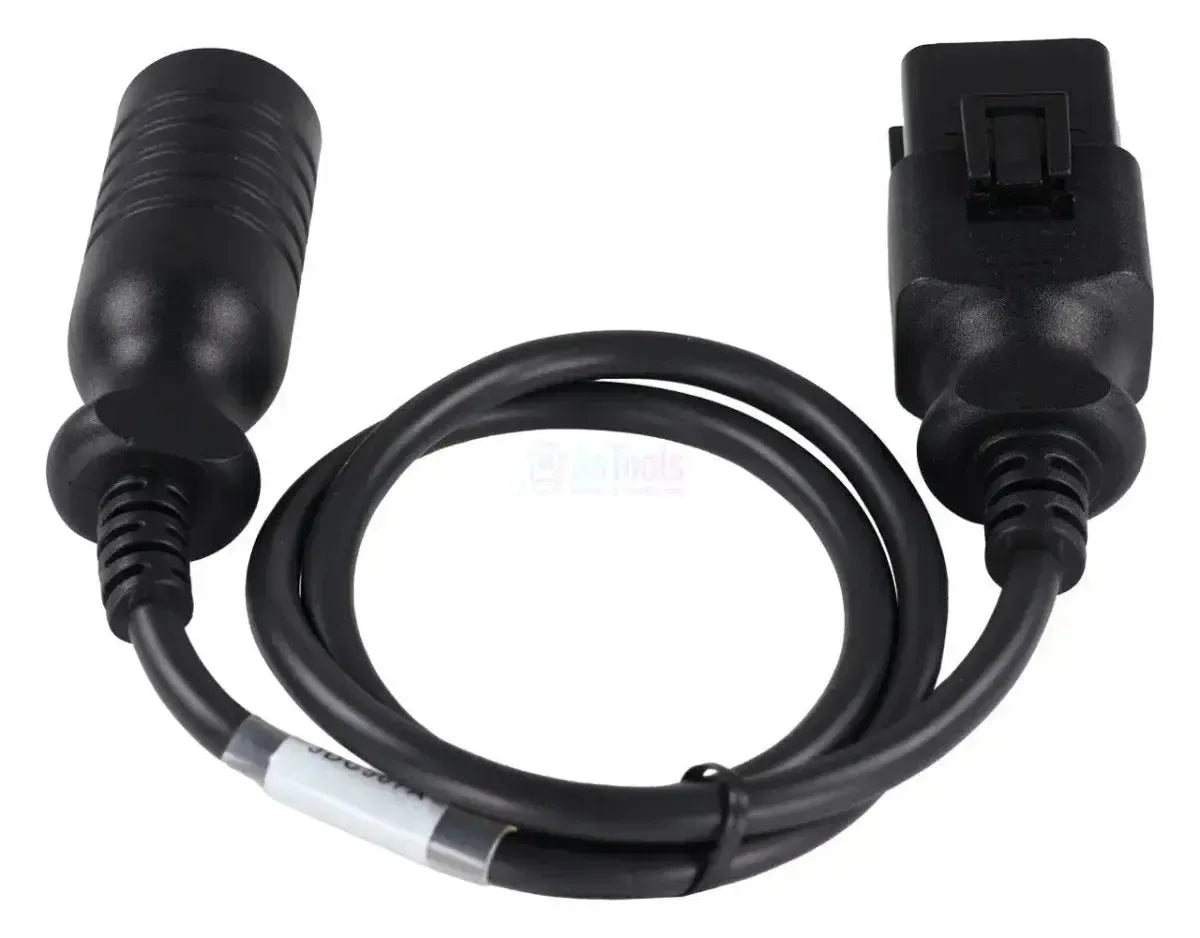

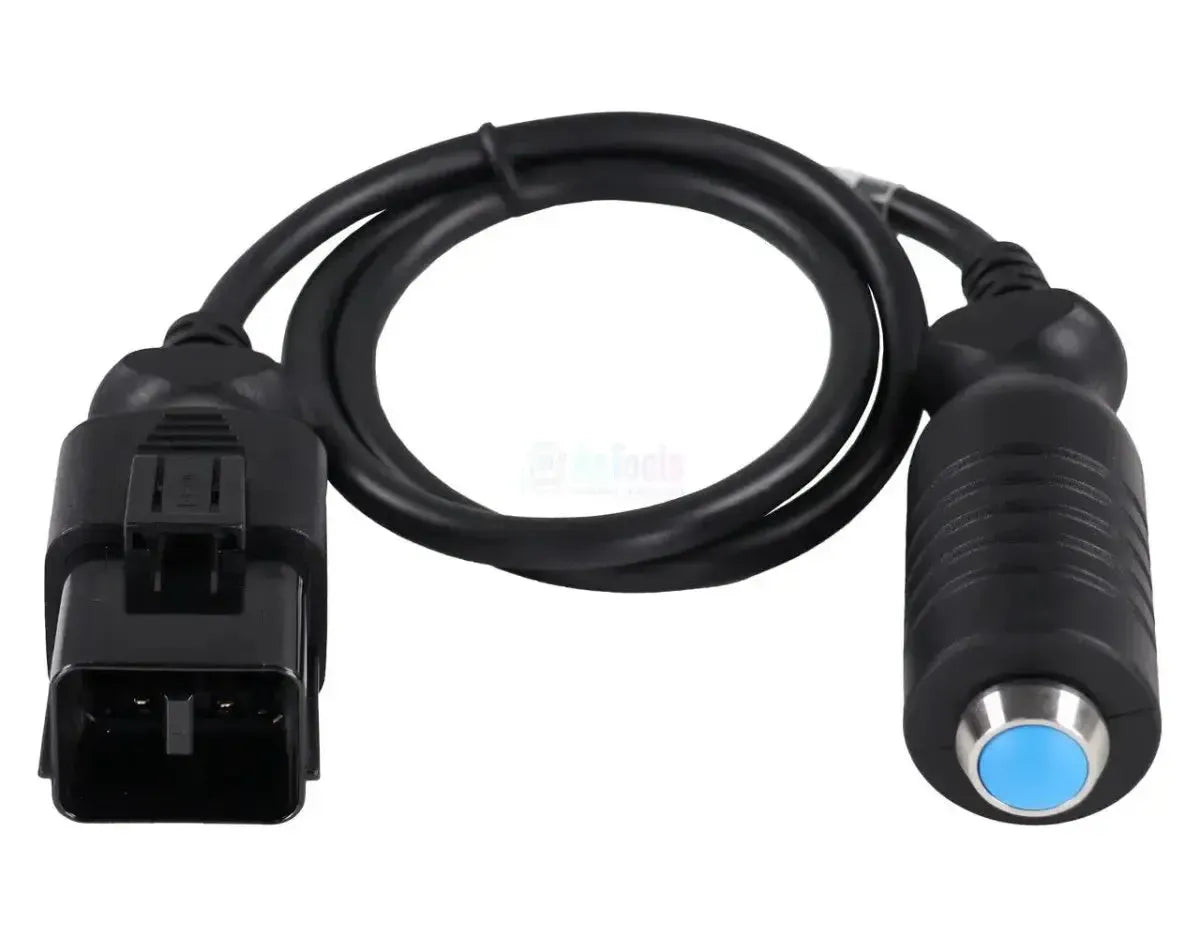

The Jaltest JDC507A is an intelligent and specialist adapter cable, essential for diagnosing modern agricultural vehicles from New Holland and Case IH. The unique feature of this adapter is the built-in switch. The cable connects the specific 13-pin diagnostic port of the machine with the 16-pin OBD2 connector of your Jaltest main cable.
The switch is crucial because the 13-pin port provides access to multiple, different electronic systems (ECUs). This allows the technician to specifically choose which system to read, such as engine, transmission, hydraulics, or body computer. Without this feature, only part of the machine could be read. The cable is robustly built for the harsh conditions on the farm and in the workshop.
Application and functionality:
-
Multi-system diagnosis via switch: easily switch between systems such as:
- Engine
- Transmission
- Hydraulics
- Body computer and instrument panel
- Full system access: in-depth diagnosis once a system is selected.
- Read and clear fault codes: read and remove fault codes for each selected system.
- View live data: real-time data such as engine speed, oil pressure, gear status, and hydraulic values.
- Set calibrations and parameters: perform calibrations on transmission, lifting device, and hydraulic valves.
Suitable vehicles and applications:
Suitable for a wide range of modern agricultural machines from the CNH Group using the 13-pin port.
- Vehicle type: Agricultural vehicles.
-
Suitable brands:
- New Holland
- Case IH
-
Machine types:
- Modern tractors
- Combine harvesters
- Forage harvesters
- Connector requirement: 13-pin CNH diagnostic port present.
Package Contents:
- 1x Jaltest (JDC507A) | New Holland/Case IH 13-pin OBD - Switch adapter cable
Technical specifications:
| Specification | Description |
|---|---|
| Article number | JDC507A |
| Brand | Jaltest |

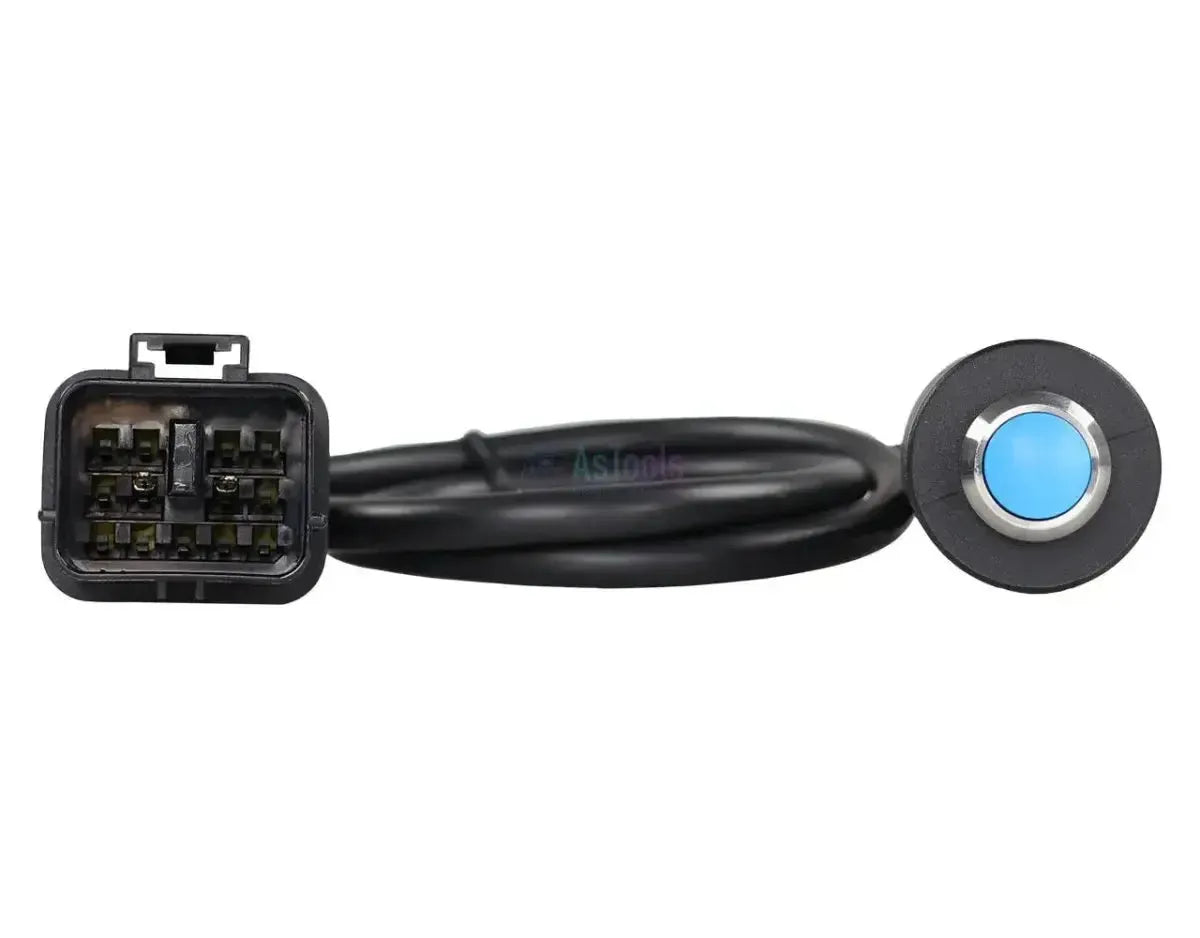

| Connector A (vehicle side) | 13-pin CNH-specific connector |
| Connector B (adapter side) | 16-pin OBD2 (J1962) connector (female) |

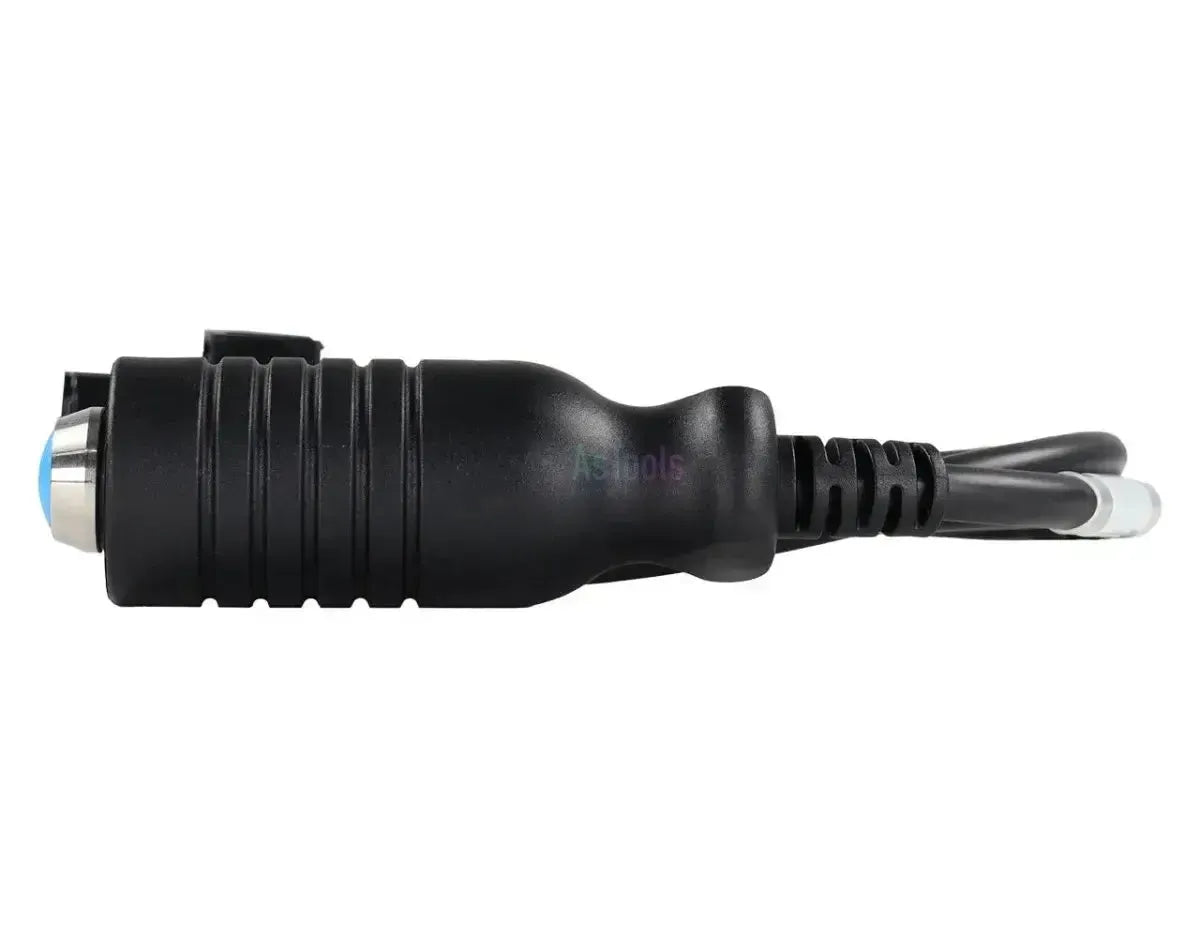

| Special function | Built-in switch for selecting diagnostic systems |
| Suitable brands | New Holland, Case IH |
