Jaltest | SKU: JDC541A

Jaltest (JDC541A) | Hidromek 16-pins OBD – 16-pins OBD2 Adapter Cable | Off-road and Construction Machine

Name: Jaltest (JDC541A) | Hidromek 16-pins OBD – 16-pins OBD2 Adapter Cable | Off-road and Construction Machine
Brand: Jaltest
SKU: JDC541A
Price: 197.95 EUR
Availability: InStock

€197,95 incl.

€163,60 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

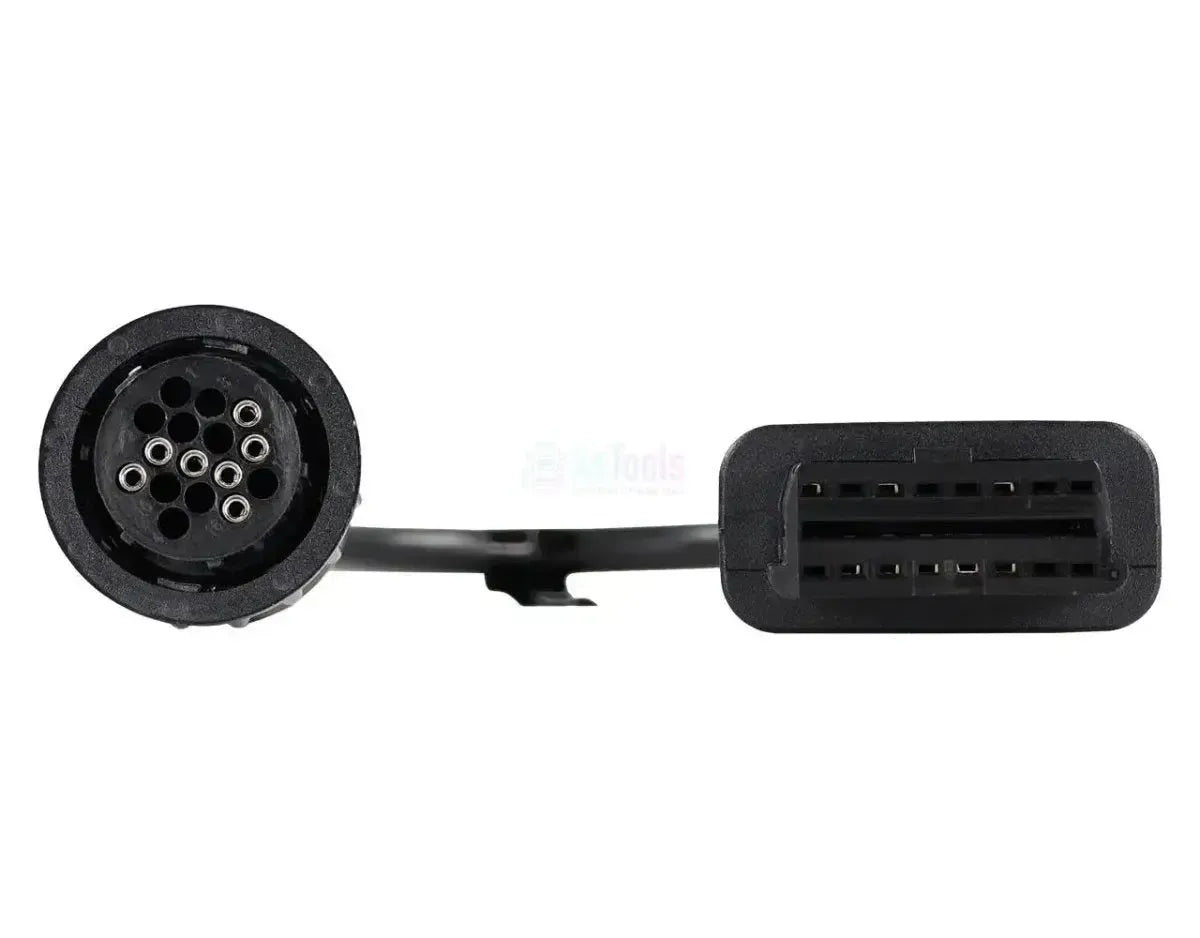

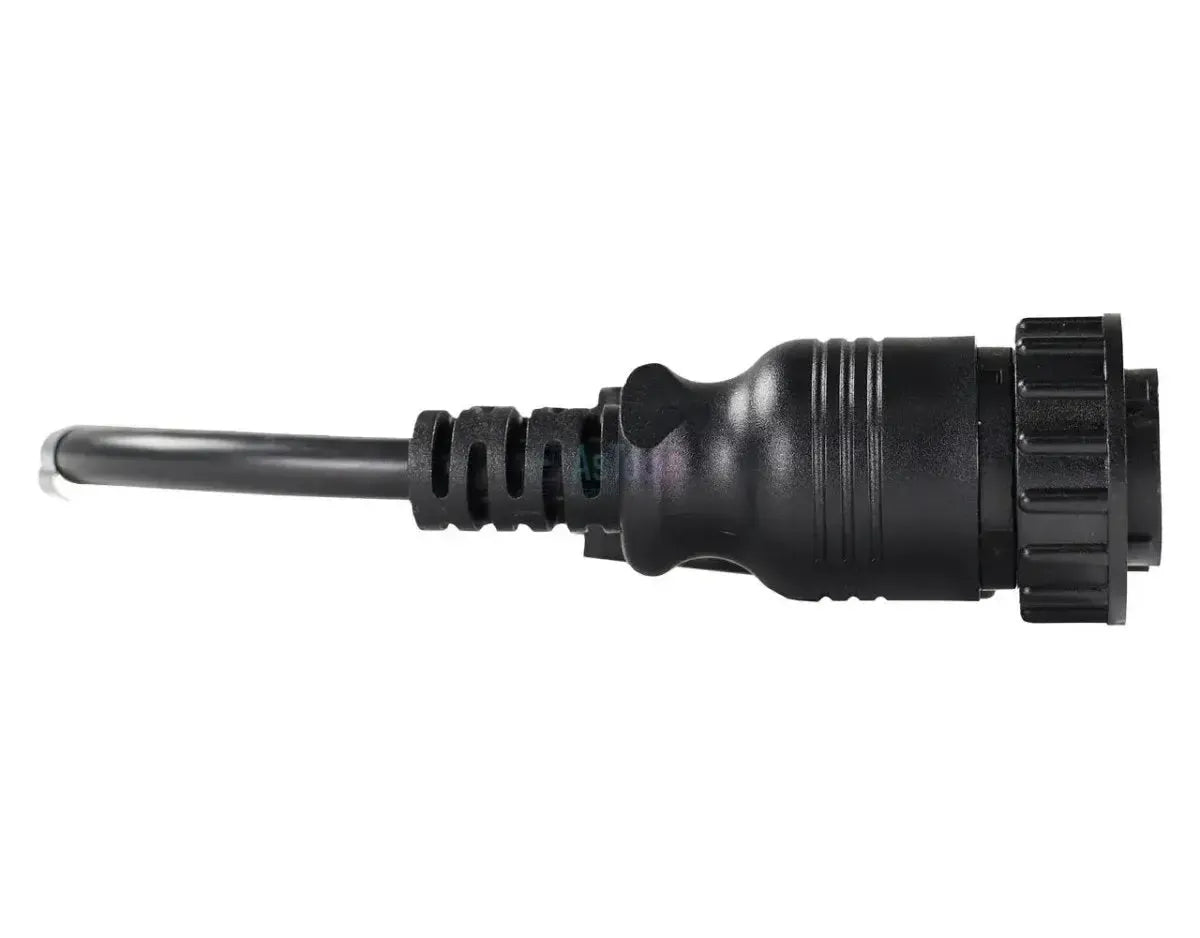

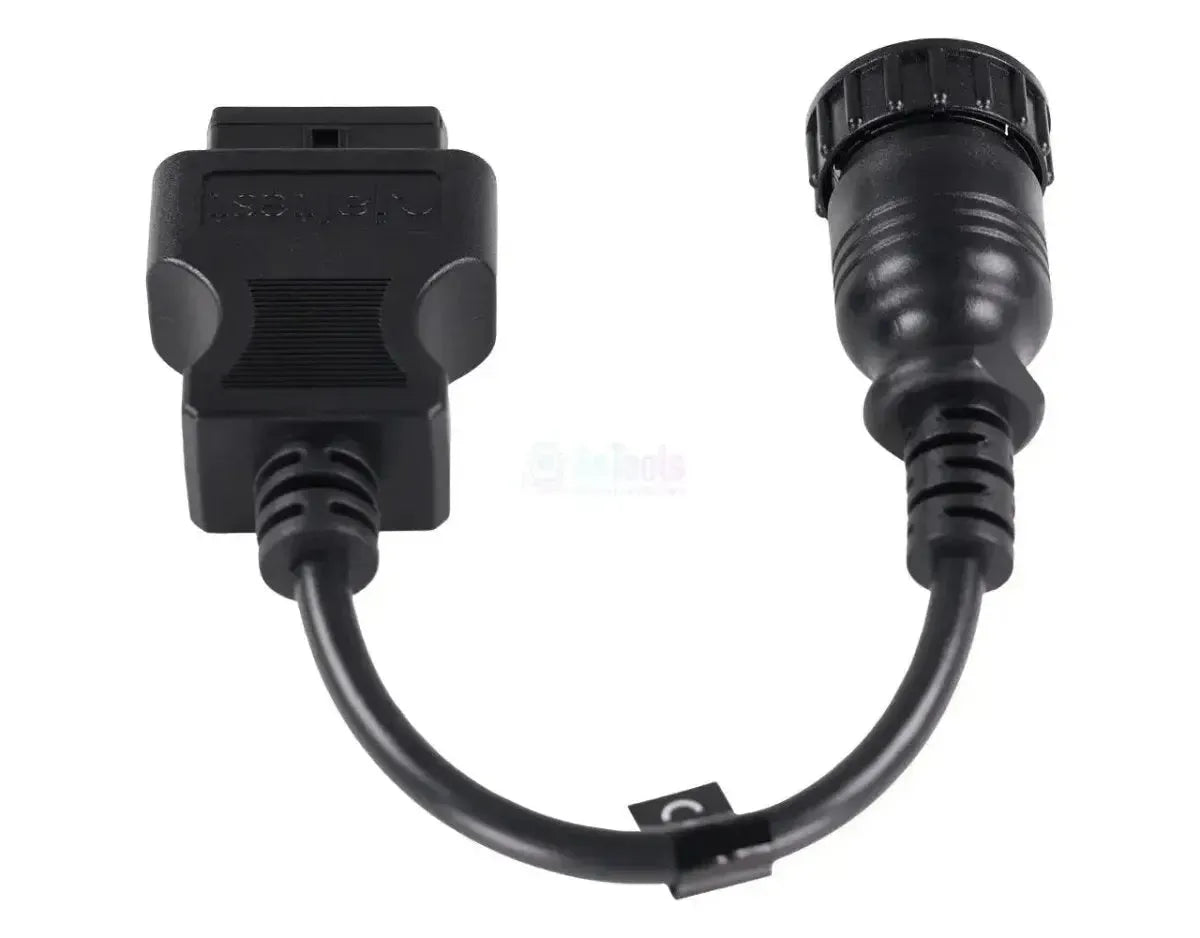

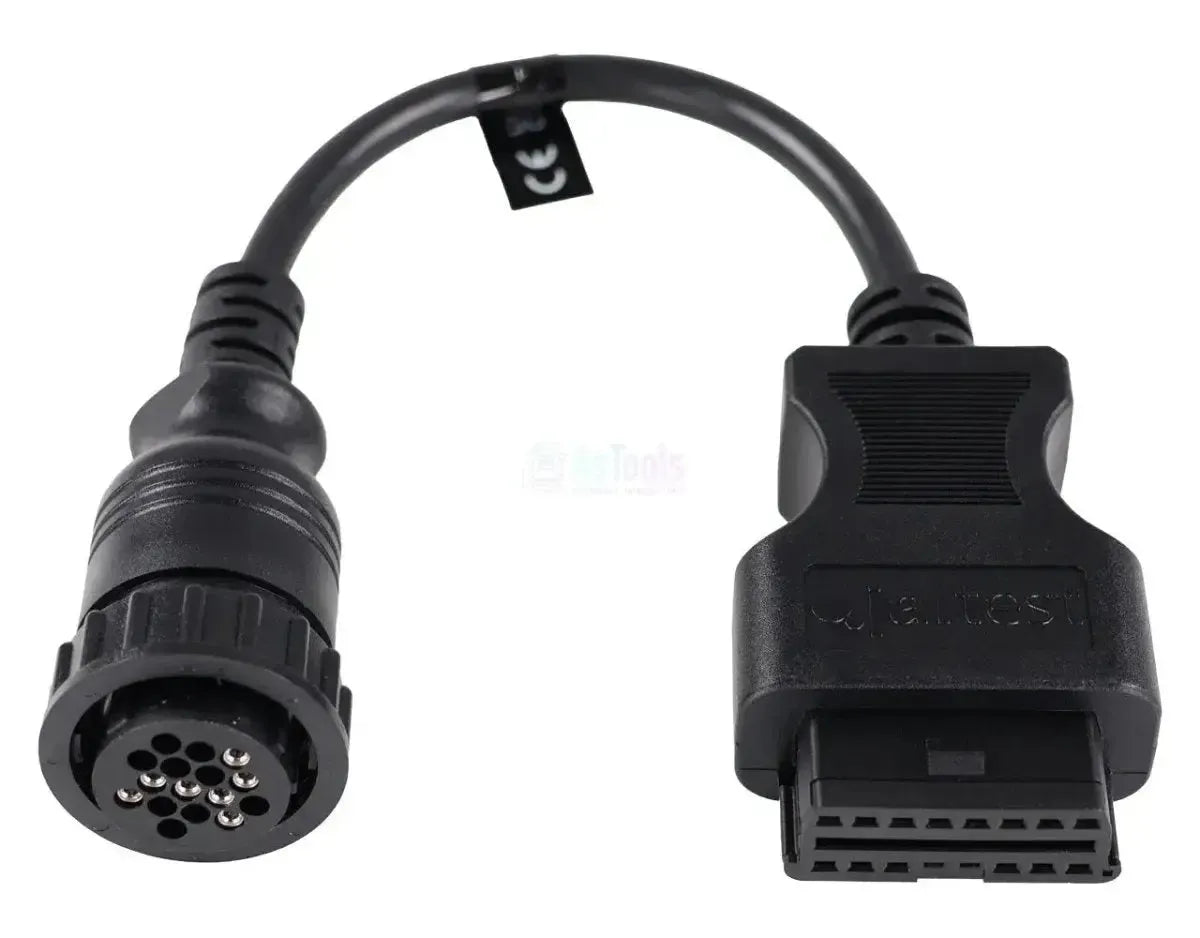

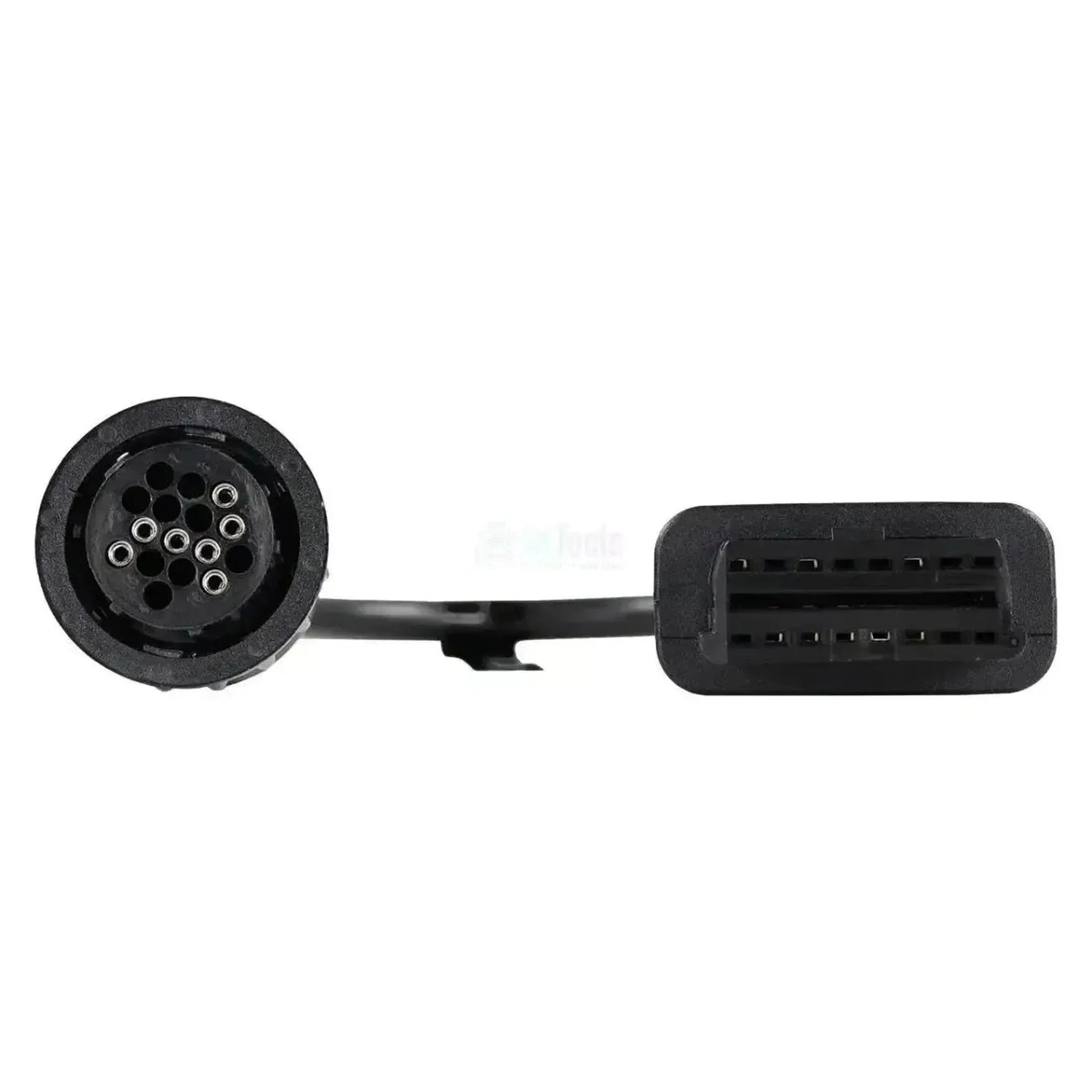

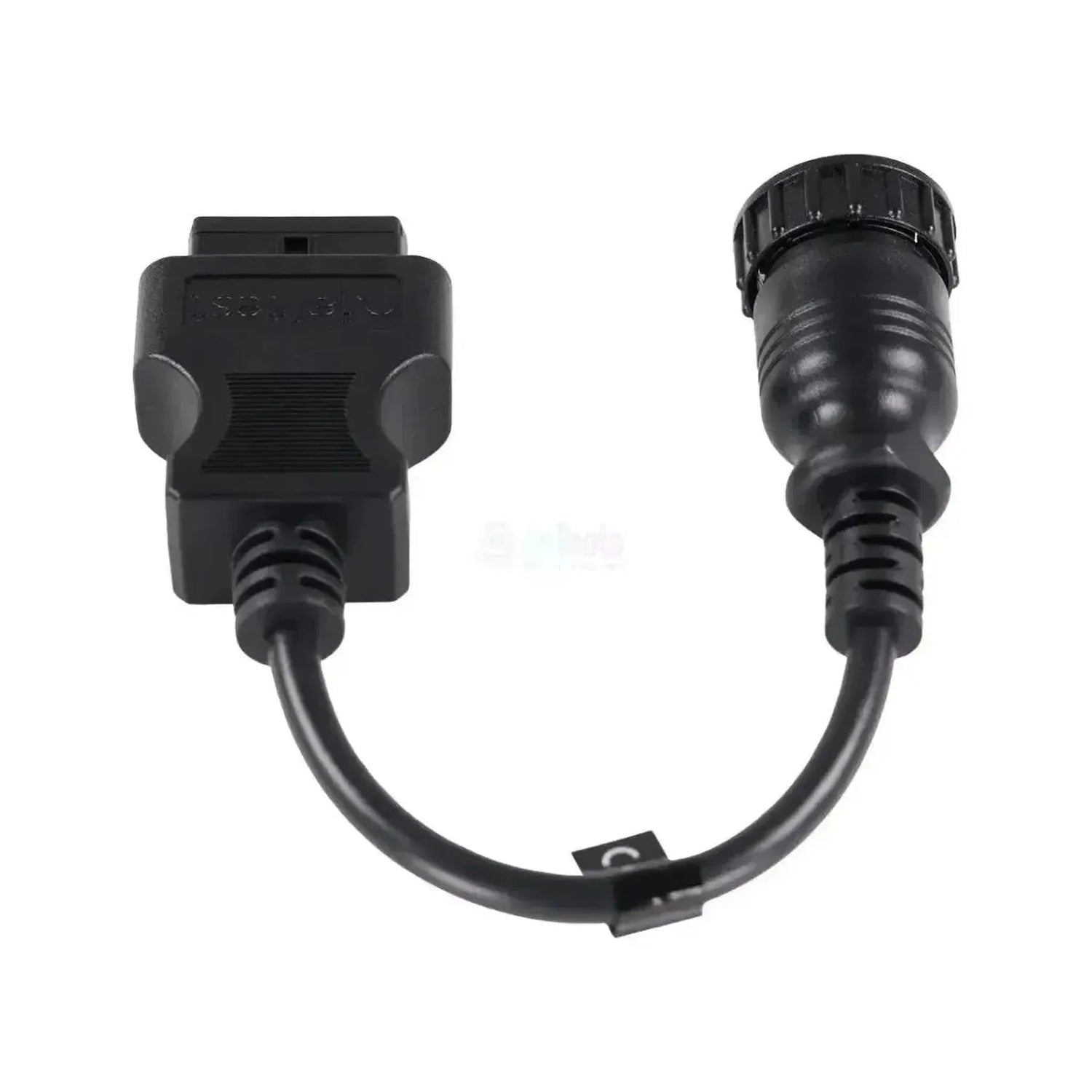

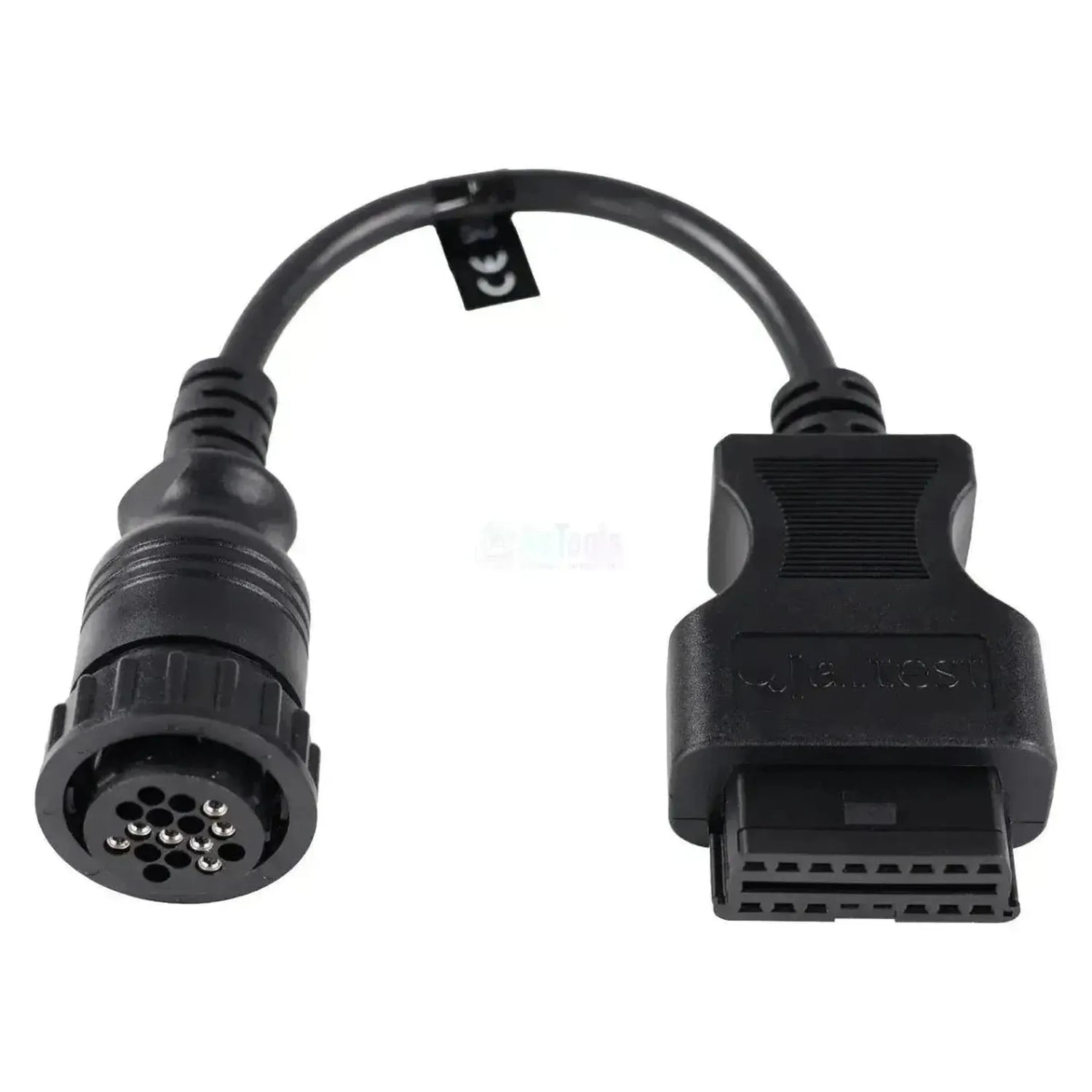

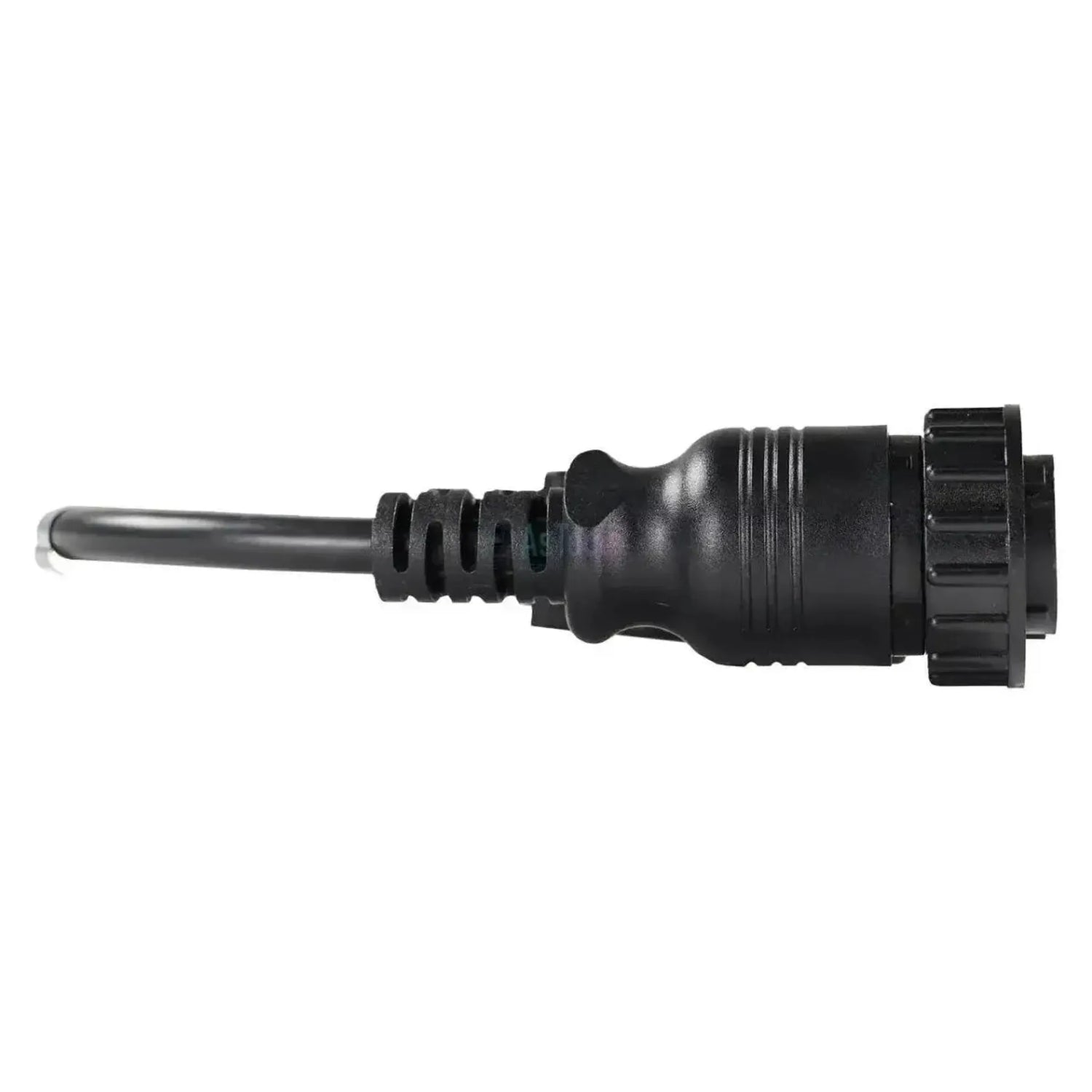

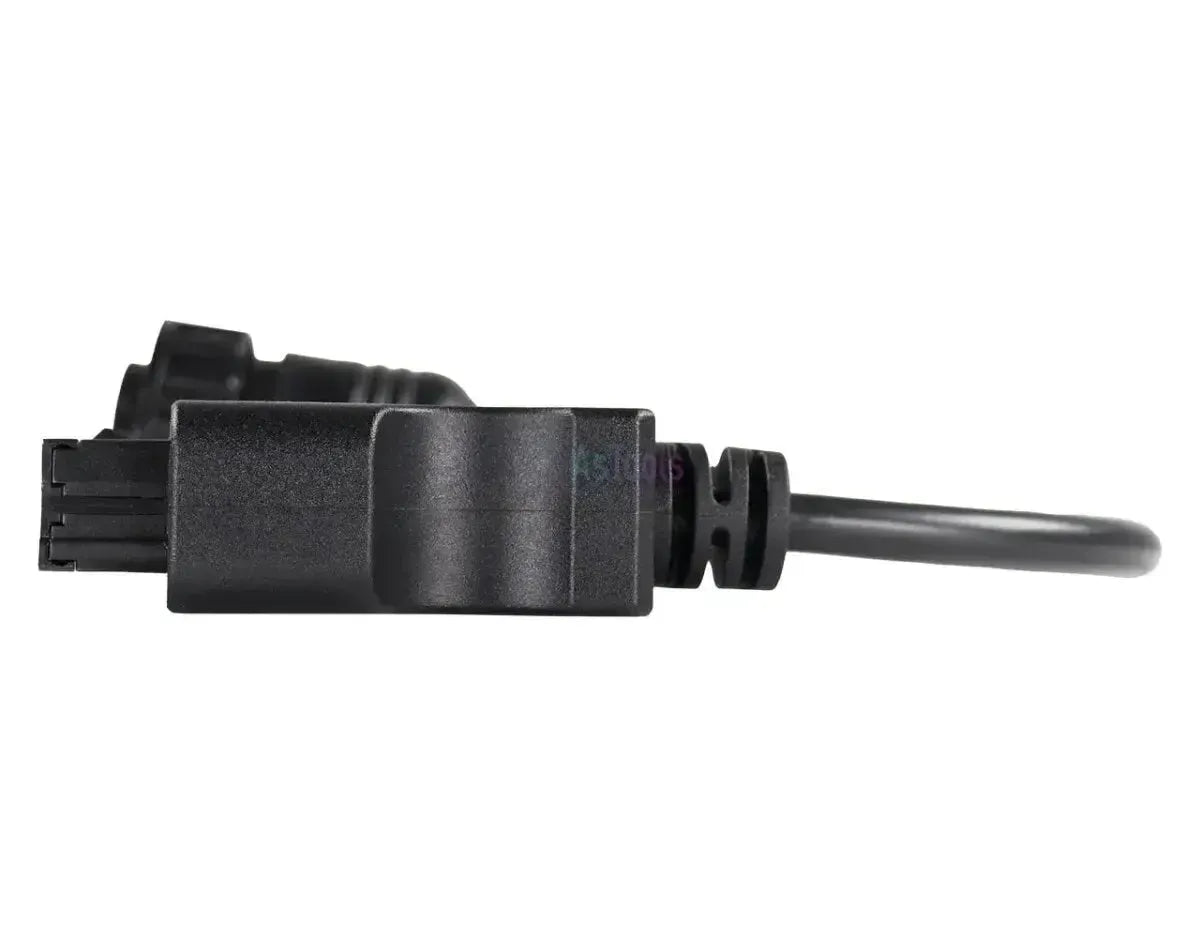

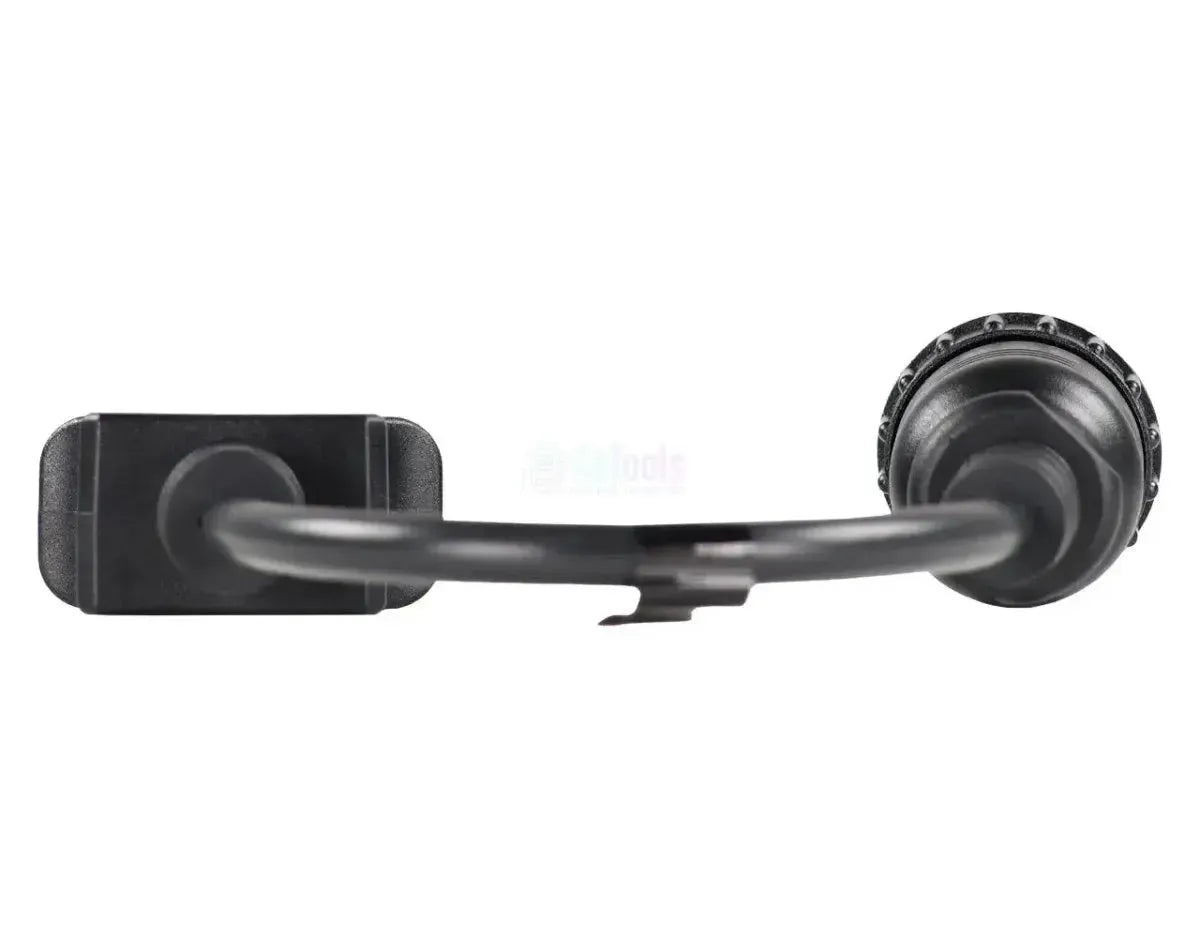

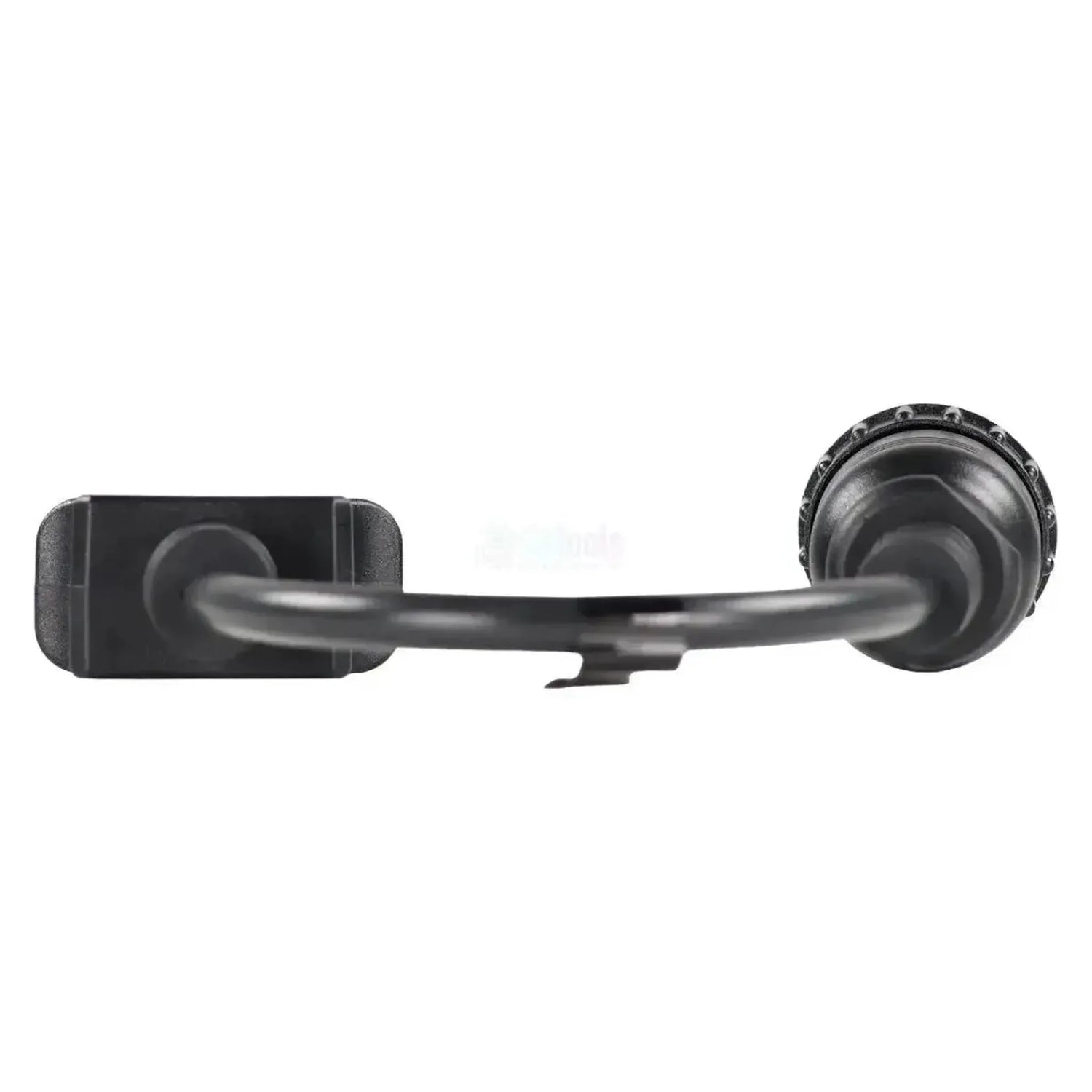

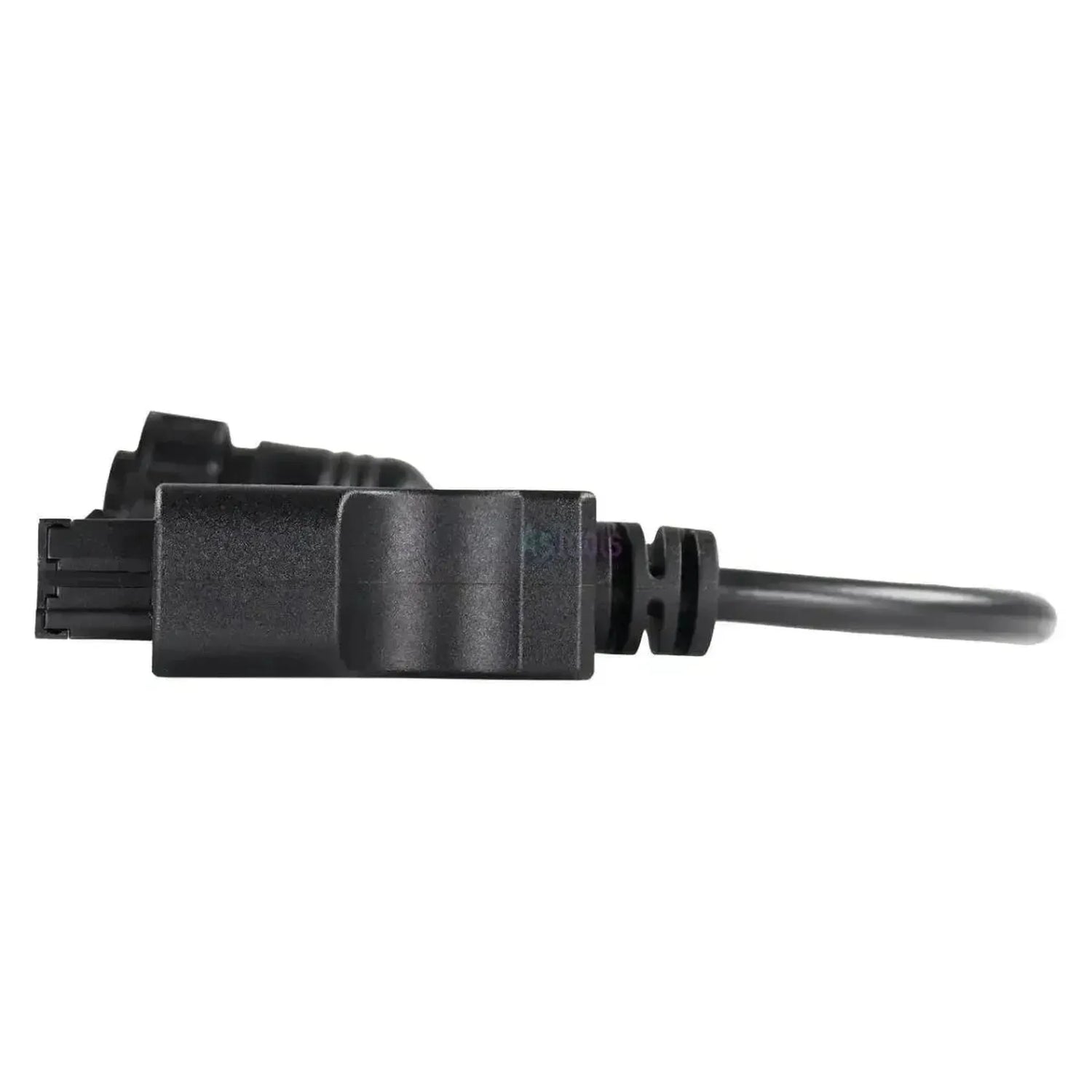

The Jaltest JDC541A connects the manufacturer-specific diagnostic connector of Hidromek earthmoving machines to the 16-pin OBD2 socket of your Jaltest diagnostic cable. On the machine side is a round black connector with a ribbed locking ring; the contact housing has sixteen positions, of which seven are fitted with sockets in the product photo. The cable measures 28 to 30 cm.

Behind this connector are the control units of the Isuzu powertrain: the 4HK1/4JJ1 common-rail engine control in the CAN and K-Line versions, and, on machines with SCR, the AdBlue/DEF aftertreatment system. Additional actions are available with the CAN version, but not with K-Line. The cable works with the Jaltest Link V8.1 and V9 and is covered by Jaltest OHW.

ADVANTAGES

✔Provides access to the Isuzu 4HK1/4JJ1 common-rail engine control, in both the CAN and K-Line versions.

✔Also reaches the Isuzu AdBlue/DEF aftertreatment system, with fault codes, measured values and maintenance data.

✔Works with both the Jaltest Link V8.1 and the V9, including after a switch to the newer interface.

✔Works across the whole HMK range, from the 100 series excavators to the 600 series wheel loaders and graders.

POINTS TO NOTE

✕Coverage for Hidromek is limited to engine and aftertreatment; a machine computer or hydraulic control is not included.

✕Additional actions are only available with the CAN version of the engine control, not with the K-Line version.

✕Looks similar to the Volvo cable JDC509A, but this one has sockets and the JDC509A has pins; they do not fit the same machine.

✕The year of manufacture says nothing about the connector; only the plug on the machine is decisive.

Applications and functionality

Through this connection, you access the machine's control units with the Jaltest software. Which systems are present varies by series and version.

Control units you can access

Isuzu 4HK1, 4JJ1 (CAN): Engine control, with actions.
Isuzu 4HK1 (K Line): Engine control via K-Line.
Isuzu AdBlue/DEF: Aftertreatment with SCR.

What you can do

Fault codes: Read and clear with descriptions.
Measured values: In figures and graph.
Maintenance: Intervals and service report.
Additional actions: On Isuzu via CAN.

How to use it

Finding the plug: Locate the round connector on the machine.
Connecting: Insert the JDC541A and tighten the ring.
Linking the Link: Connect the OBD2 end to the Jaltest diagnostic cable.
Ignition on: Switch the ignition on without starting the engine.
Reading out: Select Hidromek and the series in Jaltest OHW.

Compatible vehicles and applications

The plug is what matters, not the model. The cable fits any Hidromek machine with the round diagnostic connector and the locking ring. Jaltest OHW covers the series listed below; check on site which plug is fitted to your machine.

Hidromek:

HMK 100 LC Series: Crawler excavator.
HMK 100 W Series: Wheeled excavator.
HMK 200 LC Series: Crawler excavator.
HMK 200 W Series: Wheeled excavator.
HMK 300 LC Series: Crawler excavator.
HMK 400 LC Series: Crawler excavator.
HMK 600 Series: Wheel loader.
HMK 600 MG Series: Grader.

💡

Good to know: Hidromek uses its own round diagnostic connector with a locking ring, not the flat 16-pin plug of a passenger car. The contact housing of this cable contains sockets; the Volvo cable JDC509A looks similar but has pins. Check which plug is fitted to the machine before ordering.

Package contents

1x Jaltest (JDC541A) | Hidromek 16-pin OBD – 16-pin OBD2 adapter cable | Construction & off-road machinery

Technical specifications

General

The manufacturer of the cable. Jaltest cables work with Jaltest diagnostic equipment.Brand: Jaltest (Cojali)
The type of cable. A diagnostic cable connects to the diagnostic socket, a measuring cable tests an individual component.Cable type: Adapter cable
The Jaltest software package the cable belongs to. A licence for that module is required to use the cable.Jaltest software module: OHW construction and off-road
The types of vehicles or machines the cable is intended for. This shows quickly whether it suits the vehicles entering your workshop.Vehicle types: Construction and off-road

Connections

The version of the Jaltest Link diagnostic interface the cable fits. Not every cable works with every version.Compatible Jaltest Link: Jaltest Link V8.1
Jaltest Link V9
The connector on the diagnostic device side. It must fit your interface or diagnostic cable.Interface-side connector: 16-pin OBD2
The connector on the vehicle, engine or machine side. It must fit the diagnostic socket or the component.Vehicle-side connector: 16-pin OBD
The length of the cable. A longer cable allows more room to work.Cable length: 28 to 30 cm

Diagnostics

Whether fault codes can be cleared as well as read. Some systems only allow reading.Clear fault codes: Yes
Whether the current sensor values can be viewed while the vehicle is running. Useful for tracing a fault.View live data: Yes
Whether you can see when the next service is due. Useful for planning a service appointment properly.View service data: Yes
