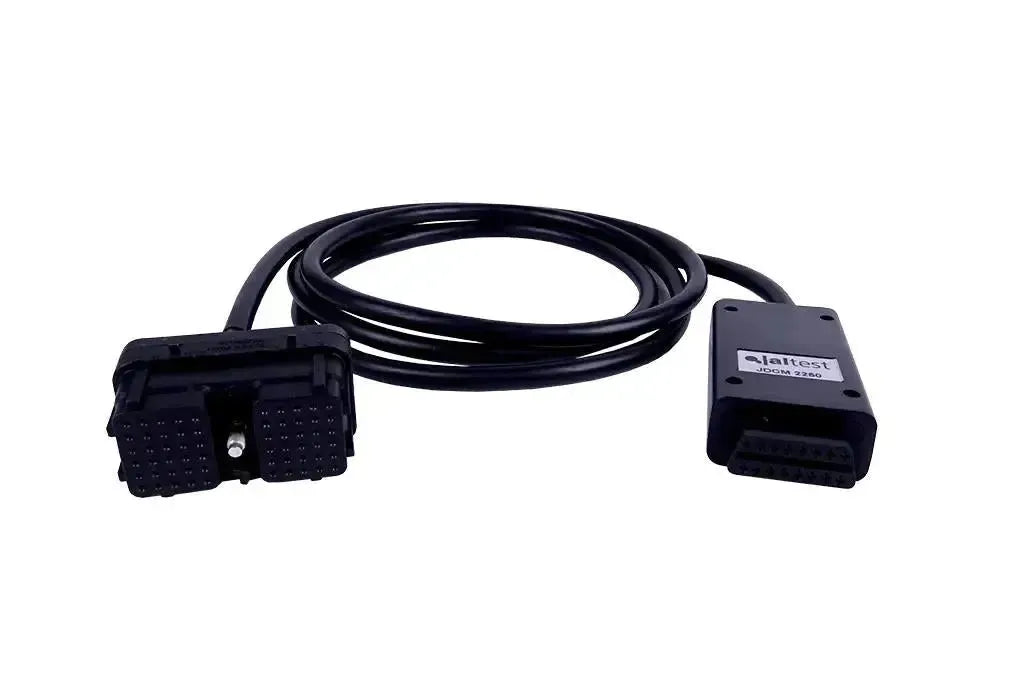

The Jaltest JDCM2250 is the isolation cable harnessfor theCummins ECM CM2250. On the engine side there is one black 60-pin Deutsch connectorwith two blocks of thirty contacts and a central mounting bolt; the housing bears the designationDEUTSCH DRC26-60 moulded. There is no additional branch connection. On the other end is a black plastic housing with the 16-pin OBD2-connection and the JDCM 2250 marking.
This is aphysical componentthat we send you and it is included withJaltest Central Services: A service based on pay per use, whereby Jaltest technicians can remotely perform functions that are not possible with a standard diagnostic device, such as reprogramming certain control units. For Cummins, that is the Cummins calibration update (70810000), for which a minimum of software version 24.1 is required. The ATS department may require you to have such a cable harness. To subscribe to Central Services, your Jaltest Link version V7 or newer are; the services are charged at credits (71101082).
KEY FEATURES
IMPORTANT NOTES
Applications and functionality
The JDCM2250 is a connection cable: It connects the Cummins ECM CM2250 directly to your diagnostic interface, independently of the vehicle wiring. The functions you then perform are part of Jaltest Central Services and run through the ATS team.
What the cable assembly is for
- Connection to the control unit: The 60-pin connector attaches to the Cummins ECM CM2250.
- Connection to the interface: The 16-pin OBD2-side connects to the Jaltest Link.
- Support tool for Central Services: The ATS department may require you to have such a cable.
- One cable per assembly: This configuration is specific to the CM2250; a different ECM type requires a different isolation cable assembly.
What Jaltest Central Services offers for Cummins
- Remote diagnostics: Jaltest technicians perform functions that are not possible with a standard diagnostic tool, such as reprogramming certain control units.
- Cummins calibration update (70810000): The service Jaltest provides for Cummins; this requires a minimum software version 24.1 required.
- Payment per use: You purchase a service on a case-by-case basis and settle using credits; for Cummins, that is reference 71101082.
- Jaltest Link V7 or later: With an older interface version, you cannot access Central Services.
- Via the ATS team: They will advise during your request whether a service is available for your control unit.
The Cummins range at a glance
The range comprises five isolation cable harnesses. They differ in the number of pins, in the number of loose connectors at the engine side and in the cable length. Look up the control unit you have; the version on this page is shown in bold.
| Reference | Control unit | Engine-side connection |
|---|---|---|
| JDCM850 | Cummins ECM CM850 | 4+50-pin |
| JDCM2150 | Cummins ECM CM2150 | 4+60-pin, two loose connectors |
| JDCM2250 | Cummins ECM CM2250 | 60-pin, one connector |
| JDCM2350/2450 | Cummins ECM CM2350 and CM2450 | 96-pin, one connector with red lever lock |
| JDCM2670/2880 | Cummins ECM CM2670 and CM2880 | 94+96-pins, two connectors branching from a single split |
Compatibility
The ECM type is what matters, not the engine series or vehicle manufacturer.This cable harness is designed for the Cummins ECM CM2250 with the 60-pins connector. With these isolation cable harnesses, no engine or vehicle coverage is specified: there is no list of engine series or vehicle makes to check whether the cable harness will work in your situation. What counts is the control unit nameplate and the number of pins on the connector.
- What does matter: The ECM type (Cummins ECM CM2250) and the number of pins on the ECM connector (60-pins).
- What does not matter: The engine series, vehicle manufacturer and year of manufacture; these are not specified for this cable harness.
- Check yourself: Read the control unit type from the nameplate and count the pins on the connector.
- Recognisable by the connector: If there is a separate 4-pins connector alongside the 60-pins main block, you need the JDCM2150.
Package contents
- 1x Jaltest (JDCM2250) | Cummins (ECU) 60-pins – 16-pins OBD2 Adapter Cable | Commercial Vehicle
Technical specifications
| Specification | Description |
|---|---|
| Brand | Jaltest (Cojali) |
| Reference number | JDCM2250 |
| Type | Isolation cable harness |
| Engine side connection | Cummins 60-pin Deutsch connector with two blocks of thirty contacts and a central mounting bolt |
| Interface side connection | 16-pin OBD2 |
| Length | Not specified; the product photo shows the extended version, clearly longer than the JDCM2350/2450 and the JDCM2670/2880 |
| Interface | Jaltest Link, version V7 or later for Central Services |
| Compatible ECM | Cummins ECM CM2250 |
| Intended for | Jaltest Central Services — Cummins calibration update (70810000) |
| Requires | Software version 24.1 or higher for the Cummins calibration update |
| Segment | Commercial vehicles |
