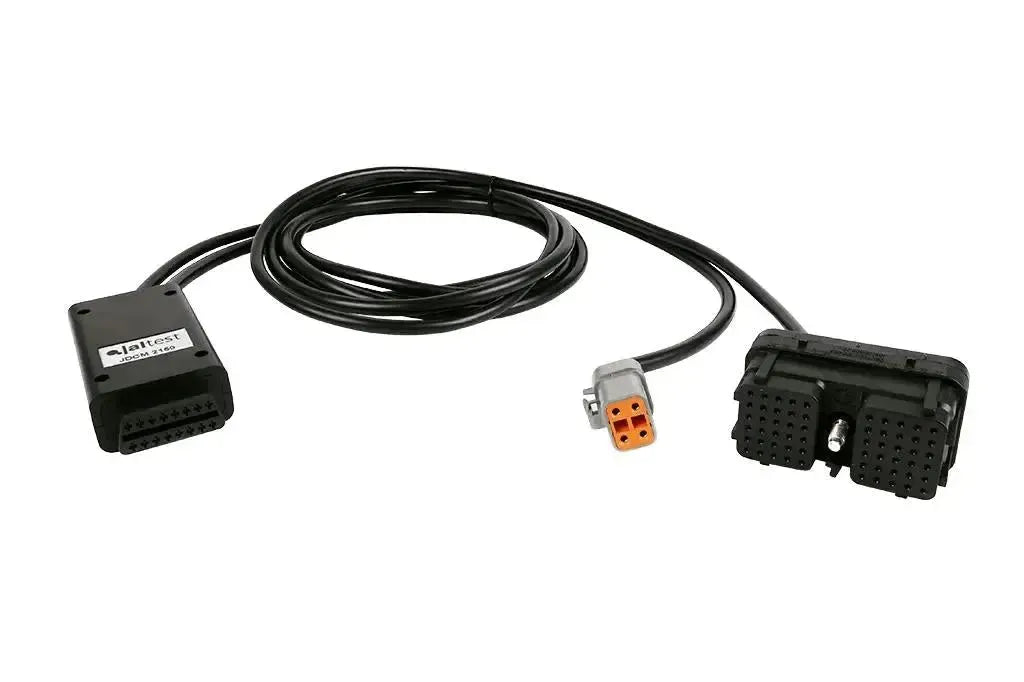

The Jaltest JDCM2150 is the isolation cable harnessfor theCummins ECM CM2150. On the engine side, the cable terminates in two separate connectors: one black60-pin Deutsch connectorwith two blocks of thirty contacts and a central mounting bolt, plus a smallgrey 4-pin Deutsch connectorwith orange locking mechanism. Together they form the4+60-pin from the title. On the other side is a black plastic housing with the 16-pin OBD2-connection and the label JDCM 2150.
This is aphysical componentthat we send you and it is included withJaltest Central Services: A service based on pay per use, whereby Jaltest technicians can remotely perform functions that are not possible with a standard diagnostic device, such as reprogramming certain control units. For Cummins, that is the Cummins calibration update (70810000), for which a minimum of software version 24.1 is required. The ATS department may require you to have such a cable harness. To subscribe to Central Services, your Jaltest Link version V7 or newer are; the services are charged at credits (71101082).
KEY FEATURES
IMPORTANT NOTES
Applications and functionality
TheJDCM2150 is a connector: He connects theCummins ECM CM2150directly to yourdiagnostic interface, apart from thevehicle wiring. What you then have carried out is part of Jaltest Central Services and runs via the ATS-team.
What the cable harness is for
- Connection to the control unit:The60-pin connector and the loose 4-pin connect the plug to the Cummins ECM CM2150.
- Connection to the interface:The16-pin OBD2-side connects to the Jaltest Link.
- Tool for Central Services:TheATS departmentcan require you to have such a cable in your possession.
- One connector per cable harness: This version is compatible with the CM2150; for a different ECM type, there is a different isolation cable harness.
What Jaltest Central Services offers for Cummins
- Remote diagnostics: Jaltest technicians perform functions that are not possible with a standard diagnostic tool, such as reprogramming certain control units.
- Cummins calibration update (70810000): The service that Jaltest provides for Cummins; this requires a minimum of software version 24.1 .
- Pay-per-use: You purchase a service on a case-by-case basis and settle using credits; for Cummins, that is reference 71101082.
- Jaltest Link V7 or later: With an older interface version, you cannot access Central Services.
- Through the ATS team: They will advise during your request whether a service is available for your control unit.
The Cummins range at a glance
The range comprises five isolation cable harnesses. They differ in the number of pins, in the number of loose connectors at the engine side and in the cable length. Find the control unit you are working with; the version on this page is shown in bold.
| Reference | Control unit | Engine-side connection |
|---|---|---|
| JDCM850 | Cummins ECM CM850 | 4+50-pins |
| JDCM2150 | Cummins ECM CM2150 | 4+60-pins, two loose connectors |
| JDCM2250 | Cummins ECM CM2250 | 60-pins, single connector |
| JDCM2350/2450 | Cummins ECM CM2350 and CM2450 | 96-pins, single connector with red lever lock |
| JDCM2670/2880 | Cummins ECM CM2670 and CM2880 | 94+96-pins, two connectors behind a splitter |
Compatibility
The ECM type is what matters, not the engine series or vehicle make.This harness is designed for the Cummins ECM CM2150 with the 4+60-pins connector. For these isolation harnesses, no engine or vehicle coverage is specified: there is no list of engine series or vehicle makes to check whether the harness suits your application. What counts is the control unit nameplate and the number of pins on the connector.
- What matters: The ECM type (Cummins ECM CM2150) and the number of pins on the ECM connector (4+60-pins).
- What doesn't matter: The engine series, vehicle make and year of manufacture; these are not specified for this harness.
- Check yourself: Read the control unit type from the nameplate and count the pins on the connector.
- Recognisable by the connector: If there is a separate 4-pin connection alongside the 60-pin main block, this is the correct version; if it's missing, you need the JDCM2250.
Package contents
- 1x Jaltest (JDCM2150) | Cummins (ECU) 4+60-pins – 16-pins OBD2 Adapter Cable | Commercial Vehicle
Technical specifications
| Specification | Description |
|---|---|
| Brand | Jaltest (Cojali) |
| Reference number | JDCM2150 |
| Type | Isolation cable harness |
| Engine side connector | Cummins 4+60-pins, comprising one 60-pin Deutsch connector with two blocks of thirty contacts plus a separate grey 4-pin Deutsch connector with orange locking mechanism |
| Interface side connector | 16-pin OBD2 |
| Length | Not specified; the product image shows the extended version, noticeably longer than the JDCM2350/2450 and JDCM2670/2880 |
| Interface | Jaltest Link, version V7 or later for Central Services |
| Compatible ECM | Cummins ECM CM2150 |
| Intended for | Jaltest Central Services — Cummins calibration update (70810000) |
| Requires | Software version 24.1 or higher for the Cummins calibration update |
| Segment | Commercial vehicles |
