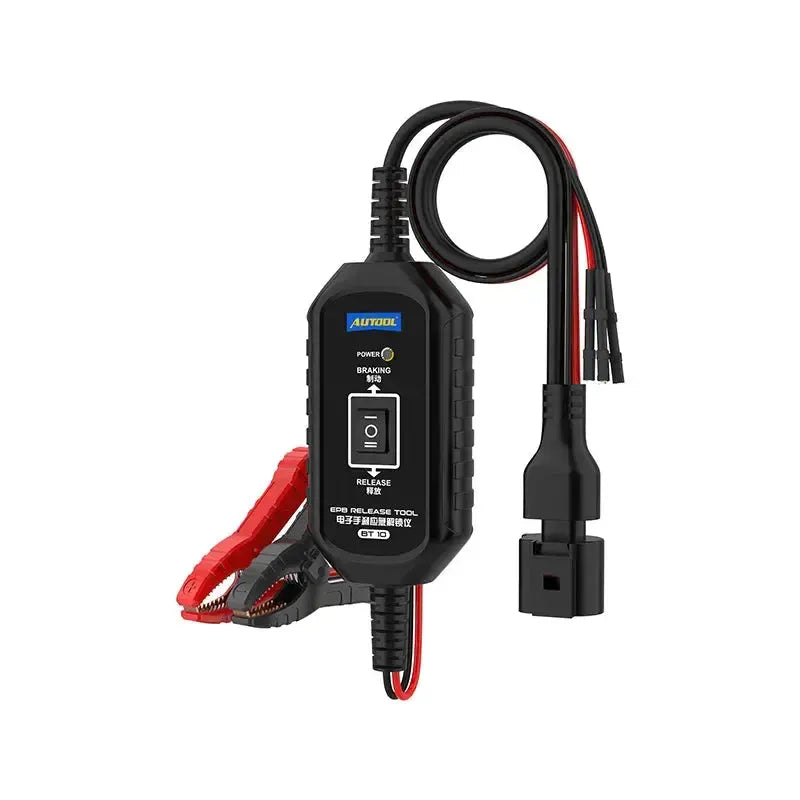

The Autool BT10 is a tool for manually operating an electronic parking brake (EPB). This device allows direct control of the EPB motor to release or activate the parking brake, independent of the vehicle's diagnostic system. The tool operates on a working voltage of DC 10V to 14V and connects to the vehicle's battery using the supplied power clamps.

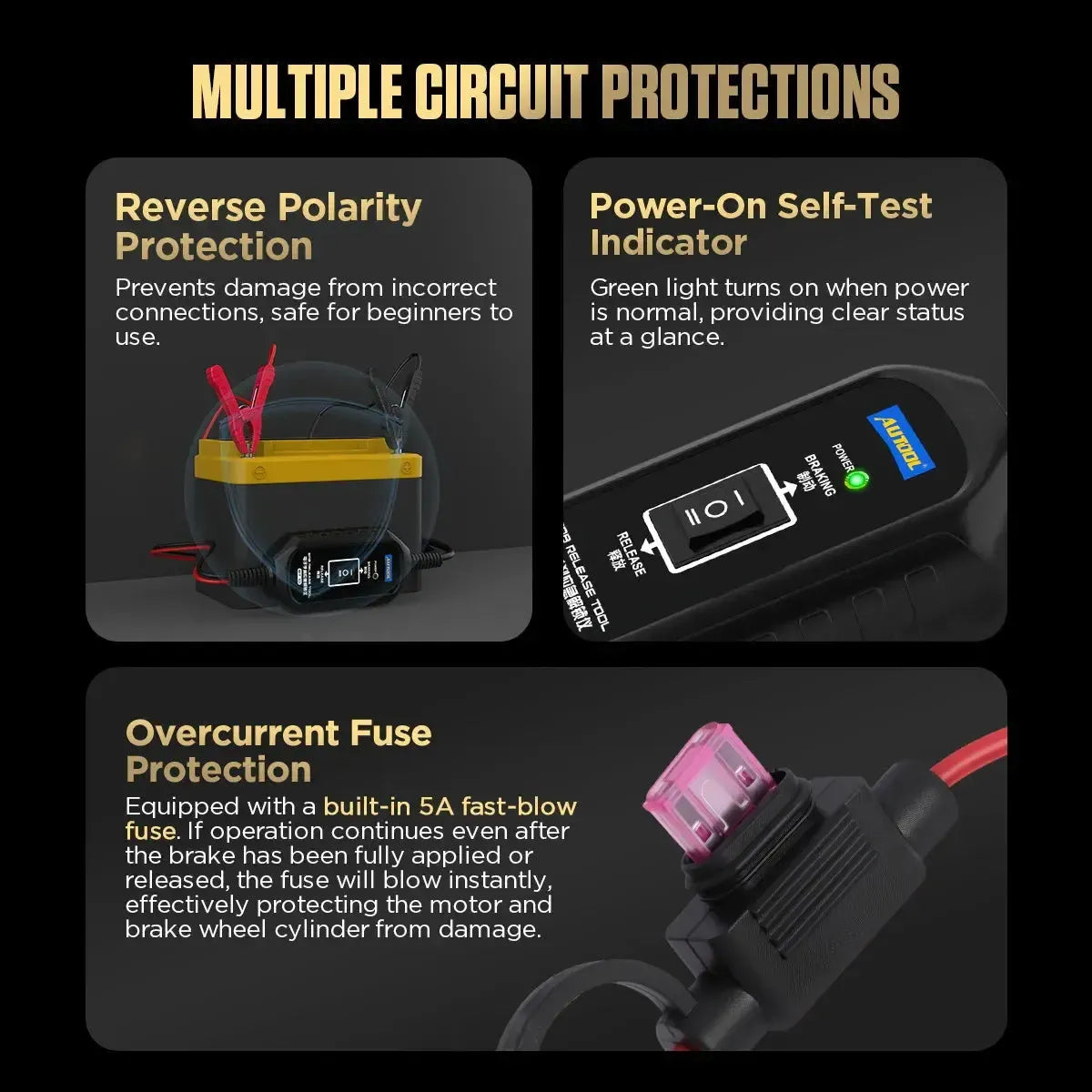

The design includes various safety features to prevent damage to the brake system. The BT10 is equipped with reverse polarity protection, preventing damage from incorrect battery connection. A built-in, replaceable 5A fuse provides overcurrent protection for the EPB motor. An LED indicator shows the current status, and the dual operation switch allows easy switching between brake and release modes.
Application and functionality:
This tool is designed for situations requiring direct, manual control over the EPB system, such as maintenance, malfunctions, or moving a vehicle without power.
- Manual EPB operation: Enables forced release of a locked or faulty EPB. This is applicable in emergencies, such as moving a vehicle with a dead battery or an EPB system failure.
- Brake system maintenance: Simplifies replacing brake pads and discs by fully retracting the brake caliper piston, preventing damage to the EPB motor.

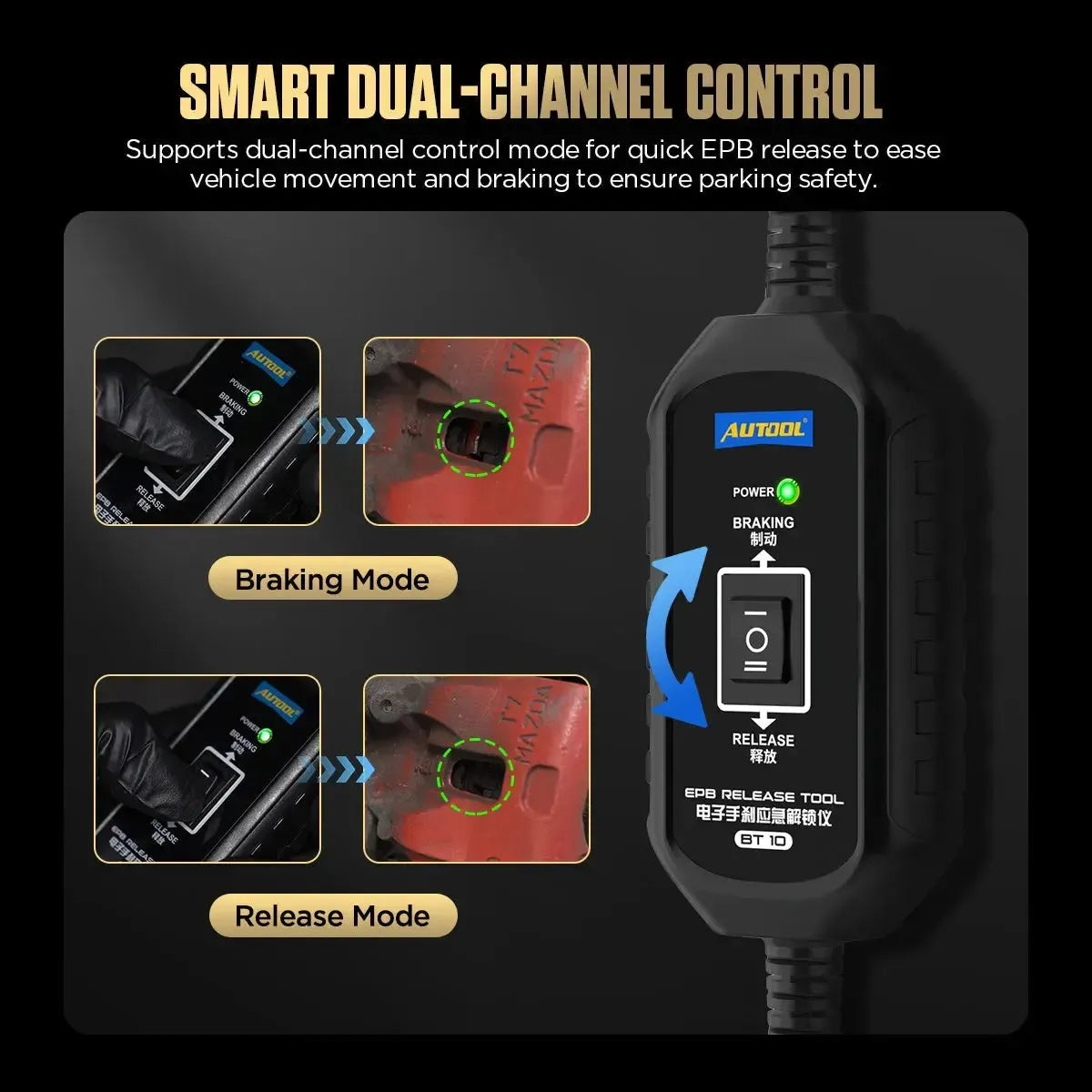

- Dual operation mode: The switch offers a "Braking" mode to activate the parking brake and a "Release" mode to deactivate it, providing full control over the brake caliper motor.
- Diagnostic support: Helps troubleshoot by isolating and directly testing the EPB motor, separate from the vehicle's control unit.

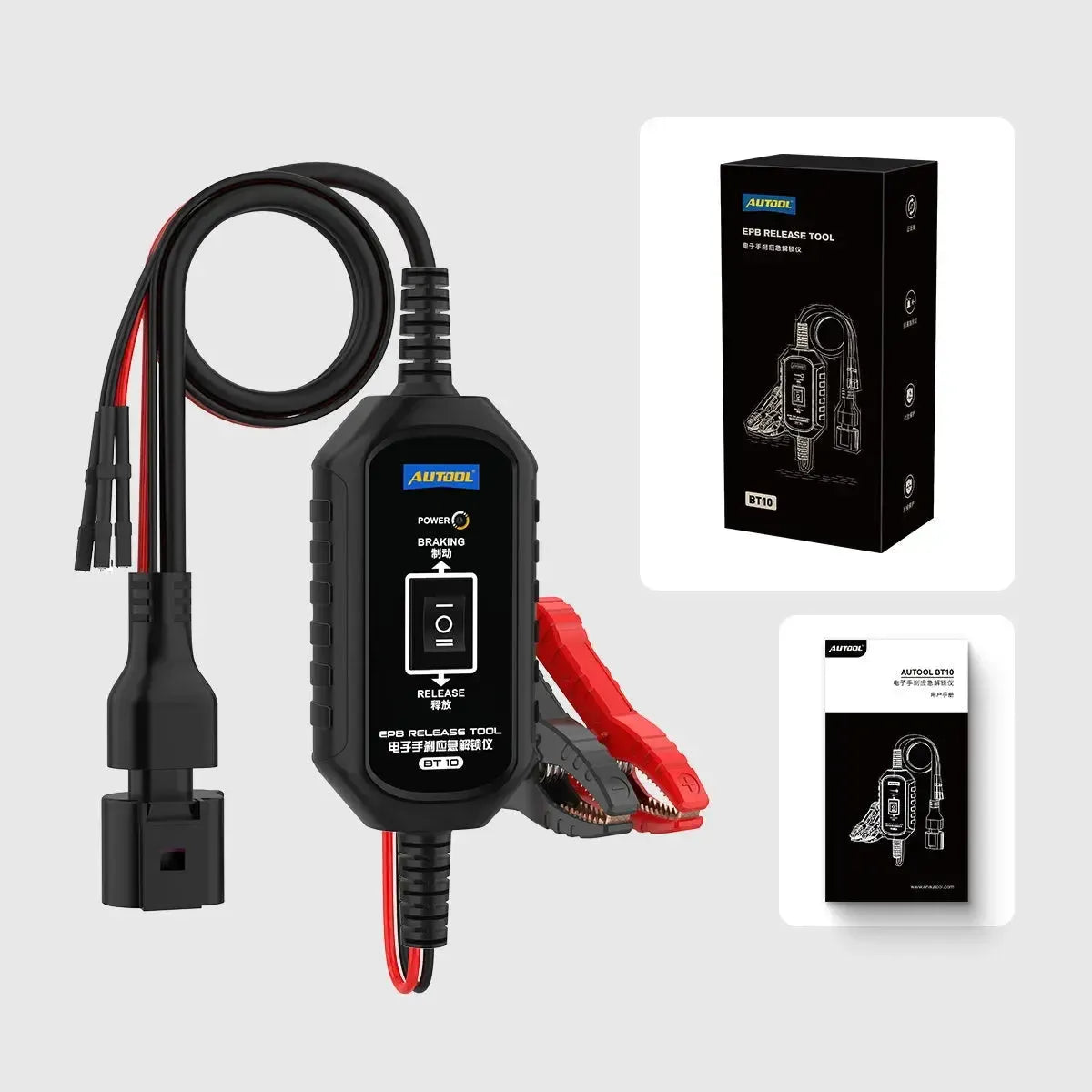

Package Contents:
- 1x Autool BT10 EPB release tool
- 1x Manual

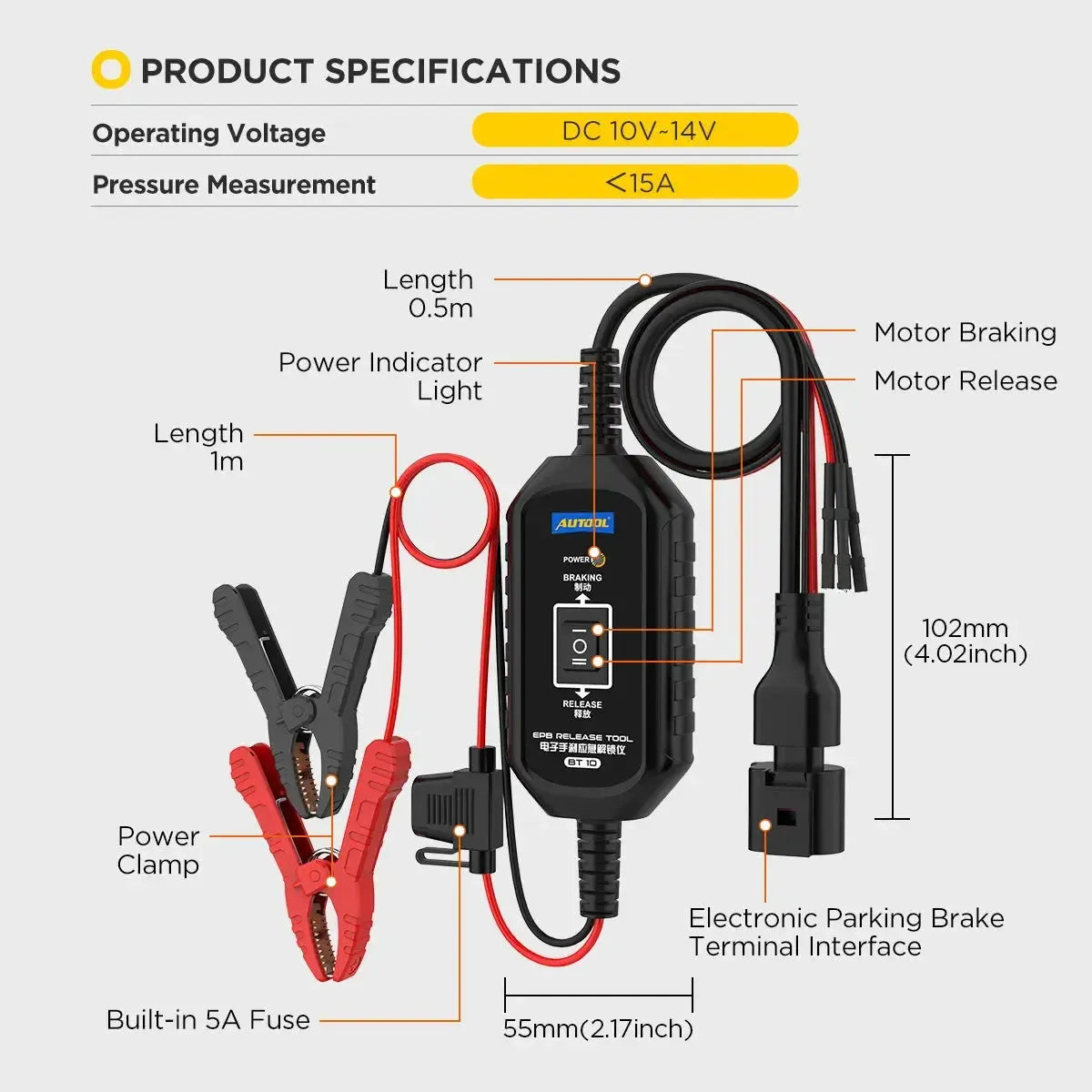

Technical specifications:
| Specification | Description |
|---|---|
| Brand | Autool |
| Model | BT10 |
| Operating voltage | DC 10V - 14V |
| Operating current | < 15A |
| Protection | Protection against reverse polarity, 5A fuse (overcurrent) |
| Length power cable | 1 meter |
| Length EPB cable | 0.5 meter |
| Dimensions | 102 mm x 55 mm |
