Autel  |  SKU: Mazda-17

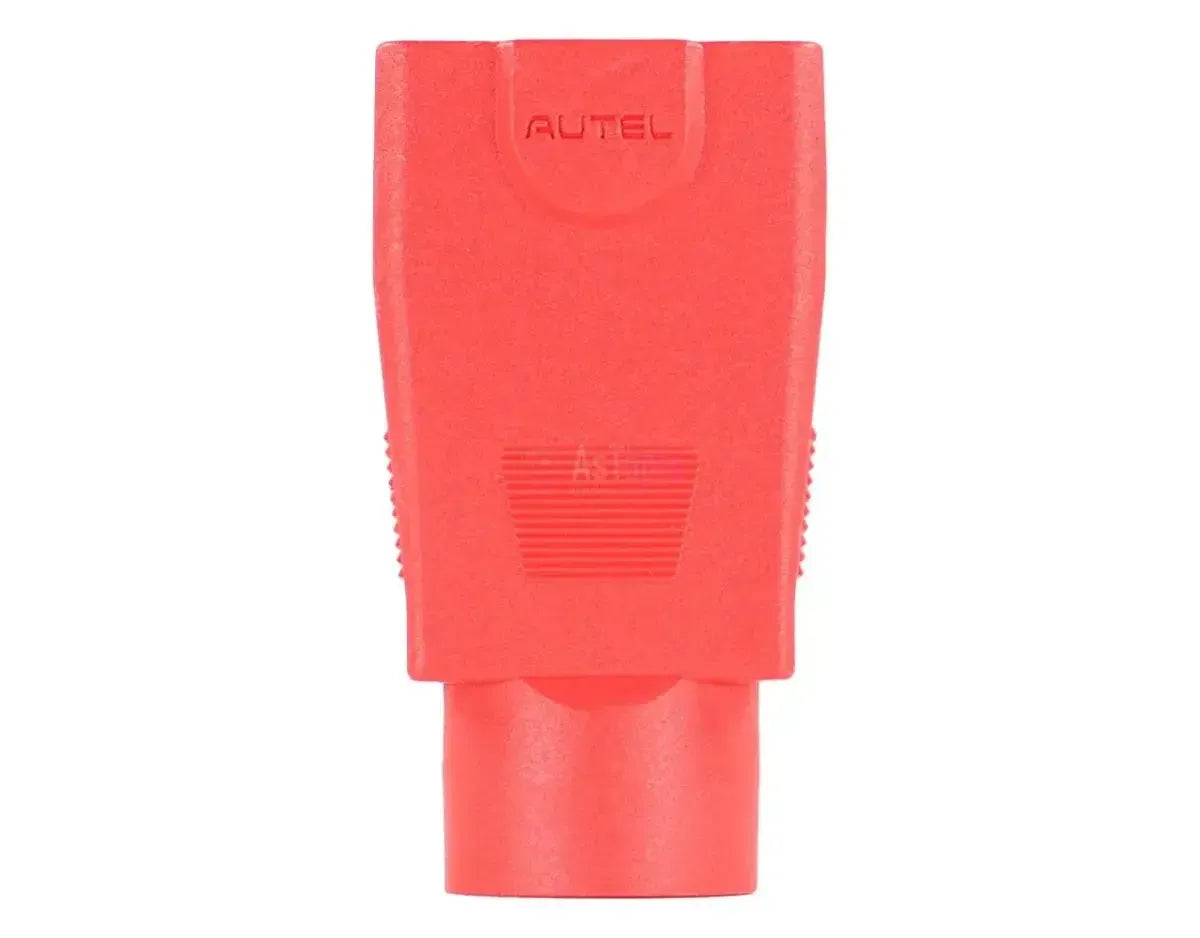

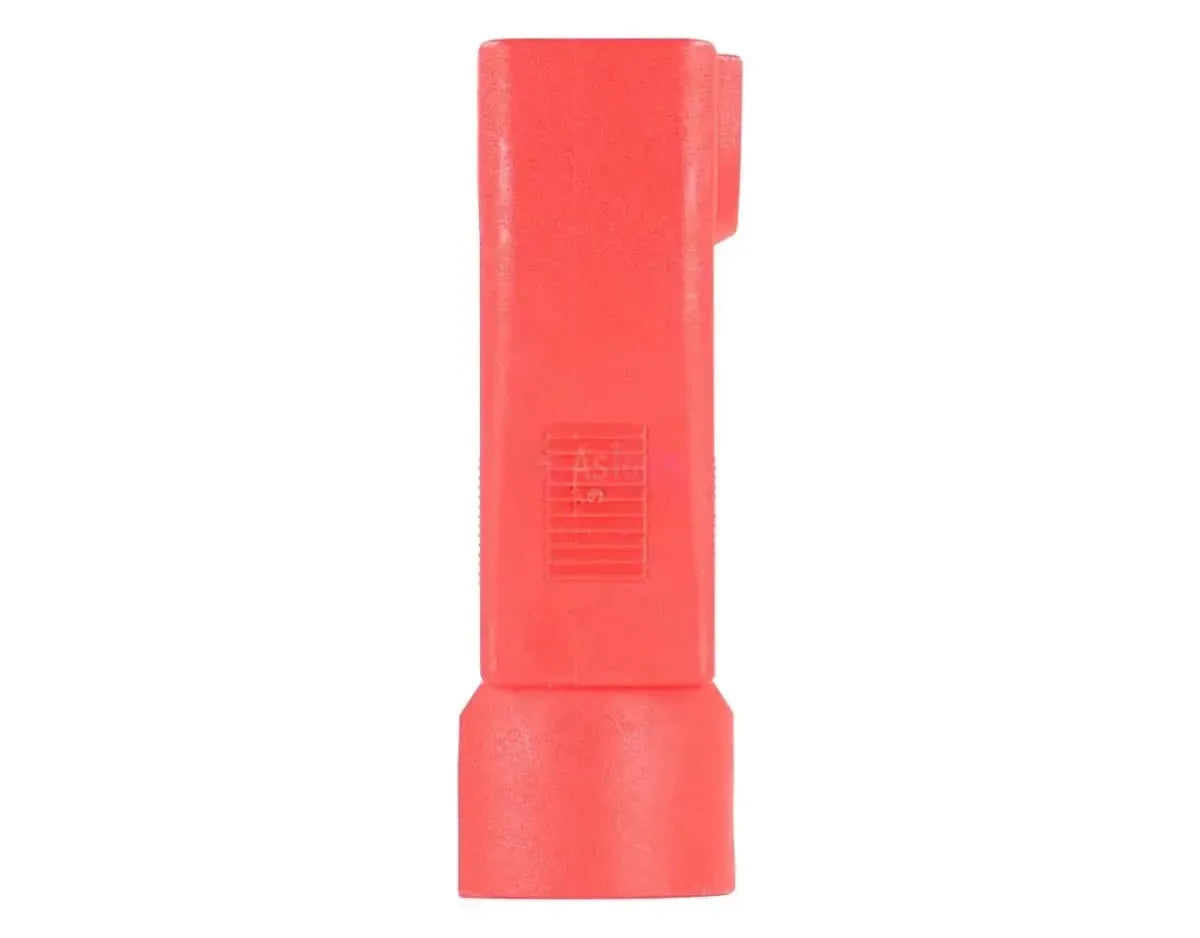

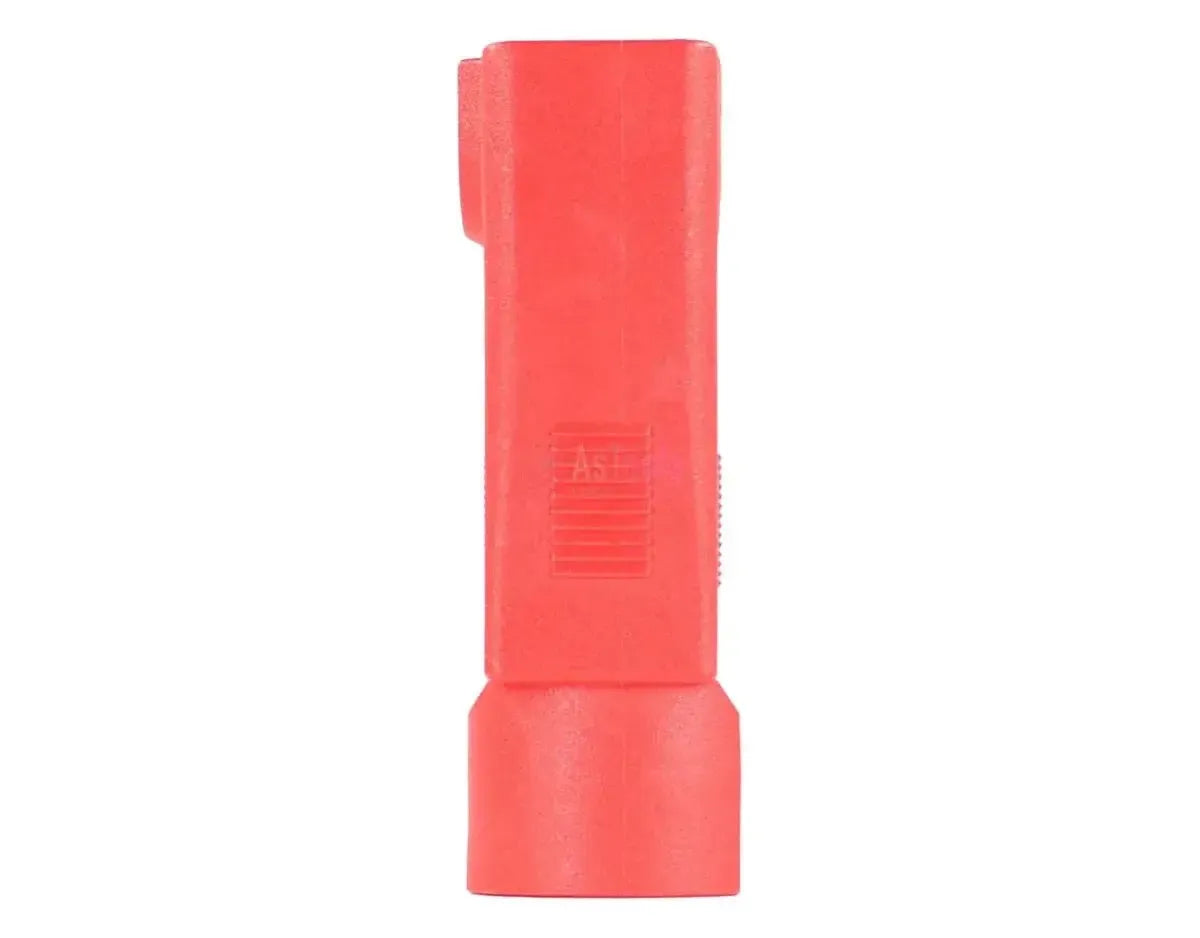

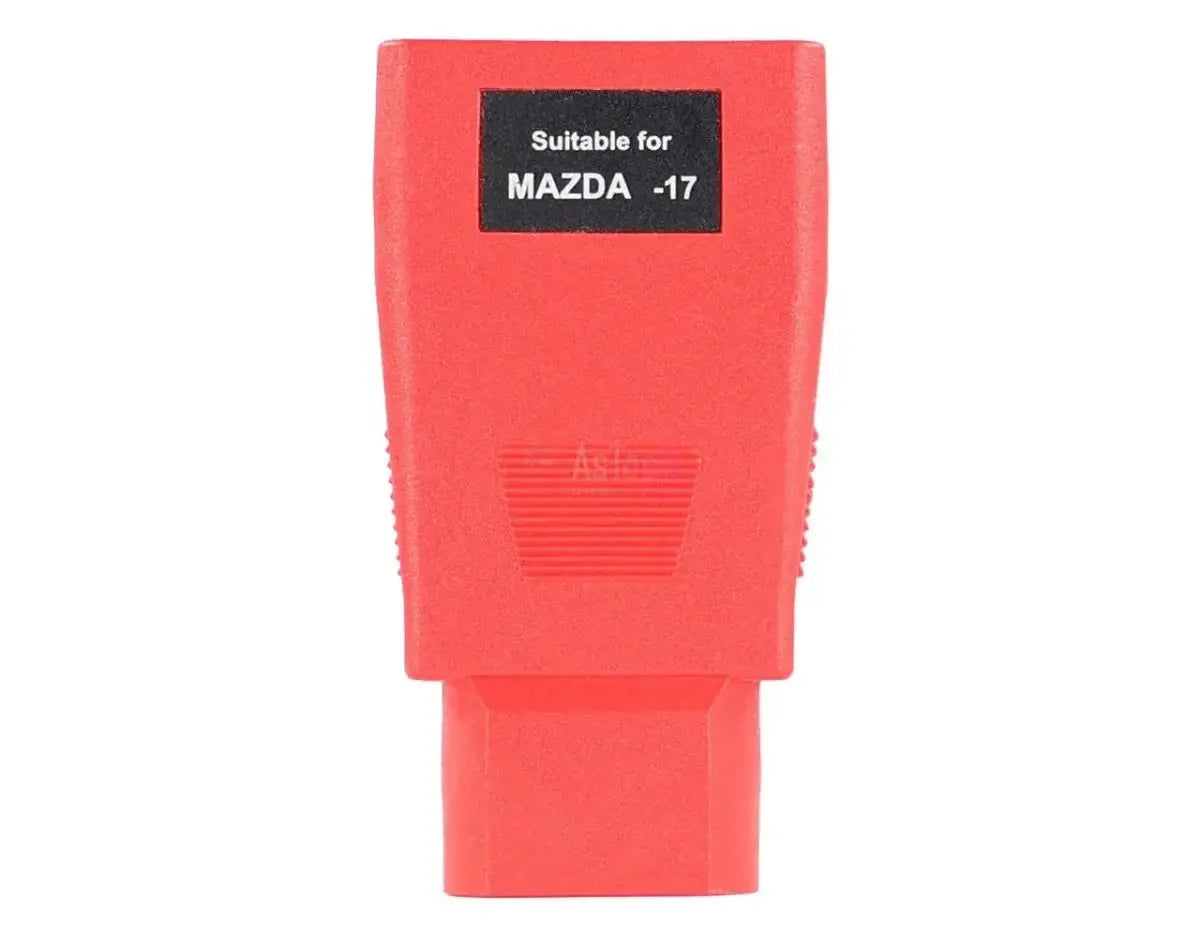

Autel | Mazda 17-pin OBD1 – 16-pin OBD2 Adapter | Passenger Car

5.0 out of 5 stars, 1 review
Regular price €28,88 Sale price
€15,66
Import duties and taxes are not included and are payable on delivery.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

This Autel adapter connects the 17-pin diagnostic connector of older Mazda passenger cars to the OBD2 main cable of your Autel device. It is part of the Autel set with OBD1 adapters for the MaxiSys Ultra, MS919 and MS909. The connector is under the bonnet, usually near the left wheel housing or strut tower, in a box marked DIAGNOSIS.

Use this connector to read out the engine control unit. You can read fault codes, clear them after repair and view live data. Depending on the model, the car communicates via the K-line or via J1850 PWM. The adapter physically converts the connector; the diagnostic tool itself must support the Mazda protocols of this generation.

HIGHLIGHTS

✔Makes the 17-pin connector under the bonnet usable with your Autel device.
✔Fits directly onto the OBD2 main cable of the Autel device; a separate Mazda tester is not required.
✔One adapter for several model ranges, from the 323 and 626 to the MX-5 NA and NB.
✔The adapter works passively: no software or settings are required.

POINTS TO NOTE

✕Your diagnostic tool must support Mazda diagnostics via the 17-pin connector; the adapter does not convert protocols.
✕A simple EOBD code reader does not work with this adapter; it only reads emissions-related OBD2 data.
✕On the pre-facelift 626 (GF), communication runs via J1850 PWM; your diagnostic tool must support that protocol.
✕Not needed for later Mazda models with a 16-pin connector in the interior.

Applications and functions

The adapter is intended for garages and mechanics reading older Mazda models with the 17-pin connector.

Control units you can access

  • Engine control: Injection and engine management.
  • Communication: K-line or J1850 PWM.
  • Other systems: Varies by model and specification.

What you can do

  • Fault codes: Read and clear.
  • Live data: Where the diagnostic tool provides it.
  • Fault finding: Check sensors and signals.

How to use it

  1. Locate the connector: Open the bonnet and find the DIAGNOSIS box.
  2. Connect: Insert the 17-pin plug straight into the connector.
  3. Connect the main cable: Connect the adapter to the OBD2 main cable.
  4. Ignition on: Switch the ignition on without starting the engine.
  5. Read out: Select Mazda, the model and the control unit.

Compatible vehicles and applications

The deciding factor is the 17-pin DIAGNOSIS connector under the bonnet. The adapter is suitable for the following Mazda models that have that connector:

Mazda:

  • 323 (BA): 1994 to 1998.
  • 323 (BJ): 1998 to 2000.
  • 626 (GE): 1991 to 1997.
  • 626 (GF): 1997 to 2000.
  • MX-5 (NA): 1989 to 1998.
  • MX-5 (NB): 1998 to 2000.
💡
Good to know: The 17-pin connector is under the bonnet, usually near the left wheel housing or strut tower, in a grey box marked DIAGNOSIS. Switch the ignition on before reading out.

Package contents

  • 1x Autel | Mazda 17-pin OBD1 - 16-pin OBD2 Adapter | Passenger car

Technical specifications

General

The brand of the cable or adapter. It often has to match the brand of your diagnostic tool.Brand
Autel
The type of product: a separate adapter cable, an adapter without a cable or a complete set.Product type
Adapter
The types of vehicles or machinery on which the cable can be used. This shows quickly whether it suits the vehicles entering your workshop.Vehicle types
  • Passenger car

Connections

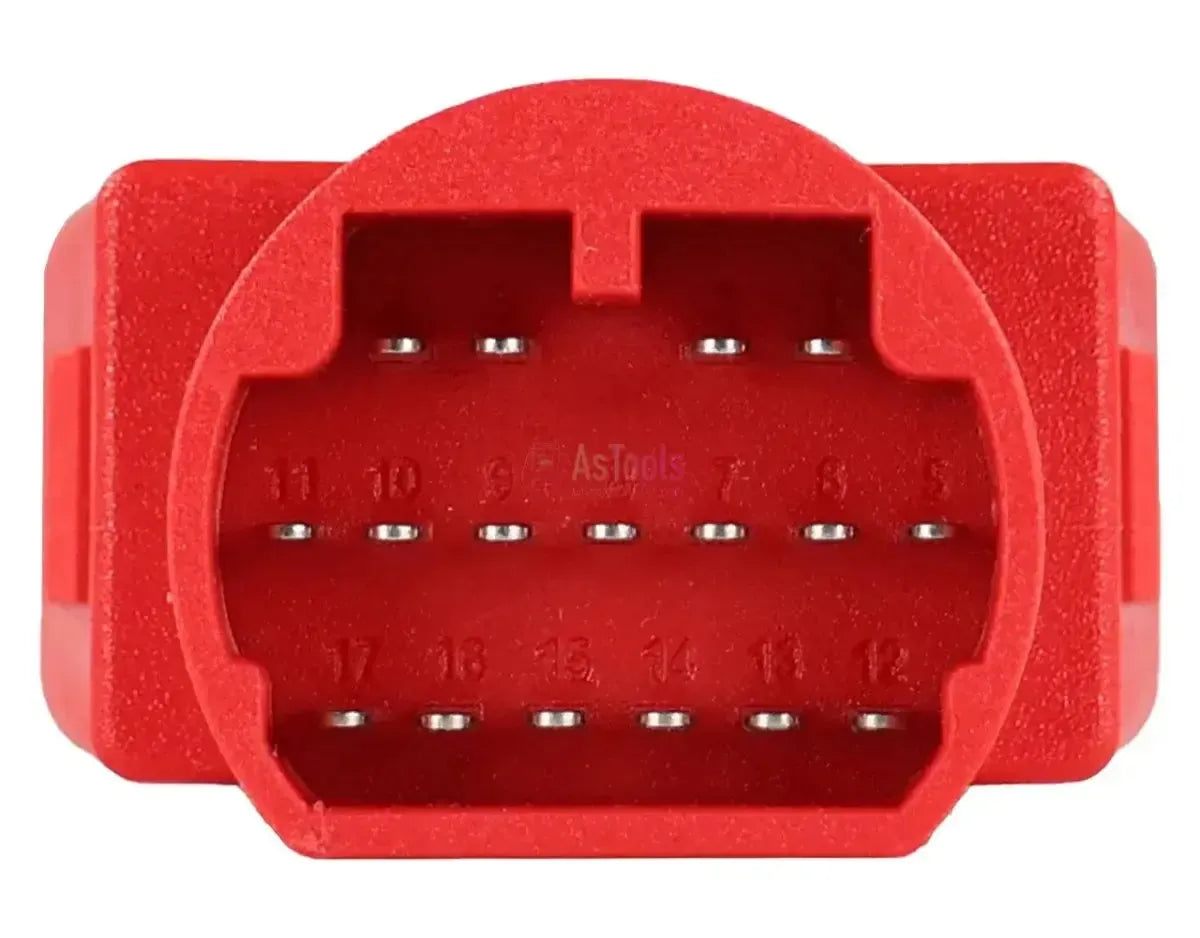

The connector that plugs into the diagnostic port of the vehicle or machine. It must fit exactly.Vehicle-side connector
17-pin (Mazda)

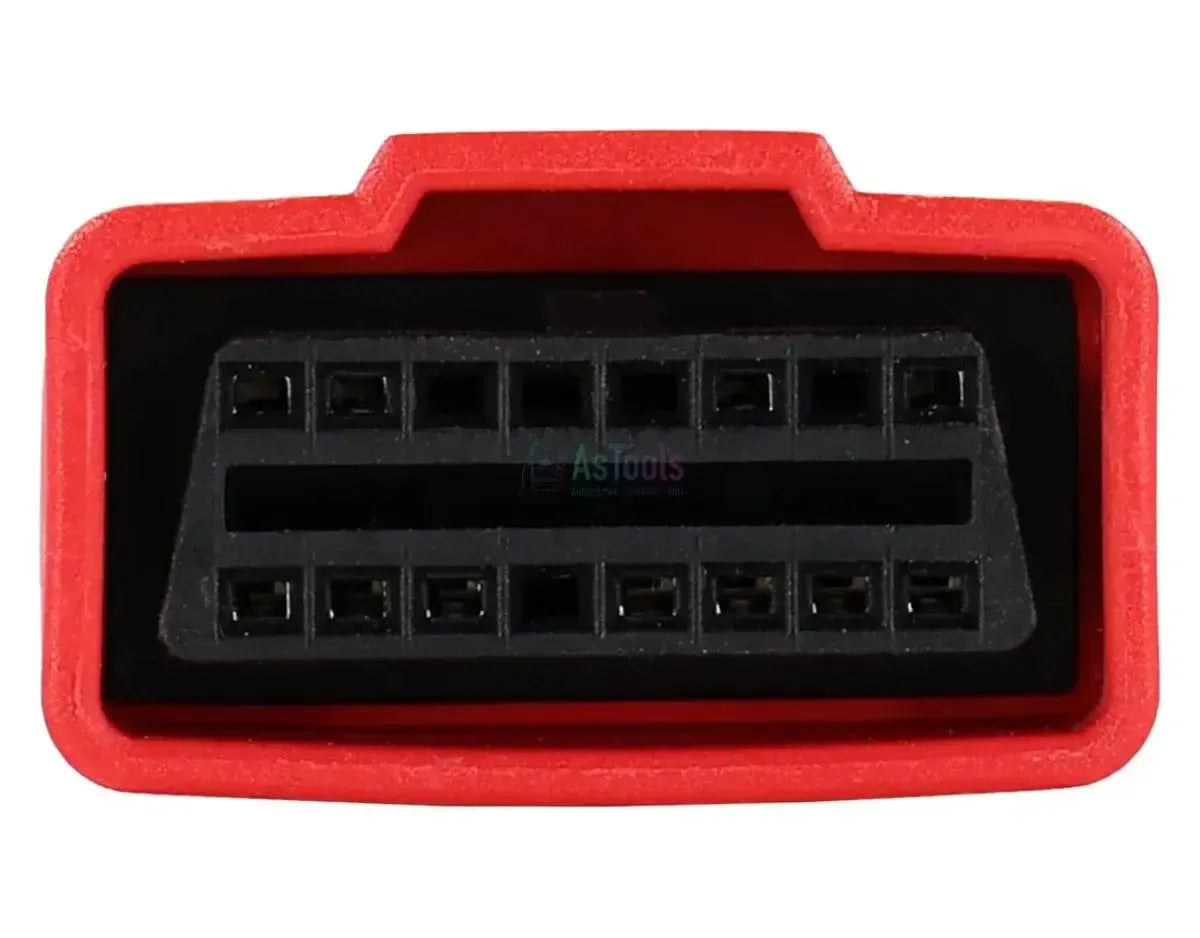

The connector on the side of your diagnostic tool or interface. Usually a 16-pin OBD2 connector.Tool-side connector
16-pin OBD2 (J1962)

Other specifications

Application
Mazda passenger cars with the 17-pin diagnostic connector
Device-side connector
16-pin OBD2 (J1962), for the OBD2 main cable of the Autel device
Suitable for
Autel MaxiSys Ultra, MS919 and MS909
Operation
Passive, no protocol conversion

Reviews

5.0 ★★★★★ 1 review
5 ★1
4 ★0
3 ★0
2 ★0
1 ★0
★★★★★ Baas L.

@All

@All, Ordered OBD1-2 adaptor. Unfortunately it didn't work at all. Reported the issue to Mustafa Demir. He resolved it immediately and sent a working adaptor without charging extra. Products can fail but M. Demir doesn't:-)
