Autel MaxiVCI V200 Interface

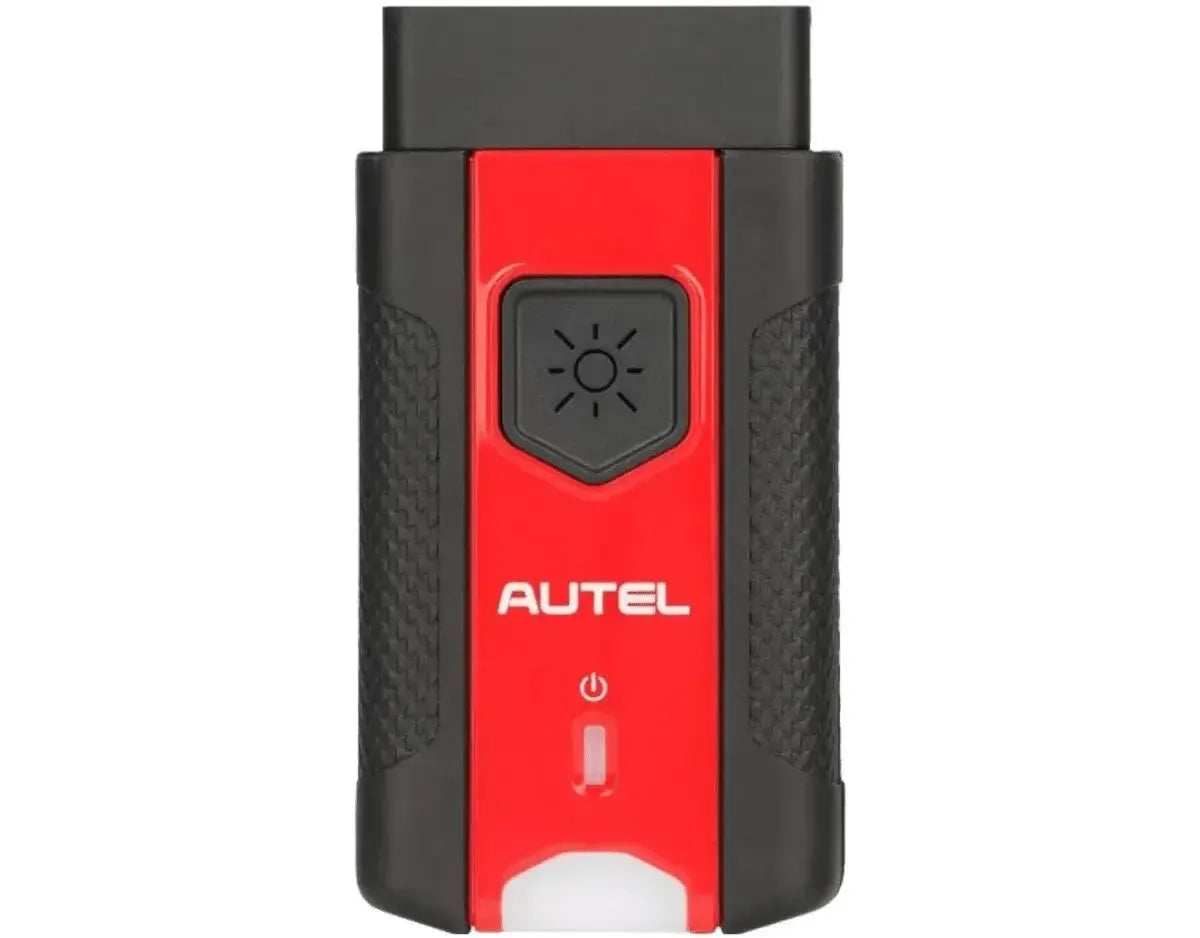

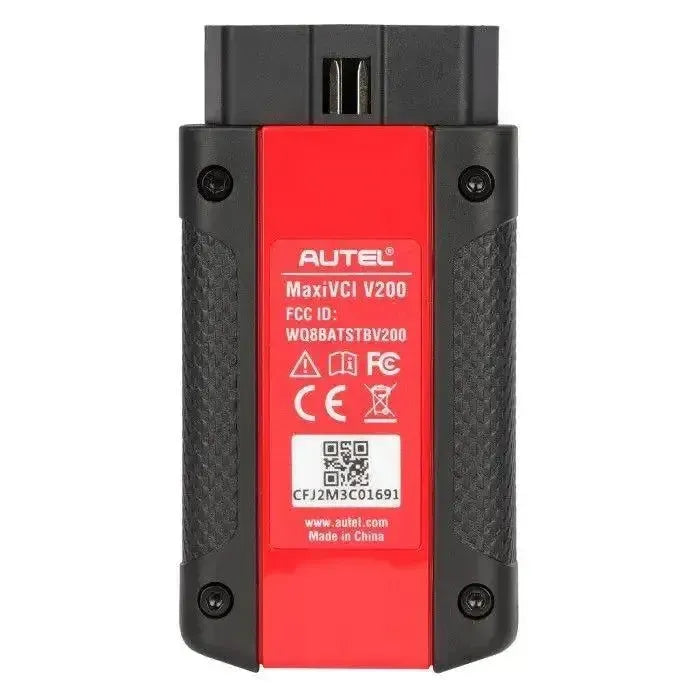

The Autel MaxiVCI V200 is an advanced wireless vehicle communication interface (VCI) that connects via Bluetooth between an Autel diagnostic device and the vehicle. The device is connected to the vehicle's OBD-II port and acts as a bridge for data transfer, enabling diagnostic functions such as fault code reading, live data display, and system tests to be performed efficiently.
Thanks to support for the latest OBD2 protocols, including DoIP and CAN-FD, the MaxiVCI V200 is suitable for modern vehicles with advanced electronic systems. The built-in lithium-ion battery and wireless Bluetooth technology provide a working range of up to 22 meters, giving technicians flexibility during diagnostic work.
Note: The Autel MaxiVCI V200 is intended solely as a replacement for a defective or lost original VCI in compatible Autel diagnostic devices.
Package contents:
- Autel MaxiVCI V200 Interface
Technical specifications
| Specification | Value |
|---|---|
| Communication | Bluetooth v2.1 + EDR |
| USB interface | USB 2.0 |
| Wireless range | Up to 22 meters |
| Power supply voltage | 6V-36V DC via OBD-II |
| Power consumption | 150 mA @ 12V DC |
| Operating temperature | -10°C to +60°C |
| Storage temperature | -40°C to +80°C |
| Built-in battery | 3.7V lithium-ion |
| Dimensions | 89.8 mm x 47.1 mm x 21.1 mm |
| Weight | 70.7 grams |
| Protocol support | OBDII, CAN, ISO9141, KWP2000, J1850 PWM, J1850 VPW, UDS, DoIP, CAN-FD |
