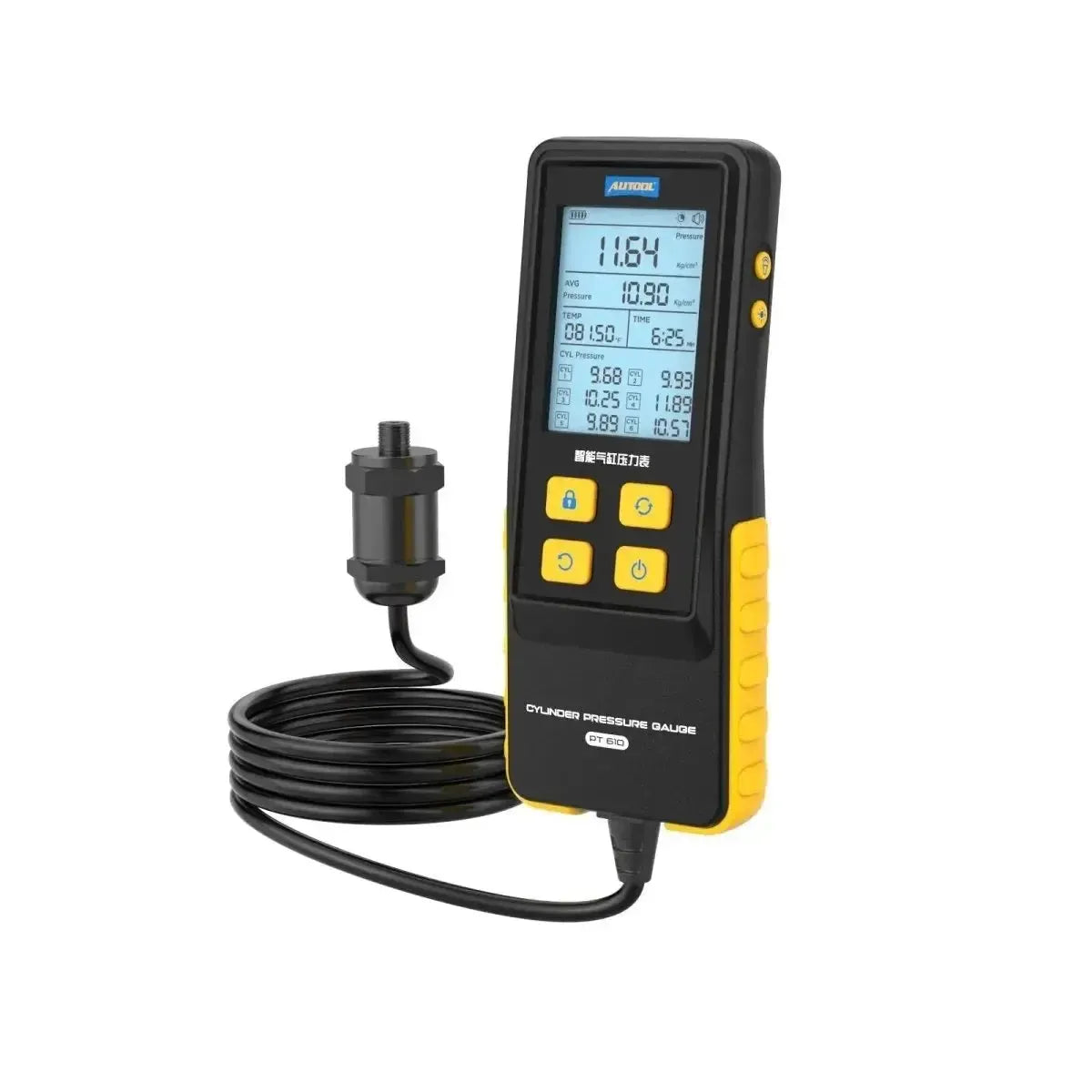

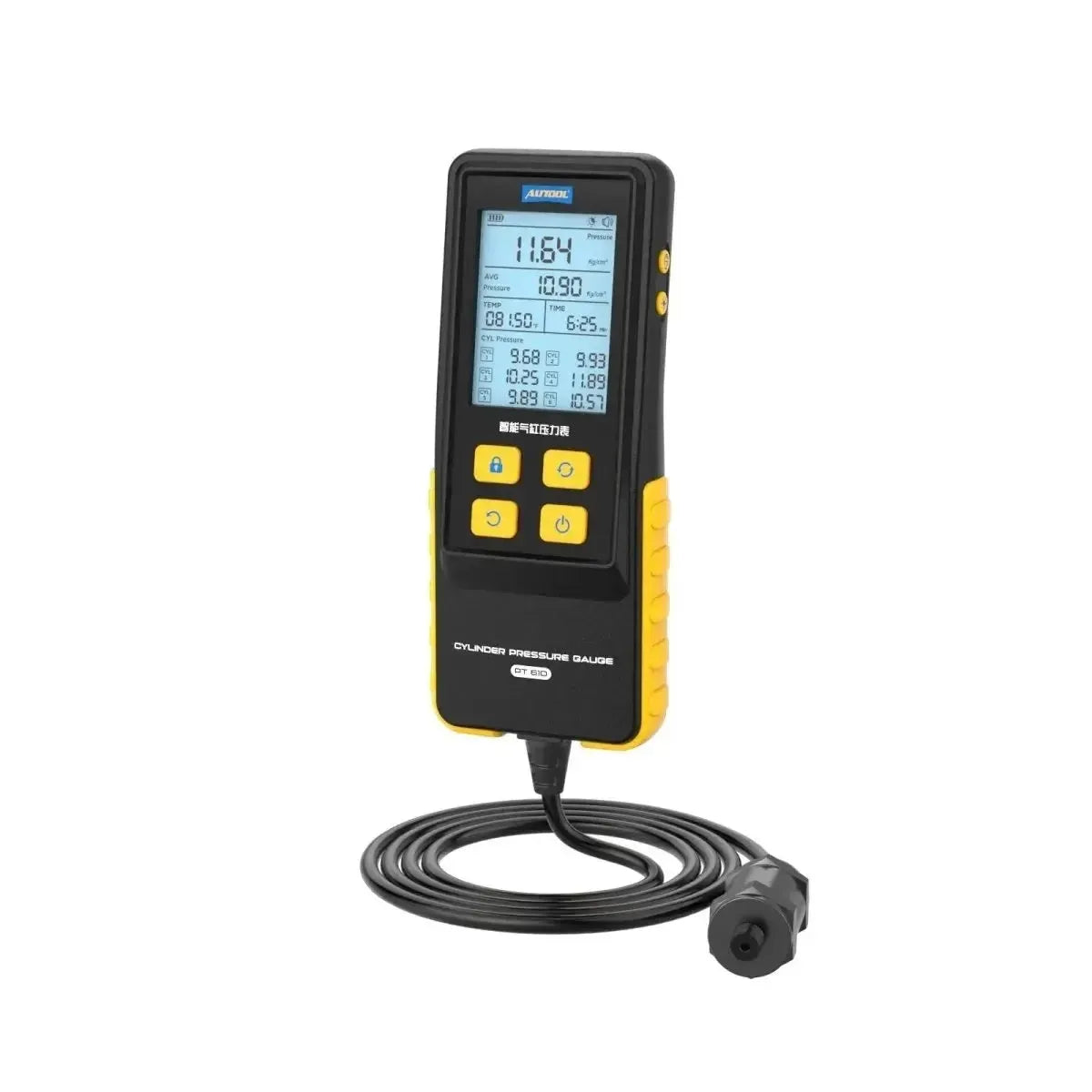

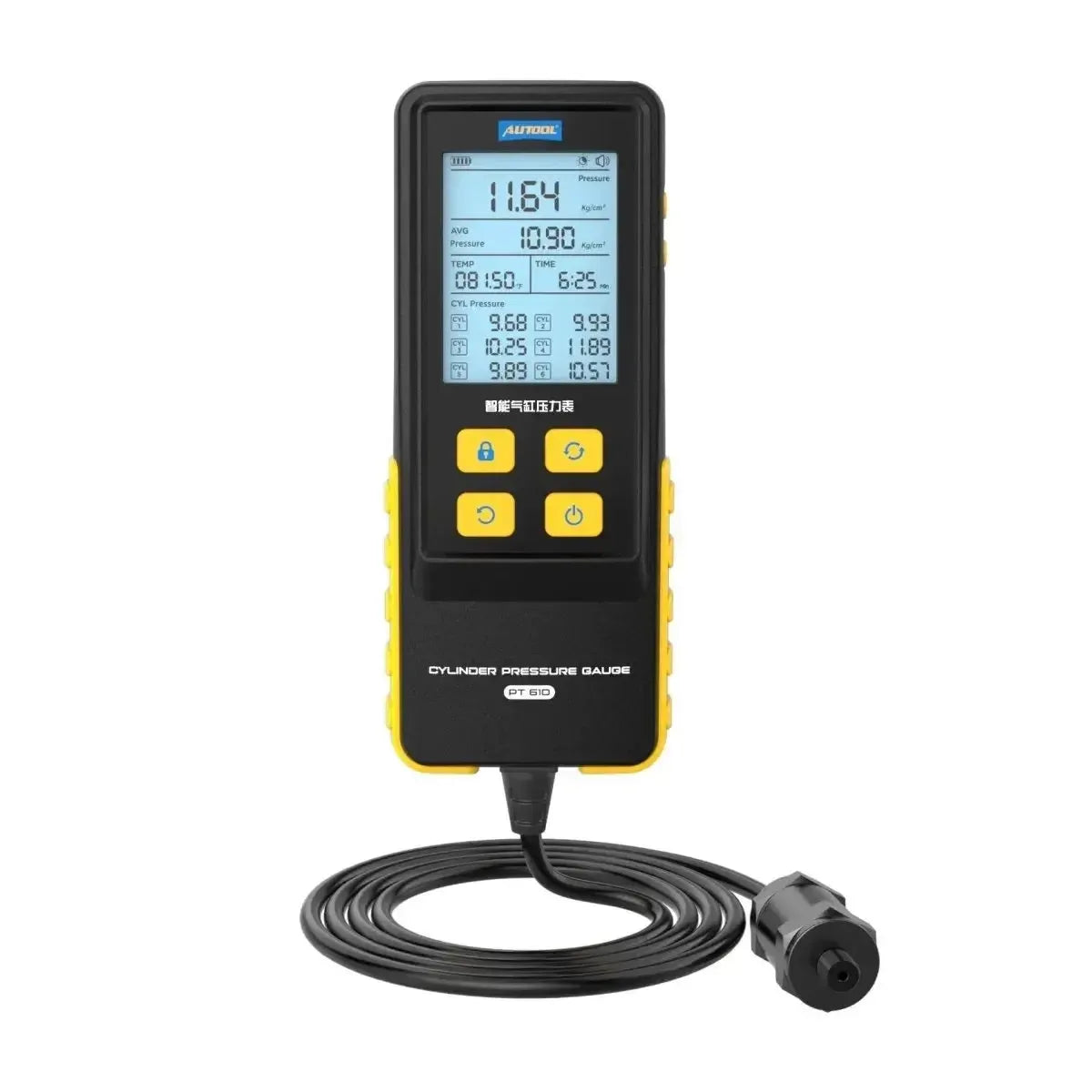

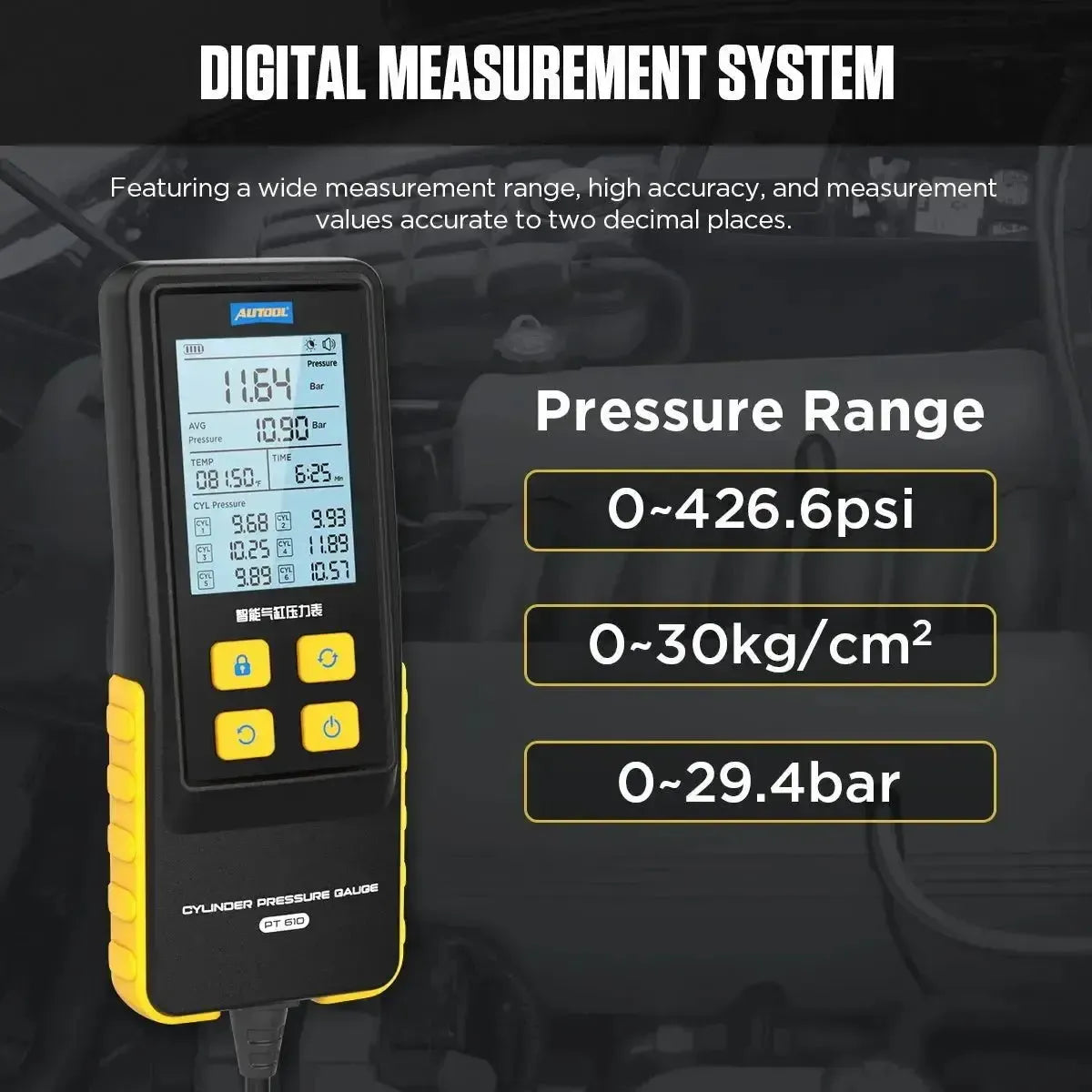

The Autool PT610 is a digital compression tester designed for measuring cylinder pressure in combustion engines. The tester features a 2.8 inch HD screen with backlighting, improving readability under various lighting conditions. The pressure measurement range is 0 to 29.4 bar, 0 to 426.6 psi, or 0 to 30 kg/cm². The set comes with an assortment of Adapters compatible with various spark plug holes.

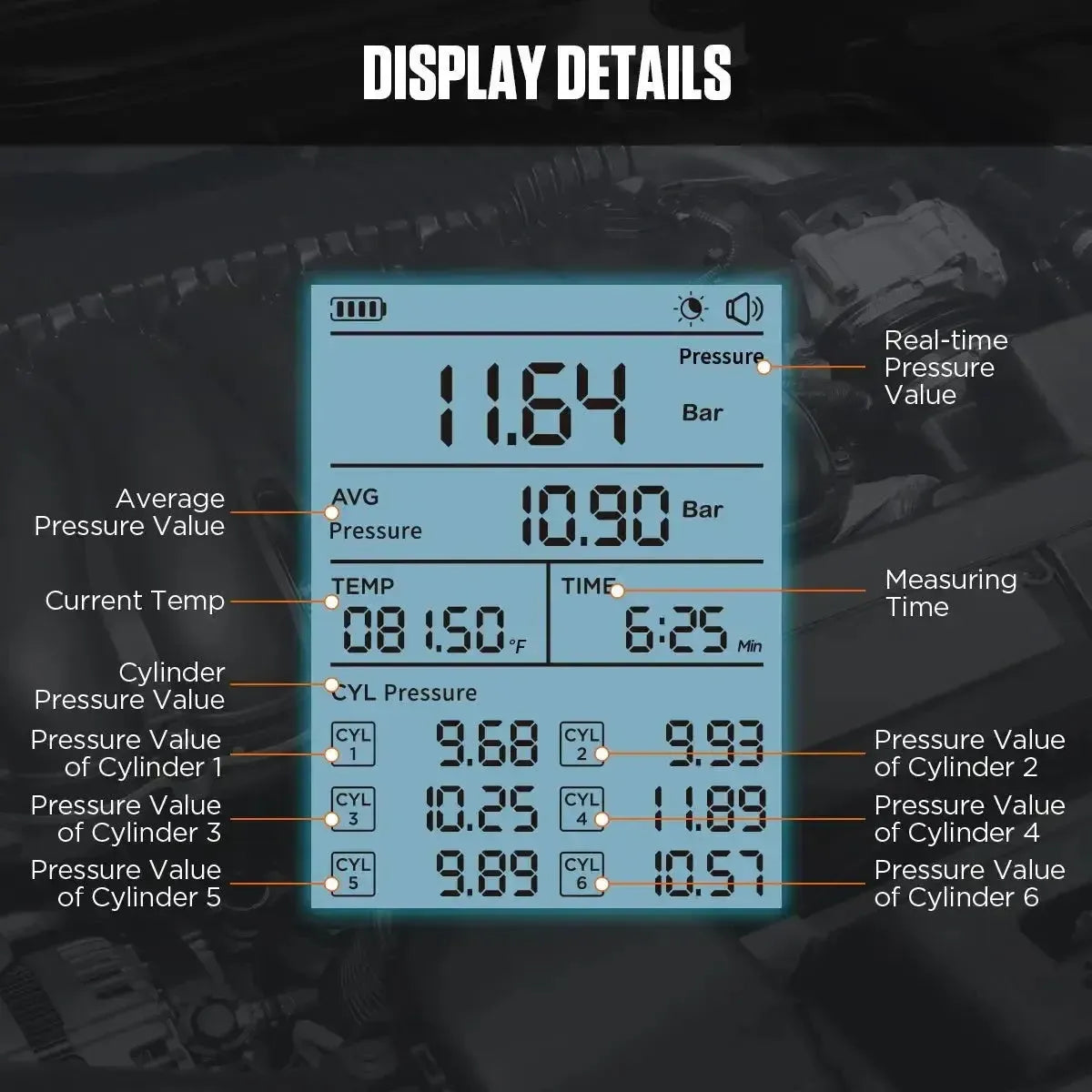

The PT610 offers the ability to store and display measurement values for up to six cylinders, including the average pressure value. The user can switch between different pressure units (psi, bar, kg/cm²) and temperature units (°C, °F). The tester shows real-time pressure, average pressure, cylinder pressure, temperature, and measurement time. The included Adapters are made of riveted copper for a durable and corrosion-resistant connection.
Application and functionality:

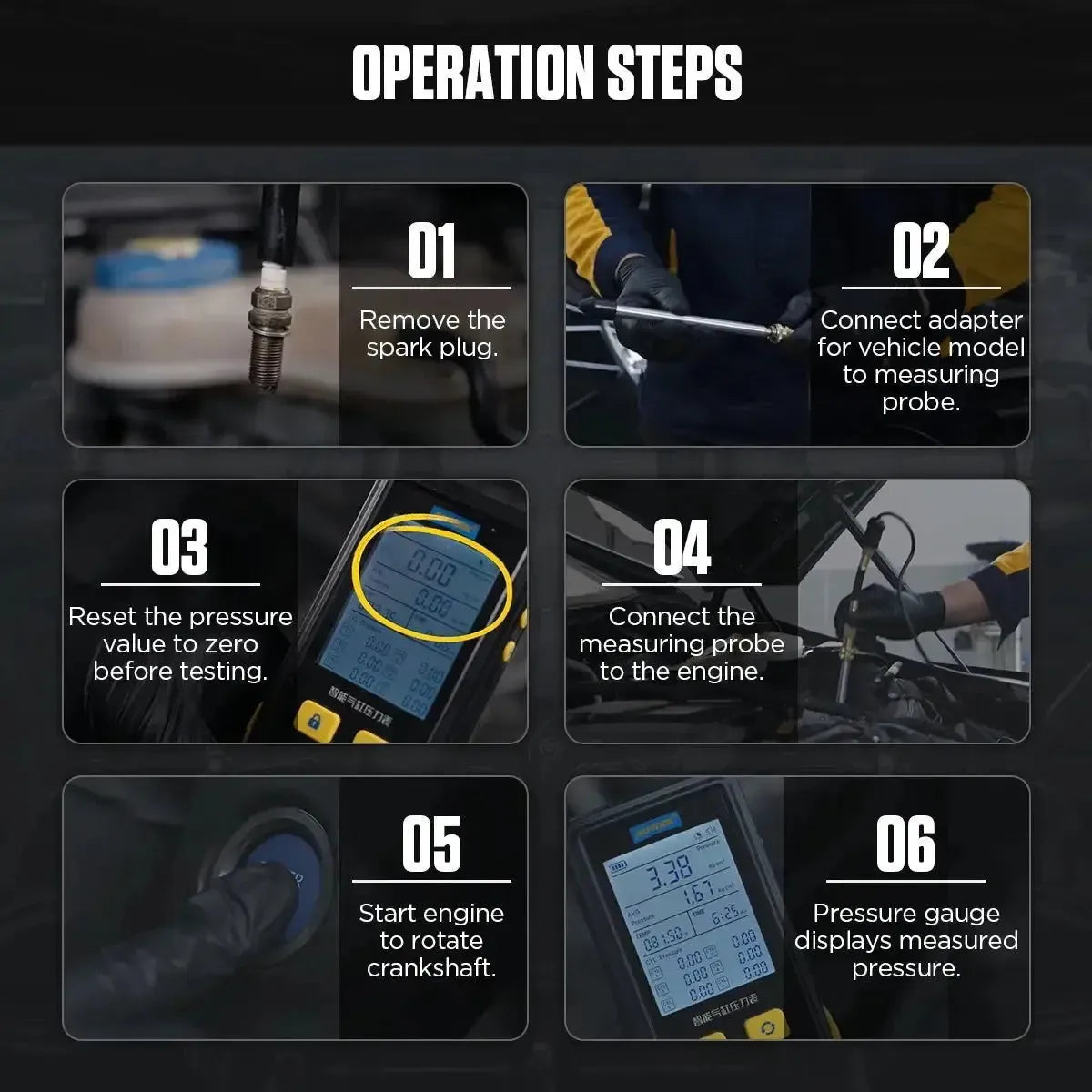

The compression tester is used to diagnose the condition of piston rings, valves, and head gasket of an engine by measuring the pressure in the cylinders.
- Digital measurement: Displays real-time pressure, average pressure, and individual pressure values per cylinder with a resolution up to two decimals.
- Data storage: Has the capacity to store measurement results of up to six test sets for later analysis and comparison.
- Multi-unit display: Allows switching between pressure units psi, bar, and kg/cm² and temperature units Celsius and Fahrenheit.

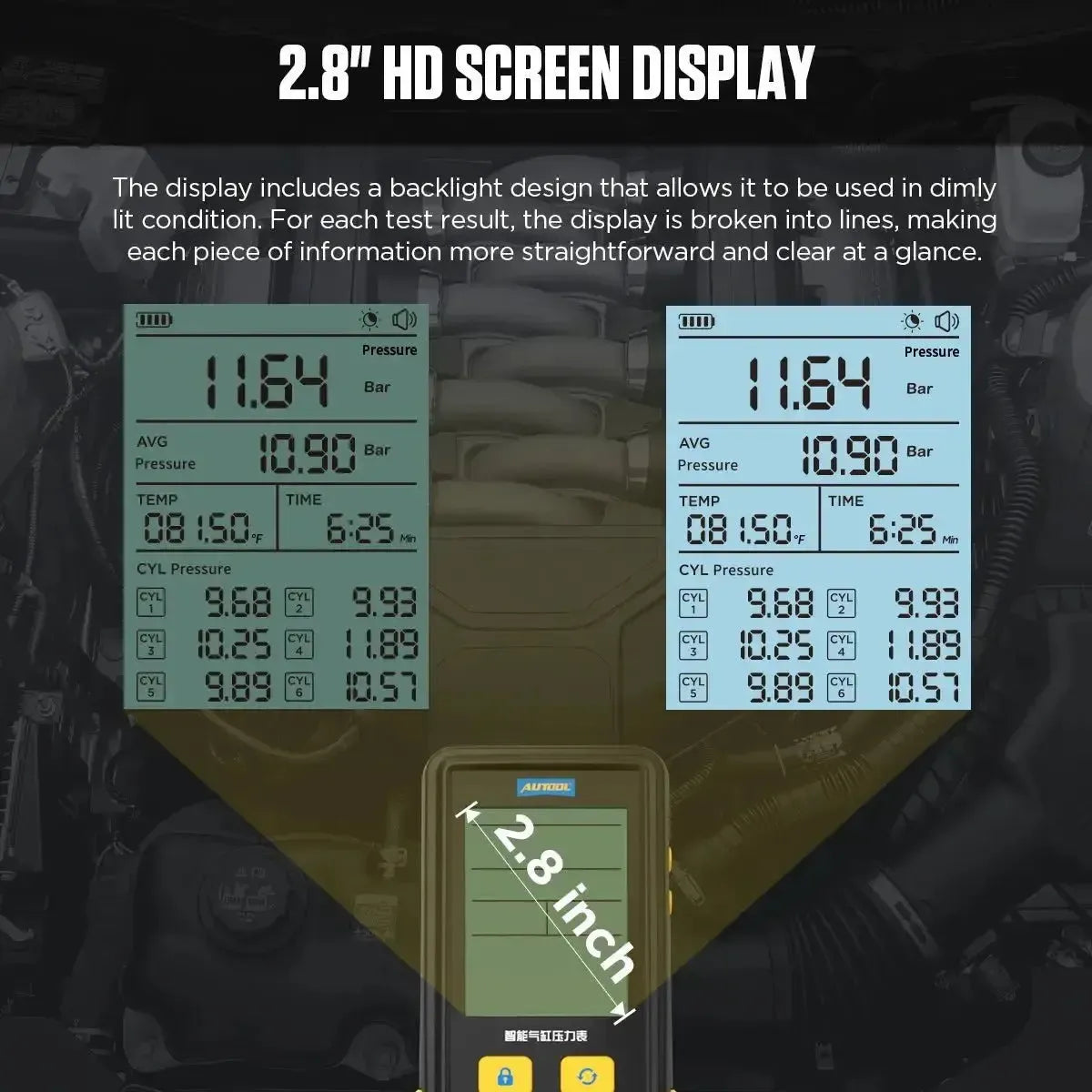

- HD screen: The 2.8 inch screen with backlighting ensures a clear display of all measurement data.
- Quick reset: Equipped with a vent valve for quickly resetting the pressure between measurements.
- Wide compatibility: The set includes various Adapters and test leads for use on a wide range of gasoline engines.

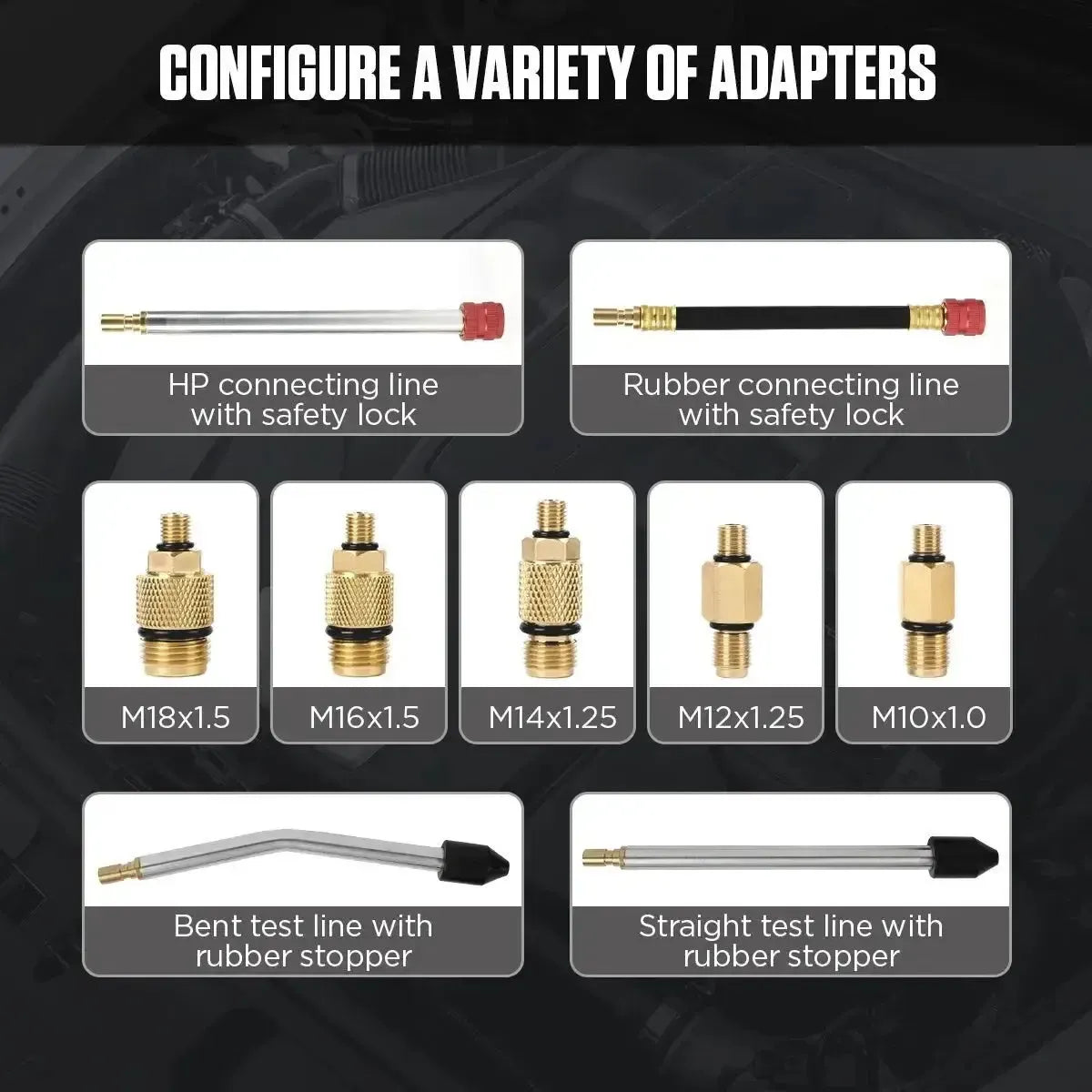

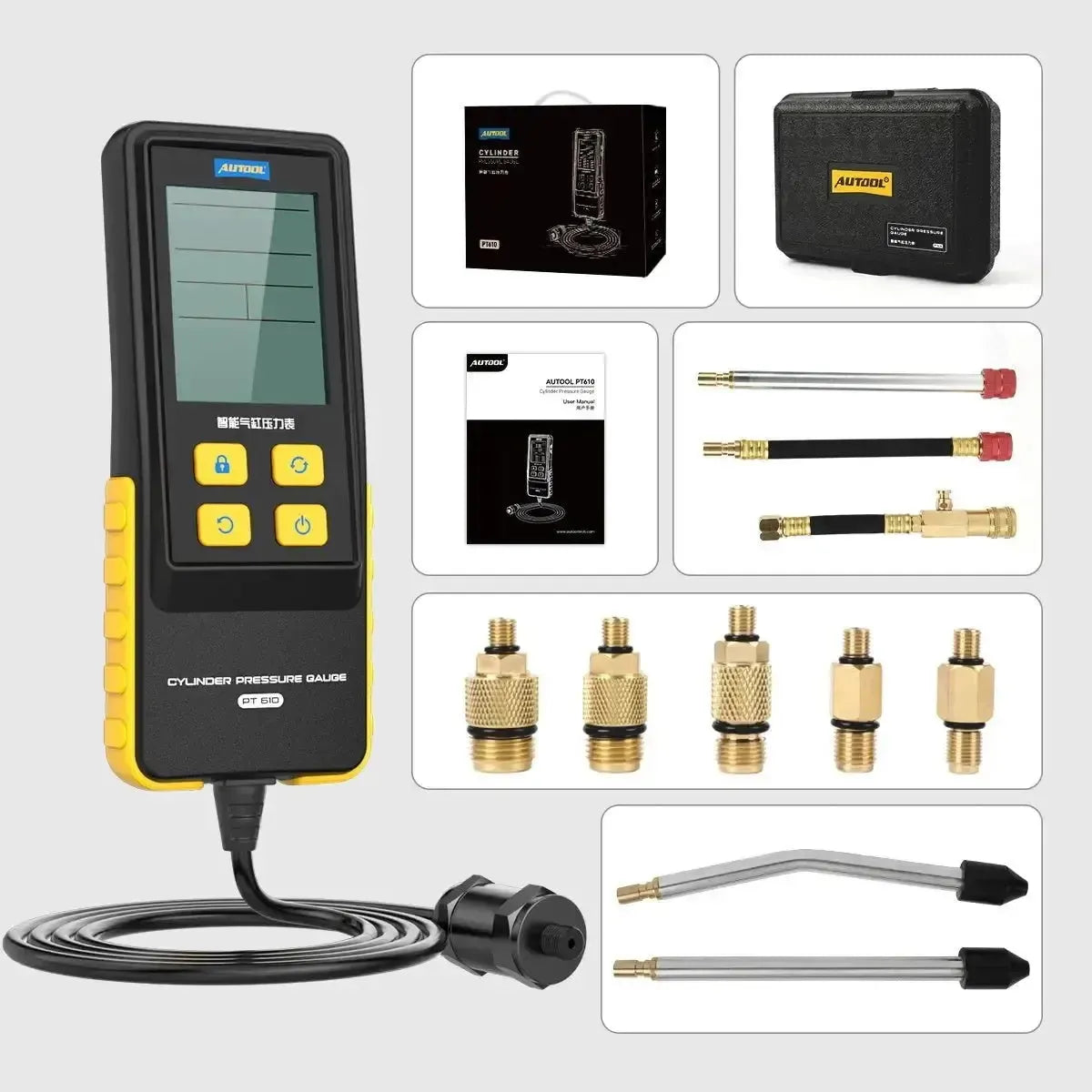

Package Contents:
- 1x Autool PT610 digital compression tester
- 1x Curved test lead with rubber stopper
- 1x HP connection hose with safety lock
- 1x Straight test lead with rubber stopper
- 1x Rubber connection hose with safety lock
- 1x M10x1.0 Adapter
- 1x M12x1.25 Adapter
- 1x M14x1.25 Adapter
- 1x M16x1.5 Adapter
- 1x M18x1.5 Adapter
- 1x Manual
- 1x Storage case
Technical specifications:
| Specification | Description |
|---|---|
| Brand | Autool |
| Model | PT610 |
| Product type | Digital compression tester |
| Screen | 2.8 inch HD screen with backlighting |
| Pressure measurement range | 0 - 29.4 bar / 0 - 426.6 psi / 0 - 30 kg/cm² |
| Pressure units | bar, kg/cm², psi |
| Temperature units | °C, °F |
| Data storage | Up to 6 test sets |
| Adapter material | Riveted copper |
