Jaltest | SKU: JDC501A

Jaltest (JDC501A) | Steyr 3-pins OBD – 16-pins OBD2 Adapter Cable | Internal combustion engine

Name: Jaltest (JDC501A) | Steyr 3-pins OBD – 16-pins OBD2 Adapter Cable | Internal combustion engine
Brand: Jaltest
SKU: JDC501A
Price: 197.95 EUR
Availability: InStock

€197,95 incl.

€163,60 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

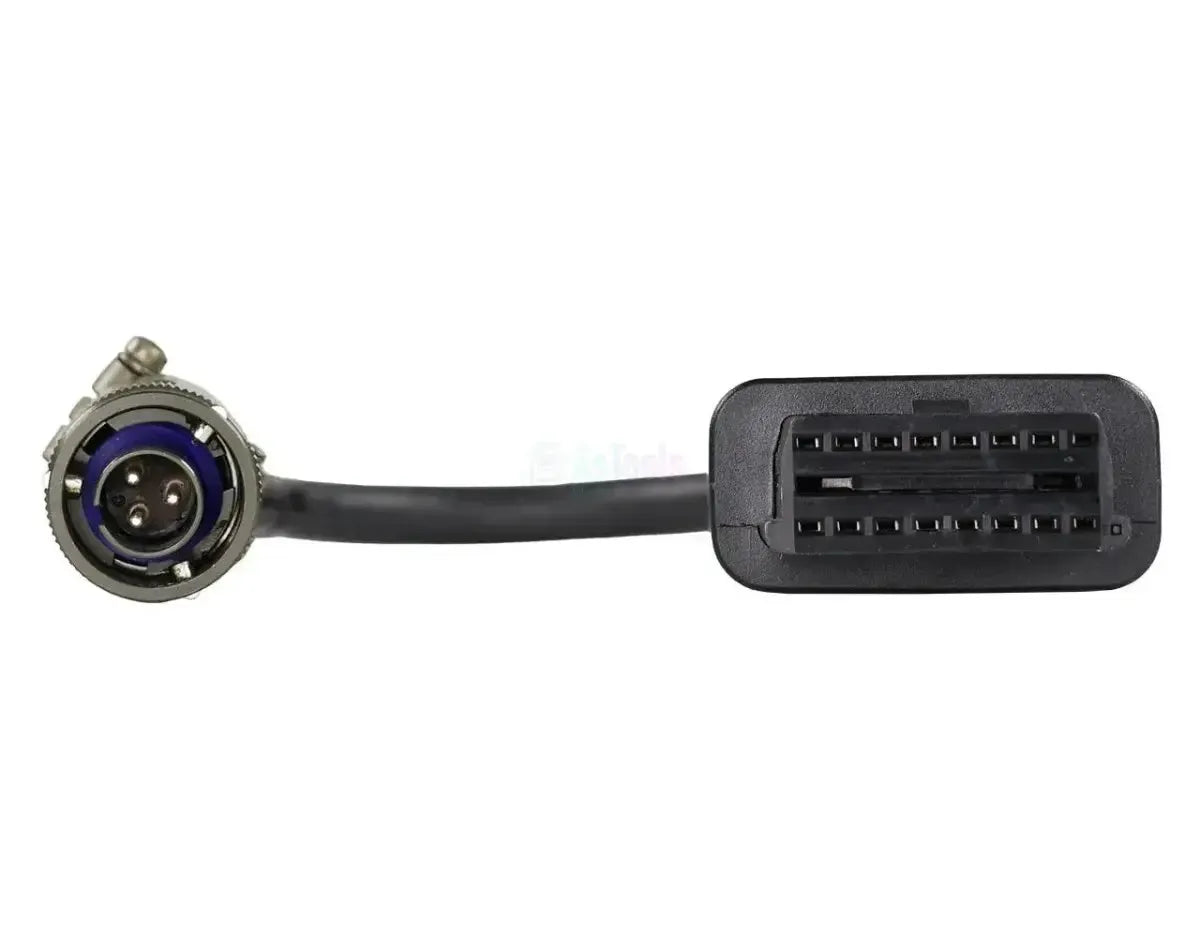

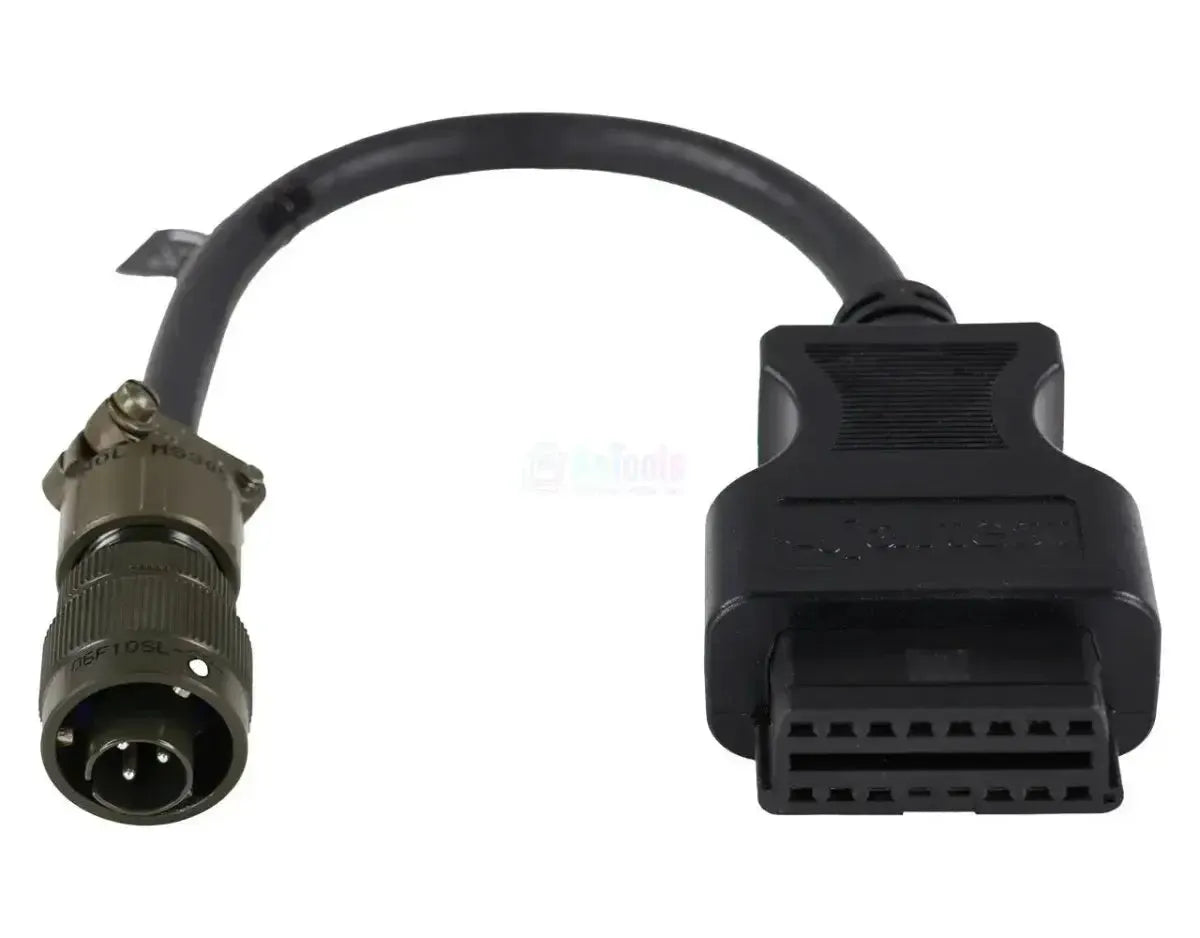

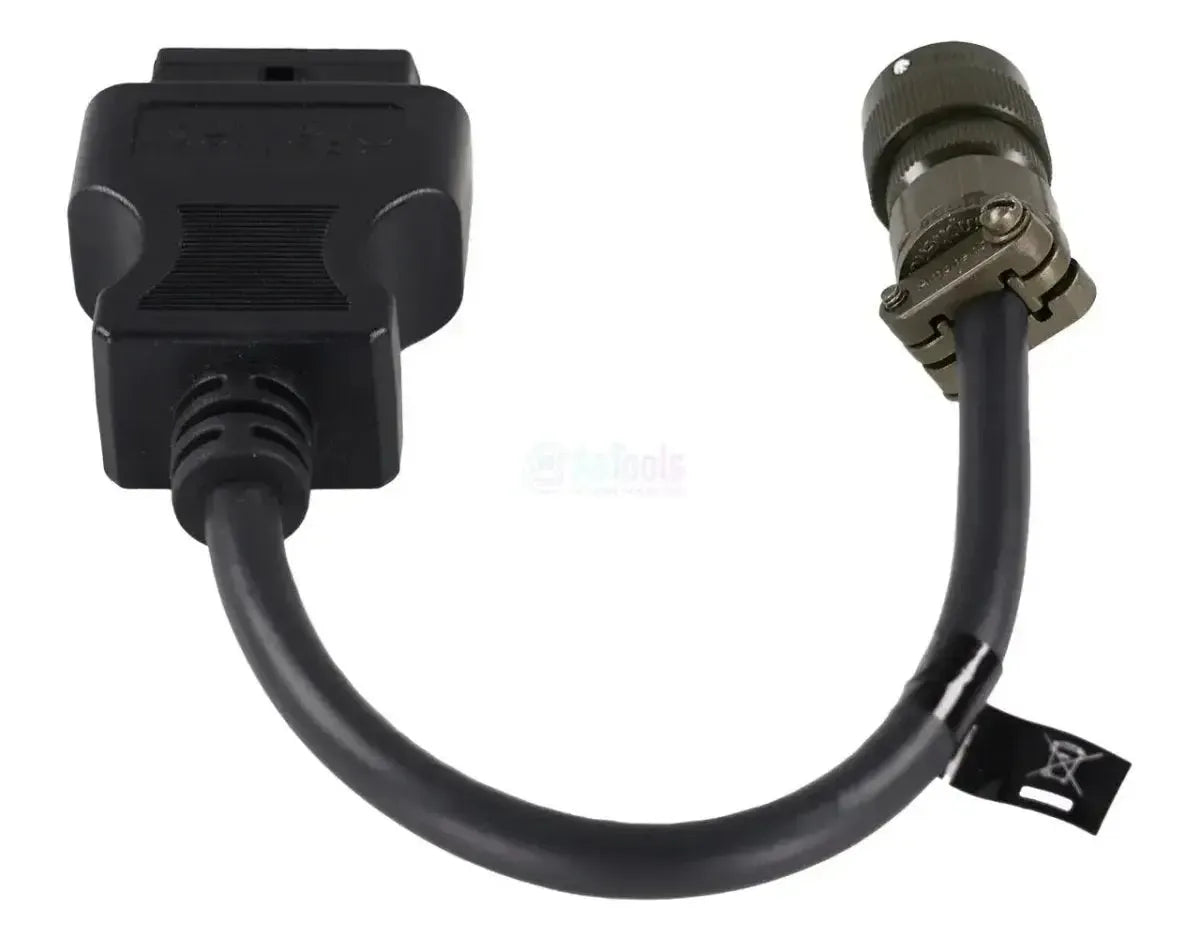

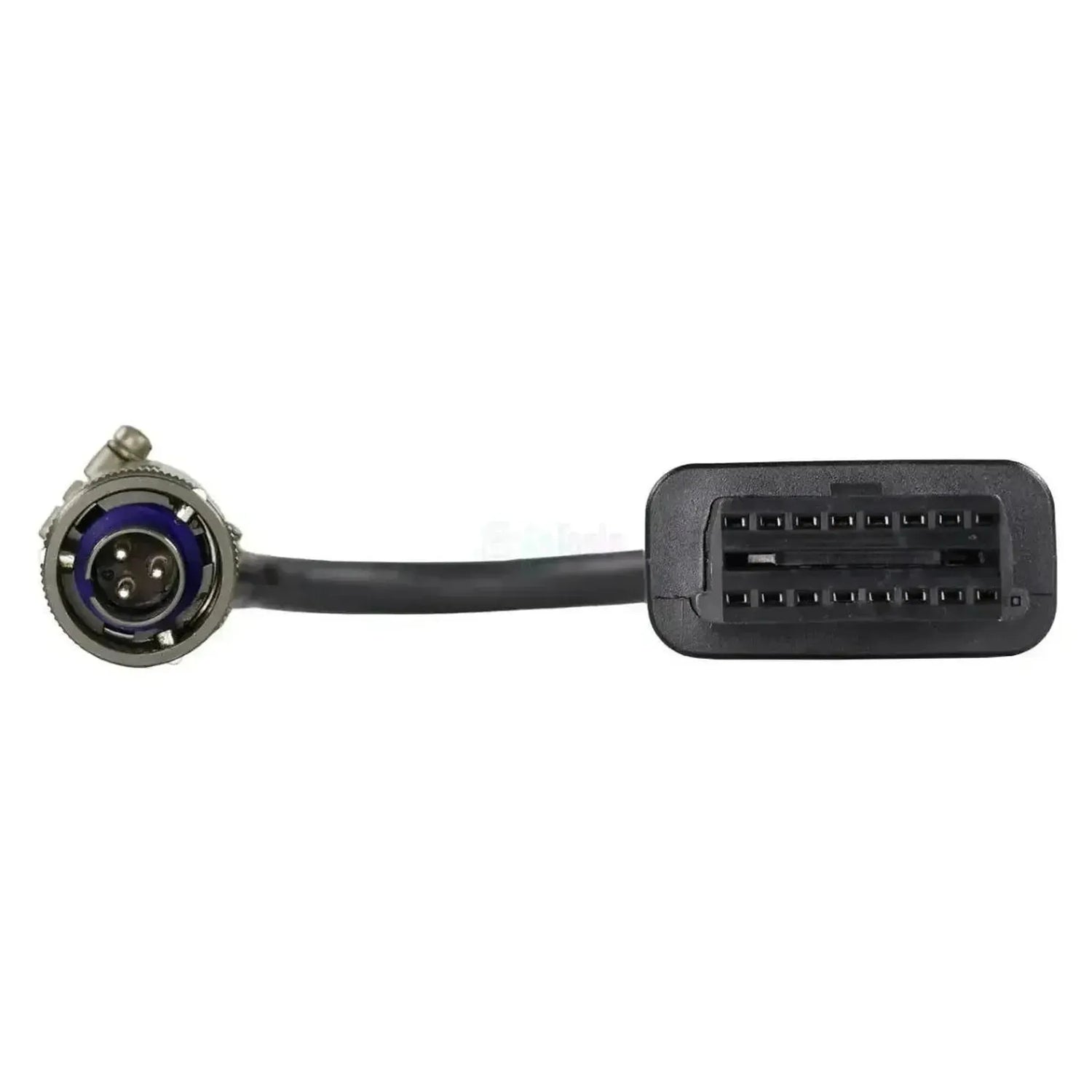

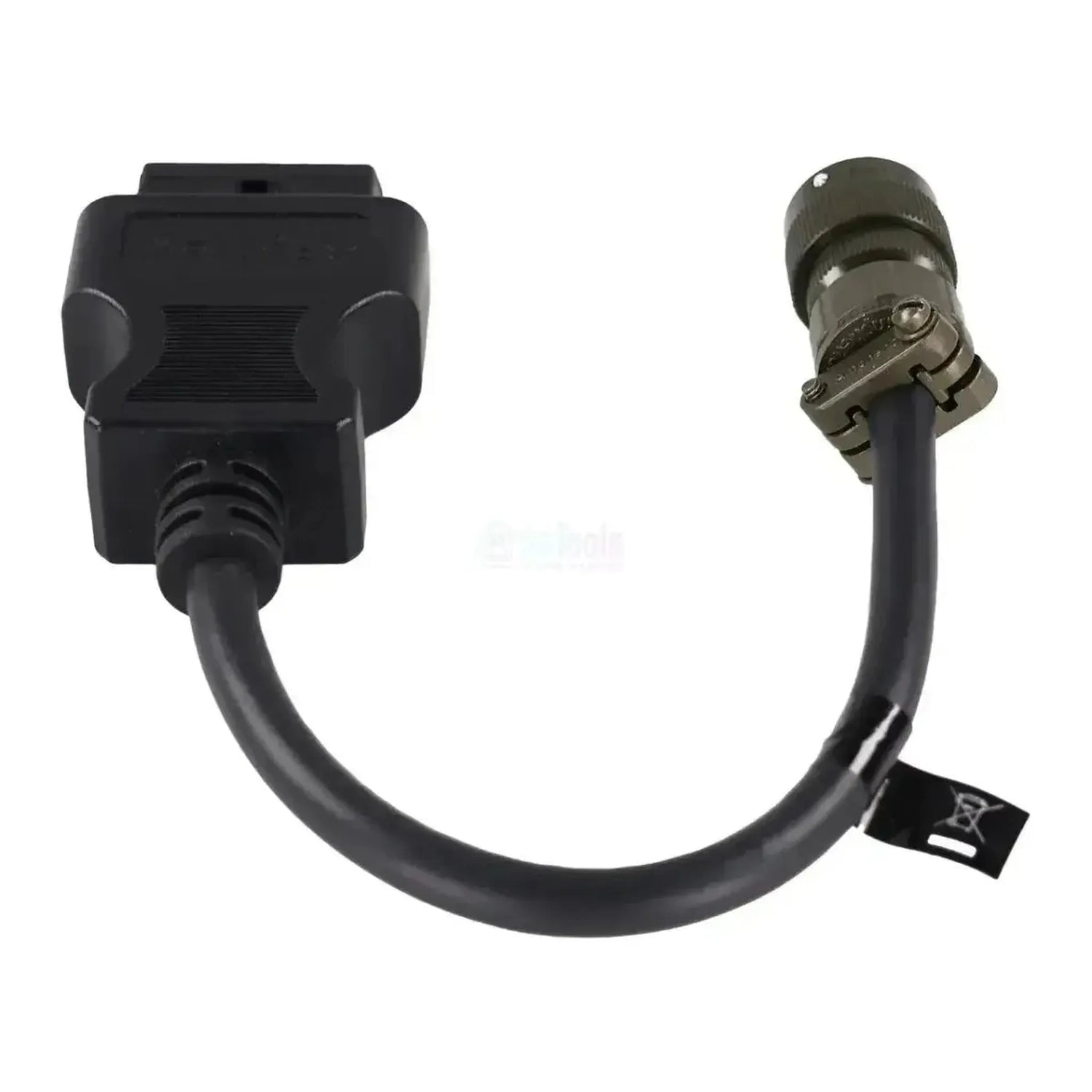

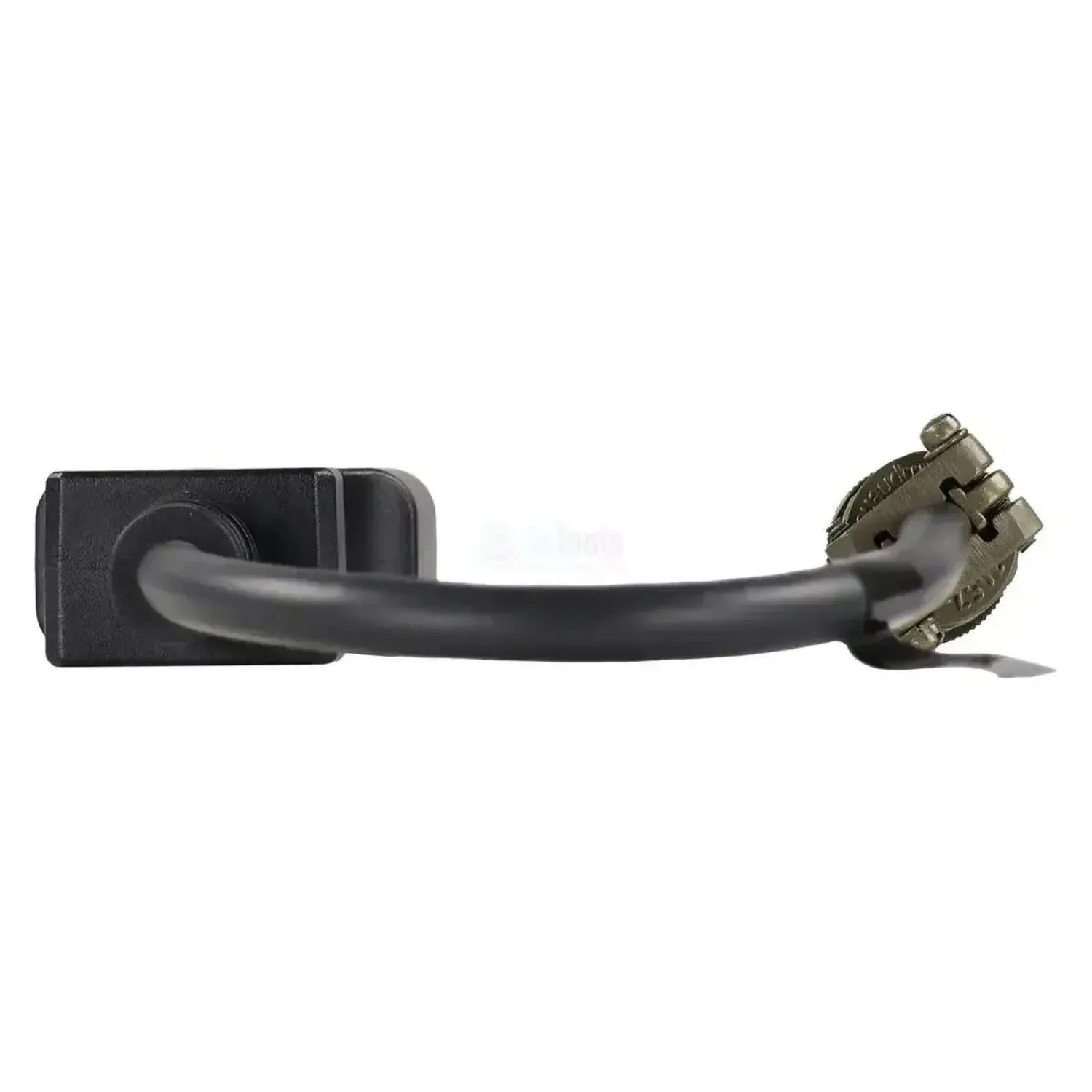

The Jaltest JDC501A connects the manufacturer-specific 3-pin diagnostic connector of Steyr engines to the 16-pin OBD2 port, which the diagnostic cable of the Jaltest Link fits. On the machine side there is a round metal bayonet connector with a knurled ring, with a blue ring around the black insert and three round pins. The cable is 29-31 cm long.

Via this cable you can access the two Steyr engine control units covered by Jaltest, EDC CAN and UIS 1.0, with fault codes, measured values and ECU data. For the 6-pin connector, the JDC502A is available, which has a noticeably larger connector and a red ring. The cable works with the Jaltest Link V8.1 and V9 and falls under Jaltest OHW and Jaltest Marine.

KEY BENEFITS

✔Provides access to both Steyr engine control units covered by Jaltest: EDC CAN and UIS 1.0.

✔The same cable works with stationary Steyr engines and with inboard marine engines; Jaltest covers Steyr in both coverage groups.

✔Both control units include fault codes, measured values and ECU data in the coverage.

✔Works with the Jaltest Link V8.1 and V9: the 16-pin OBD2 port accepts the diagnostic cable of both generations.

POINTS TO NOTE

✕Only fits the 3-pin Steyr connector with blue ring; the 6-pin version with red ring requires the JDC502A.

✕The Steyr coverage is read-out focused: Actuating components, setting parameters and calibrating are not included.

✕For Steyr engines, Jaltest does not offer a maintenance reset; maintenance intervals are also not included.

✕For use, a Jaltest Link and an active licence for Jaltest OHW or Jaltest Marine are required.

Applications and functionality

Via this connection, the Jaltest software accesses the engine control unit of the Steyr engine with 3-pin connector. Jaltest groups these control units in the Steyr Engines coverage group; the diagnostic connector is located on or next to the engine block.

Control units you can access

EDC CAN: CAN version engine control.
UIS 1.0: Engines with pump-injector units.

What you can do

Fault codes: Read and clear.
Measured values: With adjustable alarm limits.
ECU data: Data from the control unit.

How to use it

Check the connector: Locate the 3-pin connector with blue ring.
Connect: Secure the JDC501A with the bayonet fitting.
Link pairing: Connect the OBD2 side to the Jaltest cable.
Ignition on: Switch the ignition on without starting the engine.
Read out: Select Steyr Engines and the control unit.

Compatible engines and applications

The engine is decisive, not the machine in which it is installed. Steyr engines are fitted as a standalone drive, so Jaltest places the coverage with the engine itself. The same engine is therefore covered for stationary engines and for inboard marine engines; whether there is a 3-pin or a 6-pin connector on your engine block should be checked on site.

Steyr:

Steyr Engines: The coverage group with EDC CAN and UIS 1.0.
Stationary applications: Machines and units with a built-in Steyr engine.
Inboard marine engines: Steyr is also covered by Jaltest for inboard marine engines.

💡

Good to know: You can also tell the two Steyr connectors apart without counting: the 3-pin of this cable has a blue ring around the insert, while the 6-pin of the JDC502A is noticeably larger and has a red ring. Check which connector is on your engine before ordering.

Package contents

1x Jaltest (JDC501A) | Steyr 3-pin OBD – 16-pin OBD2 Adapter Cable | Internal combustion engine

Technical specifications

General

The manufacturer of the cable. Jaltest cables work with Jaltest diagnostic equipment.Brand: Jaltest (Cojali)
The type of cable. A diagnostic cable connects to the diagnostic socket, a measuring cable tests an individual component.Cable type: Adapter cable
The Jaltest software package the cable belongs to. A licence for that module is required to use the cable.Jaltest software module: OHW construction and off-road
Marine vessels

Connections

The version of the Jaltest Link diagnostic interface the cable fits. Not every cable works with every version.Compatible Jaltest Link: Jaltest Link V8.1
Jaltest Link V9
The connector on the diagnostic device side. It must fit your interface or diagnostic cable.Interface-side connector: 16-pin OBD2
The connector on the vehicle, engine or machine side. It must fit the diagnostic socket or the component.Vehicle-side connector: 3-pin OBD
The length of the cable. A longer cable allows more room to work.Cable length: 29 to 31 cm

Diagnostics

Whether fault codes can be cleared as well as read. Some systems only allow reading.Clear fault codes: Yes
Whether the current sensor values can be viewed while the vehicle is running. Useful for tracing a fault.View live data: Yes

Usage

Reference number: JDC501A
Control units: EDC CAN and UIS 1.0 (engine control)

Other specifications

Application: Steyr engines with 3-pin diagnostic connector
Interface: Jaltest Link V8.1 and V9, via the 16-pin OBD2 diagnostic cable
Required for use: Jaltest Link and an active licence for Jaltest OHW or Jaltest Marine
