Jaltest (MDC02) | Knorr-Bremse 4-pins EBS - 16-pins OBD2 Adapter Cable | Commercial Vehicle

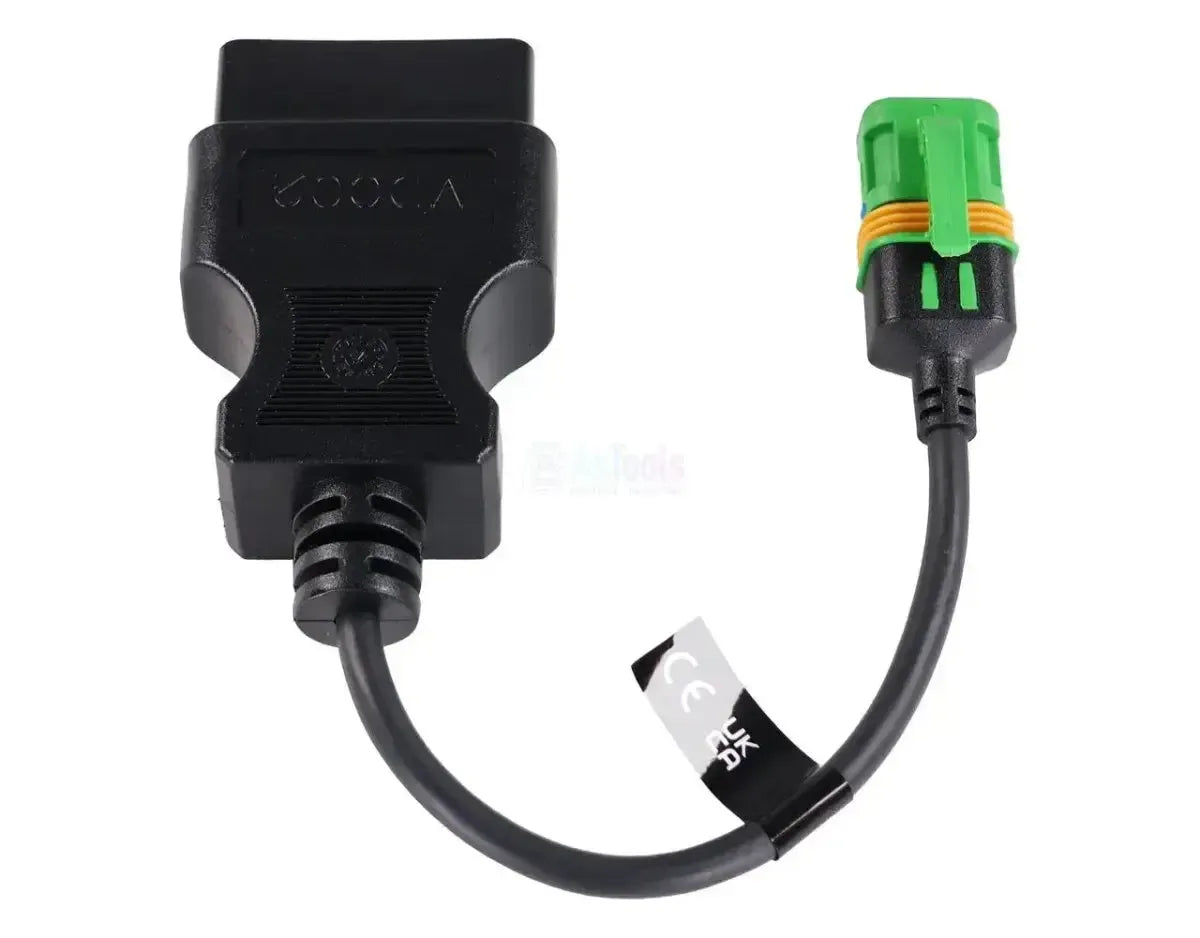

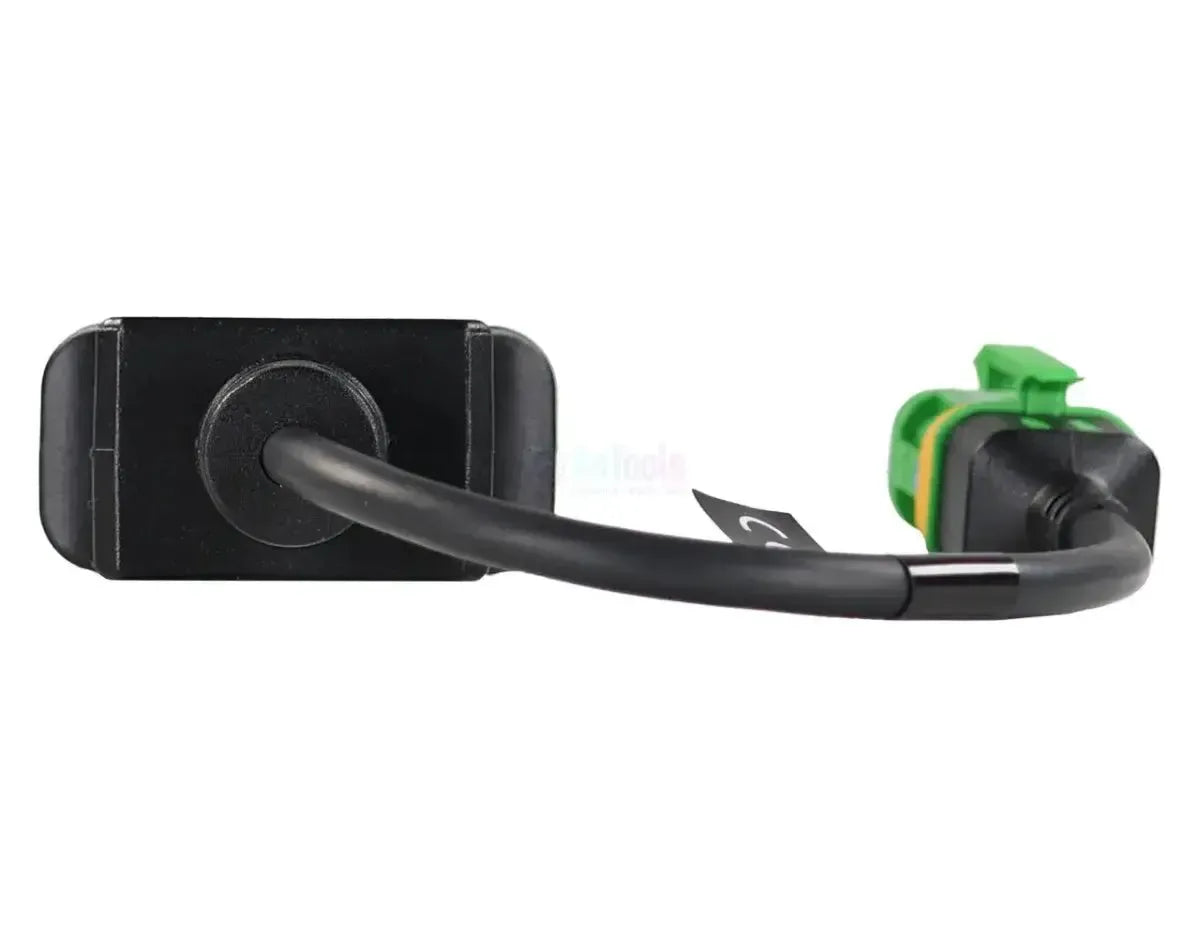

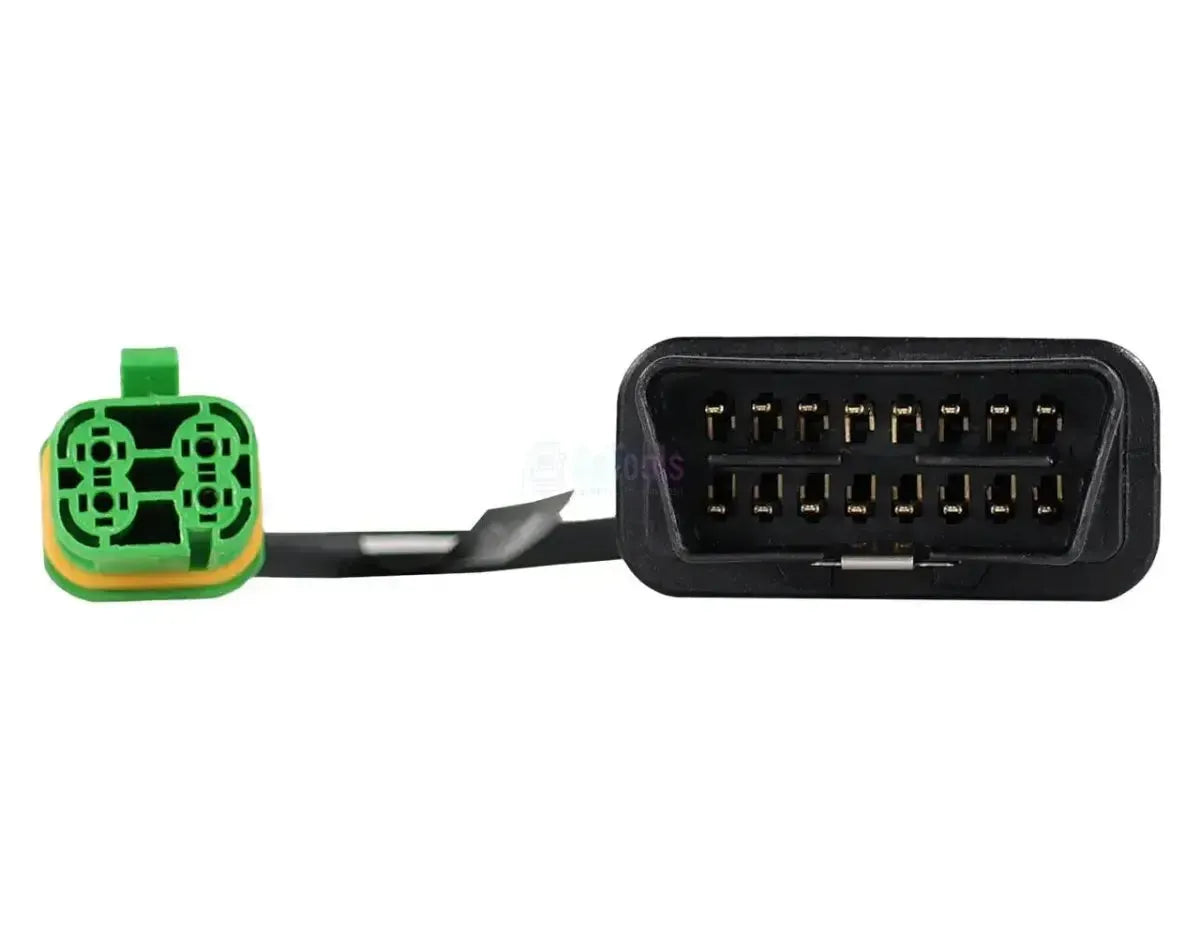

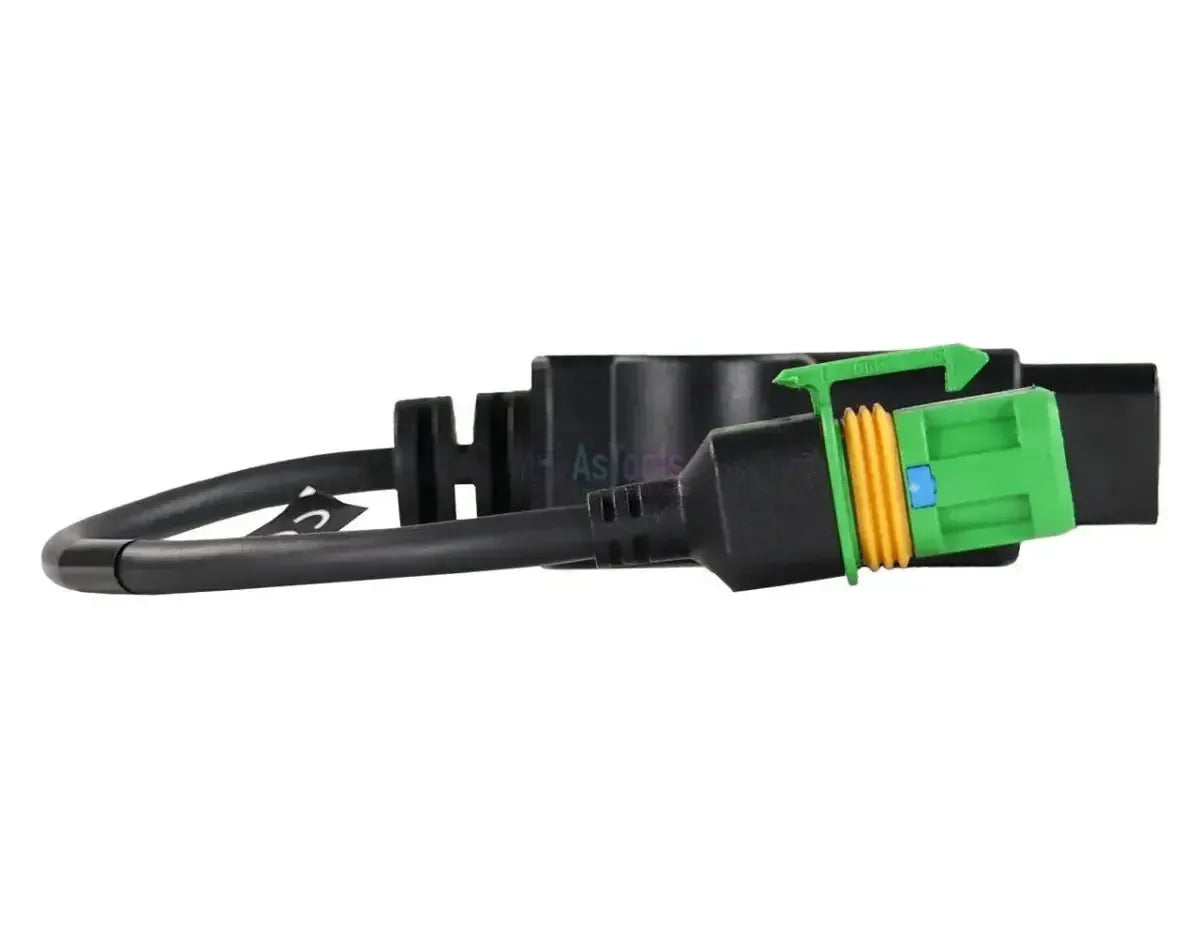

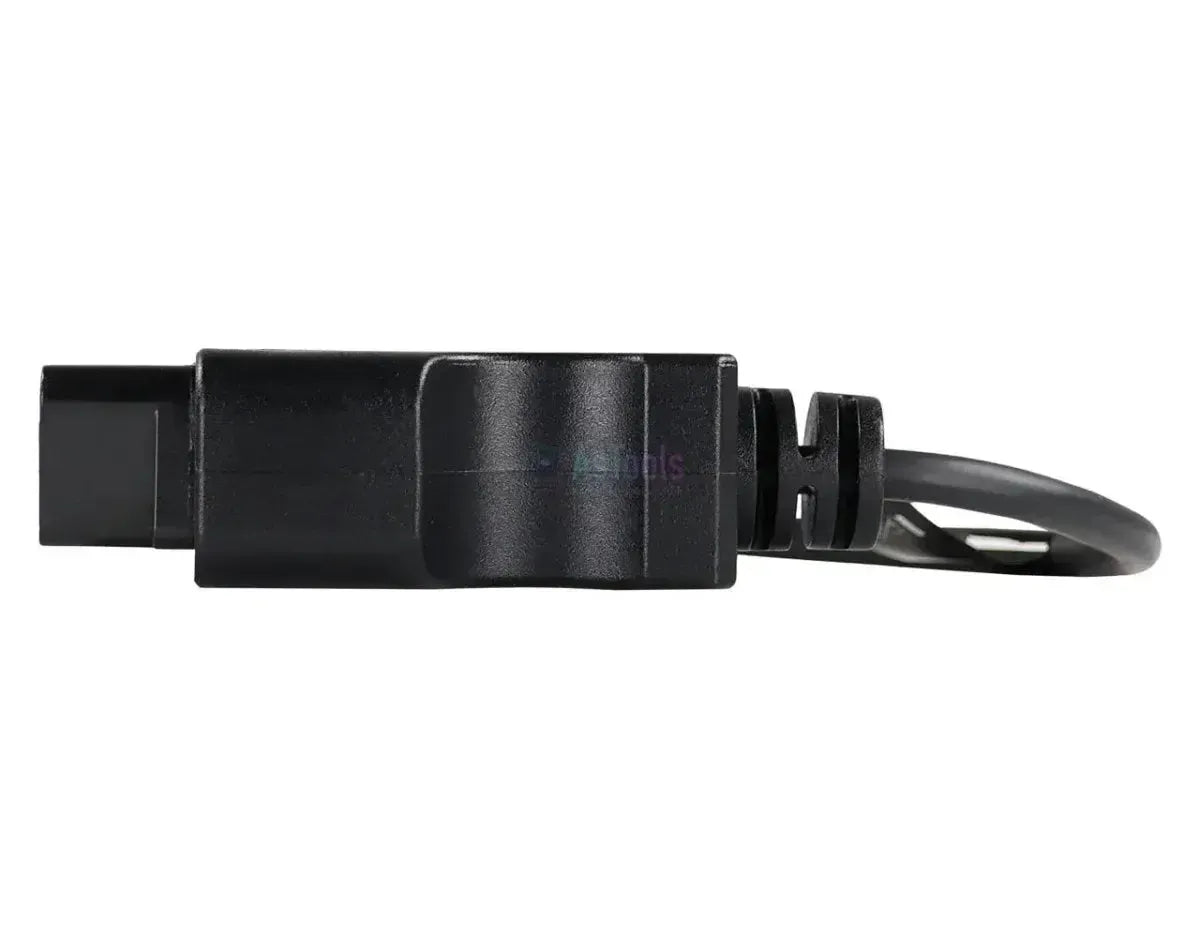

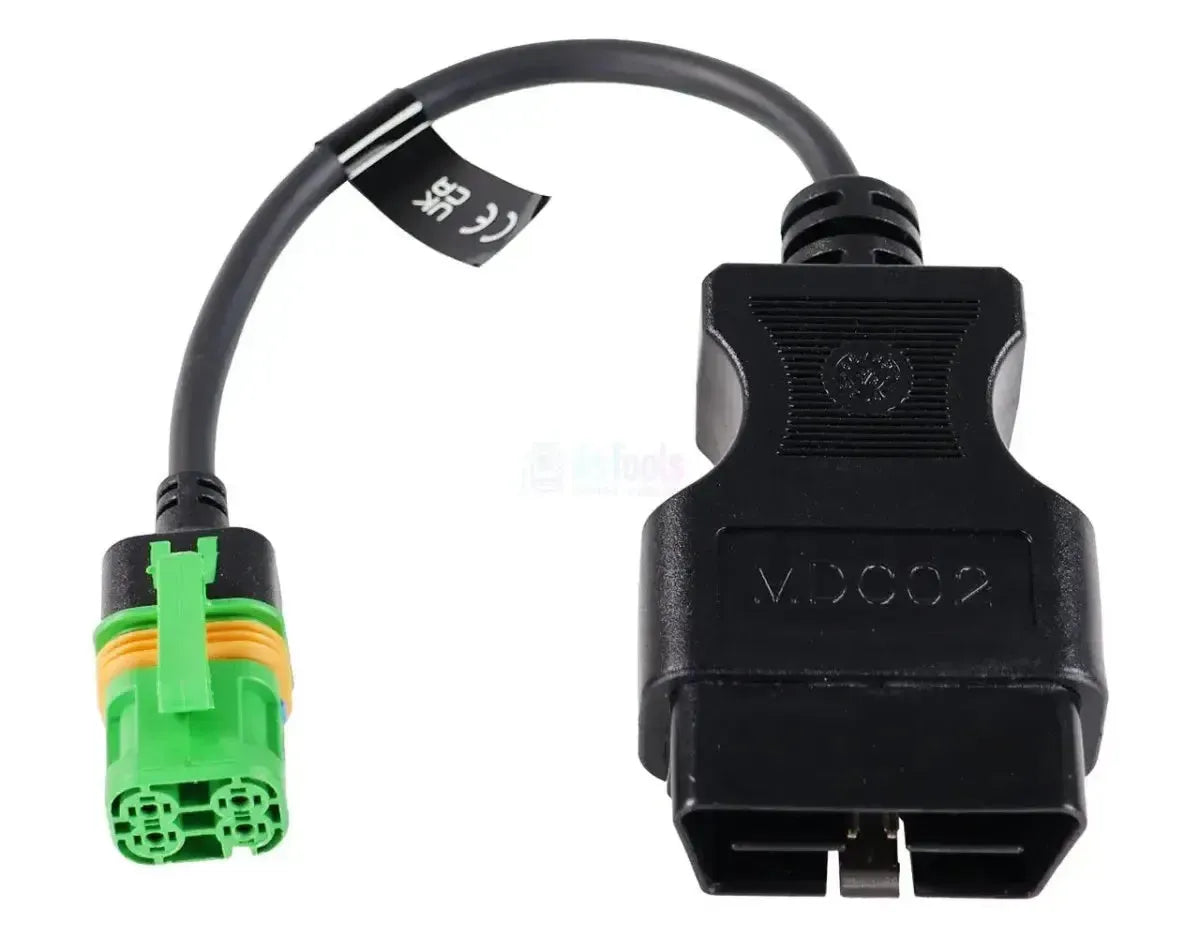

The Jaltest MDC02 is a diagnostic cable designed to establish a connection between a Jaltest diagnostic interface or the Jaltest ETM (Electronic Test Module) and specific Knorr-Bremse EBS modules. This Adapter Cable converts the vehicle-specific 4-pin Knorr-Bremse EBS connector to a standard 16-pin OBD2 connector. The cable is specifically developed for performing diagnostics on the electronic braking systems of MAN commercial vehicles.

This cable enables direct communication with the EBS modulator, independent of the vehicle’s central diagnostic port. This is important for conducting in-depth tests, checking components, reading specific fault codes stored in the modulator, and performing system calibrations directly on the module.

Application and functionality:

This cable is designed to establish a direct communication link with Knorr-Bremse EBS modules for advanced diagnostic tasks.

• Direct diagnosis: Enables direct reading of the Knorr-Bremse EBS module, separate from the vehicle’s central ECU.
• Component testing: Provides the ability to verify the functionality of the EBS modulator and associated sensors using the Jaltest ETM module.
• Fault code analysis: Facilitates reading and clearing of specific fault codes stored exclusively in the EBS module.

Compatible vehicles and applications:

This diagnostic cable is specifically developed for use on MAN commercial vehicles equipped with a Knorr-Bremse EBS (Electronic Braking System) with a 4-pin diagnostic connector.

MAN:

• TGA
• TGL
• TGM
• TGS
• TGX

Important: Before purchasing the product, always check your vehicle’s connector. It may vary depending on the model and year of manufacture.

Package Contents:

• 1x Jaltest (MDC02) | Knorr-Bremse 4-pin EBS - 16-pin OBD2 Adapter Cable | Commercial Vehicle

Technical specifications:
