Jaltest (JDC511A) | CNH Group Switch 9-pins Deutsch Adapter | Agricultural Vehicle

Regular price
€84,95 incl.
€70,21 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

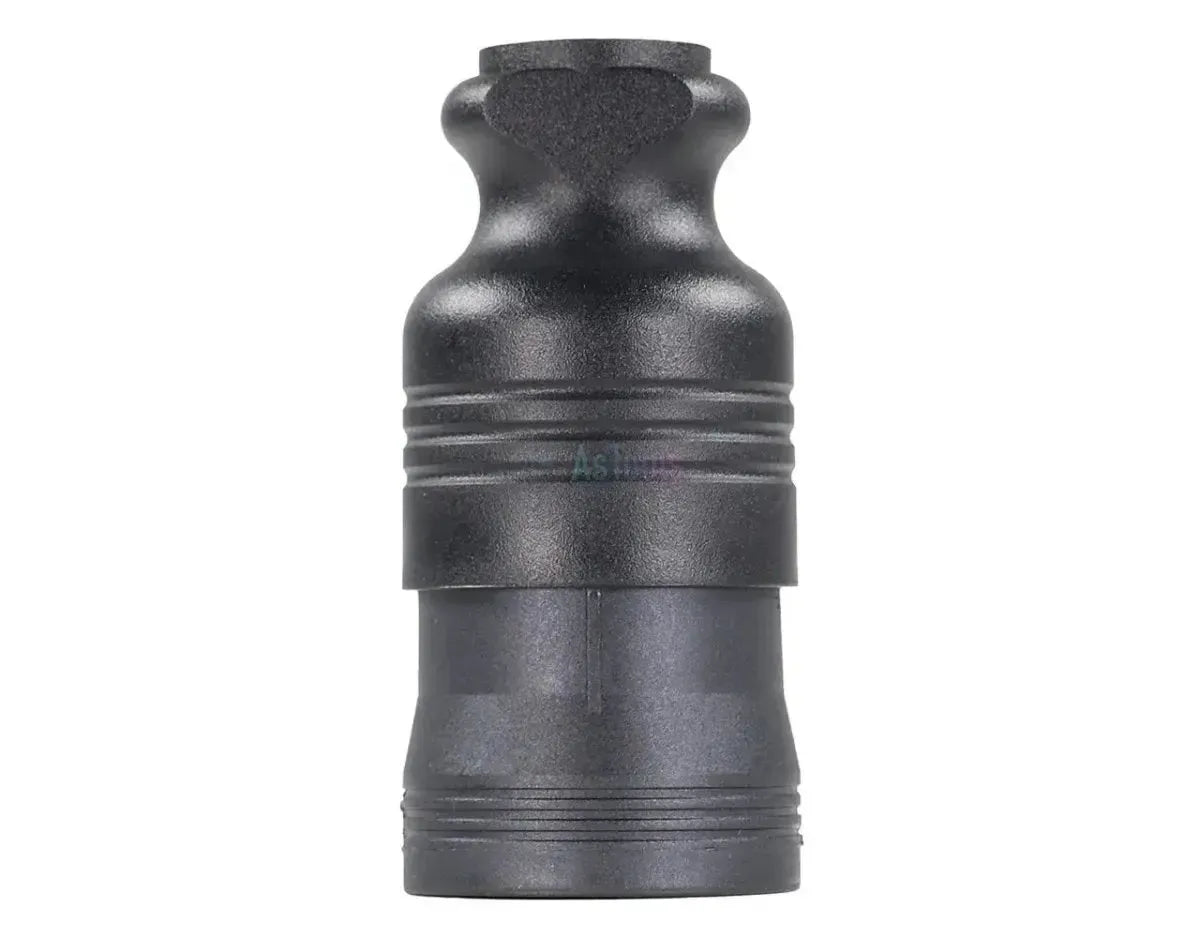

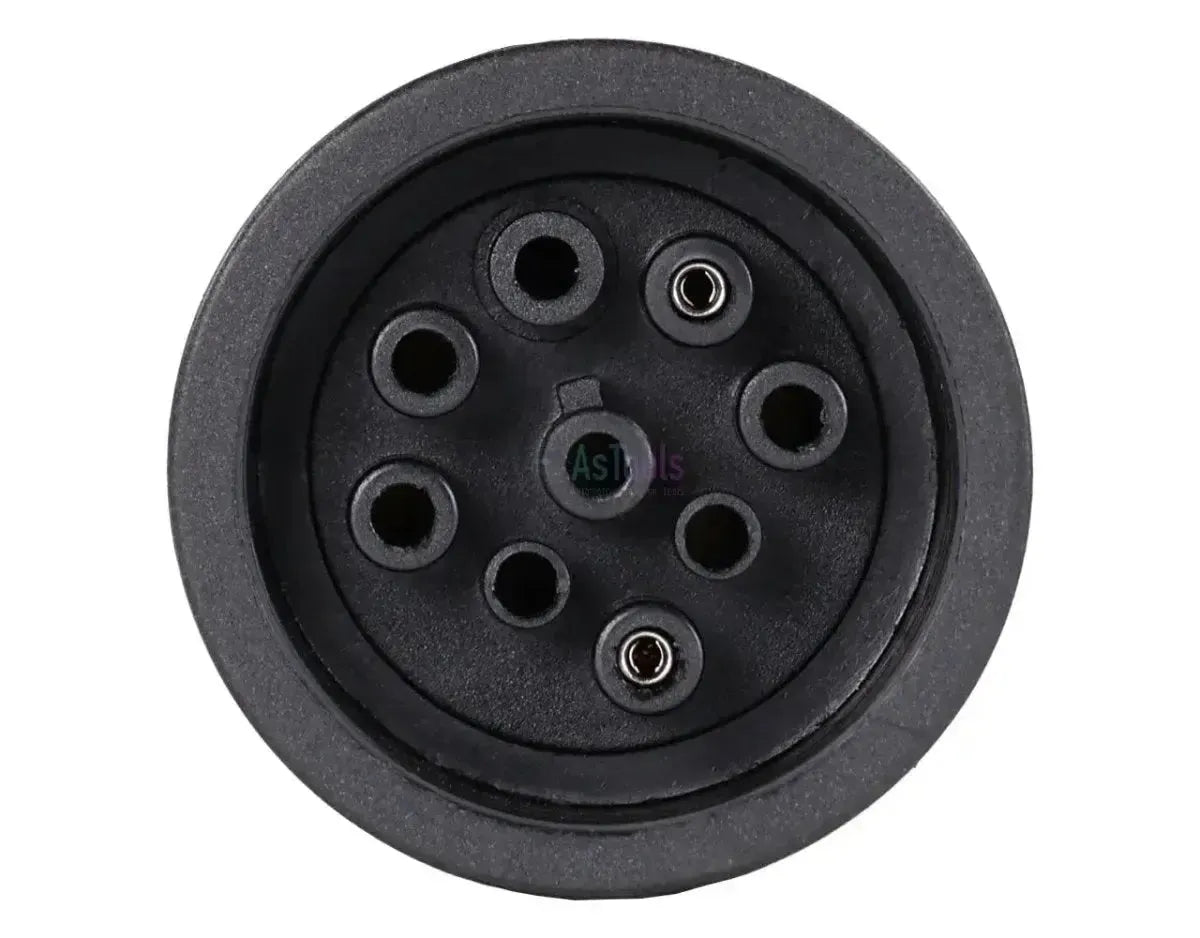

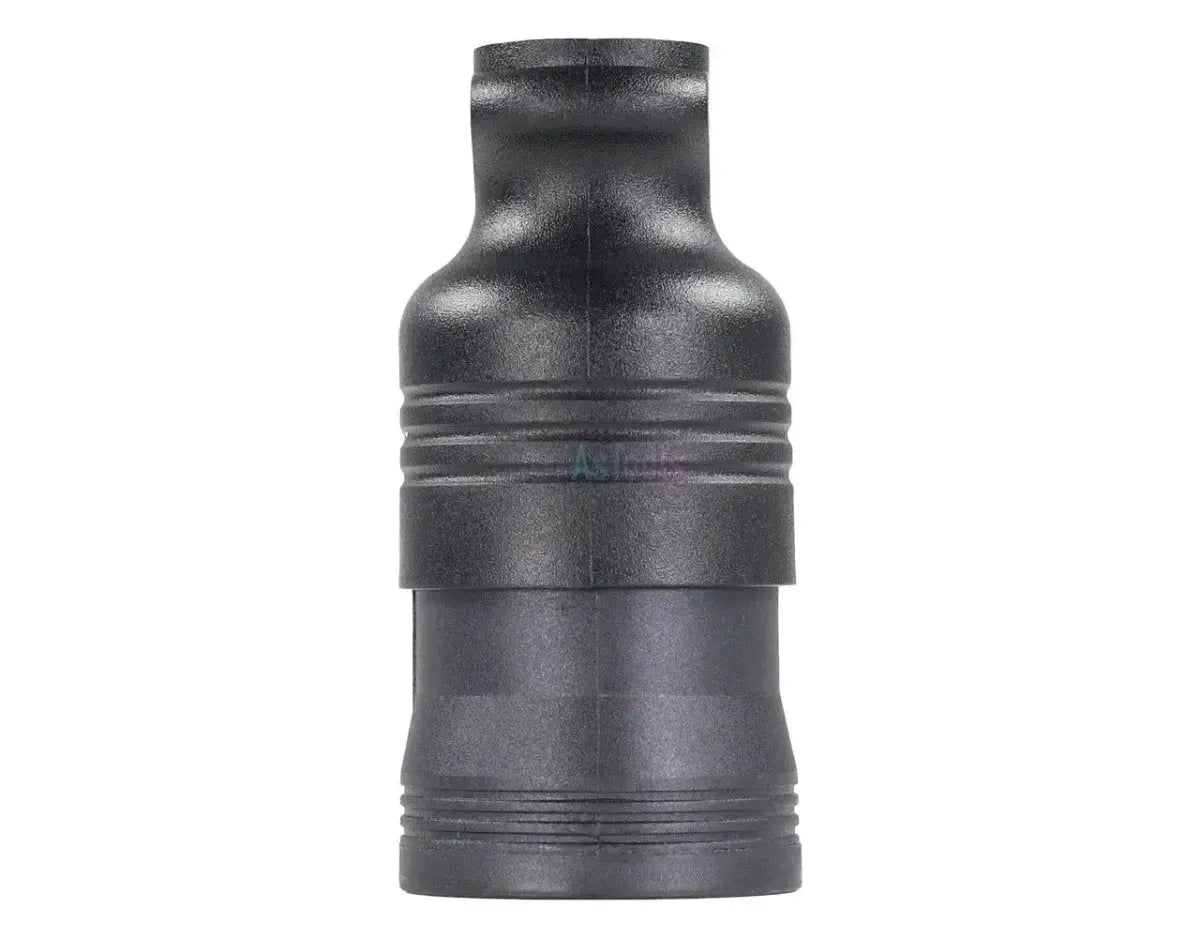

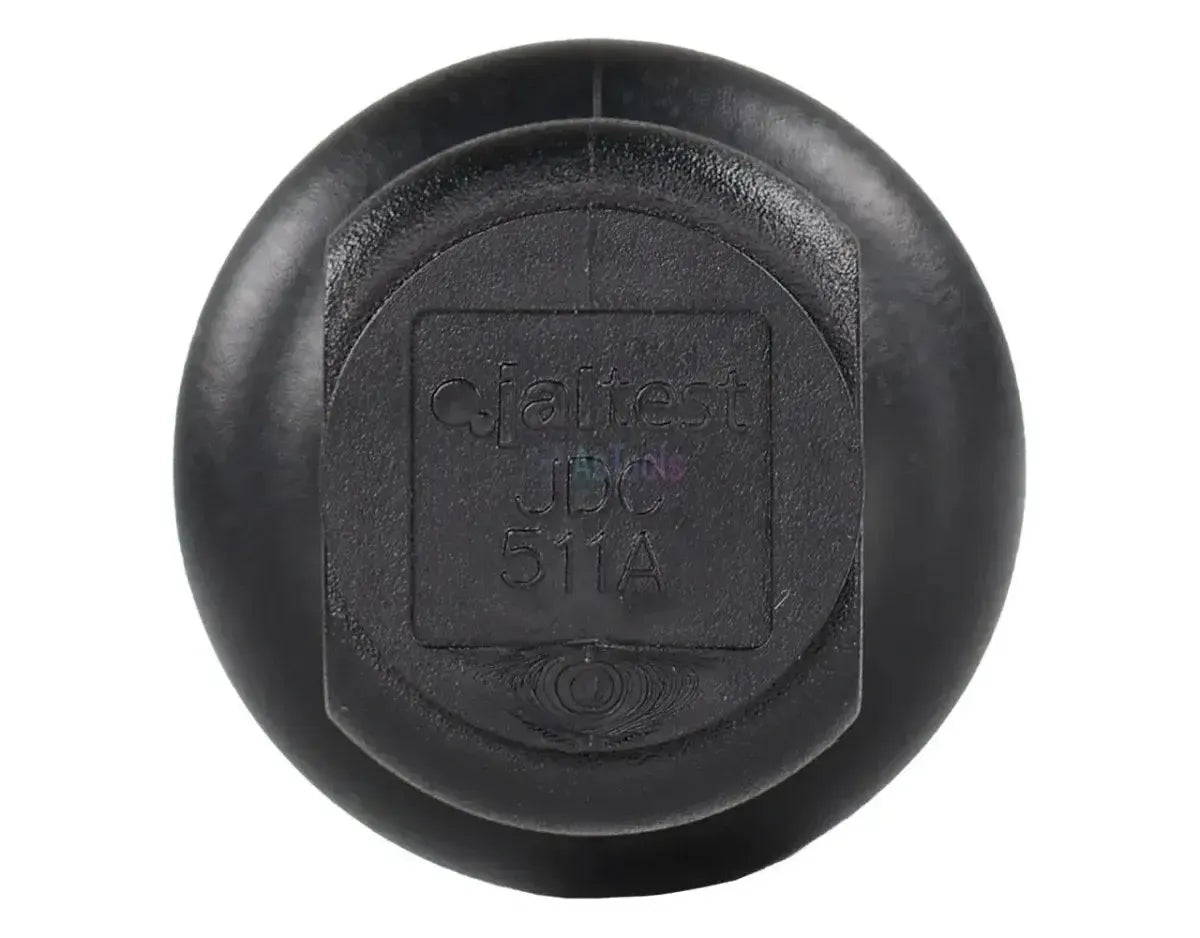

The Jaltest JDC511A is a short black 8.4 cm connector housing for the 9-pin Deutsch diagnostic connector on CNH Group machines, including New Holland and Case IH. At the front is the round holder with nine sealed positions, eight in a ring around one centre position, and behind it a knurled coupling ring. The rear is a closed, rounded housing with no cable.

The switching function is built into the connector itself. You place the housing on the machine's 9-pin Deutsch connector to set the diagnostic line to the correct position. The Jaltest software then communicates with the New Holland and Case IH control units; which units are accessible depends on the version and year of manufacture. This item is specified for the Jaltest Link V8.1 and V9 and falls under Jaltest AGV.

ADVANTAGES

✔Sets the diagnostic line of CNH machines to the correct position without having to work on the wiring.
✔Fits the 9-pin Deutsch connector shared by New Holland and Case IH.
✔Compact design: 8.4 cm in a closed housing, with no cable getting in the way.
✔Specified for both the Link V8.1 and the Link V9.

POINTS TO NOTE

✕This housing has one connection side. It has no cable and no 16-pin OBD2 connector attached, so the connection to the Interface runs via your own diagnostic cable.
✕The CNH Group also offers a second switching item, the JDC507A: a cable of 84 to 88 cm with a rectangular 13-pin connector and a handle with a blue push button.
✕Only for CNH machines with a 9-pin Deutsch diagnostic connector; a different connector requires a different cable.
✕Which control units you find depends on the version and year of manufacture of the machine.

Applications and functions

With this housing on the diagnostic connector, the Jaltest software accesses the control units of the tractor. Which of these are accessible depends on the switch position and on the version of the machine.

Control units you can access

  • Transmission: Transmission control.
  • Lifting system: Lift control.
  • Driveline: Driveline control.
  • Engine: Engine control.
  • Per machine: Varies by series and version.

What you can do

  • Diagnostic line: Set to the correct position.
  • Fault codes: Read and clear.
  • Measured values: Monitor live.
  • Maintenance: Procedures offered by Jaltest.

How to use it

  1. Check the connection: Locate the round 9-pin Deutsch connector on the machine.
  2. Fit the housing: Place the JDC511A on the connector and tighten the coupling ring.
  3. Connect the cable: Connect your diagnostic cable to the Jaltest Link.
  4. Start the software: Open Jaltest AGV on the PC.
  5. Read out: Select the make and model and read out the control units.

Compatible vehicles and applications

The connector determines compatibility, not the model. New Holland and Case IH belong to the same manufacturer group and therefore share connectors. No fixed list of series and years is provided; the connector on the machine shows whether this housing fits.

New Holland and Case IH:

  • Round 9-pin Deutsch connector: This item is intended for it.
  • Rectangular 13-pin connector: This belongs to the JDC507A.
💡
Good to know: The CNH Group has two items with “Switch” in the name, and they look very different. This is a closed 8.4 cm housing with a round 9-pin Deutsch connector and no cable. The JDC507A is a cable of 84 to 88 cm with a rectangular 13-pin connector and a handle with a blue push button. Check the connector on the machine itself before ordering.

Package contents

  • 1x Jaltest (JDC511A) | CNH Group Switch 9-pin Deutsch Adapter | Agricultural Vehicle

Technical specifications

General

The manufacturer of the cable. Jaltest cables work with Jaltest diagnostic equipment.Brand
Jaltest (Cojali)
The Jaltest software package the cable belongs to. A licence for that module is required to use the cable.Jaltest software module
  • AGV agriculture
The types of vehicles or machines the cable is intended for. This shows quickly whether it suits the vehicles entering your workshop.Vehicle types
  • Agricultural vehicle

Connections

The version of the Jaltest Link diagnostic interface the cable fits. Not every cable works with every version.Compatible Jaltest Link
  • Jaltest Link V8.1
  • Jaltest Link V9
The connector on the vehicle, engine or machine side. It must fit the diagnostic socket or the component.Vehicle-side connector
9-pin Deutsch

Diagnostics

Whether fault codes can be cleared as well as read. Some systems only allow reading.Clear fault codes
Yes
Whether the current sensor values can be viewed while the vehicle is running. Useful for tracing a fault.View live data
Yes

Usage

The Jaltest cable set that also contains this cable. If you already own that set, you may already have this cable.Part of cable set
AGV cable set
Reference number
JDC511A

Other specifications

Type
Switch connector
Application
CNH Group (New Holland, Case IH)
Interface-side connection
None: Closed, rounded housing with no cable
Length
8.4 cm
Control units
New Holland and Case IH control units; depending on switch position and machine version
Part of cable kit
AGV cable kit (70002003)
