Jaltest (JDC509A) | Volvo 16-pins OBD - 16-pins OBD2 adapter cable ...

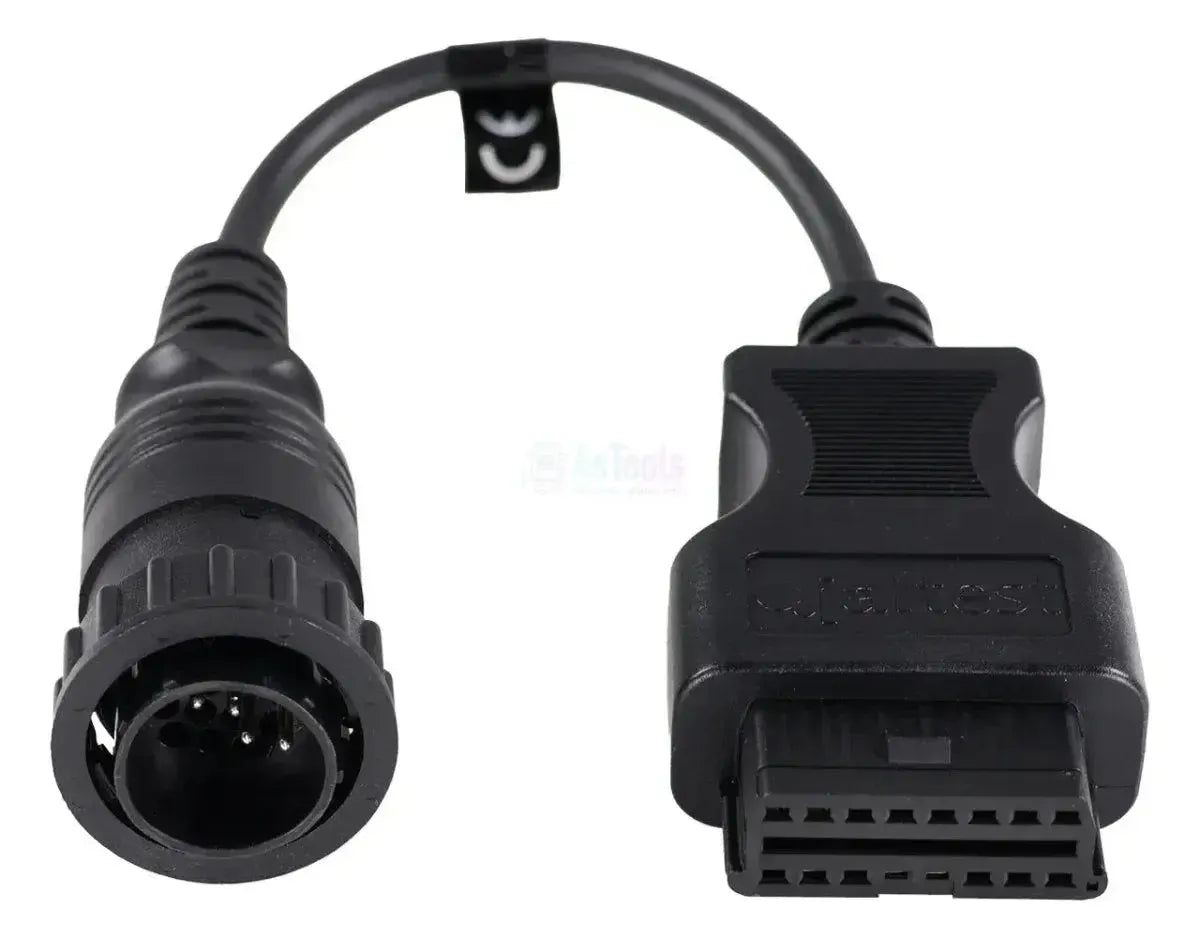

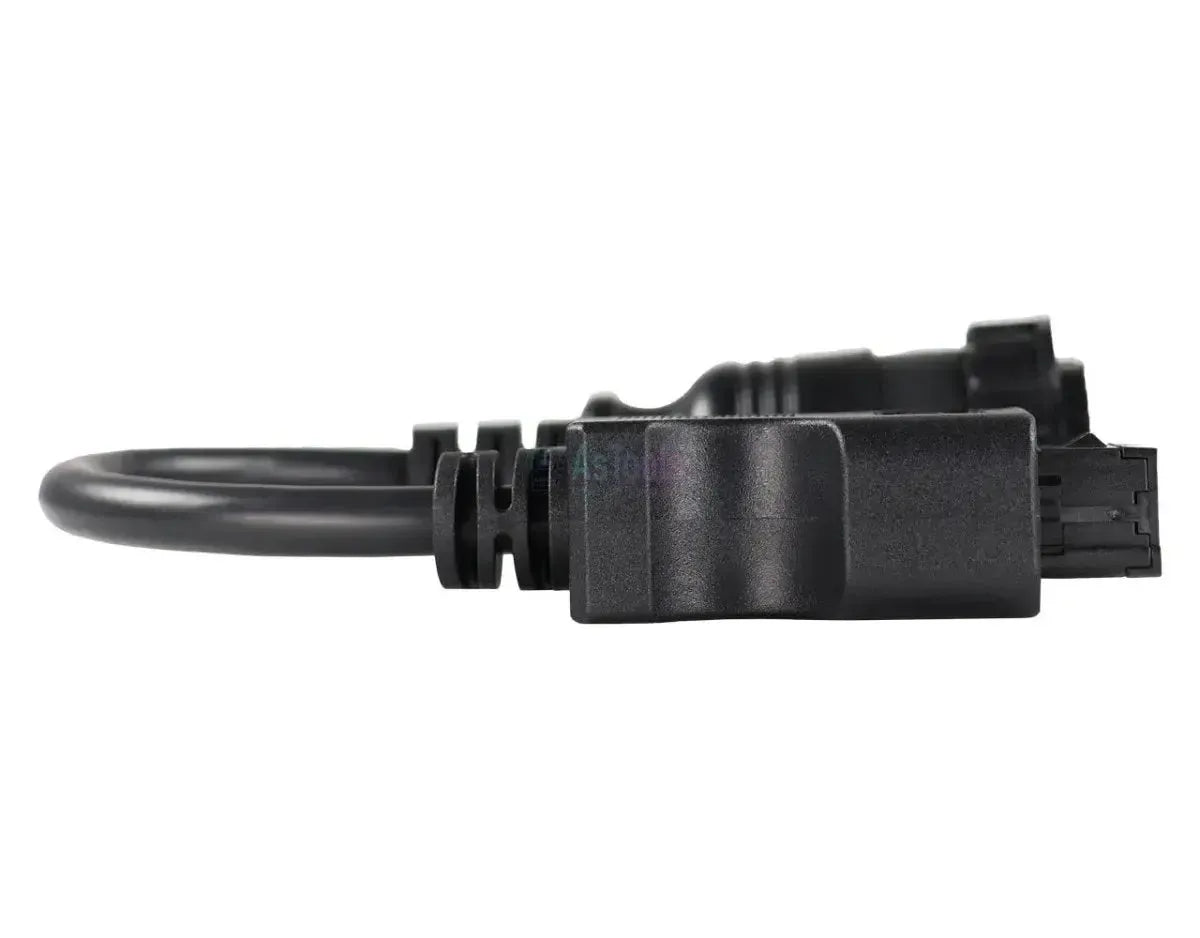

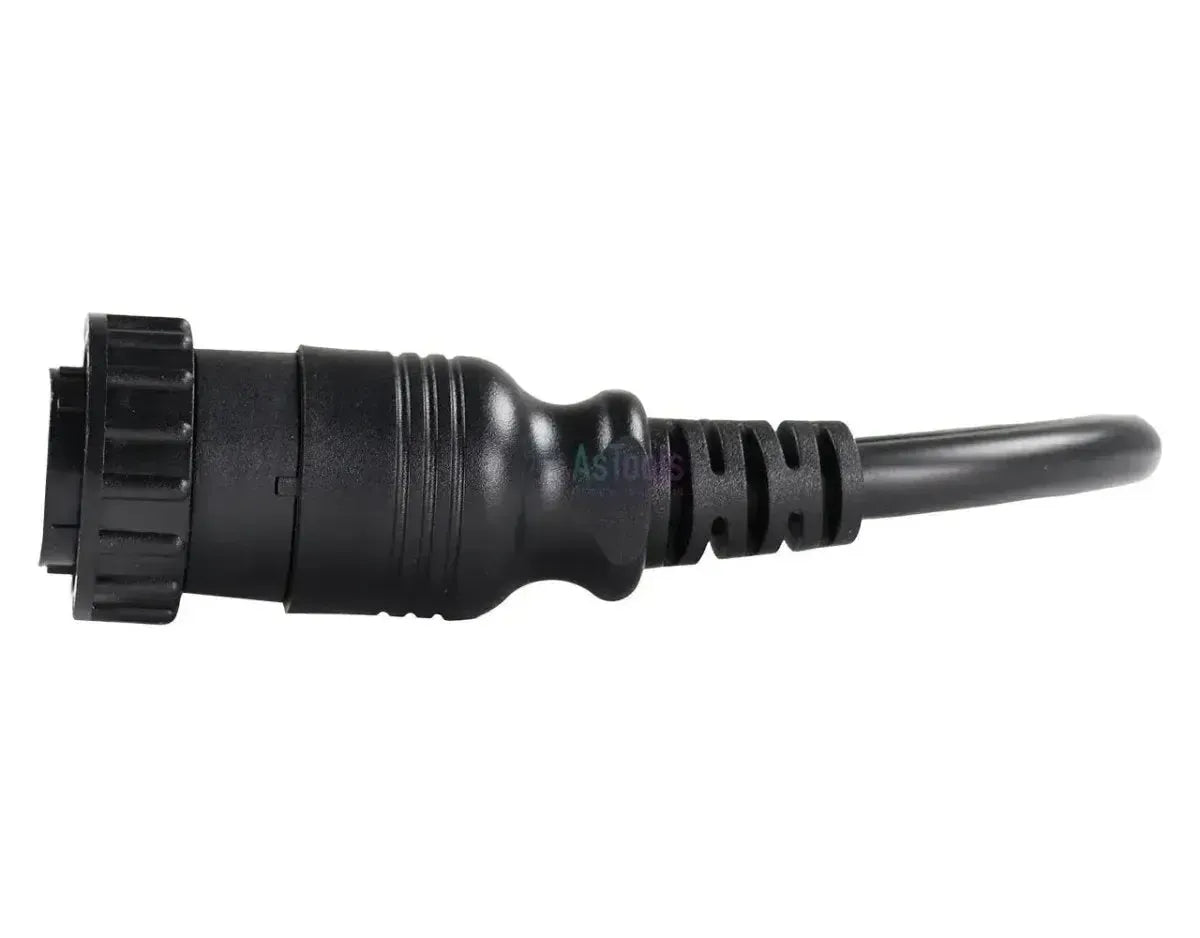

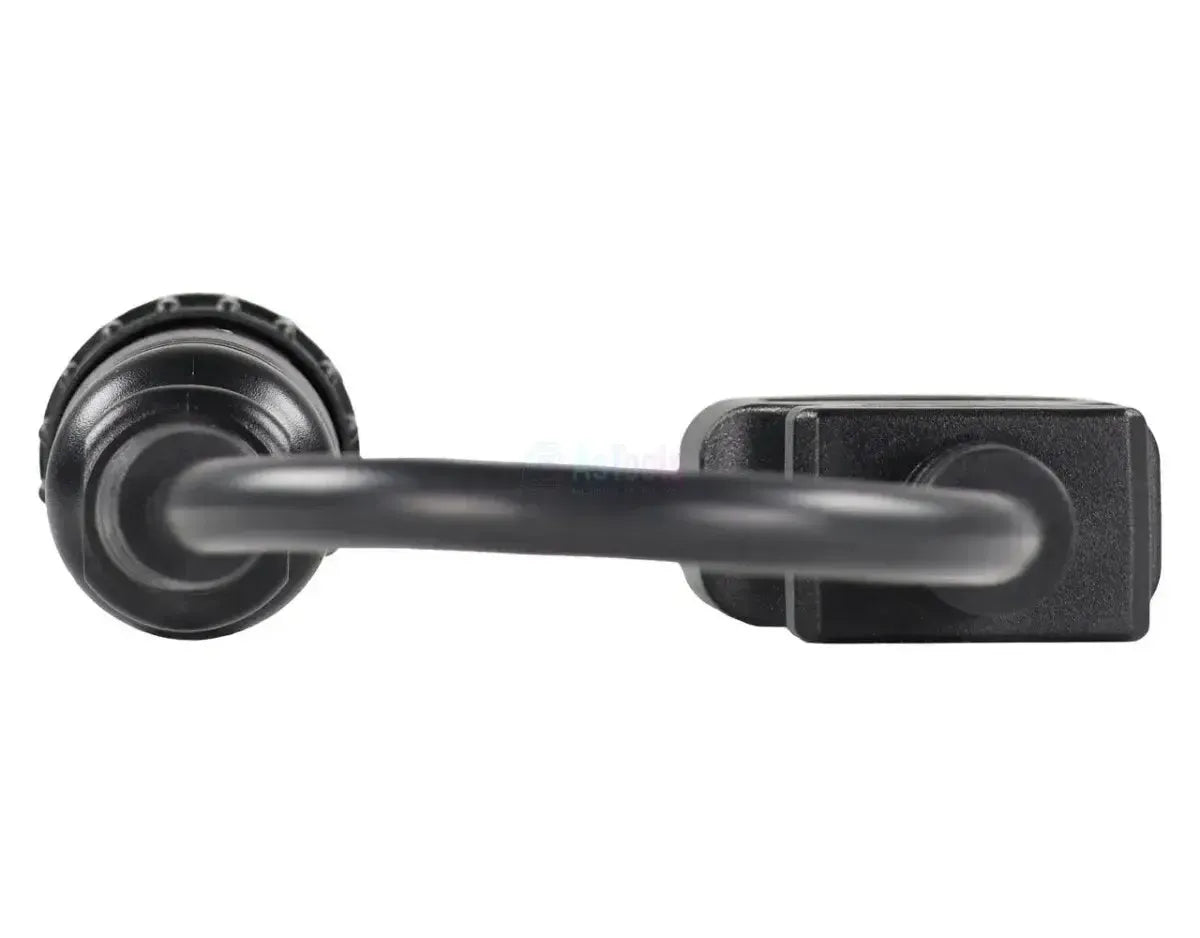

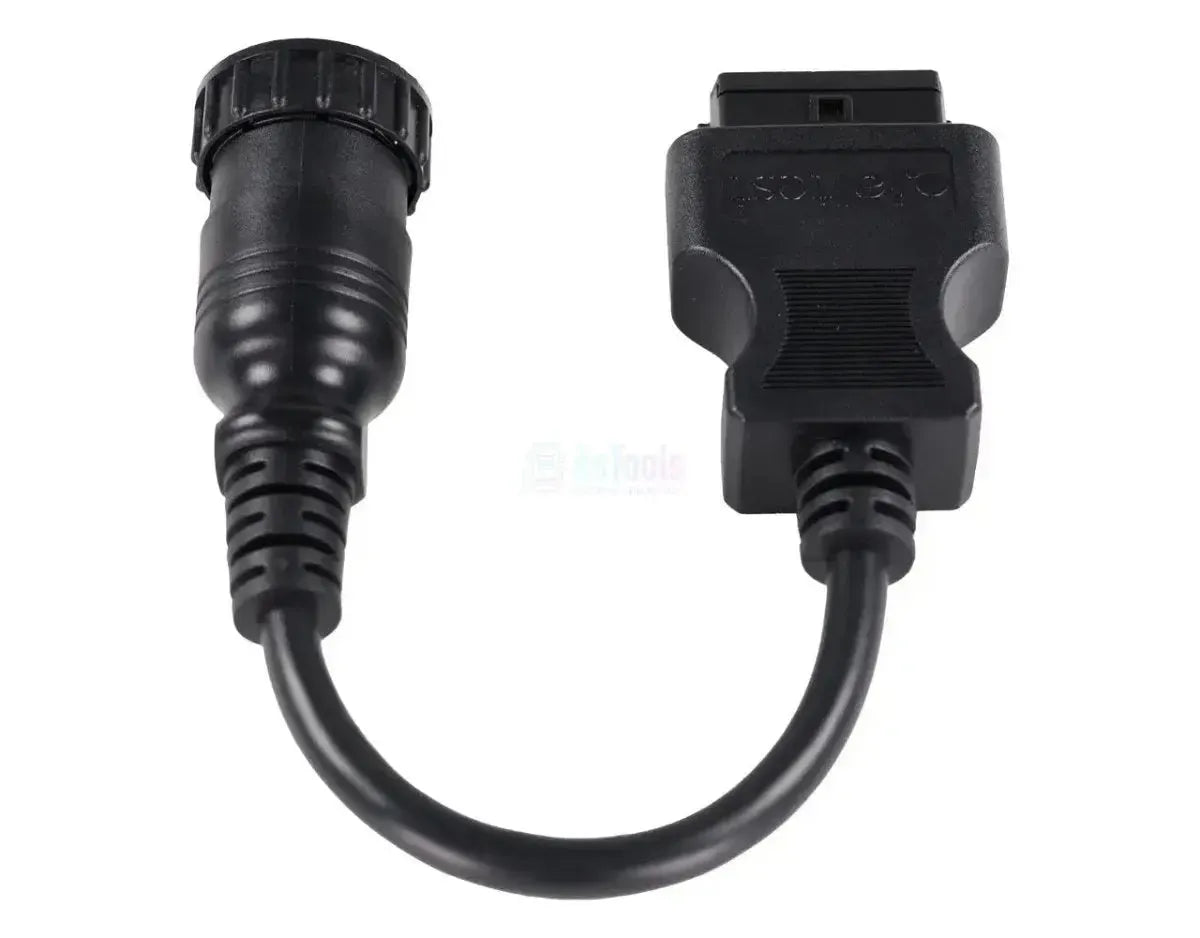

The Jaltest JDC509A is an essential adapter cable, specially designed for the diagnosis of modern Volvo off-road and construction machines (Volvo CE). Although the name “16-pin to 16-pin” may seem confusing, this cable forms the indispensable bridge between the specific round 16-pin diagnostic port that Volvo uses on its construction machines and the standard trapezoidal 16-pin OBD2 connector of the Jaltest main cable.
This adapter is the key to communication with the advanced and highly integrated electronic systems of the latest generations of Volvo machines. It guarantees the correct pin connection and a stable communication, which is important for accurately diagnosing engine, hydraulics, transmission, and cab controllers. The JDC509A is robustly built to perform optimally in the harsh conditions of construction sites.
Application and functionality:
- Complete machine diagnosis: access all key systems, such as engine ECU, vehicle ECU, hydraulic controller, and cab display (I-ECU).
- Read and clear fault codes: read and remove fault codes in all integrated systems.
- View live data: hydraulic pressures, engine data, joystick and pedal status, fuel consumption.
- Calibrations and programming: perform key calibrations on pumps, valves, and joystick settings.
- Perform diagnostic tests: activate hydraulic functions and perform engine tests.
Suitable vehicles and applications:
Specially designed for modern Volvo Construction Equipment with a round 16-pin diagnostic port.
- Primary application: Diagnosis of Volvo off-road and construction machines
-
Machine types:
- Excavators (EC, ECR-series)
- Wheel loaders (L-series)
- Articulated dump trucks (A-series)
- Rollers
- Paving machines
- Connector requirement: machine must be equipped with a round 16-pin Volvo CE diagnostic port
Package Contents:
- 1x Jaltest (JDC509A) | Volvo 16-pin OBD - 16-pin OBD2 adapter cable
Technical specifications:
| Specification | Description |
|---|---|
| Article number | JDC509A |
| Brand | Jaltest |

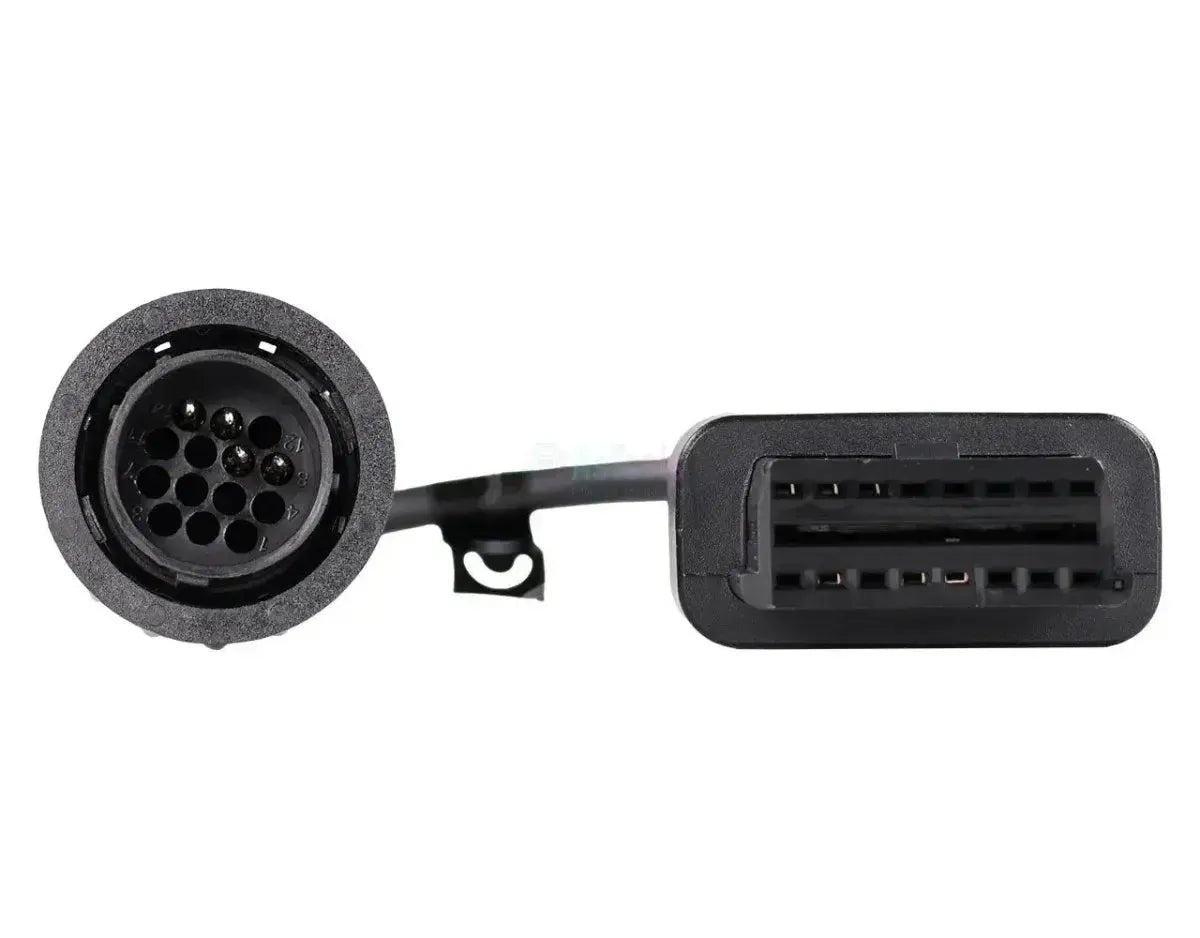

| Connector A (vehicle side) | Round 16-pin Volvo CE-specific connector |
| Connector B (adapter side) | 16-pin OBD2 (J1962) connector (female) |
| Application | Diagnosis of Volvo Construction Equipment |
| Suitable brand | Volvo (Construction Equipment) |
