Jaltest (JDC303A) | ZF Ecomat 3+6-pins OBD - 16-pins OBD2 Adapter C...

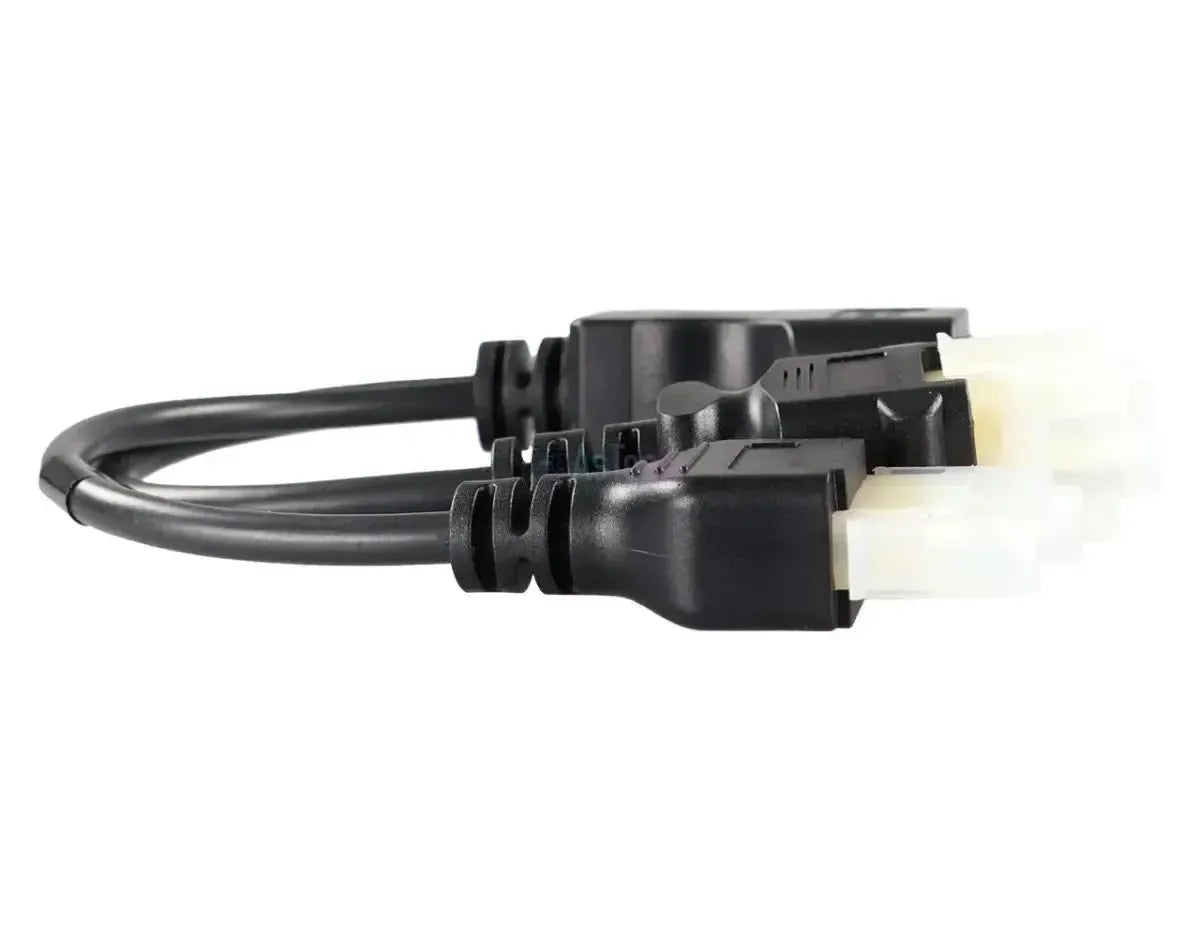

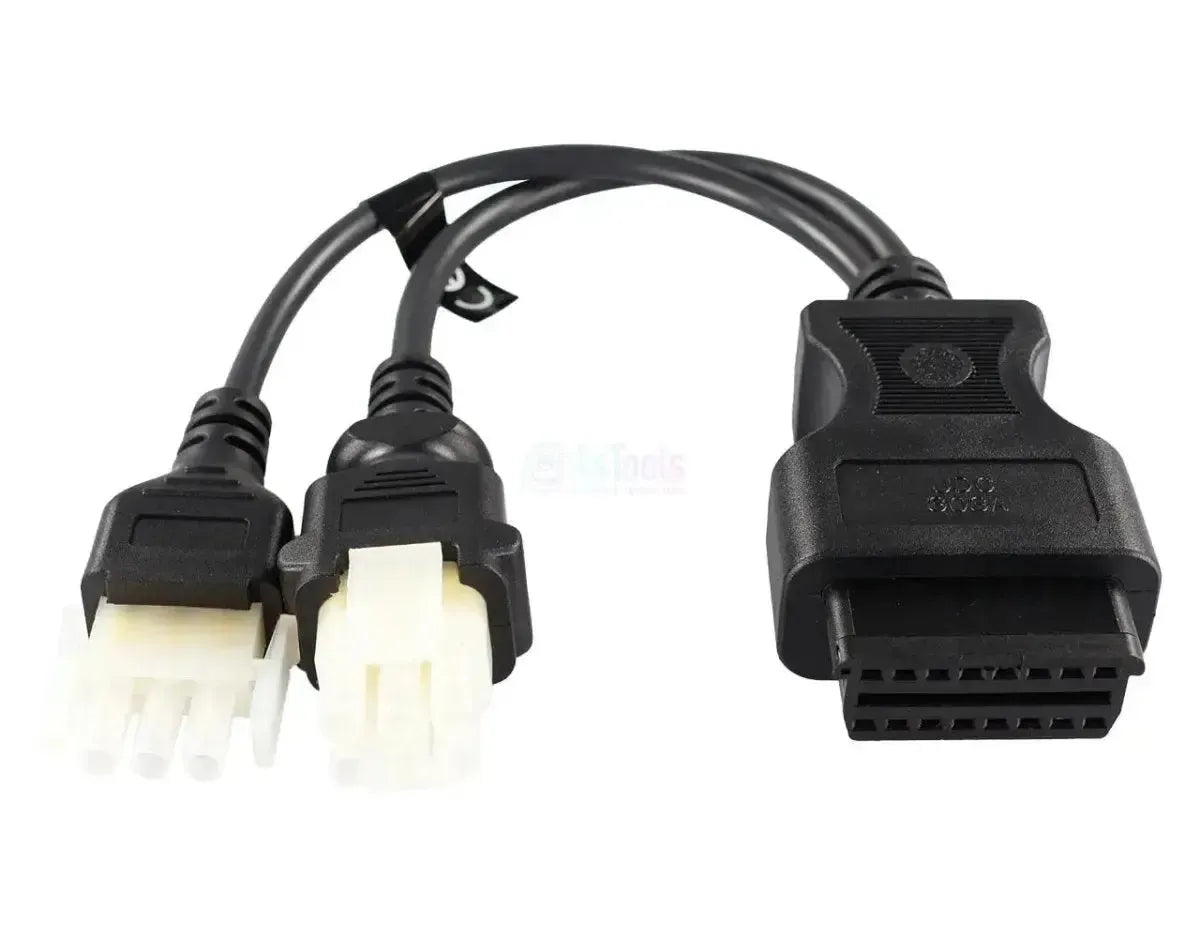

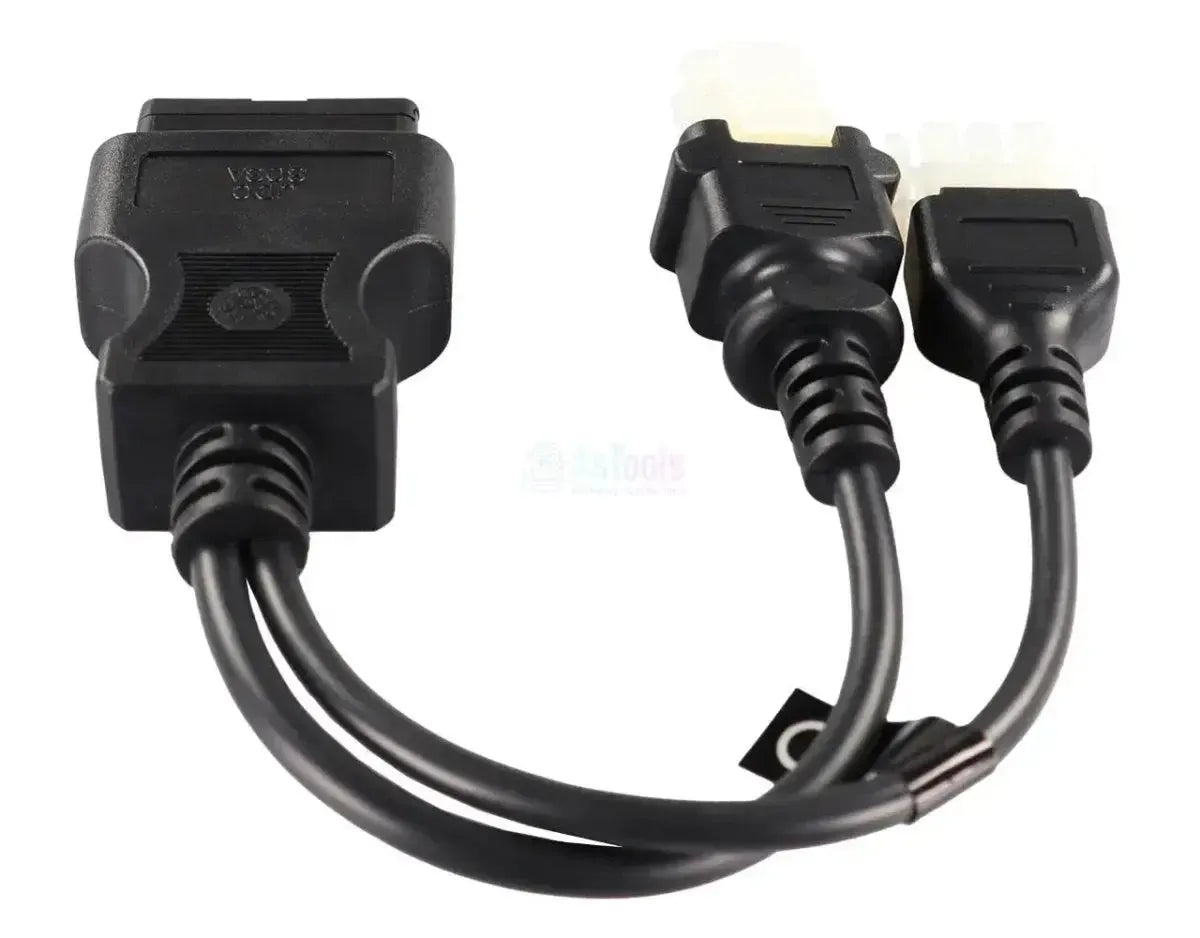

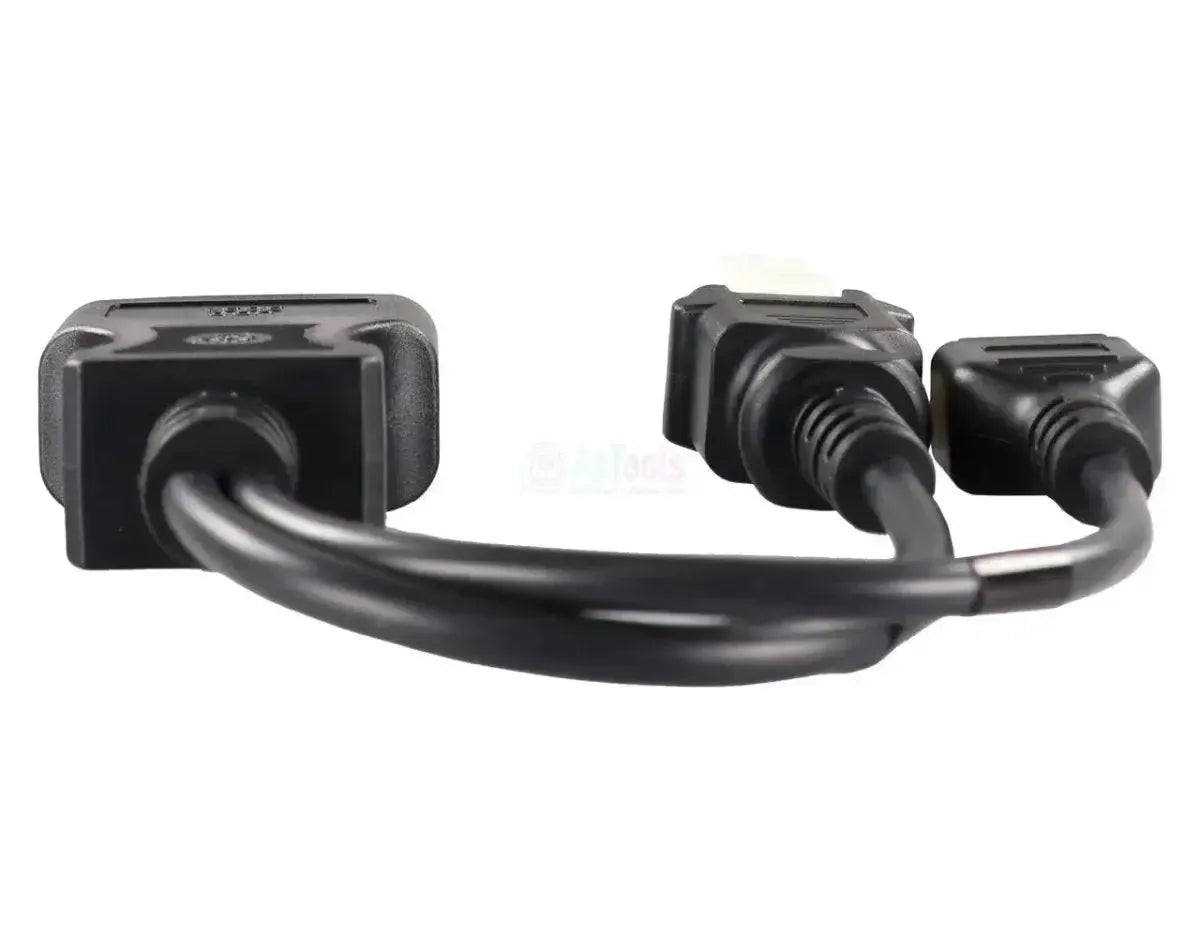

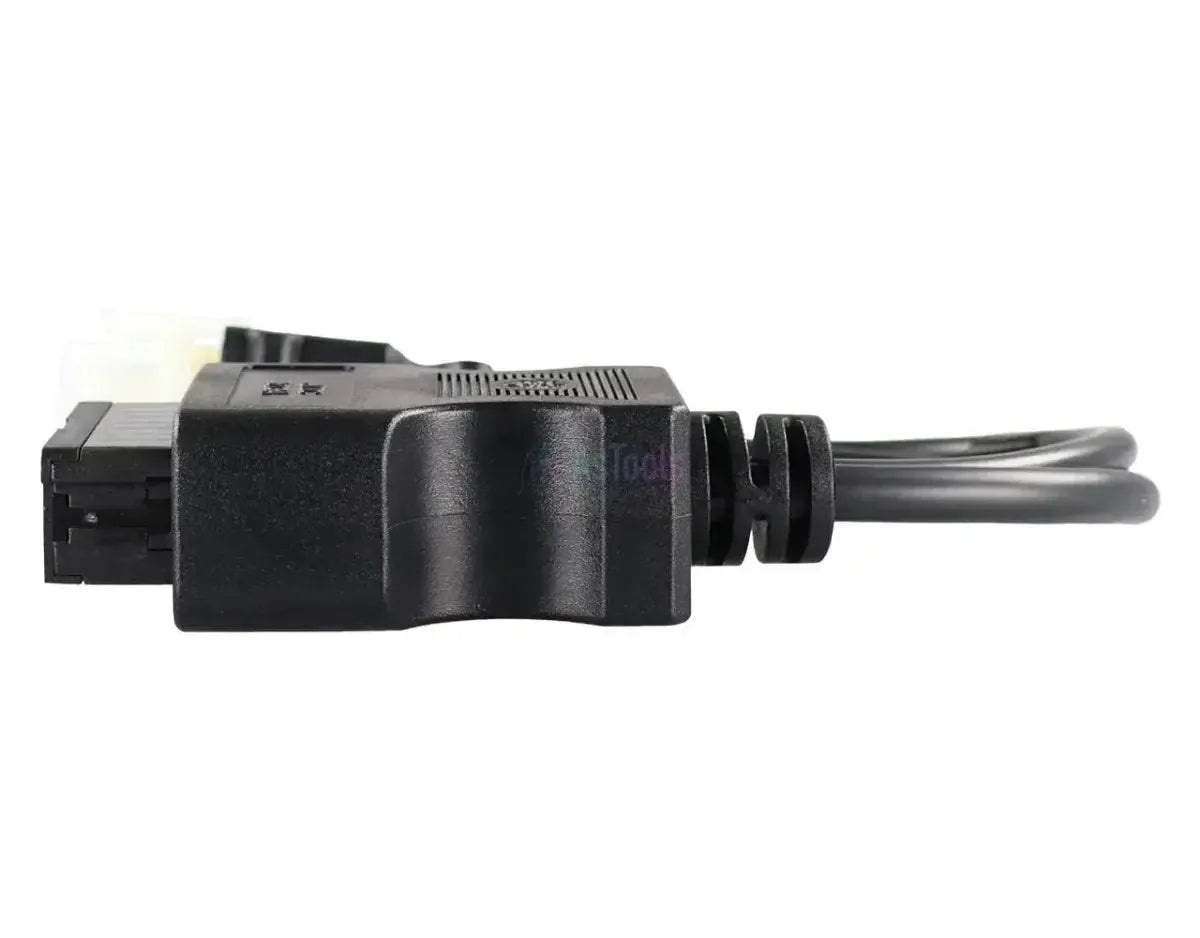

The Jaltest JDC303A is a specialized diagnostic adapter cable, essential for workshops servicing vehicles with a ZF Ecomat automatic transmission. The cable bridges the unique 3+6 pins OBD diagnostic connector of the ZF Ecomat control unit and the 16-pin OBD2 port of the Jaltest Link interface or compatible diagnostic testers.
The adapter is manufactured according to Jaltest's high-quality standards and is suitable for intensive workshop use. The durable materials and robust connectors ensure a stable and error-free connection, crucial for reliable communication with the transmission ECU during complex faults and calibrations.
Application and functionality:
The JDC303A enables technicians to establish a direct and specialized diagnostic connection with the ZF Ecomat transmission (series I, II, IV). This provides access to advanced functions beyond standard EOBD diagnosis:
- Transmission diagnosis: Full communication with the electronic control unit of the ZF Ecomat transmission.
- Read and clear fault codes: Identify and resolve DTCs specific to the transmission.
- Live data monitoring: View real-time information such as oil temperature, pressure, RPM, shift positions, and solenoid status.
- Calibrations and adjustments: Perform shift point adjustments, calibrations, and parameter settings after maintenance or repair.
- Component tests: Test active components such as valves and sensors within the transmission system.
Compatible vehicles and applications:
This cable is suitable for heavy and medium-duty commercial vehicles equipped with ZF Ecomat automatic transmissions (series I, II, or IV):
- City and regional buses: MAN, Mercedes-Benz, VDL, Iveco, Solaris
- Distribution trucks and garbage trucks: with Ecomat transmission
- Special vehicles: Fire trucks, airport vehicles, industrial vehicles
System requirement: The vehicle must be equipped with a ZF Ecomat transmission with a 3+6 pin diagnostic port.
Package Contents:
- 1x Jaltest (JDC303A) | ZF Ecomat 3+6-pin OBD - 16-pin OBD2 adapter cable
Technical specifications:
| Specification | Package Contents |
|---|---|
| Article number | JDC303A |
| Brand | Jaltest |

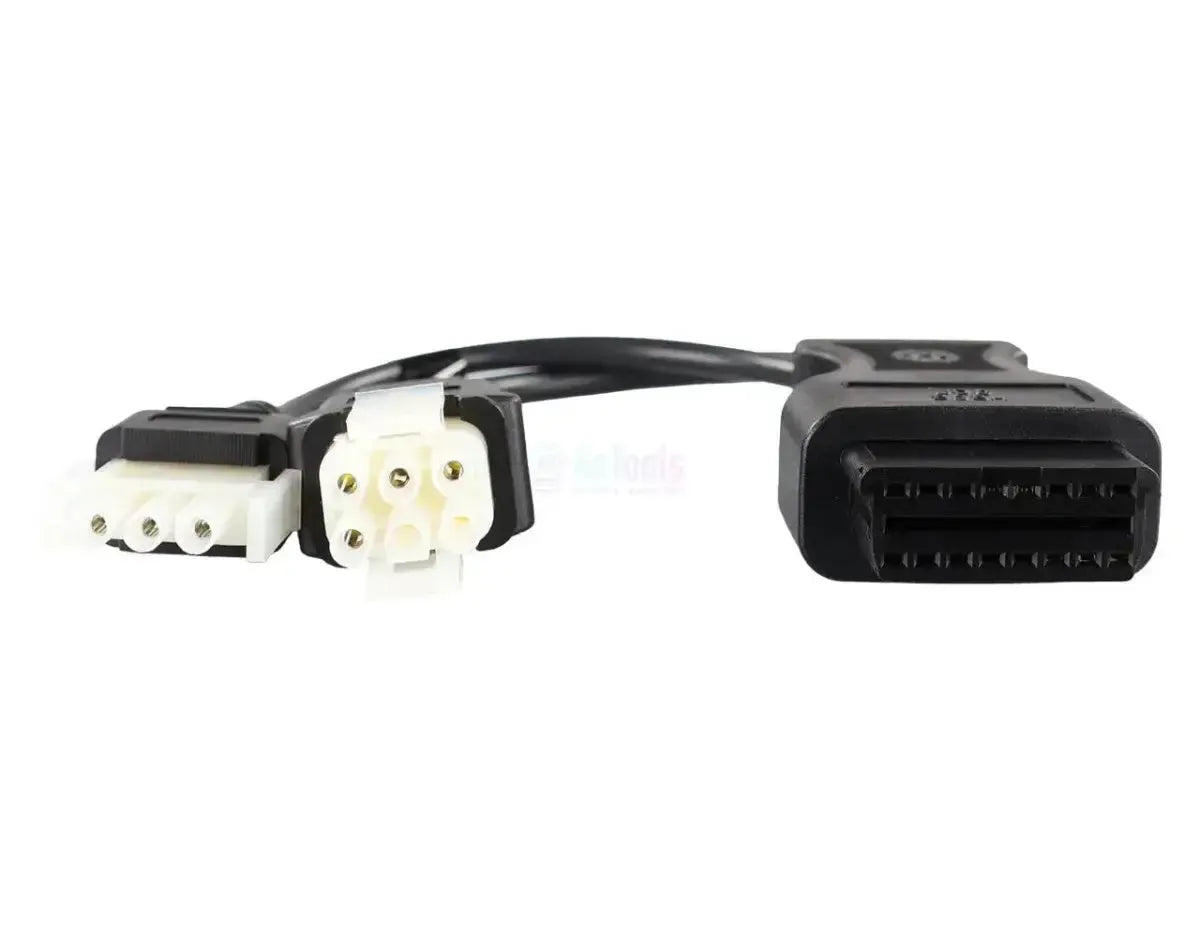

| Connector A (vehicle side) | 3+6 pin OBD-style connector for ZF Ecomat |
| Connector B (diagnostic tool side) | 16-pin OBD2 (female, J1962) |
| Application | Diagnosis of automatic transmission systems |
| Compatible system | ZF Ecomat (series I, II, IV) |
