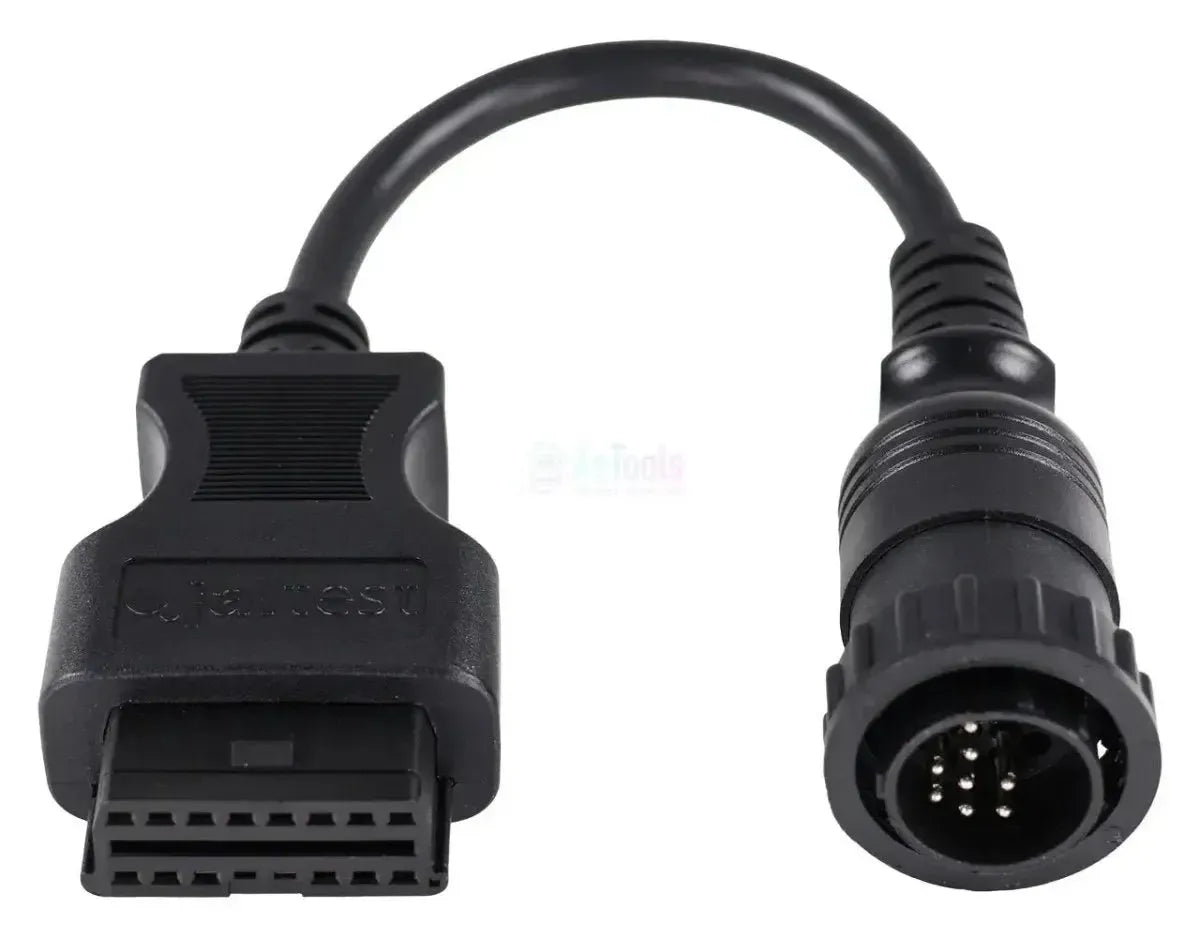

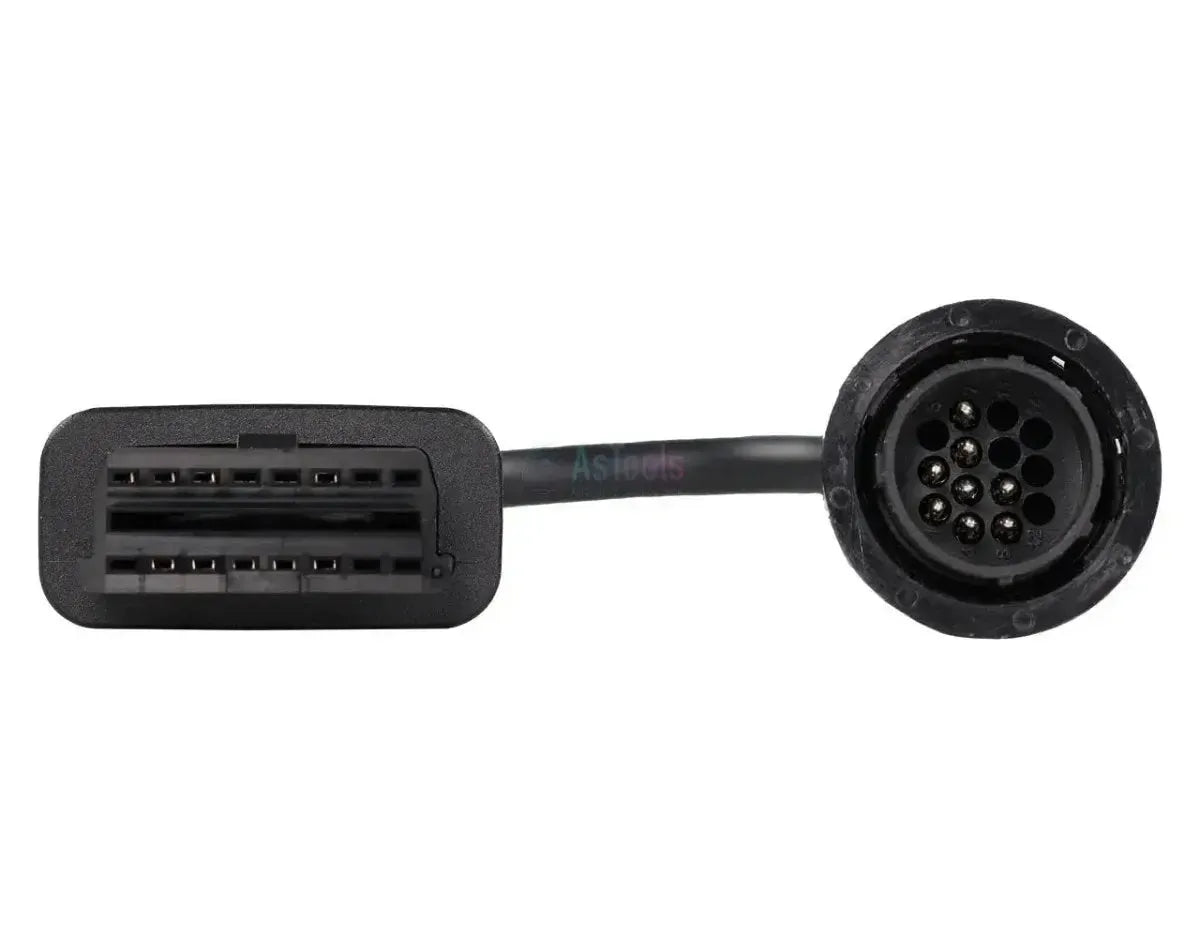

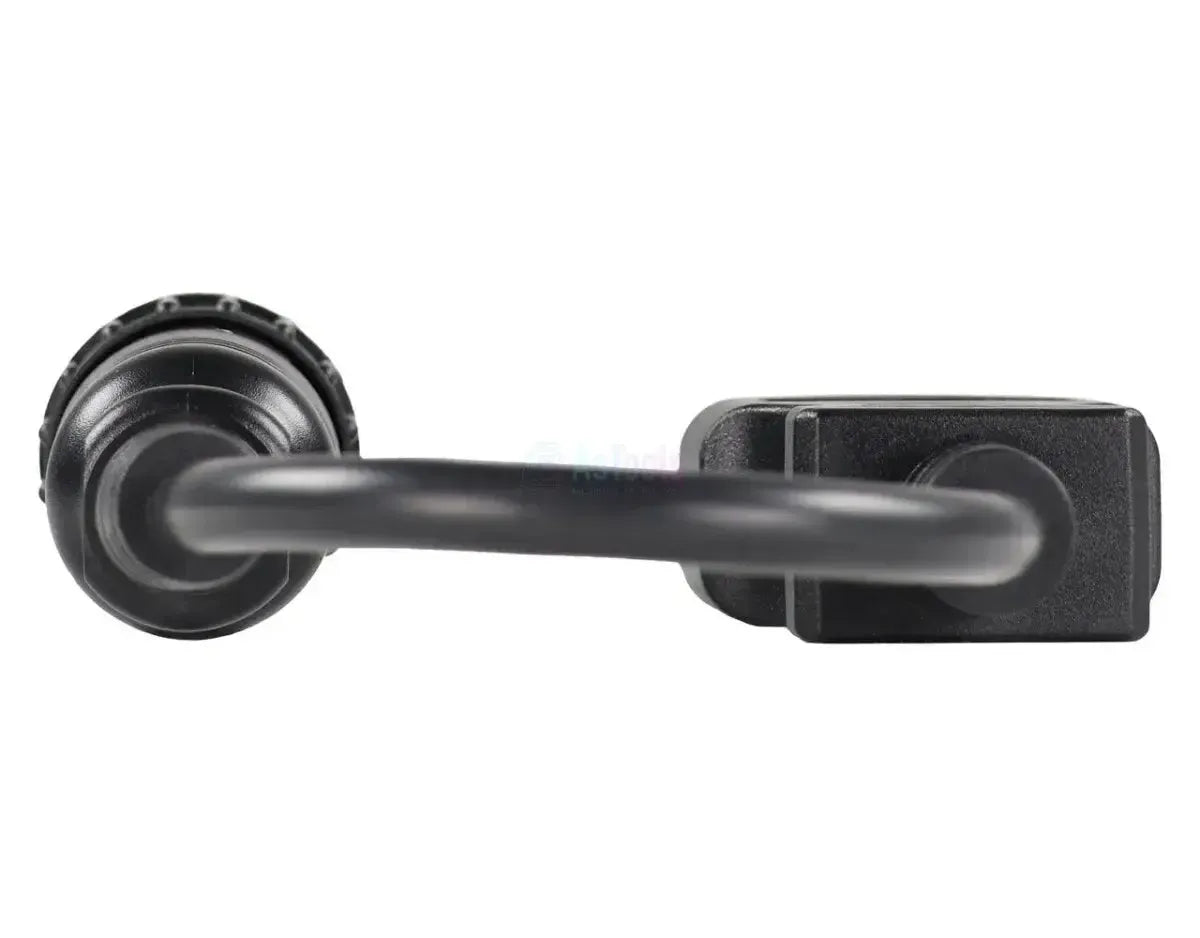

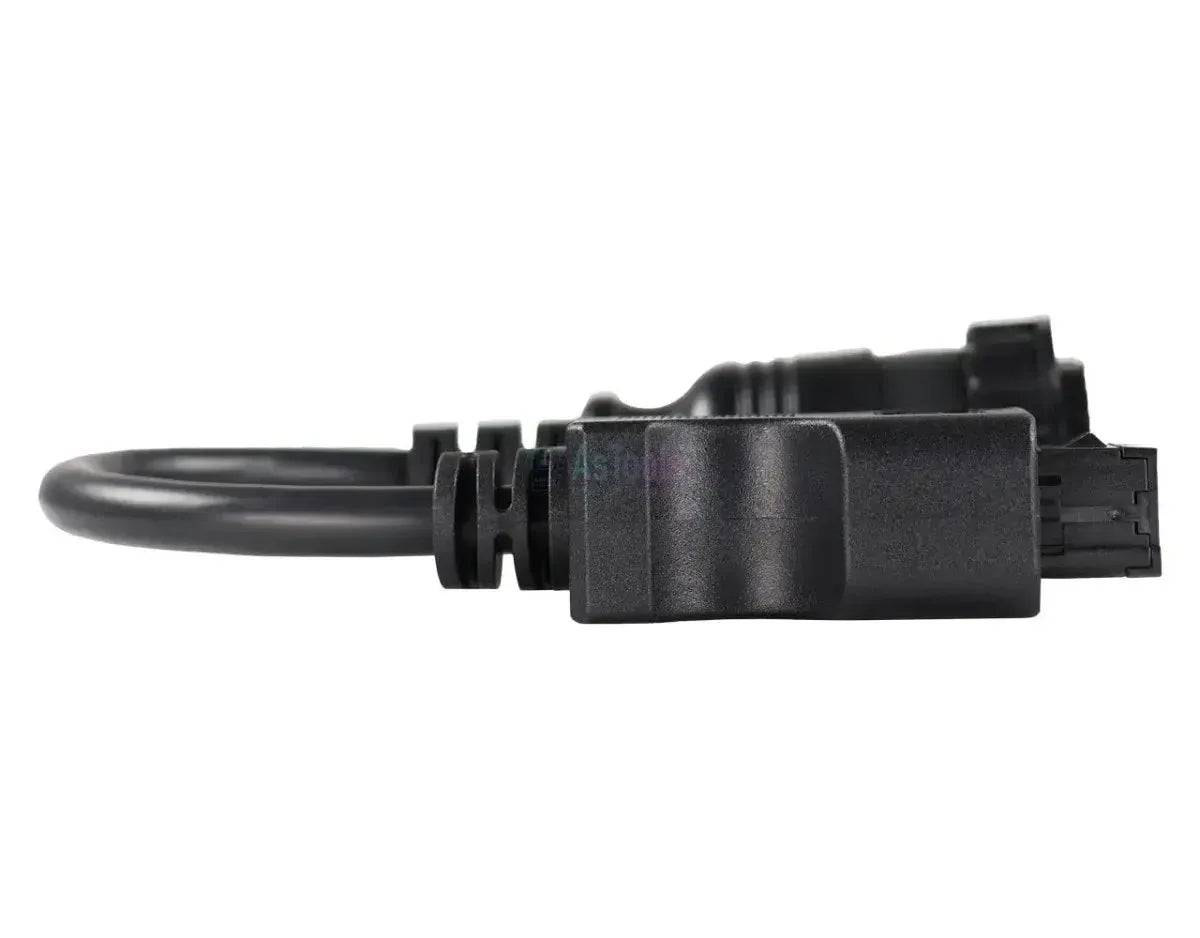

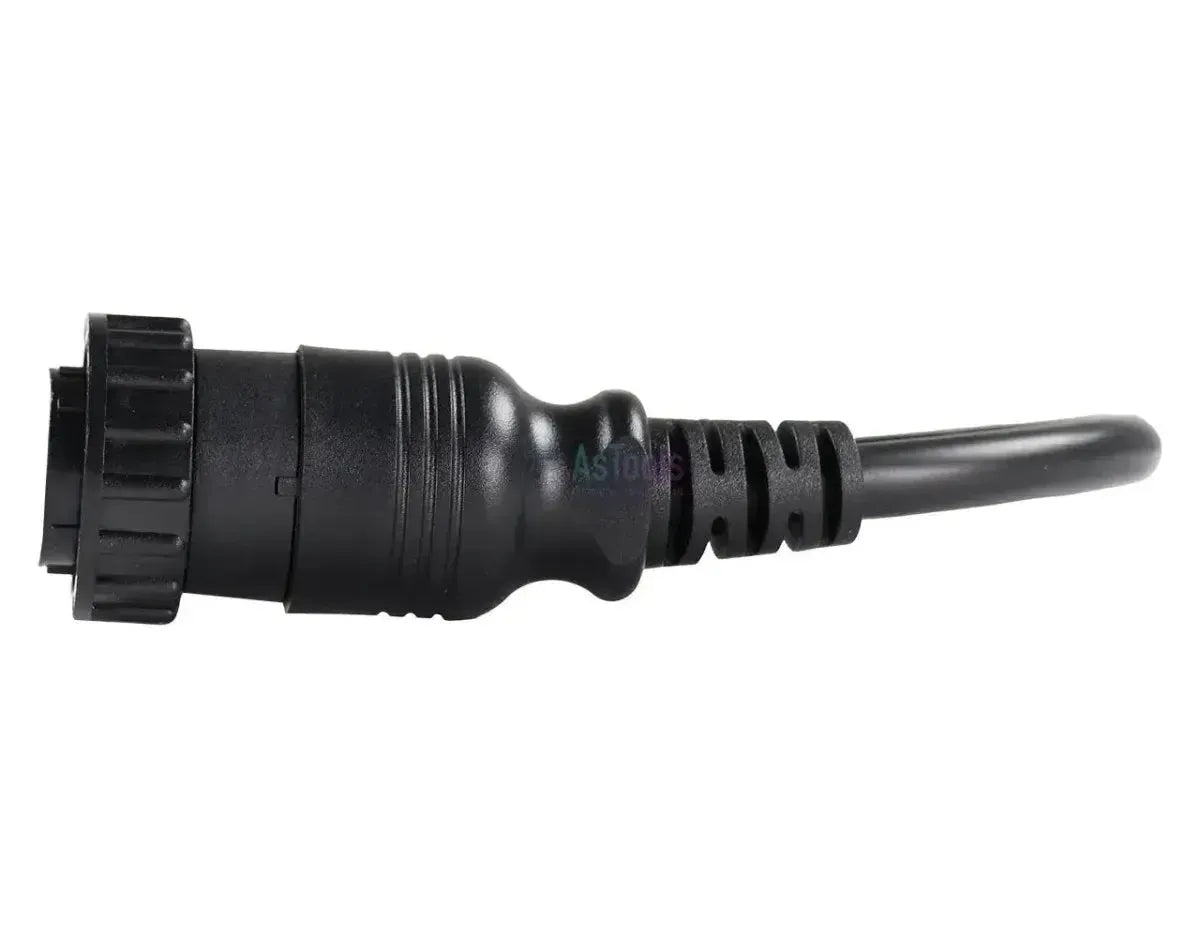

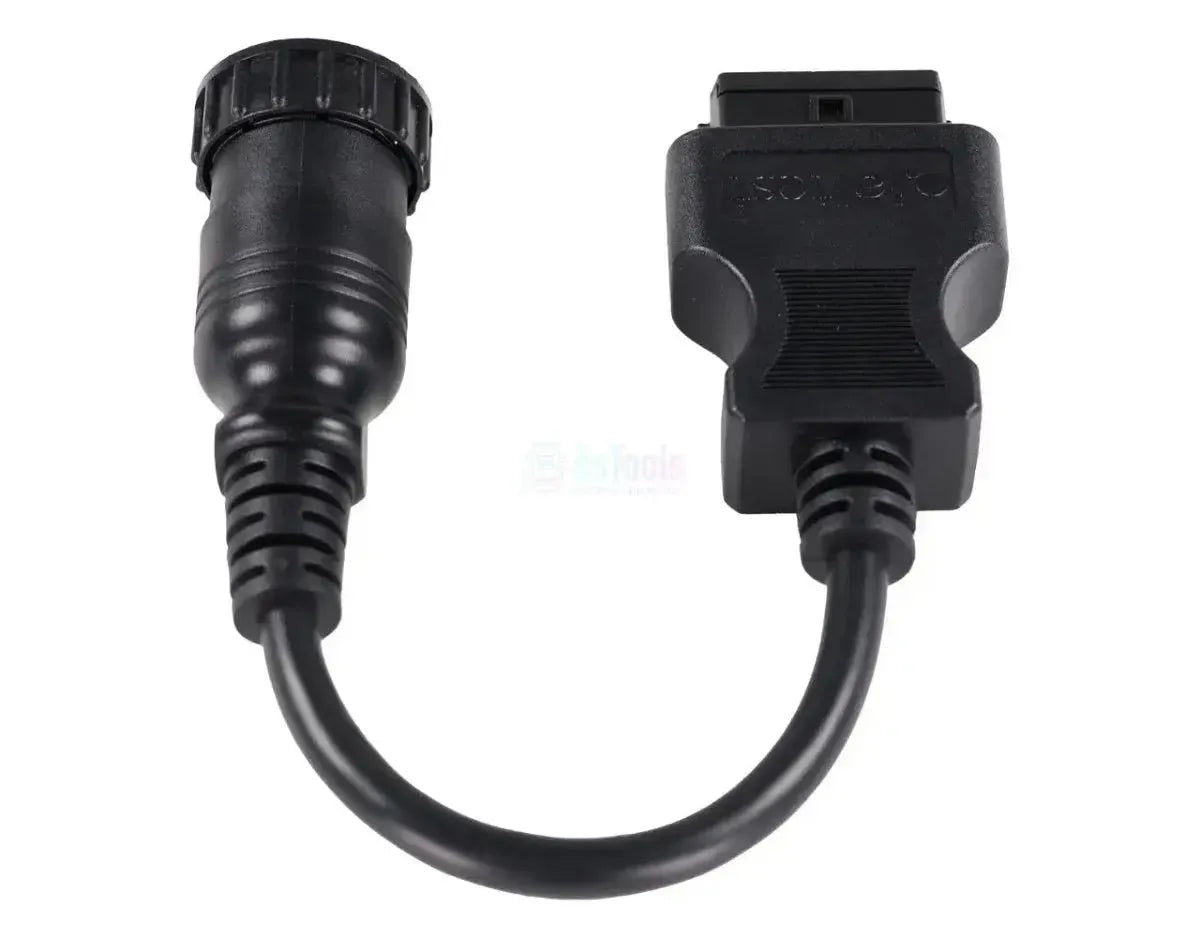

The Jaltest JDC525A is the adapter cable connecting the 14-pin diagnostic connector on tractors from Claas and Renault to the 16-pin OBD2 port of your Jaltest diagnostic cable. On the vehicle side, the 14-pin connector plugs into the diagnostic port in the cab; on the interface side, the 16-pin OBD2 inlet connects to your diagnostic tool. The same Renault/Claas tractor family also comes with a 4+4-pin diagnostic connector; this is the 14-pin version.
The cable opens the diagnostic line to the tractor's control modules. On the most powerful models, the ATLES 9X5-9X6, you'll find the Deutz engine controllers EMR and EMR2 - EDC, the RCC/RCC2 vehicle control unit, the TC transmission, the ELECTROPILOT valve control, and the TCE lifting systems; on the ARES 7X5, coverage is limited to the QUADRISHIFT/TWINSHIFT gearbox and DBD2 instrument cluster. Since agricultural vehicles aren't subject to OBD requirements, this connector remains in use alongside the 4+4-pin version. The cable falls under Jaltest AGV (agricultural vehicles).
KEY BENEFITS
IMPORTANT NOTES
Applications and Functions
Through this 14-pin connection, you can access the tractor's control units with Jaltest software. Which units are available varies by series and configuration.
Control Units You Can Access
- Engine Management EMR, unit pump system: The engine control with unit pump system on the ATLES series.
- Engine Management EMR2 - EDC, engine control module: The later electronic engine control of the ATLES series.
- Central Computer RCC/RCC2, vehicle control unit: The vehicle control unit of the ATLES.
- Transmission TC: The transmission control of the ATLES series.
- Transmission QUADRISHIFT / TWINSHIFT: The transmission control of the ARES series.
- Transmission EHM 24, TRAX and TRAX (CAN): The transmission controls of the NECTIS series.
- Hydraulics ELECTROPILOT: The control panel for external hydraulic valves.
- Hydraulics TCE 15/25/35, TCE15T and TCE 6: The electronic lifting systems.
- Dashboard OBD2: Access your dashboard to view service intervals.
What you can do
- Read and clear fault codes: Read the fault memory from the control unit, including detailed descriptions of any detected faults.
- View live data: Monitor real-time sensor values controlled by the engine control unit, with the ability to set alarm thresholds.
- Check service intervals: Review upcoming maintenance schedules and required work, with a report for workshop records. Available on this series via the OBD2 dashboard.
Compatible vehicles and applications
The connector type determines compatibility, not the model.This cable works with any Claas or Renault tractor equipped with the 14-pin diagnostic connector. Jaltest AGV covers the series listed below; check which connector is installed in your cab before ordering.
Claas / Renault:
- ARES 5X0-6X0 / 5X6-6X6 / 5X7-6X7: (1996 - 2009)
- ARES 7X0 / 7X5: (1996 - 2005)
- ARES 8X5 / 8X6 (816, 826, 836): (2002 - 2005)
- ATLES 9X5-9X6 (926, 936, 946): (2000 - 2015)
- CELTIS: (2003 - 2008)
- NECTIS: (2004 - 2014)
- PALES: (1998 - 2004)
- ERGOS
Package contents
- 1x Jaltest (JDC525A) | Claas/Renault 14-pin OBD - 16-pin OBD2 Adapter Cable | Agricultural Vehicle
Technical specifications
| Specification | Description |
|---|---|
| Brand | Jaltest (Cojali) |
| Reference Number | JDC525A |
| Type | Adapter Cable |
| Application | Claas and Renault Agriculture (14-pin connector) |
| Vehicle-side Connection | 14-pin OBD |
| Interface-side Connection | 16-pin OBD2 |
| Control Units | EMR and EMR2 - EDC (engine), RCC/RCC2 (central computer), TC, QUADRISHIFT/TWINSHIFT, EHM 24 and TRAX (transmission), ELECTROPILOT and TCE (hydraulics), DBD2 (instrument cluster) |
| Segment | Agricultural Vehicle |
| Jaltest Module | Jaltest AGV (agricultural vehicles) |
| Required to Use | Jaltest Link with valid software license |
