Jaltest  |  SKU: JDC112A

Jaltest (JDC112A) | 7+7-pin (PLC) J2497 – 9-pin Deutsch Adapter | Trailer

Regular price
€384,95 incl.
€318,14 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

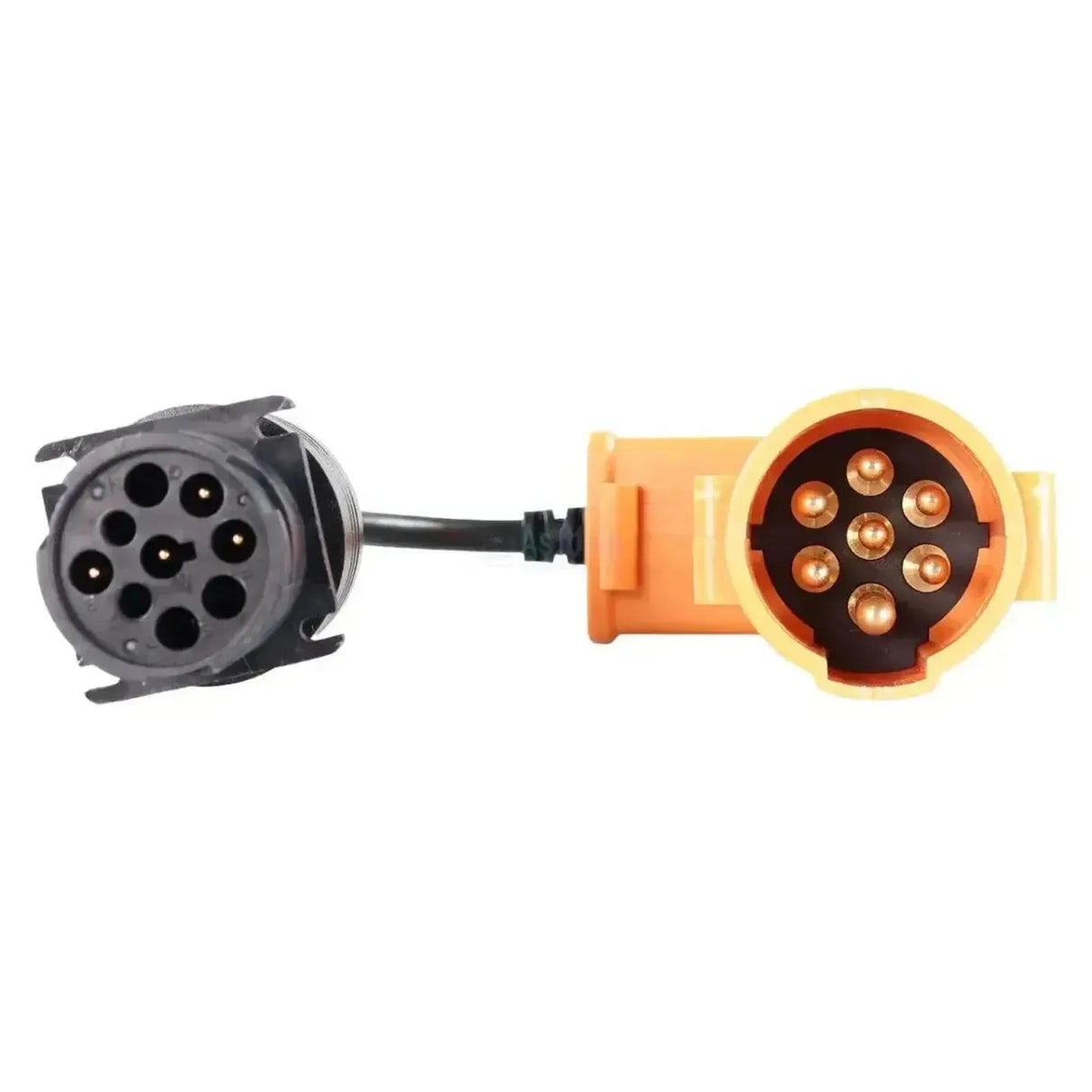

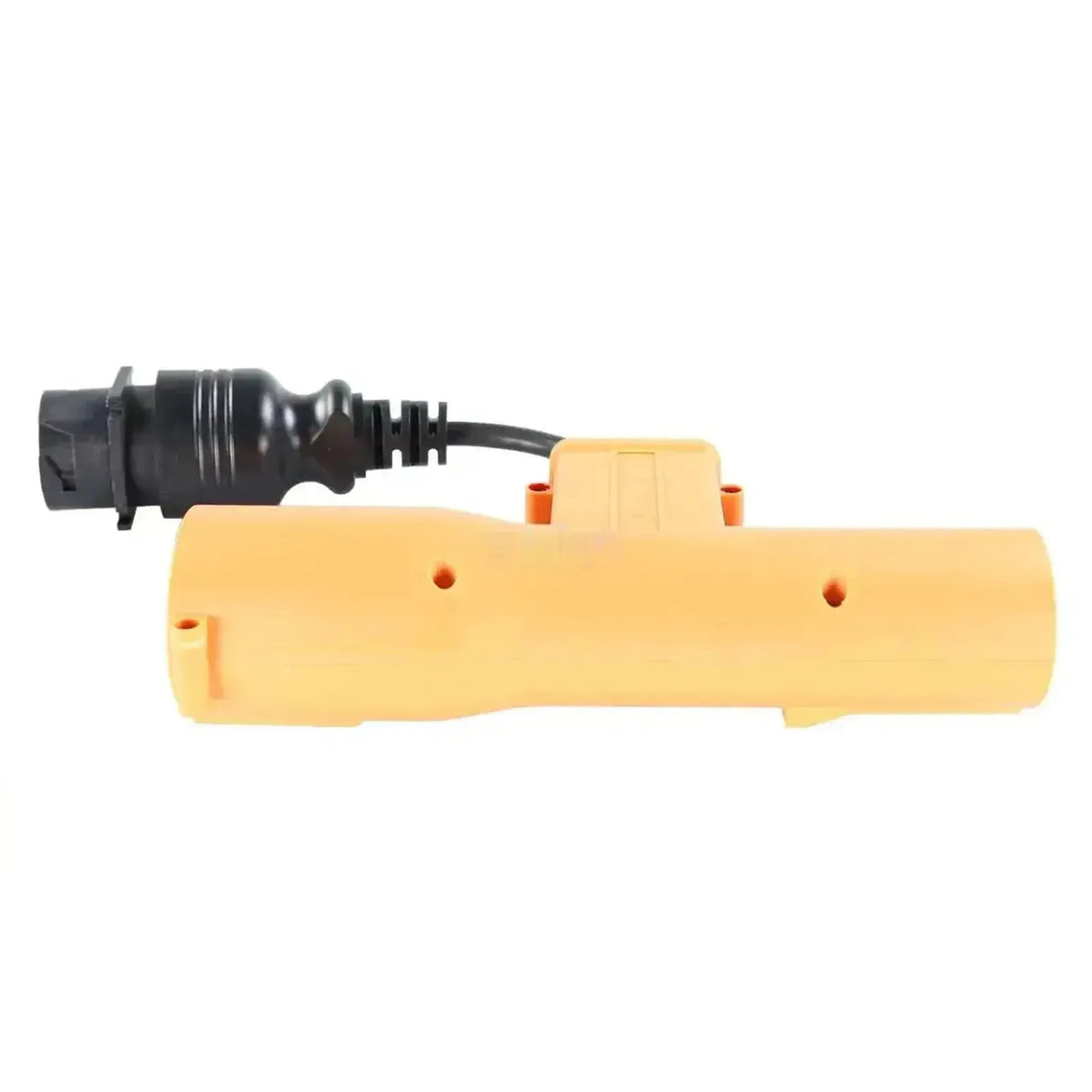

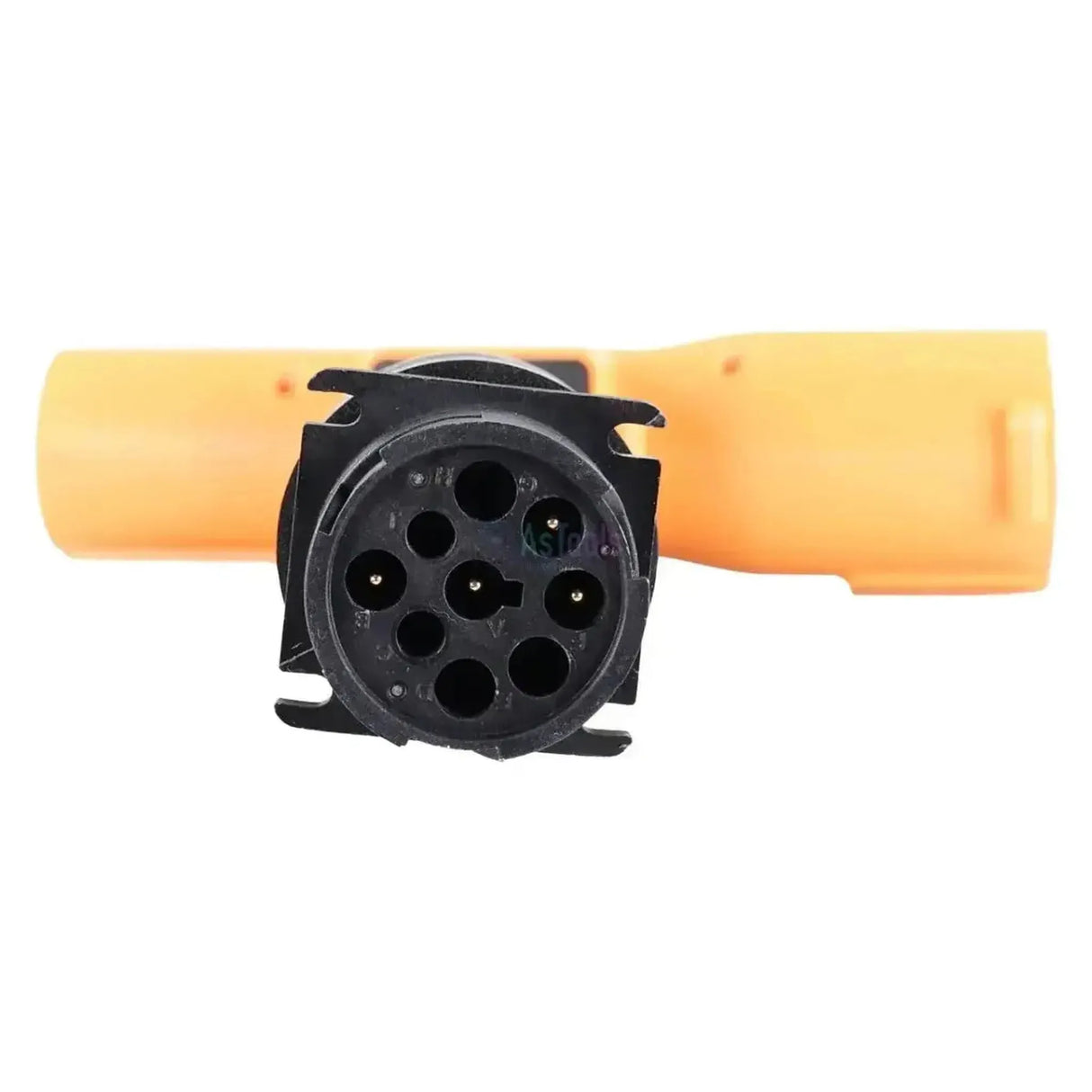

The Jaltest JDC112A is the orange T-piece that you hang in the 7-pin connection between the towing vehicle and the trailer. One arm carries a plug with seven brass pins, the other arm the matching 7-pin socket. At right angles to this, a short cable runs to a round black 9-pin Deutsch connector with a bayonet collar, of which four of the nine positions are occupied.

You connect your own 9-pin Deutsch diagnostic cable to the interface at this connector. This gives the equipment access to the PLC communication according to SAE J2497: the trailer sends its diagnostic data over the lighting power supply wire, the way trailer braking systems communicate, mainly in North America. The adapter is specified for the Jaltest Link V8.1 and V9 and falls under Jaltest CV.

ADVANTAGES

✔Opens the PLC communication according to SAE J2497, whereby the trailer sends its data over the lighting power supply wire.
✔Stays in the 7-pin connection: pins on one arm, sockets on the other, so that the tractor and semi-trailer remain connected.
✔Connects to the 9-pin Deutsch diagnostic cable that you already use for commercial vehicles.
✔Also reaches semi-trailers without their own CAN diagnostic connection, which communicate only via the lighting power supply.

POINTS TO NOTE

✕The free end is a 9-pin Deutsch connector and not a 16-pin OBD2; to reach the interface you still need a 9-pin Deutsch diagnostic cable.
✕Only for trailers with PLC according to SAE J2497; if the semi-trailer carries CAN on the ISO 7638-1 connection, the JDC110A is the correct one.
✕Of the nine positions in the Deutsch connector, four are occupied: it is not a fully wired-through 9-pin connection.
✕With a stated size of 18.2 x 26 cm, you work at the coupling, not from the cab.

Applications and functionality

Via the PLC line you read out the trailer systems that send their data over the power supply wire. Which control units these are varies per semi-trailer and per chassis builder.

Control units you can access

  • PLC line: Via the 7-pin connection.
  • Per trailer: Determined by the semi-trailer.

What you can do

  • Fault codes: Read and clear.
  • Measured values: Live monitoring.
  • Components: Activate actuators.
  • Service: Parameters, calibrations and resets.

How to use it

  1. Check the braking system: Establish that the semi-trailer carries PLC.
  2. Fit the T-piece: Hang the adapter in the 7-pin connection.
  3. Connect the cable: Attach the 9-pin Deutsch diagnostic cable.
  4. Connect the Link: Connect the Jaltest Link to the PC.
  5. Read out: Select the semi-trailer in Jaltest CV.

Compatible vehicles and applications

The communication method is decisive, not the brand. This adapter belongs to the 7-pin connection over which PLC according to SAE J2497 runs, at the coupling between the towing vehicle and the trailer.

Application:

  • PLC according to SAE J2497: Semi-trailers and trailers with this communication.
  • Chassis builders: All that apply this communication method.

Out of range:

  • CAN via ISO 7638-1: The JDC110A is intended for this.
💡
Good to know: PLC is not found on every trailer; many European semi-trailers carry CAN via ISO 7638-1 and then belong with the JDC110A. You recognise this adapter by the orange T-housing marked JDC 112A and by the black 9-pin Deutsch connector on the cable. Check on the semi-trailer itself which braking system is fitted before you order.

Package contents

  • 1x Jaltest (JDC112A) | 7+7-pin (PLC) J2497 - 9-pin Deutsch Adapter | Trailer

Technical specifications

General

The manufacturer of the cable. Jaltest cables work with Jaltest diagnostic equipment.Brand
Jaltest (Cojali)
The type of cable. A diagnostic cable connects to the diagnostic socket, a measuring cable tests an individual component.Cable type
Adapter cable
The Jaltest software package the cable belongs to. A licence for that module is required to use the cable.Jaltest software module
  • CV commercial vehicles
The types of vehicles or machines the cable is intended for. This shows quickly whether it suits the vehicles entering your workshop.Vehicle types
  • Trailer

Connections

The version of the Jaltest Link diagnostic interface the cable fits. Not every cable works with every version.Compatible Jaltest Link
  • Jaltest Link V8.1
  • Jaltest Link V9
The connector on the diagnostic device side. It must fit your interface or diagnostic cable.Interface-side connector
9-pin Deutsch

Diagnostics

Whether fault codes can be cleared as well as read. Some systems only allow reading.Clear fault codes
Yes
Whether the current sensor values can be viewed while the vehicle is running. Useful for tracing a fault.View live data
Yes
Whether components can be activated from the device. This shows whether the fault lies with the component or the wiring.Activate components
Yes
Whether components or sensors can be recalibrated. Often required after a component has been replaced.Perform calibrations
Yes

Usage

Whether another cable is required to use this one, such as an extension cable. It must then be purchased separately.Additional cable required
Yes
Reference number
JDC112A

Other specifications

Application
Trailer diagnostics via PLC communication (SAE J2497)
Vehicle-side connection
7+7-pin: orange T-housing with seven brass pins on one arm and the 7-pin socket on the other
Dimensions
18.2 x 26 cm
Control units
The trailer systems on the PLC line; which are present varies by semi-trailer
Additional requirement
A 9-pin Deutsch diagnostic cable between this adapter and the interface
