Topdon TopScan Moto | Diagnostic Tool | Motorcycle

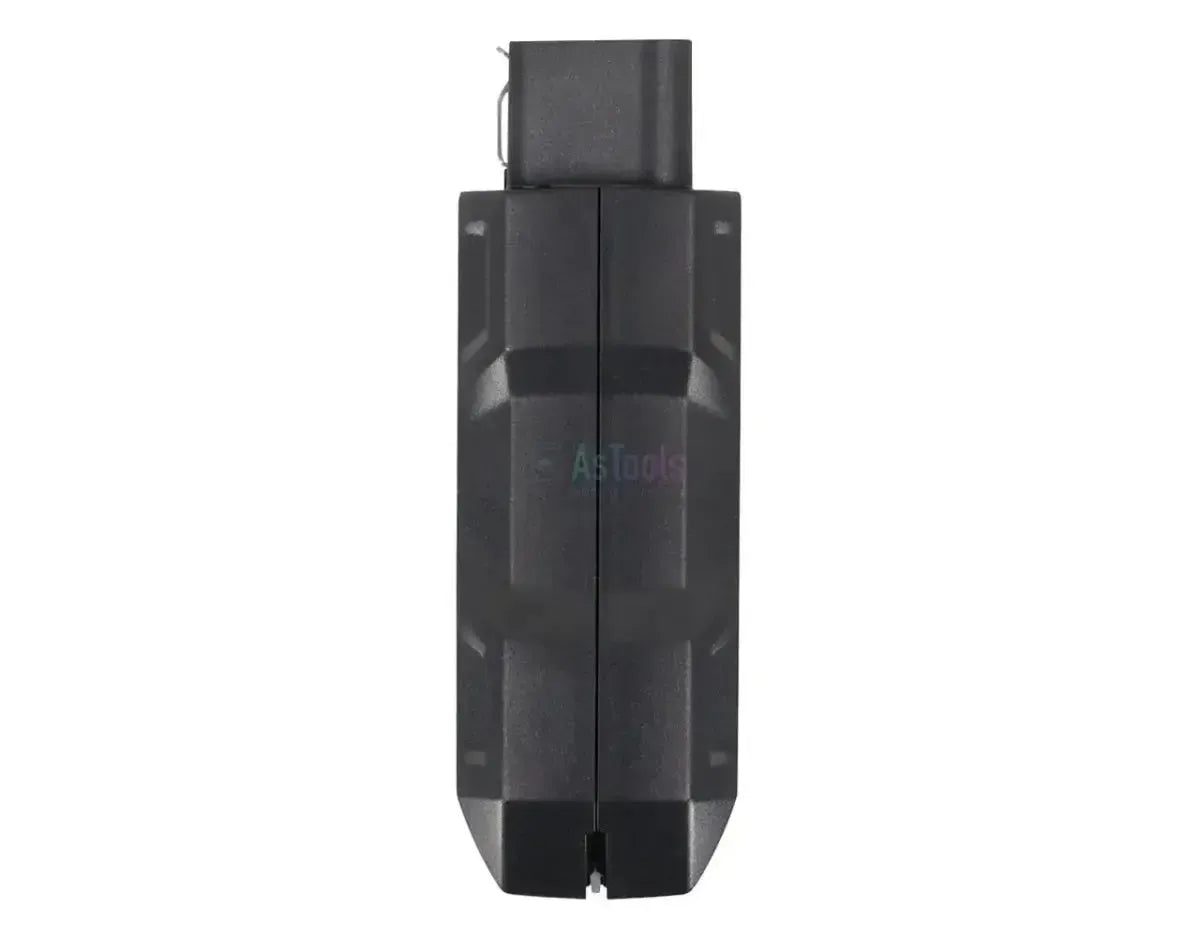

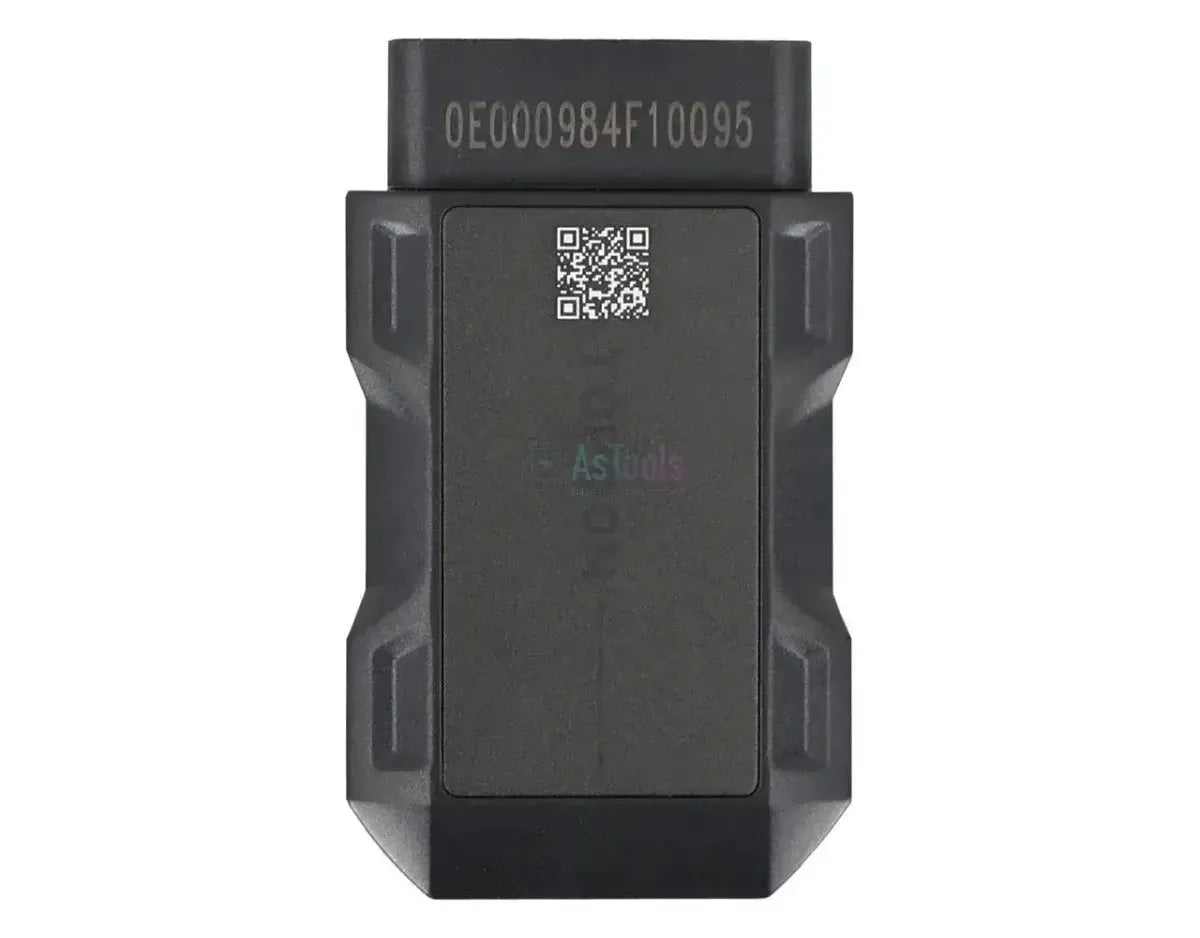

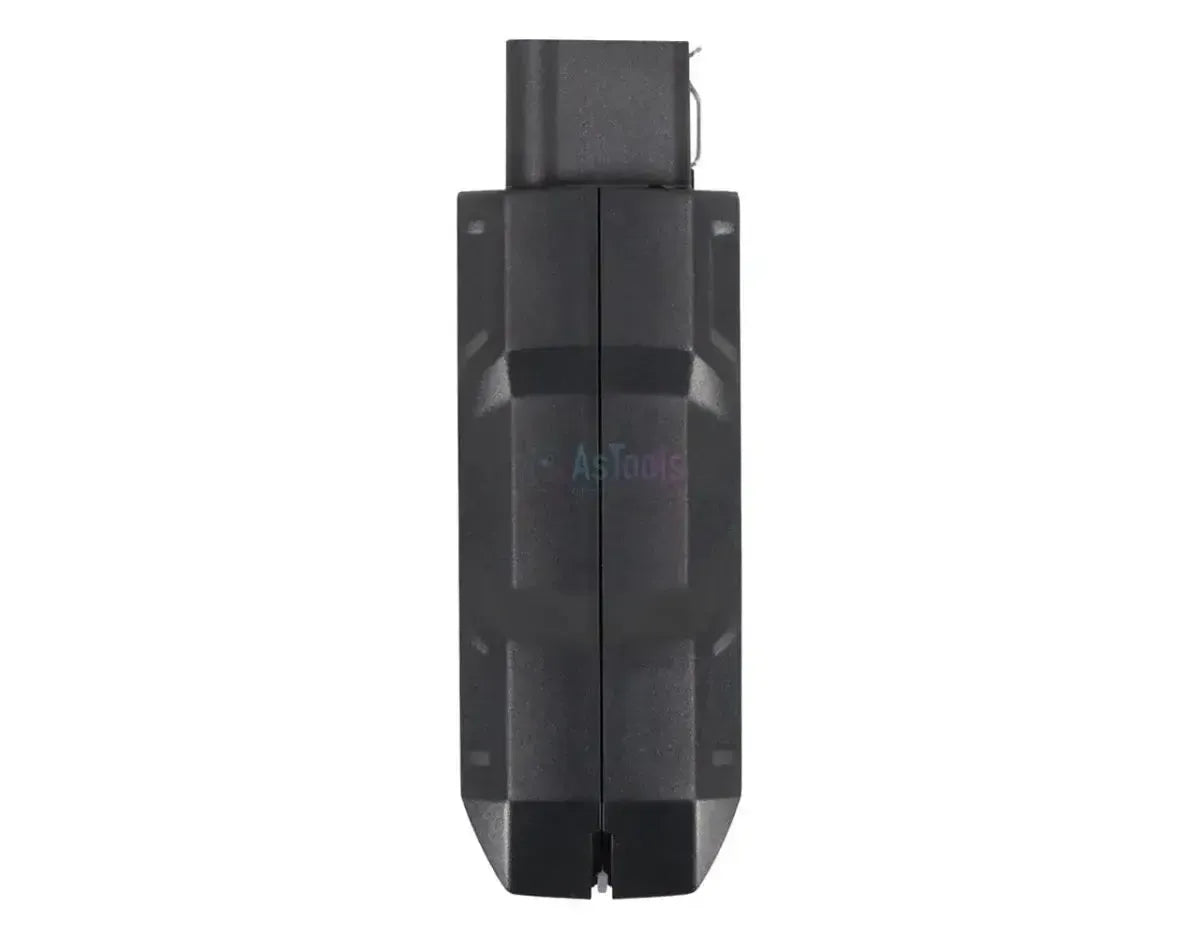

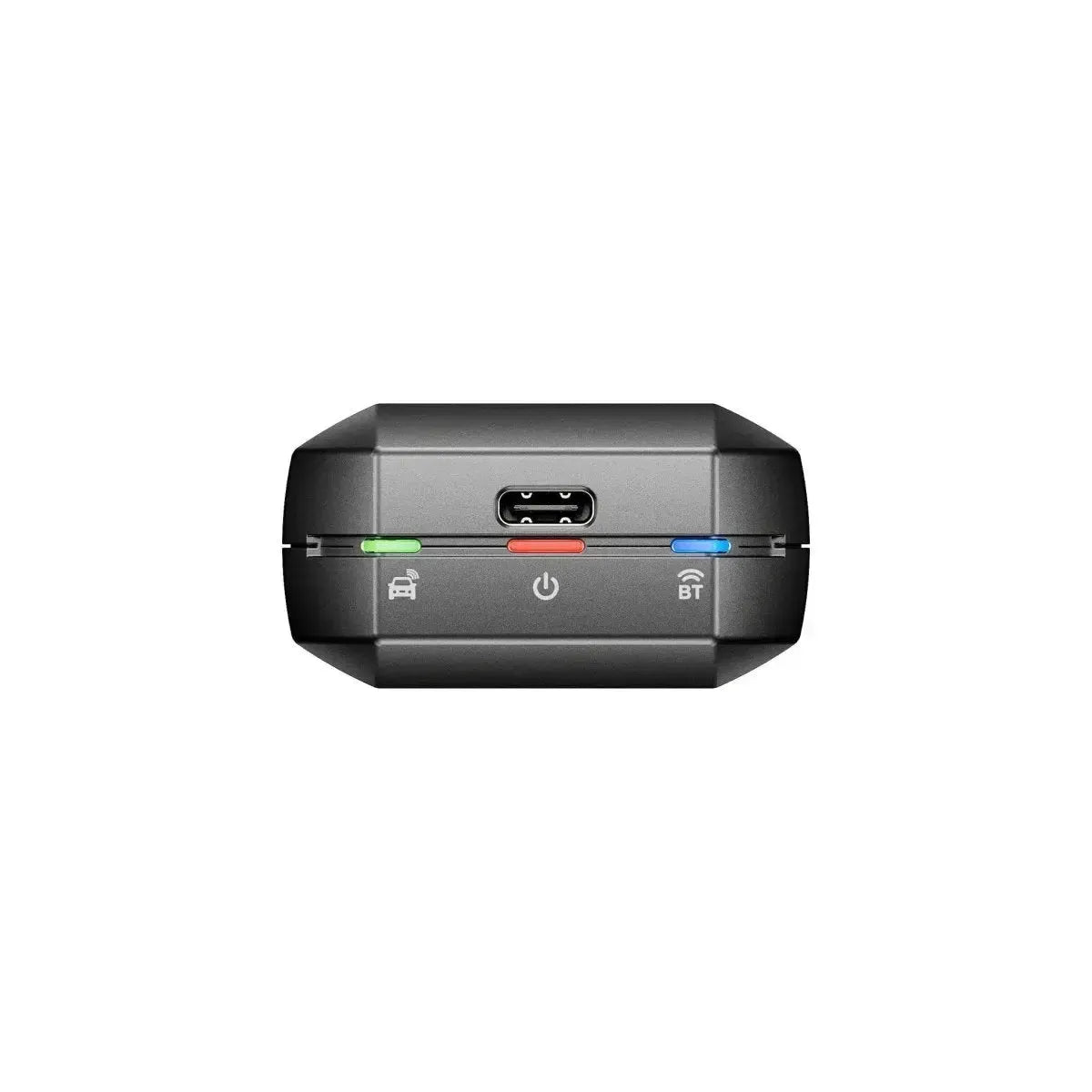

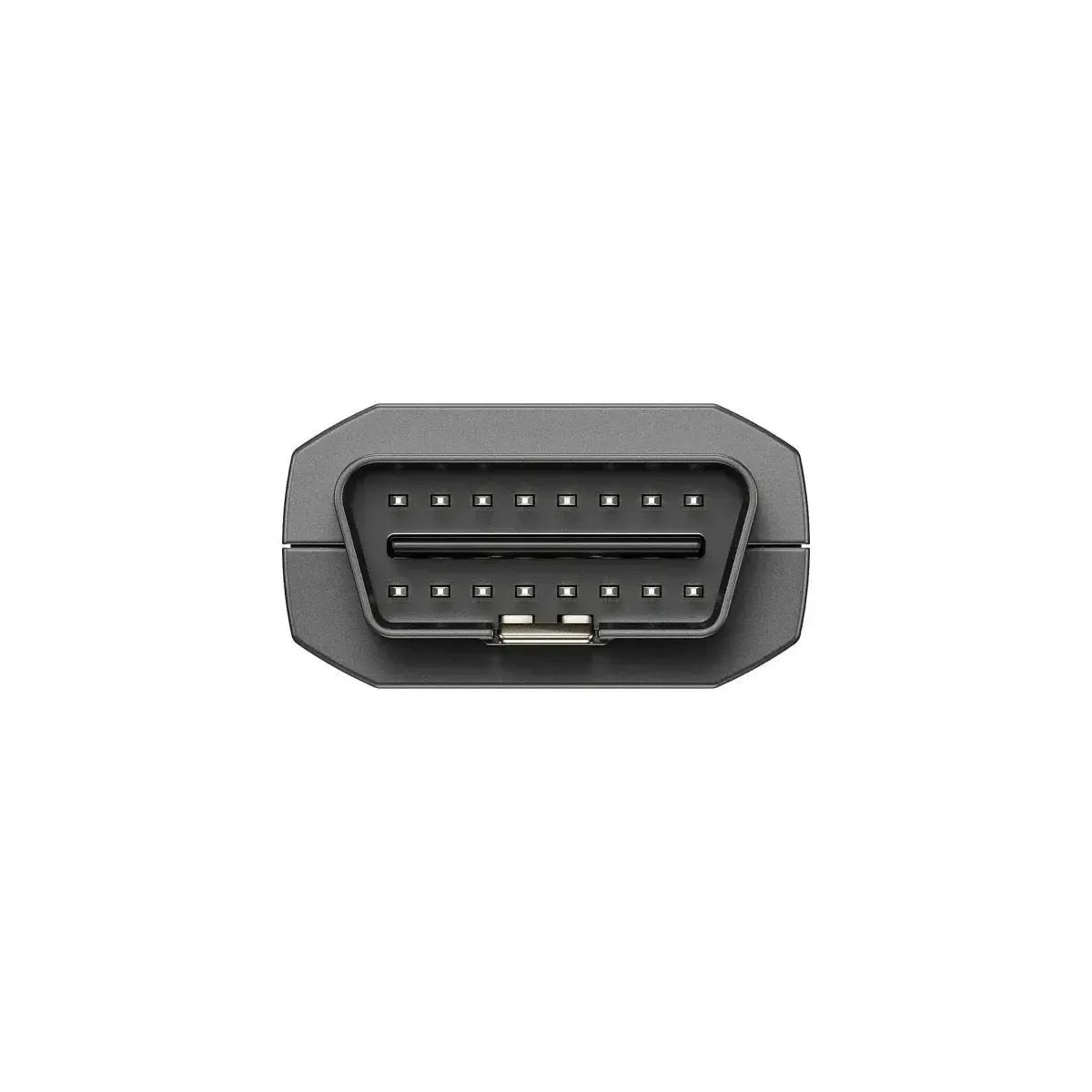

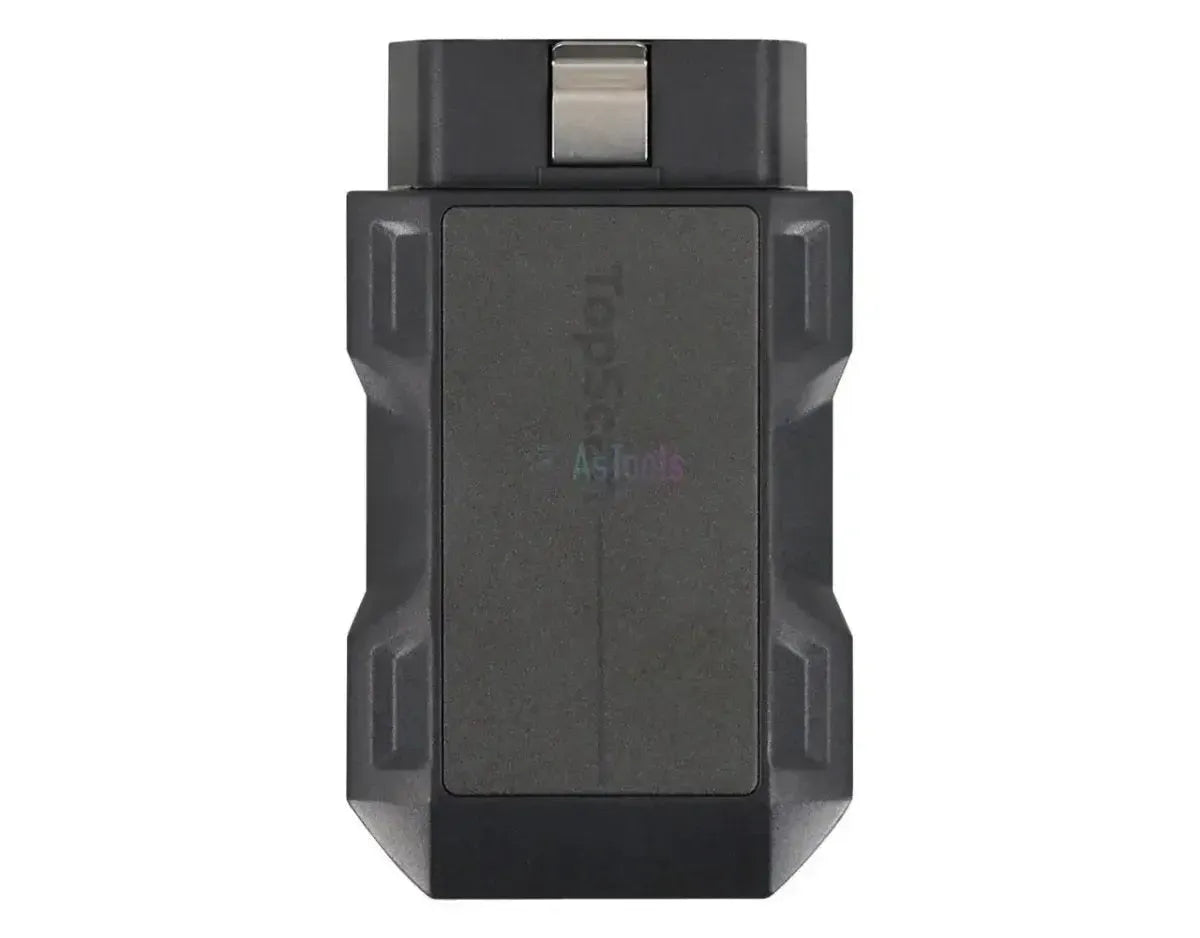

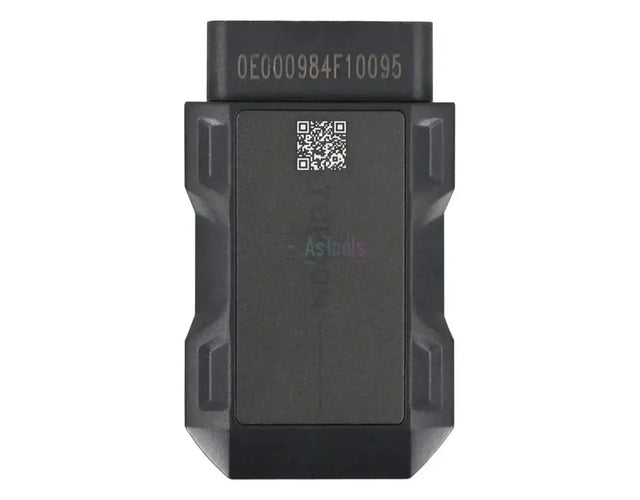

The Topdon TopScan Moto is a diagnostic tool in the form of a VCI dongle, designed for performing diagnostics and maintenance on motorcycles. The VCI connects via Bluetooth 5.0 to an iOS or Android smartphone, where the accompanying app provides the interface for all functions. The system supports full system diagnosis, reading and clearing fault codes, viewing live data, and more than 13 service functions. The license includes 1 year of free updates.

This scan tool offers additional features such as actuator tests to directly control and check components. The software also includes access to Technical Service Bulletins (TSB), which contain technical information and repair instructions from the manufacturer. Users can generate, save, and share detailed diagnostic reports after each session. The compact form factor of the VCI makes it a portable solution for diagnostic work.

Diagnostic functions:

The Topdon TopScan Moto performs a full system diagnosis on all electronic control units present in the motorcycle.

• Read and clear fault codes: Reads and clears fault codes (DTCs) from all available systems, including engine, ABS, and instrument panel. Fault code definitions are displayed immediately.
• Live data: Displays real-time data from sensors and components in various views, such as graphs and text. This enables monitoring and analysis of system performance.
• Actuator tests: Directly controls individual components and actuators to test functionality without disassembling the part. This can activate injectors, fans, or valves, for example.
• Request ECU information: Reads details from the control unit, such as software version, part number, and other specifications.

Service and maintenance functions:

The Topdon TopScan Moto supports more than 13 service functions for repair and maintenance of motorcycles. Available functions may vary by brand and model.

Engine and drivetrain:

• Reset maintenance interval: Resets the service light and maintenance interval after performing a service.
• Learn throttle body: Initializes the throttle actuators so the control unit can relearn the throttle positions after replacement or cleaning.
• Adjust idle speed: Allows adjustment of the engine's idle speed for stable operation.
• CO adjustment: Adjusts the carbon dioxide emission value to comply with emission standards or for optimal performance.
• Set air-fuel ratio (A/F): Adjusts the air-fuel ratio for efficient combustion and engine performance.
• Reset ECU: Restores the engine control unit to the standard factory settings, which can be useful after performing repairs.

Brakes and safety systems:

• ABS bleeding: Performs the automatic bleeding procedure for the anti-lock braking system to remove air from the brake system and restore braking performance.
• Tire Pressure Monitoring System reset (TPMS): Resets the TPMS and relearns sensors after sensor or tire replacement.

Electronics and instruments:

• Key programming (IMMO): Provides functions for learning new keys and managing the immobilizer. Exact functionality varies by brand.
• Odometer reading: Reads the stored odometer value from the control unit to verify the value on the instrument panel.

Special features and capabilities:

The TopScan Moto offers access to additional technical information and reporting features.

Cloud and reporting features:

• Diagnostic reports: Generates detailed reports of performed diagnostics, which can be saved and shared as PDFs.

Documentation and diagrams:

• DLC Location: Shows the exact location of the diagnostic link connector (DLC) on the motorcycle.
• DLC Query: Provides information about the specific diagnostic connector and required cables for the selected vehicle.
• Technical Service Bulletin (TSB): Provides access to manufacturer-issued technical service bulletins, including information on common issues and repair procedures.

Supported vehicle brands:

The Topdon TopScan Moto is a diagnostic tool for motorcycles compatible with a range of well-known brands.

• European: BMW, Ducati
• Asian: Honda, Kawasaki, Suzuki, Yamaha
• American: Harley-Davidson

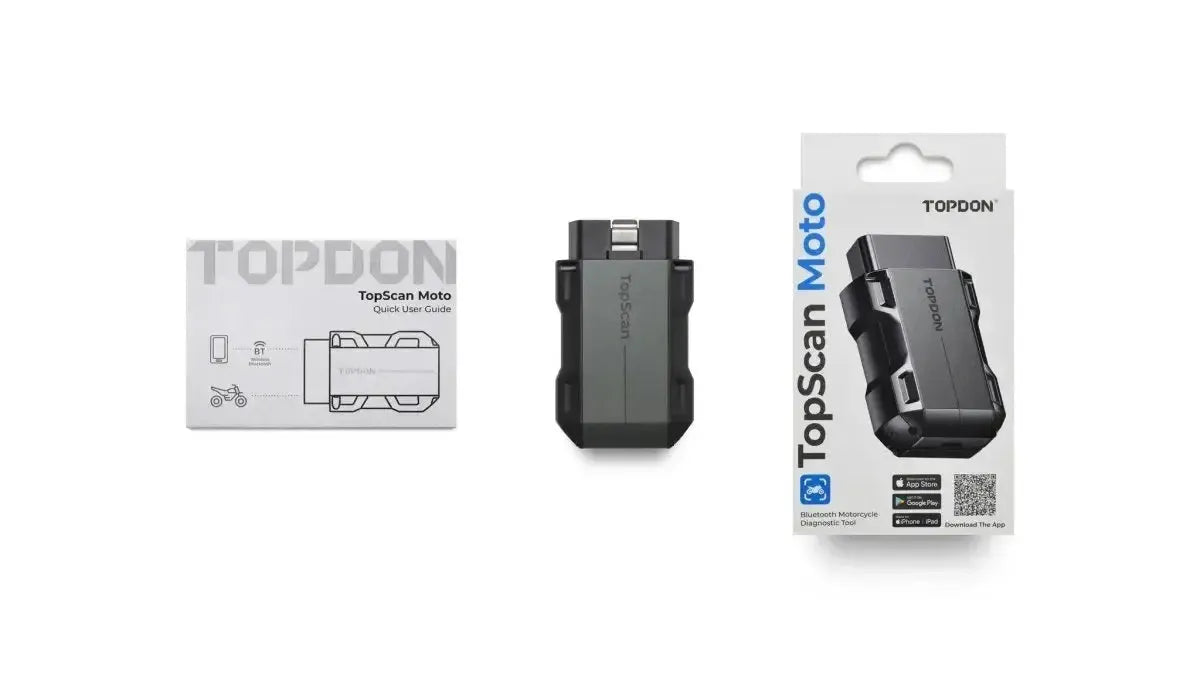

Package Contents:

• 1x Topdon TopScan Moto VCI
• 1x Manual

License Information:

• Includes 1 year of updates: A 12-month update license is included with purchase.

After the license period expires, the device will continue to operate based on the last installed software version. Access to new software updates and online features requires a new license.

Technical Specifications:
