Topdon ArtiDiag HD | Diagnostic Tool | Truck

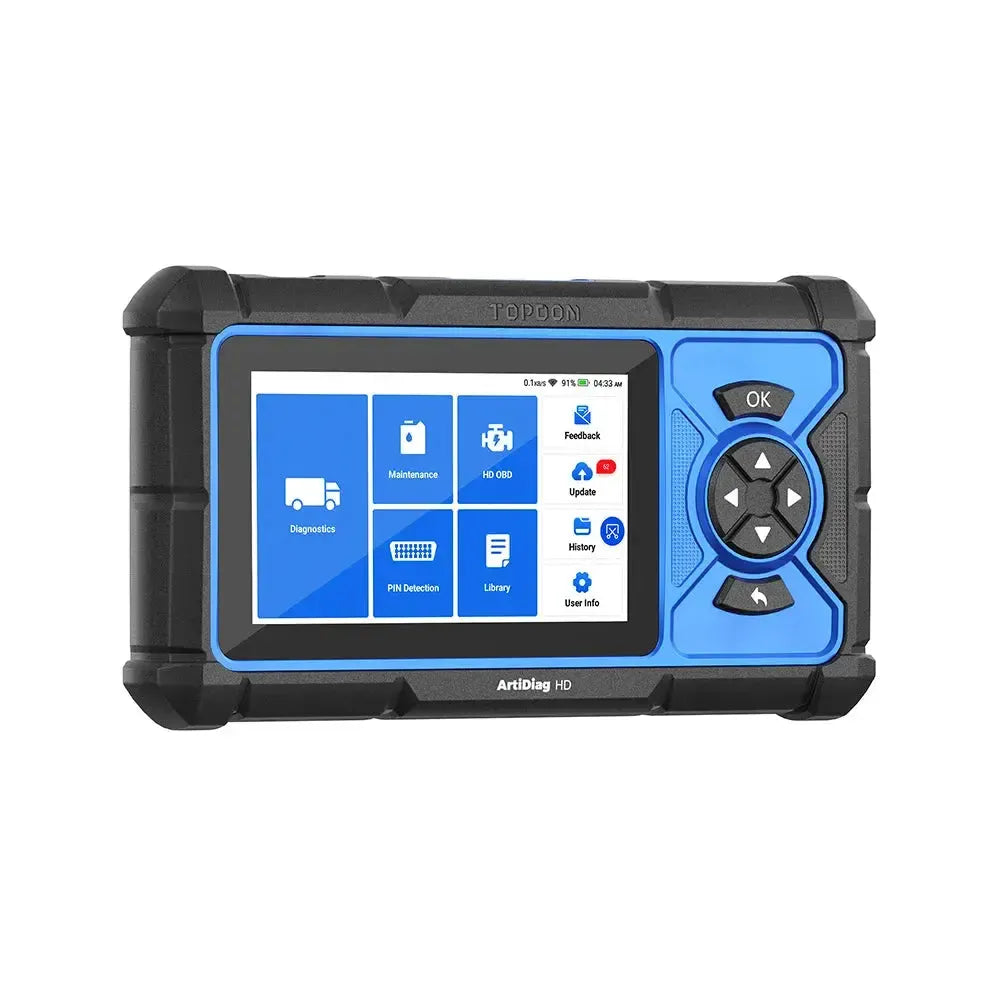

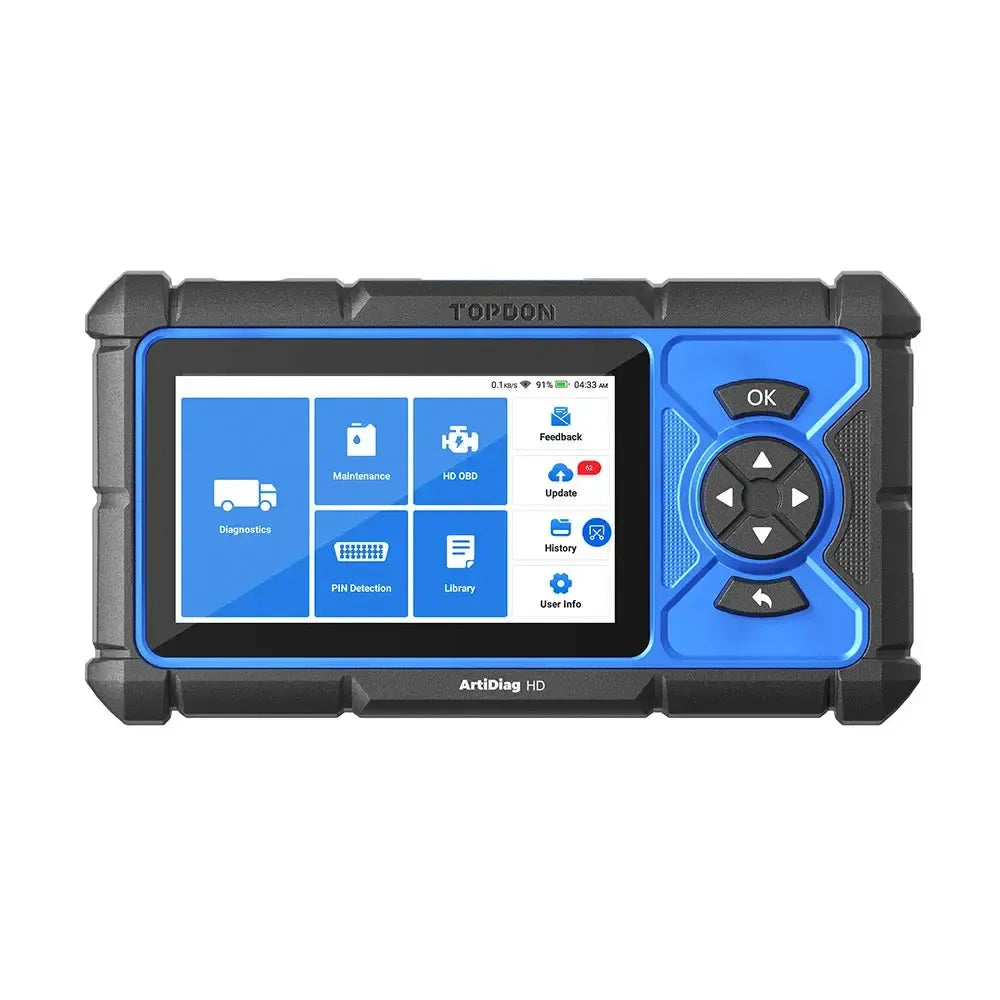

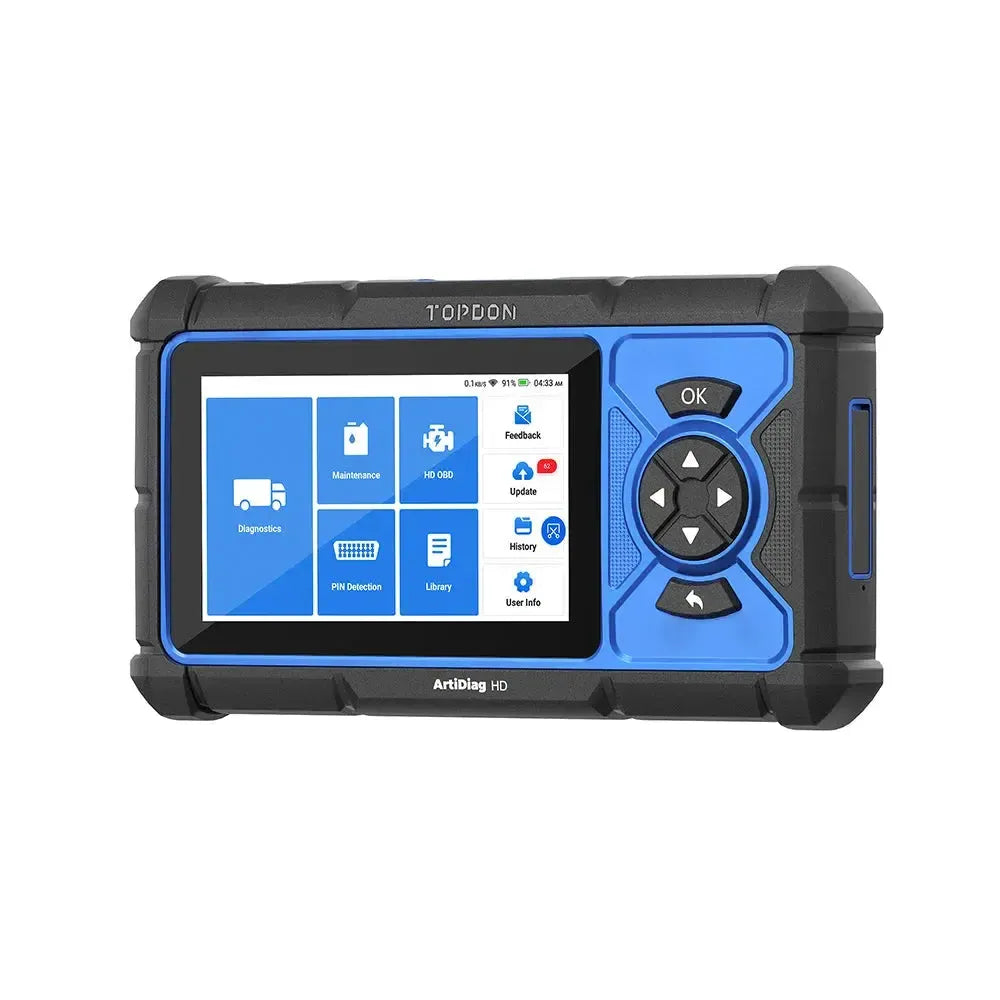

The Topdon ArtiDiag HD is a diagnostic tool designed for heavy commercial vehicles, such as trucks, buses, and construction machinery. The device supports more than 60 brands and performs a full system diagnosis. The ArtiDiag HD features a 5-inch display, a quad-core processor, and runs on an Android 6.0 operating system. The license includes 2 years of free software updates.

This diagnostic tool features functions such as automatic vehicle identification via AutoVIN, generating diagnostic reports, and the ability to perform software updates directly via Wi-Fi. The live data function allows real-time visualization of vehicle data for detailed analysis of system performance.

Diagnostic functions:

The Topdon ArtiDiag HD performs a full system diagnosis for all major electronic control units in the vehicle.

• Read and clear fault codes: Reading and deleting fault codes from all major vehicle systems, such as the engine, transmission, and ABS.
• Freeze frame data: Capturing and displaying vehicle data at the moment a fault code is stored.
• Live data: Displaying real-time data from vehicle sensors and components in various formats.

Service and maintenance functions:

This device supports more than 10 Service and maintenance functions for heavy commercial vehicles. The availability of these functions may vary depending on the specific brand, model, and year of manufacture of the truck.

Engine and drivetrain:

• Reset oil service: Resets the engine oil maintenance interval and turns off the service light after an oil change.
• Code injectors: Inputs calibration codes of new injectors into the engine control unit (ECU) for precise fuel injection.
• Calibrate clutch: Performs calibration or learning of the clutch, usually for automated transmissions.
• Cylinder deactivation test: Temporarily disables individual cylinders to analyze the performance and contribution of each cylinder.
• Adjust idle speed: Sets or adjusts the engine idle speed for stable operation.

Exhaust systems:

• Diesel particulate filter regeneration (DPF): Initiates forced regeneration of the DPF to remove accumulated soot particles and prevent clogging.
• Reset Selective Catalytic Reduction (SCR): Resets the SCR system, for example after refilling AdBlue (DEF) or replacing system components.
• Calibrate Urea/AdBlue system (DEF): Performs calibrations and tests on the Diesel Exhaust Fluid (DEF) dosing system for proper operation.

Brakes:

• Reset brake pads: Resets the wear indicator for the brake pads after replacement.

Bodywork and electronics:

• Adjust speed limiter: Allows setting or adjusting the maximum speed limit stored in the vehicle computer.

Special features and capabilities:

The ArtiDiag HD offers various advanced features to support the diagnostic process.

• Automatic vehicle identification (AutoVIN): Automatically identifies the vehicle model and year for faster diagnosis.
• Generate diagnostic reports: Automatically creates diagnostic reports that can be saved or shared.
• PIN detection: Checks the status of the pins on the OBD connector to identify communication issues.
• Software updates via Wi-Fi: The system can be updated directly via a Wi-Fi connection.

Supported vehicle brands:

This diagnostic device supports a wide range of trucks, buses, and agricultural and industrial machines. Compatibility includes various brands from Europe, Asia, and America.

• European: Credo, DAF, DEUTZ, ERF, Haldex, Iris Bus, Irizar, Iveco, JCB, Man, Mercedes-Benz, MWM, Neoplan, Perkins, Renault, Scania, Setra, Sprinter (Diesel), Steyr, Voith, Volvo, Volvo CE, Wabco, ZF
• Asian: Aisin, Ashok Leyland, BENZ (India), Doosan, Fuso, Hino, Hitachi, Hyundai, Isuzu, Komatsu, Nissan (Diesel), Tata, Toyota (Diesel), UD
• American: Allison, Bendix, Bobcat, CASE, Caterpillar, Chrysler (Diesel), Cummins, Detroit, Eaton, Flexi-Coil, Ford (Diesel), Freightliner, GM (Diesel), International, John Deere, Kenworth, Mack, Maxxforce, Miller, Paccar, Peterbilt, Sterling, Western Star

Package Contents:

• 1x Topdon ArtiDiag HD diagnostic device

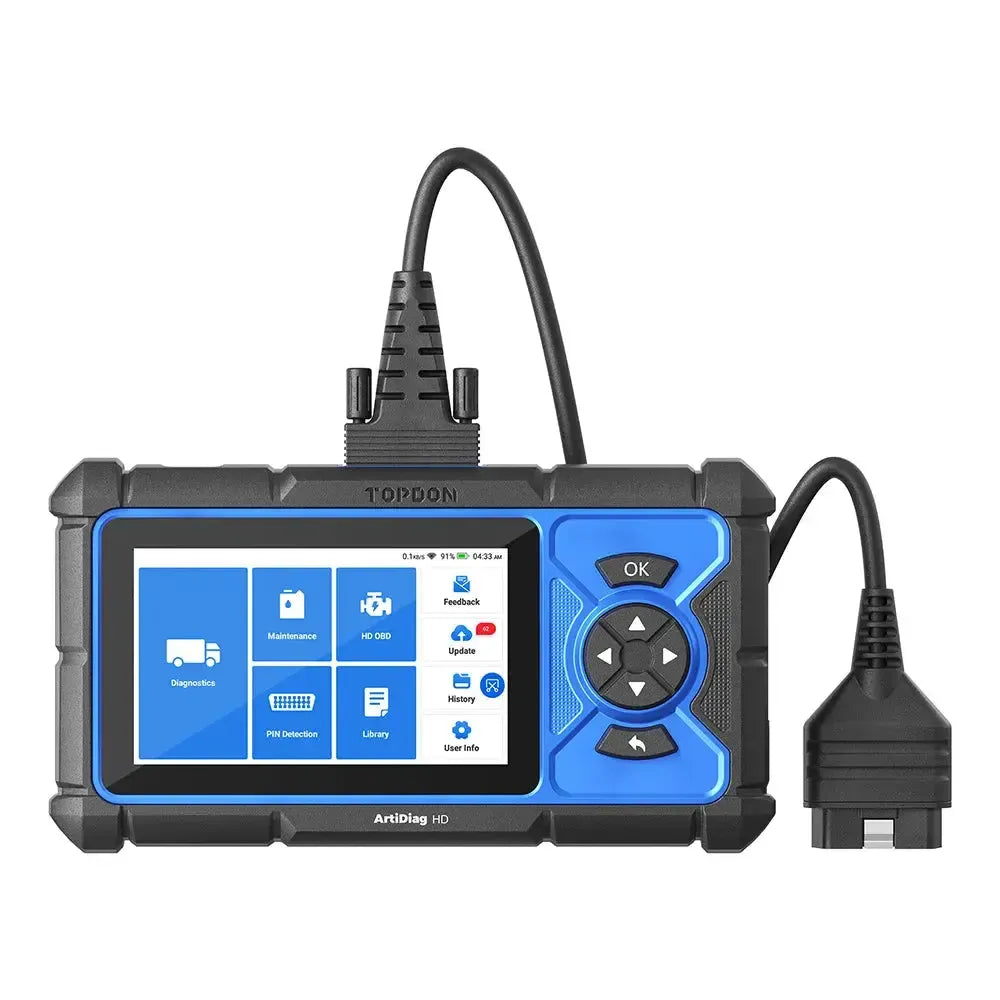

• 1x Diagnostic main cable
• 1x OBD-II Adapter
• 1x CAT-9 Adapter
• 1x OBD-6 (6-pin) Adapter
• 1x OBD-9 (9-pin) Adapter
• 1x Charging cable
• 1x Quick start guide
• 1x Package Contents list
• 1x Storage case

License information:

• Includes 2 years of updates: A 24-month update license is included with the purchase.

After the license period ends, the device will continue to operate based on the last installed software version. Access to new software updates requires a license renewal.

Technical specifications:
