OBDSTAR iScan Sea-Doo (Marine) | Diagnostic Tool | Motorboat

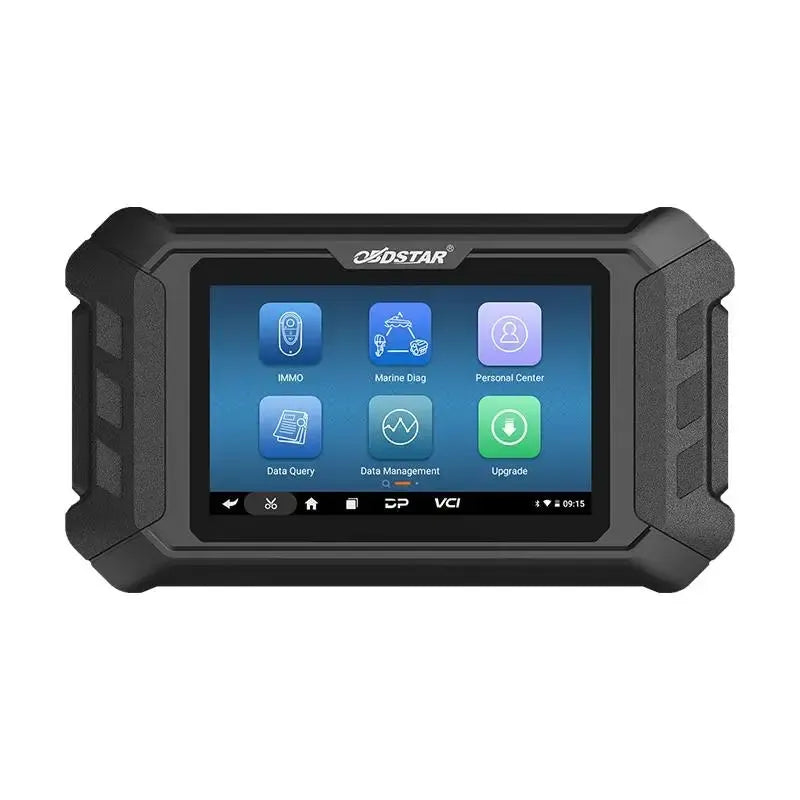

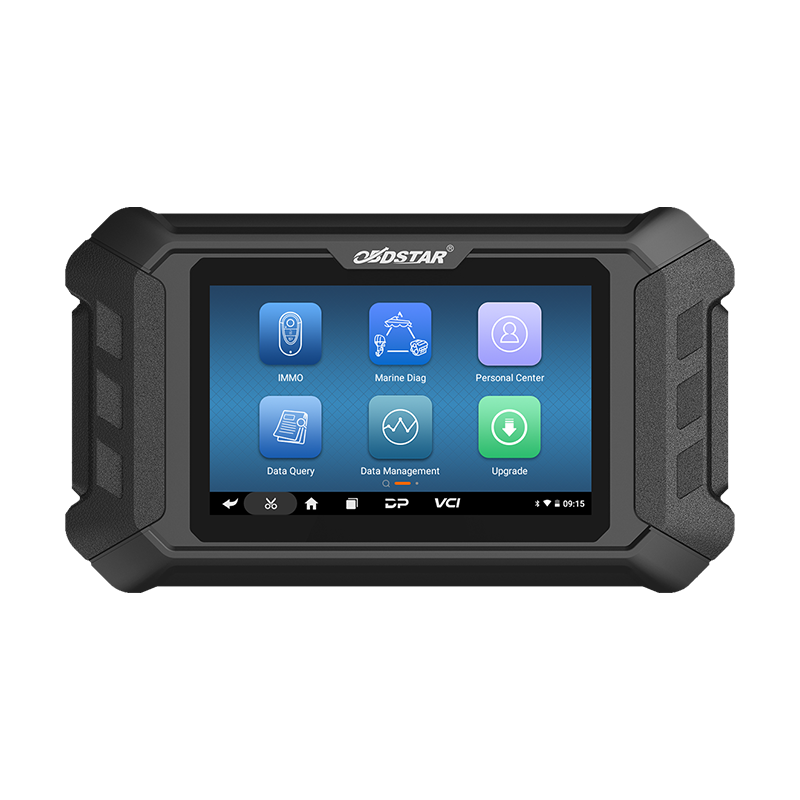

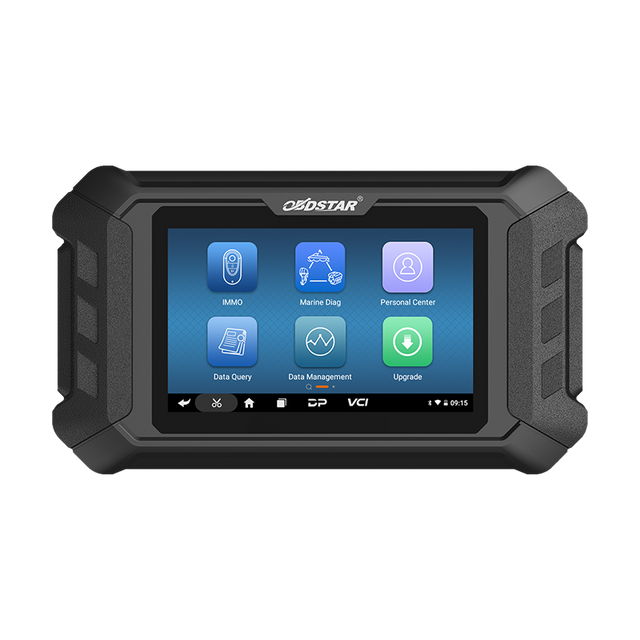

The OBDSTAR iScan Sea-Doo is a reader device specifically developed for maritime vehicles, including those from BRP. The system is based on an RK3128 quad-core processor and features a 5.0 inch touchscreen for operation. The iScan Sea-Doo supports extensive diagnostic and service functions. A 2-year software license is included with purchase.
The device offers connectivity via Wi-Fi for software updates and remote support. Data streams can be displayed in various ways, including text, waveform charts, and gauge charts. Additional functions are available through the OBDSTAR mobile app, such as technical bulletins and the location of the diagnostic connector.
Diagnostic functions:
The iScan Sea-Doo supports various diagnostic functions for analyzing and resolving faults in the vehicle system.
- Read and clear fault codes: Reading fault codes from various control units and clearing them after repair.
- Live data: Displaying real-time data streams from sensors and components. The data can be recorded and played back for analysis. Display is possible in text, waveform, or gauge chart.
- Actuator test: Controlling components and systems to verify correct operation.
- System settings and coding: Adjusting system parameters and coding modules.
Service and maintenance functions:
The device supports more than 40 service and maintenance functions. The available functions may vary by brand, model, and year of the vessel.
Engine and Drivetrain:
- Supercharger maintenance reset: Resetting the maintenance indicator for the supercharger after service.
- Throttle and Idle Control: Calibrating the throttle position and the idle actuator for correct engine response.
- Boat Speed Algorithm: Adjusting or calibrating the algorithm for accurate speed measurement.
- Ignition: Testing and diagnosing components within the ignition system.
Brake System and Control (IBR):
- IBR Configuration: Setting and configuring the Intelligent Brake and Reverse (IBR) system.
- Pair IBR: Pairing a new IBR module to the vessel.
- Pair IBRMON: Synchronizing the IBR monitor component with the system.
- Brake Bleeding: Performing the full bleeding procedure for the brake system, including front and rear circuits and resetting the procedure.
- Roller Test Mode: Activating roller test mode for brake system testing purposes.
Instrument Panel and Display:
- Pair Instrument Panel: Pairing or synchronizing a new or replacement instrument panel.
- Language Instrument Panel: Setting the display language of the instrument panel.
- Model Year Instrument Panel: Configuring the correct model year in the instrument panel.
- Units Instrument Panel: Changing the measurement units, such as metric or imperial.
- Compass Tilt Instrument Panel: Calibrating the compass tilt angle for accurate display.
- Hours Display on Startup: Setting whether the operating hours are shown at startup.
- Depth Gauge: Configuring and testing the depth gauge function.
Sensors and Modules:
- Pair WSM: Pairing the Watercraft System Management (WSM) module.
- Steering Angle Sensor: Calibrating and initializing the steering angle sensor.
- Yaw rate sensor: Calibrating the yaw rate sensor, which measures rotation around the vertical axis.
- HBB activation: Activating the Hydraulic Brake Booster (HBB) system.
- Ballast coding: Programming and configuring the electronic ballast system.
General System Management and Configuration:
- Edit customer name: Changing the registered customer name in the system.
- Edit engine number: Adjusting the engine serial number in the control unit.
- Edit vessel model number: Adjusting the model number of the vessel.
- Edit chassis number (VIN): Changing the vehicle identification number.
- Vehicle configuration: Adjusting the overall vehicle settings and installed options.
- Learned vehicle variant: Managing the specific vehicle variant recognized by the system.
- Key configuration: Programming and configuring the ignition keys.
- Lock and unlock IS: Managing the locking and unlocking functions of the Intelligent System (IS).
- Set time zone: Adjusting the time zone offset for the system time.
History and Service:
- Service reset: Resetting the service interval indicator after maintenance.
- Clear all history: Deleting all stored historical data and fault codes.
- Last minute history: Reading the operational data of the last minute for diagnosis.
- Minimum/maximum history: Viewing the stored minimum and maximum values of various parameters.
- Part replacement history: Recording and reading the history of replaced parts.
- Speed profile history: Analyzing the stored data about engine speed over time.
- Operating hours history: Read the total operating hours of the engine.
Special features and capabilities:
The iScan Sea-Doo has additional features that support diagnostics.
Cloud and reporting features:
- Remote assistance: Possibility for remote technical support by OBDSTAR.
- Software updates via Wi-Fi: Perform software updates with a single action via a Wi-Fi connection.
Documentation and diagrams:
- Diagnostic connector location: Indicates the physical location of the diagnostic port on the vessel.
- Flashcode lookup: Provides a database for looking up flashcodes.
- Interactive wiring diagrams: Access to interactive electrical diagrams via the mobile application.
- Technical bulletins: Access to official service and technical bulletins from the manufacturer.
Supported vehicle brands:
The OBDSTAR iScan Sea-Doo is compatible with a range of jet skis and other marine vehicles from the following brands:
- American: BRP
Package Contents:
- 1x OBDSTAR iScan Sea-Doo main unit
- 1x M001B Main cable
- 1x M043 BRP (SEA-DOO) Adapter
- 1x 12V2A Charger
License information:
- Including 2 years of updates: A 24-month update license is included with the purchase.
After the license expires, the basic functions of the iScan Sea-Doo with the last installed software version remain available. Access to new software updates and online features requires the purchase of a new license.
Technical specifications:
| Specification | Description |
|---|---|
| Product brand | OBDSTAR |
| Product model | iScan Sea-Doo |
| Operating system | Android 5.1.1 |
| Screen size | 5.0 inch |
| Screen resolution | 800*480 pixels |
| Processor | RK3128 quad-core ARM Cortex A7 |
| Connectivity | Wi-Fi |
| Battery | 2600mA, rechargeable polymer lithium Battery |
