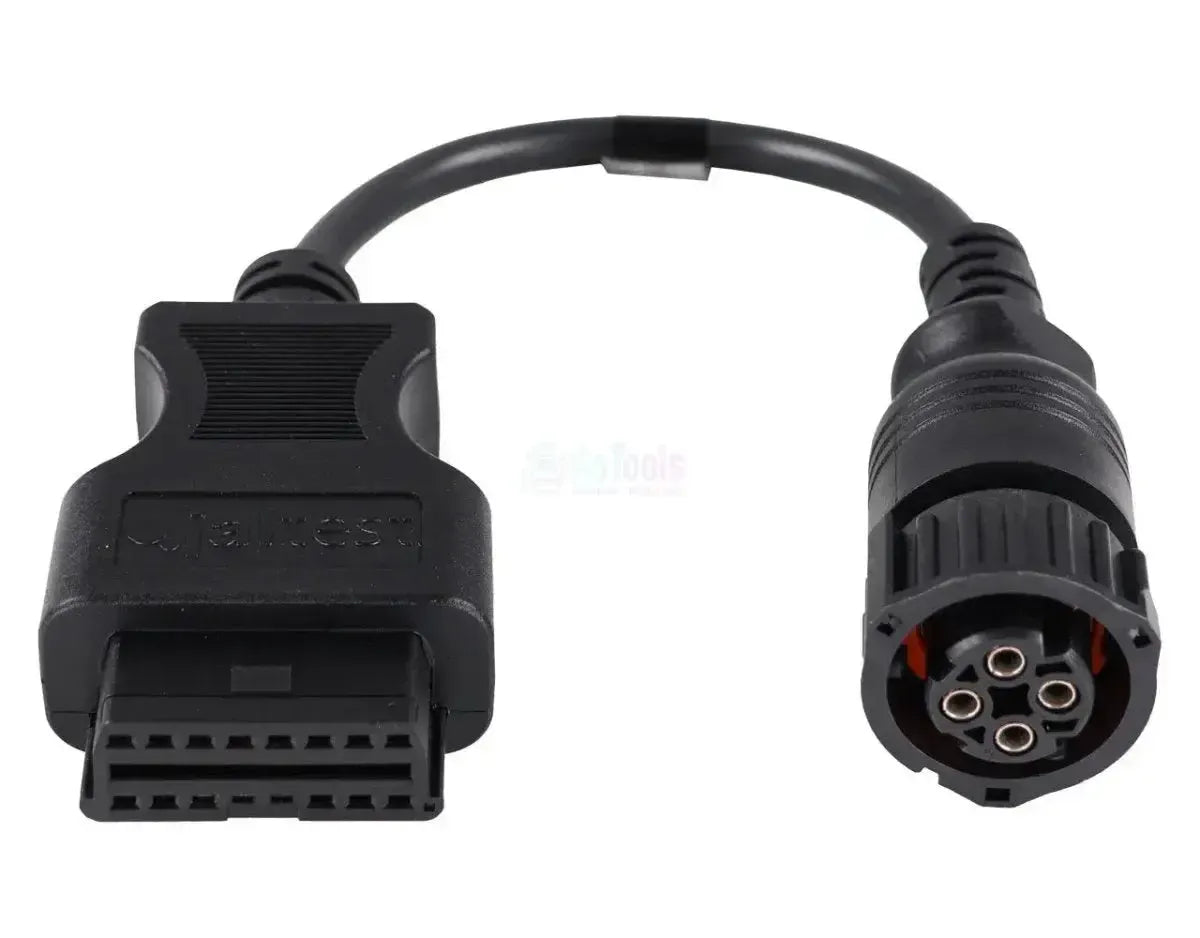

Jaltest (JDC532A) | Scania (CAN) 4-pins OBD – 16-pins OBD2 Adapter Cable | Internal combustion engine
Warranty directly via AsTools
Warranty directly via AsTools
We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.
2 years warranty on all products
2 years warranty on all products
All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.
Easy returns
Easy returns
You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.
Professional customer service
Professional customer service
Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

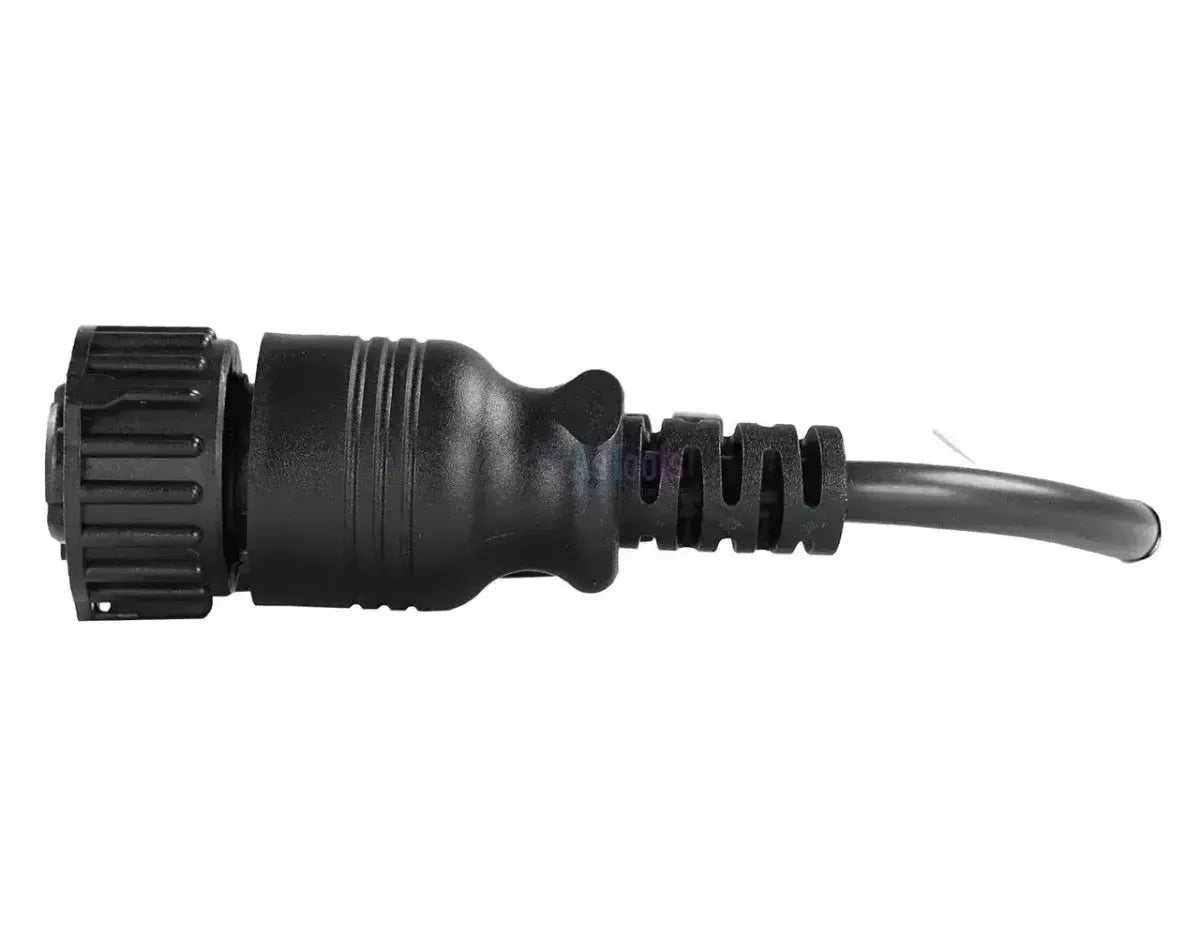

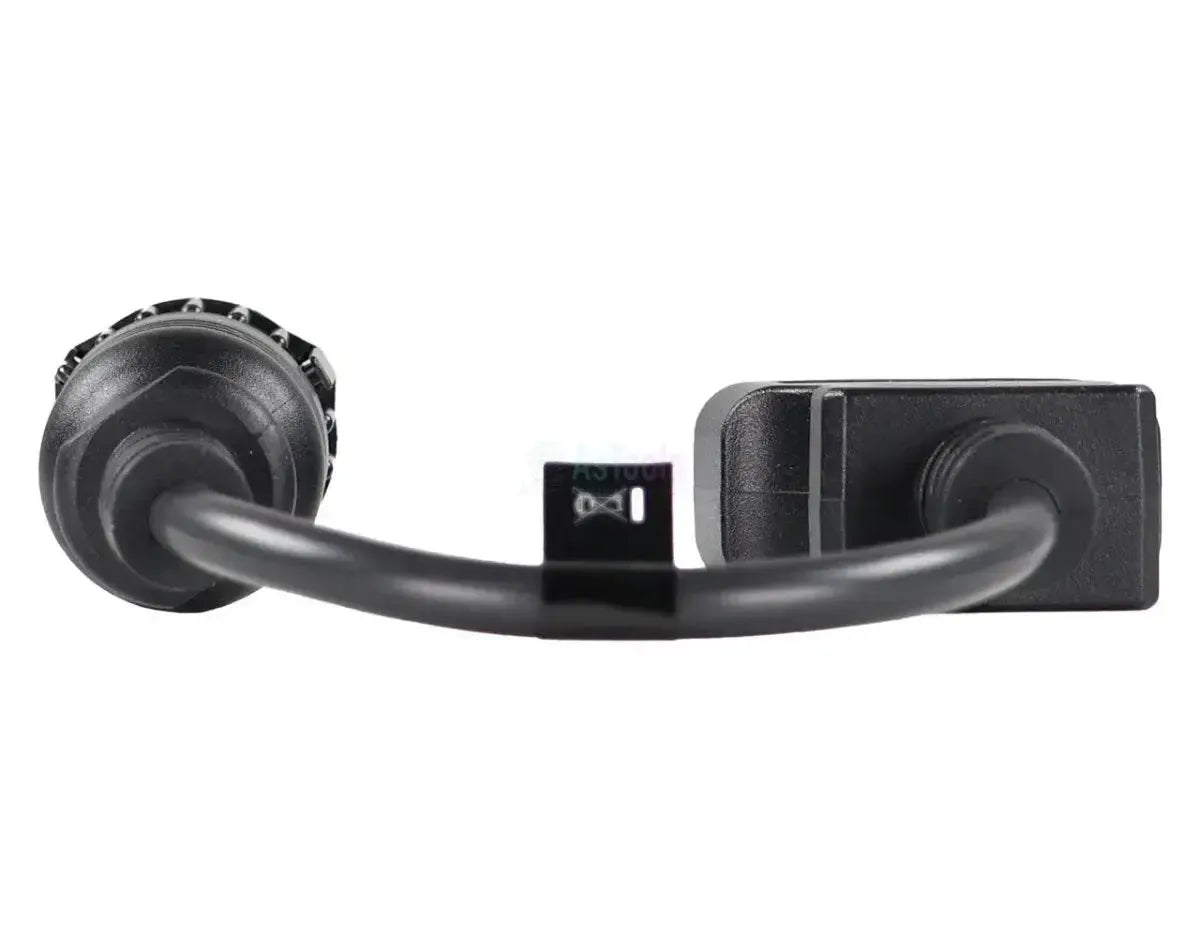

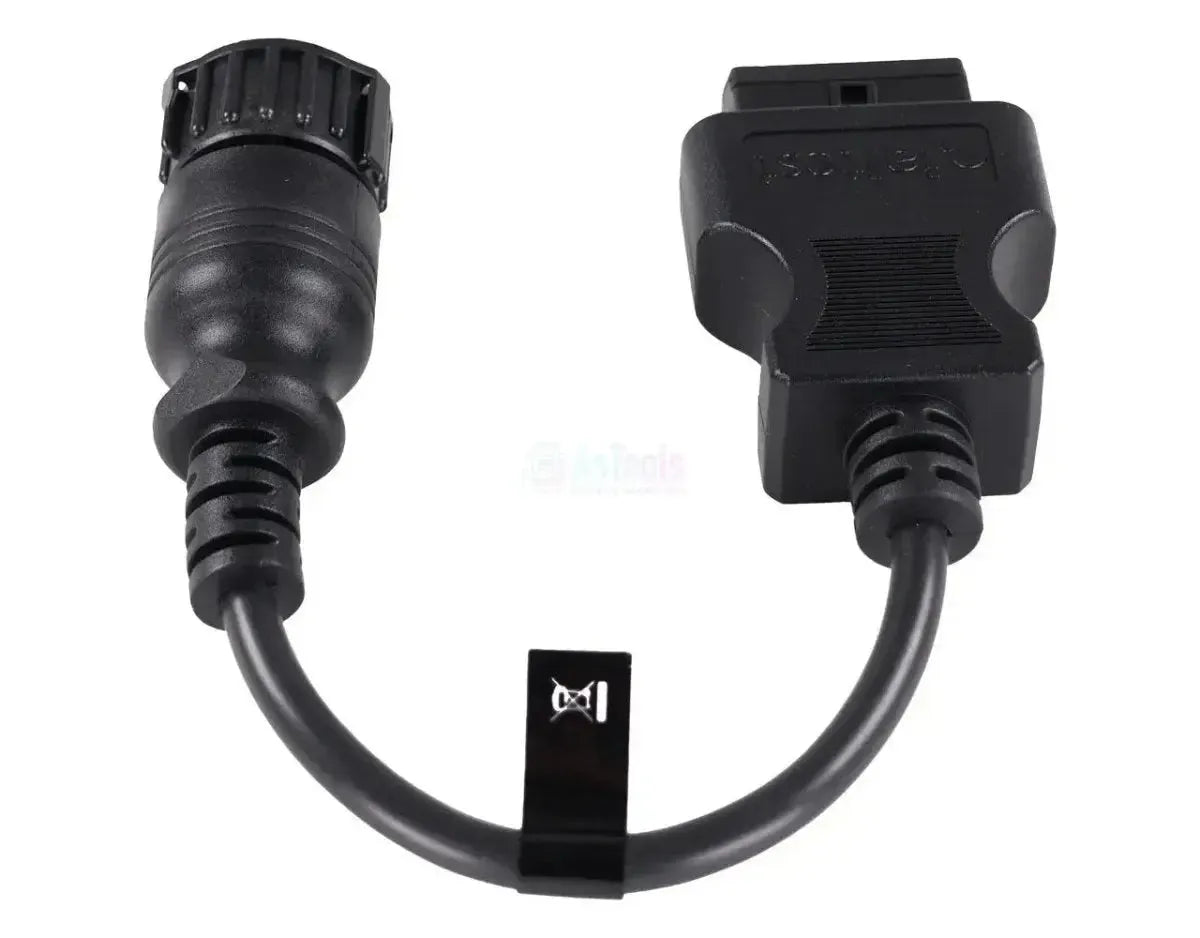

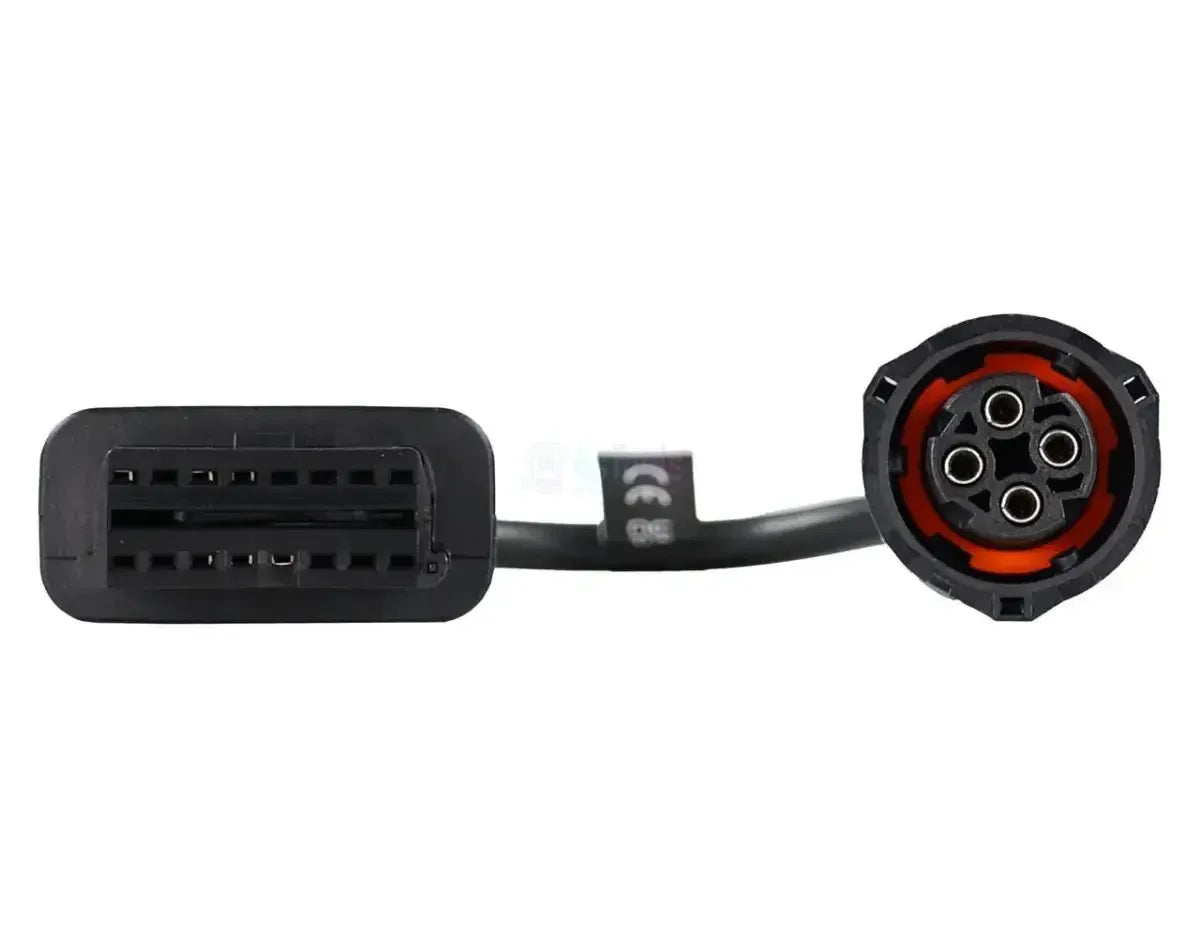

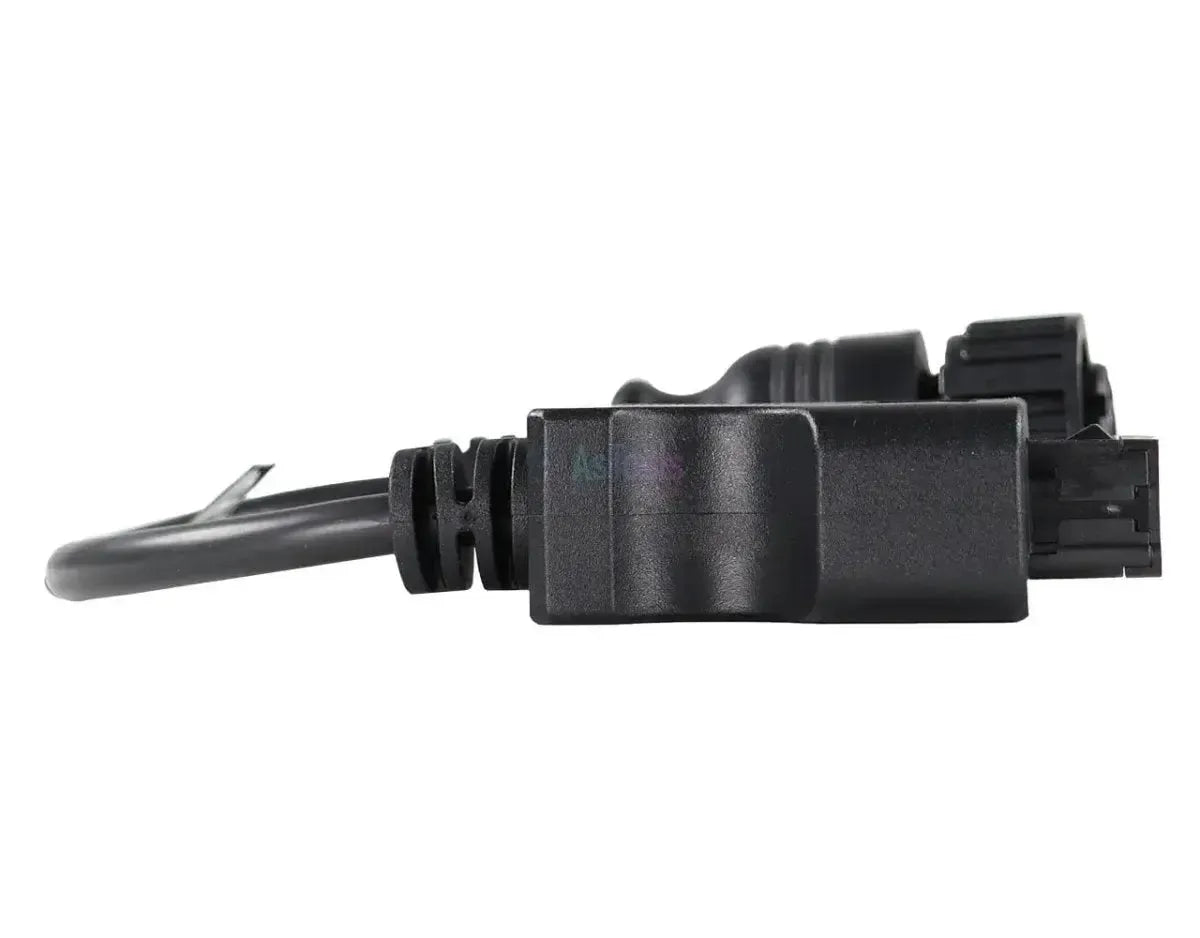

The Jaltest JDC532A is the adapter cable connecting the 4-pin CAN diagnostic connector on Scania industrial engines to the 16-pin OBD2 port of your Jaltest diagnostic scanner. On the engine side, it features the 4-pin connector that plugs into the engine's diagnostic port in the engine bay; on the scanner side, the 16-pin OBD2 connector. Cojali supplies it as the CAN 4-pin diagnostics cable for Scania engines. Because the connector belongs to the engine rather than the machine, you'll find it on Scania industrial engines in equipment from manufacturers including Doosan, Terex, Hyundai CE, Kobelco, Konecranes, Dewulf and Ploeger, as well as on marine engines.
This cable routes the engine's CAN diagnostic line to the Jaltest Link, enabling direct communication with Scania engine management. This gives your diagnostic tool access to EMS PDE and EDC MS6.2, the control systems for pump-injector technology. Coverage of these engines includes: Fault codes, live data and ECU information, without maintenance intervals, component actuation or parameters. The cable is compatible with Jaltest OHW (Off-Highway machines), Jaltest AGV (agricultural vehicles), Jaltest MHE (Material Handling Equipment) and Jaltest Marine.
KEY BENEFITS
IMPORTANT NOTES
Applications and Functions
Using this connection, you can access the Scania engine management system via the CAN bus with Jaltest software.
Control Units You Can Access
- EMS PDE, Engine Management System, Unit Injector: Scania engine management with pump-injector units, including fault codes, live data, and ECU information.
- EDC MS6.2, Engine Management System, Unit Injector: The corresponding control unit using the same injection principle, with identical function list.
What You Can Do
- Read and clear fault codes: Access the control unit's fault memory with fault descriptions, and clear it after repair.
- View live data: Monitor real-time sensor values from the control unit.
- Set alarm thresholds: Receive alerts when measured values fall outside normal range.
Maintenance intervals, component control, and parameters are not available in the coverage table for these Scania engines.
Compatible Vehicles and Applications
The connector type determines compatibility, not the machine brand. This cable fits any Scania industrial engine with the 4-pin CAN diagnostic connector. Jaltest covers the engine series listed below; check your engine's connector type on-site.
Scania:
- DC09 Series: The nine-liter industrial engines
- DC12 Series: The twelve-liter versions
- DC13 series: The thirteen-liter industrial engines
- DC16 series: The sixteen-liter V8 engines
- Installed in excavators, cranes, agricultural machinery, lifting equipment, power units and marine applications
Package contents
- 1x Jaltest (JDC532A) | Scania (CAN) 4-pin OBD - 16-pin OBD2 Adapter Cable | Combustion Engine
Technical specifications
| Specification | Description |
|---|---|
| Brand | Jaltest (Cojali) |
| Reference number | JDC532A |
| Type | Adapter cable |
| Application | Scania engines with 4-pin CAN diagnostic connection |
| Engine-side connector | 4-pin OBD |
| Interface-side connector | 16-pin OBD2 |
| Control units | EMS PDE and EDC MS6.2 (engine management) |
| Segment | Combustion engine |
| Jaltest module | Jaltest OHW (Off-Highway machines), Jaltest AGV (agricultural vehicles), Jaltest MHE (Material Handling Equipment) and Jaltest Marine |
| Required to use | Jaltest Link with valid software license |
