Jaltest  |  SKU: JDC533A

Jaltest (JDC533A) | Caterpillar 14-pin OBD – 16-pin OBD2 Adapter Cable | Internal combustion engine

Regular price
€344,95 incl.
€285,08 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

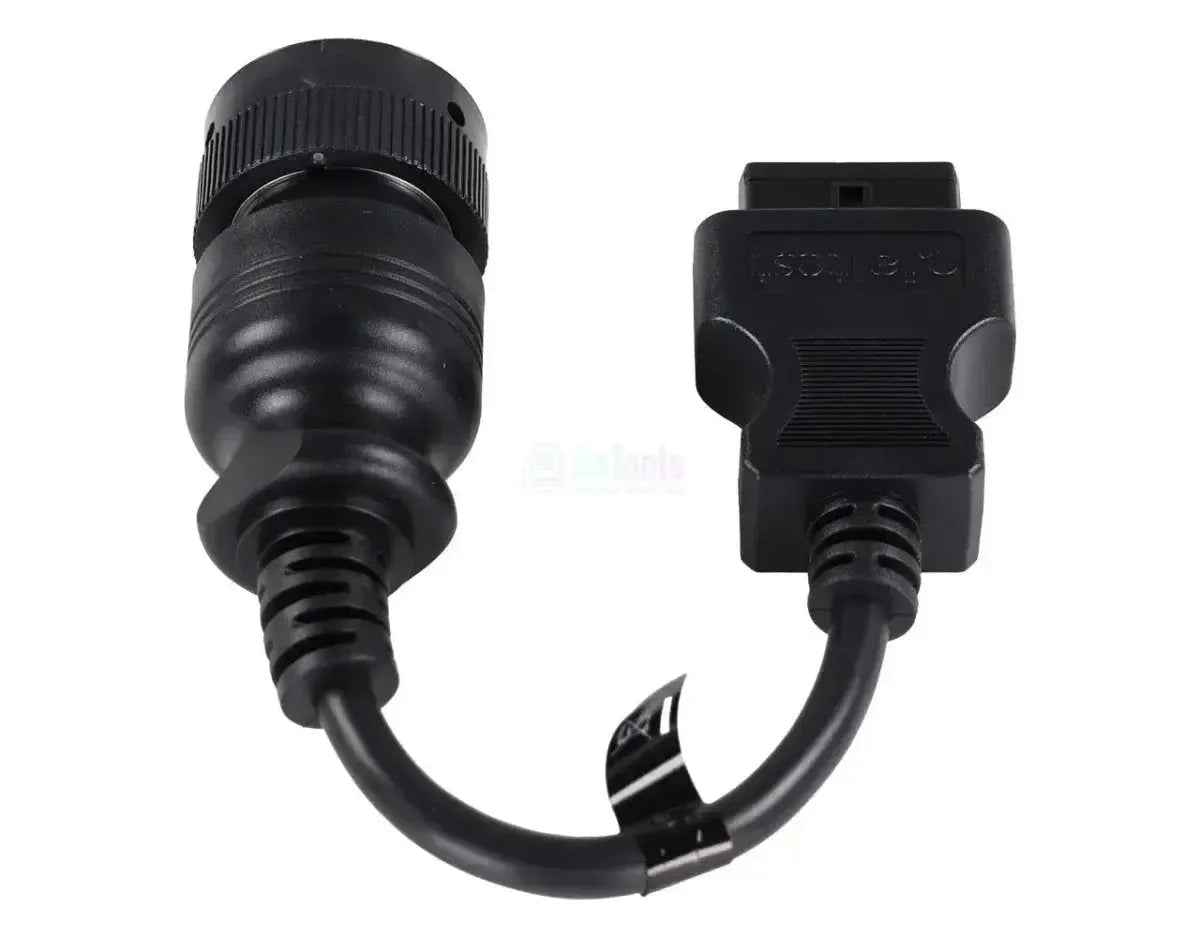

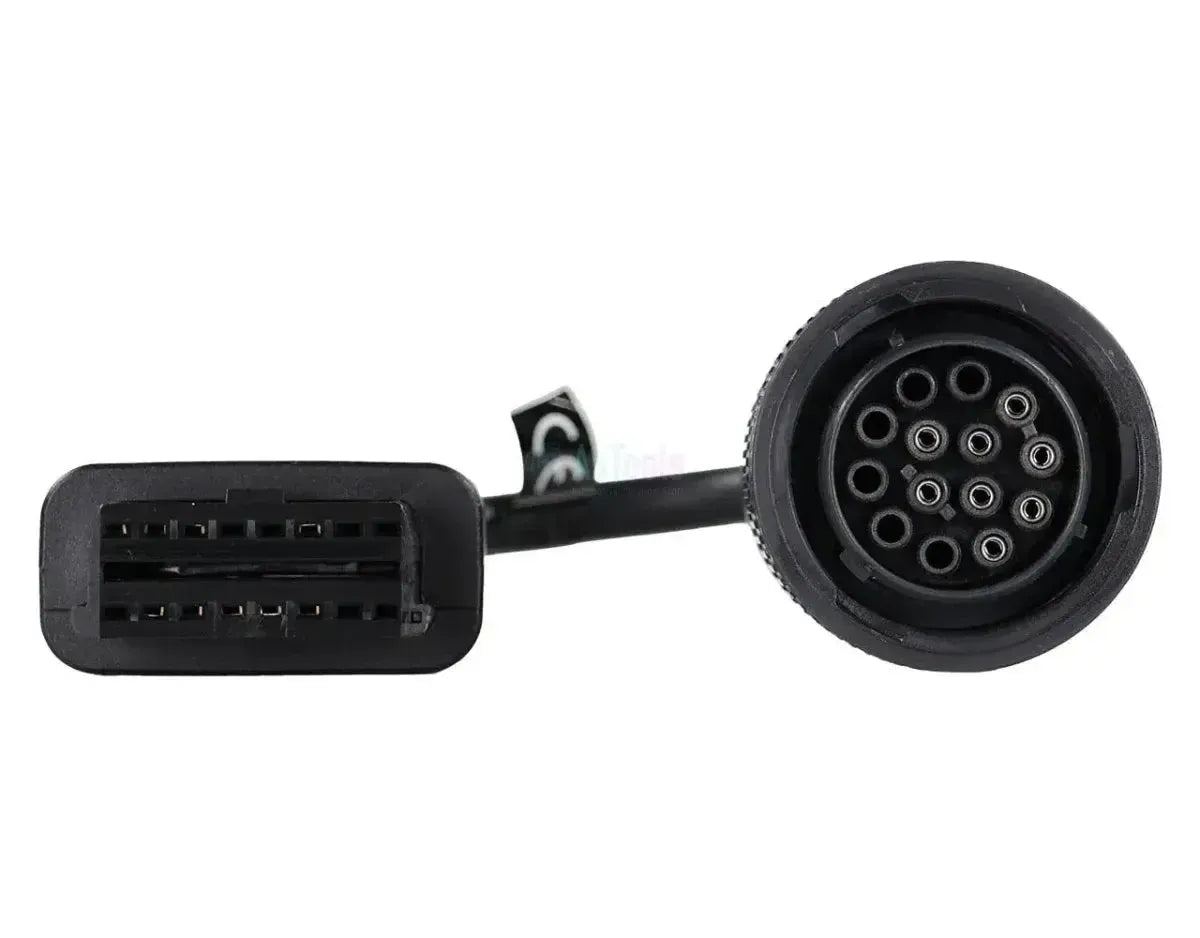

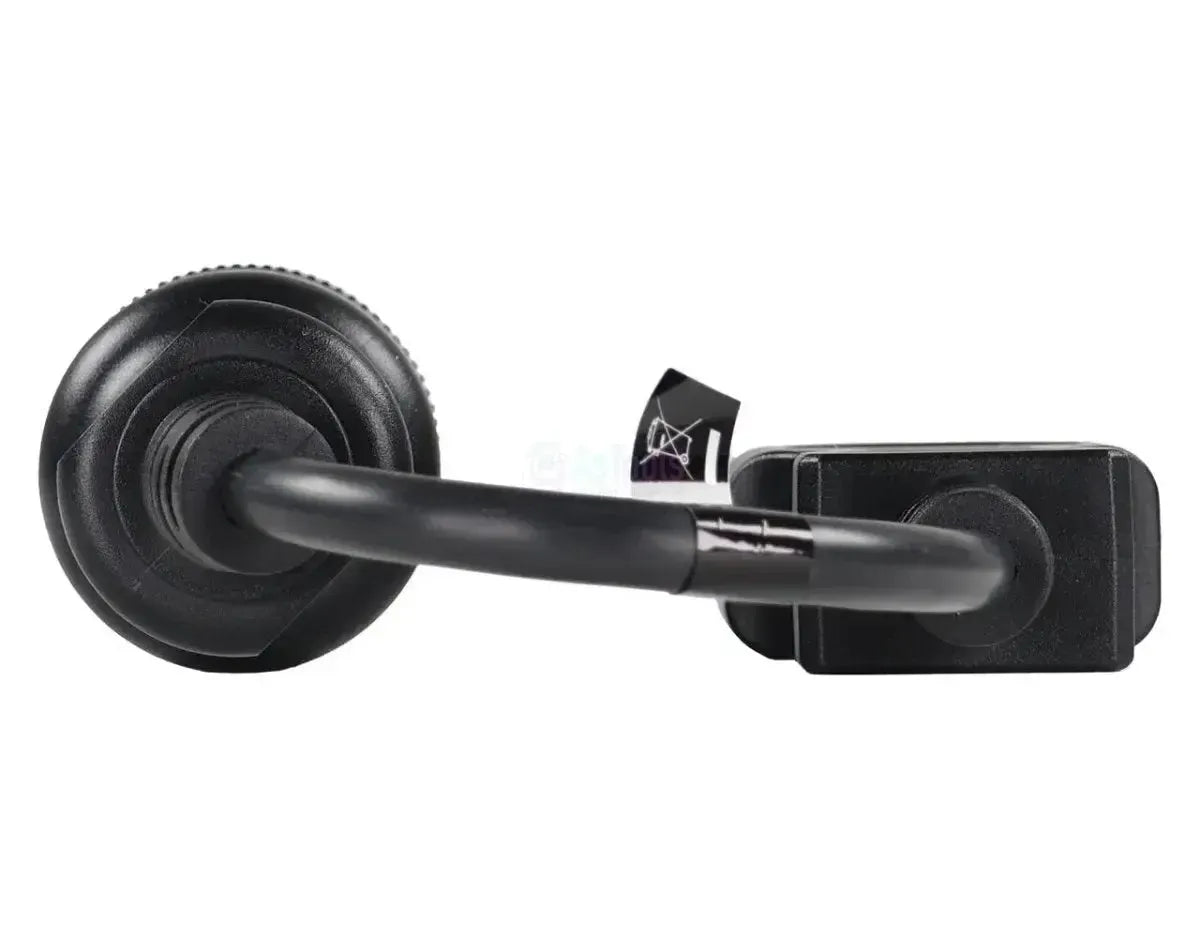

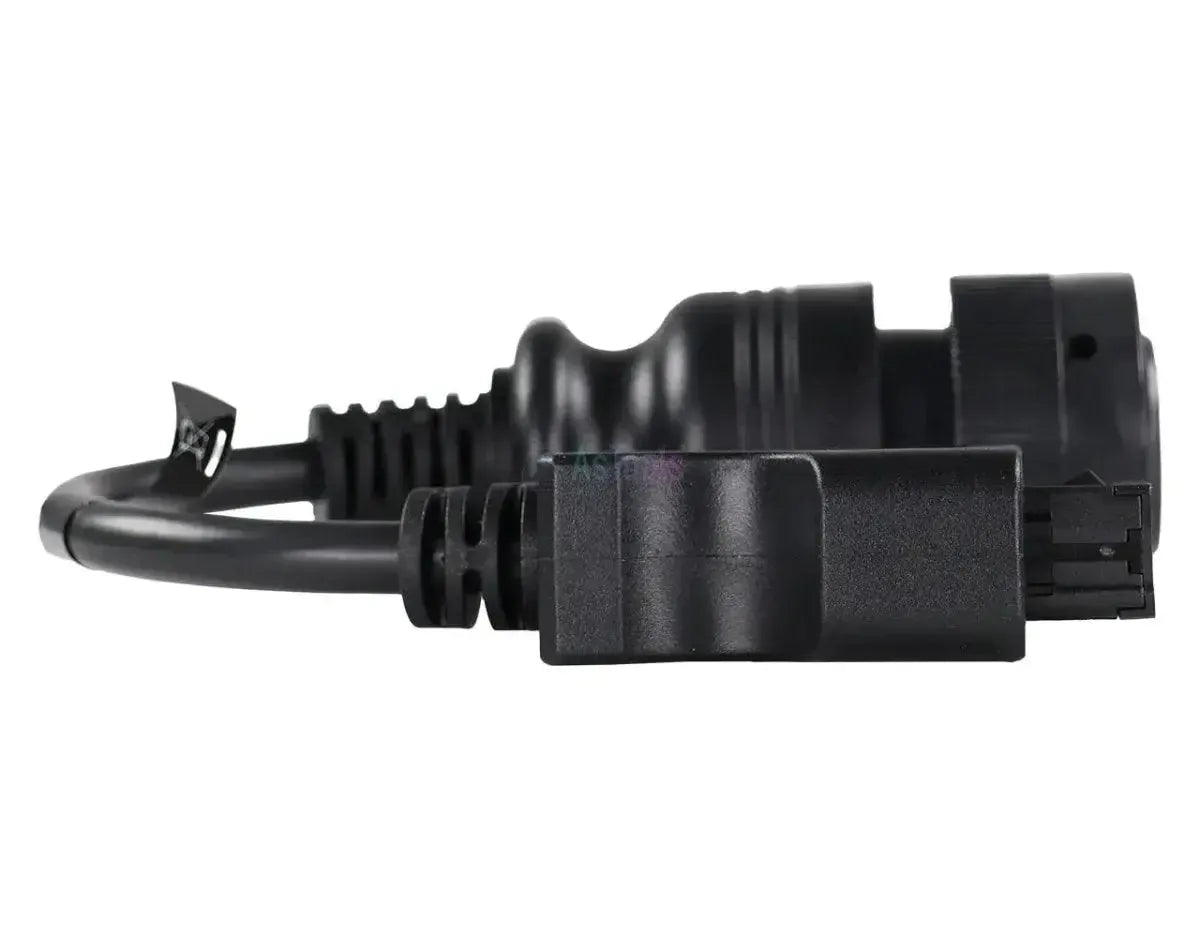

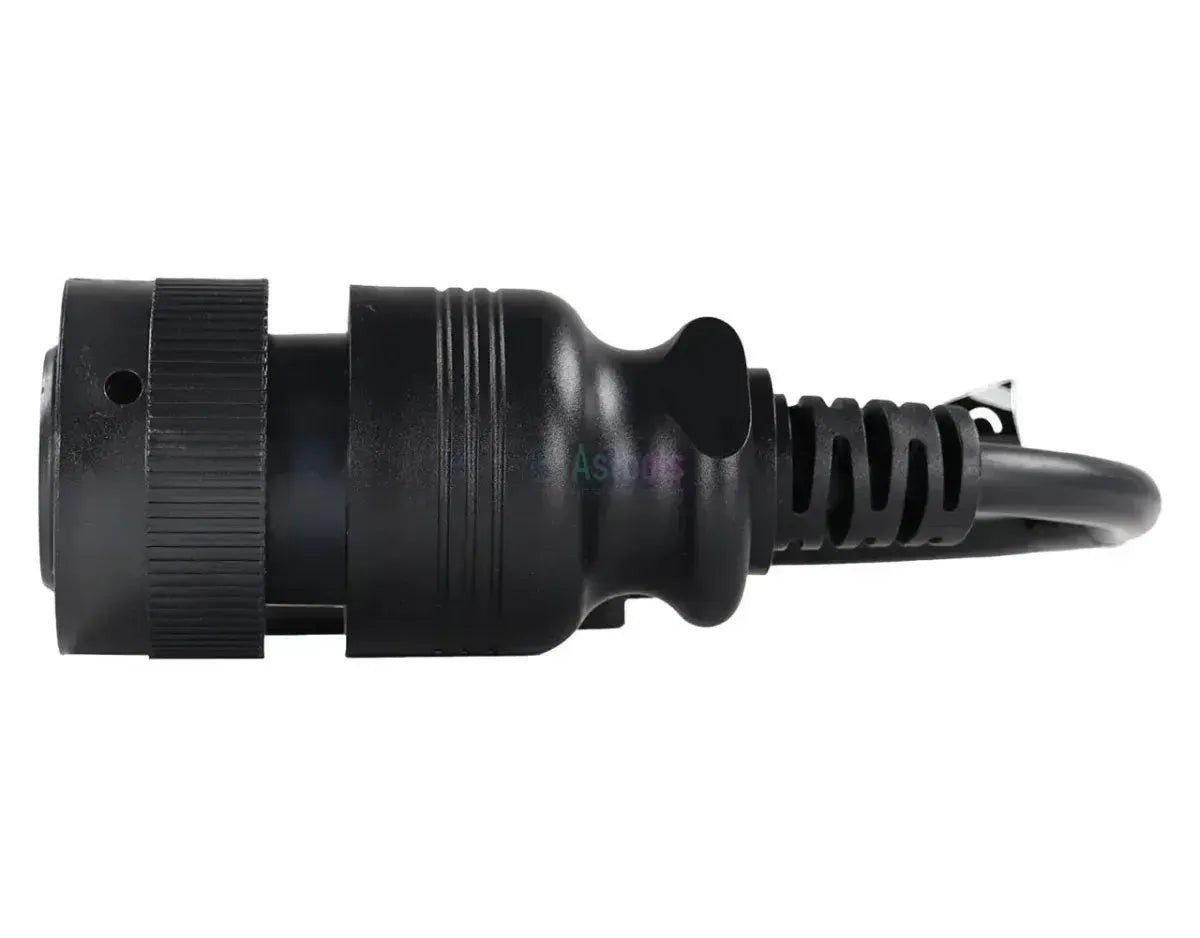

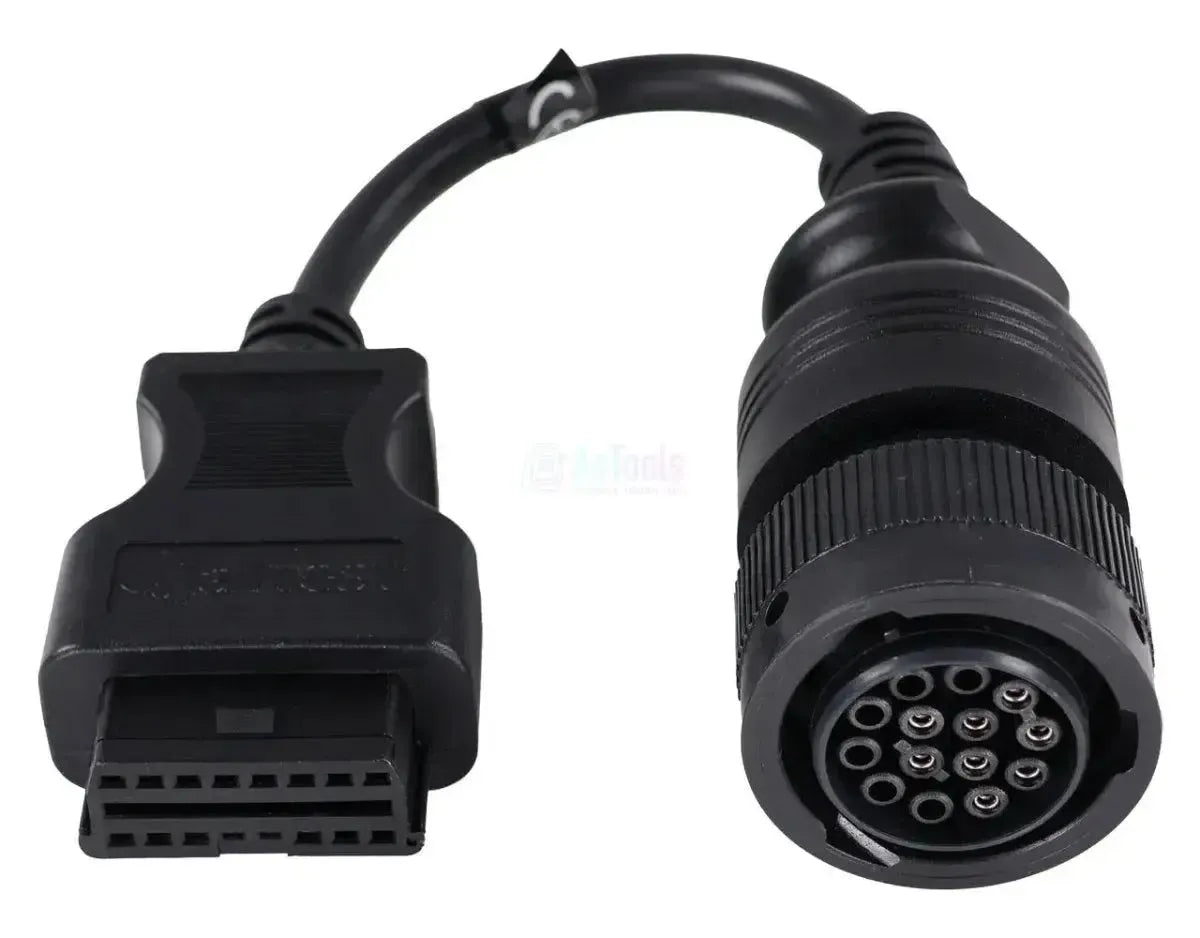

The Jaltest JDC533A connects Caterpillar's proprietary 14-pin diagnostic connector to the 16-pin OBD2 of your Jaltest diagnostic cable. The machine side is a fully black bayonet connector with a ridged coupling ring; eight of the fourteen positions are in use. The connector is located in the cab or at the engine. The cable measures 28 to 30 cm.

Through this connection, the Jaltest software accesses the Caterpillar Data Link (CDL), where the usable diagnostic data is found: fault codes, measured values and ECU data. In addition, the older SAE J1708 line and the EMCP control for power generation are covered. The cable works with Jaltest Link V8.1 and V9 and falls under Jaltest OHW.

ADVANTAGES

✔Accesses the Caterpillar Data Link (CDL), the proprietary diagnostic line with fault codes, measured values and ECU data.
✔Also reads the EMCP control for power generation on stationary Caterpillar engines.
✔The older SAE J1708 line is also covered, including on the 3406.
✔Suitable for machines from various manufacturers, as the CAT engine series is decisive.

POINTS TO NOTE

✕The J1939 control unit provides no functions on these engines; all usable diagnostics run via CDL.
✕Service intervals, component control and parameters for Caterpillar engines are not covered.
✕Only for the 14-pin connector; the JDC505A is intended for the 9-pin CAT/Perkins connection.
✕Six of the fourteen positions are empty; this is normal and does not indicate a fault.

Applications and functionality

Through this connection, the Jaltest software accesses the control units of the Caterpillar engine. Jaltest lists them per data line, and the difference between those lines determines what you can actually read. The units below are part of the Caterpillar coverage.

Control units you can access

  • CDL: Engine control, full read-out.
  • SAE J1708: Older line, including the 3406.
  • EMCP: Power generation, stationary.
  • J1939: Engine control, no functions.

What you can do

  • Fault codes: Read and clear via CDL.
  • Measured values: View current sensor values.
  • Alarm limits: Signal when values are out of range.
  • ECU data: Also from the EMCP control.

How to use it

  1. Check the connector: Count the fourteen positions in the connection.
  2. Connect: Insert the connector and tighten the ring.
  3. Connect the Link: Attach the OBD2 side to the Jaltest Link.
  4. Ignition on: Switch the ignition on.
  5. Read out: Select Caterpillar, the engine and CDL.

Compatible vehicles and applications

What matters is the connector, not the machine. Caterpillar engines are fitted to many machine builders, so the engine series is decisive. The series below are covered by Jaltest; the number of positions in the connector shows which cable you need.

Caterpillar:

  • 3000 series: 3054, 3054B, 3056, 3126, 3126B, 3176, 3176C, 3196, 3406, 3406E, 3408, 3408E, 3412, 3412E and 3456.
  • 3500 series: 3508, 3508B, 3512, 3512B, 3512C, 3512E, 3516 and 3516B.
  • 3600 series: 3606, 3608, 3612 and 3616.
  • C series: The C engines from C1.1 up to and including C9.3B.
  • G series gas engines: From G3304 up to and including G3616, plus CG137 and CG170-06.

Applications:

  • Built-in: In construction machinery, agricultural machinery, lifting equipment and generator sets.
💡
Good to know: The 14-pin Caterpillar connector is entirely black and has fourteen positions in the insert. The 9-pin CAT/Perkins connector has a grey coupling ring with a reddish-brown insert and goes with the JDC505A. Count the positions in the connector on your machine before ordering.

Package contents

  • 1x Jaltest (JDC533A) | Caterpillar 14-pin OBD - 16-pin OBD2 Adapter Cable | Internal combustion engine

Technical specifications

General

The brand of the cable or adapter. It often has to match the brand of your diagnostic tool.Brand
Jaltest
The type of product: a separate adapter cable, an adapter without a cable or a complete set.Product type
Adapter cable
The cable set that also includes this cable. If you already own that set, you do not need to buy the cable separately.Part of cable set
OHW cable set basic

Suitable for

The brand of diagnostic tool the cable works with. A cable for one brand usually does not fit a tester of another brand.Compatible diagnostic tool
  • Jaltest
The version of the Jaltest Link interface the cable fits. Some cables only work with the latest V9.Jaltest Link version
  • Link V8.1
  • Link V9
The Jaltest module required to use the cable. Without the correct licence, the cable will not work.Jaltest software module
  • OHW construction machinery

Connections

The connector that plugs into the diagnostic port of the vehicle or machine. It must fit exactly.Vehicle-side connector
14-pin bayonet connector, female
The connector on the side of your diagnostic tool or interface. Usually a 16-pin OBD2 connector.Tool-side connector
16-pin OBD2

Diagnostic functions

Shows the current sensor readings while the vehicle is running. Useful for tracing faults.View live data
Yes

Size and weight

The length of the cable. A longer cable gives more freedom of movement with a port that is difficult to reach.Cable length
30 cm
Control units
CDL, J1939, SAE J1708, EMCP
Reference number
JDC533A

Other specifications

Application
Caterpillar engines and machines with 14-pin diagnostic connector
Part of cable set
OHW basic cable set (70002030)
Required to use
Jaltest Link V8.1 or V9
