Jaltest (JDC110A) | 7+7-pin (CAN ISO 7638-1) – 16-pin OBD2 Adapter | Trailer

Name: Jaltest (JDC110A) | 7+7-pin (CAN ISO 7638-1) – 16-pin OBD2 Adapter | Trailer
Brand: Jaltest
SKU: JDC110A
Price: 236.95 EUR
Availability: InStock

€236,95 incl.

€195,83 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

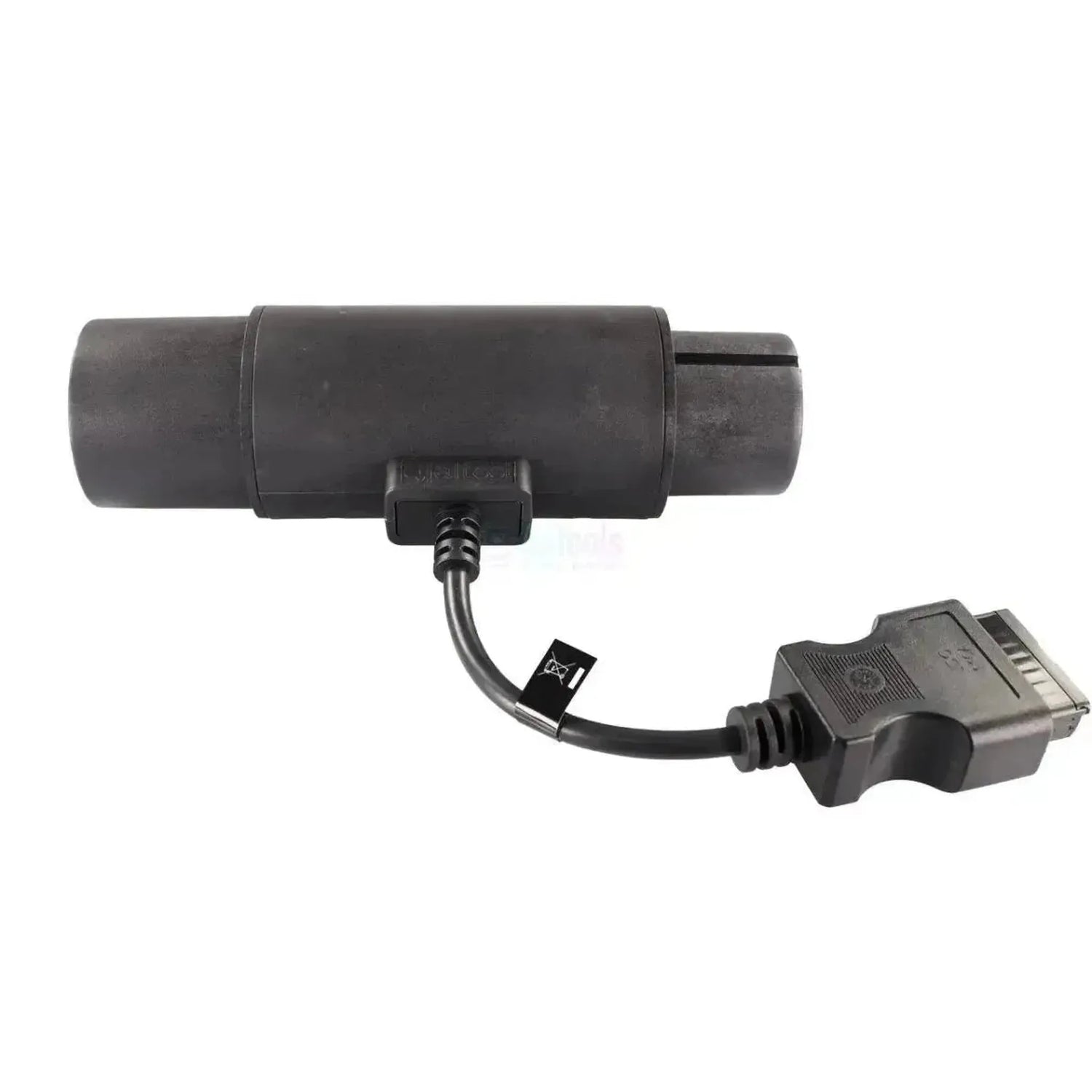

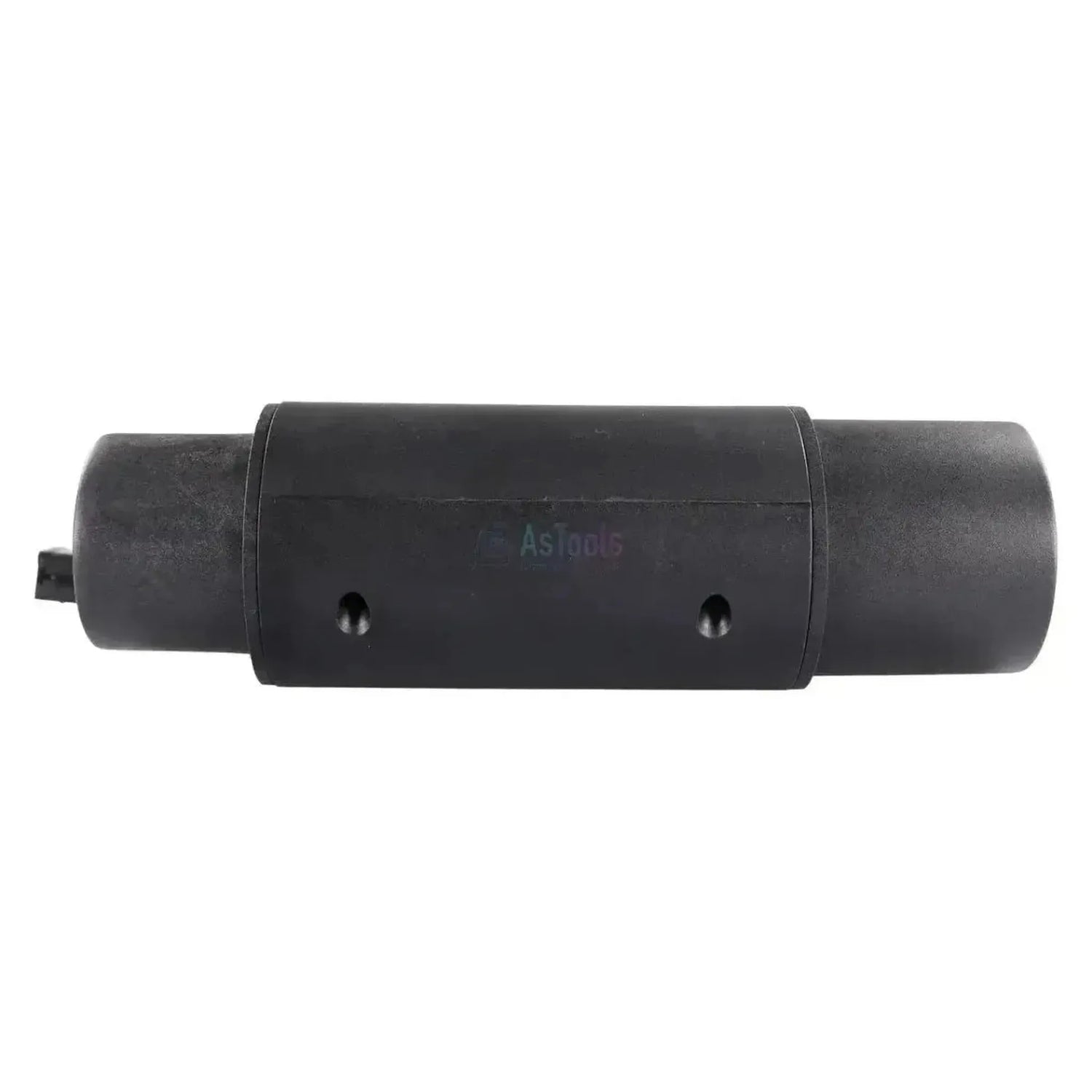

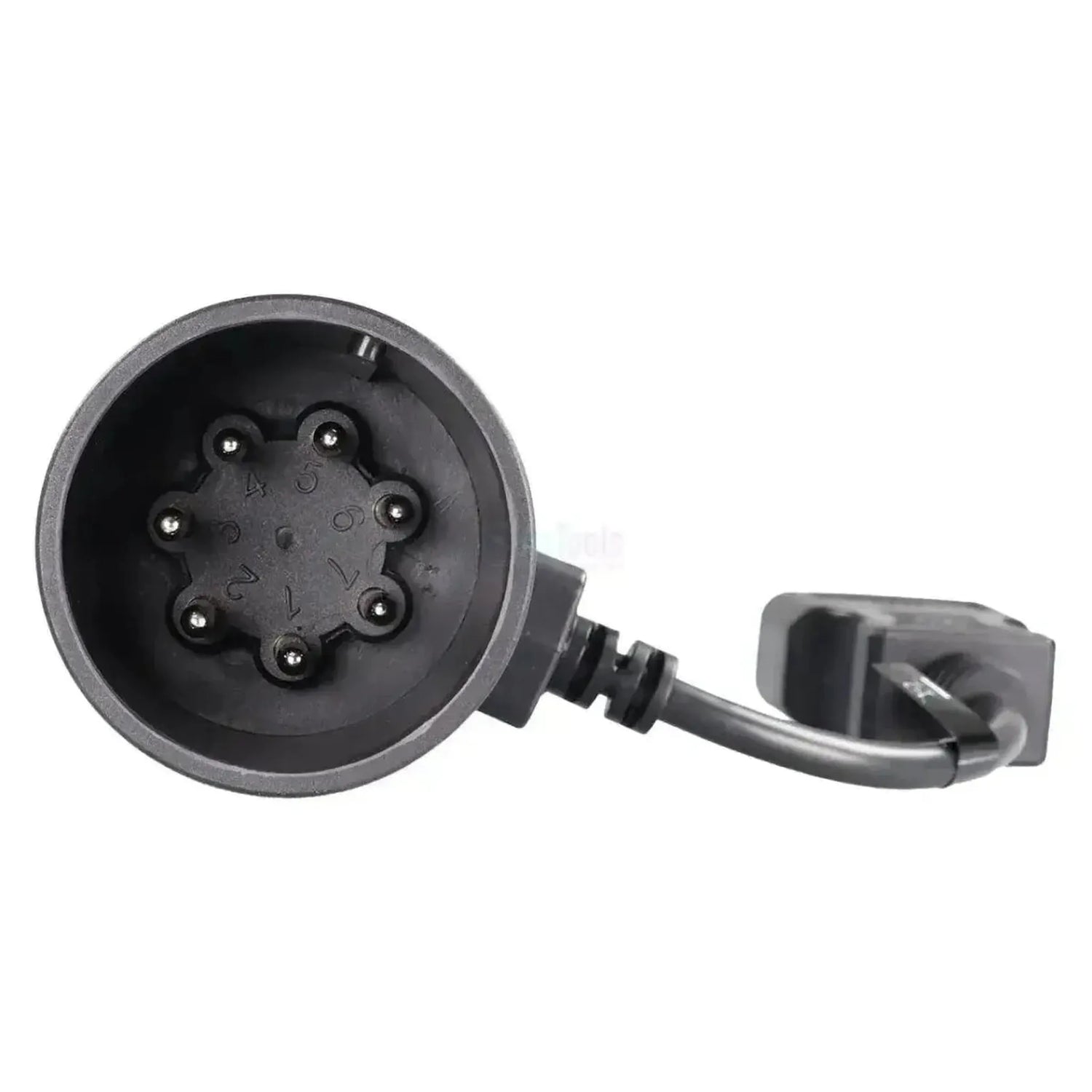

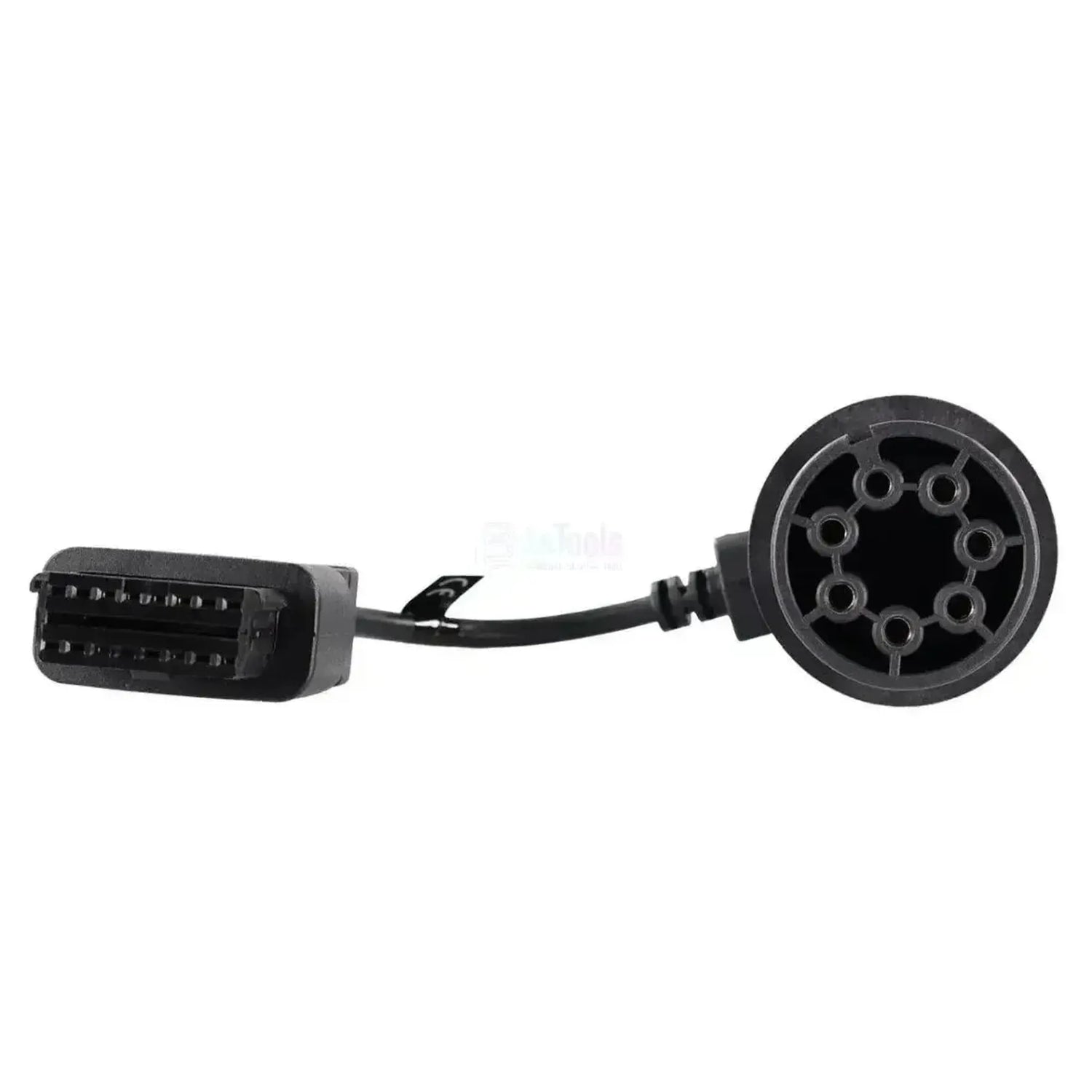

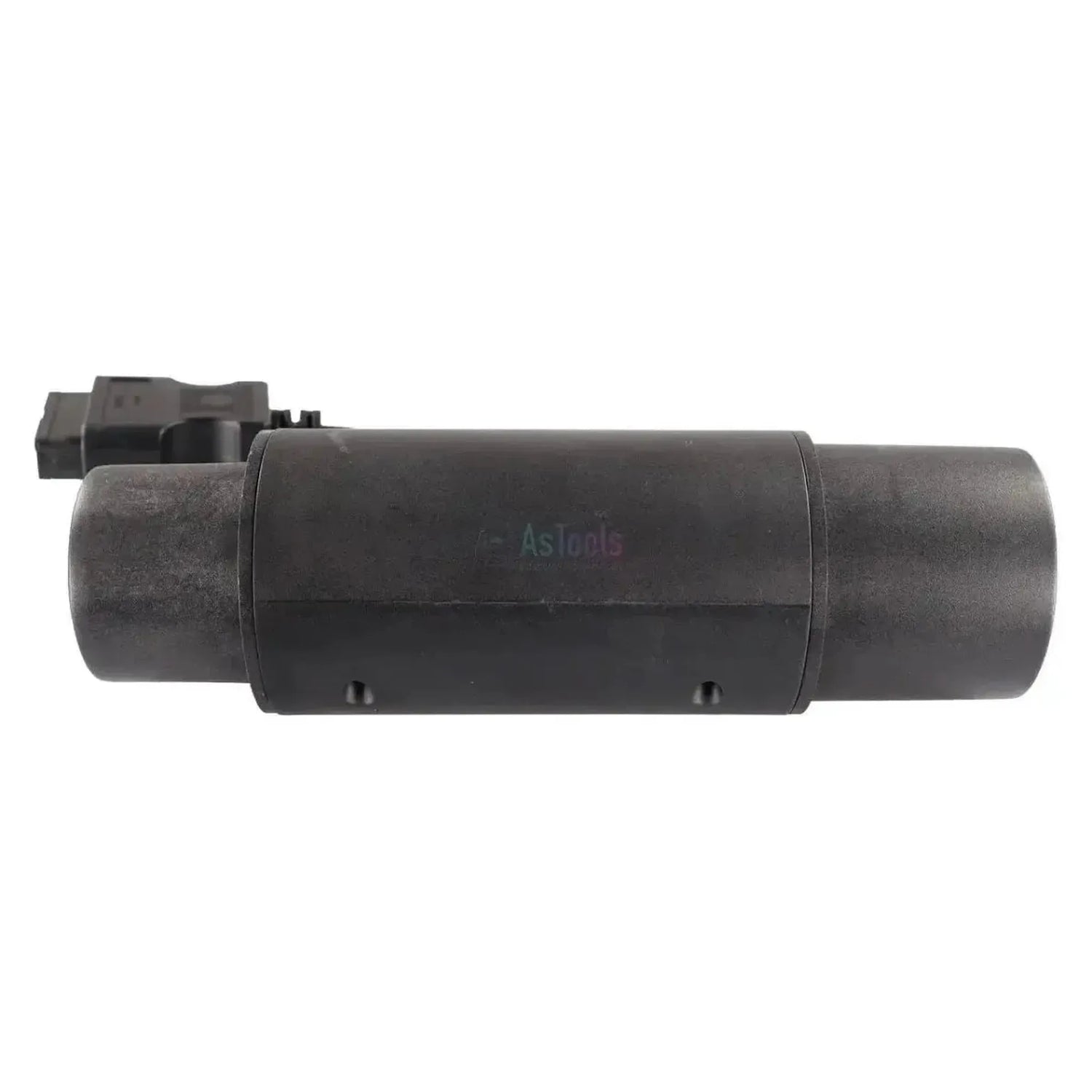

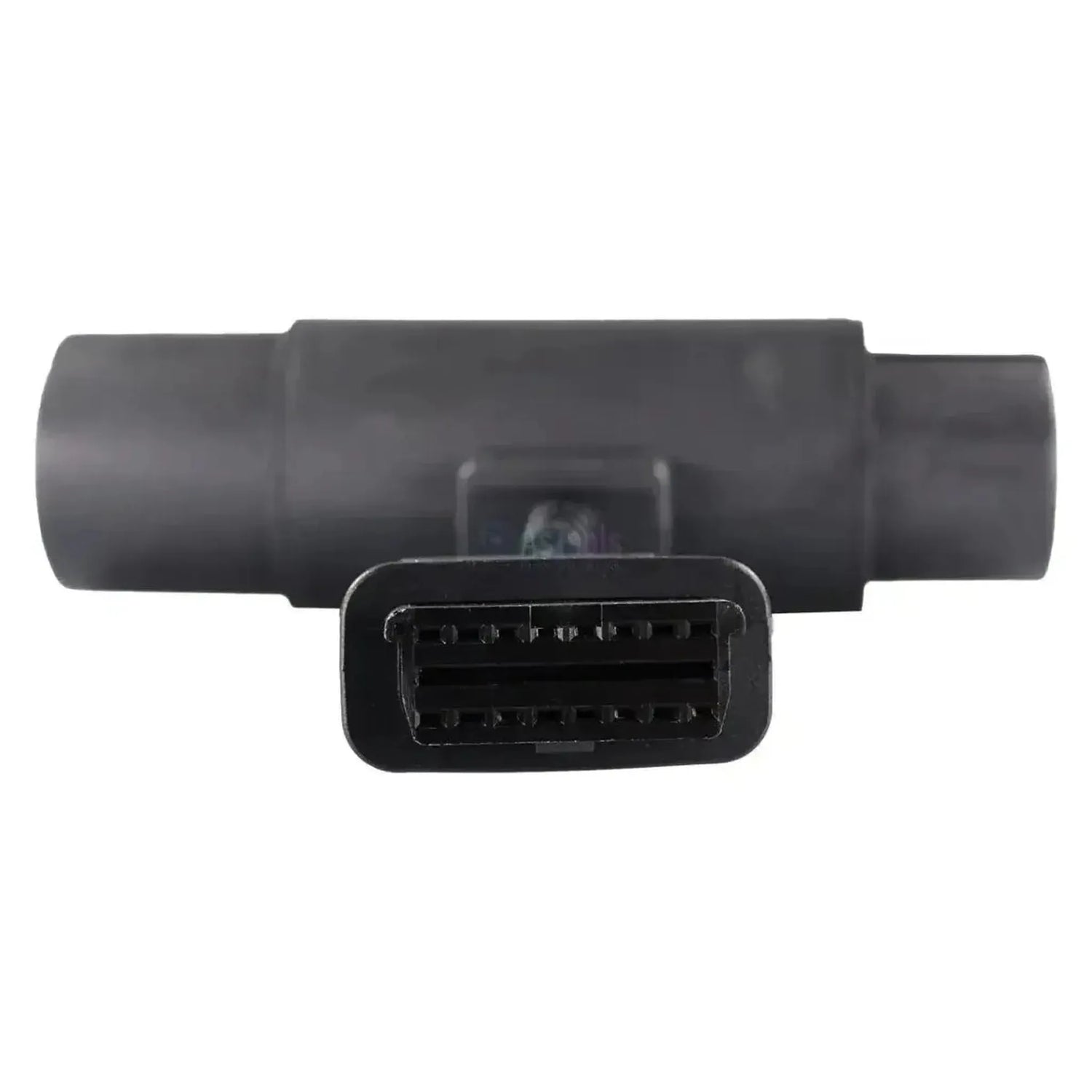

The Jaltest JDC110A is an adapter that hangs as a T-piece in the 7-pin ISO 7638-1 connection between towing vehicle and semi-trailer. The black, round housing has a plug with pins on one side and the round opening with an upstanding lug on the other, so the existing connection continues through. At right angles to it runs a short cable of 22 to 29 cm to a 16-pin OBD2 plug.

Via this branch, the diagnostic equipment gains access to the CAN line that runs through the connection, and therefore to the ABS/EBS of the trailer. Because the connection is standardised, you are not tied to a single chassis builder. This version is specified for 24V and for the Jaltest Link V8.1 and V9, and falls under Jaltest CV.

ADVANTAGES

✔Works on the standardised ISO 7638-1 connection and is therefore not tied to a single trailer brand.

✔The T-piece lets the existing connection continue through, with pins on one side and the round opening on the other.

✔Ends in a 16-pin OBD2 plug, so you connect it directly to the OBD2 diagnostic cable of the interface.

✔Specified for 24V and for both the Link V8.1 and the Link V9.

POINTS TO NOTE

✕Only reaches semi-trailers that carry CAN on the ISO 7638-1 connection. If the trailer electronics send their data over the power line according to SAE J2497, then the JDC112A is the correct one.

✕This is the 24V version to ISO 7638-1; the 12V version to ISO 7638-2 has the number JDC110B.

✕At 22 to 29 cm you work at the coupling on the front of the semi-trailer, not from the cab.

✕Which control units you find is determined by the semi-trailer itself and not by this adapter.

Applications and functions

Via this branch, you gain access to the trailer CAN network. For the ABS/EBS, the ISO 7638-1 connection is the standardised power and data route. Which other control units are on the network differs per semi-trailer and per chassis builder.

Control units you can access

ABS/EBS: Brake control of the trailer.
Other units: On the CAN network, per semi-trailer.

What you can do

Fault codes: Read and clear.
Measured values: Live monitoring.
Components: Actuating actuators.
Parameters and calibrations: Where offered by Jaltest.
Maintenance resets: After repair.

How to use it

Start the software: Open Jaltest CV on the PC.
Link connection: Connect the Link V8.1 or V9 to the PC.
Fitting the T-piece: Insert the JDC110A into the ISO 7638-1 connection.
Diagnostic cable: Connect the OBD2 plug to the diagnostic cable.
Reading out: Select the trailer and the system.

Compatible vehicles and applications

What matters is the plug, not the brand. This adapter fits any semi-trailer or trailer with a 7-pin ISO 7638-1 connection on which CAN runs. That connection is located at the front of the semi-trailer, at the coupling with the towing vehicle.

Application:

Semi-trailers and trailers: With a 7-pin ISO 7638-1 connection.
Chassis builders: All builders who use this standardised connection.

Which version you need:

JDC110A (this item): 24V, CAN on ISO 7638-1.
JDC110B: 12V, to ISO 7638-2.
JDC112A: Data to SAE J2497 over the power line.

💡

Good to know: On the ISO 7638 connection, the CAN line runs through. If the trailer electronics send their data over the power line according to SAE J2497, then the JDC112A is the one for that. Check this on the semi-trailer itself before ordering.

Package contents

1x Jaltest (JDC110A) | 7+7-pin (CAN ISO 7638-1) - 16-pin OBD2 Adapter | Trailer

Technical specifications

General

The brand of the cable or adapter. It often has to match the brand of your diagnostic tool.Brand: Jaltest
The type of product: a separate adapter cable, an adapter without a cable or a complete set.Product type: Adapter
The cable set that also includes this cable. If you already own that set, you do not need to buy the cable separately.Part of cable set: Trailer cable set

Suitable for

The brand of diagnostic tool the cable works with. A cable for one brand usually does not fit a tester of another brand.Compatible diagnostic tool: Jaltest
The version of the Jaltest Link interface the cable fits. Some cables only work with the latest V9.Jaltest Link version: Link V8.1
Link V9
The Jaltest module required to use the cable. Without the correct licence, the cable will not work.Jaltest software module: CV commercial vehicles

Connections

The connector that plugs into the diagnostic port of the vehicle or machine. It must fit exactly.Vehicle-side connector: 7+7-pin ISO 7638-1
The connector on the side of your diagnostic tool or interface. Usually a 16-pin OBD2 connector.Tool-side connector: 16-pin OBD2
The data lines through which the cable passes signals. The vehicle and the tester must use the same communication method.Communication: CAN-bus
The on-board voltage at which the cable works. Lorries and trailers usually use 24 V.Voltage: 24 V
