Jaltest  |  SKU: JDC108A

Jaltest (JDC108A) | Haldex (EB+/TRS, TPMS) 4-pin OBD – 16-pin OBD2 Adapter Cable | Trailer

Regular price
€79,95 incl.
€66,07 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

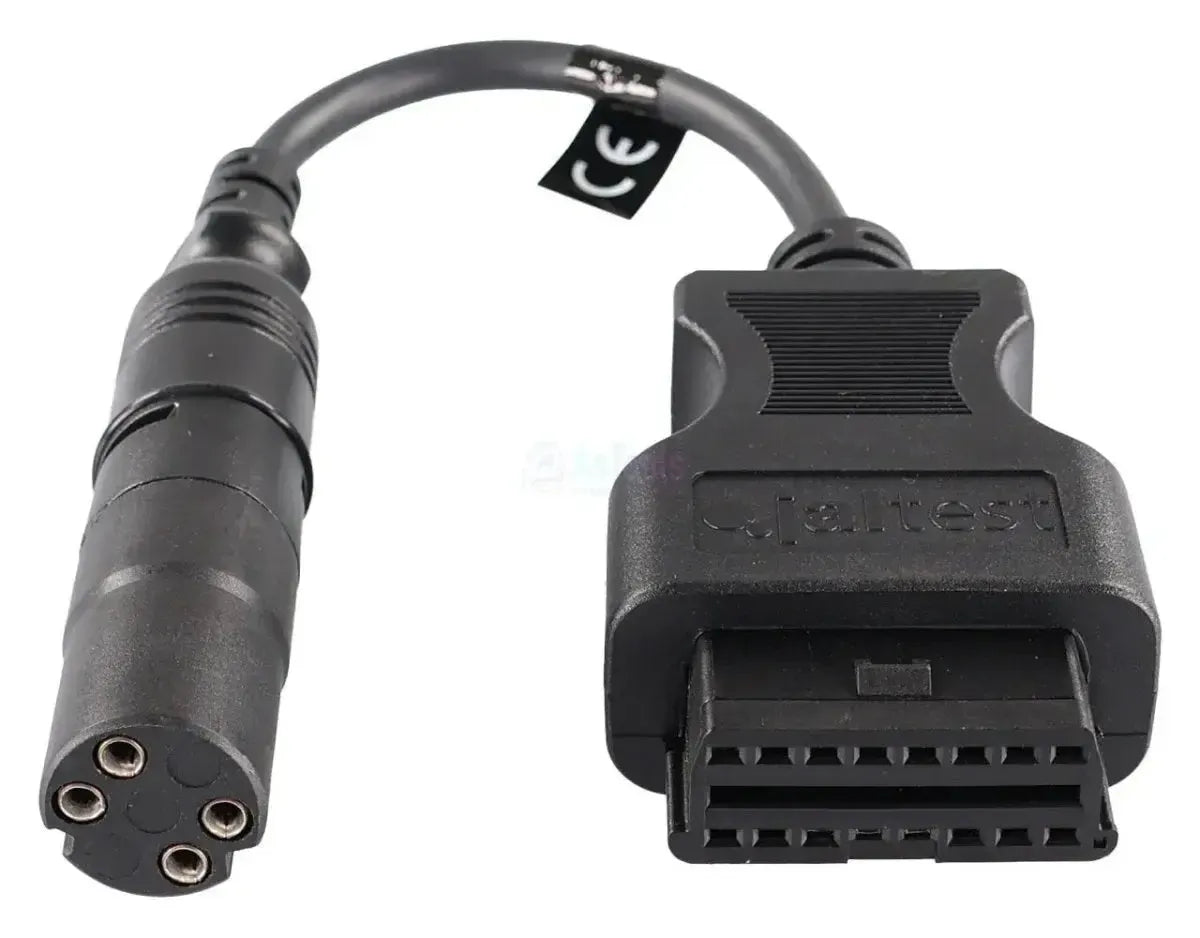

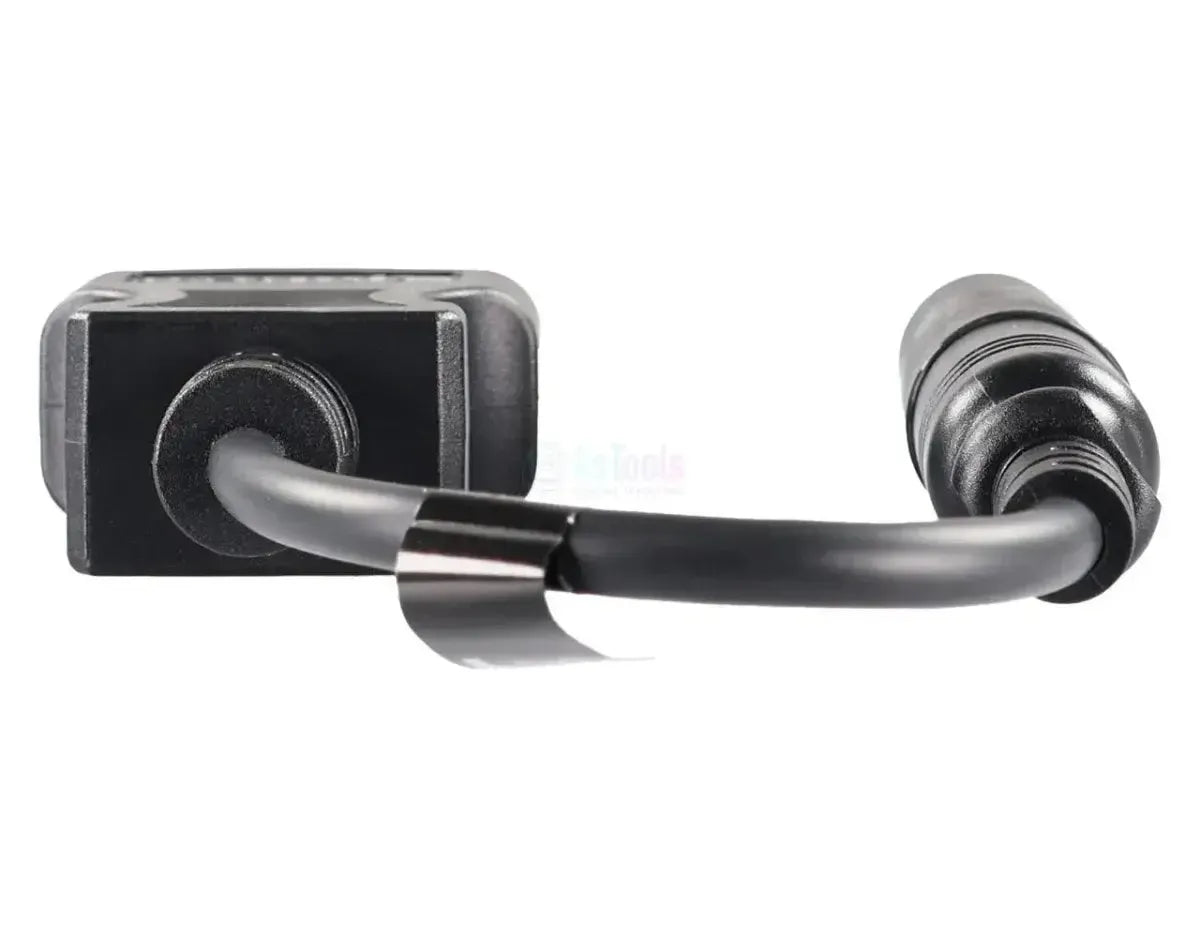

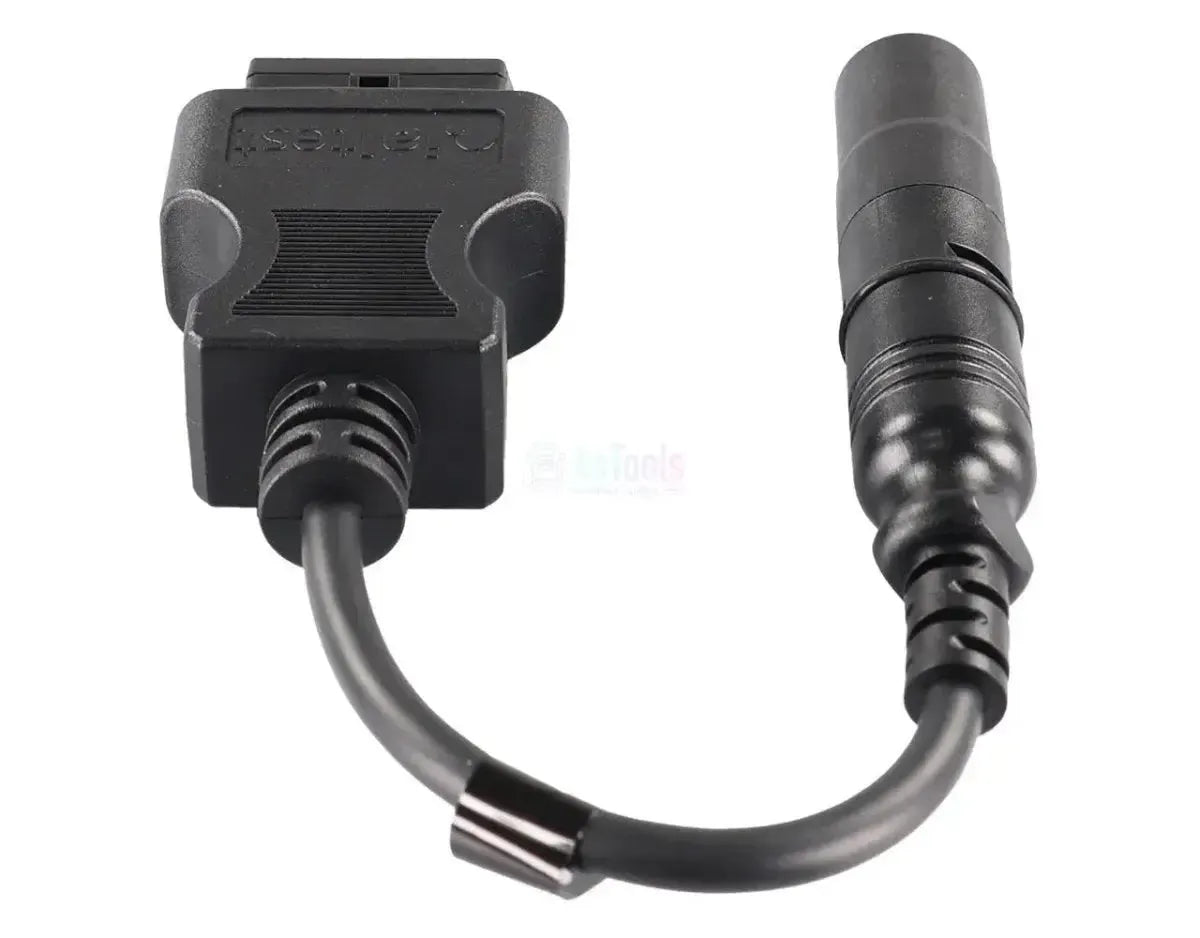

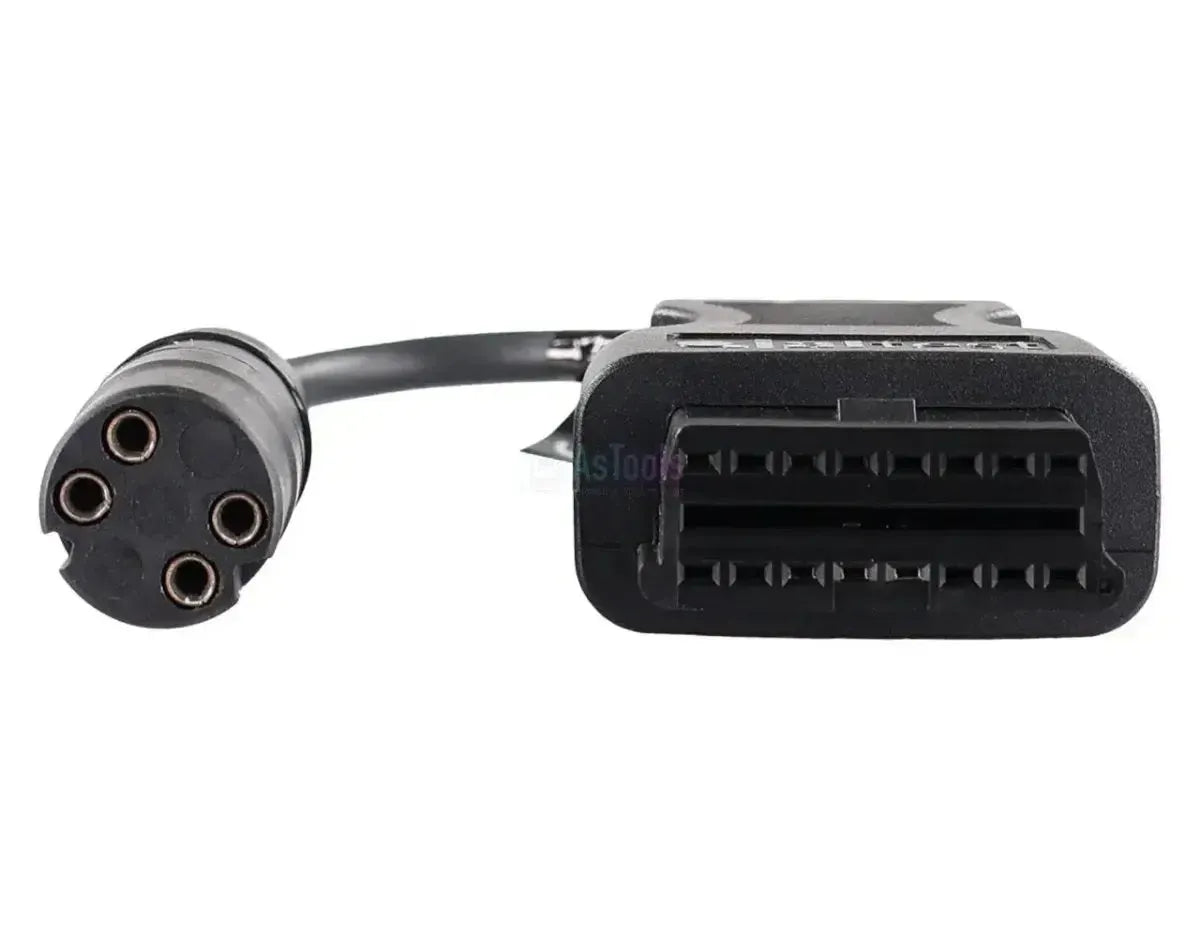

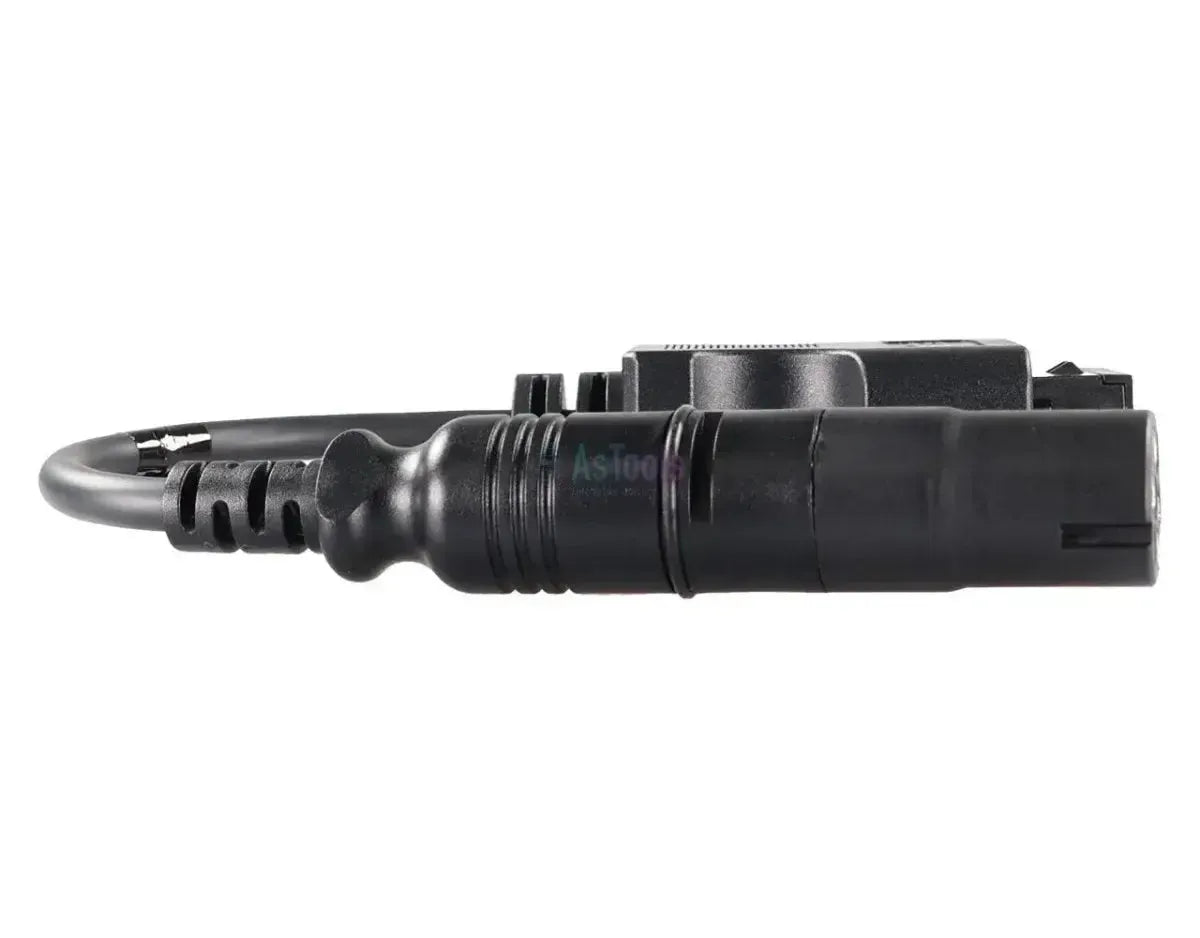

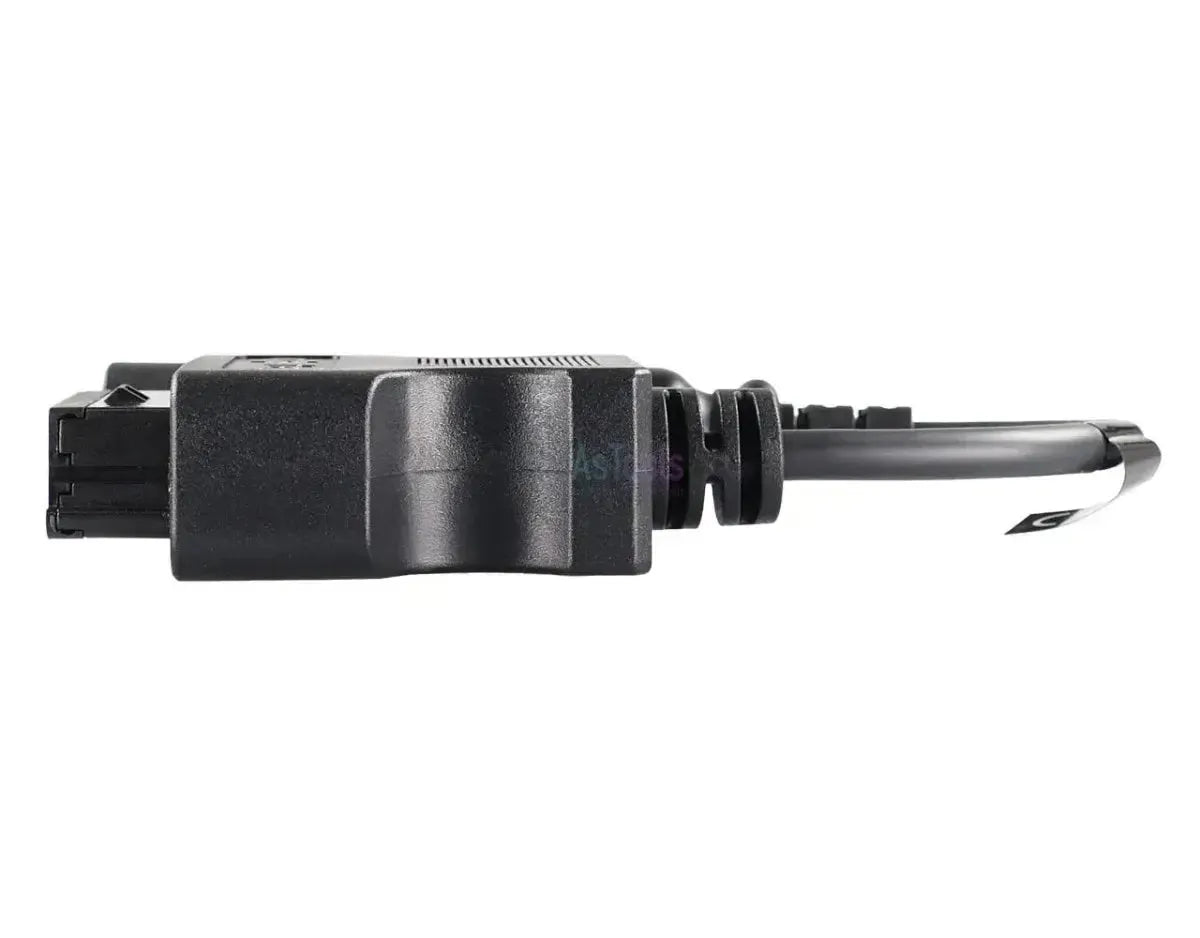

The Jaltest JDC108A connects the 4-pin diagnostic port of the Haldex EB+/TRS and TPMS control units to the 16-pin OBD2 port of your Jaltest diagnostic cable. On the trailer side there is a round black plug with four sockets arranged in a square. The cable is 28 to 30 cm long.

With this connection, the Jaltest software reads out two systems via the same plug. For the EB+/TRS brake control, you can read fault codes and measured values, activate components and set parameters. For the tyre pressure monitoring, it is limited to fault codes. The cable works with Jaltest Link V8.1 and V9 and falls under Jaltest CV.

ADVANTAGES

✔Two systems on one plug: The EB+/TRS brake control and the Haldex TPMS tyre pressure monitoring.
✔For EB+/TRS, coverage goes beyond reading out, with component activation and parameter setting.
✔The four sockets arranged in a square are visible from the outside, so you can check the connector before ordering.
✔Works with Jaltest Link V8.1 and V9 and is also included in the Trailer cable set (70002024).

POINTS TO NOTE

✕For Haldex TPMS, coverage is limited to reading out fault codes; activation and parameters do not apply.
✕The same round shape with pins belongs to the Modular system and therefore to JDC102A; the Modal version with two flat 3-pole housings falls under JDC101A.
✕Not accessible with this cable: ABS MODAL, MODULAR/PLC, PLC Select, ITCM, U-ABS, EPV and the EB+ generations, each with its own connector.
✕Use requires a Jaltest Link and an active licence for Jaltest CV; these are not included with the cable.

Applications and functionality

Via this connection, the Jaltest software accesses two Haldex units on the semi-trailer or trailer: the brake control and the tyre pressure monitoring. What you can do per unit differs, as only EB+/TRS coverage goes beyond reading out.

Control units you can access

  • EB+/TRS: Trailer brake control, full functions.
  • Haldex TPMS: Tyre pressure monitoring, fault codes.

What you can do

  • Fault codes: Read and clear.
  • Measured values: View live sensor values.
  • Components: Activate EB+/TRS components.
  • Parameters: Adjust EB+/TRS configuration.
  • TPMS: Retrieve fault codes from the system.

How to use it

  1. Check the plug: Look for the round 4-pin connector with sockets.
  2. Connect: Plug the JDC108A into the connector.
  3. Link connection: Connect the OBD2 side to the Jaltest cable.
  4. Voltage: Make sure the trailer has voltage.
  5. Reading out: Select Haldex and the system in Jaltest.

Compatible vehicles and applications

The plug is decisive, not the model. The cable fits any semi-trailer or trailer where the Haldex EB+/TRS unit or the tyre pressure monitoring has a round 4-pin connector with sockets. For trailers, no standardised diagnostic port has ever been prescribed, so this plug remains in use on more recent semi-trailers as well.

Haldex:

  • EB+/TRS: The electronic brake control, with most of the functions of the two.
  • TPMS: The tyre pressure monitoring on the same plug, limited to fault codes.

Scope:

  • Chassis make: Not decisive; the cable follows the Haldex unit on the chassis.
  • Round 4-pin plug with pins: For that, JDC102A is the correct cable.
💡
Good to know: The JDC102A has a round 4-pin plug of the same size, but it has pins instead of sockets. So check the connector on the chassis before ordering: four sockets arranged in a square belong to this cable.

Package contents

  • 1x Jaltest (JDC108A) | Haldex (EB+/TRS, TPMS) 4-pin OBD - 16-pin OBD2 Adapter Cable | Trailer

Technical specifications

General

The manufacturer of the cable. Jaltest cables work with Jaltest diagnostic equipment.Brand
Jaltest (Cojali)
The type of cable. A diagnostic cable connects to the diagnostic socket, a measuring cable tests an individual component.Cable type
Adapter cable
The Jaltest software package the cable belongs to. A licence for that module is required to use the cable.Jaltest software module
  • CV commercial vehicles
The types of vehicles or machines the cable is intended for. This shows quickly whether it suits the vehicles entering your workshop.Vehicle types
  • Trailer

Connections

The version of the Jaltest Link diagnostic interface the cable fits. Not every cable works with every version.Compatible Jaltest Link
  • Jaltest Link V8.1
  • Jaltest Link V9
The connector on the diagnostic device side. It must fit your interface or diagnostic cable.Interface-side connector
16-pin OBD2
The connector on the vehicle, engine or machine side. It must fit the diagnostic socket or the component.Vehicle-side connector
4-pin OBD
The length of the cable. A longer cable allows more room to work.Cable length
28 to 30 cm

Usage

The Jaltest cable set that also contains this cable. If you already own that set, you may already have this cable.Part of cable set
Trailer cable set
Reference number
JDC108A
Control units
Haldex EB+/TRS, Haldex TPMS
Required for use
Jaltest Link and an active licence for Jaltest CV

Other specifications

Application
Haldex EB+/TRS brake control and Haldex tyre pressure monitoring (TPMS)
Part of cable set
Trailer cable set (70002024)
