Autel  |  SKU: MaxiVCI Mini

Autel MaxiVCI Mini | Interface

3 reviews
€83,95 incl.
€69,38 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

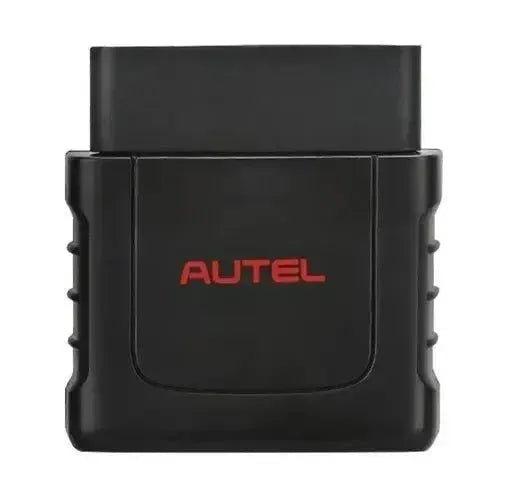

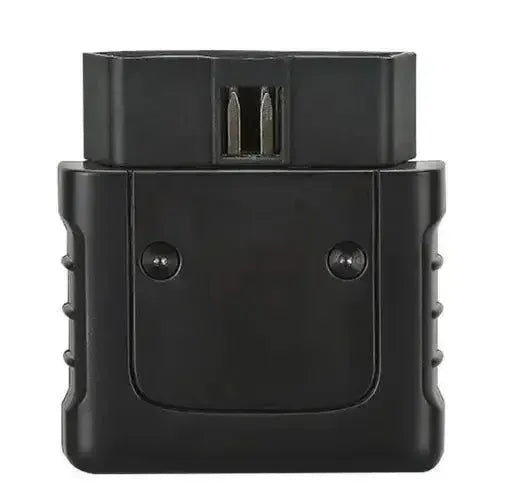

The Autel MaxiVCI Mini is a compact vehicle communication interface (VCI) that plugs into the OBD2 port of the car. It forms the link between the vehicle's control units and your Autel diagnostic tablet, wirelessly via Bluetooth or by cable via Mini-USB.

With a range of approximately 10 metres, you can move freely around the vehicle, including during a test drive. The VCI draws its power from the OBD2 port (12 to 24 V), weighs just 33 grams, and two LEDs indicate power and connection. It is the standard VCI for the MaxiCOM MK808BT Pro, the MaxiSys MS906S and the MaxiTPMS TS608, among others, and is ideal as a replacement or spare unit.

ADVANTAGES

✔Wireless or wired — Bluetooth or Mini-USB.
✔Small and lightweight — 33 grams, barely protrudes.
✔12 and 24 V — Also for vans.
✔Clear LEDs — Power and connection at a glance.

POINTS TO NOTE

✕Only with an Autel tablet — Does not work independently.
✕No CAN FD or DoIP — The V200 or V150 is required for newer architectures.
✕Pair first — Via VCI Manager on the tablet.
✕Check your device — Not every Autel tablet uses the Mini.

Applications and functionality

The MaxiVCI Mini is intended for users of an 808-series Autel tablet who need a replacement or additional VCI.

Functions

  • Vehicle communication: Connection to the control units.
  • Bluetooth: Wireless, approximately 10 metres.
  • Mini-USB: Wired as an alternative.

Status LEDs

  • Power: Green when on, flashing red in case of a fault.
  • Connection: Green via USB, blue via Bluetooth.
  • Communication: Flashing during data traffic.

How to use it

  1. Connecting: Plug the VCI into the OBD2 port; the power LED lights up.
  2. Pair: Pair the VCI once via VCI Manager on the tablet.
  3. Switch on ignition: Turn the ignition on.
  4. Start diagnostics: Start the diagnostics on the tablet.
  5. Finish: End the session and remove the VCI from the port.

Special functions and capabilities

What makes the MaxiVCI Mini practical:

  • Same protocols as the tablet: ISO 9141, KWP2000, CAN, J1850 and more.
  • Power from the OBD port: No battery or charger required.
  • Spare VCI: A second VCI for a second workstation.

Device compatibility

This VCI works with the following Autel devices:

  • MaxiCOM MK808BT, MK808BT Pro, MK808K-BT
  • MaxiCOM MK808Z-BT, MK808TS, MK808Z-TS
  • MaxiCheck MX808S-TS
  • MaxiPRO MP808TS, MP808Z-TS
  • MaxiPRO MP808BT Pro (also Kit)
  • MaxiDAS DS808TS, DS808S-TS
  • MaxiDAS DS808S-BT (also Kit)
  • MaxiTPMS TS608
  • MaxiSys MS906S

Not suitable for the MaxiSys MS906BT and MS906TS (MaxiVCI V100), the MS906 Pro, MS906 MAX and MK906 Pro (MaxiVCI V200), the 900 series (MaxiVCI V150) or wired devices such as the MP808S, DS808, MD806 and IM508.

Package contents

  • 1x Autel MaxiVCI Mini
💡
Good to know: Check in the VCI Manager menu of your tablet which VCI is paired. Pair a new VCI there and unpair the old one, so the tablet does not search for the wrong one.

Technical specifications

General

The manufacturer of the interface. A VCI generally only works with diagnostic devices of the same brand.Brand
Autel

Connectivity

The connector used to plug the interface into the car's diagnostic port. Almost all modern cars have an OBD2 port.Connection to vehicle
OBD2 (J1962)
The communication languages the interface uses with the car. Newer cars often require CAN FD or DoIP.Protocols
  • CAN
Whether the interface connects wirelessly to your diagnostic tablet. This allows you to move freely around the car without a cable.Bluetooth
Where the interface draws its power from. Via the OBD2 port, no separate battery or charger is required.Power supply
Via the vehicle's OBD2 port

Features

A light indicating whether the interface is powered on and connected. Useful for checking at a glance that everything works.Status light
The interface automatically detects which protocol the car uses. No settings need to be configured before you start.Automatic protocol detection

Other specifications

Type
Vehicle communication interface (VCI)
Connection
OBD2, 16-pin
Connection
Bluetooth 2.1 + EDR, Mini-USB 2.0
Range
Approx. 10 m
Power supply voltage
12 to 24 V DC via OBD
Power consumption
150 mA at 12 V
Operating temperature
0 to 50 °C
Storage temperature
−10 to 60 °C
Dimensions
47 × 23 × 51 mm
Weight
33.1 g
