Autel MaxiSys Elite II Pro Car Diagnostic Tool

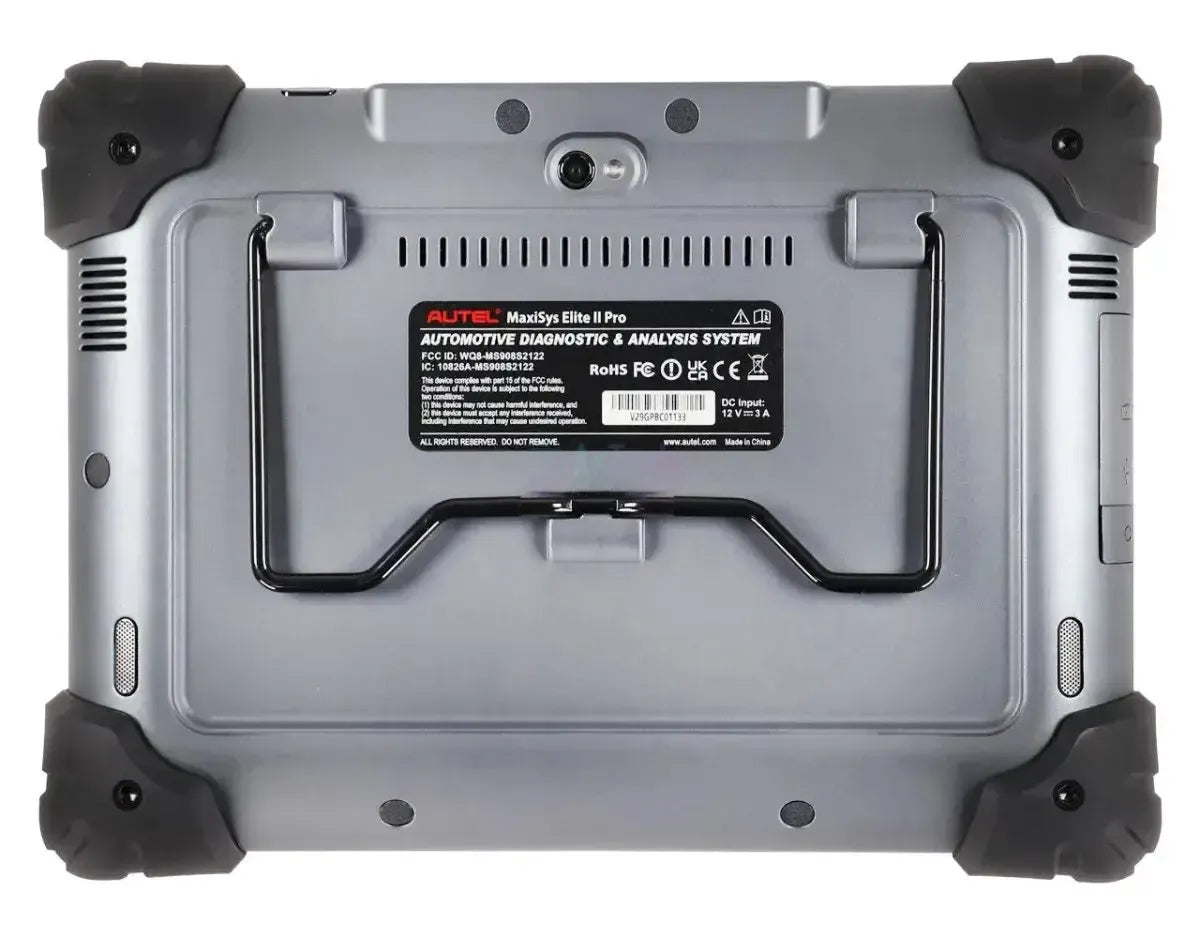

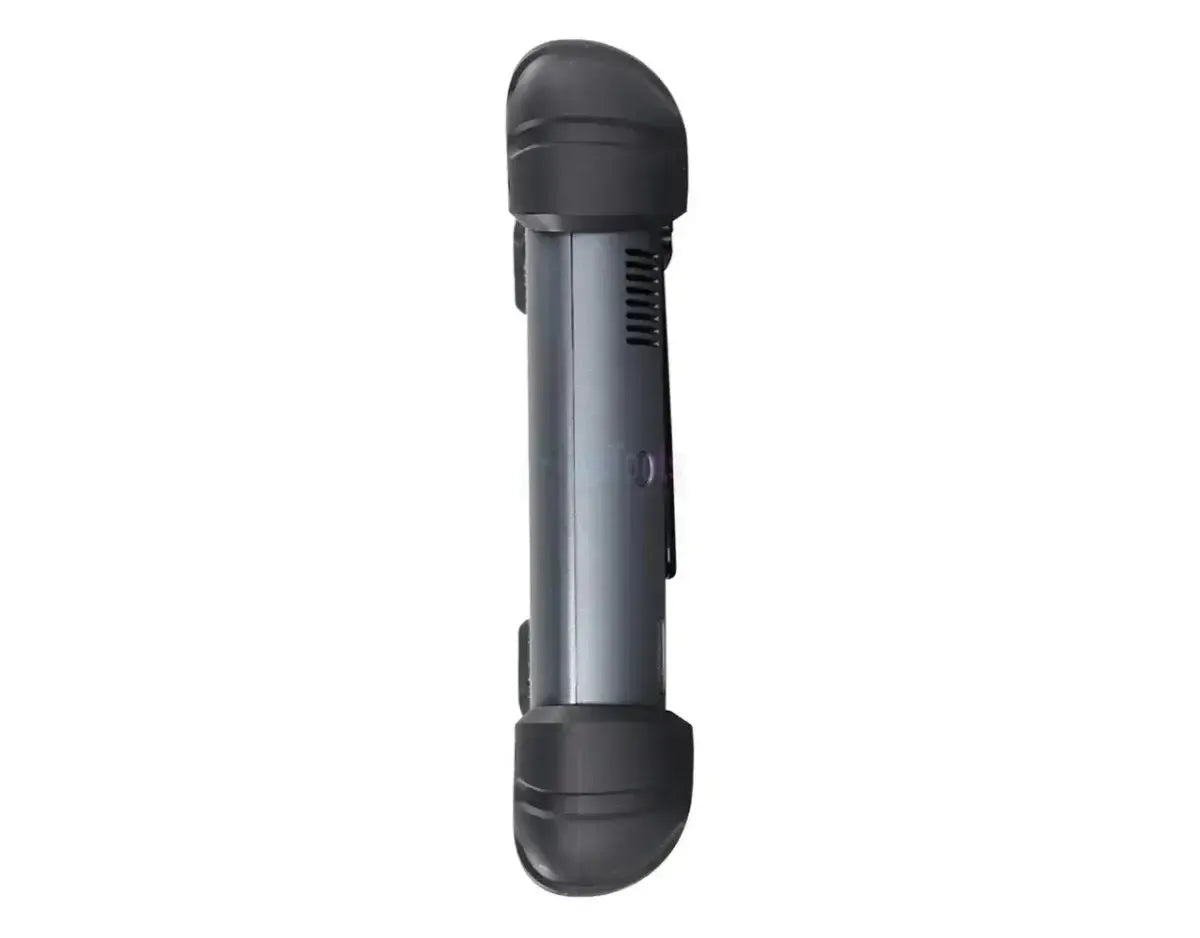

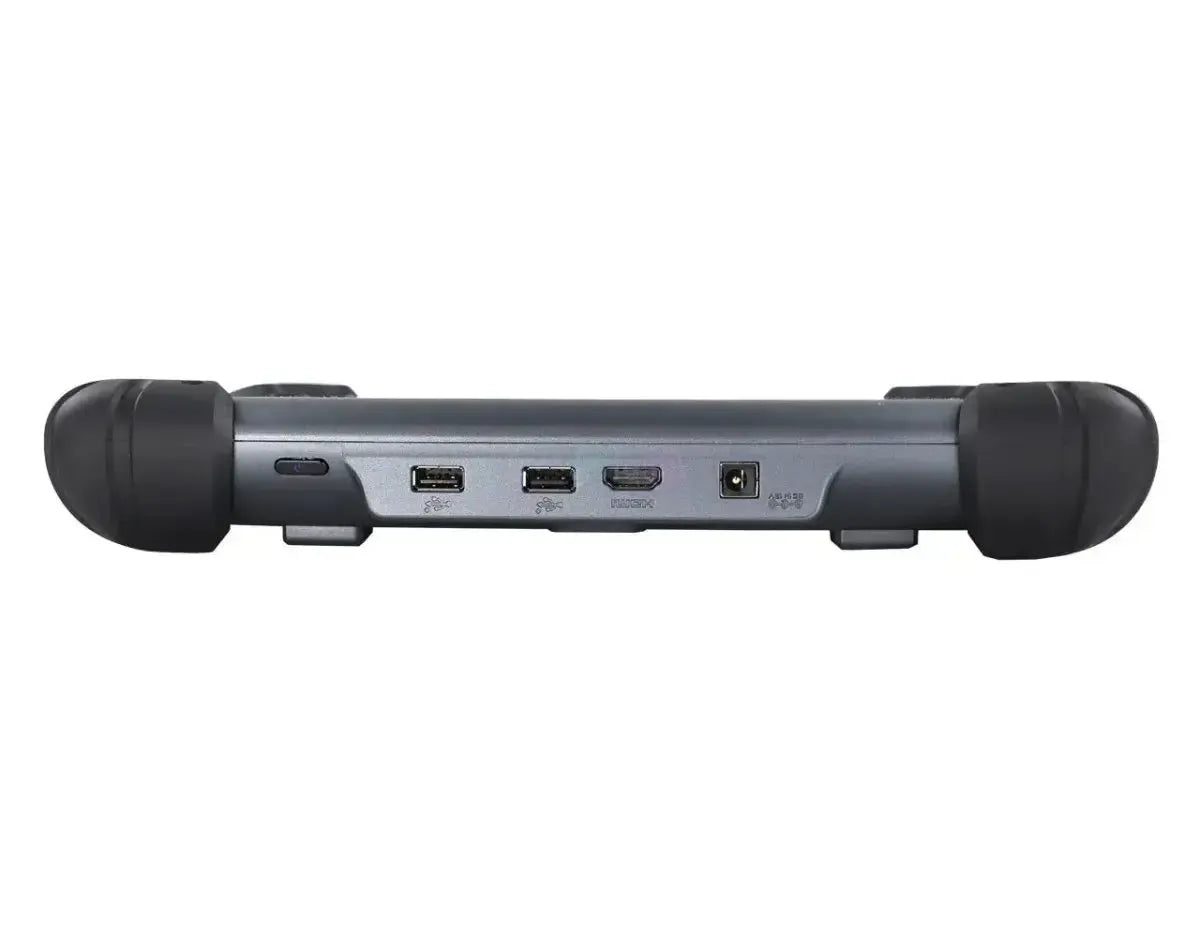

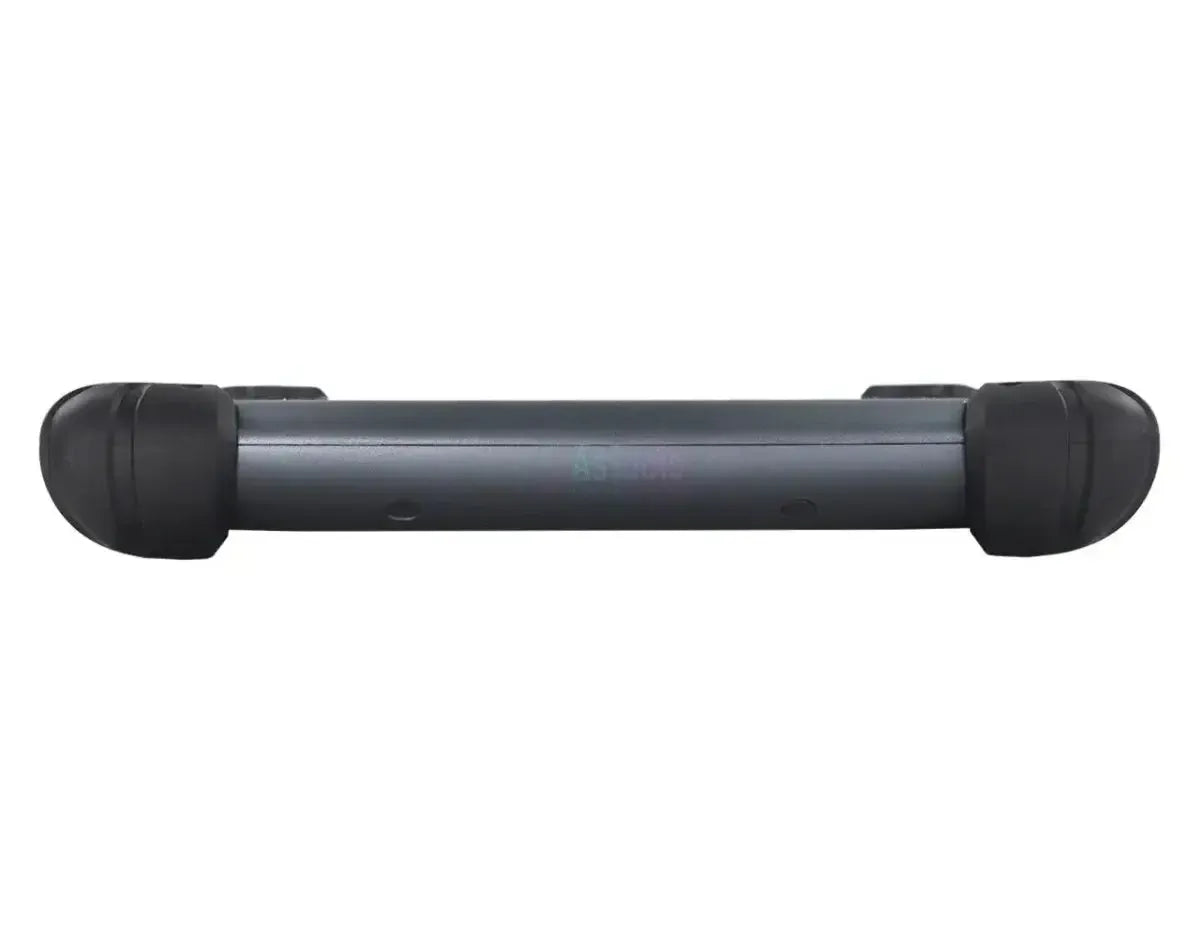

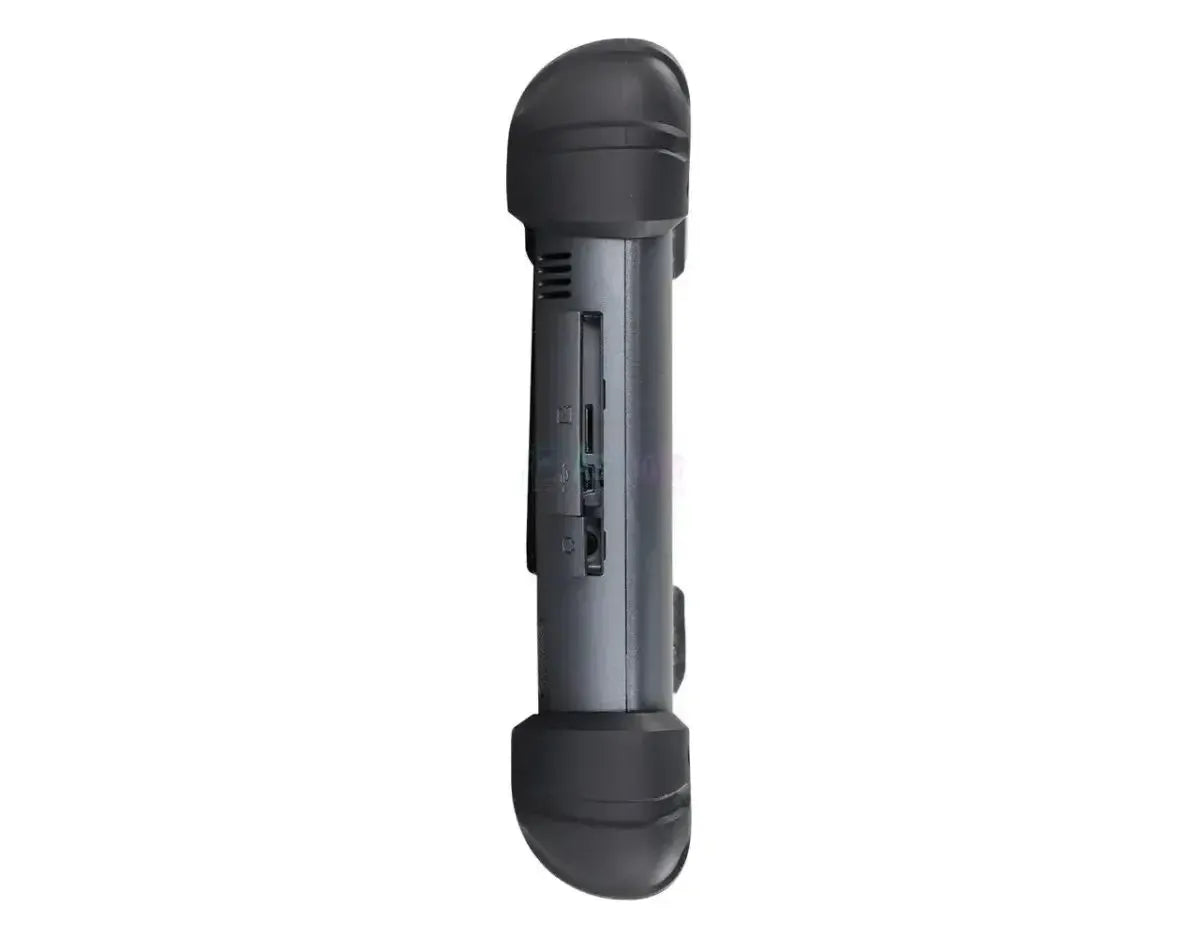

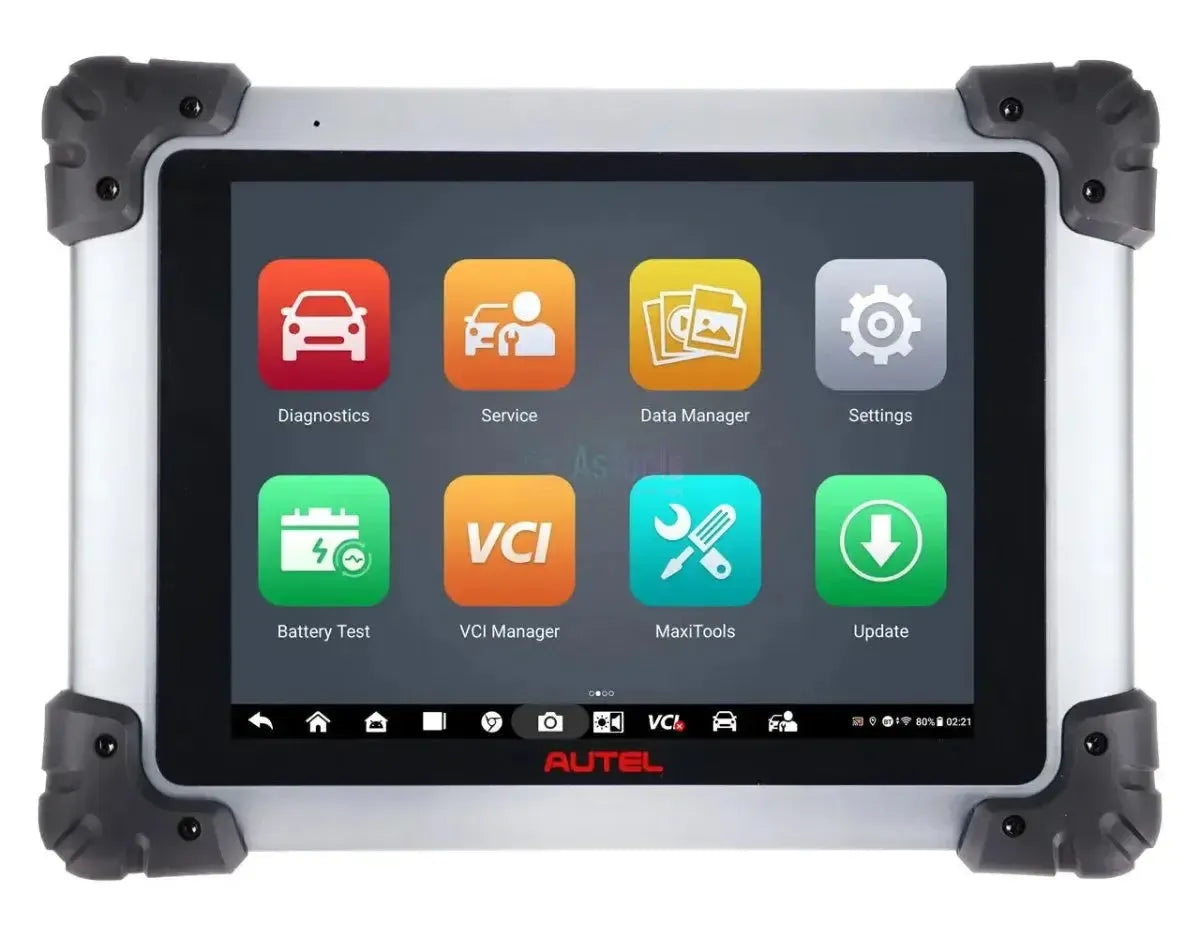

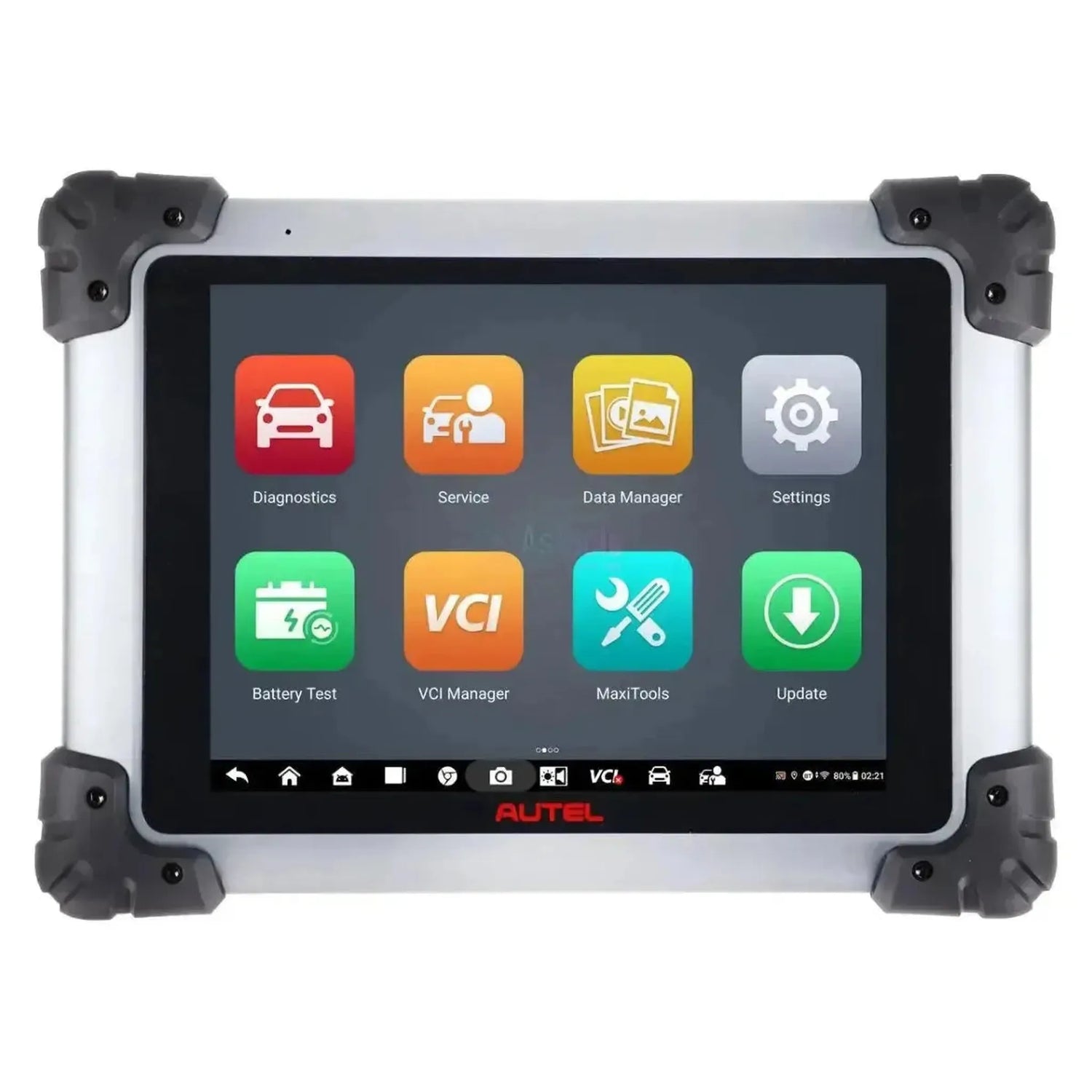

The Autel MaxiSys Elite II Pro is one of the most advanced and complete OE-level diagnostic platforms in the MaxiSys series, specially designed for the professional workshop demanding maximum performance, speed, and functionality. This high-end Diagnostic Tool combines powerful vehicle diagnostics, online coding, and full ECU programming via J2534 in a single system. The Elite II Pro is equipped with a large and bright 9.7-inch Retina touchscreen tablet, powered by a fast octa-core processor and the stable Android 10 operating system, ensuring a smooth workflow even during complex programming and configuration tasks.

Wireless communication is via the supplied MaxiFlash Elite J2534 VCI, a powerful Pass-Thru interface that not only supports diagnosis but also enables full dealer-level ECU flashing. Thanks to support for modern communication protocols such as CAN-FD and DoIP, the system is fully prepared for the latest vehicle platforms from, among others, BMW, Mercedes-Benz, VAG, Volvo, and GM. The device is standard delivered with two years of free software updates, including access to Autel cloud functions, new vehicle coverage, and brand servers. After this period, the system remains usable with the last installed software version; for new updates and access to online functions, an annual license is required.

Diagnostic functions:

The Autel MaxiSys Elite II Pro offers diagnosis at the highest OE level and is equipped with intelligent features that accelerate, streamline, and support the analysis process with relevant technical information.

• Intelligent diagnosis & topology mapping: Displays a visual, interactive network map of all vehicle modules with color coding per communication status (active, fault, offline). The system links fault codes directly to TSB’s, offers step-by-step repair instructions, and automatically suggests possible causes and solutions.
• Full system diagnosis (OE-Level): Provides in-depth access to all electronic systems of more than 80 vehicle brands, including engine, transmission, ABS, airbag (SRS), steering, comfort systems, ADAS, and more.
• Active tests (bidirectional control): Sends commands to actuators, relays, and components to test their operation without disassembly. For example, controlling the fuel pump, A/C clutch, EGR valve, or windows.
• Live datastream: Displays real-time sensor data from multiple modules in text, graphs, or analog gauges. Supports simultaneous comparison of datastreams for thorough fault analysis and diagnosis confirmation.

Maintenance and service functions:

The Autel MaxiSys Elite II Pro supports more than 40 maintenance and reset functions for calibrating, initializing, and resetting vehicle systems after service or component replacement. These functions make the system suitable for daily use in both universal and brand-specific workshops.

• Oil service reset (Service): Resets the maintenance interval and turns off the service light after oil change.
• Electronic parking brake (EPB): Releases and initializes the electronic handbrake during brake service.
• Battery management system (BMS): Registers a new Battery and restores the vehicle's charging management.
• Steering angle sensor (SAS): Calibrates the steering angle sensor after alignment or steering repair.
• Diesel particulate filter (DPF): Starts forced regeneration of the soot filter and clears related fault codes.
• ABS pump bleeding (ABS): Removes air from the hydraulic brake system through electronic activation.
• Tire pressure monitoring system reset (TPMS): Learns new TPMS sensors after replacement and resets the system.
• Throttle body initialization (ETC): Restores the throttle position after cleaning or replacing the throttle body.
• Injector coding: Programs the ID codes of new injectors into the ECU for optimal fuel delivery.
• Transmission adaptation (CVT/AT): Reset learning values of automatic transmissions for improved shift timing.
• Crankshaft sensor learning (TEC): Relearns the position of the crankshaft after replacement or engine repair.
• Reset AdBlue system: Resets warnings and level measurement of the SCR system after refilling or maintenance.
• Air suspension calibration: Calibrates ride height and damping on vehicles with adaptive air suspension.
• Headlight adjustment (AFS): Calibration of adaptive or steering headlights after replacement or realignment.
• Initialize windows and roof: Restores automatic functions of power windows and sunroofs.
• Start/stop settings: (De)activates the automatic start/stop system after replacement or adjustment.
• Seat occupancy sensor (SRS): Calibrates passenger detection for correct airbag activation.
• Activate/deactivate transport mode: Switches the vehicle in or out of transport mode for storage or delivery.
• Change system language: Adjusts the language of the instrument panel or infotainment system.
• Reset air/fuel ratio (A/F): Restores adaptive values for air/fuel control after sensor or component replacement.

Programming and coding functions:

The Autel MaxiSys Elite II Pro stands out with its powerful programming and coding capabilities, making the system suitable for dealer-level ECU adaptations, software updates, and module replacement at OE level.

• J2534 ECU programming: The supplied MaxiFlash Elite VCI acts as a J2534 Pass-Thru interface, allowing control units to be reprogrammed (flashed) with original OEM software. This is essential for:
  • Replacing ECUs on brands such as BMW and Mercedes-Benz
  • Updating software versions to the latest manufacturer standard
  • Resolving complex software malfunctions and firmware errors
• Online coding: Connects to the manufacturer's servers to adjust the software configuration of modules. Used for:
  • The correct learning of new components
  • The customization of vehicle options such as lighting, mirrors, start/stop
  • The activation of hidden functions (retrofits) for among others VW, Audi, Porsche, BMW, and more
• Component matching & guided functions (VAG): Provides step-by-step guidance for learning, coding and configuring components within the Volkswagen group (VW, Audi, Seat, Skoda). This significantly reduces the chance of errors in complex procedures such as key coding, steering module replacement and ABS adaptation.

Cloud and reporting functions:

The Autel MaxiSys Elite II Pro features advanced cloud and reporting capabilities that contribute to efficient workshop documentation, customer communication and remote support.

• Autel Cloud Report Management: Automatically saves pre-scan and post-scan reports in the Autel Cloud, so users always have access to stored diagnostic reports for feedback, archiving and reporting – at any time and from any location.
• Easy sharing and printing: Reports can be directly shared via QR code, email or SMS from the tablet, or wirelessly printed via Wi-Fi. Ideal for quick communication with customers or internal workshop documentation

Additional features and special capabilities:

The Autel MaxiSys Elite II Pro is equipped with advanced technologies that make the device future-proof and suitable for use on modern vehicle platforms, including compliance with current regulations.

• Support for CAN-FD & DoIP: Thanks to the MaxiFlash Elite J2534 VCI, the system supports the latest communication protocols such as CAN-FD and DoIP, which is essential for compatibility with modern vehicles from among others GM, Ford, BMW, Volvo and Land Rover.
• FCA AutoAuth access: Provides authorized access to the Secure Gateway (SGW) of vehicles from Fiat, Chrysler, Alfa Romeo and Jeep. Requires a separate AutoAuth account for full diagnostic and service access.

Optional expansions and modules:

The Autel MaxiSys Elite II Pro is compatible with various expansion modules that make the system suitable for specialized diagnostic and inspection applications.

• Battery analysis: Supports connection with the Autel MaxiBAS BT506, enabling professional Battery tests on 12V starter Batteries, including checking voltage, internal resistance and charging condition.
• Videoscope: Compatible with the Autel MaxiVideo MV105 and MV108 inspection cameras, for visual inspection of hard-to-reach parts such as cylinder heads, intake channels and EGR systems.
• 4-channel oscilloscope (MP408): Supports expansion with the Autel MaxiScope MP408, an oscilloscope with four channels for in-depth analysis of electronic signals such as sensor outputs, CAN bus lines and actuator response.

Supported car brands:

• European brands: Abarth, Alfa Romeo, Audi, Aston Martin, Bentley, BMW, Bugatti, Citroën, DS, Dacia, Ferrari, Fiat, FordEU, Iveco LD, Jaguar, Lancia, Lamborghini, Land Rover, Maserati, MAN LD, Maybach, Mercedes-Benz, Mercedes-Benz LD, MINI, Opel, Peugeot, Porsche, Renault, Rolls-Royce, Saab, Seat, Skoda, Smart, Vauxhall, Volkswagen, Volkswagen CV, Volkswagen LT3, Volvo
• Asian brands: Acura, Daewoo, Daihatsu, Fuso, Honda, Hyundai, Hyundai CV, Infiniti, Isuzu, Kia, Lexus, Mahindra, Maruti Suzuki, Mazda, Mitsubishi, Nissan, Nissan GTR, Perodua, Proton, Samsung, Scion, SsangYong, Subaru, Suzuki, Tata, Toyota
• American brands: Chevrolet, Chrysler, Dodge, Ford, GM, Jeep
• Chinese brands: BAIC Motor, BAIC Senova, Borgward, Brilliance, BYD, Chery, DFSK, DFFG, Emgrand, Foton, Geely, Great Wall, JAC, LDV, Lifan, Maxus, SAIC MG, Zotye

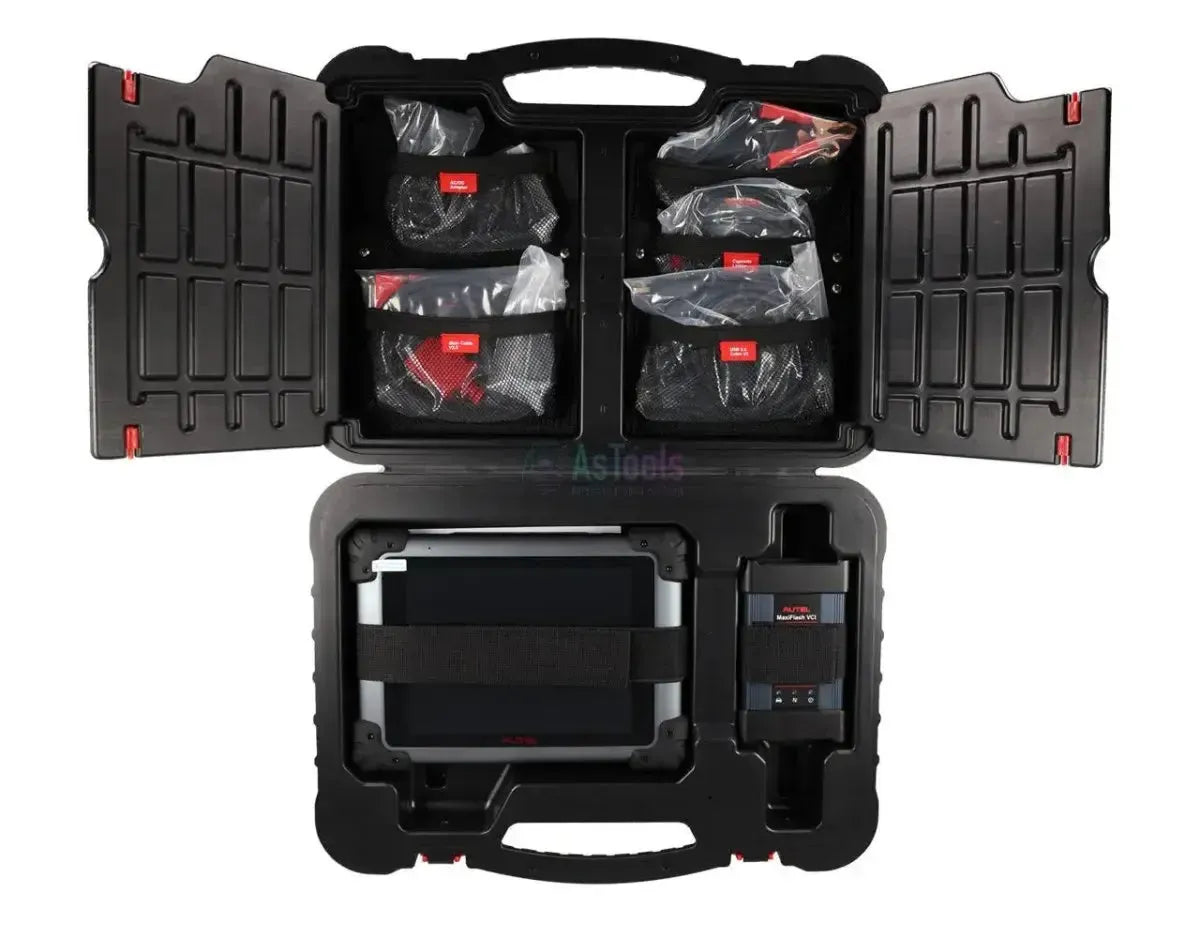

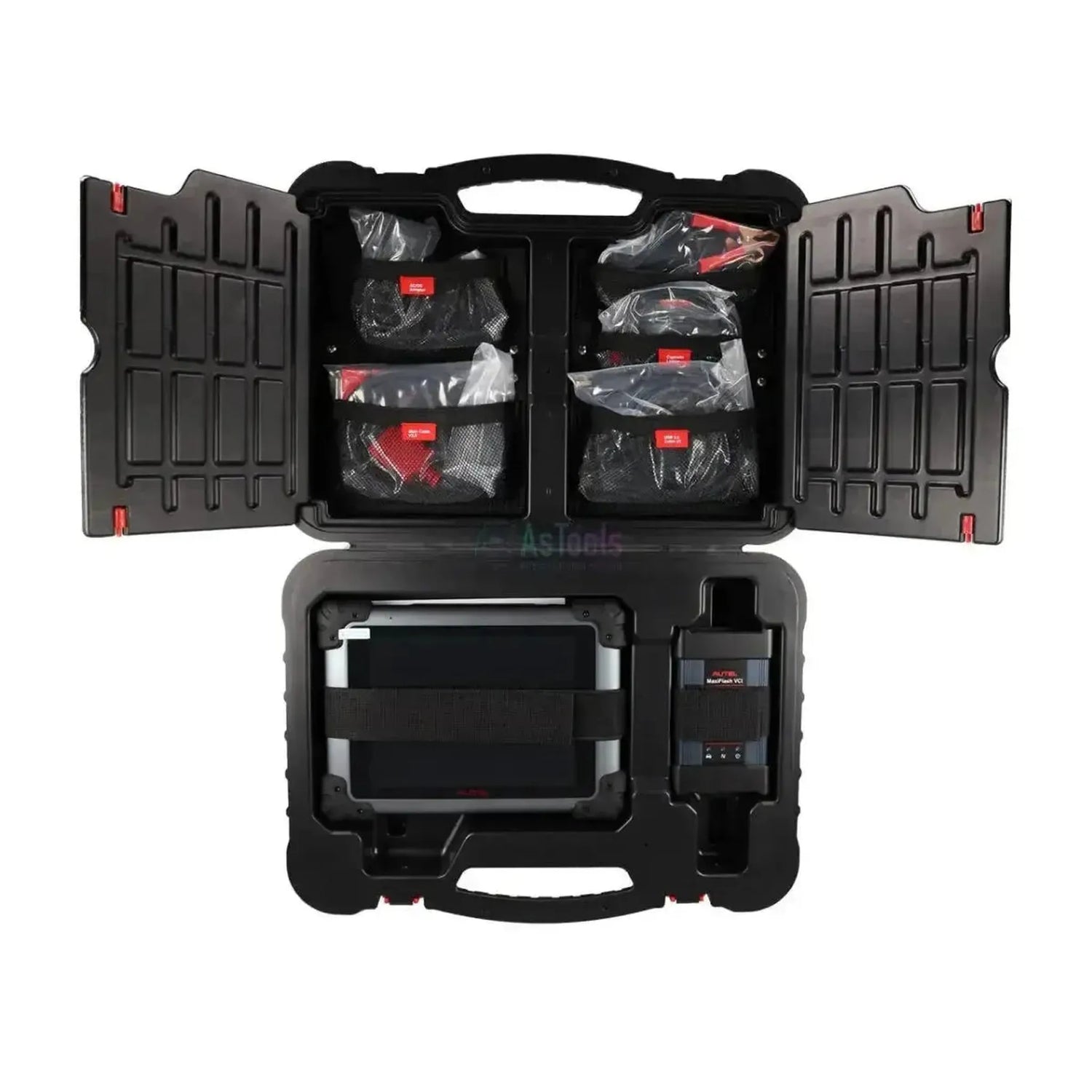

Package contents:

• Autel MaxiSys Elite II Pro Diagnostic Tool
• Autel MaxiFlash VCI Interface
• Autel 26 Pins DB26 - 16 Pins OBD2 adapter cable
• USB-A - Mini USB-B adapter cable
• USB-A - USB-B adapter cable
• Power adapter
• Manual

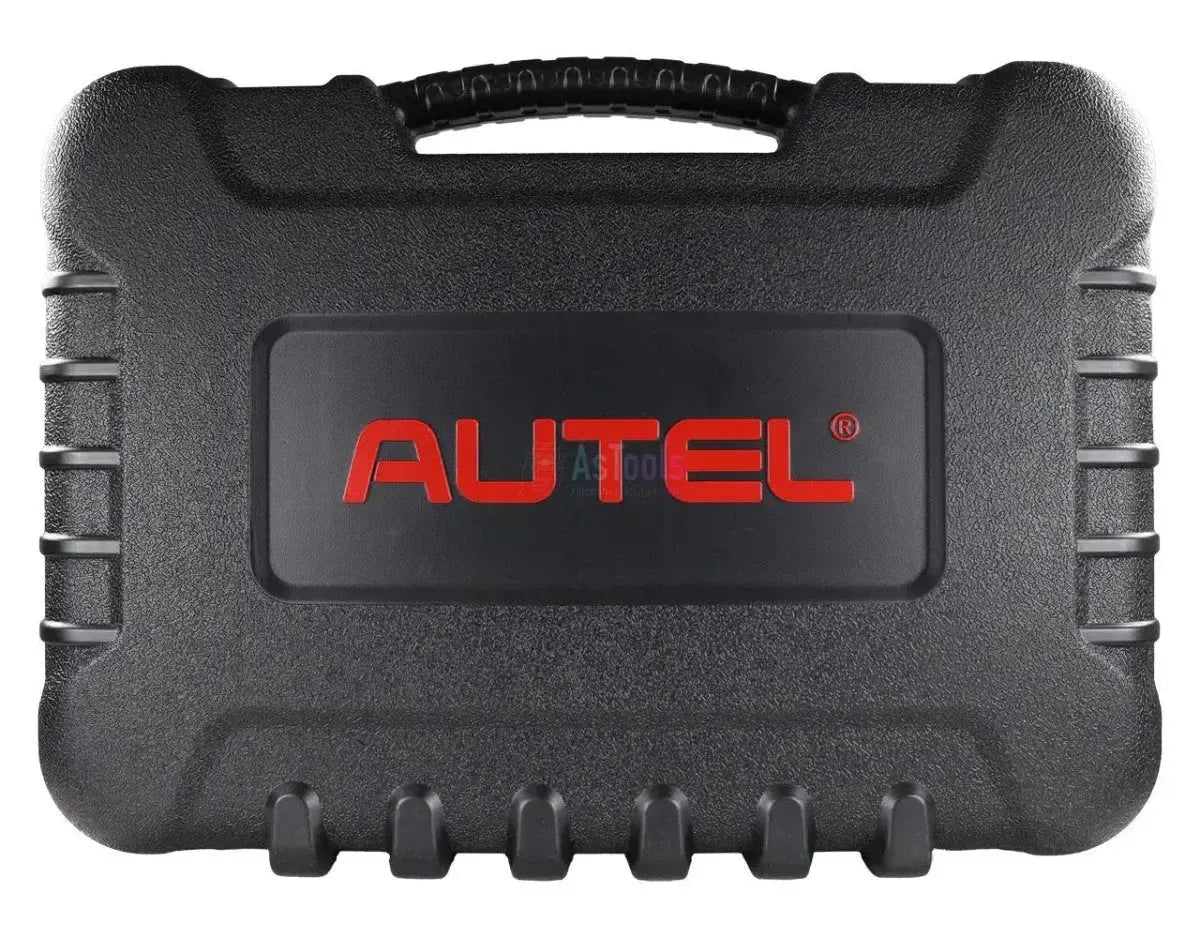

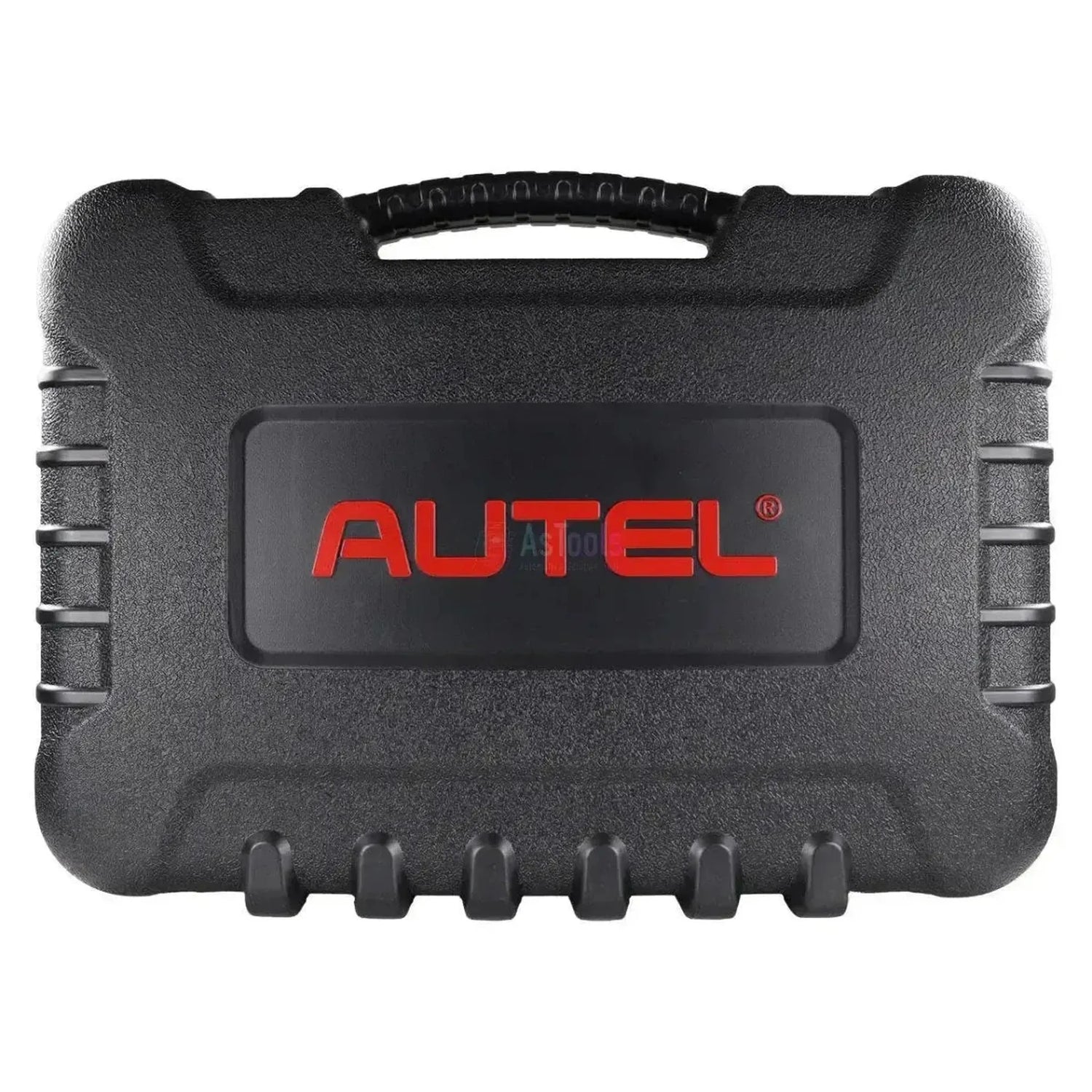

• Storage case
• Cleaning cloth
• Autel Battery Clamps Power Cable
• Autel Cigarette Lighter Power Cable

License information:

• Including 2 years of updates: A 24-month update license is included with purchase.

After the first year, the license can be renewed for an annual fee. The device remains fully functional for already supported models, even without license renewal. However, new software updates can no longer be installed, and some online features may be limited or no longer supported.
