AsTools  |  SKU: A0252-1

16-pin OBD2 Connector (Male) with 16 Open End Cables (30 cm) | Accessories

Regular price
€9,95 incl.
€8,22 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

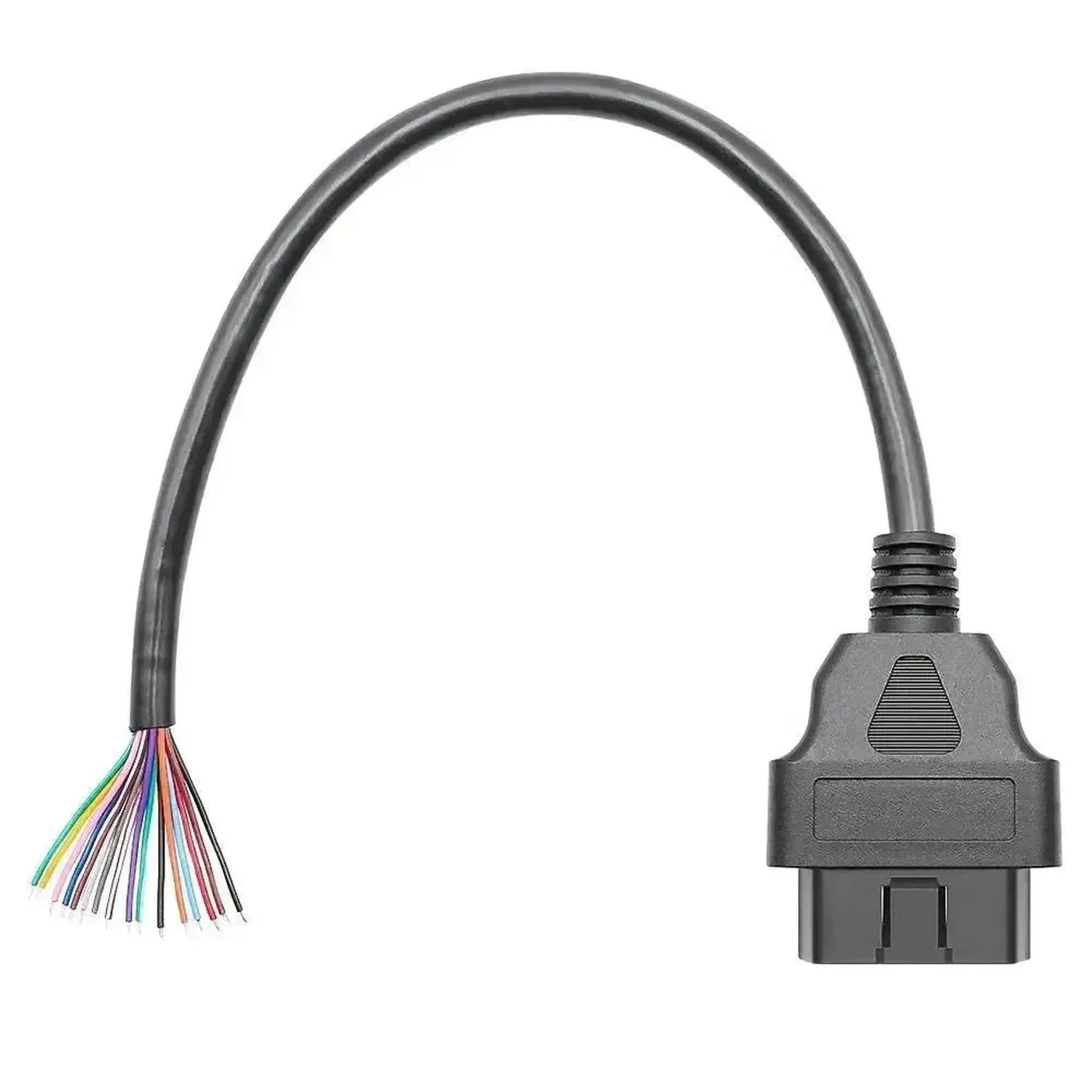

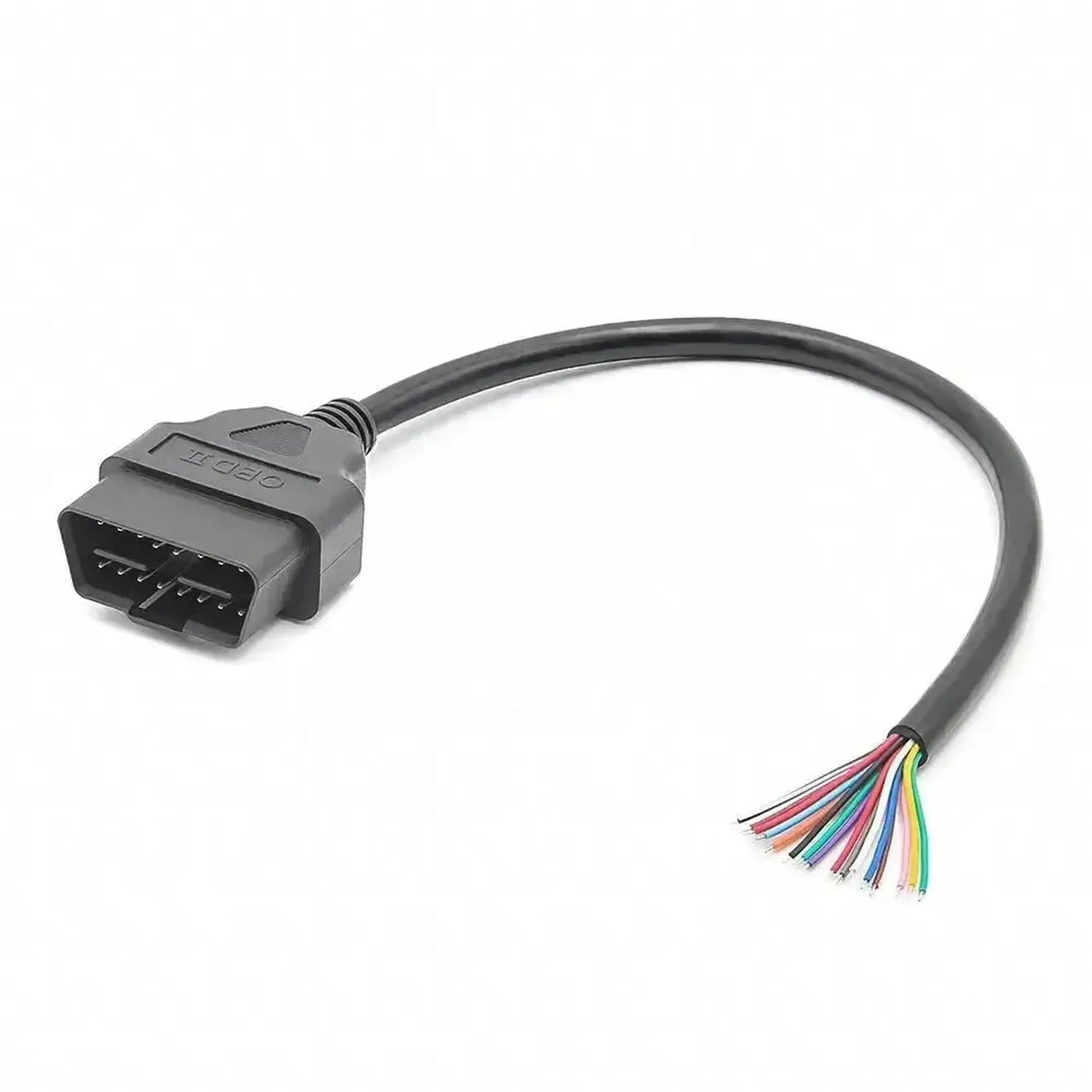

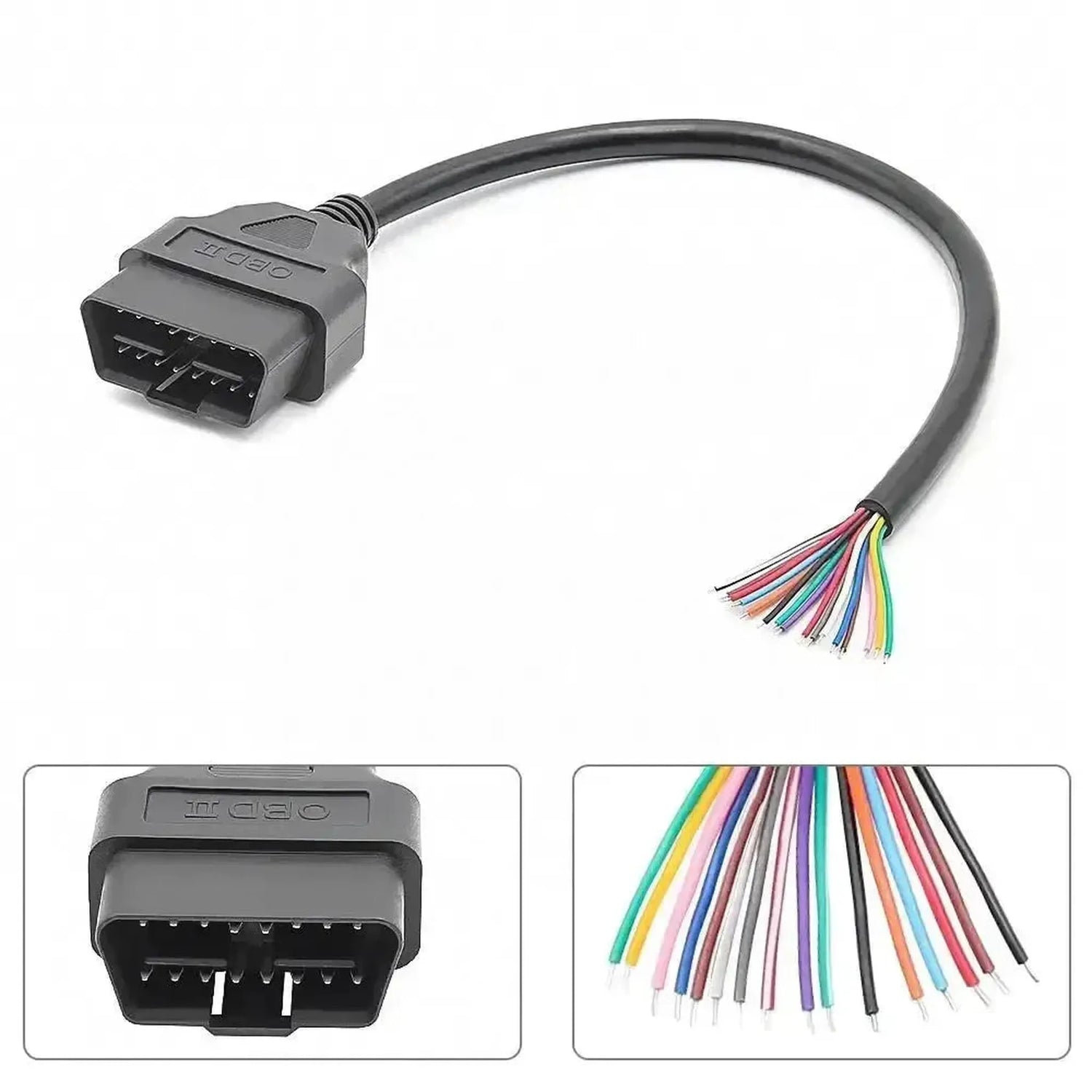

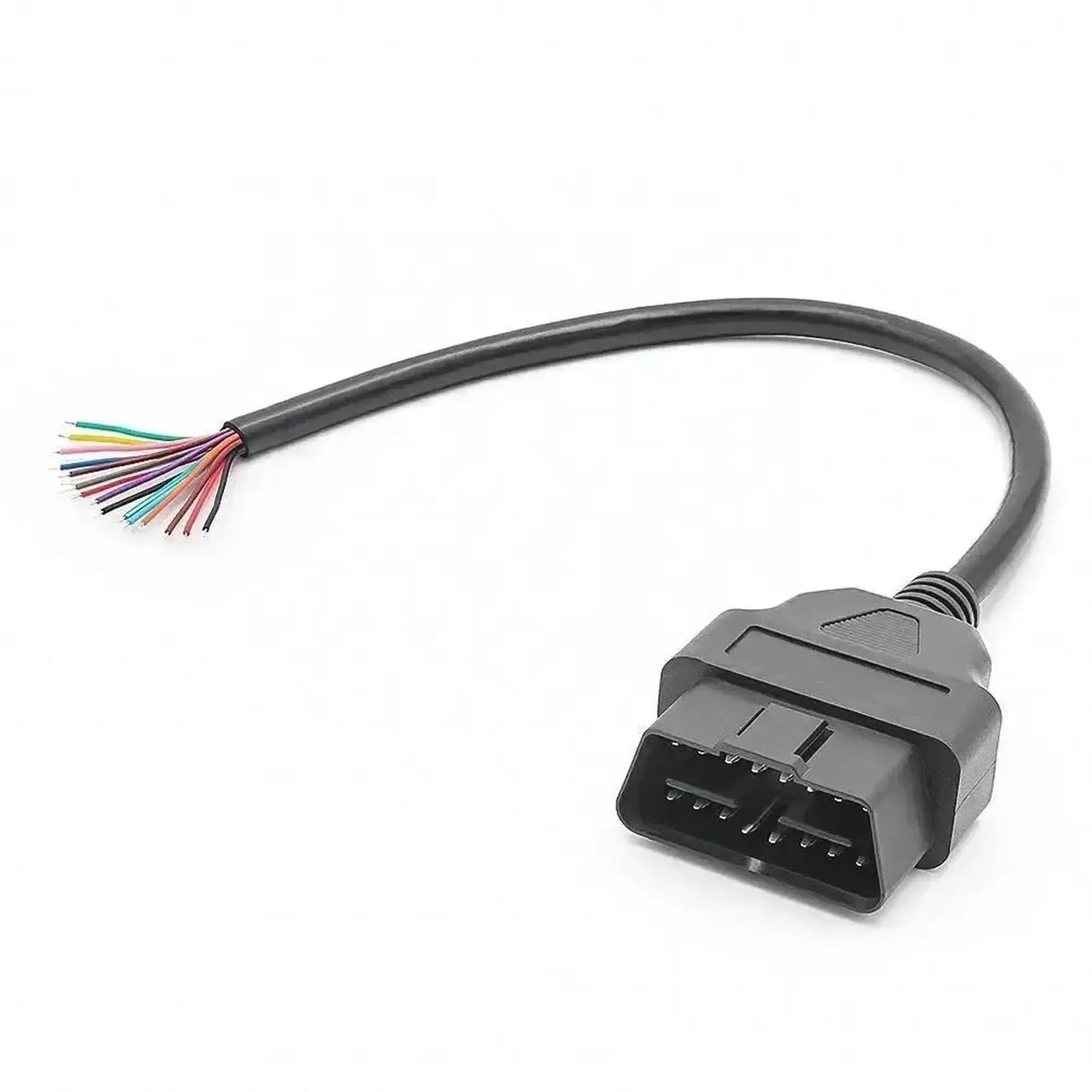

This 16-pin OBD2 connector (male) has 16 loose, open end leads of 30 cm. Each wire corresponds to one pin of the connector, so you decide which pins to connect.

Use it to make a custom cable or adapter, to power and read an ECU on the workbench, or to build a test setup. The part is passive: it contains no electronics.

ADVANTAGES

✔16 open wires — Each pin can be connected separately.

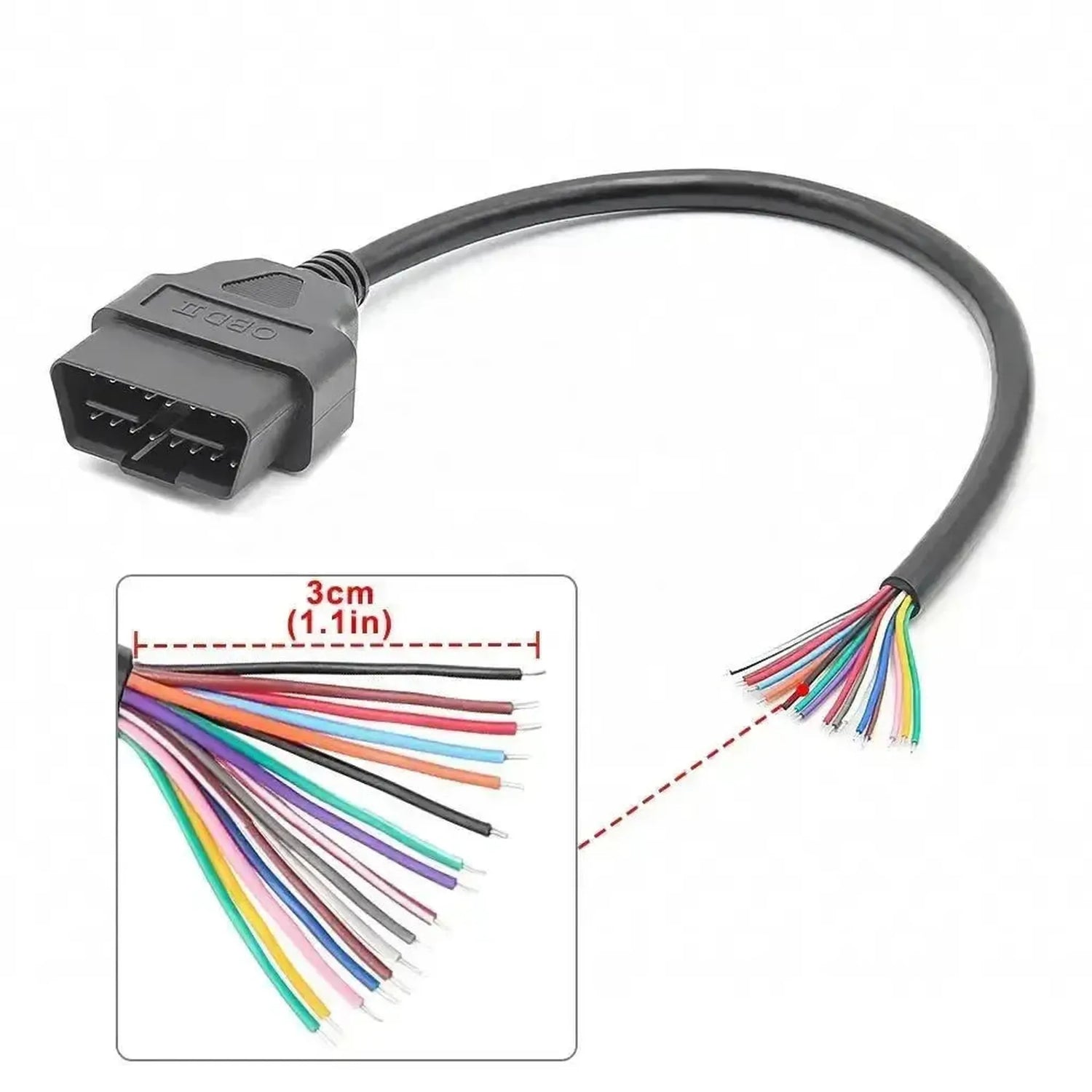

✔30 cm of wire — Enough for soldering or crimping.
✔Standard J1962 — Fits any OBD2 port.
✔Passive — No electronics or power supply.

POINTS TO NOTE

✕Specialist knowledge required — Incorrect wiring can cause damage.
✕Measuring pins yourself — Check each wire with a multimeter.
✕No wiring diagram — Use the diagram for the vehicle or device.
✕Insulate loose wires — Prevent short circuits.

Applications and functionality

This part is intended for workshops, electricians and technicians who want to make or repair an OBD2 connection themselves.

Functions

  • Making your own cable: OBD2 connector with free wiring.
  • Workbench: Powering and reading an ECU outside the vehicle.
  • Test setup: Tapping signals from each pin.

How to use it

  1. Identifying pins: Use a multimeter to determine which wire belongs to which pin.
  2. Checking the diagram: Look up the pin assignment in the diagram.
  3. Connecting: Solder or crimp the required wires.
  4. Insulating: Insulate all unused wires.
  5. Testing: Check operation before putting it into use.

Special features and capabilities

What makes this part practical:

  • All 16 pins available: Also for manufacturer-specific pins.
  • Free to wire: Only connect the pins you need.

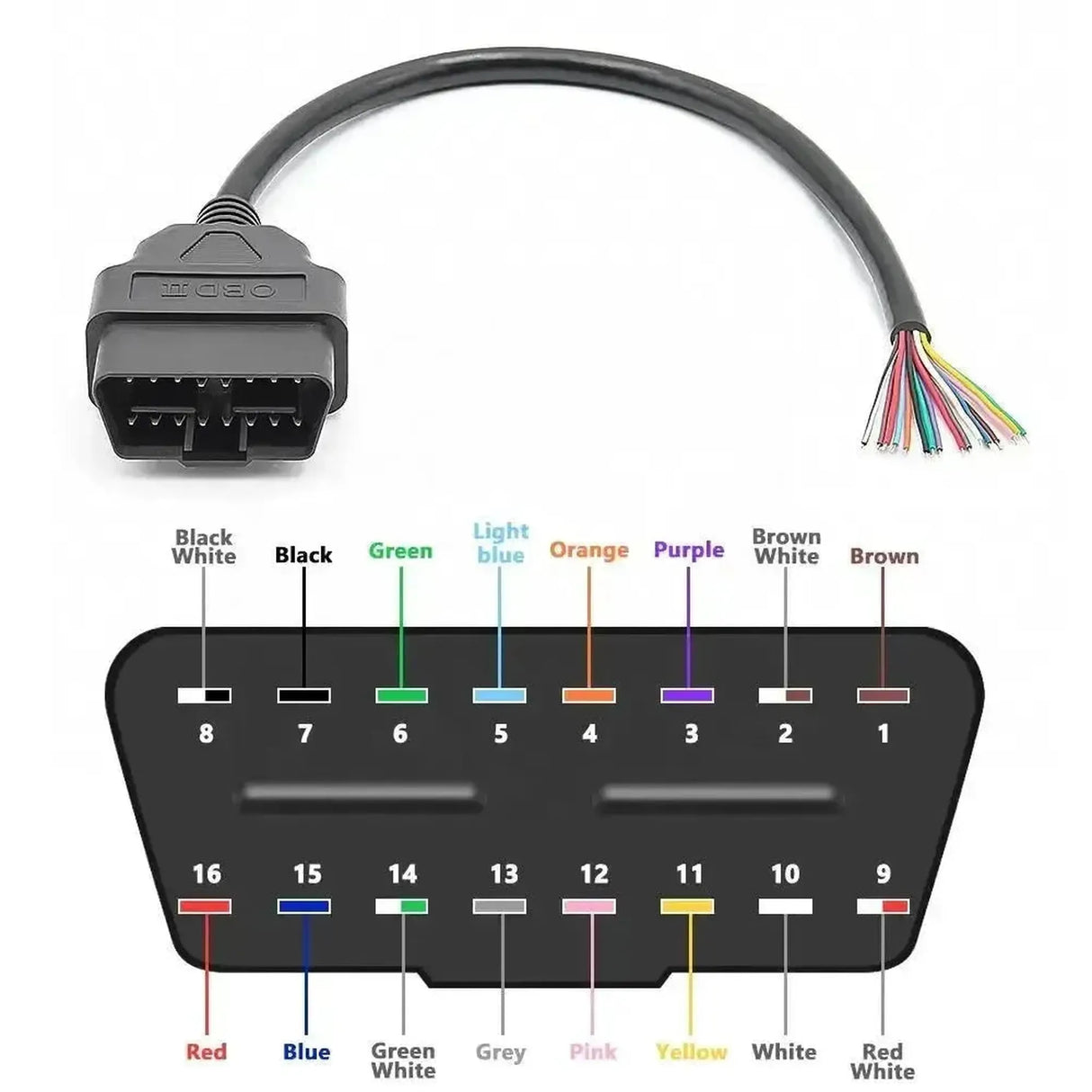

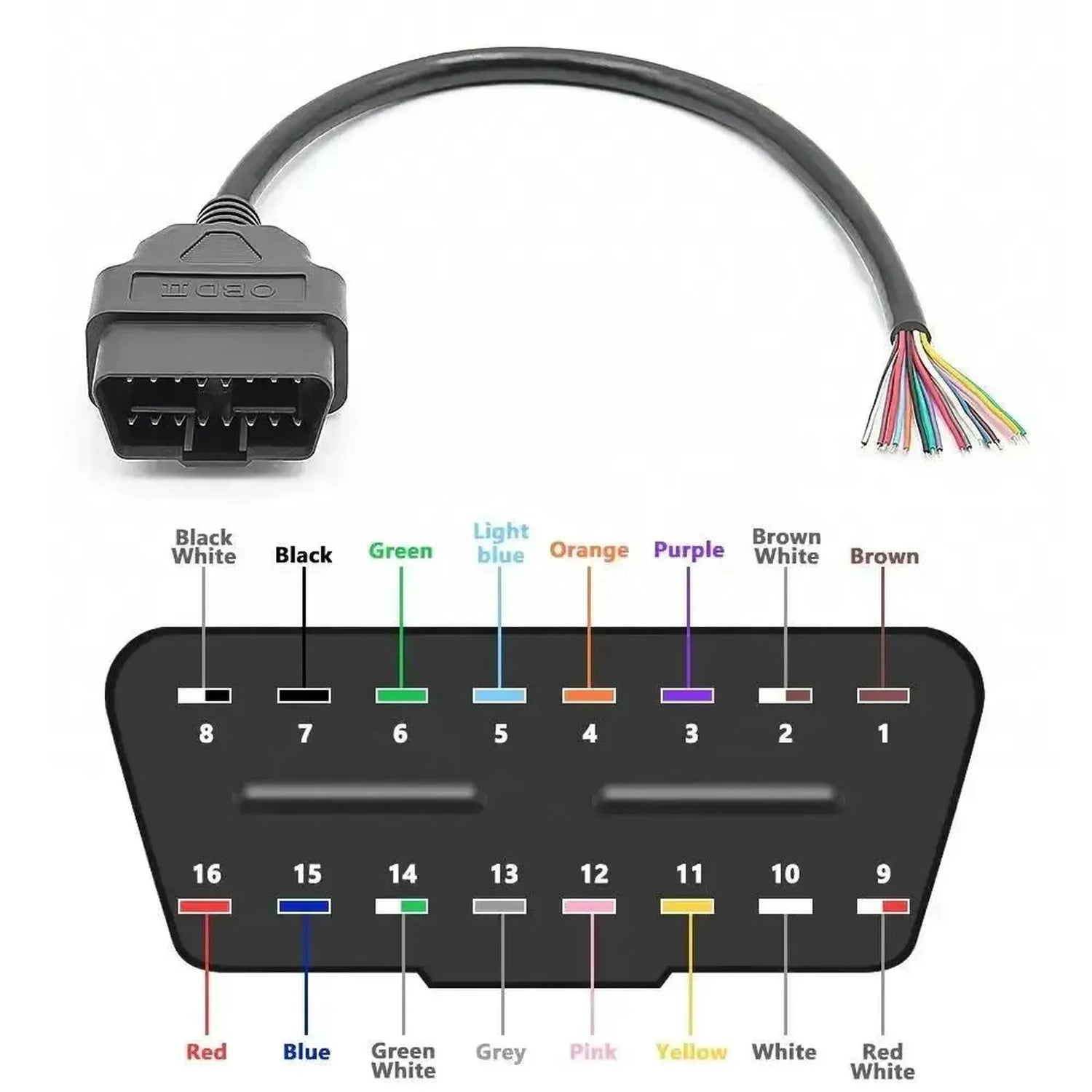

Pin assignment and compatibility

The part uses the standard 16-pin OBD2 connector (J1962):

  • Pin 16: Battery voltage (+12 V).
  • Pins 4 and 5: Ground.
  • Pins 6 and 14: CAN-High and CAN-Low.
  • Pin 7: K-Line.

Which pins are used in a vehicle or device differs by make. Always check the diagram.


Package contents

  • 1x 16-pin OBD2 connector (male) with 16 open end leads (30 cm)
💡
Good to know: Before connecting, use a multimeter to measure which wire belongs to which pin. Do not rely on colour: it is not the same in every version.

Technical specifications

Connections

Whether the 16-pin OBD2 end is a socket (female) or a plug (male). This determines what you connect it to.OBD2 connector type
Male
What is at the other end of the cable, for example loose wires that you connect to the wiring yourself.Connector on other end
16 open-ended wires

Cable and mounting

The length of the cable. A longer cable gives more freedom to place the connector in a convenient position.Cable length
30 cm
Wire length
30 cm

Other specifications

Brand
Universal
Model
OBD2 connector with 16 open end leads
Type
OBD2 cable component
Connector
16-pin OBD2 (J1962), male
