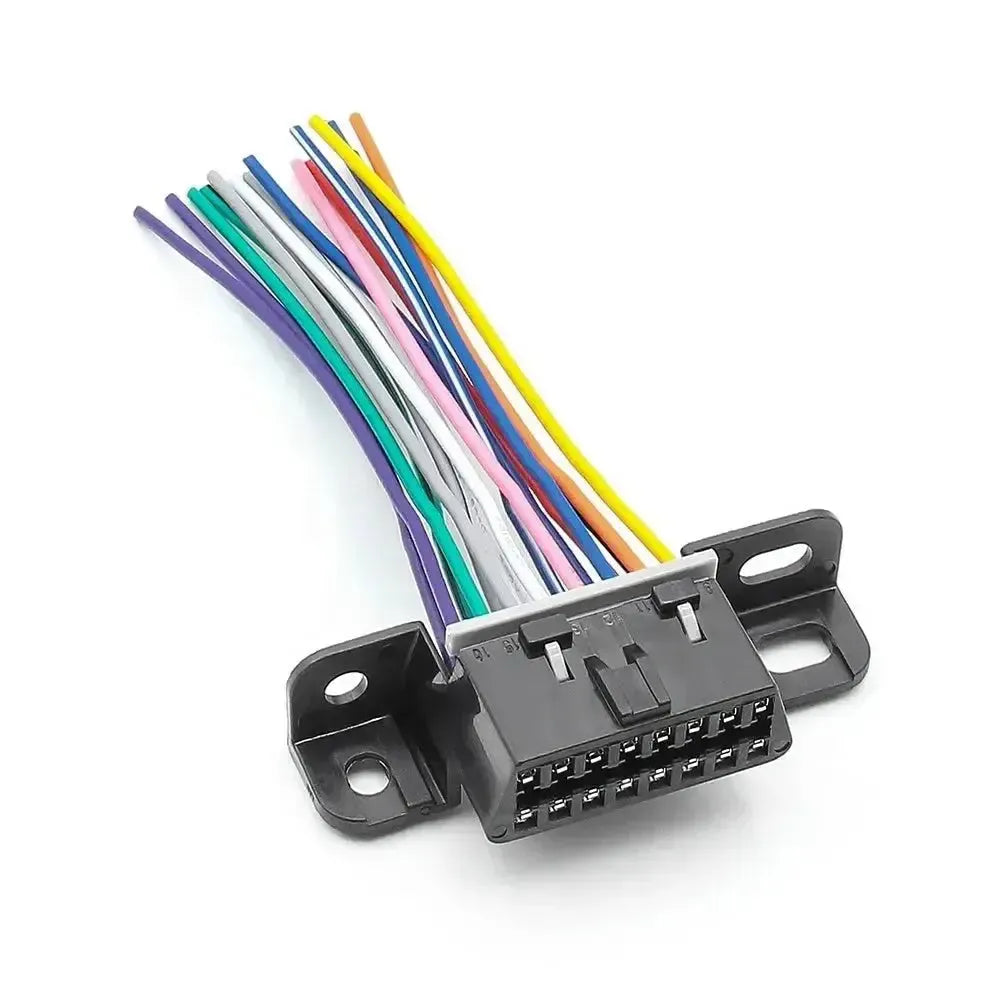

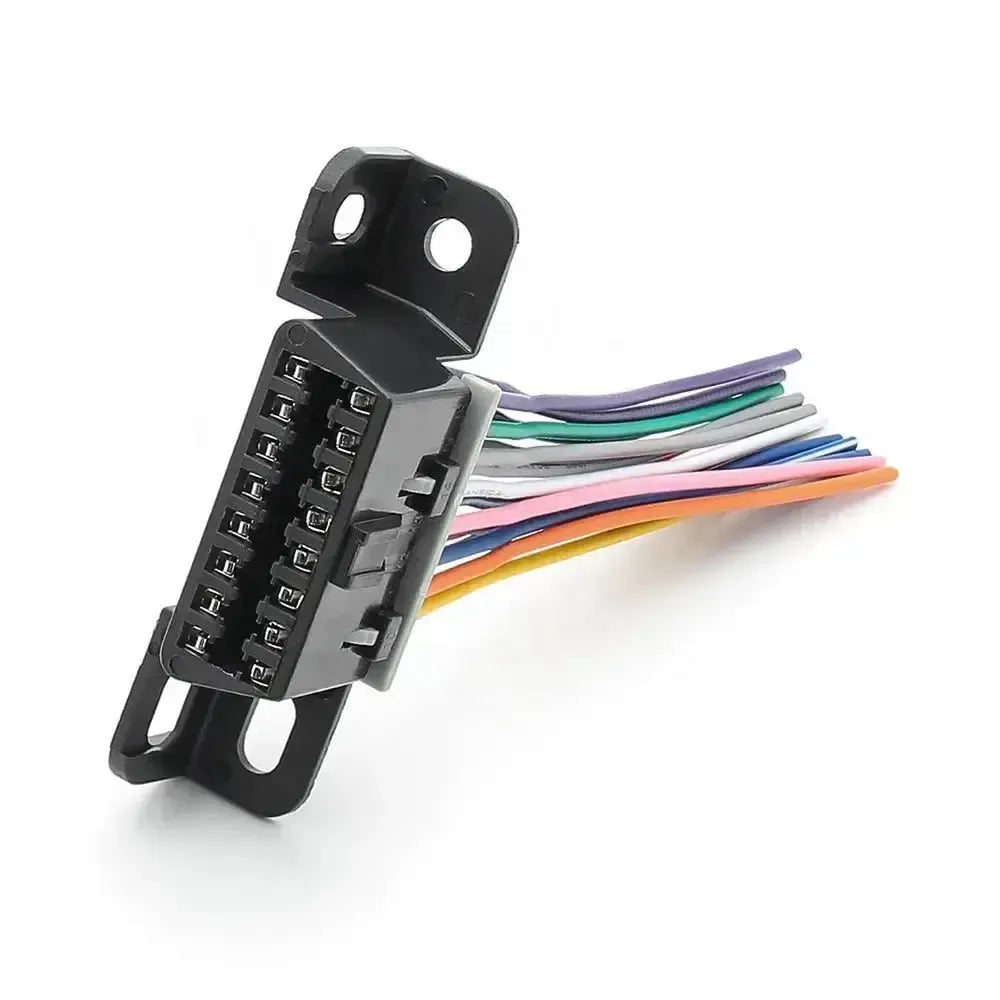

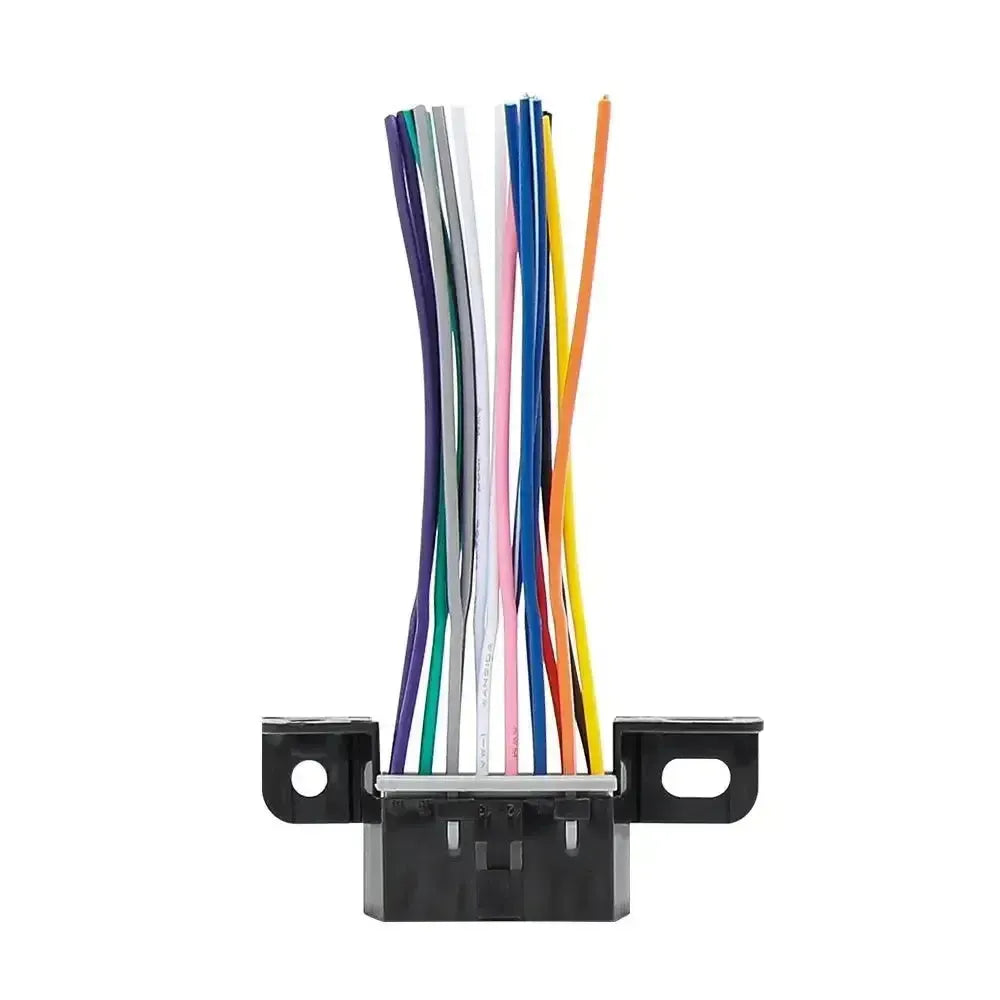

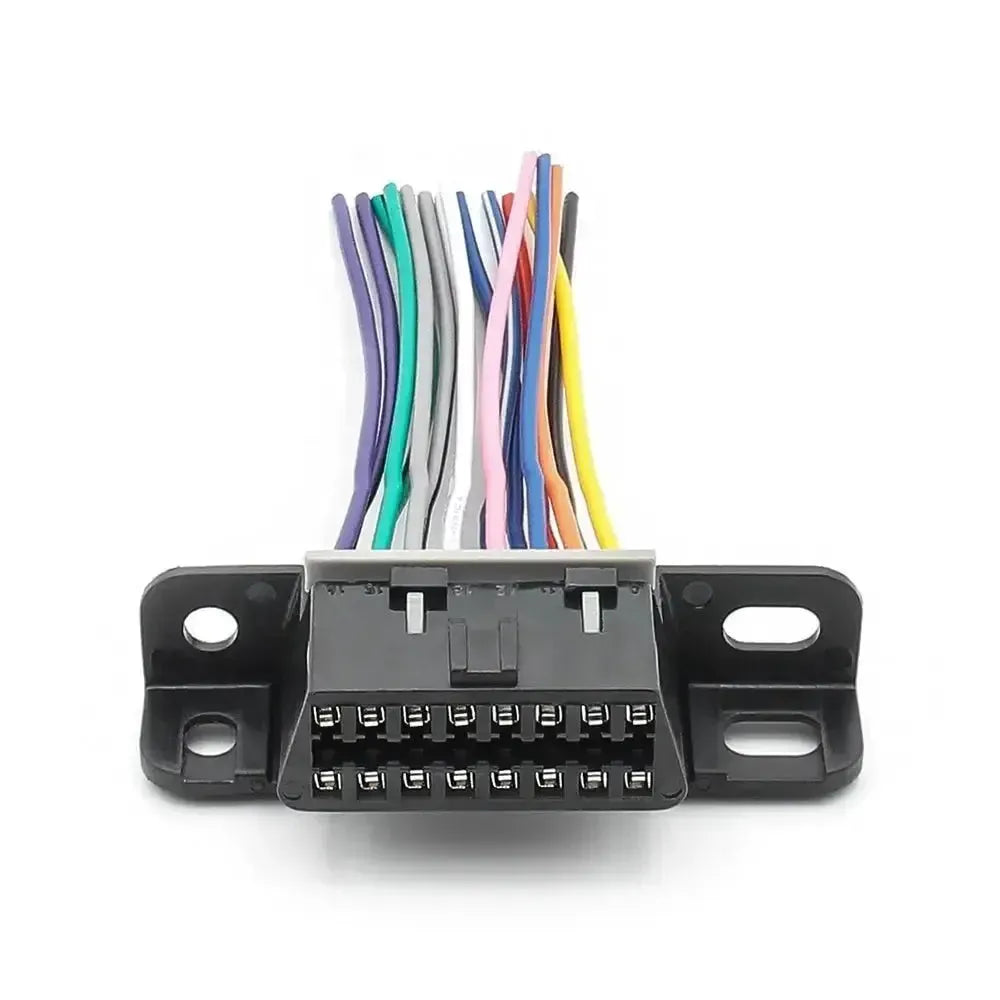

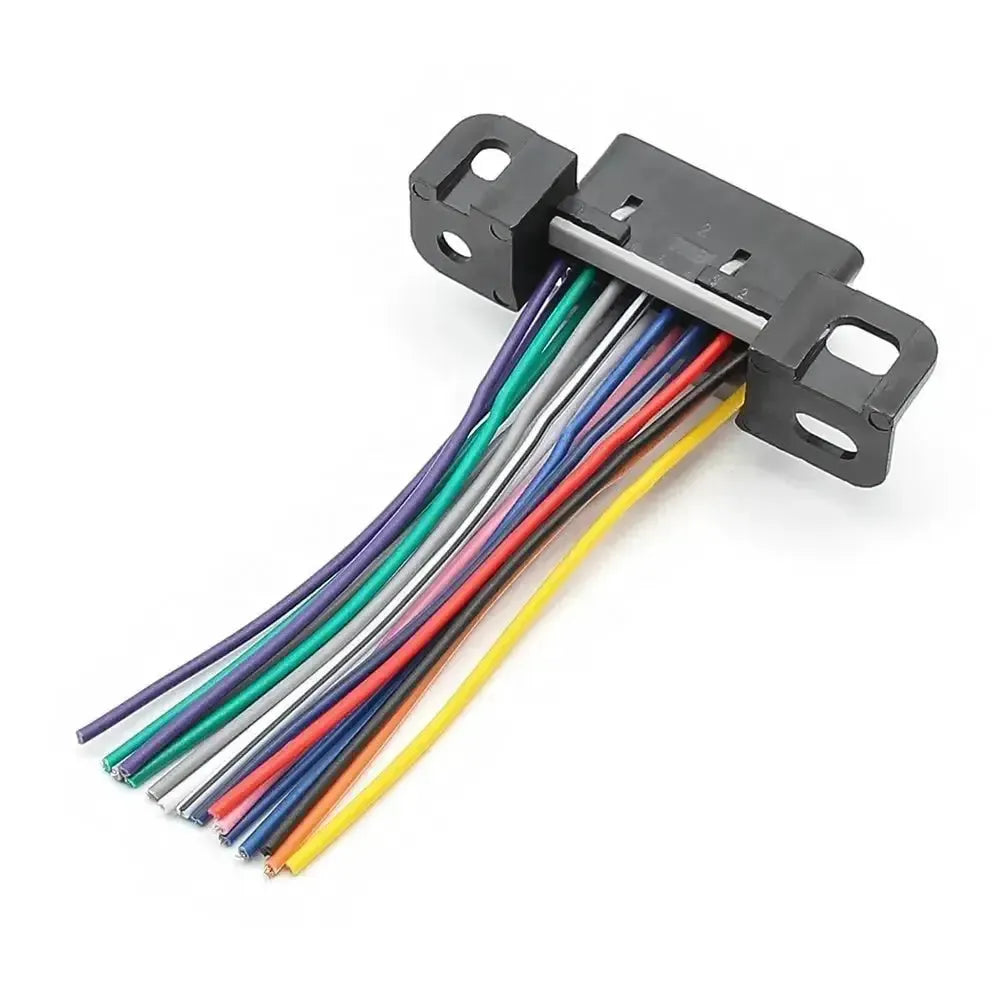

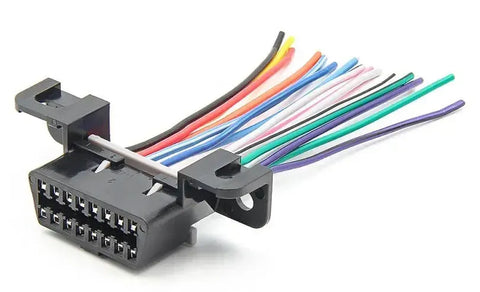

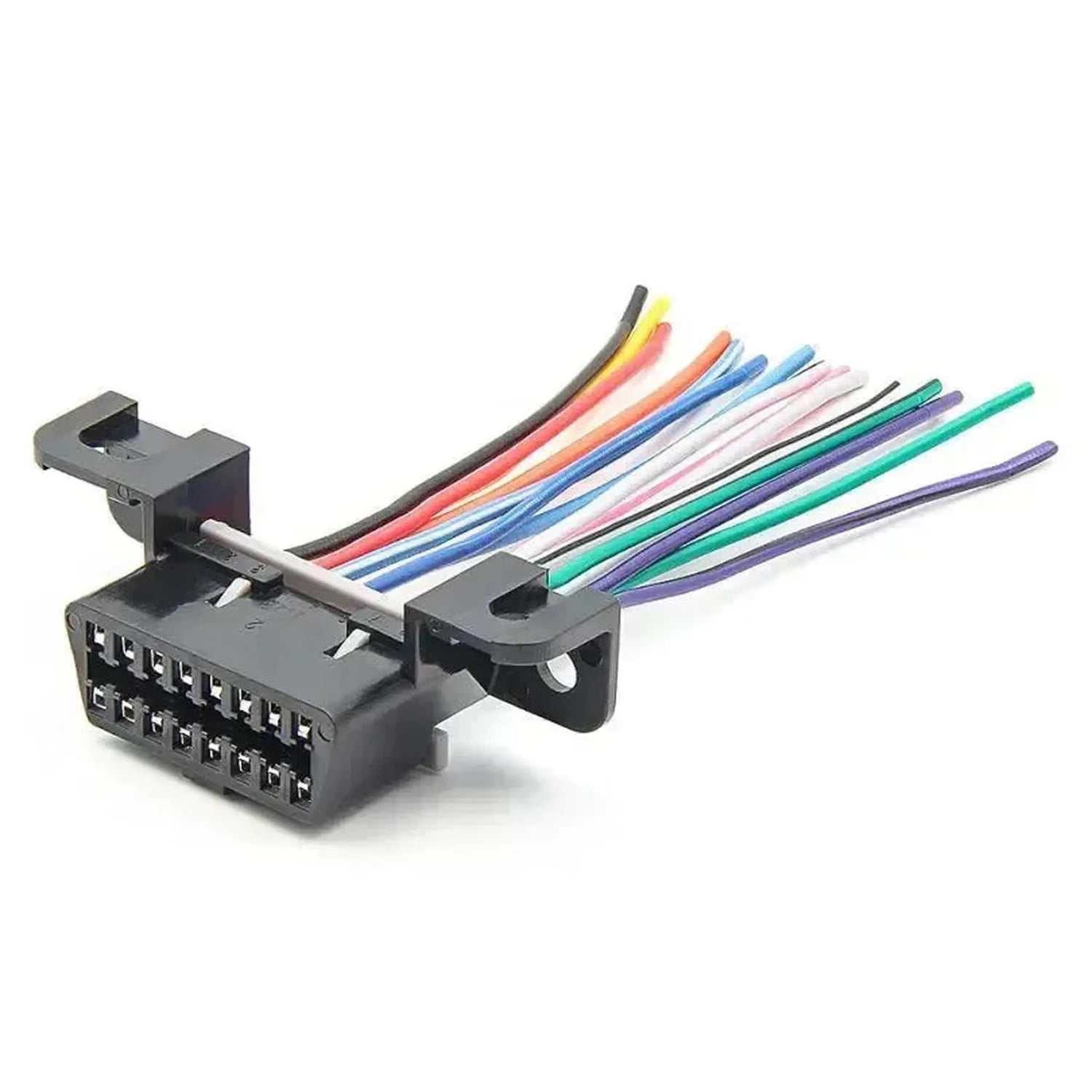

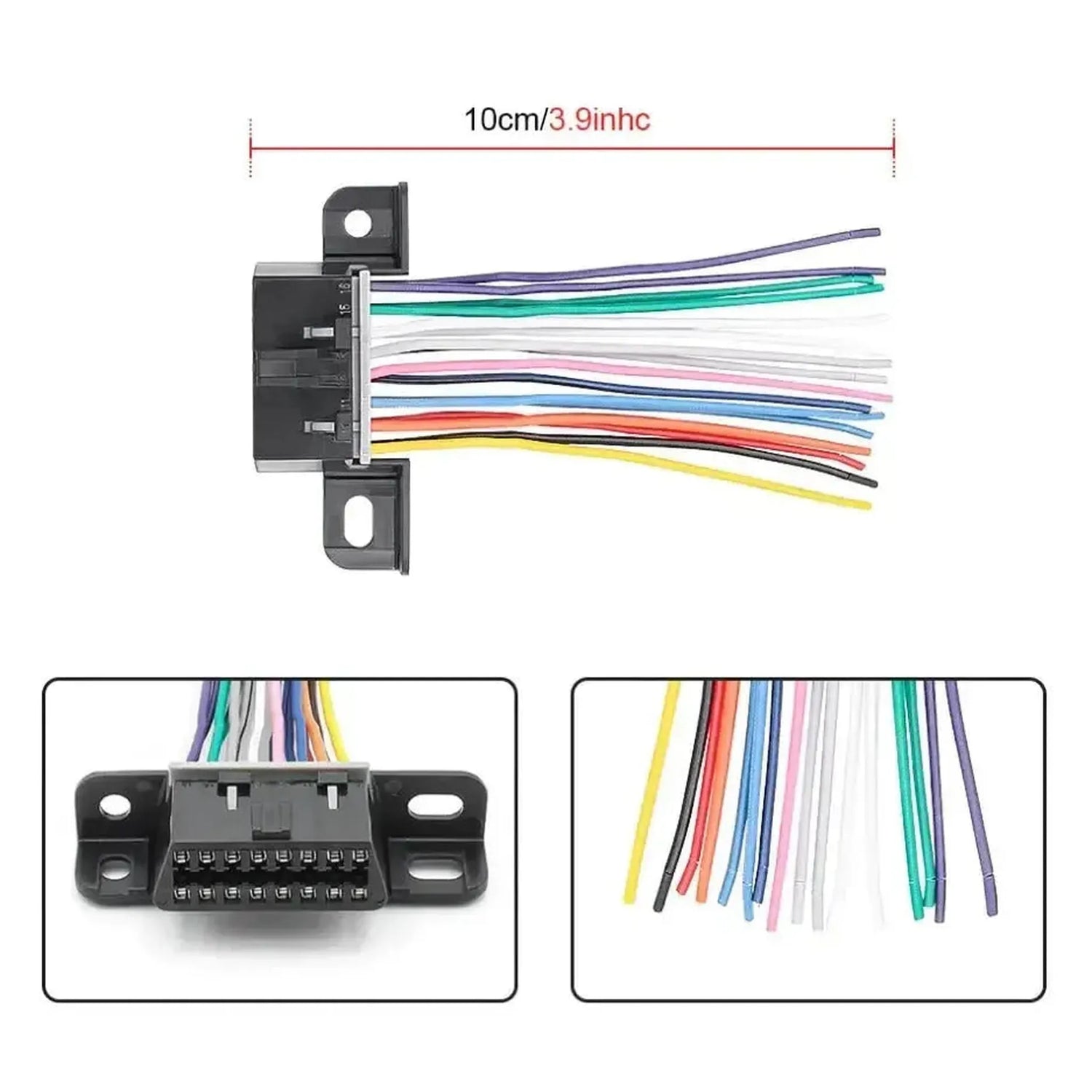

This 16-pin OBD2 port (female) has 16 loose, open end cables of 10 cm. Each wire corresponds to one pin of the connector, so you decide which pins to connect.
Use it to replace a damaged OBD2 port in a car, to install a port in a different location, or to build your own test setup. The part is passive: it contains no electronics.
ADVANTAGES
POINTS TO NOTE
Applications and functionality
This part is intended for workshops, electricians and technicians who want to make or repair an OBD2 connection themselves.
Functions
- Replacing the port: New OBD2 port in the car.
- Relocating the port: Installing it in a better place.
- Test setup: Your own wiring on the workbench.
How to use it
- Determining pins: Use a multimeter to determine which wire belongs to which pin.
- Checking the diagram: Look up the pin assignment in the diagram.
- Connecting: Solder or crimp the required wires.
- Insulating: Insulate all unused wires.
- Testing: Check the operation before putting it into use.
Special features and capabilities
What makes this part practical:
- All 16 pins available: Also for manufacturer-specific pins.
- Freely wireable: Only connect the pins you need.

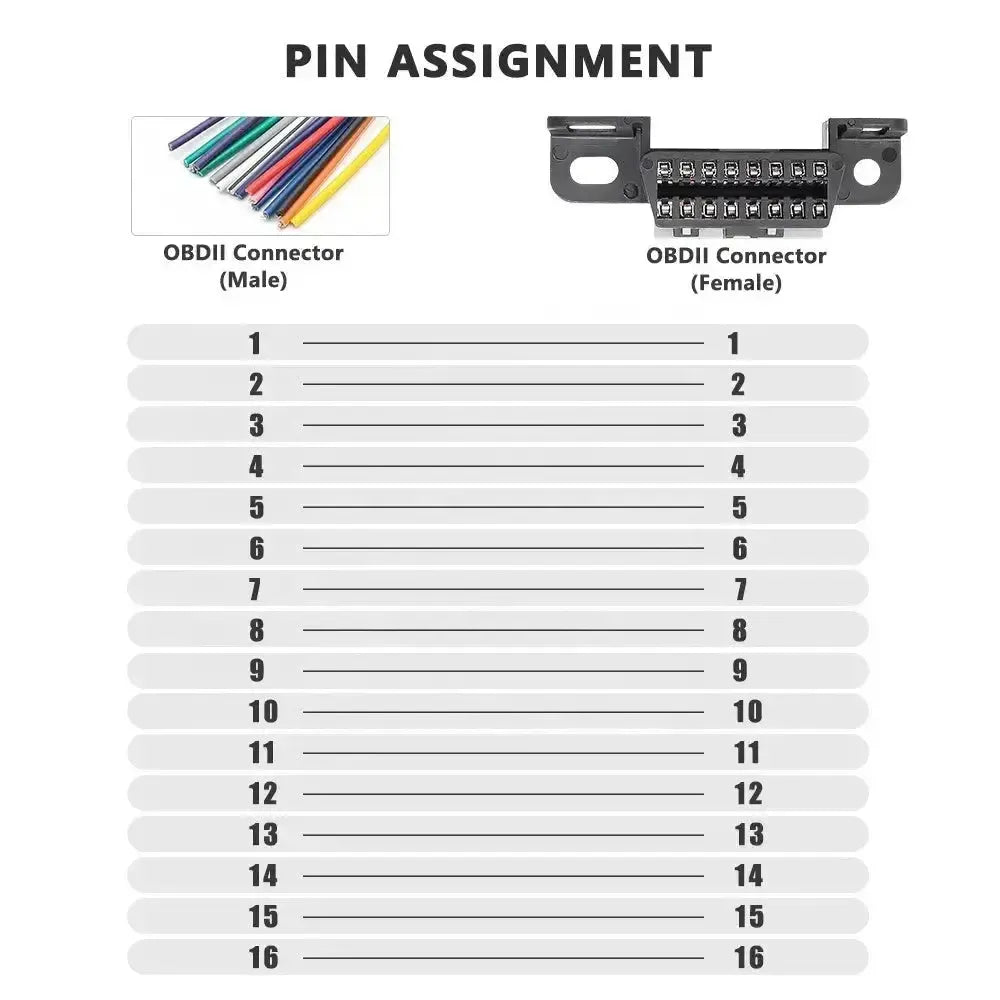

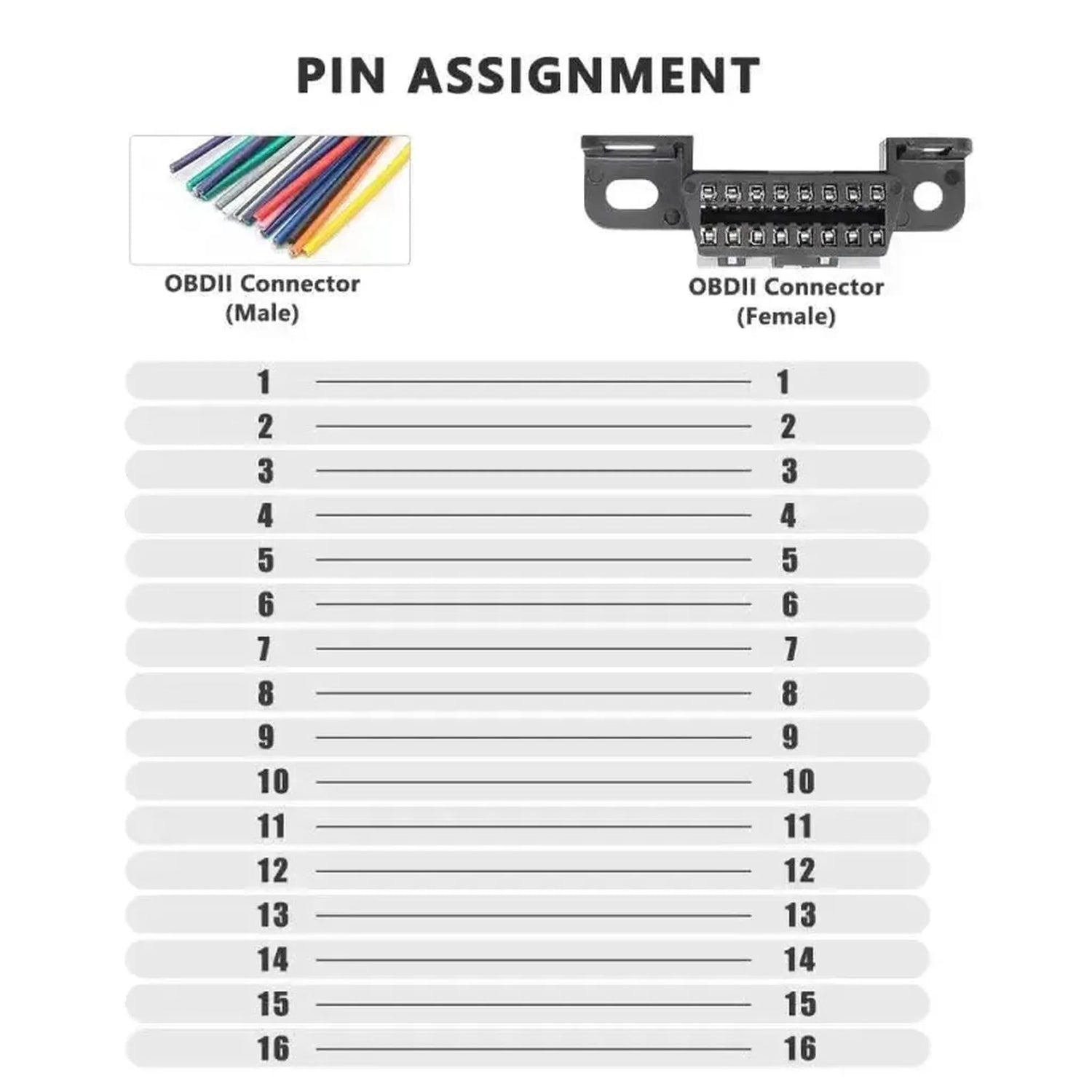

Pin assignment and compatibility
The part uses the standard 16-pin OBD2 connector (J1962):
- Pin 16: Battery voltage (+12 V).
- Pins 4 and 5: Ground.
- Pins 6 and 14: CAN-High and CAN-Low.
- Pin 7: K-Line.
Which pins are used in a vehicle or device varies by manufacturer. Always check the diagram.
Package contents
- 1x 16-pin OBD2 port (female) with 16 open end cables (10 cm)
Technical specifications
General
- What the component is used for, such as replacing a damaged OBD port or building your own test setup.Application
- Repair
- Custom installation
- Custom wiring
- Building prototypes
- Test setup
Connections
- Whether the 16-pin OBD2 end is a socket (female) or a plug (male). This determines what you connect it to.OBD2 connector type
- Female
- What is at the other end of the cable, for example loose wires that you connect to the wiring yourself.Connector on other end
- 16 open-ended wires
Cable and mounting
- Whether the connector has brackets with screw holes. These allow you to fix it securely in the dashboard or a housing.Mounting brackets
- Yes
- Wire length
- 10 cm
Other specifications
- Brand
- Universal
- Model
- OBD2 port with 16 open end cables
- Type
- OBD2 cable component
- Connector
- 16-pin OBD2 (J1962), female
