Jaltest  |  SKU: 74502001

Jaltest (74502001) | Marine (Complete) | Software Activation

€1.296,95 incl.
€1.071,86 excl.

License Duration

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

The Jaltest Marine Complete (74502001) is the software activation of Jaltest diagnostics for inboard engines, outboard engines, jet skis and stationary engines. You purchase the module once; AsTools locks it to the serial number of your Jaltest Link, after which it appears in the start menu of Jaltest Diagnostics.

The software runs on a Windows PC and reads the control units via the Jaltest Link; without that interface it will not start. In addition to fault codes and measured values, you get actuations, calibrations and expert mode. For new software versions, add the update licence (74602001).

ADVANTAGES

✔A one-off purchase: The module remains yours and does not expire.
✔Coverage of inboard engines, outboard engines, jet skis and stationary engines. You work with one licence across the entire vessel, from the main engine to the auxiliary engine.
✔In addition to fault codes and measured values, also actuations, calibrations and expert mode, in which you select an ECU yourself.
✔For use on up to five PCs under the same licence.

POINTS TO NOTE

✕The first year is not included. If you want the module with the first year included, choose the software licence (74502013).
✕For new software versions you need the update licence (74602001); if you do not renew, the module will be blocked.
✕The Jaltest Link is mandatory. Without that interface, the software will not start on the PC.
✕Provide the serial number of your Jaltest Link in the comments field; without that number AsTools cannot activate the module.

Applications and functions

This activation unlocks the Marine Complete module in Jaltest Diagnostics. What you do with it depends on the engine and the connection you use. If you do not have the matching adapter cable, connect using the multi-pin set from your Jaltest case.

What the licence includes

  • Module: Marine Complete, one-off purchase.
  • Coverage: Inboard and outboard, jet ski, stationary.
  • Installations: Up to five PCs.
  • Updates: Three per year, with update licence.
  • Delivery: Digital, linked to your serial number.

What you can do

  • Fault codes: Read and clear, with descriptions.
  • Live data: Engine speed, pressure and temperature.
  • Actuations: Targeted component testing.
  • Calibrations: Settings per system.
  • Symptom search: Search paths based on the complaint.
  • Technical info: Procedures and manual diagnostics.
  • Expert mode: Select an ECU yourself.

How to use it

  1. Ordering: Add the module to your basket.
  2. Providing the serial number: State the serial number of your Jaltest Link in the comments field when ordering; this is required.
  3. We activate: We link the module to that serial number, usually within one working day of your order.
  4. Confirmation by email: You will hear from us once the module is linked to your serial number.
  5. Software update: Start Jaltest Diagnostics and retrieve the module; after that it appears in the start menu.

Compatible vehicles and applications

What counts is the coverage of Jaltest Marine, not the type of vessel. Marine Complete works on inboard engines, outboard engines, jet skis and stationary engines. Which systems are available per engine differs by model and year of manufacture.

Inboard engines:

  • European (13): FNM, Iveco-FPT, MAN, MTU, Rotax, Scania, Steyr, Vetus, VM Motori, Volkswagen, Volvo Penta, Volvo Penta Gasoline, Weber.
  • Asian (4): Hyundai Seasall, Toyota Marine, Yamaha, Yanmar.
  • American (21): Caterpillar, Crusader, Cummins, Cummins Mercruiser Diesel, Detroit Diesel, Ilmor, Indmar, Indmar Diesel, John Deere, Kodiak Marine, Malibu, Marine Power, Mercury Diesel, Mercury Mercruiser, Mercury Racing, OMC, OMC Diesel, Panther Airboats, PCM, Scarab, Sea-Doo (BRP).
  • Other (1): OBD-M (brand-independent).

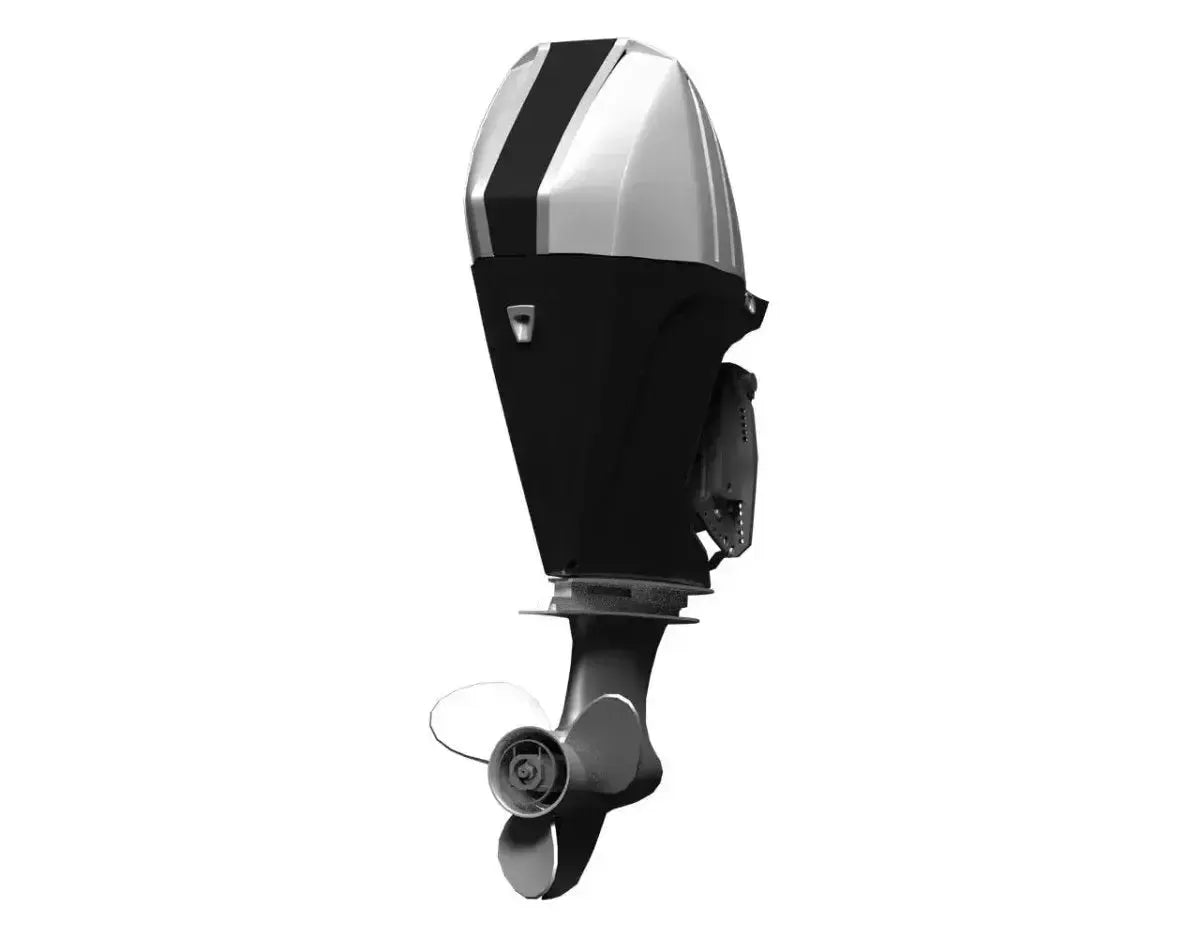

Outboard engines:

  • European (1): Selva.
  • Asian (5): Honda, Nissan, Suzuki, Tohatsu, Yamaha.
  • American (7): Evinrude, Johnson, Mariner, Mercury, Mercury Racing, Seven Marine, Vanguard Power.
  • Chinese (2): Hidea, Parsun.

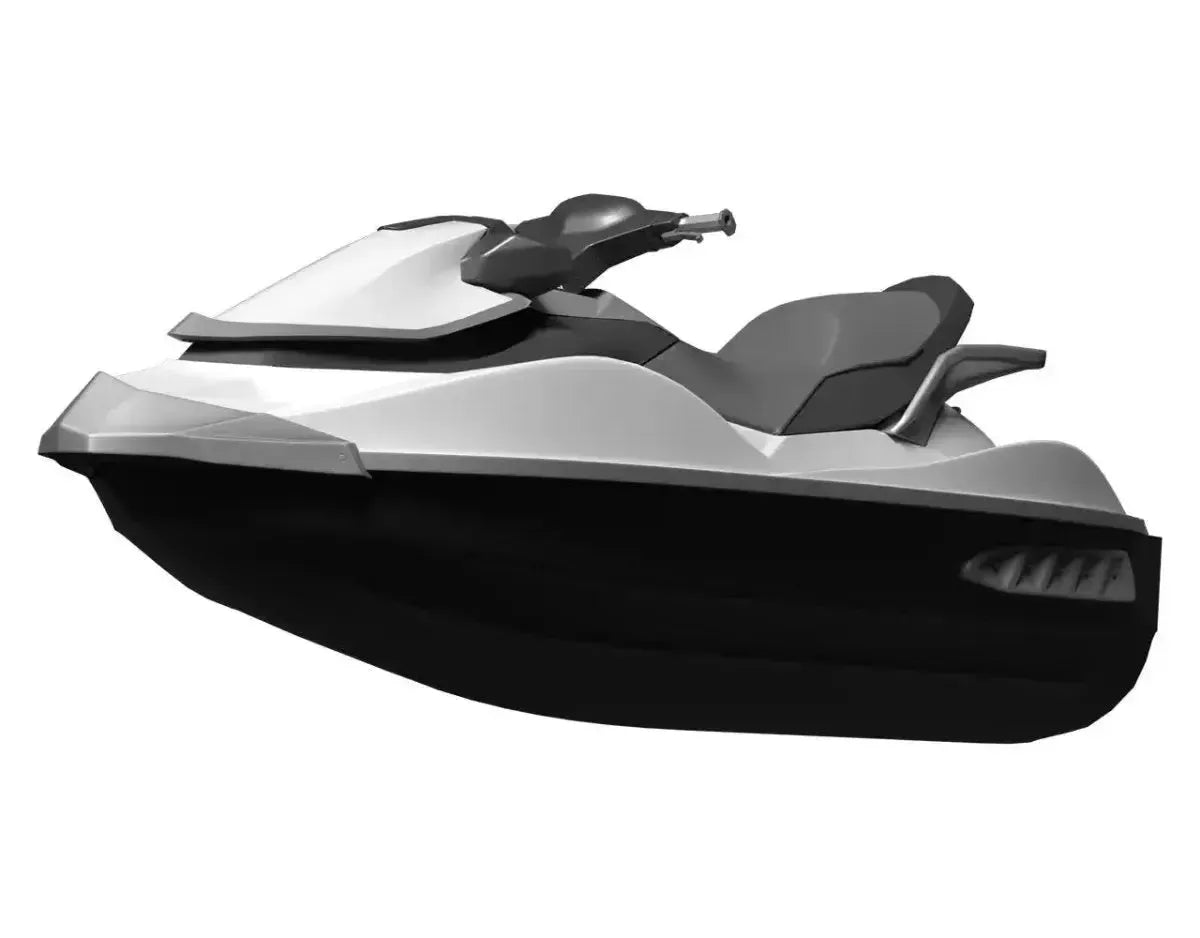

Jet skis and personal watercraft:

  • European (1): HSR-Benelli.
  • Asian (3): Honda, Kawasaki, Yamaha.
  • American (1): Sea-Doo (BRP).

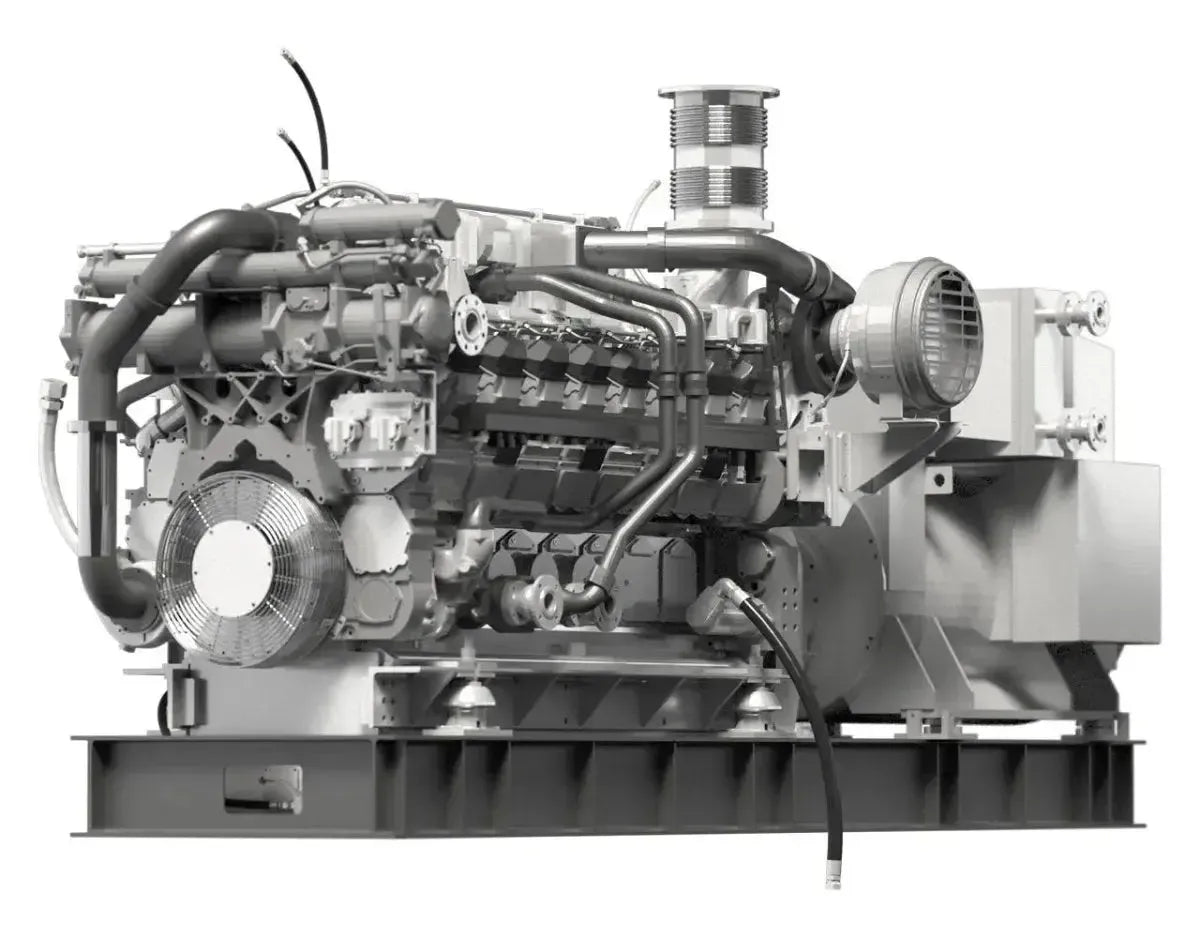

Stationary engines, including:

  • European (3): MAN, MTU, Volvo Penta.
  • Asian (1): Yanmar.
  • American (4): Caterpillar, Cummins, John Deere, Kohler.

The versions

Marine Complete comes in four versions with the same coverage. The difference lies in what you buy, not in what you can do with it.

  • Software activation (74502001): This product, the one-off purchase.
  • Software licence (74502013): The module with the first year included.
  • Update licence (74602001): Twelve-month extension.
  • Software upgrade (74502006): Adds Marine to Jaltest software from another segment.

Licence and renewal

  • Software activation: One-off purchase; the module remains yours.
  • Update licence: Twelve-month extension: 74602001.
  • Not renewed: The module is blocked.
  • Installations: Up to five PCs per licence.
  • Registration: Every half year and after a new software version.

Optional adapter cables

If you do not have them, connect using the multi-pin set from your Jaltest case.

  • Vessels: Marine cable set for vessels (70002008).
  • Inboard engines: Marine cable set for inboard engines (70002009).
  • Outboard engines: Marine cable set for outboard engines (70002010).
  • Jet skis and personal watercraft: Personal watercraft cable set (29985).
  • Stationary engines: Marine cable set for stationary engines (70002006).
💡
Good to know: If your licence expires, the module will be blocked until you purchase the update licence (74602001). If you renew within fifteen days after the expiry date, the new period continues from that expiry date; after that, it starts on the day of renewal.

Scope of delivery

  • 1x Jaltest (74502001) | Marine (Complete) | Software activation

Technical specifications

Specification Description
Brand Jaltest (Cojali)
Reference number 74502001
Type Software activation, one-time purchase
Validity The purchase does not expire; new software versions require an active update licence
Required to use Jaltest Link
Module Marine Complete
Coverage inboard engines, outboard engines, jet skis and stationary engines
Software versions Jaltest releases three updates per year
Adapter cables Optional, available separately
Activation By AsTools, on the serial number of the Jaltest Link, within one working day
Serial number Mandatory at the time of ordering
Renewal Update licence (74602001)
If not renewed The module will be blocked
Number of installations Maximum of five PCs per licence
Registration Every six months and after a new software version
Delivery Digital, no physical delivery
