Discover similar products: Diagnostic Tools, Topdon
Free 1 year license with purchase
Topdon  |  SKU: TSMOTO

Topdon TopScan Moto | Diagnostic Tool | Motorcycle

€119,95 incl.
€99,13 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

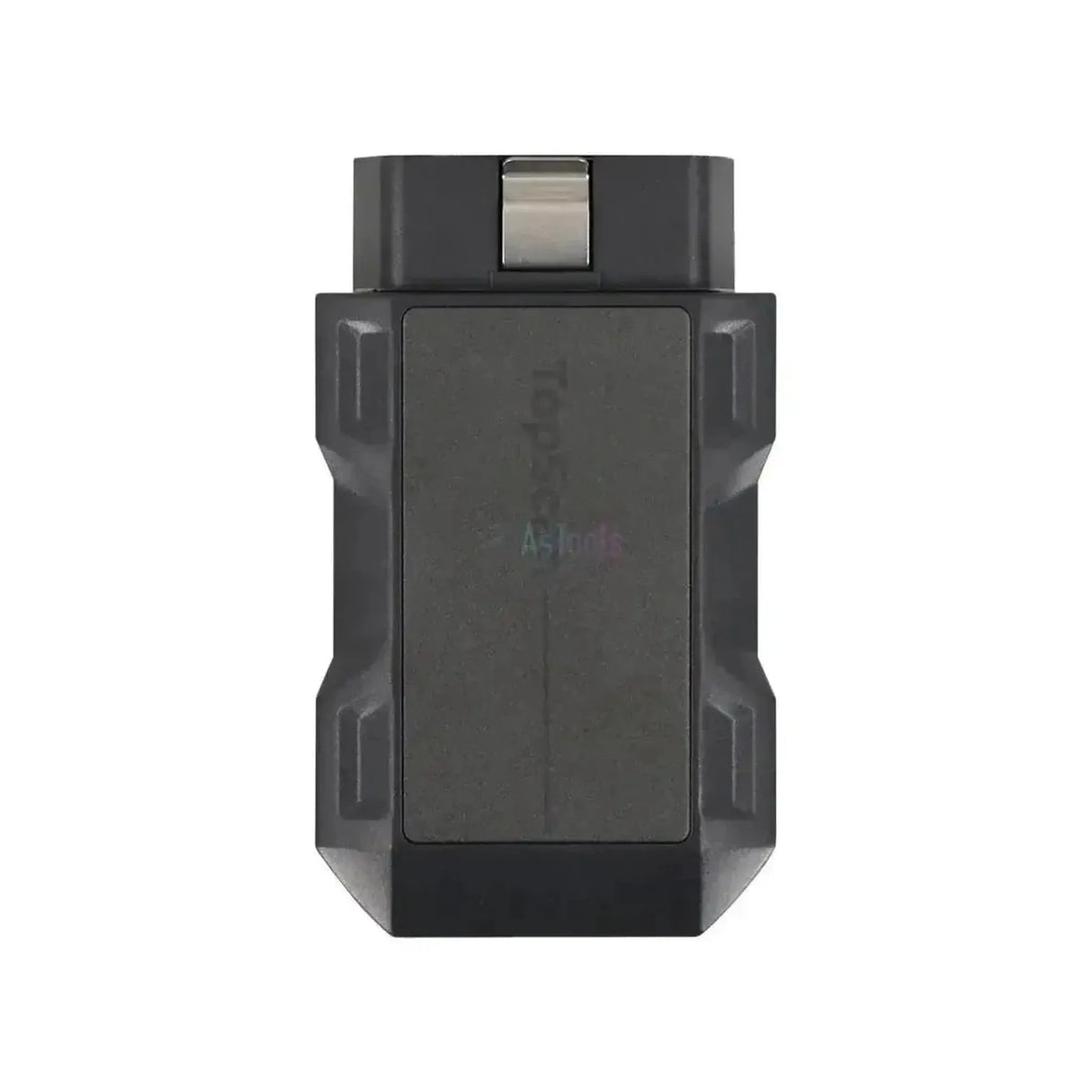

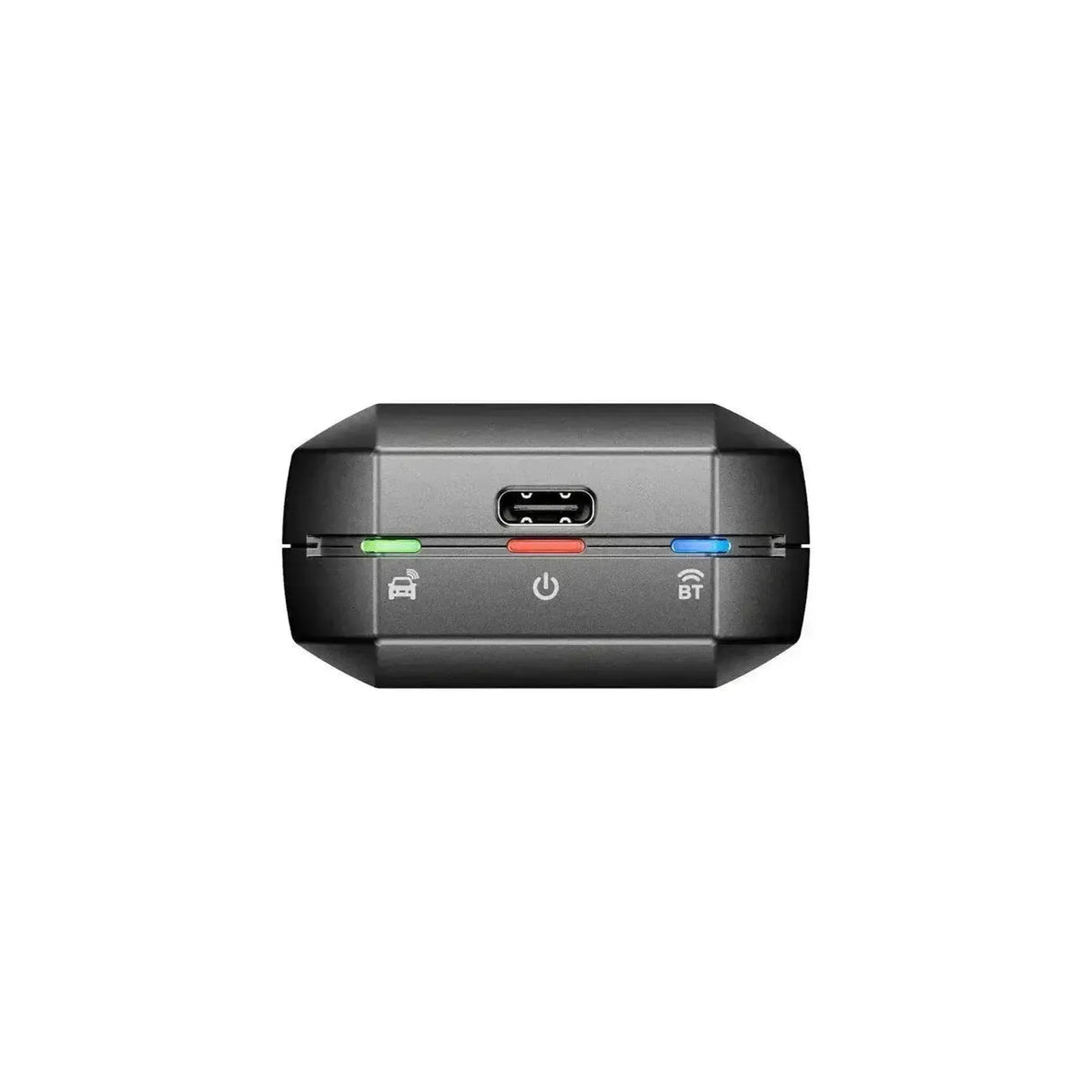

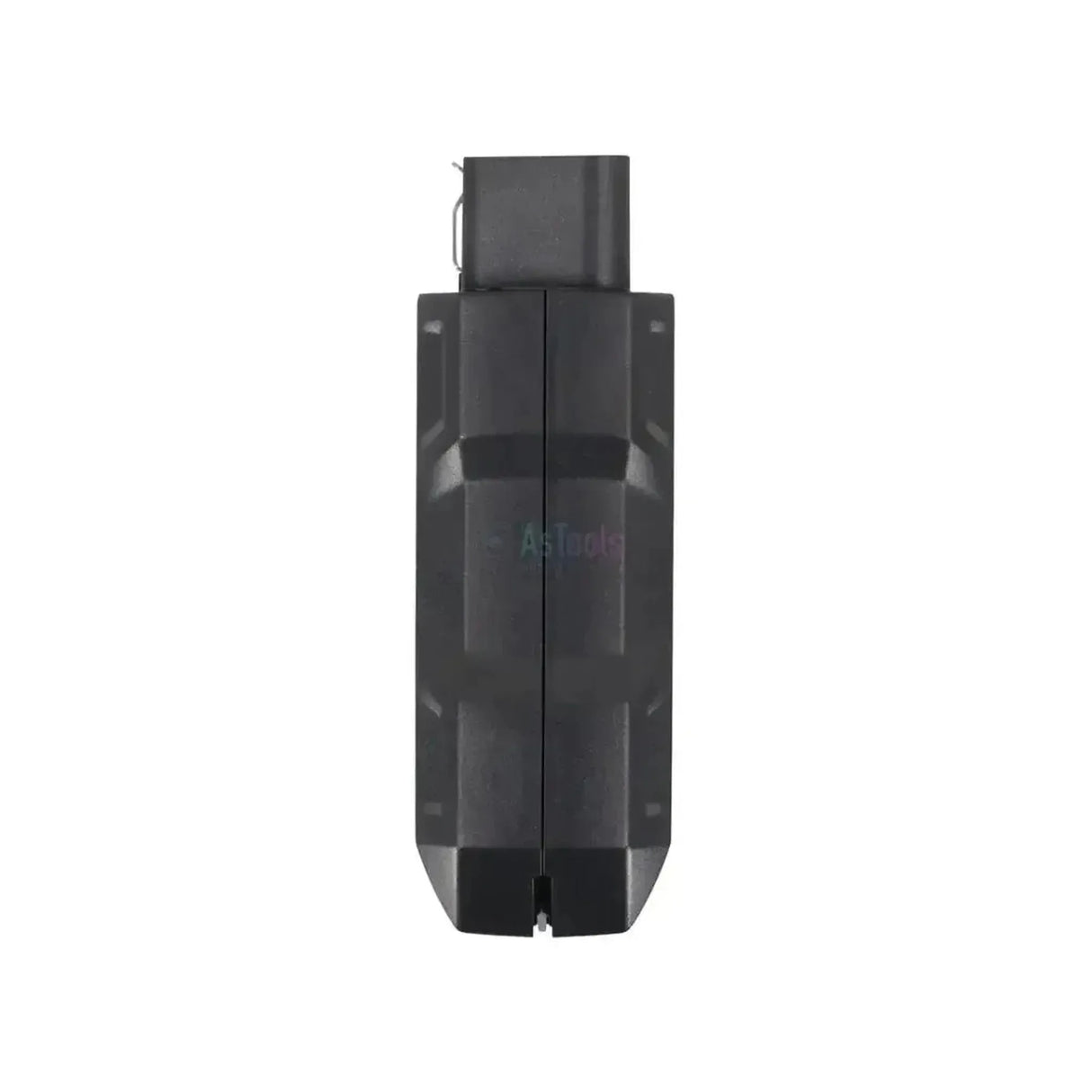

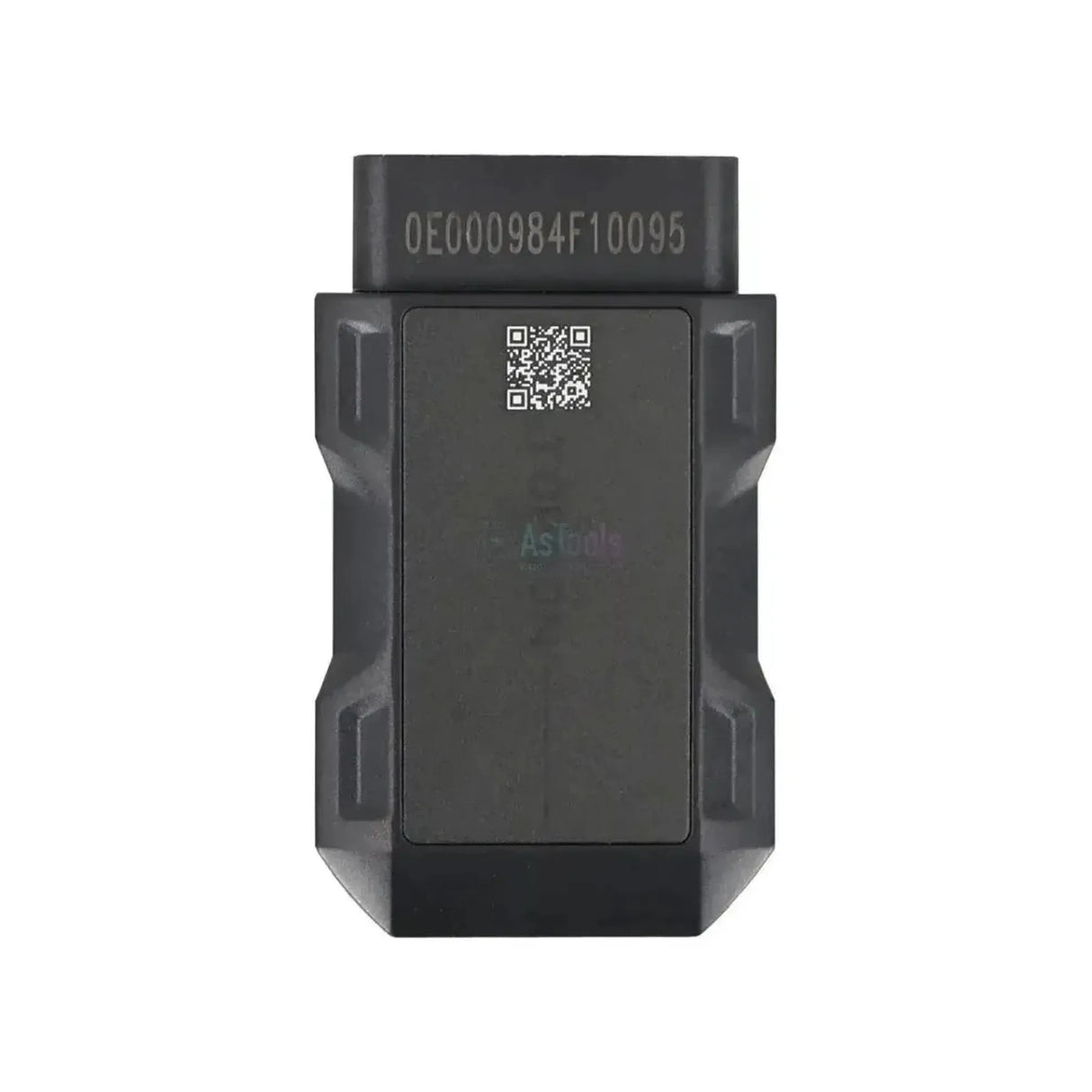

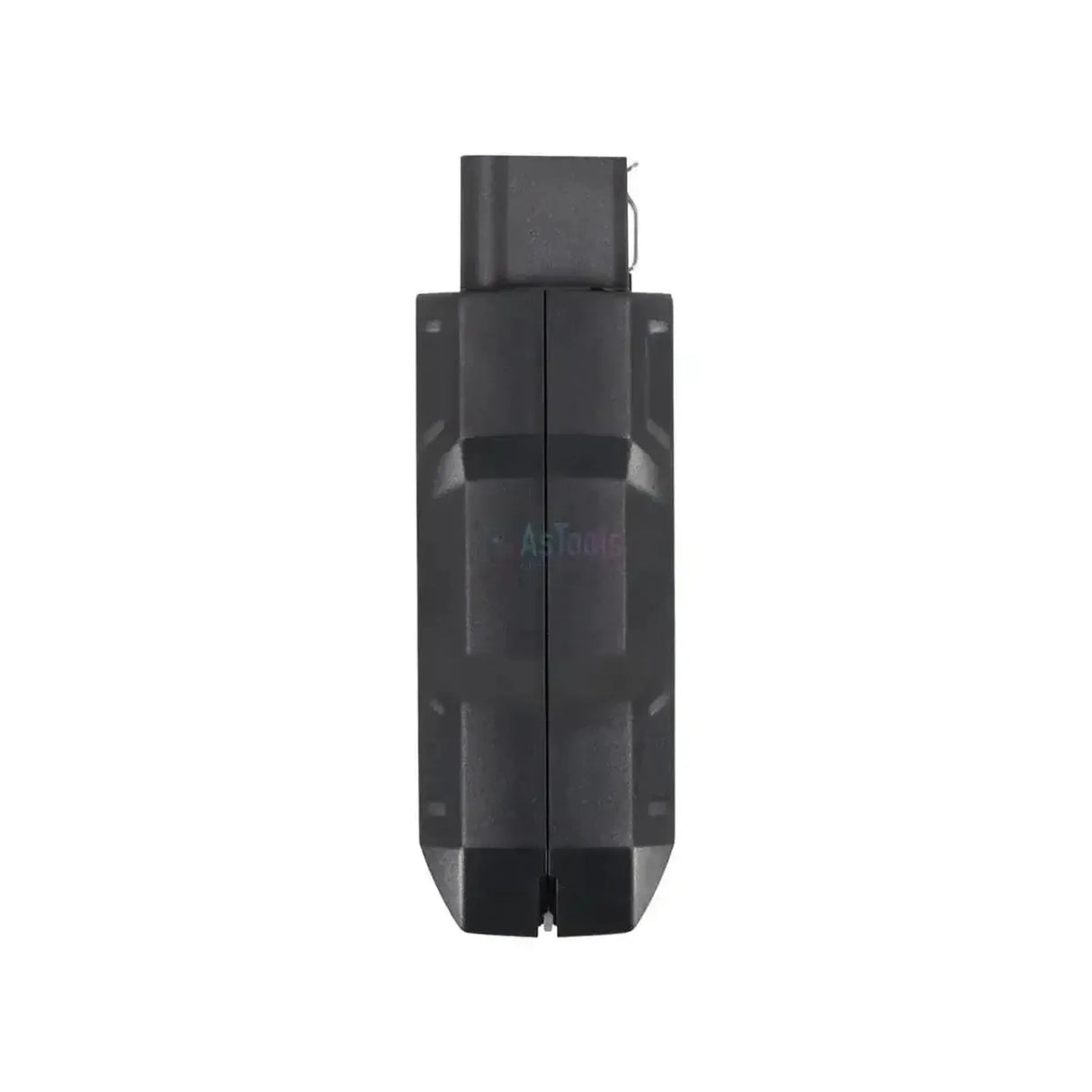

DeTopdon TopScan Moto is a diagnostic scanner in the form of a VCI dongle, designed for performing diagnostics and maintenance on motorcycles. The VCI connects via Bluetooth 5.0 connection with an iOS or Android smartphone, on which the accompanying app provides the interface for all functions. The system supports full system diagnostics, reading and clearing fault codes, viewing live data and more than 13 service functions. The licence includes 1 year free updates.

Thisdiagnostic scanner offers additional features such as actuator testing to control and monitor components directly. The software also provides access to Technical Service Bulletins (TSB), including technical specifications and manufacturer repair instructions. Users can generate, save and share detailed diagnostic reports following each session. The compact form factor of the VCI makes it a portable solution for diagnostic work.

KEY FEATURES

✔Full system diagnostics across 20 systemsBeyond engine management, this device also accesses ABS, starter interrupt, instrument cluster and smart key systems. Diagnostic tools at this price point typically remain limited to engine functions alone.
✔Activation without disassemblyYou can hear whether an injector, fan or valve is actually switching without first having to remove a tank or body panel.
✔No separate device to manageThe app runs on your own phone or tablet. No additional device to charge, misplace or drop from the workbench.
✔84.1 x 50.4 x 27.2 mm and 78 gramsThe dongle fits in a jacket pocket and remains in the diagnostic port during operation.

KEY FEATURES

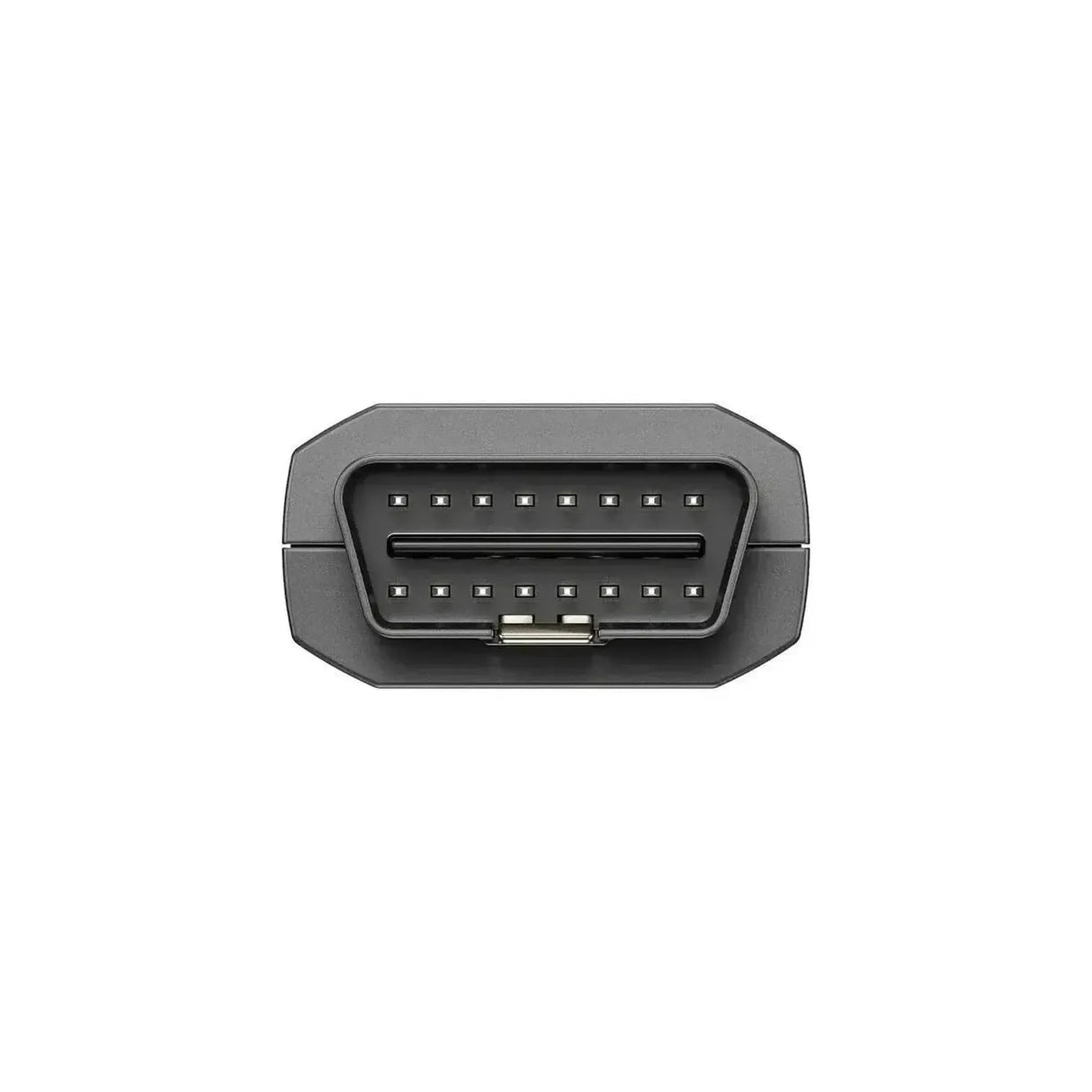

✕Adapter cables are not included: The dongle features a 16-pin OBD2 connector, but most motorcycles don't have this socket. BMW uses 10 pins, Harley-Davidson 4 and 6 pins, and Ducati employs its own connector. Factor in the appropriate cable kit when purchasing.
✕The brand list is short: Beyond BMW, Ducati, Harley-Davidson, Honda, Kawasaki, Suzuki and Yamaha, this device won't support other manufacturers. If your customer base rides KTM, Aprilia, Triumph or Chinese brands, this is not the right diagnostic tool for you.
✕After the first year, it becomes a subscriptionThe included update period is 1 year, whereas larger diagnostic devices typically offer 2 years. After this period, you can renew annually to continue receiving new models and model years.
✕Not every phone worksTopdon advises that the device is not compatible with certain Samsung A-series models and specific Motorola phones. Please verify compatibility before placing your order.

Diagnostic functions:

The Topdon TopScan Moto performs a comprehensive system diagnostic across all electronic control units present on the motorcycle.

  • Read and clear fault codes:Reads and clears fault codes (DTCs) from all available systems, including engine, ABS and instrument cluster. Fault code definitions are displayed directly.
  • Live data:Displays real-time sensor and component data in various formats, including graphs and text views. This enables you to monitor and analyse system performance effectively.
  • Actuator testing:Sends commands directly to individual components and actuators to test functionality without removing the part. This allows you to activate injectors, fans or valves, for example.
  • ECU information retrieval:Reads control unit details such as software version, part number and other specifications.

Service and maintenance functions:

The Topdon TopScan Moto supports more than 13 service functions for repair and maintenance of motorcyclesThe available functions may vary depending on the make and model.

Motor and drivetrain:

  • Maintenance interval reset:Resets the service light and maintenance interval after completing a service.
  • Throttle body learning:Initialises the throttle actuators, allowing the control unit to relearn throttle positions after replacement or cleaning.
  • Adjust idle speed:Enables adjustment of the engine idle speed for stable operation.
  • CO adjustment:Adjust the carbon dioxide emission value to comply with emission standards or for optimal performance.
  • Air-fuel ratio adjustment (A/F):Adjusts the air-fuel ratio for efficient combustion and engine performance.
  • ECU reset:Restores the engine control unit to standard factory settings, which can be useful after performing repairs.

Braking and safety systems:

  • ABS bleeding:Performs the automatic bleeding procedure for the anti-lock braking system to remove air from the brake system and restore braking performance.
  • Tyre pressure monitoring system reset (TPMS):Resets the TPMS and relearns sensors after sensor or tyre replacement.

Electrical and diagnostic equipment:

  • Key programming (IMMO): Provides functionality for programming new keys and managing the immobiliser. The exact features vary by manufacturer.
  • Reading odometer data: Reads the stored mileage from the control unit to verify the value displayed on the instrument cluster.

Special functions and capabilities:

The TopScan Moto provides access to additional technical information and reporting features.

Cloud and reporting functions:

  • Diagnostic reports: Generates detailed reports of performed diagnostics, which can be saved and shared as PDF files.

Documentation and schematics:

  • DLC Location: Shows the exact location of the diagnostic link connector (DLC) on the motorcycle.
  • DLC Query: Provides information about the specific diagnostic connector and the required cables for the selected vehicle.
  • Technical Service Bulletin (TSB): Gives access to manufacturer-issued technical service bulletins, including information on common issues and repair procedures.

Supported vehicle brands:

The Topdon TopScan Moto is a diagnostic scanner for motorcycles compatible with a range of well-known manufacturers.

  • European: BMW, Ducati
  • Asian: Honda, Kawasaki, Suzuki, Yamaha
  • American: Harley-Davidson

Optional additions and expansions:

The device features a 16-pin OBD2 connector, whilst most motorcycles use manufacturer-specific diagnostic connectors. An adapter cable is therefore required in most cases. Additionally, the software licence can be renewed after the first year.

Hardware modules and accessories:

  • 3-in-1 cable kit: Adapter cable set with BMW 10-pin, Harley-Davidson 4-pin and 6-pin via Y-cable, Ducati 4-pin, a 6-pin OBD cable and a 3-pin cable with 12V battery clamps for motorcycles without power on the diagnostic connector. Includes spare fuse. View the cable kit.

Software modules and licences:

  • Update licence: Extends the software licence by 12 months, registered to the device serial number. View the update licence.

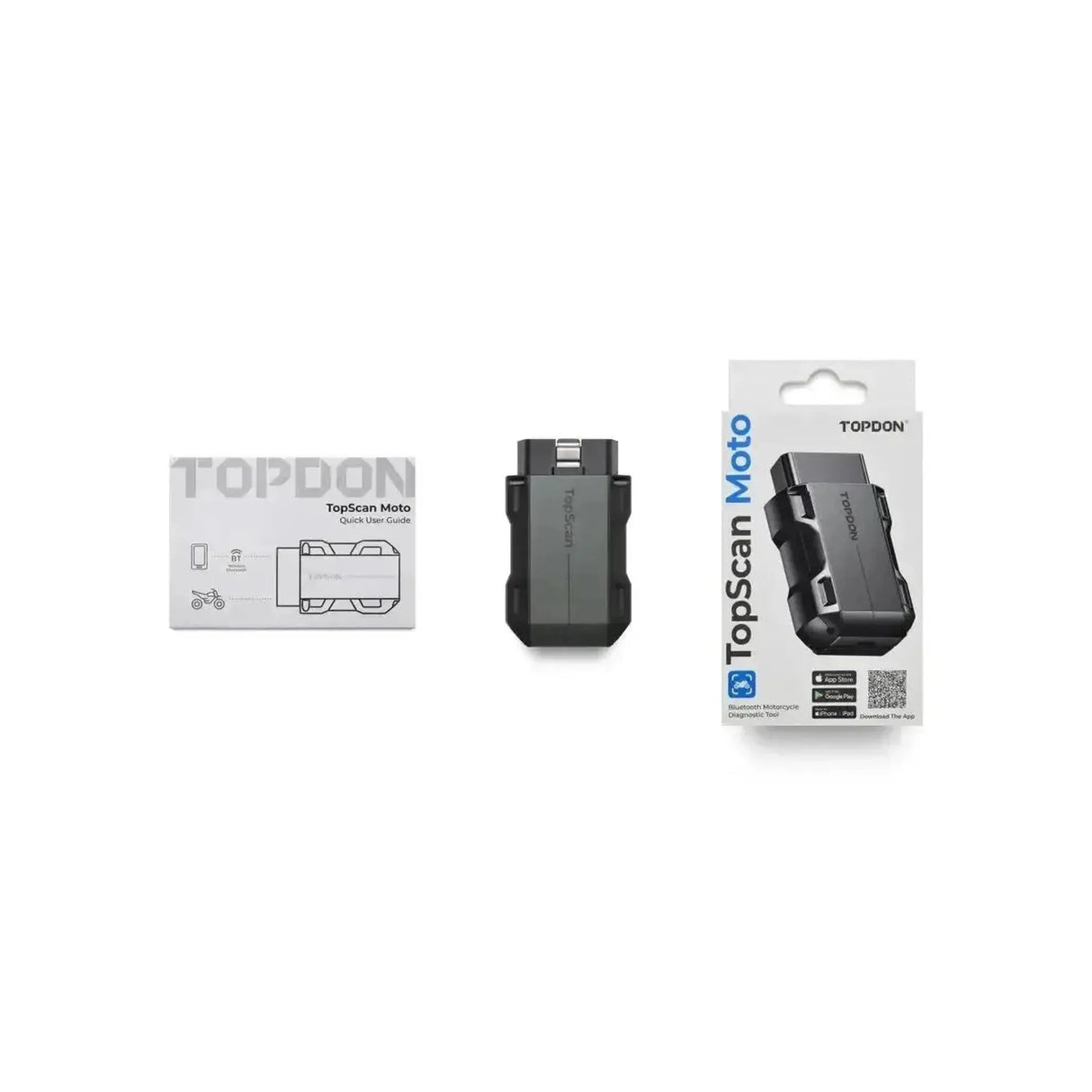

Package contents:

  • 1x Topdon TopScan Moto VCI
  • 1x User Manual

Licence Information:

  • Includes 1 year of updates: A 12-month software update licence is included with purchase.

After the licence period expires, the device will continue to operate using the last installed software version. Access to new software updates and online features requires a new licence.

Technical Specifications:

Specification Description
Product Brand Topdon
Product Model TopScan Moto
Operating System Android 5.0 or higher / iOS 10.0 or higher
Connectivity Bluetooth 5.0
Operating Temperature -10°C to 50°C
Dimensions 84.1 x 50.4 x 27.2 mm
Weight 71 g
