You start in the morning, the dashboard lights flicker briefly, and the engine cranks slowly. A few trips later, the engine light comes on. You connect your scanner and see P0562. Don’t panic: this code almost always points to your Battery or alternator, and with a few simple tests, you’ll quickly know which one is the culprit.
Quick answer: Error code P0562 means the system voltage is too low. The electrical system is receiving insufficient voltage, usually due to a weak Battery or an alternator that isn’t charging enough. You can still drive, but it’s risky: the car may stall or fail to start. Fix it quickly and start by testing your Battery.
What does error code P0562 mean?
Your car operates on an electrical system of about 12 to 14.5 volts. The Battery provides the voltage to start, then the alternator takes over and recharges the Battery. The computer continuously monitors that voltage. If the system voltage drops too far, it sees this as a power supply problem and sets P0562 down.
Severity: orange. Continuing to drive can be risky. At too low a voltage, the car can suddenly stall or fail to start after being turned off. It’s not a reason to panic, but don’t ignore it. Fix it quickly before you get stranded.
Symptoms
Dimming or flickering lights. Headlights and dashboard lights become weaker or flicker, especially at idle.
Battery or charging light and poor starting. The engine cranks slowly and the red Battery icon lights up.
Various electrical malfunctions. Radio, windshield wipers, or screens malfunction and the engine light comes on.
Possible causes (from cheap to expensive)
Loose or oxidized Battery terminal or ground cable (€0 to €30). By far the cheapest cause. A dirty or loose connection causes voltage loss and unreliable contact.
Weak or aged Battery (€80 to €180). A Battery loses capacity after a few years and can no longer hold the voltage.
Poor wiring or voltage drop in the charging circuit (€20 to €150). A damaged cable or bad connection between alternator and battery causes voltage loss.

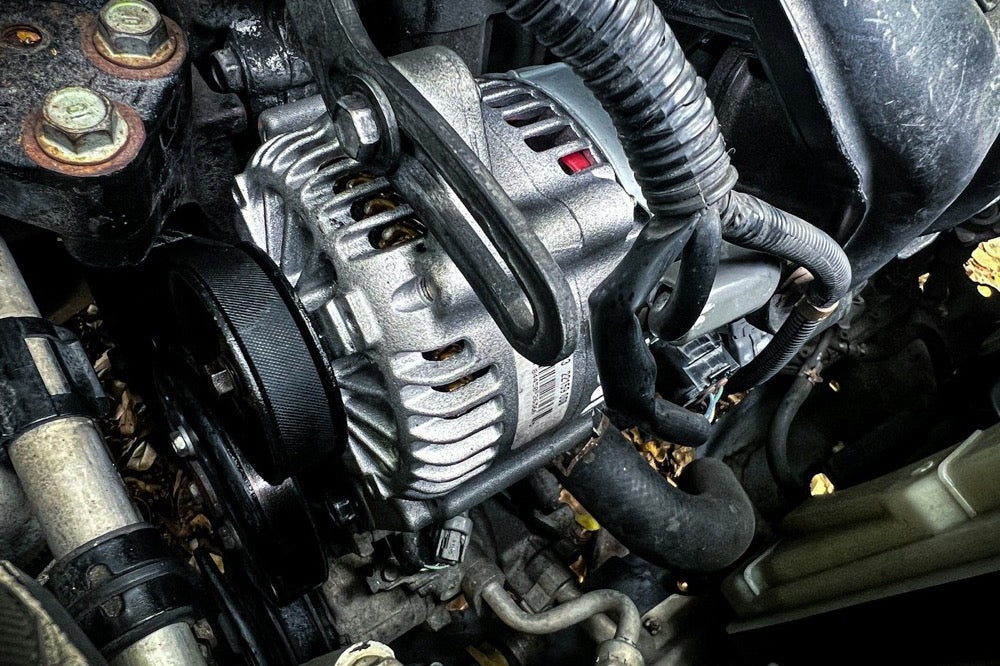

Defective alternator or voltage regulator (€120 to €400). If the alternator doesn’t charge enough, the battery will drain while you drive.
Step-by-step plan: how to find the cause yourself
- Measure the battery voltage at rest. Turn off the engine and measure with a multimeter on the battery terminals. A healthy battery reads around 12.6 V.
- Measure with the engine running. Start the car and measure again. The charging voltage should now be about 13.8 to 14.5 V. Much lower indicates a charging problem.
- Test the battery with a battery tester. A battery tester reads the CCA value and tells you if the battery is still healthy or needs replacement.
- Check the battery terminals and ground cable. Look for corrosion and ensure everything is tight. Clean dirty terminals and tighten them.
- Measure the alternator’s charging voltage. If the voltage remains too low with the engine running, the alternator or voltage regulator isn’t charging properly.
- Replace the weakest link and clear the code. Address the cause you found, clear P0562, and see if the code stays away.
How much does it cost?
DIY: clean and tighten terminals. €0 to €30. The cheapest and often sufficient solution.
DIY: install a new battery. €80 to €180 for parts, easy to do yourself.
Garage: alternator or wiring. €120 to €400, depending on whether it’s the alternator, regulator, or wiring.
Fix it yourself or go to the garage?
Cleaning the battery terminals, tightening the ground cable, and even replacing the battery are all things you can easily do yourself, even without experience. If your measurements point to the alternator, voltage regulator, or a voltage drop in the wiring, then a garage with a load tester is a better choice. The great thing about P0562 is that you start with a free check and only escalate if it’s really necessary.
The right tool for this code
For P0562 you want two things: to read and clear the code, and to see what’s happening in your onboard network. A scanner reads and clears the code; a battery tester separately tells you if the battery is still healthy. Start cheap and only upgrade if the measurements require it.
View the Topdon CarPal →
View the OBDeleven 3 →
View the Launch CRP919X →Related fault codes
P0562 belongs to a family of codes related to system voltage and the charging system. If you encounter one of these, the approach is similar: P0563 (system voltage too high), P0620 (problem with the alternator regulator), and P0625 or P0626 (fault in the alternator field). If you don’t yet know how to read and clear codes, first read reading and clearing fault codes.
Frequently Asked Questions
Can I keep driving with P0562?
It can be, but it’s risky. At too low a voltage, the car can stall or fail to start after being turned off. So fix it quickly.
Is it the battery or the alternator?
Measure the voltage with the engine running. Between 13.8 and 14.5 V the alternator is charging well, and the problem is more likely with the battery or terminals. Much lower points to the alternator.
What voltage is normal?
At rest, the battery should be around 12.6 V. With the engine running, the alternator provides about 13.8 to 14.5 V.
Does P0562 go away on its own?
Only clear the code after fixing the cause. If you clear the code without repairing anything, it will return once the voltage drops again.
In summary
• P0562 = system voltage is too low; the onboard network is receiving insufficient voltage.
• Start by measuring: around 12.6 V at rest, 13.8 to 14.5 V with the engine running.
• Most common causes: loose or corroded terminals, a weak battery, or an alternator that isn’t charging.
• Driving on can be risky; fix it quickly before the car stalls.
