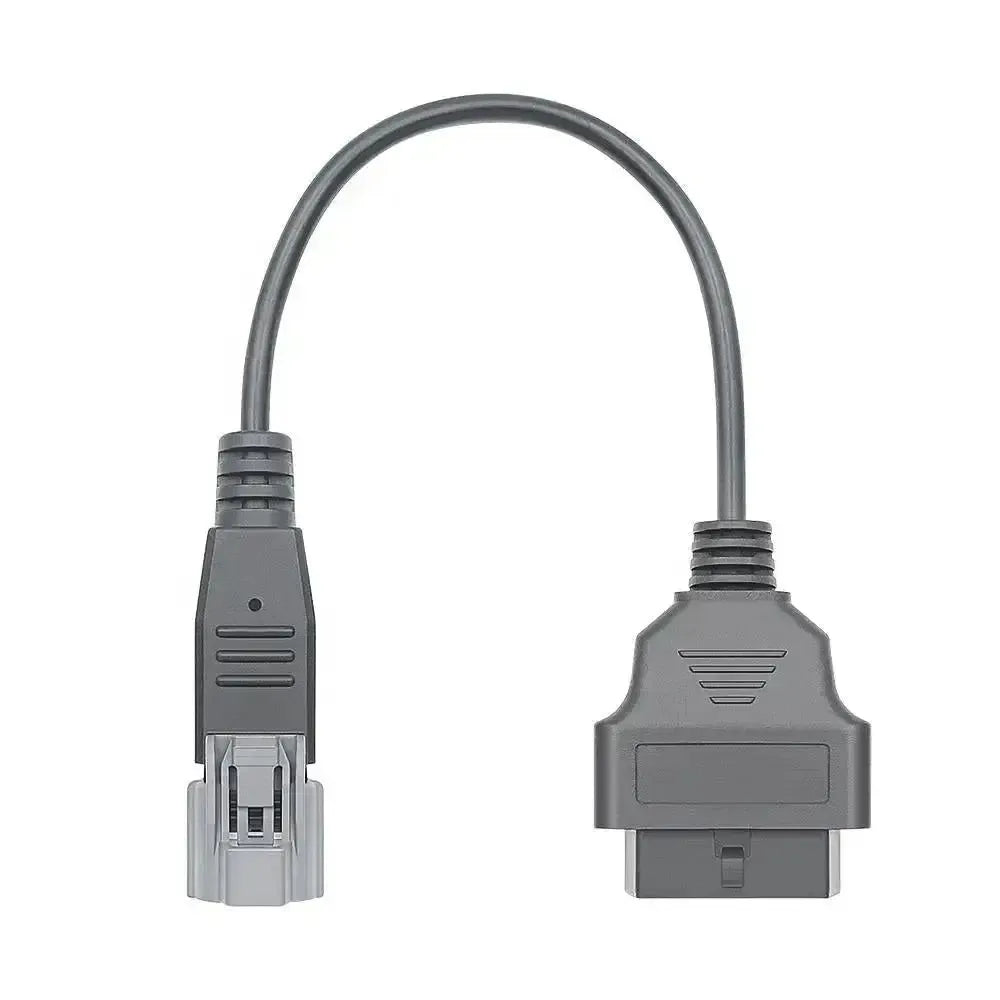

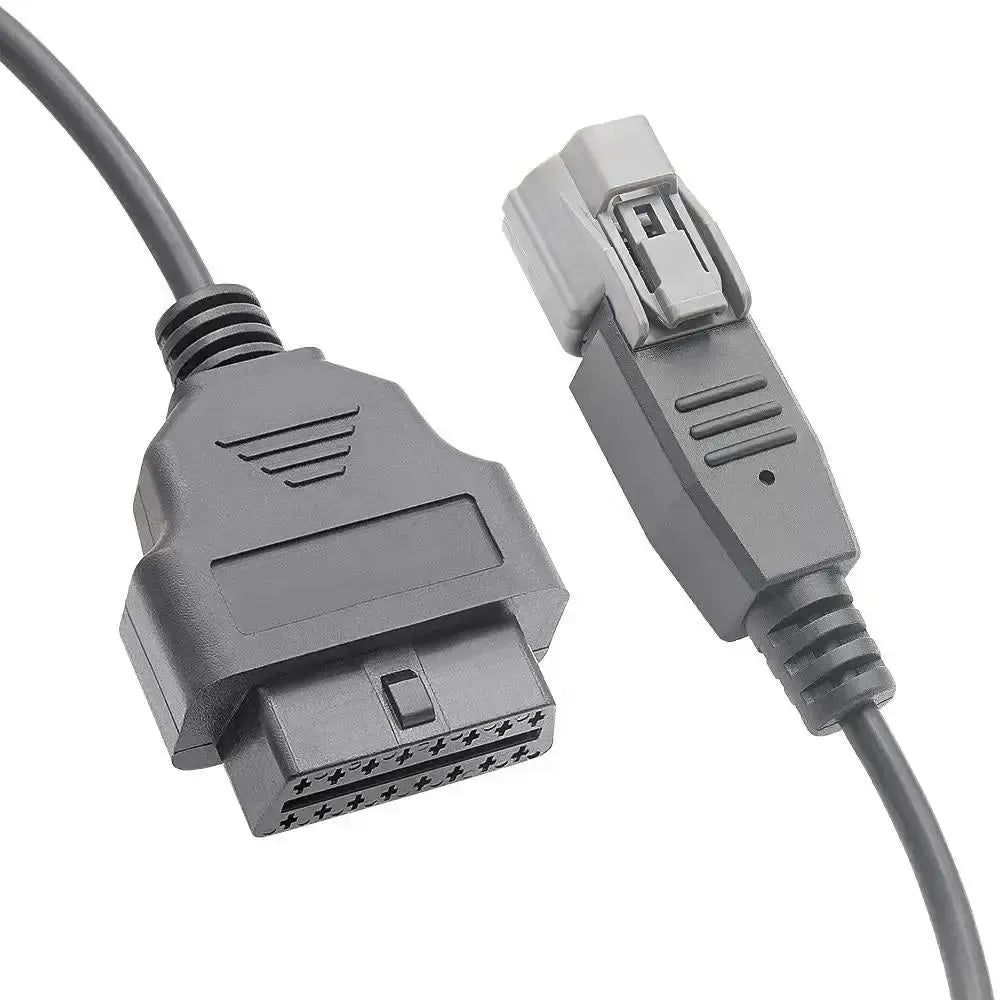

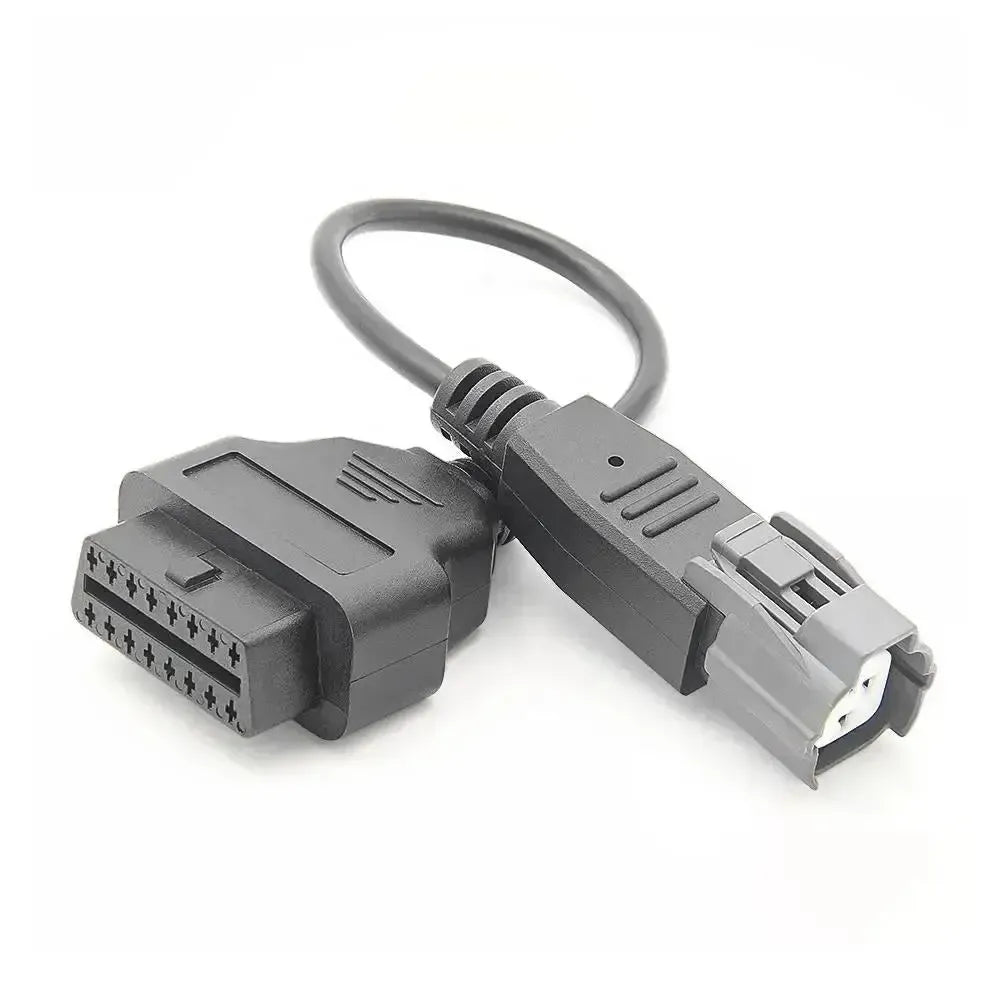

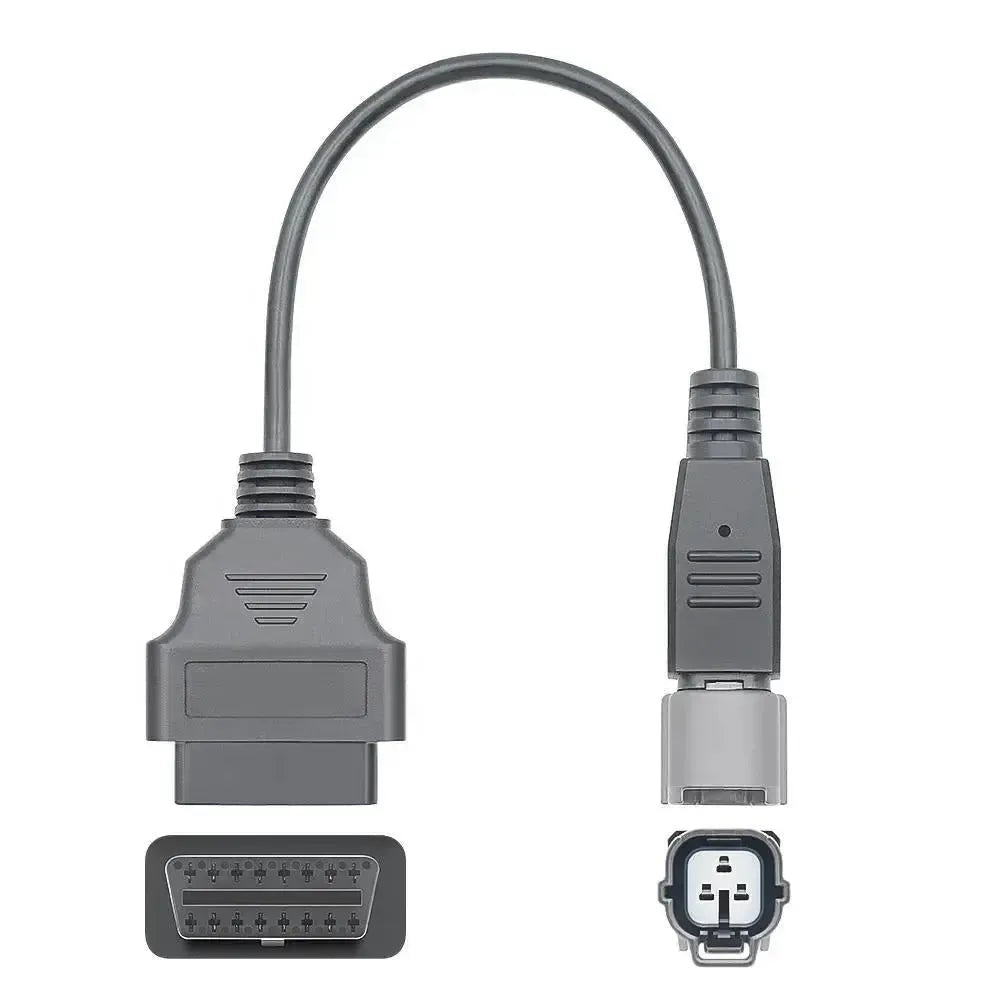

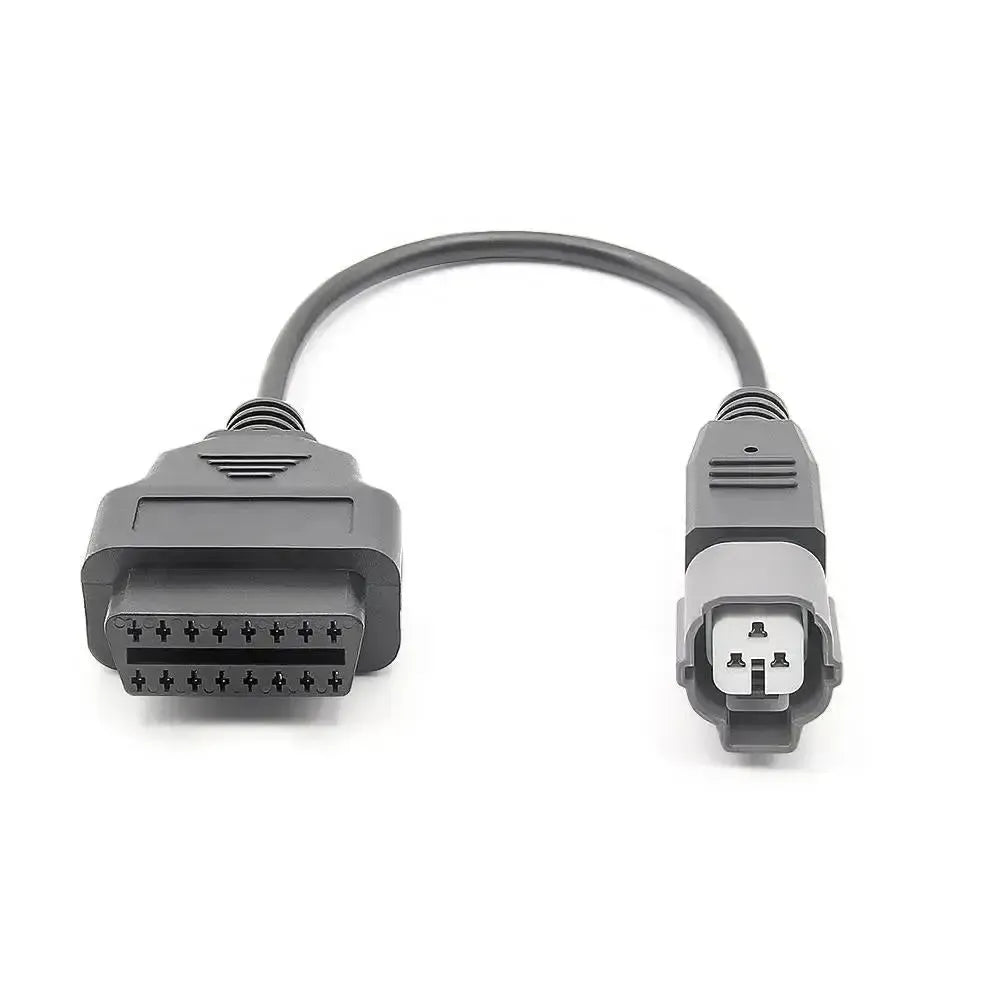

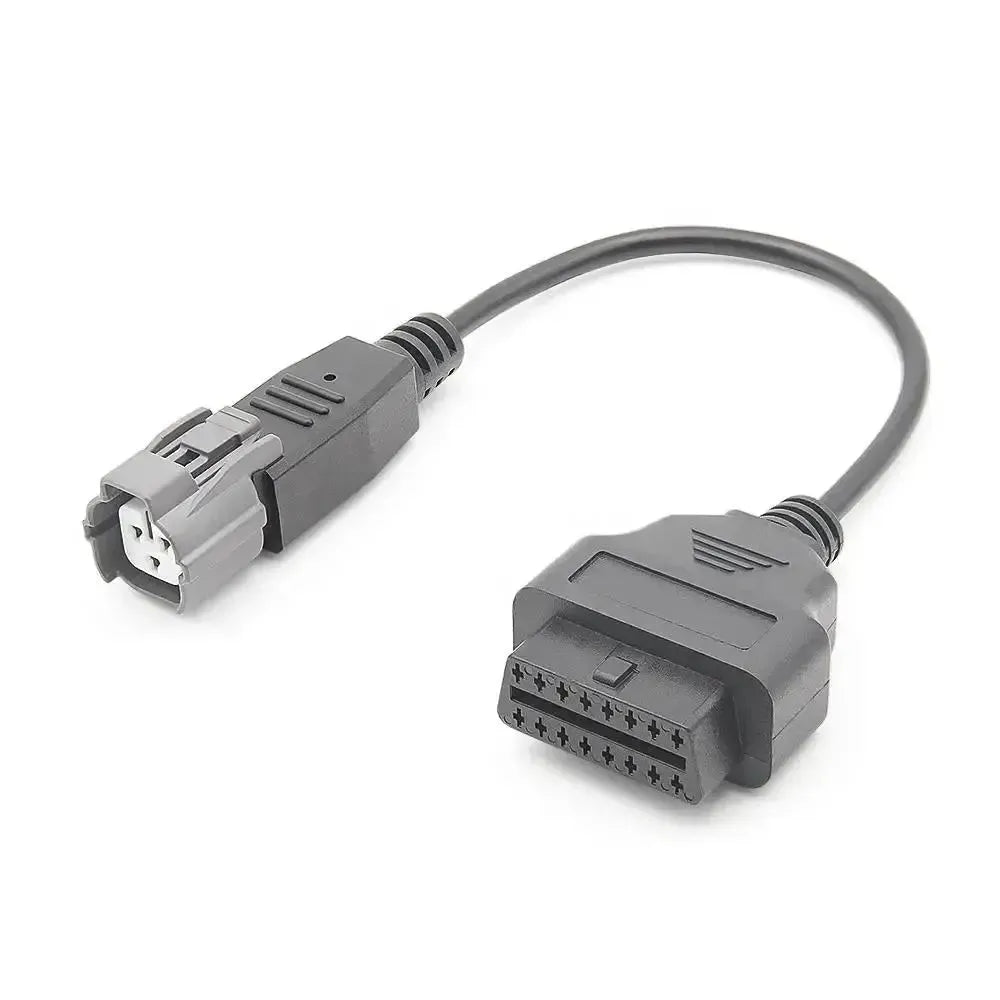

Yamaha 3-pins to 16-pins OBD2 Adapter Cable – Jet Ski
The Yamaha 3-pin to 16-pin OBD2 adapter cable is a specialized diagnostic adapter designed for reading electronic systems on Yamaha WaveRunner personal watercraft. Many four-stroke models from before the introduction of modern CAN-bus protocols are equipped with a specific 3-pin diagnostic connector, which is physically incompatible with the 16-pin plugs of universal OBD2 scanners.
This adapter cable acts as an essential bridge between the Yamaha 3-pin port and a standard 16-pin OBD2 scanner or Bluetooth/Wi-Fi dongle. Both professional mechanics and experienced water sports enthusiasts can use compatible diagnostic equipment, such as scanners that support the Yamaha Diagnostic System (YDS) protocol.
Application and functionality:
This adapter cable makes it possible to read and manage engine faults and maintenance parameters on Yamaha personal watercraft. Key features include:
- Read and clear fault codes: Diagnosis of engine faults and reset after repair
- View live data: RPM, engine hours, temperature, sensor data
- Actuator tests: Test components such as injectors and fuel pumps
- Maintenance support: Suitable for servicing and winter storage
Compatible with the following vehicle makes and models:
This adapter is compatible with a wide range of Yamaha WaveRunner waterscooters with a 3-pin diagnostic connector. Supported models include:
- FX series: FX, FX Cruiser, FX HO (generally up to approx. 2012)
- VX series: VX, VX Deluxe, VX Sport, VX Cruiser
- GP series: GP1300R
- FZS / FZR
Note: Yamaha has used different connectors. Always check the physical diagnostic port before purchase.
Package Contents:
- 1x Yamaha 3-pin to 16-pin OBD2 adapter cable for waterscooters
Technical specifications:
| Specification | Description |
|---|---|
| Connector A | Yamaha 3-pin (waterscooter-specific) male connector |
| Connector B | Standard 16-pin OBD2 (J1962) female connector |
| Cable type | Passive adapter cable |
| Cable length | Approximately 30 cm (depending on manufacturer) |
| Pinout | Connect power, ground, and the K-Line data line to the correct positions on the OBD2 connector |
