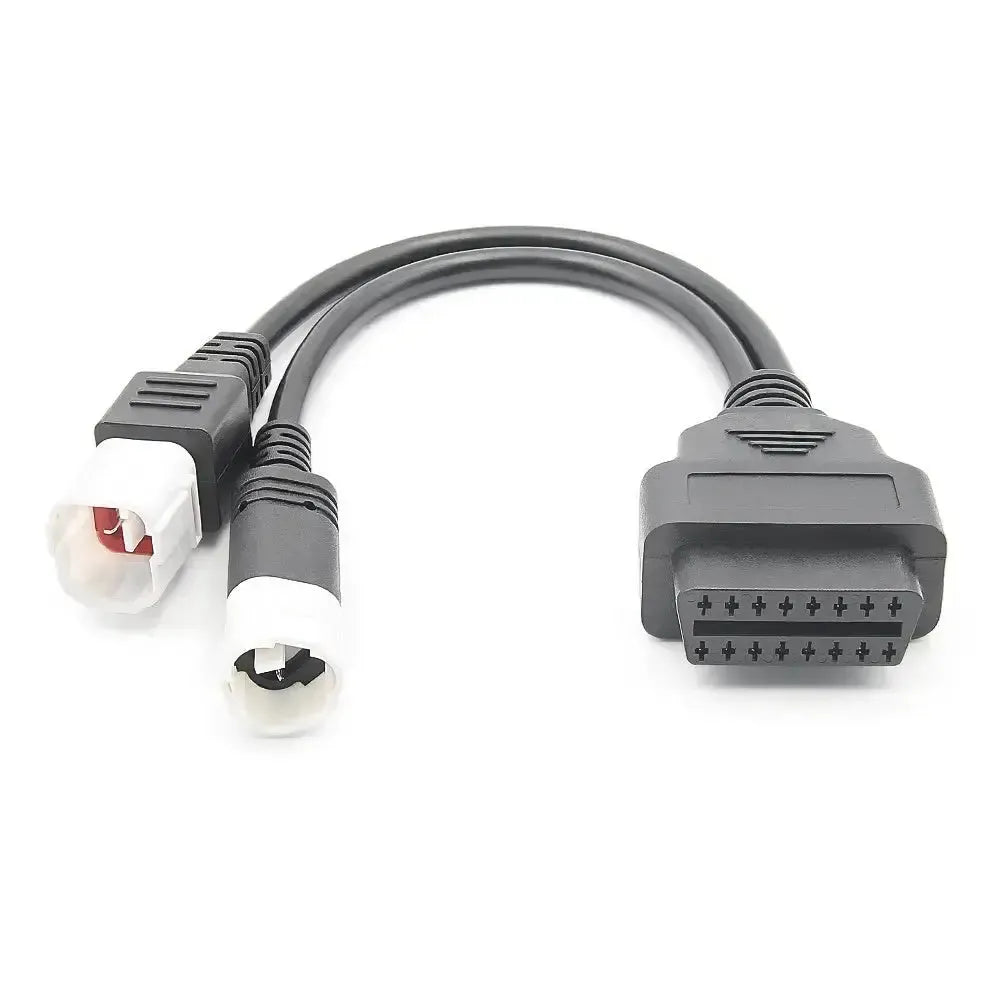

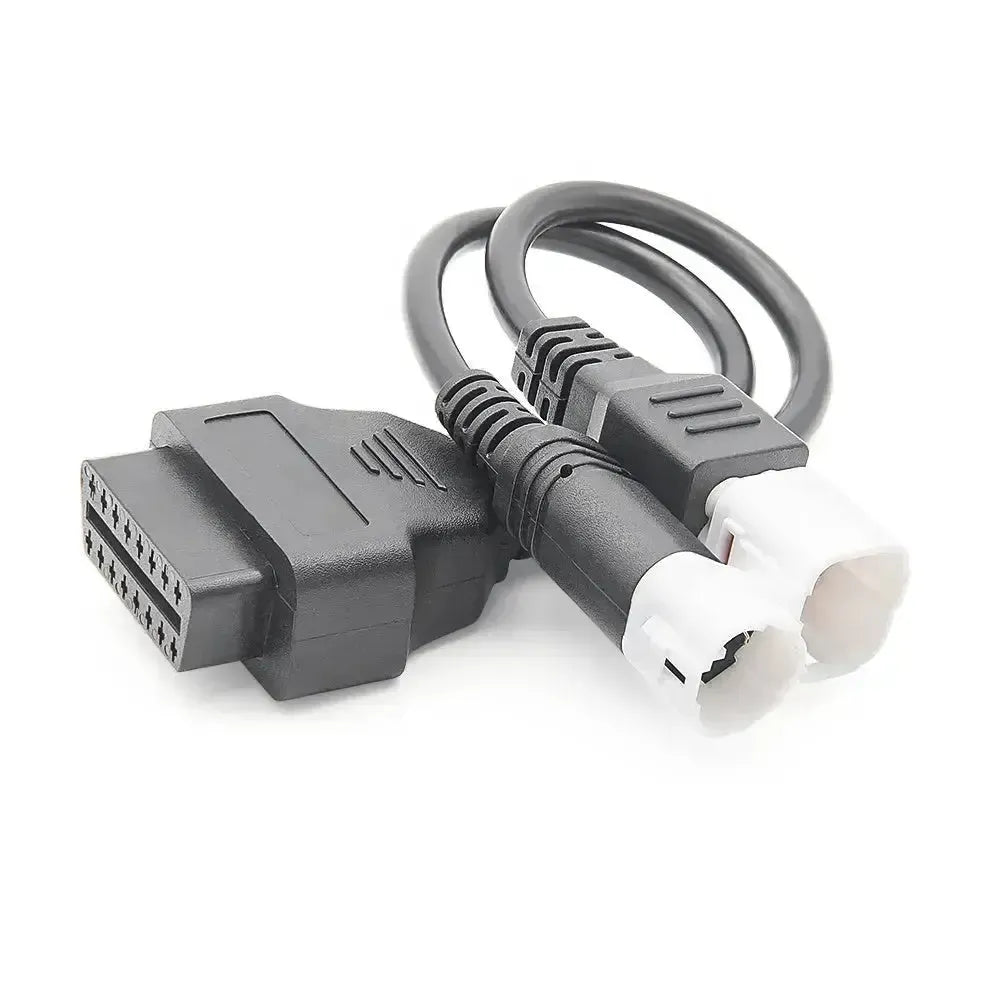

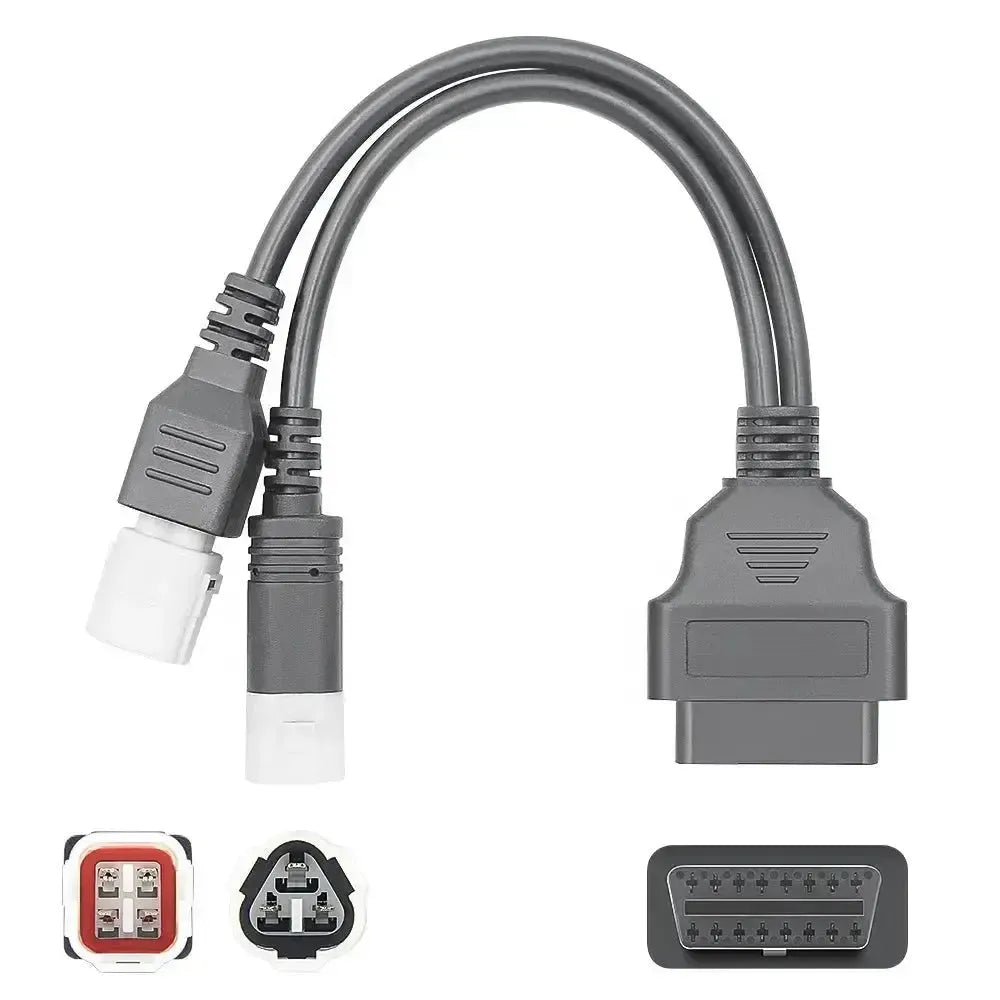

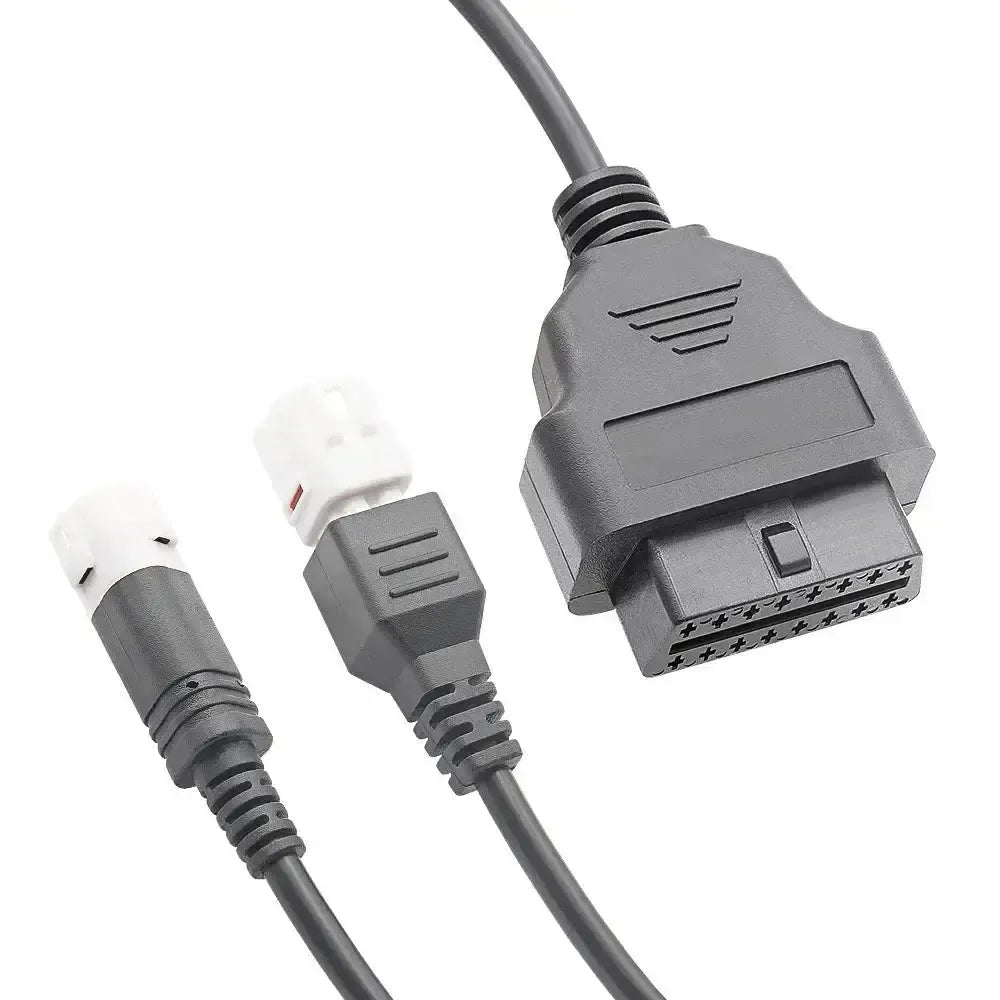

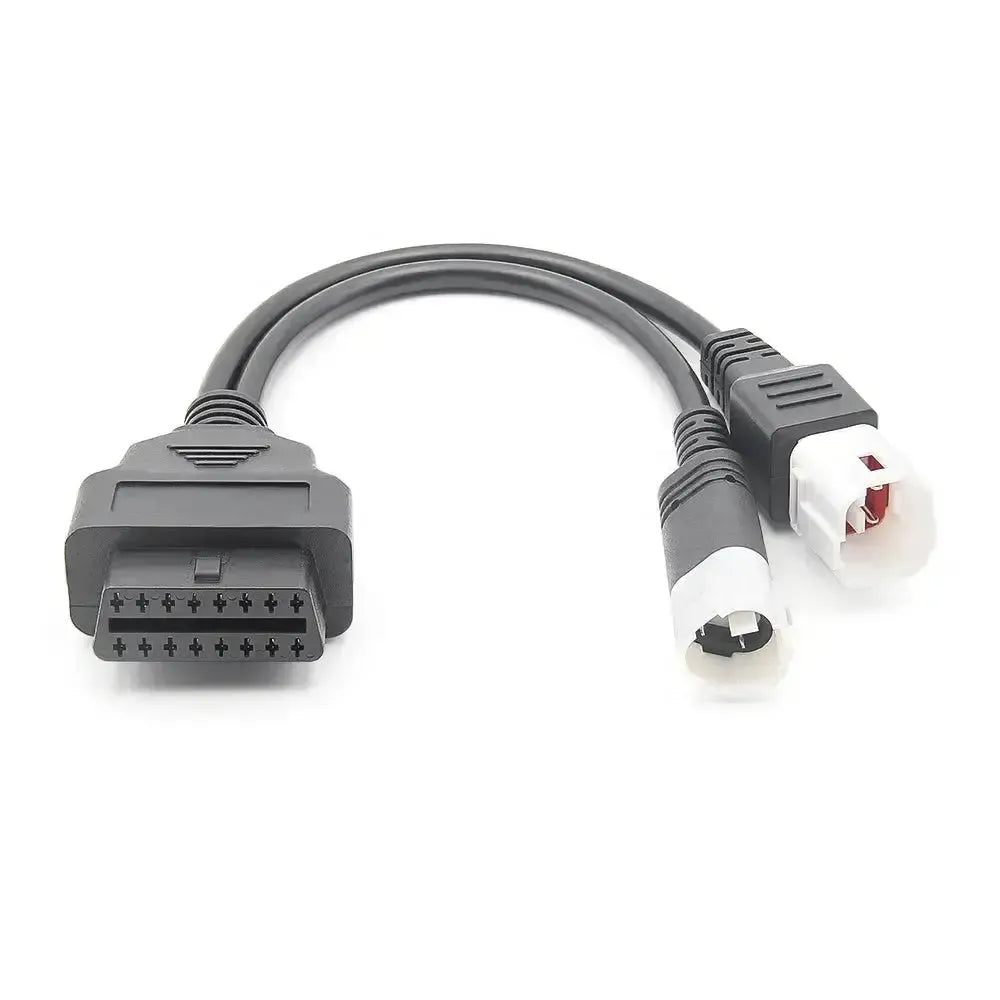

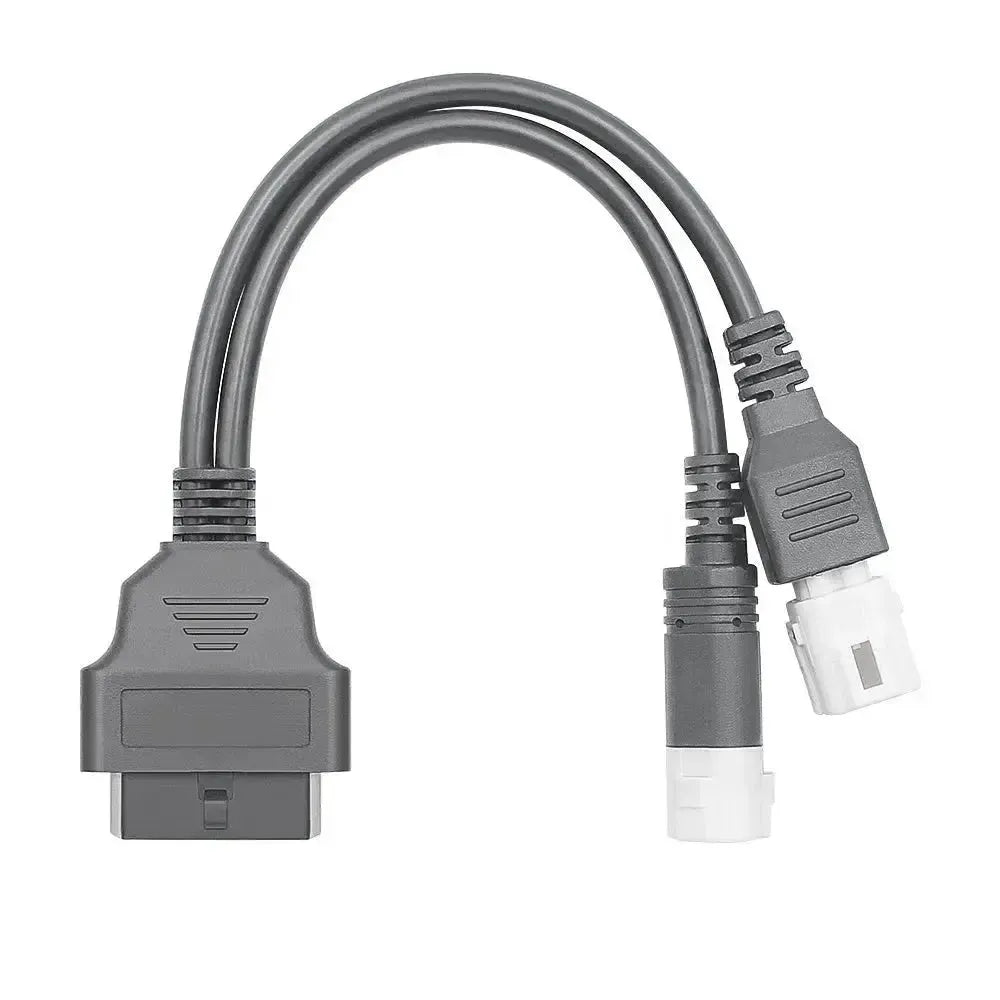

Yamaha 3+4-pins to 16-pins OBD2 Adapter Cable – Motorcycle

The Yamaha 3+4-pin to 16-pin OBD2 adapter cable is a versatile diagnostic adapter designed to diagnose both older and newer Yamaha motorcycles. This cable combines the two most commonly used Yamaha diagnostic connectors – the 3-pin (OBD1) and the 4-pin (Euro 4) – into a single solution, eliminating the need for separate adapter cables.

The adapter functions as a universal bridge between Yamaha diagnostic connectors and the standardized 16-pin OBD2 interface of a scanner or Bluetooth/Wi-Fi dongle. This enables both professional mechanics and owners to analyze a wide range of Yamaha models with a single cable, regardless of year of manufacture or communication protocol (K-Line or CAN bus).

Application and functionality:

This combined adapter is intended for electronic diagnostics on Yamaha motorcycles. Depending on the model, the 3-pin or 4-pin connector is used. Applications include:

• Read and clear fault codes: Diagnose engine faults and reset after repair
• View live data: Monitor RPM, throttle position, temperature, and sensor data
• Maintenance support: Simplify troubleshooting and service tasks

Note: the cable does not contain protocol conversion. The scanner used must support Yamaha-specific K-Line or CAN bus protocols.

Compatible with the following vehicle makes and models:

This combined adapter cable is compatible with Yamaha motorcycles with a 3-pin or 4-pin diagnostic connector. Examples:

3-pins connector (older models):

• YZF-R1 / YZF-R6 (older models)
• FZ6, FZ1
• X-MAX / T-MAX (older models)

4-pin connector (Euro 4 models):

• MT series: MT-07, MT-09, MT-10 (from approx. 2017)
• Tracer series: Tracer 700, Tracer 900
• XSR series: XSR700, XSR900
• YZF-R series: YZF-R1, R6, R3 (recent models)

Visually check your motorcycle's diagnostic connector before purchase. Newer Euro 5 models use a 6-pin connector.

Package Contents:

• 1x Yamaha 3-pin + 4-pin to 16-pin OBD2 adapter cable

Technical specifications:
