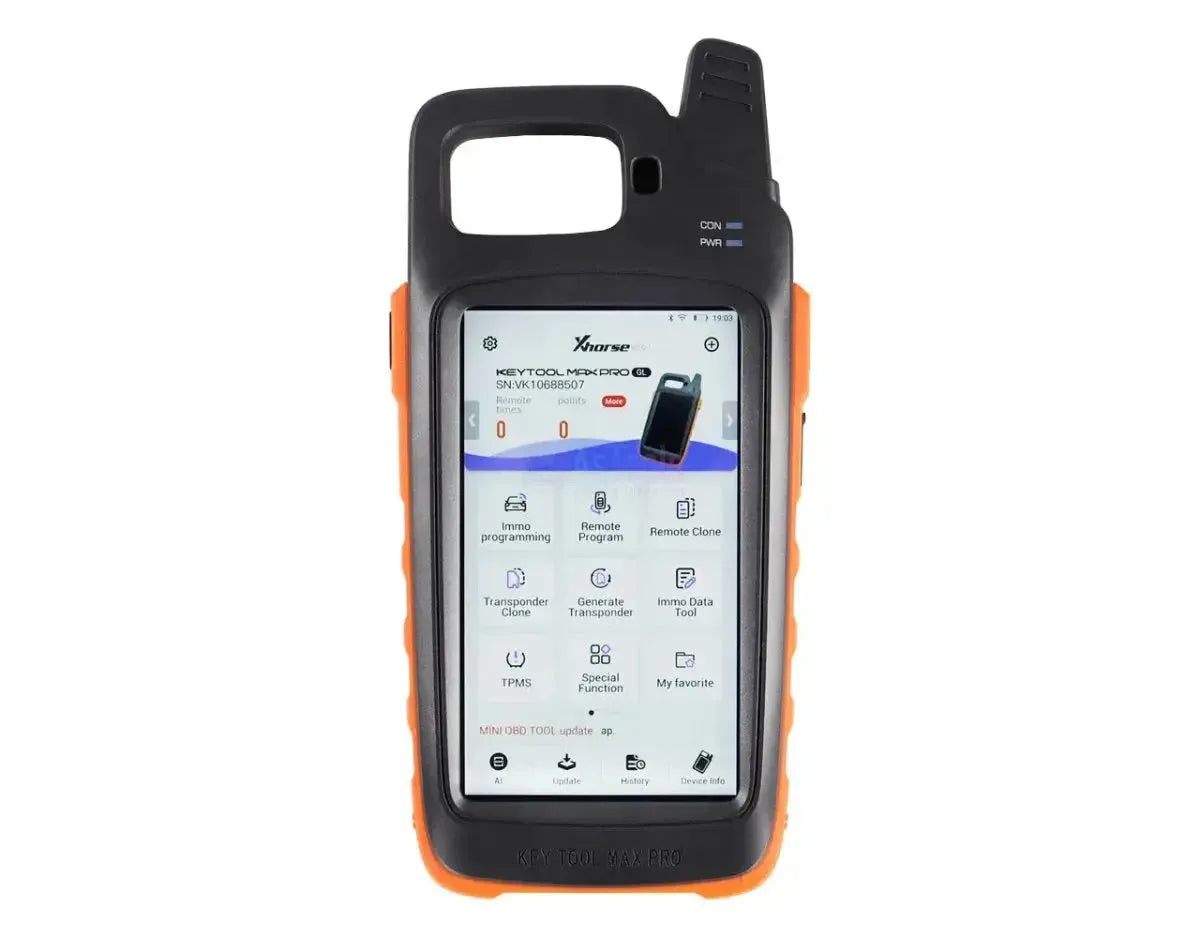

The Xhorse Key Tool Max Pro is a portable key programmer that combines the functionality of the Key Tool Max with an integrated Mini OBD tool. The device is designed for key specialists and automotive technicians who want to perform both transponder operations and vehicle diagnostics with one device. The Key Tool Max Pro features a 5-inch IPS touchscreen, built-in Wi-Fi and Bluetooth, and works with the Xhorse Cloud server for online updates and features.
The device communicates via the OBD2 port with the vehicle's ECU to learn keys, read PIN codes, and edit immobilizer data. In combination with a Xhorse Key Tool or Dolphin key machine, it functions as a remote control for wireless key generation and transponder cloning. The integrated voltage meter and frequency detector allow direct reading of signals from remotes and vehicle circuits without external measuring equipment.
ADVANTAGES
IMPORTANT NOTES
Applications and functionalities
The Key Tool Max Pro supports the following key and diagnostic operations:
- Immobilizer programming: Reads and programs keys via the OBD2 port on a wide range of vehicle brands.
- Remote programming: Generates and pairs Xhorse remotes with the vehicle for central locking.
- Remote cloning: Copies existing remotes to an Xhorse remote without vehicle interaction.
- Transponder cloning: Reads, identifies, and copies transponders to Super Chips or Xhorse blanks.
- Transponder generation: Creates new transponders for specific vehicle protocols based on vehicle data.
- Immo Data Tool: Edits EEPROM and immobilizer data for key preparation outside the vehicle.
- Maintenance functions: Performs basic resets such as oil reset, EPB, and service intervals via OBD.
- Special features: Offers additional OBD procedures for component learning and calibration.
Special features and capabilities
The following features distinguish the Key Tool Max Pro from standard key programmers:
- Voltage measurement: Measures vehicle voltages via test probes to check battery, power supply, and signal circuits.
- Frequency detection: Detects the transmission signal of remotes to determine if the remote is transmitting correctly.
- Wireless control: Operates via Bluetooth as a control unit for Xhorse key machines, enabling key cutting to be controlled from the device.
- Mini OBD integration: Compact OBD tool connected via a single cable, allowing the device to communicate independently with the vehicle.

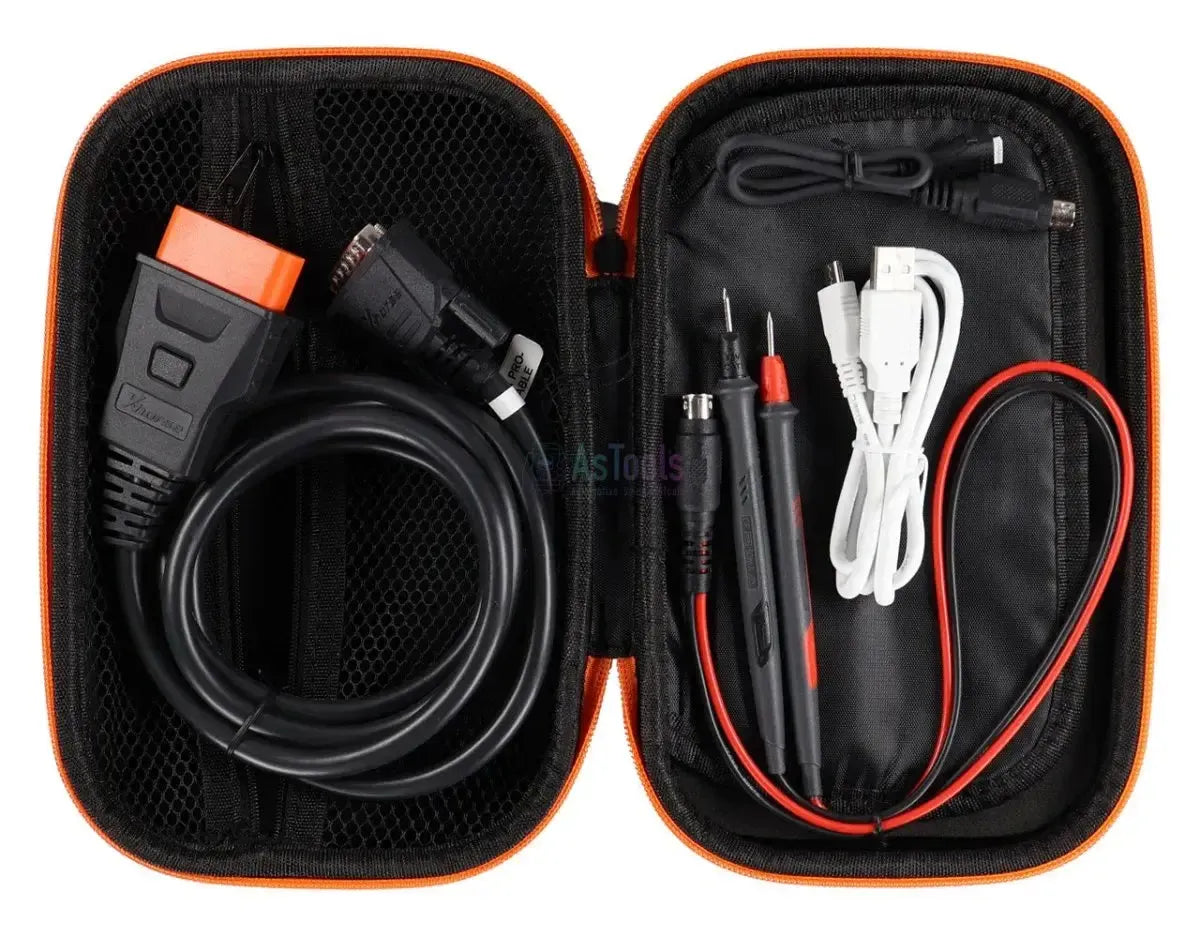

Package Contents
- 1x Xhorse Key Tool Max Pro | Key programmer
- 1x Mini OBD tool
- 1x OBD2 cable
- 1x Test probe set
- 1x USB charging cable

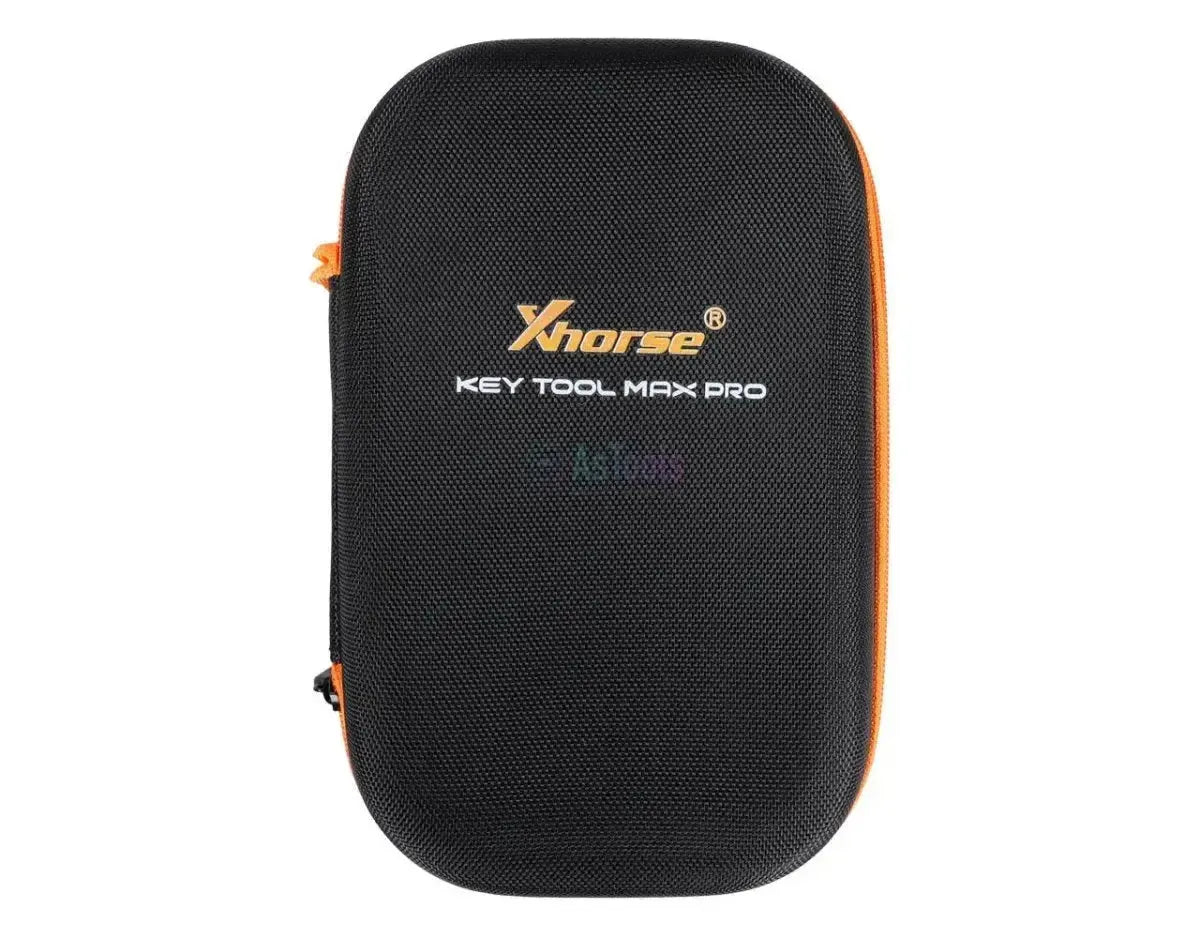

- 1x Storage case
Technical specifications
General
- The manufacturer of the key programming device.Brand
- Xhorse
- Whether it is a tablet with its own screen, a standalone programmer operated via an app, or an add-on for a diagnostic tablet.Type of device
- Standalone programmer with app
Key functions
- Programming a new key to the vehicle's immobiliser so the engine will start with it.Key programming (IMMO)
- Yes
- Reading the vehicle's security code, often required before a key can be programmed.PIN code reading
- Yes
- Recognising the chip in a key and reading or changing the data on it.Transponder reading and writing
- Yes
- Creating a new key chip or copying an existing one, allowing you to make a spare key.Transponder creation or copying
- Yes
- Creating or copying a remote control onto a blank remote. Useful when supplying spare keys frequently.Remote control creation
- Yes
- Pairing a remote control with the vehicle so it can lock and unlock the doors.Remote control programming
- Yes
- Checking whether a remote control transmits a signal and on which frequency. This quickly reveals a faulty remote.Remote control testing
- Yes
- Reading and writing directly to a control unit's memory. Required in difficult cases such as all keys lost.EEPROM and MCU reading and writing
- Yes
Additional functions
- Resetting the service light and maintenance interval after a service.Oil service reset
- Yes
- Releasing and resetting the electronic handbrake, required when replacing rear brake pads.Electronic parking brake (EPB)
- Yes
Screen and hardware
- The screen size, measured diagonally. A larger screen is easier to read.Screen size
- 5 inch
- Whether the screen is operated by touch.Touchscreen
- Yes
Connectivity and battery
- Wi-Fi allows updates to be downloaded and online functions to be used without a cable.Wi-Fi
- Yes
- Wireless connection to a phone, tablet or vehicle connector.Bluetooth
- Yes
Other specifications
- Type
- Key programmer with integrated OBD function
- Diagnostic connector
- OBD2 via Mini OBD tool
- Measurement functions
- Voltage measurement and frequency detection
- Power supply
- USB rechargeable, internal battery
- Updates
- Online via Xhorse Cloud Server
